Emerg enc y ass is tance
- Never use the jack supplied with your Audi
on another vehicle, particularly on a heavier
one. The jack is only suitable for use on the
vehicle it came w ith.
(D Tips
- Some of the on board items listed above are
provided on certain models only or are op­
tiona l extras .
- Before you can raise your vehicle using the
jack, you must act ivate the jacking mode
c:> page257.

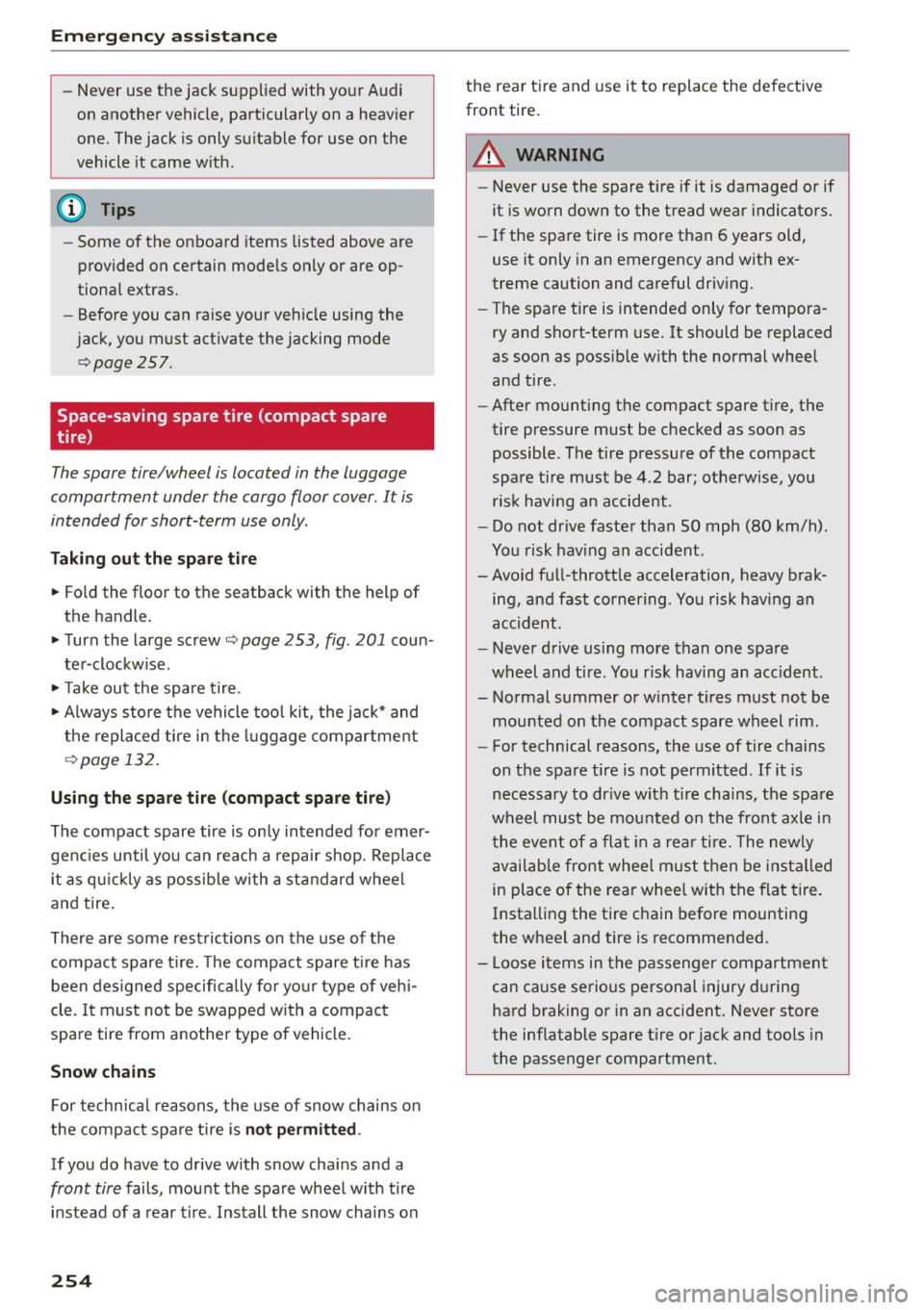

Space-saving spare tire {compact spare
tire)
The spare tire/wheel is located in the luggage
compartment under the cargo floor cover. It is
intended for short-term use only.
Taking out the sp are ti re
.,. Fo ld the floor to the seatback with the help of
the handle .
.,. Turn the large sc rew
c:> page 253, fig. 201 coun ­
te r-clockwise .
.,. Take out the spare tire .
.,. Always store the vehicle too l kit, the jack* and
the replaced tire in the luggage compartment
c:> page 132.
Using the spare tire (compact spare tir e)
The compact spare tire is only intended for emer­
gen cies until you can reach a repair shop. Rep lace
it as qu ickly as possible with a standard wheel
and tire .
There are some rest rictions on the use of the
compact spare t ire. The compact spare t ire has
been designed specifically for yo ur type of vehi­
cle.
It must not be swapped w ith a compact
spare tire from another type of vehicle.
Snow chains
F or technical reasons, the use of snow chains on
the compact spa re tire is
not permitted .
If you do have to drive w ith snow chains and a
front tire fails, mount the spare whee l w ith tire
instead of a rear t ire. Install the snow chains on
254
the rear t ire and use it to replace the defect ive
front tire.
A WARNING
- Never use the spare t ire if it is damaged or if
it is worn down to the tread wear indicators.
- If the spare tire is more than 6 years old,
use it only in an emergency and with ex­
treme caution and careful driv ing.
- The spare tire is intended only for tempora­
ry and short-term use.
It should be replaced
as soon as poss ible with the normal wheel
and tire .
- After mount ing the compact spare t ire, the
tire pressure must be checked as soon as
possible . The tire pressure of the compact
spare tire must be 4 .2 bar; otherwise, you
r is k havi ng an accident.
- Do not dr ive faster than SO mph (80 km/h) .
You risk hav ing an accident .
-Avoid full -thrott le acceleration, heavy brak ­
ing, and fast cornering . You risk hav ing an
accident .
- Never d rive us ing more than one spare
w heel and ti re . You r isk having an accident .
- Normal summer or w inter t ires must not be
mou nted on the compact spare wheel rim.
- For technical reasons , the use of tire chains
on the spa re tire is not permitted .
If it is
necessary to dr ive with tire chains, the spa re
w heel must be mounted on the front a xle in
t he event of a fla t in a re ar tire. The newly
avail able front whee l m ust th en be insta lled
in place of the rear wheel with the flat tire.
Insta lling the tire c hain before mounting
the whee l and tire is recommended.
- Loose items in the passenger compartment can cause se rious personal injury d uring
hard b raking o r in an accident. Never store
the inflatable spare t ire or jack and tools in
the passenge r compartment.

M N <( (.J
'SI: ,...., \!) 1.1'1
N \!) ,....,

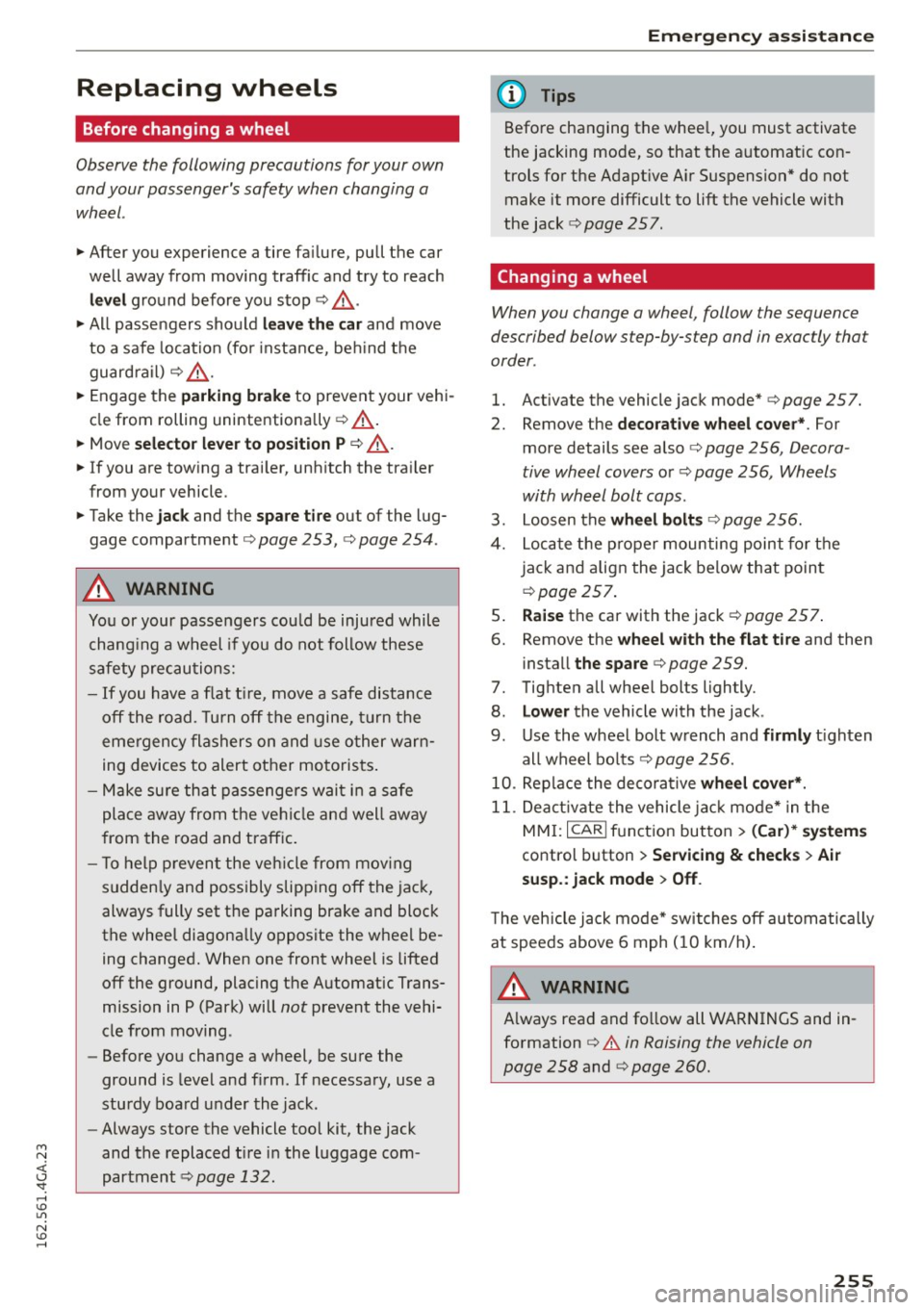

Replacing wheels
Before changing a wheel
Observe the following precautions for your own
and your passenger's safety when changing a
wheel .
.,. After you experience a tire failure, pull the car
well away from moving traffic and try to reach
level ground before you stop¢,& .
.. All passengers should
leave the car and move
to a safe location (for instance, beh ind the
guardrail) ¢ ,& .
.,. Engage the
parking brake to prevent your vehi­
cle from rolling unintentiona lly ¢,& .
.. Move
selector lever to position P ¢ ,& .
1> lfyou are towing a trai ler, unhitch the trailer
from your vehicle .
.,. Take the
jack and the spare tire out of the lug­
gage compartment
¢ page 253, ¢ page 254.
.,&. WARNING
You or your passengers could be injured while
changing a wheel if you do not follow these
safety precautions:
- If you have a flat tir e, move a safe distance
off the road. T urn off the engine, turn the
emergency flashers on and use other warn­
ing devices to alert other mo torists.
- Make sure that passengers wait in a safe
place away from the vehicle and well away
from the road and traffic.
- T o help prevent the vehicle from moving
sudden ly and possibly slipping off the jack,
always fully set the parking brake and block
the wheel diagonally opposite the wheel be­ ing changed. When one front wheel is lifted
off the ground, placing the Automatic Trans­
mission in P (Park) will
not prevent the vehi­
cle from moving.
- Before you change a wheel, be sure the
ground is level and firm . If necessary, use a
stu rdy board under the jack.
- Always store the vehicle tool kit, the jack
and the replaced tir e in the luggage com­
partment ¢
page 132.
Emergency assistance
{!) Tips
Before changing the whee l, you must activate
the jacking mode, so that the automat ic con­
trols for the Adapt ive Air Suspension* do not
make it more difficult to lift the vehicle with
the jack ¢
page 257 .
Changing a wheel
When you change a wheel , follow the sequence
described below step-by-s tep and in exactly tha t
order .
l. Activate the vehicle jack mode* ¢ page 2 5 7.
2. Remove the
decorative wheel cover*. For
more details see also¢
page 256, Decora ­
tive wheel covers
or¢ page 256, Wheels
with wheel bolt caps .
3. Loosen the wheel bolts ¢page 256.
4. Locate the pro per mounting point for the
jack and align the jack be low that point
¢page 257.
5. Raise the car with the jack¢ page 257 .
6. Remove the wheel with the flat tire and then
install
the spare ¢ page 259.
7. Tighten all wheel bolts ligh tly.
8.
Lower the vehicle with the jack .
9. Use the wheel bolt w rench and
firmly tighten
all wheel bolts¢
page 256 .
10. Replace the decorative wheel cover*.
11. Deactivate the vehicle jack mode* in the
MMI :
ICAR I funct ion button > (C ar)* systems
control button > Servicing & checks > Air
susp.: jack mode > Off .
The vehicle jack mode* switches off automatically
at speeds above 6 mph (10 km/h) .
.,&. WARNING ~ -
Always read and follow all WARNINGS and in ­
formation ¢
.& in Raising the vehicle on
page 258
and ¢ page 260.
255
