Page 256 of 284

Emergency situations
Emergency situations
General
This chapter is intended for trained emergency
crews and working personnel who have the nec
essary tools and equipment to perform these
operations.
Starting by pushing or
towing
(D Note
Vehicles with an automat ic transmission can
not be started by pushi ng or towing.
Starting with jumper
cables
If necessary, the engine con be started by con
necting it to the battery of another vehicle .
If the engine should fail to start because of a dis
charged or weak battery, the battery can be con
nected to the battery of
another vehicle, using a
pair of jumper cables to start the engine.
Jumper cables
Use only jumper cables of suffic iently large cross
section
to carry the starter current safely. Refer
to the manufacturer's specifications.
Use on ly jumper cables with
insulated term inal
clamps which are distinct ly marked :
plus(+ ) cable in most cases co lored red
minus (-) cable
in most cases colored black .
A WARNING
Batteries contain electricity, acid, and gas.
Any of these can cause very serious or fatal in
jury. Follow the instructions below for safe hand Ling of your veh icle's batte ry .
- Always shield your eyes and avo id leaning
over the battery whenever possible.
- A dead battery can freeze at temperatures
around 32 °F (0 °C). If the vehicle battery is
frozen, you must thaw it before connecting
the jump start cables.
If you do not, this in-
254
creases the risk of an explosion and chemi
cal burns. After jump starting the vehicle,
drive to an authorized Audi dealer or author
ized Audi Service Fac ility immediately to
have the vehicle battery checked.
- Do not allow battery acid to contact eyes or
skin . Flush any contacted area with water
immed iately.
- Improper use of a booster battery to start a
veh icle may cause an explosion .
- Vehicle batteries generate explosive gases.
Keep sparks, flame and lighted cigarettes
away from batter ies .
- Do not try to jump start any vehicle with a
low acid level in the battery .
- The voltage of the booster battery must also
have a 12-volt rat ing. The capacity (Ah) of
the booster battery should not be lower
than that of the discharged battery. Use of
batter ies of different voltage or substantial
ly different "Ah" rating may cause an exp lo
sion and persona l injury.
- Never cha rge a frozen battery. Gas trapped
in the ice may cause an explosion.
- Never cha rge o r use a battery that has been
frozen . The battery case may have be weak
ened.
- Use of batter ies of different voltage or sub
stantially diff erent capacity (Ah) rating may
cause an explosion and injury . The capacity
(Ah) of the booster battery should not be
lower than that of the discharged battery.
- Before you check anything in the engine
compartment, always read and heed all
WARNINGS
r=:> poge 199.
([) Note
-Applying a higher voltage booster battery
will cause expensive damage to sensitive electronic components, such as control
units, relays, radio, etc.
- Th ere must be no electrical contact between
the vehicles as otherwise current could al
ready start to flow as soon as the positive
(+) terminals are connected .

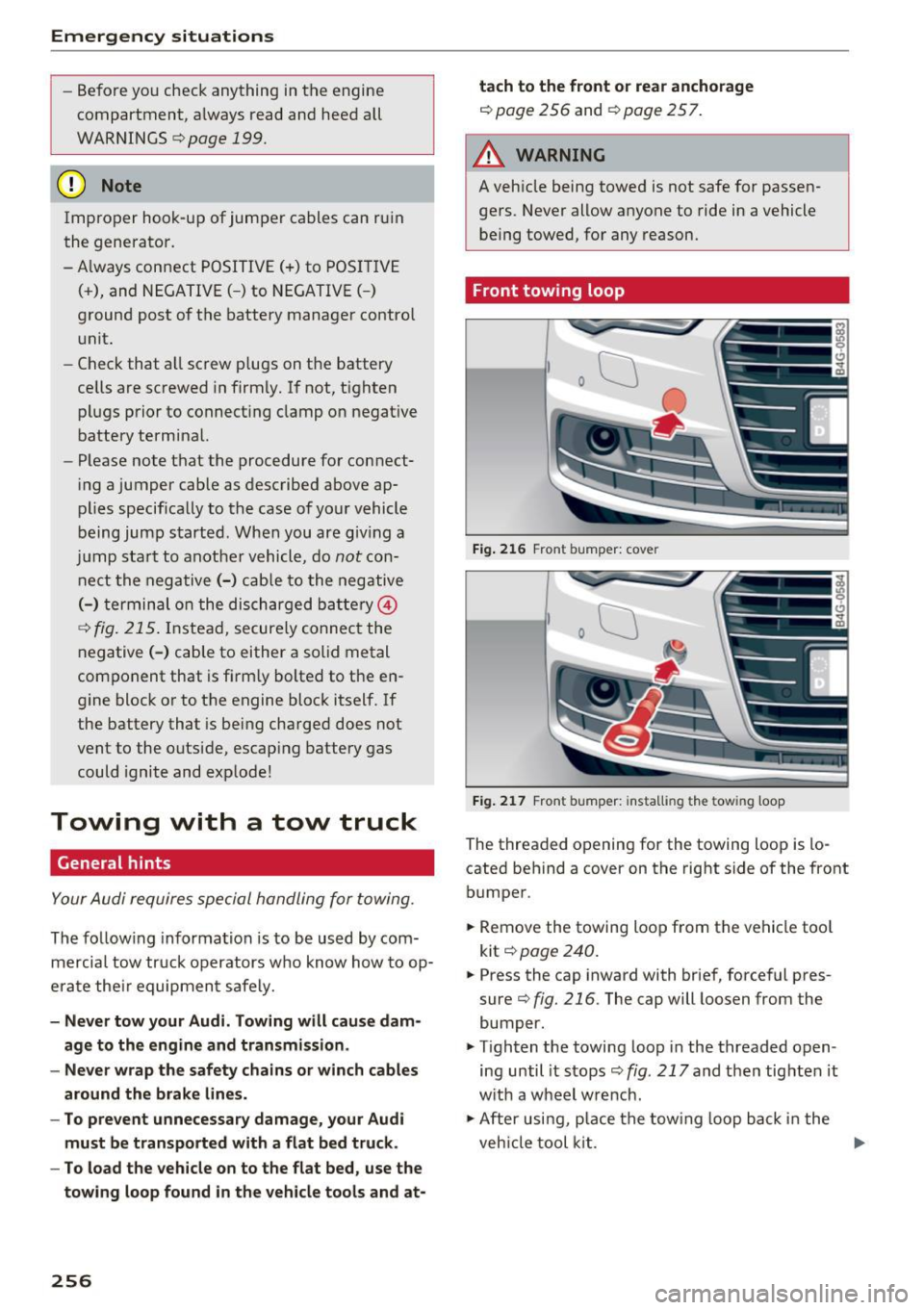

Page 258 of 284

Emergency situations
-Before you check anything in the engine
compartment, always read and heed all
WARNINGS
c> page 199.
(D Note
Improper hook-up of jumper cables can ruin
the generator.
-Always connect POSITIVE(+) to POSITIVE
(+), and NEGATIVE(-) to NEGATIVE(-)
ground post of the battery manager control
unit.
- Check that all screw plugs on the battery
cells are screwed in firmly. If not, tighten
plugs prior to connecting clamp on negative
battery terminal.
- Please note that the procedure for connect
ing a jumper cable as described above ap
plies specifically to the case of your vehicle
being jump started . When you are giving a
jump start to another vehicle, do
not con
nect the negative (-) cable to the negative
(-) terminal on the discharged battery @
c> fig. 215. Instead, securely connect the
negative(-) cable to either a solid metal
component that is firmly bolted to the en
gine block or to the engine block itself. If
the battery that is being charged does not
vent to the outside, escaping battery gas
could ignite and explode!
Towing with a tow truck
General hints
Your Audi requires special handling for towing.
The following information is to be used by com
mercial tow truck operators who know how to op
erate their equipment safely.
- Never tow your Audi. Towing will cause dam
age to the engine and transmission.
- Never wrap the safety chains or winch cables
around the brake lines.
- To prevent unnecessary damage, your Audi
must be transported with a flat bed truck.
- To load the vehicle on to the flat bed, use the
towing loop found in the vehicle tools and at-
256
tach to the front or rear anchorage
c>page 256 and ¢page 257.
A WARNING
A vehicle being towed is not safe for passen
gers . Never allow anyone to ride in a vehicle
being towed, for any reason.
Front towing loop
Fig. 216 Front bumper: cover
Fig. 217 Front bumpe r: install ing the tow ing loop
The threaded opening for the towing loop is lo
cated behind a cover on the right side of the front
bumper .
.. Remove the towing loop from the vehicle tool
kit
c> page 240.
.. Press the cap inward with brief, forceful pres
sure
¢fig. 216. The cap will loosen from the
bumper.
.. Tighten the towing loop in the threaded open
ing until it stops
¢ fig. 217 and then tighten it
with a wheel wrench .
.. After using, place the towing loop back in the
vehicle tool kit.
IJli>

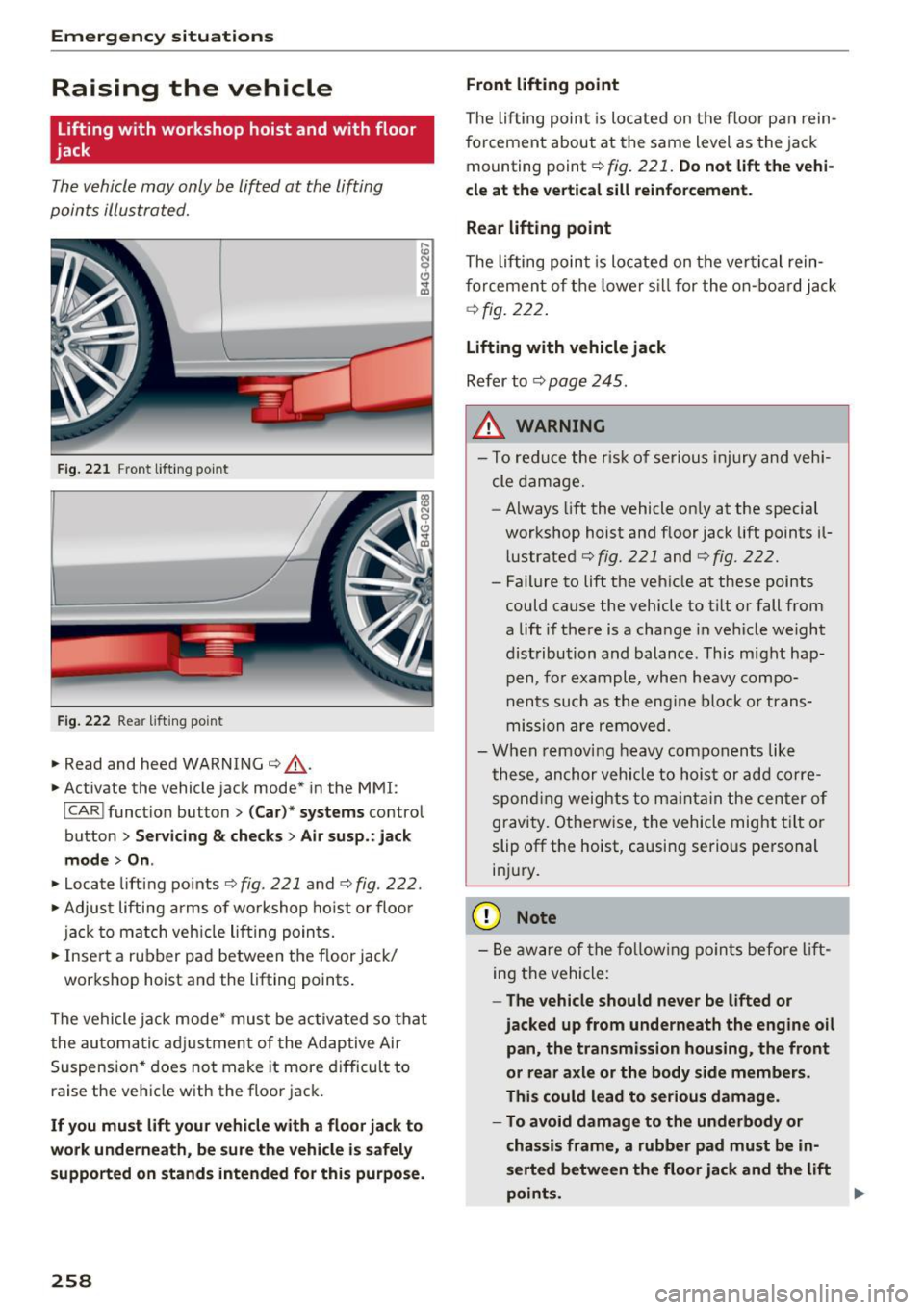

Page 260 of 284

Emergency situations
Raising the vehicle
Lifting with workshop hoist and with floor
jack
Th e vehicle may only b e lift ed at the lifting
poin ts illust rated.
F ig .. 221 F ro nt lift ing po int
F ig. 222 Rea r lifti ng po int
.,. Read and heed WARNING c::> A -
.,. Activate the vehicle jac k mode* in the MMI:
I CAR I funct io n button > (Car) * systems co ntro l
button
> Servicing & checks > Air susp. : jack
mode > On .
.,. Lo ca te lift ing po ints c::> fig . 221 a nd c::> fig . 222 .
.,. Adjus t lifting arms of wo rk shop hoist o r floo r
jac k to m atch veh icle li fting poin ts.
.,. Inse rt a rubber pa d between the floor jack/
wor kshop hoist an d the lifting points .
Th e ve hicle jack mode* must be activa ted so that
the au tom atic a djustment of the Ad aptive Air
S uspens ion* does no t make it more d ifficult to
raise the ve hicle w ith the floor jac k.
If you must lift your vehicle with a floor jack to
work underneath, be sure the vehicle is safely
supported on stands intended for this purpose.
258
Front lifting point
The li fting point is lo cated on the floor pa n rein
f orcement about at the same level as the ja ck
mounting point
c::> fig . 221. Do not lift the vehi
cle at the vertical sill reinforcement.
Rear lifting point
The lif ting poin t is loca ted on the ve rtic al rein
forcement of t he lower sill for the o n-b o ard jack
c::>fig. 22 2.
Lifting with vehicle jack
Refer to c::> page 245 .
A WARNING
-To red uce the r is k of se rious inju ry and vehi
cle damage.
- Always lift the vehicle on ly at the special
workshop hoist an d floor jack lift points il
l ustrated
c::> fig. 221 and c::> fig. 222.
- Fail ure to lift the ve hicle at these points
could cause the vehicle to t ilt o r fall from
a lift i f there is a cha nge in ve hicle we ight
dist ribution and balance . This might hap
pen, fo r example, wh en heavy compo
n en ts such as the eng ine block o r tra ns
m iss ion are re moved .
- Whe n rem oving heavy co m po nents like
t hese, an chor vehicle to hois t or add cor re
s p ondin g weig hts to maintai n the cen ter of
gravi ty . O th erw ise, the vehicle might t ilt or
slip off the hoist, causi ng serio us pers onal
in jur y .
(D Note
- B e aw are of the follo wing p oints bef ore lift
ing the vehicle :
-The vehicle should never be lifted or
jacked up from underneath the engine oil
pan, the transmission housing, the front
or rear axle or the body side members.
This could lead to serious damage .
- To avoid damage to the underbody or
chassis frame, a rubber pad must be in
serted between the floor jack and the lift
points.
Page 262 of 284

Technical data
Technical data
Vehicle specifications
Fig. 223 Windshiel d (fro nt left) : Ve hicl e Iden tific ation
N um ber ( VIN )
XXXXX XX -X -XXXX XXX XX
@-+ ~:~t::1 ::: xxxxxxxx xx x xxxxxxxx
I YP lf'VPE XXX XXX
XX XXXXXXX XX X X XX
XXX
KW XXX
15\_L I MOIOlll
@-+ ~~
1
:tr:~i XXXX I XXXX XXX I XX
II. -AUSST . / OPTIONS
.__ __
E0A 7D5 4UB
2EH J0Z lLB
3FC F0 A 9G3
T L6 3 KA BEH
lXW 803
7T6 CV7 7K0
3L4 4KC
lS A 7GB
6XM SSG
lAS
SMU 7Xl
0G7 0YH
UlA X9B
908 8Z4
4X3
2K2
3Y0 413
01A
SR W
1BA
OJF
027
020
502
4G0
XX X XX X XX X XXXX
Fig. 224 Vehicle identification label
Vehicle Identification Number (VIN)
The VIN numbe r is located in the following pla
ces :
- In the Infotainment system: select: the!CAR !
funct ion button
> (Car)* systems control but
ton
> Serve & checks > VIN number .
-on the vehicle identification label
- under the windshield on the driver's side*
260
Vehicle identification label
The vehicle identification label¢ fig. 224 is locat
ed in the luggage compartment under the cargo
floor cover.
The information of the vehicle identification label
can also be found in your Warranty
& Mainte
nance booklet.
The sticker contains the follow ing vehicle data:
(D Vehicle Iden tifica tion Number (VIN)
@ Vehicle type, eng ine output, transmission
® Engin e and transm ission cod es
@ Paint and interior codes
® Optional equipment numbe rs
Safety compliance sticker
The safety compliance sticker is your assurance
that your new vehicle complies with all applicable
Federal Motor Vehicle Safety Standards which
were in effect at the time the vehicle was manu
factured. You can find this sticker on the door
jamb on the dr iver's side . It shows the month and
y ear of production and the vehicle identification
number of you r vehicle (perforation) as well as
the G ross Veh icle Weight R ating (GVWR) and the
Gro ss Axle Weight Rating (GAWR).
H igh voltage warning label
The high voltag e warn ing label is located in the
e ngine compartment n ext to the engine hood re
lease. The spark ignit ion system complie s w ith
the Canad ian s tand ard IC ES-002.
Notes about technical
data
The values may differ for some markets depend
ing on equipment installed in certain markets
and the measur ing methods .
Plea se note that the specifications listed in the
vehicle documentation a lways take precedence .
(D Tips
Missing technical data was not available at
the time of printing .

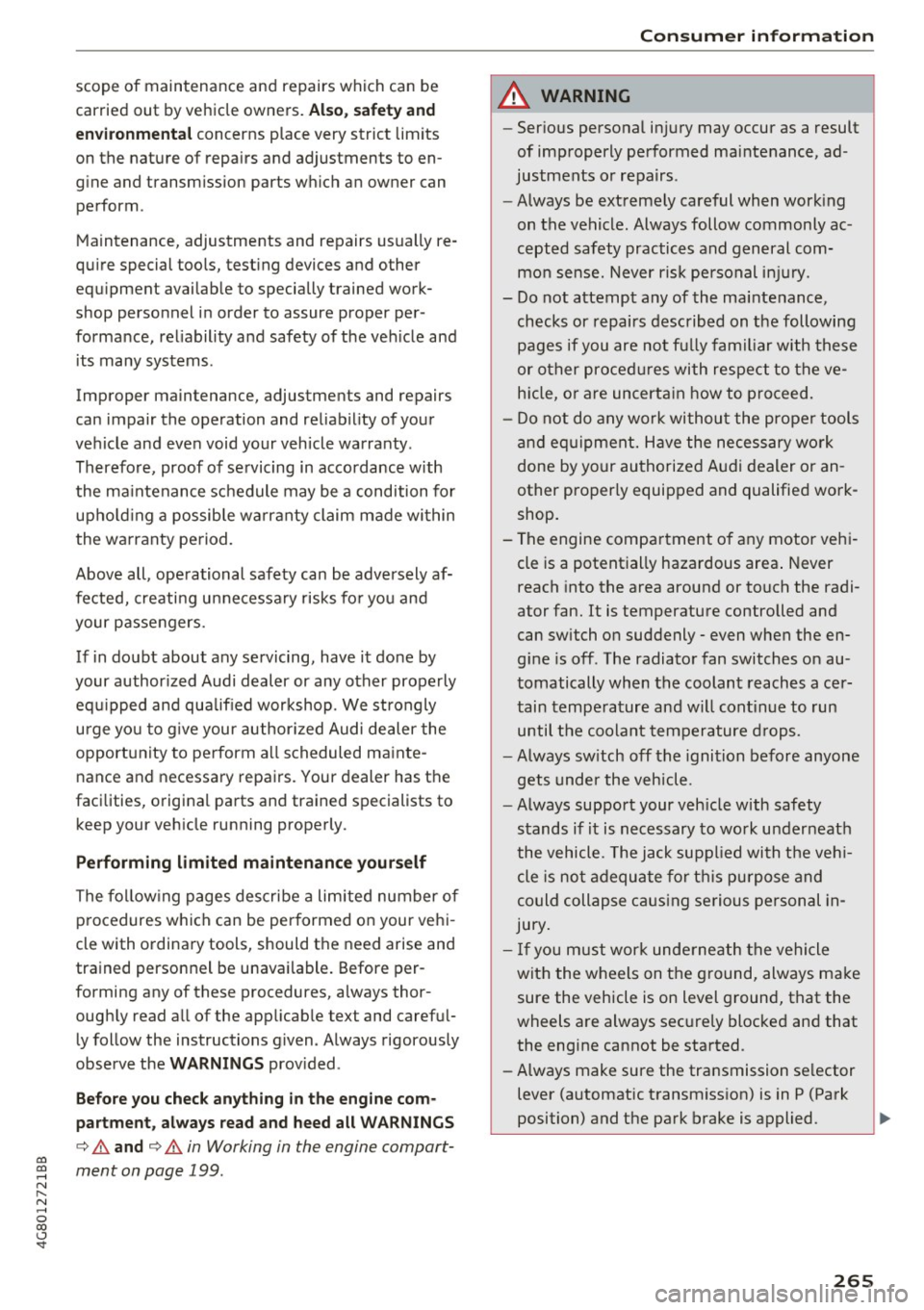

Page 267 of 284

co
co
.... N
" N .... 0
00
\.J '
carried out by vehicle owners.
Also, safet y and
en vir onm enta l
concerns place very strict limits
on the nature of repairs and adjustments to en
g ine and transm ission parts wh ich an owner can
perform .
Maintenance, adjustments and repairs usually re
qu ire special tools, test ing devices and other
equ ipment available to specially trained work
shop perso nnel i n order to assure proper per
forma nce, re liability and safety of the ve hicle and
i ts many systems.
Improper maintenance, adjustments and repairs
can impair the operation and reliability of your
vehicle and even void your veh icle warranty.
Therefore, proof of se rvicing in accordance with
the ma intenance sc hedule may be a condition for
upho ld ing a possib le wa rranty claim made wi thin
the warranty pe riod.
Above all, operational safety can be adversely af
fected, creating unnecessa ry risks fo r you and
your p assengers.
If in doubt about any se rvicing, have it done by
your author ized Audi dealer or any other properly
eq uipped and qua lified workshop. We strongly
urge yo u to g ive your author ized Audi dealer the
opport unity to perform a ll scheduled ma inte
nance and necessary repairs . Your dealer has the
facilities, origina l parts and trained specialists to
keep your veh icle running properly .
Performing limited maintenance yourself
The follow ing pages des cribe a lim ited number of
p rocedures w hich can be per formed o n your veh i
cle with ordinary tools, should the need arise and
trained personnel be unavailable . Before per
forming any of these procedures, always thor
ough ly read a ll of the app licab le text and carefu l
ly follow the instructions g iven. Always rigorously
observe the
WARNING S provided .
Before you check anything in the engine com ·
partment , always read and heed all WARNINGS
c:> &. and c:> &. in Working in the engine compart
ment on page 199.
Con sumer inf ormation
A WARNING
- Ser ious personal in jury may occur as a result
of improperly performed maintenance, ad
justments or re pairs .
- Always be extremely careful when work ing
on the vehicle. Always follow commonly ac
cepted safety practices and general com mo n sense. Never risk pe rsonal injury.
- Do not attempt any of the mai ntenance,
checks or repairs described on t he following
pages if you are not fu lly familiar wi th these
or other proce dures with respect to the ve
h icle, o r are uncerta in how to pro ceed.
- Do not do a ny work withou t the prope r tools
a nd eq uipment. H ave the necessary wo rk
done by your au thorized Audi dealer or an
other proper ly equipped and qualified wo rk
shop.
- The engine compa rtment of any motor ve hi
cle is a potent ially hazardous area . Never
reach into the area around or touch the radi
ator fan.
It is temperature controlled and
can switch o n suddenly - even when the en
g ine is off . The radiato r fan switches on au
tomatically when the coolan t reaches a cer
tain tempe ra ture and w ill cont inue to run
until the coolant temperature d rops.
- Always sw itch off the ignition before anyone
gets under the vehicle.
- Always support your veh icle with safety
s tands if it is necessary to work underneat h
the vehicle . The jack supp lied with t he veh i
cle is no t adequ ate for t his pu rpose and
could collapse ca us ing serious personal in
jury.
- If you m ust wor k unde rne ath the vehicle
with the wheels on the ground, always make
sure the vehicle is on level ground, that the
wheels a re always sec urely blocked and that
the engine cannot be started.
- Always make sure the transmission se lector
lever (automatic t ransmiss ion) is in P (Park
position) and the pa rk brake is applied .
II>
265
Page 268 of 284

Consumer inf orm ation
@ For the sake of the env ironment
- Changing the engine settings wi ll adversely
affect emission levels. Th is is detrimental to
the environment and increases fuel con
sumption.
- A lways observe environmental regu lations
when disposing of old engine o il, used brake
fl ui d, d irty engine coolant, spent batteries
or worn out tires.
- Undeployed airbag modules and pretension
ers mig ht be classified as Perchlorate Mate
rial -special handl ing may apply, see
www.dtsc .ca.gov/hazardouswaste/perchlo
r ate. When the vehicle or parts of the re
straint system including airbag modu les
safety be lts wi th pretensioners are scrap
ped, all applicab le laws and regulations
must be observed. Your authorized Audi
dealer is familiar with these requirements
and we recommend that you have your deal er perform this service for you.
Accessories and technical changes
Additional accessories and parts replacement
Always consult an authorized Audi dealer before
purchasing accessories.
Your vehicle incorporates the latest safety design
features ensuring a high standard of active and passive safety.
This safety could be comp romised by non-ap
proved changes to the vehicle . For this reason, if
parts have to be replaced, please observe the fo l
lowing points when insta lling addit ional accesso
ries:
Approved Audi accessories and genuine Audi parts are available from author ized Audi dealers.
These dealers also have the necessary faci lities,
too ls and trained specialists to install the parts
and accessories properly.
266
A WARNING
-
Using the wrong spare parts or using non-ap-
proved accessories can cause damage to the
vehicle and serious personal injury.
- Use only accessories expressly approved by
Aud i and genuine Audi spare parts
- These parts and accessor ies have been spe
cially designed to be used on your vehicle.
- Do not use license plate brackets in the
front area that are d ifferent from the one
installed at the factory, or add additional li
cense plate brackets.
- Never install accessor ies such as telephone
cradles or beverage holders on airbag covers
or w it hi n the airbag deployment zones. Do
ing so will i ncrease t he risk of injury if a ir
bags are triggered in an accident!
- Before you check anything in the eng ine
compa rtment, always read and heed all
WARN INGS ¢page 199.
(D Note
-If items other than genu ine A udi spa re
parts, add-on equipment and accessory
i t ems are used or if repair wor k is not per
formed according to specified me thods, this
can resul t in severe damage to your vehi
cle's eng ine and body (such as corrosion)
and adve rsely affect your vehicle's warranty.
- If emergency repai rs must be per formed
elsewhere, have the vehicle examined by an
authorized Audi dealer as soon as possib le .
- The manufacturer cannot be held liable for
damage which occurs d ue to failure to com
ply with these stipulations.
Technical Modifications
Our guidelines must be complied with when tech
nical modifications are made .
A lways consu lt an authorized Audi dea ler
before
start ing work on any modifications .
This will help ensure tha t vehi cle fu nction, per-
fo rmance and s afety are not impaired¢ &,.
ll-
Page 273 of 284

co
co
.... N
" N .... 0
00
\.J -
mat e control) . . . . . . . . . . . . . . . . . . . . . . . . . 62
Cooling mode (deluxe automatic climate con-
trol) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Cooling system Adding coolant . . . . . . . . . . . . . . . . . . . . . . 206
Coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . . 205
Coolant level checking . . . . . . . . . . . . . . . . 206
Coolant temperature indicator . . . . . . . . . . . 9
Indicator light . . . . . . . . . . . . . . . . . . . . . . . 14
Cornering light . . . . . . . . . . . . . . . . . . . . . . . 105
Crossing water . . . . . . . . . . . . . . . . . . . . . . . . 65
Cruise control system Changing speed . . . . . . . . . . . . . . . . . . . . . . 86
Preselecting speed . . . . . . . . . . . . . . . . . . . . 86
Switching off . . . . . . . . . . . . . . . . . . . . . . . . 86
switching on . . . . . . . . . . . . . . . . . . . . . . . . . 85
Cup holders . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Current consumption . . . . . . . . . . . . . . . . . . . 22
Cylinder management
refer to Cylinder on demand system . . . . . . 22
Cylinder on demand system . . . . . . . . . . . . . . 22
D
Data recorder . . . . . . . . . . . . . . . . . . . . . . . . 127
Date display . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Daytime running lights . . . . . . . . . . . . . . . . . 40
Declar ation of compliance
Adaptive cruise control . . . . . . . . . . . . . . . 267
Aud i side assist . . . . . . . . . . . . . . . . . . . . . 267
Ce ll phone package . . . . . . . . . . . . . . . . . . 267
Convenience key . . . . . . . . . . . . . . . . . . . . . 267
Electronic immobilizer. . . . . . . . . . . . . . . . 267
Garage door opener (Homelink) . . . . . . . . 267
Remote control key . . . . . . . . . . . . . . . . . . 267
Tire pr essure monitoring system . . . . . . . 267
DEF
refer to Ad Blue . . . . . . . . . . . . . . . . . . . . . . 195
Defective light bulb warning Indicator light . . . . . . . . . . . . . . . . . . . . . . . 19
Defrosting (windows) Deluxe automati c climate control . . . . . 60, 62
DEF (instrument cluster) . . . . . . . . . . . . . . . . 24
Deluxe automatic climate control Air vents . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Dete rmining correct load limit . . . . . . . . . . 226
Index
Diesel
Indicator light . . . . . . . . . . . . . . . . . . . . . . . 17
Prewarming . . . . . . . . . . . . . . . . . . . . . . . . . 69
Diesel Exhaust Fluid (DEF)
refer to Ad Blue . . . . . . . . . . . . . . . . . . . . . . 195
Diesel fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . 192
Di esel particulate filter . . . . . . . . . . . . . . . . 199
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . 261
Dimming the rearview mirror . . . . . . . . . . . . 44
Distance driven . . . . . . . . . . . . . . . . . . . . . . . . 22
Door/rear lid warning . . . . . . . . . . . . . . . . . . . 21
Doo rs
Child safety lock . . . . . . . . . . . . . . . . . . . . . . 36
Closing aid . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Emergency locking . . . . . . . . . . . . . . . . . . . . 32
Driver information system . . . . . . . . . . . . . . . 21
Boost . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
CD/radio display . . . . . . . . . . . . . . . . . . . . . . 21
Door/rear lid warning . . . . . . . . . . . . . . . . . 21
Efficiency program . . . . . . . . . . . . . . . . . . . . 23
Engine oil temperature d isplay . . . . . . . . . . 87
Exterior temperature display . . . . . . . . . . . 21
On-board computer . . . . . . . . . . . . . . . . . . . 22
Service interval display . . . . . . . . . . . . . . . 209
Shifting indicator . . . . . . . . . . . . . . . . . . . . . 87
Driver seating position . . . . . . . . . . . . . . . . . 130
Drive select . . . . . . . . . . . . . . . . . . . . . . . . . . 105
Driving economically . . . . . . . . . . . . . . . . . . . 66
Driving safely . . . . . . . . . . . . . . . . . . . . . . . . 129
Driving through water . . . . . . . . . . . . . . . . . . 65
Driving time . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Dust filter
refer to Pollutant filter . . . . . . . . . . . . . . . . 59
Dynamic steering . . . . . . . . . . . . . . . . . . . . . 105
Indicator light . . . . . . . . . . . . . . . . . . . . . . 124
E
Easy seat entry . . . . . . . . . . . . . . . . . . . . . . . . 69
Economy tips (efficiency program) . . . . . . . . 23
ED L
refer to Electronic Differential Lock . . . . . 120
Efficiency program . . . . . . . . . . . . . . . . . . . . . 23
Electromechanical parking brake . . . . . . . . . 7 4
Electromechanical steering . . . . . . . . . . . . . 124
I ndicato r light . . . . . . . . . . . . . . . . . . . . . . 124
271
Page 274 of 284

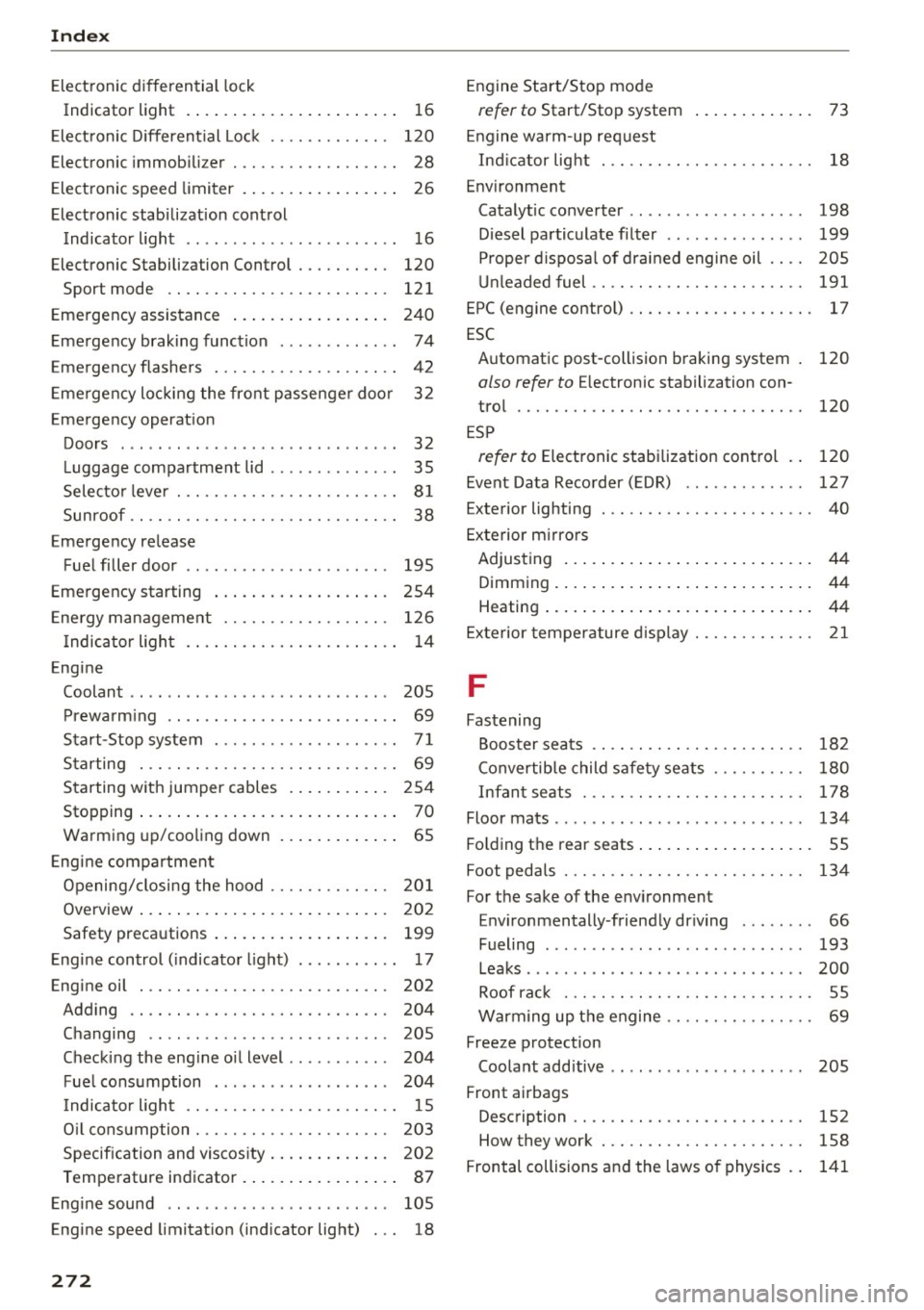

Index
Electronic differential lock
Indicator light . . . . . . . . . . . . . . . . . . . . . . . 16
Electronic D ifferent ial Lock . . . . . . . . . . . . . 120
Electronic immobilizer . . . . . . . . . . . . . . . . . . 28
Electronic speed limiter . . . . . . . . . . . . . . . . . 26
Electronic stabilization control Indicator light . . . . . . . . . . . . . . . . . . . . . . . 16
Electronic Stabilization Control . . . . . . . . . . 120
Sport mode . . . . . . . . . . . . . . . . . . . . . . . . 121
Emergency assistance . . . . . . . . . . . . . . . . . 240
Emergency braking function . . . . . . . . . . . . . 74
E mergency flashers . . . . . . . . . . . . . . . . . . . . 42
Emergency locking the front passenger door 32
E mergency operation
Doors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Luggage compartment lid . . . . . . . . . . . . . . 3S
Selector lever . . . . . . . . . . . . . . . . . . . . . . . . 81
Sunroof. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Emergency release
Fuel filler door . . . . . . . . . . . . . . . . . . . . . . 195
Emergency starting 254
Energy management . . . . . . . . . . . . . . . . . . 126
I ndicator light . . . . . . . . . . . . . . . . . . . . . . . 14
Engi ne
Coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . . 205
Prewarming . . . . . . . . . . . . . . . . . . . . . . . . . 69
Start-Stop system . . . . . . . . . . . . . . . . . . . . 71
Starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
Starting with jumper cables . . . . . . . . . . . 254
Stopping . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Warming up/cooling down . . . . . . . . . . . . . 65
Engine compartment
Opening/closing the hood . . . . . . . . . . . . . 201
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . 202
Safety precautions . . . . . . . . . . . . . . . . . . . 199
Engine control (indicator light) . . . . . . . . . . . 17
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . 202
Adding . . . . . . . . . . . . . . . . . . . . . . . . . . . . 204
Changing . . . . . . . . . . . . . . . . . . . . . . . . . . 205
Checking the engine oil level . . . . . . . . . . . 204
Fue l consumption . . . . . . . . . . . . . . . . . . . 204
Indicator light . . . . . . . . . . . . . . . . . . . . . . . 15
O il consumption . . . . . . . . . . . . . . . . . . . . . 203
Specification and viscosity . . . . . . . . . . . . . 202
Temperature indicator . . . . . . . . . . . . . . . . . 87
Engine sound . . . . . . . . . . . . . . . . . . . . . . . . 105
Engine speed limitat ion (indicator light) . . . 18
272
Engine Start/Stop mode
refer to Start/Stop system . . . . . . . . . . . . . 73
Engine warm-up request
Ind icator light . . . . . . . . . . . . . . . . . . . . . . . 18
Environment Catalytic converter . . . . . . . . . . . . . . . . . . . 198
Diesel particulate filter . . . . . . . . . . . . . . . 199
Proper d isposa l of drained engine oil . . . . 205
Unleaded fuel.. .. .. .. .. ........... .. 191
EPC (engine contro l).. .. ............. ... 17
ESC Automatic post-collision braking system .
also refer to Electroni c stabilization con
trol
...............................
ESP
refer to Electronic stabilization control ..
Event Data Recorder (EDR) ............ . 120
120
120
127
Exterior lighting . . . . . . . . . . . . . . . . . . . . . . . 40
Exterior mirrors
Adjusting . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
D ' . 1mming ........ .. .. ................ 44
Heating...... ... .. .. ................ 44
Exterior temperature display . . . . . . . . . . . . . 21
F
Fastening
Booster seats . . . . . . . . . . . . . . . . . . . . . . . 182
Convertible child safety seats . . . . . . . . . . 180
Infant seats . . . . . . . . . . . . . . . . . . . . . . . . 178
Floor mats . . . . . . . . . . . . . . . . . . . . . . . . . . . 134
Folding the rear seats . . . . . . . . . . . . . . . . . . . 55
Foot pedals . . . . . . . . . . . . . . . . . . . . . . . . . . 134
For the sake of the environment
E nvironmentally -friendly driving . . . . . . . . 66
Fueling . . . . . . . . . . . . . . . . . . . . . . . . . . . . 193
Leaks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200
Roof rack . .. .. .. .. .. ... .......... ... 55
Warming up the engine . . . . . . . . . . . . . . . . 69
Freeze protection
Coolant additive . . . . . . . . . . . . . . . . . . . . . 205
Front airbags Description . . . . . . . . . . . . . . . . . . . . . . . . . 152
How they work . . . . . . . . . . . . . . . . . . . . . . 158
Frontal collisions and the laws of physics . . 141
