make sure that everybody in your vehicle is
properly restrained.
- Always hold the steering wheel with both
hands on the outside of the steering wheel
rim at the 9:00 o'clock and 3:00 o'clock po
sitions to help reduce the risk of personal in
jury if the driver's airbag inflates .
- Never hold the steering wheel at the 12
o'clock position or with your hands any
where inside the steering wheel or on the steering wheel hub. Holding the steering
wheel the wrong way increases the risk of
severe injury to the arms, hands, and head if
the driver airbag deploys.
& WARNING
Objects between you and the airbag will in
crease the risk of injury in a crash by interfer
ing with the way the airbag unfolds and/or by
being pushed into you as the airbag inflates.
- Always make sure nothing is in the front air-
-
bag deployment zone that could be struck
by the airbag when it inflates.
- Objects in the zone of a deploying airbag
can become projectiles when the airbag de
ploys and cause serious personal injury.
- Never hold things in your hands or on your
lap when the vehicle is in use.
- Never place accessories or other objects
(such as cup holders, telephone brackets,
note pads, navigation systems, or things
that are large, heavy, or bulky) on the doors;
never attach then to the doors or the wind
shield; never place them over or near or at
tach them to the area marked ,,AIRBAG" on
the steering wheel, instrument panel or the seat backrests; never place them between
these areas and you or any other person in
the vehicle .
- Never attach objects to the windshield
above the passenger front airbag, such as
accessory GPS navigation units or music
players. Such objects could cause serious in
jury in a collision, especially when the air bags inflate .
Airbag system
-Never recline the front passenger seat to
transport objects. Items can also move into
the deployment area of the side airbags or
the front airbag during breaking or in a sud
den maneuver. Objects near the airbags can
fly dangerously through the passenger com
partment and cause injury, particularly
when the seat is reclined and the airbags in
flate.
& WARNING
= -
A person on the front passenger seat, espe
cially infants and small children, will receive
serious injuries and can even be killed by be ing too close to the airbag when it inflates.
- Although the Advanced Airbag System in
your vehicle is designed to turn off the front
passenger airbag if an infant or a small child
is on the front passenger seat, nobody can
absolutely guarantee that deployment un
der these special conditions is impossible in
all conceivable situations that may happen
during the useful life of your vehicle.
= The Advanced Airbag System can deploy in
accordance with the .,low risk" opt ion for 3-
and 6-year-old children under the U.S. Fed
eral Standard if a child with electrical capac itance greater than the combined capaci
tance of a typical one-year old infant re
strained in one of the forward facing or rear
ward-facing child seats with which your ve
hicle was certified is on the front passenger
seat and the other conditions for airbag de
ployment are met.
- Accident statistics have shown that children
are generally safer in the rear seat area than
in the front seat ing pos ition.
- For their own safety, all children, especially
12 years and younger, should always ride in
the back properly restrained for their age
and size.
Advanced front airbag system
Your vehicle is equipped with a front Advanced
Airbag System in compliance with United States
Federal Motor Vehicle Safety Standard 208, as
well as Canada Motor Vehicle Safety Standard ..,.
153
Page 159 of 284

co
co
.... N
" N .... 0
00
\.J '
erwise added to the front passenger seat,
never install any child restraint system on
this seat.
- Never use cushions, pillows, blankets, or
similar items on the front passenger seat.
The additional layers prevent the capacitive
passenger detection system from accurately
measuring the ca pacita nee of the child safe
ty seat and/or the person on the seat and
thus keep the Advanced Airbag System from
working properly.
- Never place or use any electrical device
(such as a laptop, CD player, electronic
games device, power inverter or seat heater
for child seats) on the front passenger seat if the device is connected to the 12-volt
socket or the cigarette lighter socket. Such
devices can influence the capacitance regis
tered by the capacitive passenger detection system, so that incorrect information is pro
vided to the airbag control unit .
- If you must use a child restraint on the front
passenger seat and the child restraint man
ufacturer's instructions require the use of a
towel, foam cushion or something else to properly position the child restraint, make
certain that the
PASSENGER AIR BAG OFF
light comes on and stays on whenever the
child restraint is installed on the front pas
senger seat.
-If the PASSENGER AIR BAG OFF light does
not come on and stay on, immediately in
stall child restraint in a rear seating position
and have the airbag system inspected by
your Audi dealer.
.&_ WARNING
If the front passenger seat gets wet, dry it im
mediately.
- If liquid soaks into the front passenger seat,
this can keep the airbag system from work
ing properly and may, for instance, deacti
vate the passenger frontal airbag.
If this
happens, the
PASSENGER AIR BAG OFF
light will come on and stay on together with
the airbag indicator light
fl (USA models) I
Airbag system
E,I (Canada models) in the instrument clus
ter.
- If liquid is pooled on the seat, but has not
soaked in, this may also keep the airbag sys
tem from working properly and cause the
passenger frontal airbag to be enabled
(turned on), even though there is a properly
installed child restraint system on the seat.
Wet towels or other wet things on the seat
cushion can have the same effect.
If the
front passenger frontal airbag is turned on,
the
PASSENGER AIR BAG OFF light light
will go out.
How the Advanced Airbag System
components work together
The front Advanced Airbag System and the side
airbags supplement the protection offered by the
front three-point safety belts with pretensioners
and load limiters and the adjustable head re
straints* to help reduce the risk of injury in a
wide range of accident and crash situations. Be
sure to read the important information about
safety and heed the WARNINGS in this chapter.
Deployment of the Adv a need Airbag System and
the activation of the safety belt pretensioners de
pend on the deceleration measured by the crash
sensors and registered by the electronic control
unit. Crash severity depends on speed and decel
eration as well as the mass and stiffness of the
vehicle or object involved in the crash.
On the passenger side, regardless of safety belt
use, the front passenger frontal airbag will be
turned off if the electrical capacitance measured by the capacitive passenger detection system on
the front passenger seat is less than the amount
programmed in the electronic control unit . The
front passenger frontal airbag will also be turned off if the capacitance measured by the system for
the front passenger seat equals that of an infant of about one year of age in one of the child seats
that was used to certify the Advanced Airbag Sys
tem under Federal Motor Vehicle Safety Standard
208. The
PASSENGER AIR BAG OFF light comes
on and stays on to tell you when the front Ad
vanced Airbag System on the passenger side has been turned
offc::;,page 160 . Ill>-
157
Page 163 of 284

co
co
.... N
" N .... 0
00
\.J '
the safety belt for the front passenger seat is proper ly fastened .
The PA SSEN GER AIR BAG OFF ligh t will sh ow
the statu s of the fr ont sea t pass eng er 's frontal
A dvanced Ai rb ag a fe w second s after the igni
tion i s swit ched on and the air bag indi cator
light goes off. The PA SSENGER AIR BA G OFF
light:
- will stay on if the front passenger seat is not
occup ied;
- will stay on if the electrical capacitance meas
ured by the capacitive passenger detection sys
tem for the front passenger seat equals the
combined capacitance of an infant up to about
one year of age and one of the rearward-facing
or forward-facing child restraints listed in Fed
era l Motor Vehicle Safety Standard 208 w ith
which the Advanced Airbag System in your veh i
cl e was certified ; Fo r a listing of the child re
straints th at were used to ce rtify you r vehicle's
compliance with the U.S. Safety Standard
¢ page 174.
-wi ll go out if the front passenge r seat is occu
pied by an adult as registered by the capacitive
passenger detection system .
- The
PAS SENGER AIR BAG OF F light must come
on and stay on if the ignition is on and .. .
- a car bed has been insta lled on the front pas
senger seat, or
- a rearward-facing child restra int has been in
sta lled on the front passenger seat , or
- a fo rwa rd-facing child restra int has been instal
led on the front passenge r seat,
- and if the e lectr ica l capacitance registered on
the front passenger seat is equal to or less than
the combined capacitance of a typica l 1 year
o ld infant and one of the rearward-facing o r
forward-facing chi ld restraints listed in Federal
Motor Vehicle Safety Standard 208 with which
the Advanced Airbag System in your vehicle was certified.
If the front passenger seat is not occupied, the
front airbag wi ll not deploy, and the
PAS SENG ER
AIR BA G OFF
light will stay on. Never install a
rearward-fac ing child restraint on the front pas
senger seat, the safest place for a child in any
Airb ag sys tem
kind of child restraint is at one o f the seating po
sitions on the rear seat¢
page 149, Child re
straints on the front seat -some important
things to know
and ¢ page 172, Child safety .
If the PASSENGER AI R BAG light come s
on ...
If the PA SSEN GER AIR BAG O FF light comes on
when one of the conditions listed above is met,
be sure to check the light regularly to make cer
ta in that the
PA SSENGER AIR BAG OFF light
stays on continuously whenever the ignition is
on. If the
PAS SENGER AIR BA G OFF light does
not appea r on and does no t stay on a ll the time ,
stop as soon as it is safe to do so and
- reactivate the system by turning the ignit ion
off for more than 4 seconds and then turn ing it
on again;
- remove and re insta ll the chi ld restraint . Make
sure that the chi ld restraint is properly insta l
led and that the safety belt for the front pas
senger seat has been correct ly routed through
the child restraint as described in the c hild re
straint man ufacturer's instructions;
- ma ke sure that the conve rt ible lock ing retrac
tor on the safety belt for the front passenger
seat has been activated and that the safety belt
has been pulled tight.
- make sure that no e lectrica l device (such as a
laptop, CD player , e lectronic games device,
power inverter or seat heater for chi ld seats) is
placed or used on the front passenger seat if
the device is connected to the 12-volt socket or
the c igarette lighter socket;
- make sure that no seat heater has been retro
fitted or otherw ise added to the front passen
ger seat;
- make sure that noth ing can interfere with the
safety belt buckles and that they are not ob
structed;
- make sure that there are no wet objects (such
as a wet towel) and no water or other liquids on
the front passenger seat cushion . .,._
161
Page 175 of 284

co
co
.... N
" N .... 0
00
\.J '
Child ren on the front seat of any car even w ith
Advanced Airbags can be seriously injured or
even killed when an airbag inflates. A child in
a rearward-facing child safety seat installed
on the front passenger seat will be seriously
injured and can be killed if the front airbag in
flates.
- The inflating airbag will hit the child safety
seat or infant carrier with great force and
will smash the ch ild safety seat and child
against the backrest, center armrest, or
door.
- Always install rear-facing child safety seats
on the rear seat.
- If you must install a rearward fac ing ch ild
safety seat on the front passenger seat in
exceptiona l circumstances and the
PA SSEN
GER AIR BAG OFF
light does not come on
and stay on, immediately insta ll the rear
facing child safety seat in a rear seating po
sition and have the airbag system inspected immediately by your Audi dealer.
A WARNING
- Forward-facing chi ld seats installed on the
front passenger seat may interfere with the deployment of the a irbag and cause serious
personal injury to the child.
- If exceptional circumstances require the use
of a forward-facing child restraint on the
front passenger's seat, the child's safety and well-being require the following special
precautions to be taken:
- Always make sure that the forward-facing
seat has been designed and certified by its
manufacturer for use on a front passenger
seat with a front and side airbag.
- Always carefully follow the manufacturer's
instructions provided with the child seat
or infant carrier.
- Never install a child restraint without a
properly attached top tether strap if the
child restraint manufacturer's instructions require the top tether strap to be used.
Ch ild safety
-Never put the forward-facing child re
straint up against or very near the instru
ment panel.
- Always set the safety belt upper anchor
age to the adjustment position that per
mits proper installation in accordance
with the child restraint manufacturer's in
structions.
- Always move the front passenger seat to
the h ighest position in the up and down
adjustment range and move it back to the
rearmost position in the seat's fore and
aft adjustment range, as far away from
the a irbag as poss ible, befo re installing
the forward-facing child restraint .
- Always make sure that the safety belt up
per anchorage is behind the chi ld restraint
and not next to or in front of the child re
straint so that the safety belt wi ll be prop
erly positioned.
- Always make sure that nothing prevents
the front passenger's seat from being
moved to the rearmost position in its fore
and aft adjustment range.
- Never place objects on the seat (such as a
laptop, CD player, electronic games de
vice, power inverter or seat heater for
ch ild seats) . These may influence the elec
trical capacitance measured by the capac i
tive passenger detection system and can
also fly around in an acc ident and cause
serious personal injury.
- Never place or use any elect rical device
(such as a laptop, CD player, electronic
games device, power inverter or seat heat
er for child seats) on the front passenger
seat if the device is connected to the 12-
vo lt socket or the cigarette lighter socket.
- If a seat heater has been retrofitted or
otherwise added to the front passenger
seat, never insta ll any child restraint sys
tem on this seat.
- Make sure that there are no wet objects
(such as a wet towe l) and no water or oth
er liquids on the front passenger seat
cushion .
- Always make sure that the
PASS ENGER
AI R BA G OFF
light comes on and stays on
17 3
Page 179 of 284

co
co
.... N
" N .... 0
00
\.J '
jure each other in a n accident .
- Never install rear-facing chi ld safety seats
or infant carriers on the front passenger
seat. A child will be serious ly injured and
can be killed when the passenger airbag in
flates - even with an Advanced Airbag Sys
tem.
- The inflating a irbag will hit the child safety
seat or infant carrier with great force and
will smash the ch ild safety seat and chi ld
against the backrest, center armrest, door
o r roof.
- Always install rear-facing child safety seats
or infant carriers on the rear seat.
- Make sure there is enough space in front of
the ch ild in the child seat. If necessary, ad
just the ang le and posit ion of the seat in
front of the child sea t.
- Forward-fac ing ch ild safety seats installed
on the front passenger's seat can inte rfe re
with the airbag when it inflates and cause
serious injury to the child . Always insta ll for
ward-facing child safety seats on the rear
seat.
- If exceptional circumstances require the use
of a forward-facing child restraint on the
front passenger's seat, the child's safety and well-being require that the following
special precautions be taken:
- Make sure the forward-fa cing seat h as
been designed and certif ied by its manu
facturer for use on a front seat with a pas
senger front and side airbag.
- Always care fully follow the manufacturer's
instr uctions provided with the child safety
seat or carrier.
- Always move the front passenger seat to the highest position in the up and down
ad justment range and move it back to the
rearmost posit ion in the seat's fore and
aft adjustment range, as far away from
the airbag as possible, before installing
the forward-fac ing ch ild restraint .
- Always make sure that the safety be lt up
per anchorage is behind the child restra int
and not next to or in front of the child re-
Ch ild safety
straint so that the safety belt wi ll be prop
erly pos it ioned.
- Always make sure that nothing prevents
the front passenger's seat from being
moved to the rearmost position in its fore
and aft adjustment range.
- Always make sure that the backrest is in the upright posit ion.
- Never place or use any elect rical device
(such as a laptop, CD player, electronic
games device, power inverter or seat heat
er for child seats) on the front passenger
seat if the device is connected to the 12-
vo lt socket or the cigarette lighter soc ket.
- If a seat heater has been retrofitted or othe rw ise added to t he fron t passenger
seat, neve r insta ll any child rest raint sys
tem on this seat.
- Make su re that there a re no wet objects
(such as a wet towe l) and no water or oth
er liquids on the front passenger sea t
cush ion .
- Neve r place objects o n the sea t (such as a
laptop, CD player, e lect ronic games de
vice, power inverter or seat heater for
child seats). These may inf luence the elec
trical capacitance meas ured by t he capac i
tive passenger detection system and can also fly around in an acc ident and cause
serious personal injury.
- Always buckle the child safety seat firm ly in
p lace even if a ch ild is not sitt ing in it. A
loose child safety seat can fly around dur ing
a sudde n stop or i n a co llision .
- Always read and heed all WARNINGS when
ever us ing a child restrained in a vehicle is
be ing used ~
page 140, Safety belts,
<=> page 148, Airbag system and
<=> page 172, Child safe ty.
_&. WARNING
To reduce the risk of serious injury, ma ke sure
t h at the
PASSENGER AIR BAG OFF ligh t
comes on and stays on whenever a child re
straint is installed on the front passenger seat
and the ign it ion is switched on. ..,
177
Page 181 of 284

co
co
.... N
" N .... 0
00
\.J '
crash
¢ fig. 166.
The a irbag on the passenger side makes the front
seat a potentia lly dangerous p lace for a child to
ride . The front seat is not the safest place for a
child in a forward-facing chi ld seat. It is a very
dangerous place for an infant or a larger child in
a rearward-facing seat .
A WARNING
Not using a child safety seat, using the wrong
child safety seat or improperly installing a
child restra int increases the r isk of serious
personal injury and death in a crash .
- Never install rear -facing child safety seats
or infant carriers on the front passenger
seat -even with an Advanced Airbag System.
A ch ild will be seriously injured and can be
killed when the inflating airbag hits the
child safety seat or infant carrier with great
force and smashes the child safety seat and
child against the backrest, center armrest
'
door or roof c> page 149, Child restraints on
the front seat -some important things to
know .
-Always install rear-facing child safety seats
or infant carriers on the rear seat.
- Never install a rear-facing child restraint in the forward-facing direction. Such restraints
are designed for the spec ial needs of infants
and very small children and cannot protect
them properly if the seat is forward-facing .
- If you must install a rearward facing ch ild
safety seat on the front passenger seat be
cause of exceptiona l circumstances and the
PAS SENGER AIR BAG OFF light does not
come on and stay on, immed iate ly install
the rear-facing child safety seat in a rear
seating position and have the airbag system
inspected by your Audi dealer .
- Never place or use any electrical device (such as a laptop, CD player, electronic
games dev ice, power inverter or seat heater
for child seats) on the front passenger seat
if the device is connected to the 12-volt
socket or the cigarette lighter socket .
Child safety
-If a seat heater has been retrofitted or oth
erwise added to the front passenger seat,
never install any child restra int system on
this seat .
- Make sure that there are no wet objects
(such as a wet towel) and no water or other
liquids on the front passenger seat cush ion.
- Never place objects on the seat (such as a
laptop, CD p layer, electronic games device,
power inverter o r seat heater for ch ild
seats) . These may influence the electrical
capacitance measu red by the capacitive pas
senger detect ion system and can also fly
aro und in an accident and cause serious per
sonal injury .
- Always read and heed all WARNINGS when
ever us ing a child restrained in a vehicle is
being used
¢ page 140, Safety belts,
¢ poge 148, Airbag system and
¢ page 172, Important information.
179
Page 183 of 284

co
co
.... N
" N .... 0
00
\.J '

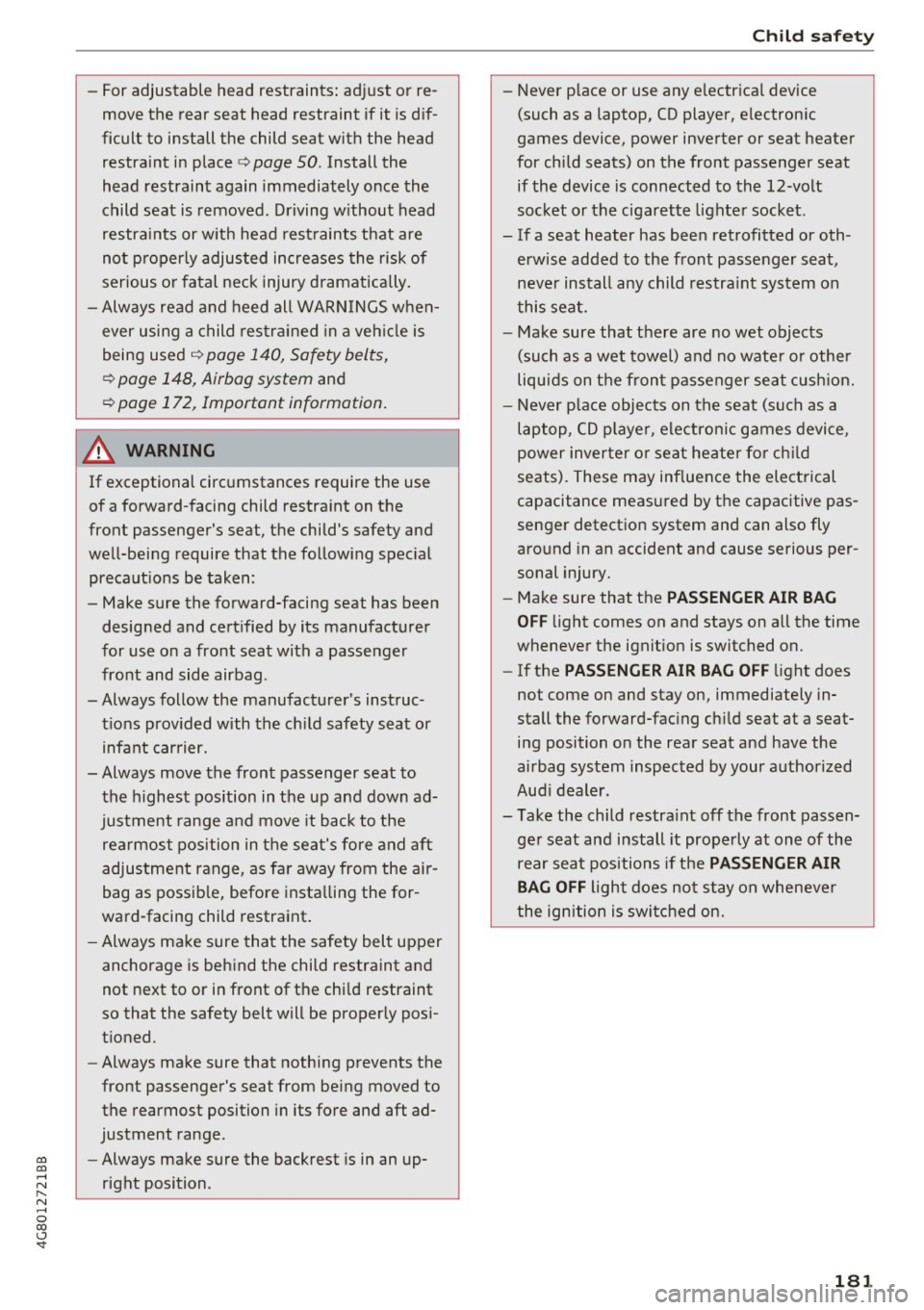

move the rear seat head restraint if it is dif
ficult to install the child seat with the head restraint in place¢
page 50 . Install the
head restraint again immediately once the
child seat is removed. Driving w ithout head
restra ints or w ith head rest raints that are
not properly adjusted increases the risk of
serious o r fatal neck injury dramatically.
- Always read and heed all WARN INGS when
ever using a child res trained in a veh icle is
being used
¢ page 140, Safety belts,
¢ page 148, Airbag system and
¢ page 172, Important information.
&_ WARNING
If exceptional circumstances require the use
of a forward-facing child restraint on the
front passenger's seat, the child's safety and
well-being require that the follow ing spec ial
precaut ions be taken:
- Make sure the forward-facing seat has been
designed and certified by its manufacturer
for use on a front seat with a passenger
front and side airbag .
-Always follow the manufacturer 's instruc
t ions prov ided with the ch ild safety seat or
infant carrier.
- Always move the front passenger seat to
the highest position in the up and down ad
justment range and move it back to the
rearmost position in the se at's fore and aft
adjustment range, as far away from the air
bag as possib le, before insta lling the for
ward-facing child restra int .
- Always make sure that the safety belt upper
anchorage is behind the child restraint and
not next to or in front of the chi ld restraint
so that the safety belt will be properly pos i
t ioned.
- Always make sure that nothing prevents the
front passenger's seat from being moved to
the rearmost position in its fore and aft ad
justment range.
- Always make sure the backrest is in an up
right position.
Ch ild safety
-Never p lace or use any e lectrica l device
(such as a laptop, CD player, e lectron ic
games device, power inverter or seat heater
for child seats) on the front passenger seat if the device is connected to the 12-volt
socket or the cigarette lighte r socket.
- If a seat heater has been retrofitted or oth
erwise added to the front passe nger seat,
never install any child restra int system on
this seat.
- Make sure that the re are no wet objects
(such as a wet towel) and no wate r o r other
liqui ds on t he front passenger seat cush ion.
- Never p lace objects on the seat (such as a
laptop, C D playe r, electro nic games device,
power inverter o r seat heater fo r ch ild
seats). These may influence the electri cal
capacitance measu red by the capacitive pas
senger detect ion system and can also fly
aro und in an accident and cause serious per
sonal injury.
- Make sure that the
PASSENGER AIR BAG
OFF
li ght comes on and stays on all the time
whenever the ignit ion is switched on.
- If the
PASSENGER A IR BAG OFF li ght does
not come on and stay on, immediately in
stall the forward-fac ing ch ild seat at a seat
ing position on the rea r seat and have the
ai rbag system inspected by your authorized
Aud i deale r.
- Take the child restra int off the front passen
ge r seat and install it prope rly at one of the
rear seat positions if the
PASSENGER AIR
BAG OFF
light does no t stay on whenever
the igni tion is switched on.
181
