Intellig ent T echn olo gy
necessary. This causes the brakes to over­
heat and increases braking distance and
causes wear.
- Before driving downhi ll a long distance on a
steep hill, decrease your speed and select a l ower gear. This makes use of the engine
braking effect and relieves the brakes. If
you need to brake additionally, brake in in­
tervals and not continuously .
(D Tips
-If the brake booster is not working, you
must press the brake pedal with much more
force than normal.
- If you retrofit your vehicle with a front spoil­
er, wheel covers or s imilar items, make sure
that the a ir flow to the front wheels is not
i nterrupted. Otherw ise the brake system
ca n become too hot.
Electromechanical
steering, dynamic
steering
The electromechanical steering supports the
driver's steering movements .
Power steering adapts electronically based on
the vehicle speed .
Indicator light s and me ssages
• Do not d rive vehicle: St eering d efecti ve
If t his ind icator light tu rns o n and stays o n and
this message appears, t he power steer ing may
have fai led.
Stop the veh icle in a safe locat io n as soon as pos­
sib le. Do
n ot continue dr iving. See an author ized
Aud i dea ler or authorized Aud i Serv ice Facility for
assistance.
l;:r-ij St ee ring : Sys tem f ault You can con tinu e
dri ving
If the ind icator light turns on and the message
appears, the steering wheel may be more diff i­
cult to move or mo re sensit ive tha n usual. The
steer ing whee l may a lso be at an angle when
driving straight .
124
Drive slowly to an authorized Audi dea ler or au­
thorized Audi Service Facility to have the mal ­
funct ion corrected .
'I-ij Dyn ami c ste ering : Initializing
If the indicator l ight is blinking and this message
appears, dy namic stee ring* is be ing initialized.
The steer ing whee l will be easy to move afte r
start ing t he engine . Re -init ialization mig ht be
necessary if the steering wheel was moved hard
to the left and right while the vehicle was not
moving . The d isp lay turns off if the init ia li zation
was successful.
(D Tips
- If the . or 'Tfl indicator light only stays on
for a short time, you may cont inue driving .
- Th e dynamic steering stability systems
<=>page 120 are not avai lab le in the event of
a system malfunction.
- For additiona l information on dynamic
steering, see
<=> page 105.
All wheel drive (quattro)
Applies to: vehicles with all wheel drive
In all wheel drive, all four wheels are powered.
G en eral information
In all whee l dr ive, the dr iv ing power is divided be ­
tween all four whee ls. This happens automatical­
l y depending on your driving behavior as we ll as
the current road conditions . Also see
c> page 120, Electronic stabili zation control
(ESC).
A center differential distributes the driving power
variab ly to the front and rear ax le. It works to­
gether w ith selective whee l torque contro l, wh ich
activates when driving through curves
<=>page 120 . With the sport d ifferent ial*, power
distribution to the rear wheels is variable and can
be adjusted with d rive select
c> page 105 .
The all wheel drive concept is designed for high
engine power . Your vehicle is except ionally pow­
erful and has excellent driving characteristics
both under normal driving conditions and on
snow and ice. A lways read and follow safety pre-
ca utions
c> .&. . II>-

a co ,...,
N
" N ,...,

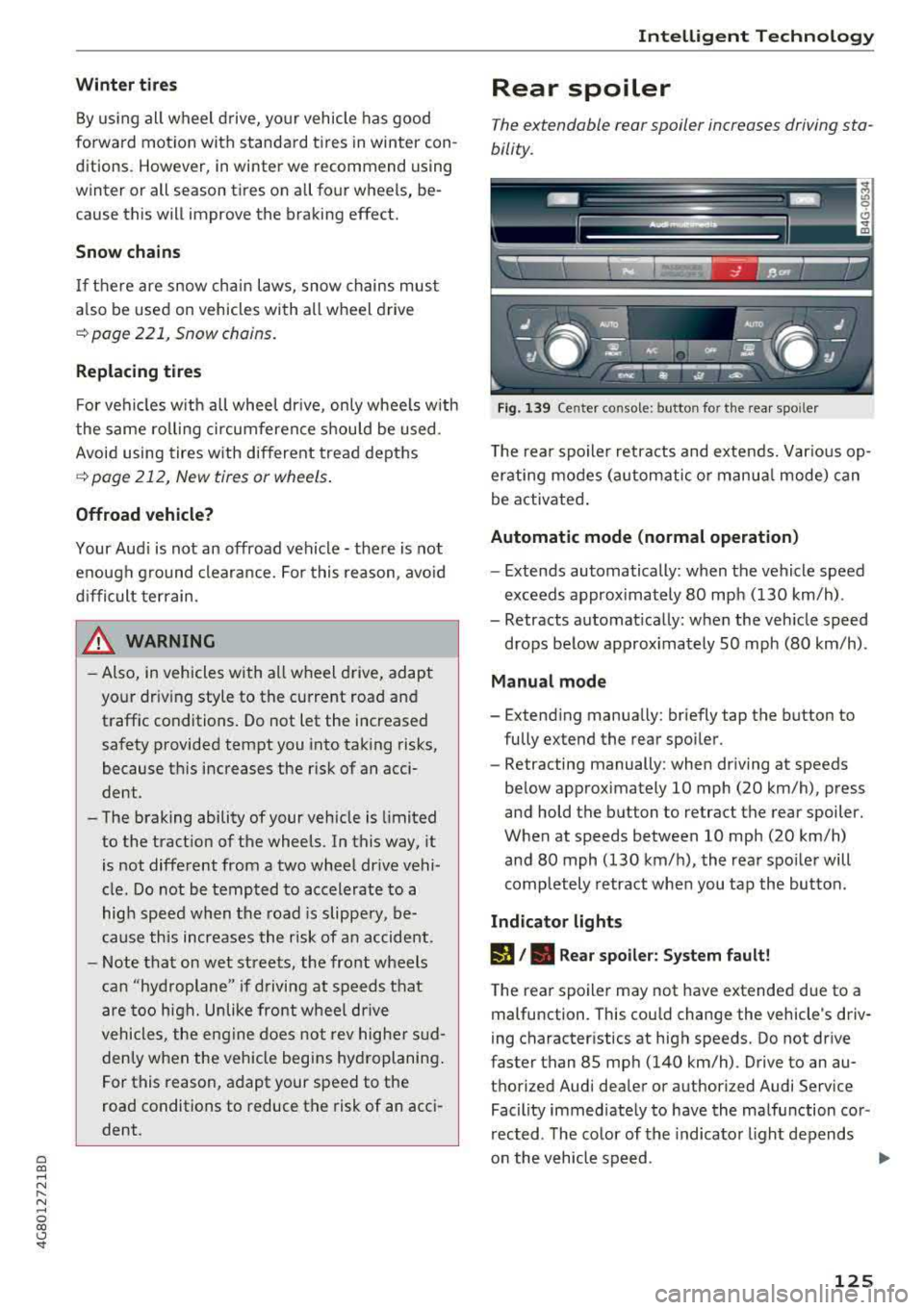

0 00 <..:l ' Winter tires
By using all wheel d rive, yo ur vehicle has good
forward motion with standard t ires in winter con­
ditions. However, in winter we recommend using
wint er or all season t ires on all four wheels, be­
cause this will improve the braking effect.
Snow chains
If
t h ere are snow cha in laws, snow chains must
a lso be used on vehicles with a ll wheel drive
¢ page 221, Snow chains.
Replacing tires
For vehi cles w ith all whee l dr ive , only whee ls w ith
the same rolling circumferen ce s hou ld be used .
Avoid using tires with different tread depths
¢ page 212, New tires or wheels .
Offroad vehicle?
Your Audi is not an offroad vehicle -there is not
enough g round clearance. For this reason, avo id
d ifficult terrain .
_& WARNING
-Also, in vehicles with a ll wheel drive, adapt
yo ur dr iv ing style to the cu rrent road and
traff ic conditions . Do not let the increased
sa fety provided tempt you into taking risks ,
because th is increases the r isk of an acci­
dent .
- The braking ability of your veh icle is limited
to the tract ion of t he wheels . In this way, it
is not diffe rent from a two whee l dr ive vehi ­
cle. Do not be tempted to accelerate to a
hig h speed when t he road is slippe ry, be­
ca use this increases the risk of a n accide nt .
- Note that on wet streets , the fro nt wheels
can "hyd roplan e" if d riving at speeds that
are too hig h. Unlike front whee l drive
vehicles, t he eng ine does not rev highe r su d­
den ly when the vehicle begins hydroplaning .
For this reason, adapt your speed to the
road conditions to reduce the risk of an acc i­
dent.
Intelligent Technology
Rear spoiler
T he extendable rear spoiler increases driving sta­
bilit y.
Fig. 1 39 Cen ter conso le : b utton for t he rea r spo iler
T he rear spo iler retracts and extends. Var ious op­
erating modes (automatic o r manua l mode) can
be a ctivated .
Automatic mode (normal op eration)
- Extends automatically: when the vehicle speed
exceeds approx imately 80 mph ( 130 km/h) .
- Retracts automat ica lly: when the veh icle speed
drops be low approx ima tely SO mph (80 km/h) .
Manual mode
- Extend ing manua lly: br iefly tap the button to
fully extend the rear spo iler.
- Retracting manually: when dr iving at speeds
be low approximately 10 mph (20 km/h), press
and hold the button to retract the rear spoiler.
When at speeds between 10 mph (20 km/h)
and 80 mph (130 km/ h), the rea r spo ile r will
comp letely retract whe n you tap the butto n.
Indicator lights
,A I. Rear spoiler: System f ault!
The rear spoiler may not have extended due to a
malfunction . This cou ld change the vehicle 's driv ­
i ng character istics at high speeds. Do not dr ive
faster than 85 mp h (140 km/h) . Drive to an au­
thorized Audi dea ler or authori zed Audi Service
Facility immed iate ly to have the malfu nction cor ­
rected . T he color of the indicato r light depends
o n the vehicle speed .
125

a co ,...,
N
" N ,...,
0 00 <..:l ' On Board Diagnostic
System (OBD)
The On-Board Diagnostic System monitors the
engine and transmission components that influ­
ence emissions.
F ig . 178 Footwell o n le ft s ide of th e vehicle: con nectio n
port fo r th e On -Board Diagnostic System (OBD)
On -Board Diagnostic S ystem
Eng ine data can be read out using a special test
device at the On-Board D iagnost ic System con·
nection port
9 fig. 178.
Ind icat or light
If thE' ¢..ift indicator light blinks or turns on, there
is a malfunction that is causing poor emissions
quality and that could damage the catalytic con­
verter .
Drive s lowly to an authorized Audi dealer or au­
thor ized Audi Service Facility to have the mal­
function corrected .
The indicator light can also turn on if the fuel fill­
er cap is not closed correct ly
9 page 190 .
A WARNING
Incorrect use of the connection port for the
On-Board Diagnostic System can cause mal­
functions, which can then result in acc idents
and ser io us injuries .
- Only allow an author ized Audi dealer or au­
tho rized Aud i Serv ice Facility to read out the
engine data.
-
Chec king and Filling
Engine compartment
Working in the engine compartment
Special care is required if you are working in the
engine compartment
For wo rk in the engine com part ment , such a s
che cking and filling fluids, there i s a ris k of i n­
jur y, sc alding, a cci dent s, and b urn s. For t his
r easo n, foll ow all the w arnings and g en e ral
s afe ty pre ca ution s pro vided in the f ollowing
in ­
formati on. The engine compartm ent i s a dan­
ge rou s area in the vehicle .
9 &..
A WARNING
-Turn the engine off.
- Sw itch the ignition off.
- Set the parking brake.
- Select the P se lector lever position .
- Let the eng ine cool down .
- Never open the hood when there is steam or
coolant escaping from the engine compart­ ment, because there is a risk that you could
be burned . Wait unt il no steam or coolant is
escaping.
- Keep children away from the eng ine com­
partment .
- Never sp ill fluids on a hot engine. These flu­
ids (such as the freeze protection contained in the coolant) can catch fire.
- Avoid short c ircuits in the electrical system .
- When working in the engine compartment,
remember that the radiator fan can switch
on even if the ignition is switched off, which increases the ris k of personal injury .
- Never open the cap on the coolant expan­
sion tank when the engine is warm . The
coo ling system is under pressure.
-To protect your face, hands, and arms from hot steam or coolant, cover the cap with a
large cloth when opening .
- Do not remove the eng ine cover under any
circumstances . This increases the risk of
bu rns .
- If tests need to be performed with the en­
g ine runn ing, there is add it iona l danger due
to mov ing components (such as the ribbed
~
193

a co .... N
" N .... 0 00 \.J ' authorized Audi dealer or authorized Audi
Service Facility for more information.
- Do not connect or disconnect the charging
cable while charging because this increases
the risk of an exp losion.
(D Tips
- Only charge the vehicle battery through the
connections in the engine compartment.
- Read all of the manufacturer's instructions
for the charger before charging the vehicle
battery.
Windshield washer system
Fig. 186 Engine compa rtment: washer flu id reservo ir cap
M N
-N ~
"' a,
The windshield washer reservoir O contains the
cleaning solution for the windshie ld and the
headlight washer
system* ¢ page 196, fig . 181.
The reservoir capacity can be found in
¢page 254.
To reduce the risk of lime sca le deposits on the
spray nozzles, use clean water with low amounts
of calc ium . A lways add window cleaner to the wa­
ter. When the outs ide temperatures are cold, an
anti -freezing agent should be added to the water
so that it does not freeze .
@ Note
-The concentration of anti-freezing agent
must be adjusted to the vehicle operating
cond itions in the respective climate. A con­
ce ntration that is too high can lead to vehi­
cle damage.
- Never add radiator anti-freeze or other addi­
tives to the washer fluid.
Checking and Filling
- Do not use a glass cleaner that contains
paint so lvents, because t his could damage
the paint.
Service interval display
The service interval display detects when your ve ­
hicle is due for service .
The service interval display works in two stages:
-Inspection or oil change reminder : afte r a cer -
tain distance driven, a message appears in the
instrument cluster display each time the igni­
tion is switched on or off. The remaining dis­
tance or time is disp layed briefly.
- Inspection or oil change due: if your vehicle
has reached an inspection or oil change interval
or both intervals at the same t ime, the mes­
sage
Inspection due! or Oil change due! or Oil
change and inspection due!
appears briefly af ­
ter switching the ignition on/off .
Checking service intervals
You can check the remaining distance or time un ­
til the next oil change or next inspection in the
Car menu. To do t his, select: the !CAR !function
button
> (Car)* Systems control button > Service
& control > Service intervals .
Resetting the indicator
An authorized Audi dea ler or a uthorized Audi
Service Facility w ill reset the service interval dis­
play after performing service.
If you have ch anged the oi l yourse lf, you must re ­
set the oil change interval.
T o reset the indicator, select : the
I CAR ! function
button
> (Car)* Systems control button > Service
& control > Service intervals . Turn the control
knob downward to
Reset oil change interval and
press the control knob.
@ Note
-Only reset the oi l change indicator if the oi l
was changed.
- Following the service intervals is critical to
maintaining the service life and value of
your vehicle, especially the engine. Even if
203

Wheels
-Only use tires that are more than six years old when abso­lutely necessary and drive
carefully when doing so.
-Do not use run-flat tires on your vehicle. Using them when not permitted can lead to
ve­
hicle damage or accidents.
-If you install wheel covers on the vehicle, make sure they al­low enough a ir circulation to
cool the brake system. If they
do not, this could increase the risk of an accident.
Tire wear/damage
Fig. 188 Tire profile: trea dwear indica ­
tor
Tire wear
Check the tires regularly for wear.
-Inflation pressure that is too low
or high can increase tire wear
considerably.
l) Obey any applicable regulations in your
country.
214
-Driving qu ickly through curves,
rapid acceleration and heavy
braking increase tire wear.
-Have an authorized Audi dealer or authorized Audi Service Facili­
ty check the wheel alignment if
there is unusual wear.
-Have the wheels rebalanced if an imbalance is causing noticeable
vibration in the steering wheel. If you do not, the tires and other
vehicle components could wear more quick ly.
Treadwear indicator
Original equipment tires contain
treadwear indicators in the tread pattern, which are bars that are 1/16 in (1.6 mm) high and are
spaced evenly around the tire per­ pendicular to the running direc­
tion
c> fig . 188. The letters "TWI"
or triangles on the tire sidewall indicate the location of the tread­
wear indicators.
The t ires have reached the mini­
mum tread depth
l) when they
have worn down to the treadwear
indicators. Replace the tires with
new ones
c> A . "'

Wheels
Indicator lights
It]-loss of pressure in at least one tire¢,&. .
Check the tires and replace or repair if necessary.
Check/correct the pressures of all four tires and
store the pressure again in the Infotainment sys­
tem
¢ page 224.
[m]) (Tire Pressure Monitoring System) Tire
pressure: System malfunction!.
If[m]J appears
after switching the ignition on or while driving
and the
RI] indicator light in the instrument clus­
ter blinks for approximately one minute and then
stays on, there is system malfunction. Try to
store the correct tire
pressures¢ page 224 . If
the indicator light does turn off or turns on again
after a short period of time, drive to an author­
ized Audi dealer or authorized Audi Service Facili­
ty immediately to have the malfunction correct­
ed.
A WARNING
- If the tire pressure indicator appears in the
display, reduce your speed immediately and
avoid any hard steering or braking maneu­
vers. Stop as soon as possible and check the
tires and their pressure .
- The driver is responsible for maintaining the
correct tire pressure. You must check the
tire pressure regularly.
- Under certain conditions (such as a sporty
driving style, winter conditions or unpaved
roads), the tire pressure monitoring system
indicator may be delayed.
(D Tips
- The tire pressure monitoring system can al­
so stop working when there is an ESC mal­
function.
- Using snow chains may result in a system
malfunction.
- The tire pressure monitoring system in your
Audi was calibrated with "Audi Original
Tires"
¢ page 212. Using these tires is rec­
ommended .
224
Storing tire pressures
Applies to: vehicles with Tire P ressure Monitoring System in­
dicator
If the tire pressure changes or a tire is replaced,
it must be confirmed in the Infotainment sys­
tem.
.,. Make sure before storing that the tire pressures
of all four tires meet the specified values and
are adapted to the load
¢page 215.
.,. Switch the ignition on .
.,. Select: the I CARI function button > (Car)* Sys­
tems
control button > Service & control > Tire
pressure monitor> Store tire pressure > Yes,
store now.
(D Tips
Do not store the tire pressures if snow chains
are installed.
Tire pressure monitoring
system
ill General notes
Each tire, including the spare (if provided),
should be checked monthly when cold and inflat­
ed to the inflation pressure recommended by the
vehicle manufacturer on the vehicle placard or
tire inflation pressure label. (If your vehicle has
tires of a different size than the size indicated on
the vehicle placard or tire inflation pressure la­
bel, you should determine the proper tire infla­
tion pressure for those tires).
As an added safety feature, your vehicle has been
equipped with a tire pressure monitoring system
(TPMS) that illuminates a low tire pressure tell­
tale when one or more of your tires is significant­
ly under-inflated. Accordingly, when the low tire
pressure telltale illuminates, you should stop and
check your tires as soon as possible, and inflate
them to the proper pressure. Driving on a signifi­
cantly under-inflated tire causes the tire to over­
heat and can lead to tire failure. Under-inflation
also reduces fuel efficiency and tire tread life,
and may affect the vehicle's handling and stop-
ping ability.
.,.

a co .... N
" N .... 0 00 \,;J ' Please note that the TPMS is not a substitute for
proper tire maintenance, and it is the driver's re­
sponsibility to maintain correct tire pressure,
even if under-inflation has not reached the level
to trigger illumination of the TPMS low tire pres­
sure telltale .
Your vehicle has also been equipped with a TPMS malfunction indicator to indicate when the sys­
tem is not operating properly. The TPMS mal­
function indicator is combined with the low tire pressure telltale. When the system detects a
malfunction, the telltale will flash for approxi­
mately one minute and then remain continuously
illuminated. This sequence will continue upon
subsequent vehicle start-ups as long as the mal­
function exists.
When the malfunction indicator is illuminated,
the system may not be able to detect or signal
low tire pressure as intended. TPMS malfunctions
may occur for a variety of reasons, including the
installation of replacement or alternate tires or
wheels on the vehicle that prevent the TPMS
from functioning properly . Always check the
TPMS malfunction telltale after replacing one or
more tires or wheels on your vehicle to ensure
that the replacement or alternate tires and
wheels allow the TPMS to continue to function
properly.
Description
Applies to: vehicles with tire pressure monitor ing system
The tire pressure monitoring system monitors
the pressure in the four tires when driving.
T he system uses sensors that measure the tem ­
perature and pressure in the tires . The data is
sent from these sensors to the control module by radio frequency.
T he Tire Pressure Monitoring System shows the
current pressures and temperatures of the tires
in the Infotainment system
¢page 226. It also
compares the current tire pressures with the
stored tire pressures and gives a warning in the
driver information system if the tire pressure is
different from what is
stored ¢ page 226 .
Wheels
The system does not detect if the stored tire
pressures match the recommended tire pres­
sures. You must store the tire pressures again
¢ page 226:
- every time the tire pressures change, for exam­
ple when the load in the vehicle changes,
- after replacing a tire, or
- if wheels with new wheel sensors are used.
_& WARNING
- The tire pressure monitoring system assists
the driver in monitoring tire pressures. The
driver is responsible for having the tires in­
flated to the correct pressure.
- Do not change the tire pressure when the
temperature of the tire is extremely high.
This could result in serious damage to the
tire and even cause the tire to burst, in­
creasing the risk of an accident.
- A tire with low pressure flexes more. This heats the tire up too much. This could cause
the tread to separate and even cause the
tire to burst, increasing the risk of an acci­
dent.
- The tire pressure monitoring system does not warn about damage or defects in the
tire construction that could cause the tire to
burst, for example. Inspect your tires regu­
larly.
(D Tips
- If tires are replaced, the sensors/valves do
not need to be removed or replaced . Just re­
placed the valve stem and, if necessary, the
valve and the wheel electronics. If you have questions, see an authorized Audi dealer or
authorized Audi Service Facility.
- An incorrect display or a malfunction in the
tire pressure monitoring system can occur
after using the tire mobility kit. Have the
sensors replaced by an authorized Audi
dealer or authori zed Audi Service Facility.
- For an explanation on conformity with the
FCC regulations in the United States and the
Industry Canada regulations, see
¢ page 258.
225

Wheels
Displaying tire pressures/temperatures
Applies to: vehicles with tire pressure monitoring system
Requirement: the ign ition must be switched on.
.,. Select : the ICARI function button > Car systems
> Service & control> Tire pressure monitor>
Display tire pressure .
The current tire pressures are shown in green and
yellow numbers in the Infotainment system:
- Green: the current tire pressure and the speci­
fied tire pressure are approximately the same.
- Yellow: the current tire pressure is too low
compared to the specified tire pressure.
The specified tire pressure is the last tire pres­
sure that was stored
9 page 226 .
Note that the tire pressure also depends on the
temperature of the tire. The tire pressure in­
creases as the engine becomes warmer while
driving.
A WARNING
Read and follow the important information
and notes
q page 225.
@ Tips
The tire pressure or temperature are not dis ­
played in adaptation mode. Dashes --.-- are
shown in place of the pressure and tempera ­
ture.
CD Tire pressure loss
App lies to: veh icles with tire pressure mon itoring system
Fig. 192 Display : in dic ato r light with a me ssage
226
-
If the (D] indicator light turns on, the pressure in
at least one tire is too low or new sensors were
not adapted:
RE indicator lights turns on after turning the
ignition on
The tire pressure is too low compared to the
specified pressure.
.,. Check and store the tire pressure(s) the next
time it is possible
9 page 226.
RE indicator light turns on while driving
Wheels with new sensors were not adapted or
the tire pressure has reached a critical level com­
pared to the specified pressure.
.,. Avoid unnecessary steering and braking maneu-
vers.
.,. Adapt your driving sty le to the situation.
.,. Stop as soon as possible and check the tire(s).
.,. If it is possible to continue driving, see an au-
thorized Audi dealer or authorized Audi Service
Facility immediately and have your tire(s) re­
paired or replaced.
A WARNING
Read and follow the important information
and notes ¢
page 225.
Storing new tire pressures
Applies to: vehicles with tire pressure mon itoring system
Correctly stored tire pressure specifications are
necessary for reliable tire pressure monitoring.
.,. Check the tire pressures in all wheels .
-
.,. Correct the tire pressure if necessary. Refer to
the tire pressure Label for the recommended
tire pressure for your vehicle
c> page 215,
fig . 190 .
Only correct the pressure in tires
whose temperature is approximately the same
as the ambient temperature. If the tempera­
ture of the tire is higher than the ambient air
temperature, the tire pressure must be in­
creased approximately 3 PSI (0,2 bar) above
the value on the sticker .
.,. Switch the ignition on .
.,. Select: !CAR ! function button > Car systems>
Tire pressure monitoring
> Store tire pressure . ..,.

a co .... N
" N .... 0 00 \.J ' After storing, the tire pressure monitoring sys­
tem measures the current tire pressures and stores them as the new specified pressures.
~ If the changed tire pressures are not displayed
in the Infotainment system, drive the vehicle
for approximately 10 minutes so that the sen­
sor signal from the wheels is received again.
During this adaptation phase, --.·· is displayed
for the pressure and temperature and the tire
pressure monitoring system is only partially
available. It only provides a warning if one or
more tir e pressures is below the minimum per­
mitted specified pressure. If this is the case, the
IE indicator light appears with a message.
& WARNING
Read and follow the important information
and notes
¢p age 225.
Malfunctions
Applies to: vehicles with tire pressure monitoring syste m
-
If the Tire Pressure Monitoring System is not
avai lable, the
mm indicator light appears in the
driver information system. The
IE indicator light
also blinks for approximately one minutes each
time the ignition is switched on . The tire pressure
monitoring system cannot be selected in the In­
fotainment system. The fol lowing are examples
of situat ions that could cause a malfunction:
-If the message appears at the end of the adap­
tation phase, the system cannot detect the
wheels installed on the vehicle. This may resu lt
from one or more wheels being installed with­
out wheel sensors or with incompatible wheel
sensors.
-A wheel sensor or another component has
failed.
-Using snow cha ins can affect the function of
the system because of the shield ing effect of
the chains .
-The tire pressure monitoring system is not
available due to a malfunction.
-T ransmitters with the same frequency, such as
headphones or remote-control led dev ices, may
cause a temporary system malfunction due to
the strong electromagnetic field.
Wheels
T he m;i indicator light turns off once the Tire
Pressure Monitoring System is available again. If
you cannot correct the ma lfunction and the
m;i
indicator light stays on, drive immediately to an
authorized Audi dealer or authorized Audi Service
Facility to have the malfunction repaired.
227

a co .... N
" N
Reading lights . . . . . . . . . . . . . . . . . . . . . . . . . 42
Rear fog lights . . . . . . . . . . . . . . . . . . . . . . . . 39
Rear light
Indica tor light . . . . . . . . . . . . . . . . . . . . . . . 18
Rear shelf . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Rear spoiler . . . . . . . . . . . . . . . . . . . . . . . . . . 125
Rearview camera
refer to Parking sys tems ....... .. . 109, 110
Rearview mirror dimming . . . . . . . . . . . . . . . 43
Rear window defogger (4-zone deluxe auto ­
matic climate control) . . . . . . . . . . . . . . . . . . 62
Rear window defogger (deluxe automatic cli­
mate control) . . . . . . . . . . . . . . . . . . . . . . . . . 60
Recirculation mode (4-zone deluxe automatic
climate control) . . . . . . . . . . . . . . . . . . . . . . . 61
Recirculation mode (de luxe automatic climate
control) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Recuperation . . . . . . . . . . . . . . . . . . . . . . . . . 21
Refueling . . . . . . . . . . . . . . . . . . . . . . . . . . . . 190
Fu el filler door emergency release
192
Remote control
refer to Remote control key . . . . . . . . . . . . 27
Remote control key . . . . . . . . . . . . . . . . . . . . 27
LED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Personalizing . . . . . . . . . . . . . . . . . . . . . . . . 27
Replacing the battery . . . . . . . . . . . . . . . . . 28
Unlock ing/locking . . . . . . . . . . . . . . . . . . . . 29
Remote control operation Garage door opener (Home link) . . . . . . . . . 37
Removing the sid e trim pane l in the luggage
compartment . . . . . . . . . . . . . . . . . . . . . . . . 192
Repair manuals . . . . . . . . . . . . . . . . . . . . . . . 255
Repairs Airbag system . . . . . . . . . . . . . . . . . . . . . . 161
Replacement key . . . . . . . . . . . . . . . . . . . . . . 27
Replacing windshield wiper blades . . . . . . . . 46
Reporting Safety Defects ........ .. . 136, 137
Reset button (trip odometer) . . . . . . . . . . . . 23
Resetting the trip odometer . . . . . . . . . . . . . 23
Residual heat (4 -zone deluxe automat ic cli-
mate control) . . . . . . . . . . . . . . . . . . . . . . . . . 62
Retractor . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141
Reverse gear (automatic transmission) . . . . . 75
Rims . .. .. .. .. ............... .. .. .. . 220
Road carrier . . . . . . . . . . . . . . . . . . . . . . . . . 252
.... 0 ~ Roof load . . . . . . . . . . . . . . . . . . . . . . . . . 54, 254
' Index
Roof rack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
also refer to Roof rack . . . . . . . . . . . . . . . . . 54
s
Safe driving habits . . . . . . . . . . . . . . . . . . . . 129
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129
Airbag system . . . . . . . . . . . . . . . . . . . . . . 146
Belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138
Cargo . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134
Correct seating pos it ion . . . . . . . . . . . . . . 130
Pedal area . . . . . . . . . . . . . . . . . . . . . . . . . . 134
Safety be lt position . . . . . . . . . . . . . . . . . . . 142
Safety belt height adjustment . . . . . . . . . 143
Safety belts worn by pregnant women . . . 143
Safety belt pretensioner Service and disposal . . . . . . . . . . . . . . . . . . 145
Saf ety belts . . . . . . . . . . . . . . . . . . . . . . 138, 141
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . 230
Danger to passengers who do not wear a
safety belt . . . . . . . . . . . . . . . . . . . . . . . . . 139
Fastening . . . . . . . . . . . . . . . . . . . . . . . . . . 141
Height adjustment . . . . . . . . . . . . . . . . . . . 143
Improperly worn . . . . . . . . . . . . . . . . . . . . 144
Indicator light (front) . . . . . . . . . . . . . . . . . 14
Not worn . . . . . . . . . . . . . . . . . . . . . . . . . . 139
Safety belt position . . . . . . . . . . . . . . . . . . 142
Safety instructions . . . . . . . . . . . . . . . . . . . 140
Securing child saf ety seats . . . . . . . . . . . . 181
Special considerations fo r pregnant wom-
en . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 143
Unfastening . . . . . . . . . . . . . . . . . . . . . . . . 143
Warning/indicator light . . . . . . . . . . . . . . 138
Worn properly . . . . . . . . . . . . . . . . . . . . . . 140
Safety be lt warning light . . . . . . . . . . . . . . . 138
Safety instructions for side curtain airbags . . . . . . . . . . . . . . . 169
for using child safety seats . . . . . . . . . . . . 17 4
for using safety b elts . . . . . . . . . . . . . . . . . 140
Monitoring the Advanced Airbag System 160
Sav ing fuel
Cylinder on demand system . . . . . . . . . . . . 21
Efficiency program . . . . . . . . . . . . . . . . . . . . 22
Recuperation . . . . . . . . . . . . . . . . . . . . . . . . 21
Screwdriver . . . . . . . . . . . . . . . . . . . . . . . . . . 233
Seat adjustment Head restraints . . . . . . . . . . . . . . . . . . . . . 132
267
