Instruments and indicator ligh ts
Instruments and ind icator lights
Instruments
Instrument cluster overview
The instrument cluster is the central information center for the driver.
F ig. 3 Instrument cl uster overv iew
(D Engine coolant temperature gauge
@ Tachometer .. ............. .. .
- With
OFF status indicator ... . .
- With
READY status ind icator ..
@ Turn signals ............. .... .
@ Disp lay w ith
- Driver information system ... . .
- Indicator lig hts ....... ... .. .
® Speedometer
® Fuel level
@ Tips
9
10
68
68, 70
40
20
10
10
The instrument illumination for the needles
and d ials t urns on when the ignition is turned
on and the lights are turned off. The illumina­
tion fo r the ga uges reduces automat ical ly and
eventu ally turns off as brightness outside in­
creases . This function reminds the drive r to
turn the low beams on at the appropriate
time.
Coolant temperature indicator
ed on. To prevent engine damage, please observe
the following notes about the temperature rang­
es.
Cold ran ge
If only the LEDs at the bottom of the gauge turn
on, the engine has not reached operating tem­
perature yet. Avoid high eng ine speeds, full ac­
celerating and heavy eng ine loads.
Normal range
The engine has reached its operating tempera­
ture once the LEDs up to the center of the gauge
turn on.
If the . indicator light in the instru­
ment cluster d isplay turns on, the coolant tem­
perature is too
high ¢ page 14.
@ Note
-Aux iliary headlights and other accessories in
front of the coo ling-air intake impa ir the
cooling effect of the coolant . This increases
the risk of the engine overheating dur ing
high ou tside temperatures and heavy en­
gine load.
~ The coolant temperature display (D ¢ page 9,
~ fig . 3 only functions when the ignition is switch-
u ' 9

Instruments and indicator lights
_}_ Cooling system
• Turn off engine and check coolant level
The coolant level is too low.
Do not continue driving and switch the engine
off. Check the coolant level
9 page 200.
- If the coolant level is too low, add coolant
9page 200. Only continue driving once the in­
dicator light turns
off.
• Coolant temperature too high! Please let en­
gine run with vehicle stationary
Let the engine run at idle for a few minutes to
cool
off, until the indicator light turns off.
-If the indicator light does not turn off, do not
continue driving the vehicle . See an authorized
Audi dealer or authorized Audi Service Facility
for assistance.
_& WARNING
- Never open the hood if you can see or hear
steam or coolant escaping from the engine
compartment. This increases the risk of
burns. Wait until you no longer see or hear
steam or coolant escaping.
- The engine compartment in any vehicle can
be a dangerous area. Stop the engine and
allow it to cool before working in the engine
compartment. Always follow the informa­
tion found in
9 page 193, Working in the
engine compartment.
@ Note
Do not continue driving if the. indicator
light turns on as this increases the risk of en­
gine damage.
, ft Front safety belt
The. indicator light stays on until the driver's
and front passenger's safety belts are fastened.
Above a certain speed, there will also be a warn­
ing tone.
14
(D Tips
For additional information on safety belts,
see ¢
page 138.
E::::I Alternator/vehicle battery
• Electrical system: malfunction! Battery is
not being charged
There is a malfunction in the alternator or the ve­
hicle electrical system .
Drive to an authorized Audi dealer or authorized
Audi Service Facility immediately. Because the ve­
hicle battery is discharging, turn off all unneces­
sary electrical equipment such as the radio. See
an authori zed Audi dealer or authori zed Audi
Service Facility if the battery charge level is too
low .
r•j low battery: Battery will be charged while
driving
The starting ability may be impaired.
If this message turns off after a little while, the
vehicle battery charged enough while driving.
If the message does not turn off, have an author­
ized Audi dealer or authorized Audi Service Facili­
ty repair the malfunction .
~ Engine stop while driving
• Engine stopped: No power steering and
brake support.
There is a malfunction in the engine or in the fuel
supply system.
More force is needed to steer and brake the mov­
ing vehicle when the engine is stopped . If the ve­
hicle is rolling, try to bring it to a stop off to the
side from moving traffic. See an authorized Audi
dealer or authorized Audi Service Facility for as­
sistance.
_& WARNING
If the engine stops while driving, you will
need to use more force to brake the vehicle.
This increases the risk of an accident. There
will still be power steering if the ignition is
-

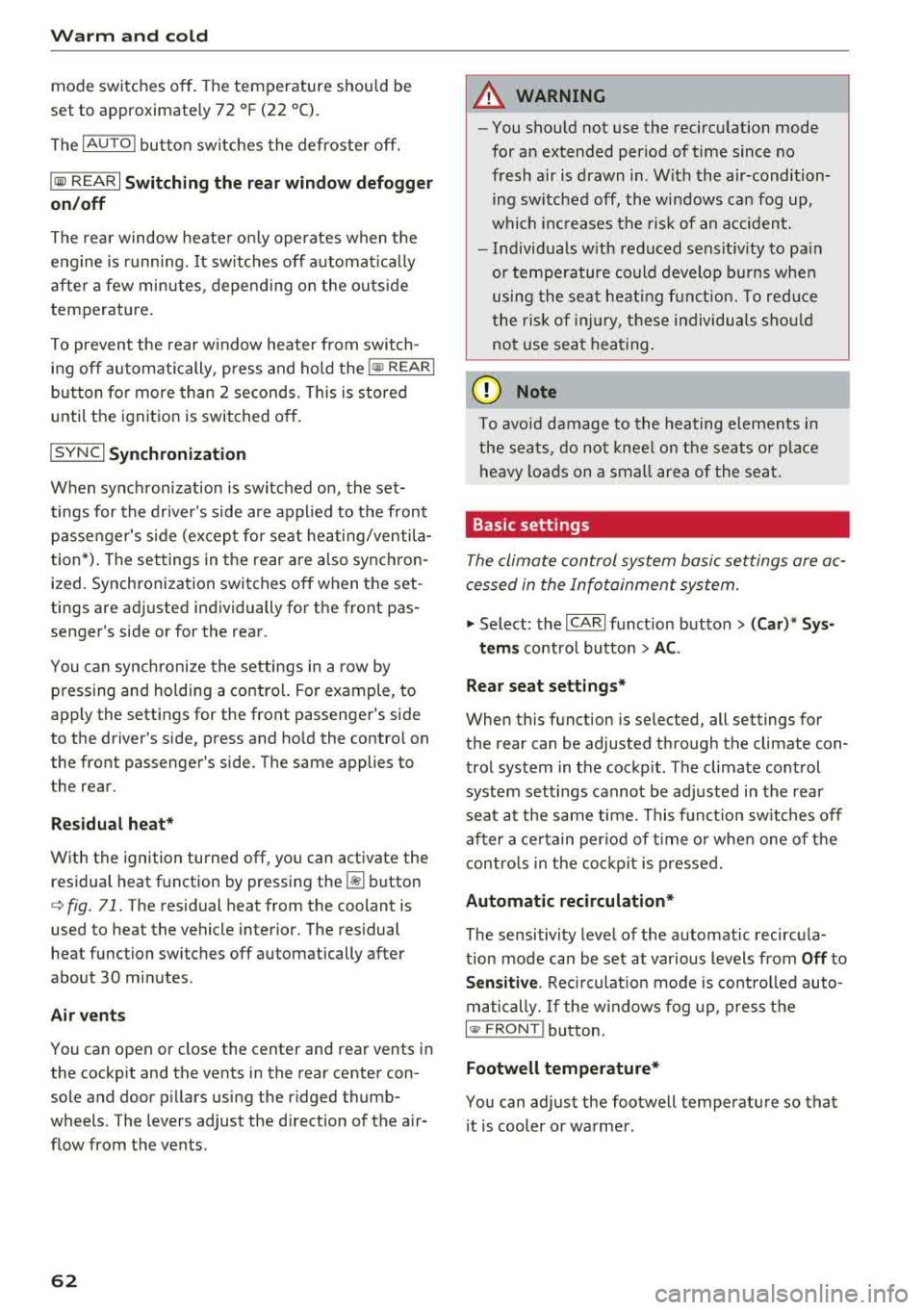

Warm and cold
mode switches off . The temperature shou ld be
set to approximate ly 72 ° F (22 °C).
The
IAUTOI button sw itches the defroster off.
IQill REAR I Switching the rear window defogger
on /off
The rear window heate r on ly operates when the
e ng ine is r unni ng.
It sw itches off a utomat ica lly
afte r a few minutes, depend ing on the o utside
temperature .
To prevent the rear w indow heater from swit ch­
i n g off automatically, p ress and ho ld the
l lliil REAR I
button fo r more than 2 seconds . This is s tored
until the ignition is switched off.
I SYNC I Synchronization
When synchronization is switched on, the set­
tings for the dr ive r's side are appl ied to the front
p a ssenger's s ide (except for se at heating/ventila­
tion*) . The settings in t he rear are a lso synchron ­
ized. Synchronization switches off when the set ­
tings are adj usted individually for the front pas ­
senger 's side or for the rear.
You can sync hronize the settings in a row by
p ressing and holding a contro l. For example, to
app ly the settings for the front passenger 's side
to the driver's side, press and ho ld the contro l on
the front passenger's side. The same applies to
the rear .
Residual heat *
With the ignition turned off, yo u can activate the
residual heat function by pressing the
Iii button
c:> fig. 71. The residual heat from the coolant is
used to heat the vehicle interior. The residual
heat function switches off automatically after
about 30 m inutes .
Air vents
You can open or close the center and rear vents in
the cockpit and the vents in the rear center con ­
sole and door p illars using the r idged thumb­
wheels . The levers adjust the direct ion of the a ir­
flow from the vents .
62
A WARNING
-You shou ld not use the recircu lation mode
for an extended period of time since no
fresh air is drawn in . W it h the air-condition­
ing sw itched off, the windows ca n fog up,
whi ch inc reases the risk of an acc ident.
- Individ uals w ith reduced sensit iv ity to pa in
or tempe rature co uld develop b urns when
using the sea t heat ing f unct io n. T o re duce
t he r isk of injury, t hese individua ls sho uld
no t u se sea t hea ting.
@ Note
T o avoid damage to the heating elements in
the seats, do no t knee l on t he se ats o r pla ce
h eavy lo ads on a small area of the seat.
Basic settings
The climate control system basic settings are ac­
cessed in the Infotainment system.
~ Select: the I CARI funct ion button > (Car )* Sys-
tems
contro l butto n > AC.
Rear seat settings *
When this function is se lected, all settings for
the rear can be adjusted through the climate con­
trol system in the cockp it . T he climate control
system settings cannot be ad justed in the rear
seat at the same time. This f unct io n sw itches off
after a ce rtain per iod of t ime o r whe n one of t he
con tro ls in t he coc kp it is pressed.
Automatic recirculation*
The sensitivity level of t he automatic recircula­
tion mode can be set at various levels from
Off to
Sen sitive . Recircul at io n mode is cont ro lled auto­
matically. If the w indows fog up, p ress t he
l F RON T! button.
Footwell temperature*
You can adjust the footwell temperature so that
i t is cooler or wa rme r.

Checking and Filling

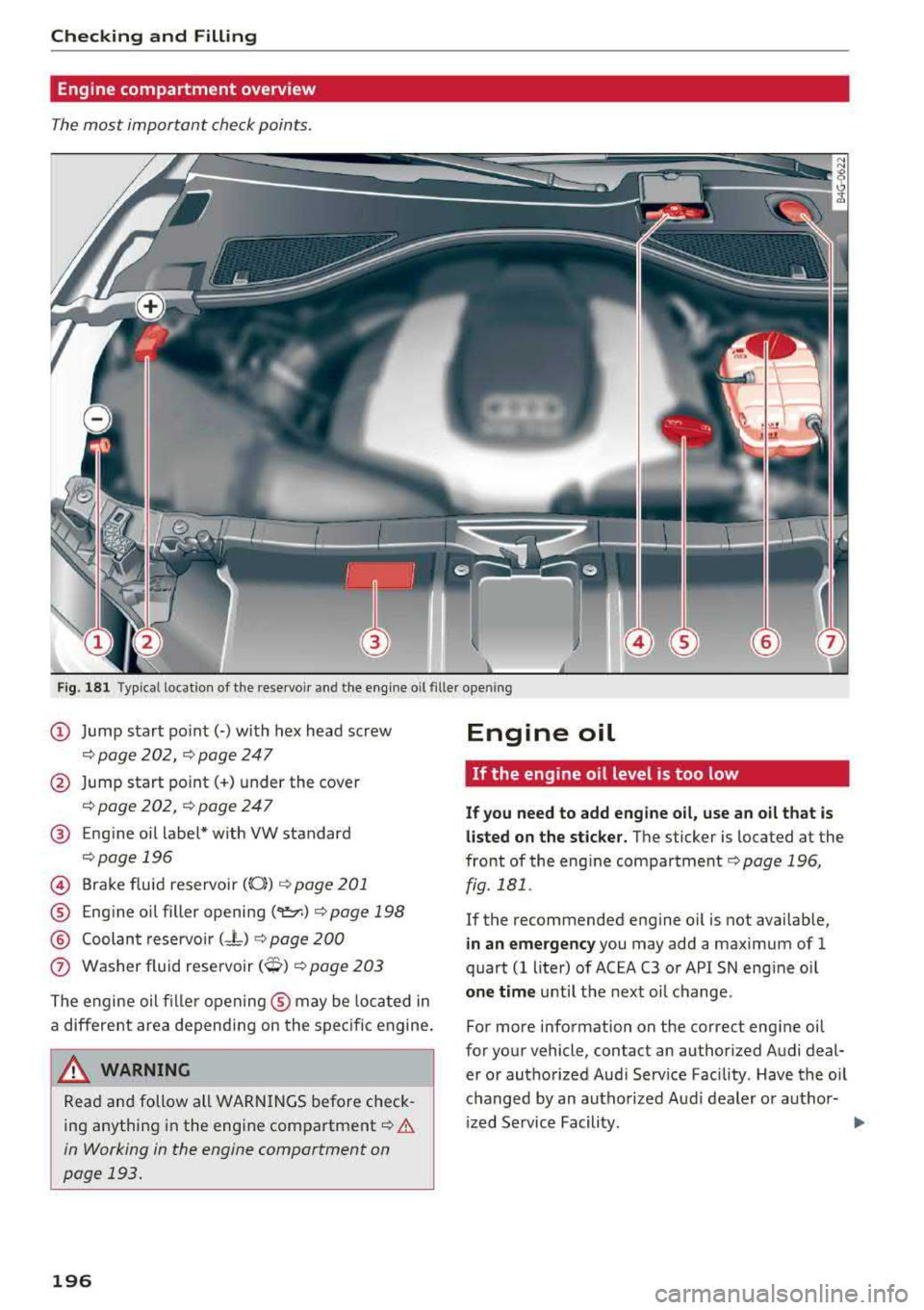

Engine compartment overview
The most important check points.
Fig. 181 Typical location of the rese rvoir and the engine o il filler open ing
(D Jump start po int(-) with hex head screw
~ page 202, ¢page 247
@ Jump start point(+) under the cover
~page 202, ¢page 247
® Engine oil label* w ith VW standard
¢ page 196
@ Brake fluid reservoir ((0)) ¢ page 201
® Engine oil filler opening(~)¢ page 198
@ Coolant reservoir (- L) ~ page 200
(j) Washer fluid reservoir (0) ¢ page 203
The engine oil fill er opening ® may be located in
a different area depending on the specific engine.
& WARNING
Read and follow all WARNINGS before check­
ing anything in the engine
compartment¢ &
in Working in the engine compartment on
page 193.
196
Engine oil
If the engine oil level is too low
If you need to add engine oil, use an oil that is
listed on the sticker.
The sticker is located at the
front of the eng ine
compartment¢ page 196,
fig . 181 .
If the recommended engine o il is not availab le,
in an emergency you may add a maximum of 1
quart(! liter) of ACEA C3 or API SN eng ine oi l
one time until the next oil change .
For more information on the correct eng ine oil
for your vehicle, contact an authorized Audi deal­
er or authorized Aud i Serv ice Facility . Have the oil
c h anged by an authorized Audi dealer or author­
i zed Service Facility.

a co .... N

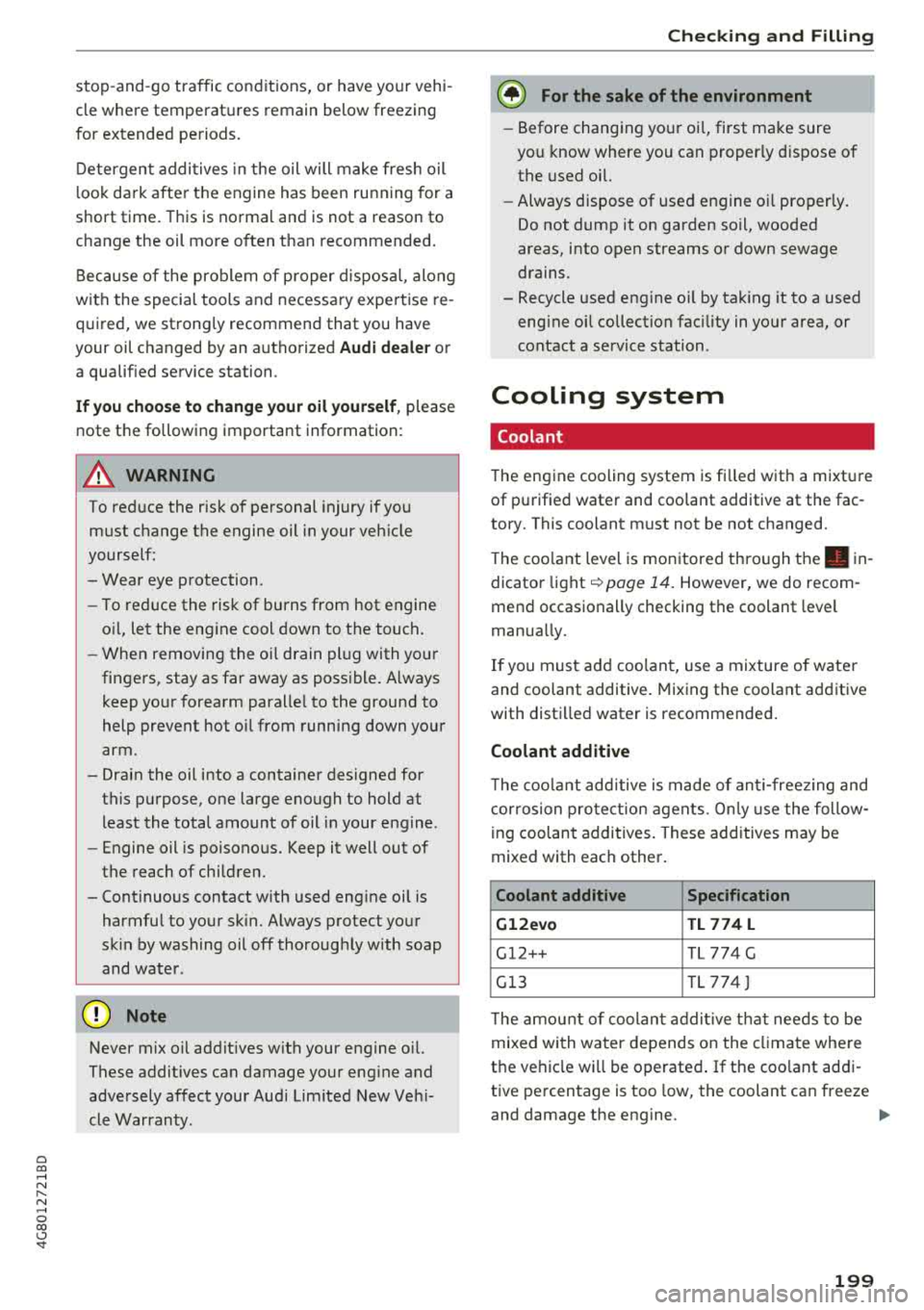

" N .... 0 00 \,;J ' stop-and-go traffic conditions, or have your vehi­
cle where temperatures remain below freezing
for extended periods.
Detergent additives in the oil will make fresh oil
l ook dark after the engine has been running for a
short time. This is norma l and is not a reason to
change the oil more often than recommended.
Because of the problem of proper disposa l, along
with the special tools and necessary expertise re­
quired, we strong ly recommend that you have
your oil changed by an authorized
Audi dealer or
a qualified service station .
If you choose to change your oil yourself, please
note the following important information:
A WARNING
To reduce the risk of personal injury if you
must change the engine oil in your veh icle
yourself:
- Wear eye protection.
- To reduce the risk of burns from hot engine
o il, let the eng ine cool down to the touch.
-
-When removing the oil drain plug with your
fingers, stay as far away as possible. Always
keep your forearm parallel to the ground to
help prevent hot oil from running down your
arm.
- Drain the oil into a container designed for
this purpose, one large enough to hold at
least the total amount of oil in your engine .
- Engine oil is poisonous. Keep it well out of
the reach of children.
- Cont inuous contact w ith used engine oil is
harmful to your sk in. Always protect your
sk in by washing oil off thoroughly w ith soap
and water.
@ Note
Never mix oil addit ives with your engine o il.
These additives can damage your eng ine and
adversely affect your Audi Limited New Vehi­
cle Warranty.
Checking and Filling
@) For the sake of the environment
-Before changing your oi l, first make sure
you know where you can properly dispose of
the used oil.
- Always dispose of used engine oi l properly.
Do not dump it on garden soil, wooded
areas, into open streams or down sewage
drains.
- Recycle used engine o il by tak ing it to a used
eng ine oil collection fac ility in your area, or
contact a service station .
Cooling system
Coolant
The engine cooling system is filled wit h a mixture
of purified water and coolant additive at the fac ­
tory. This coolant must not be not changed.
T he coolant level is monitored through
the . in­
dicator light
r=;, page 14. However, we do recom­
mend occasionally checking the coolant leve l
manua lly.
If you must add coolant, use a mixture of water
and coolant additive. Mixing the coo lant additive
with distilled water is recommended.
Coolant additive
The coolant additive is made of anti-freezing and
corrosion protection agents. Only use the follow­
ing coolant additives. These additives may be
mixed with each other .
Coolant additive Specification
Gl2evo
TL 774 L
Gl2++ TL 774 G
Gl3 TL 774
J
The amount of coolant additive that needs to be
mixed with water depends on the climate where
the vehicle wi ll be operated .
If the coolant addi ­
tive percentage is too low, the coolant can freeze
and damage the engine.
.,.
199

Checking and Filling
Coolant Freeze protec-
additi ve tion
Warm min. 40% min. -13 °F
regions max. 45% (-25 °C)
Cold min. 50% max. -40
°F
regions max. 55% (-40 °C)
([) Note
- Before the start of winter, have an author­
ized Audi dealer or authorized Audi Service
Facility check if the coolant additive in your
vehicle matches the percentage appropriate
for the climate. This is especially important
when driving in colder climates.
- If the appropriate coolant additive is not
available in an emergency, do not add any
other additive. You could damage the en­
gine. If this happens, only use water and re­ store the correct mixture ratio with the
spec ified coolant additive as soon as possi­
ble.
- Only refill with new coo lant.
- Radiator sealant must not be mixed w ith
the coo lant .
Adding coolant
F ig. 183 Engine compartment: coolant expans ion tank
cover
Observe the safety precautions~ page 193,
Working in the engine compartment .
Checking the engine coolant level
• Park the vehicle on a leve l surface .
• Switch the ignition off.
• Read the coolan t leve l on the coo la nt expansion
tank
~page 196, fig . 181. The coolant level
must be between the MIN and MAX markings
200
when the engine in cold. When the engine is
warm it can be slightly above the MAX marking .
Adding coolant Requirement: there must be a residual amount of
coolan t in the expansion tan k
~CD -
• Let the engine cool down .
• Place a cloth over the coolant expansion tank
cap and unscrew the cap counterclockw ise
~ & -
... Add coo lant m ixed in the cor rect ratio
~ page 199 up to the MAX marking.
• Make sure that the fluid level remains stab le .
Add more coolant if necessary .
• Close the cap securely.
Coolant loss usually ind icates there is a leak . Im­
mediate ly drive your vehicle to an authorized
Audi dealer or authorized Audi Service Fac ility
and have the cooling system inspected. If the
cooling system is not leaking, a loss can come
from the coolant boiling through overheat ing
and being pushed out of the cooling system .
A WARNING
- The cooling system is under pressure. Do
not open the coo lant expansion ta nk cap
when the engine is hot. This increases the
risk o f bur ns.
- The coolan t addi tive and the coolant can be
dangerous to your health. For t his reason,
keep the coolant in the original container
and away from children. There is a risk of
poisoning.
- When working in the engine compartment,
remember that the radiator fan can switch
on even if the ignition is switched off, which
increases the risk of injury.
(D Note
Do not add coolant if the expansion tank is
empty. A ir cou ld enter the cooling system and
damage the engine. If this is the case, do not
continue driving. See an authorized Audi deal­
er or authorized Audi Serv ice Facility for assis­
tance.

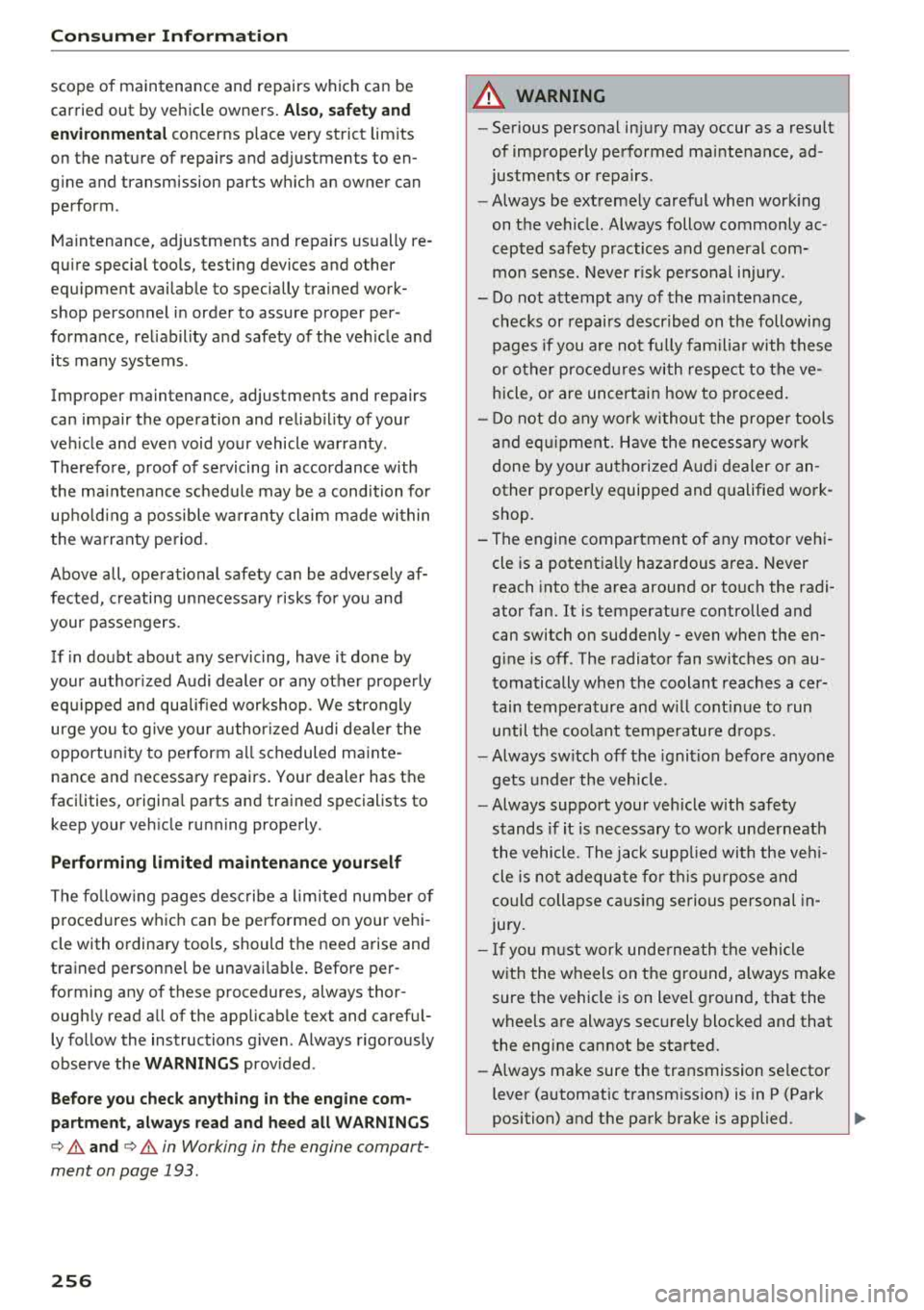

Consum er Info rmation
scope of maintenance and repairs which can be
carried out by vehicle owners.
Al so , sa fet y and
en vironment al
concerns place very strict limits
on the nature of repairs and ad justments to en­
g ine and transmission parts wh ich an owner can
perform .
Maintenance, adjustments and repairs usually re­
qu ire special tools, testing devices and other
equ ipment available to specially trained work­
shop personnel i n order to assure proper per ­
formance, reliab ility and safety of the veh icle and
its many systems .
Improper maintenance, adjustments and repairs
can impair the operation and reliab ility of your
veh icle and eve n void your vehicle warranty .
Therefo re, proof of servicing in accordance w ith
the ma intenance sc hedule may be a condition fo r
up hold ing a possible wa rra nty claim made wi thin
the warranty pe riod.
Above all , operational safety can be adversely af­
fected, c reating unnecessa ry risks fo r you and
your p assengers.
If in doubt about any servicing, have it done by
your author ized Audi dealer or any other properly
eq uipped and qualified workshop . We strongly
urge yo u to g ive your author ized Audi dealer the
opportu nity to pe rform a ll scheduled ma inte ­
nance and necessary repairs. Your dealer has the
facilities, origina l parts and train ed sp ecialists to
keep your veh icle running properly.
Performing limited maint enance yourself
The fo llow ing pages describe a limited number of
procedures w hich can be performed on your ve hi­
cle with ordinary tools, should the need arise and
trained personne l be unavai lable . Before pe r­
forming any of these procedures, always thor­
ough ly read a ll of the app licab le text and carefu l­
ly follow the instructions g iven . A lways rigorously
observe the
WARNING S provided .
Before you check anything in the engine com ­
partment , alw ays read a nd heed all WARNINGS
c> .&. and c> .&. in Working in the engine compart­
ment on page 193 .
256
A WARNING
- Ser ious personal in jury may occur as a result
of imp roperly performed maintenance, ad­
justments or repairs .
- Always be extreme ly careful when work ing
on the vehicle . Always follow commonly ac­
cepted safety practices and general com­ mon sense. Never r is k personal in jury.
- Do not attempt any of the maintenance,
checks or repairs described on the following pages if you are not fu lly fam il iar with these
or other proce dures with respect to t he ve­
hicle, or are uncertain how to proceed.
- Do not do any work wi thout the prope r tools
an d equi pmen t. H ave the necessary wo rk
done by your authorized Au di dealer or an ­
other properly equipped and qualified work­
shop.
- The engine compartment of any motor vehi ­
cle is a potentially hazardous area . Never
reach into the area around or touch the radi­
ator fan. It is temperature controlled and
can switch on suddenly - even when the en­
gine is off . The radiato r fan switches on au­
tomatically when the coolan t reaches a cer­
tain tempe rature and w ill cont inue to run
until the coolant temperature d rops.
- Always sw itch off the ignition before anyone
gets under the vehicle.
- Always support your vehicle with safety
stands if it is necessary to work underneath
the vehicle. The jack supp lied with the veh i­
cle is no t adequate fo r th is pu rpose a nd
could collapse causing serious personal in­
jury .
- If you must wor k unde rneath the vehicle
w ith the wheels on the g round, always make
sure the vehicle is on level ground, that the
wheels a re always sec urely blocked and that
the engine cannot be started.
- Always make sure the transmission se lector
lever (automatic t ransm iss ion) is in P (Park
position) and the pa rk b rake is applied .
Ill>

a co .... N
" N .... 0 00 \,;J ' Child restraints Danger of using child restraints in the front
seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147
Where can I get additional information
about child restraints and their use? . . . . 188
Child restraint system anchors . . . . . . . . . . 184
Ch ild safety . . . . . . . . . . . . . . . . . . . . . . . . . . 170
I mportant safety instructions for using chi ld
safety seats . . . . . . . . . . . . . . . . . . . . . . . . 17 4
I mportant things to know when driving with
children . . . . . . . . . . . . . . . . . . . . . . . . . . . 170
Tether anchors . . . . . . . . . . . . . . . . . . . . . . 187
T eth er straps . . . . . . . . . . . . . . . . . . . . . . . 187
Ch ild safety lock
Power windows . . . . . . . . . . . . . . . . . . . . . . 35
Rear doors . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Child safety seats .................. .. . 176
Booster seats . . . . . . . . . . . . . . . . . . . . . . . 180
Convertible ch ild seats . . . . . . . . . . . . . . . 178
Convertible locking retractor . . . . . . . . . . 183
H ow do I properly install a child safety seat
. h' l
7 174 in my ve ,c e . ................. ..... .
Infant seats . ................. ..... . 176
Installing a child restr aint using the LATCH
system . . . . . . . . . . . . . . . . . . . . . . . . . . . . 186
LA TCH system . . . . . . . . . . . . . . . . . . . . . . 186
Lower anchorages . . . . . . . . . . . . . . . . . . . 185
Mounting and releasing the anchorage
h ook . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 186
Safety instructions . . . . . . . . . . . . . . . . . . . 17 4
Secur ing . . . . . . . . . . . . . . . . . . . . . . . . . . . 181
Unused safety belts on the rear seat . . . . 176
Cigarette lighter . . . . . . . . . . . . . . . . . . . . . . . 51
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . 228
C leaning/remov ing ice from windows . . . . . 230
Cleaning Alcantara ................. .. . 231
C leaning artificia l leather......... ..... . 231
C leaning carbon parts ........ .. .. . 230 ,231
Cleaning controls . . . . . . . . . . . . . . . . . . . . . 230
C leaning decorative parts/trim . . . . . . . . . . 230
Cleaning displays . . . . . . . . . . . . . . . . . . . . . 230
Cleaning exhaust tail pip es . . . . . . . . . . . . . 229
C leaning plastic parts . . . . . . . . . . . . . . . . . . 230
Cleaning rims . . . . . . . . . . . . . . . . . . . . . . . . 229
C leaning textiles ................ ..... . 231
Index
Climate contro l system . . . . . . . . . . . . . . . . . 58
Automatic recirculation . . . . . . . . . . . . . . . . 62
Basic settings . . . . . . . . . . . . . . . . . . . . . . . . 62
Drive select . . . . . . . . . . . . . . . . . . . . . . . . . 105
Closing Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 195
Sunroof. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Closing/ opening
By remote control . . . . . . . . . . . . . . . . . . . . 29
Using the door lock cylinder . . . . . . . . . . . . 31
With the convenience key . . . . . . . . . . . . . . 29
Closing a id (doors) . . . . . . . . . . . . . . . . . . . . . 26
Cockpit (overview) . . . . . . . . . . . . . . . . . . . . . . 6
Coming home . . . . . . . . . . . . . . . . . . . . . . . . . 41
Compartments . . . . . . . . . . . . . . . . . . . . . . . . 52
Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . 258
Consumer Information . . . . . . . . . . . . . 136, 255
Consumption (fuel) . . . . . . . . . . . . . . . . . . . . 21
Contacting NHTSA . . . . . . . . . . . . . . . . . . . . 136
Convenience key Start ing the engine (STAR T ENGINE S TOP
button) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Stopping the engine (STAR T ENG INE ST OP
button) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Switching the ignition on . . . . . . . . . . . . . . 68
Unlocking/locking . . . . . . . . . . . . . . . . . . . . 29
Convenience opening . . . . . . . . . . . . . . . . . . . 36
Convertible child safety seats . . . . . . . . . . . 178
Convertible locking retractor
Activating . . . . . . . . . . . . . . . . . . . . . . . . . . 183
Deactivating . . . . . . . . . . . . . . . . . . . . . . . . 184
Using to secure a child safety seat . . . . . . 183
Cooling down . . . . . . . . . . . . . . . . . . . . . . . . . 64
Cooling mode (4-zone deluxe automatic cli-
mate contro l) . . . . . . . . . . . . . . . . . . . . . . . . . 61
Cooling mode (deluxe automatic climate con-
trol) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Cooling system Adding coolant . . . . . . . . . . . . . . . . . . . . . . 200
Coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . . 199
Coolant level checking . . . . . . . . . . . . . . . . 200
Coolant temperature indicator . . . . . . . . . . . 9
I ndicator light . . . . . . . . . . . . . . . . . . . . . . . 1 4
Cornering light . . . . . . . . . . . . . . . . . . . . . . . 105
Crossing water . . . . . . . . . . . . . . . . . . . . . . . . 64
261

a co .... N
" N .... 0 00 \,;J ' Engine compartment
Opening/closing the hood . . . . . . . . . . . . .
195
Overview ..... ................ ..... . 196
Safety precautions . . . . . . . . . . . . . . . . . . . 193
Engine control (ind icator light) . . . . . . . . . . . 17
Engine oil Adding . . . . . . . . . . . . . . . . . . . . . . . . . . . .
196
Changing . . . . . . . . . . . . . . . . . . . . . . . . . . 198
Checking oil level . . . . . . . . . . . . . . . . . . . . 196
Consumption . . . . . . . . . . . . . . . . . . . . . . . 196
Indicator light . . . . . . . . . . . . . . . . . . . . . . . 15
Temperature indicator . . . . . . . . . . . . . . . . . 23
En gin e sound . . . . . . . . . . . . . . . . . . . . . . . . 105
Engine speed limitation (indicator light) 17
Engine Start/Stop mode
refer to Start/Stop system . . . . . . . . . . . . . 72
Engine warm-up request
I ndicator light . . . . . . . . . . . . . . . . . . . . . . . 17
Environment Proper disposal of drained engine oil . . . .
198
Unleaded gasoline . . . . . . . . . . . . . . . . . . . 189
EPC (engine control) . . . . . . . . . . . . . . . . . . . . 17
E SC
Automatic post-collision braking system . 120
also refer to Electronic stabilization con-
tro l . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
120
ESP
refer to Electronic stabilization control . . 120
Event Data Recorder (EDR) . . . . . . . . . . . . . 127
Exterior lighting . . . . . . . . . . . . . . . . . . . . . . .
39
Exterior mirrors
Adjusting . . . . . . . . . . . . . . . . . . . . . . . . . . .
43
Dimming . .. .. ............... .. .. .. .. 43
Heating .. .. .. ............. .. .. .. .. .. 43
Exterior temperature display . . . . . . . . . . . . . 20
F
Fastening
Booster seats . . . . . . . . . . . . . . . . . . . . . . . 180
Convertible child safety seats . . . . . . . . . . 178
Infant seats . . . . . . . . . . . . . . . . . . . . . . . . 176
Federa l Communications Commission (FCC)
258
Fl oor mats . . . . . . . . . . . . . . . . . . . . . . . . . . . 134
Folding the rear seats . . . . . . . . . . . . . . . . . . . 54
Foot pedals . . . . . . . . . . . . . . . . . . . . . . . . . . 134
Index
For the sake of the environment
Environmentally-friend ly driving . . . . . . . .
65
Fueling . . . . . . . . . . . . . . . . . . . . . . . . . . . . 190
Leaks. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 194
Roof rack . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Warming up the engine . . . . . . . . . . . . . . . . 68
Freeze protection
Coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . .
199
Front airbags
Description . . . . . . . . . . . . . . . . . . . . . . . . .
150
How they work . . . . . . . . . . . . . . . . . . . . . . 156
Frontal collisions and the laws of physics . . 139
Front center armrest . . . . . . . . . . . . . . . . . . . 48
Front seats
Adjusting . . . . . . . . . . . . . . . . . . . . . . . . . .
131
Child restraints in the front seat . . . . . . . . 14 7
also refer to Seats . . . . . . . . . . . . . . . . . . . . 47
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
189
Additives . . . . . . . . . . . . . . . . . . . . . . . . . . . 189
Blended gasoline . . . . . . . . . . . . . . . . . . . . 189
Current consumption . . . . . . . . . . . . . . . . . . 21
Fuel gauge . . . . . . . . . . . . . . . . . . . . . . . .
9, 10
Fuel tank capacity . . . . . . . . . . . . . . . . . . . 254
Gasoline . . . . . . . . . . . . . . . . . . . . . . . . . . . 189
Gasoline additives . . . . . . . . . . . . . . . . . . .
190
Indicator light . . . . . . . . . . . . . . . . . . . . . . . 17
Saving fuel . . . . . . . . . . . . . . . . . . . . . .
65, 105
Fueling
Fuel gauge . . . . . . . . . . . . . . . . . . . . . . . . . .
10
Fuel tank capacity . . . . . . . . . . . . . . . . . . . 254
Opening the fuel filler door . . . . . . . . . . . . 190
Fuses
Assignment . . . . . . . . . . . . . . . . . . . . . . . . 244
Replacing . . . . . . . . . . . . . . . . . . . . . . . . . .
243
G
Garage door opener (Homelink) . . . . . . . . . . 37
Garment hook . . . . . . . . . . . . . . . . . . . . . . . . .
53
Gasoline . . . . . . . . . . . . . . . . . . . . . . . . . . . . 189
Octane rating . . . . . . . . . . . . . . . . . . . . . . . 189
Recommendation . . . . . . . . . . . . . . . . . . . . 189
GAWR
refer to Gross Axle Weight Rating (GAWR) 254
Glasses holder . . . . . . . . . . . . . . . . . . . . . . . . 53
Glossary of tire and loading terminology . . 208
Glove compartment . . . . . . . . . . . . . . . . . . . . 53
cooled . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
263

a co .... N
" N .... 0 00 \,;J ' Symbols
r e fer to Indicator lights . . . . . . . . . . . . . . . . 10
T
Tachometer . . . . . . . . . . . . . . . . . . . . . . 9, 10, 20
Tail lights Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . 229
Technical data . . . . . . . . . . . . . . . . . . . . . . . . 253
Technical modifications . . . . . . . . . . . . . . . . 2S8
T emperature display
Exterior temperature . . . . . . . . . . . . . . . . . . 20
T emperature indicato r
Coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Tether anchors . . . . . . . . . . . . . . . . . . . . . . . 187
Tether strap . . . . . . . . . . . . . . . . . . . . . . . . . 187
T ie-downs . . . . . . . . . . . . . . . . . . . . . . . . S5, 136
Time . .. .. .. .. ............. .. .. .. .. .. 23
tiptronic mode (automatic transmission) . . . 78
tiptronic (automatic transmission) . . . . . . . . 74
Tire Mobi lity System (tire repair set) . . . . . . 234
Tires.. .. .. .. .. ............... .. .. .. . 205
All wheel drive . . . . . . . . . . . . . . . . . . . . . . 124
L ow-profile tires ............... ... .. . 221
Repair set . . . . . . . . . . . . . . . . . . . . . . . . . . 234
Replac ing . . . . . . . . . . . . . . . . . . . . . . . . . . 236
Service life . . . . . . . . . . . . . . . . . . . . . . . . . 214
Tire pressure . . . . . . . . . . . . . . . . . . . . . . . 215
Tire pressure monitoring sys-
tem ....................... 222, 223, 224
Tire pressure table . . . . . . . . . . . . . . . . . . . 217
Tire pressure (trailer towing) . . . . . . . . . . . 81
Treadwear indicators .......... .. .. .. . 214
Unidirectional . . . . . . . . . . . . . . . . . . . . . . . 207
Uniform tire quality grading . . . . . . . . . . . 221
T ires and wheels
Glossary of tire and loading terminology . 208
Tires and vehicle load limits .... .. .. .. . 218
Too l kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 233
Torn or frayed safety belts . . . . . . . . . . . . . . 140
T owing
Tow trucks
Towing loop
TPMS 249
249,250
Indicator light . . . . . . . . . . . . . . . . . . . . . . 227
Index
TPMS ( Tire Pressure Monitoring
System) . . . . . . . . . . . . . . . . . . . . . . . . . 223, 224
T railer towing . . . . . . . . . . . . . . . . . . . . . . . . . 81
Parking systems . . . . . . . . . . . . . . . . . . . . . 118
T railer load . . . . . . . . . . . . . . . . . . . . . . . . . . 81
Transmission malfunction (indicator light) . . 79
Transport Canada . . . . . . . . . . . . . . . . . . . . . 137
T urn signals . . . . . . . . . . . . . . . . . . . . . . . . . . 40
u
Unfastening safety belts
Uniform tire quality grading
Unlocking/locking 143
221
By remote control . . . . . . . . . . . . . . . . . . . . 29
Using the door lock cylinder . . . . . . . . . . . . 31
With the central locking switch . . . . . . . . . 30
With the convenience key 29
V
Vanity mirror . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Vehicle Care/cleaning . . . . . . . . . . . . . . . . . . . . . . . 228
Dimens ions . . . . . . . . . . . . . . . . . . . . . . . . . 253
Out of service . . . . . . . . . . . . . . . . . . . . . . . 232
Specifications . . . . . . . . . . . . . . . . . . . . . . . 253
T ransporting . . . . . . . . . . . . . . . . . . . . . . . 252
Vehicle battery . . . . . . . . . . . . . . . . . . . . . . . 201
Charge level . . . . . . . . . . . . . . . . . . . . . . . . 126
Charging . . . . . . . . . . . . . . . . . . . . . . . . 14, 202
Energy management . . . . . . . . . . . . . . . . . 126
Indicator light . . . . . . . . . . . . . . . . . . . . . . . 14
Winter operation . . . . . . . . . . . . . . . . . . . . 202
Vehicle control modules . . . . . . . . . . . . . . . . 127
Vehicle jack . . . . . . . . . . . . . . . . . . . . . . 233, 238
Vehicle tool kit . . . . . . . . . . . . . . . . . . . . . . . 233
Ventilation . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
VIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 253
vv
Warming up . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Warning/Ind icator lights
Airbag system . . . . . . . . . . . . . . . . . . . . . . 158
PASSENGER A IR BAG OFF . . . . . . . . . . . . . 158
Warning lights
refer to Indicator lights . . . . . . . . . . . . . . . . 10
269
