Checking and Filling

If engine oil that meets the recommended speci-
fication is not available, in an emergency you
may add a maximum of 1 quart (1 liter) of
ACEA C3 or API SN engine oil one time until the
next oil change.
For more information on the correct engine oil
for your vehicle, contact an authorized Audi deal-
er or authorized Audi Service Facility. Have the oil
changed by an authorized Audi dealer or author-
ized Service Facility.
@ Tips
Audi recommends using engine oils provided
by Audi Genuine Parts.
Messages
Engine oil pressure
Biturn off engine. Oil pressure too low
Stop driving and switch the engine off. Check the
engine oil level > page 264.
—If the engine oil level is too low, add engine oil
=> page 264. Only continue driving once the in-
dicator light turns off.
— If the engine oil level is correct and the indica-
tor light still turns on, turn the engine off and
do not continue driving. See an authorized Audi
dealer or authorized Audi Service Facility for as-
sistance.
Engine oil level
& Please add oil immediately.
Stop driving and switch the engine off. Check the
engine oil level > page 264 and add engine oil
immediately > page 264.
EJ Add max. x qt (xl) oil. You can continue
driving
Add the amount of oil shown immediately
=> page 264.
Reducing the oil level
EA Please reduce oil level
There is too much oil in the engine and there is a
risk of damaging the catalytic converter or en-
gine. Drive to an authorized Audi dealer or au-
thorized Audi Service Facility immediately to have
engine oil extracted if necessary. Avoid high en-
gine speeds, full acceleration, and heavy engine
loads.
Engine oil sensor
|.) Oil level sensor: oil change necessary. Please
contact Service
Fuel has entered the engine oil. This will cause
the engine oil level to rise slowly and the engine
oil quality to decrease. Do not extract engine oil
to reduce the level, because this will increase the
risk of engine damage. Drive to an authorized
Audi dealer or authorized Audi Service Facility im-
mediately to have engine oil extracted.
& Oil level system: malfunction! Please con-
tact Service
The sensor that checks the engine oil level has
malfunctioned. Drive immediately to an author-
ized Audi dealer or authorized Audi Service Facili-
ty to have the malfunction repaired.
B Oil pressure sensor: malfunction! Please
contact Service
The sensor that checks the engine oil pressure
has malfunctioned. Drive immediately to an au-
thorized Audi dealer or authorized Audi Service
Facility to have the malfunction repaired.
Engine warm-up request
i Please drive to warm up engine
Fuel has entered the engine oil, either due to low
outside temperatures or frequent short drives.
Drive until the engine is warm so that the fuel in
the engine oil will evaporate. Avoid high engine
speeds, full accelerating, and heavy engine loads
when doing this.
G) Tips
The oil pressure warning 7} is not an oil level
indicator. Always check the oil level regularly.
263

Checking and Filling


— Maintain enough distance when you are re-
moving the oil drain plug. While doing this,
keep your forearm parallel to the ground to
reduce the risk of hot oil dripping down your
arm.
— Drain the oil into a container designed for
this purpose that is large enough to hold the
full amount of oil in your engine.
— Engine oil is poisonous. Always store out of
reach of children.
— Prolonged contact of used engine oil with
the skin may cause skin damage. Always
wash oil off immediately with soap and wa-
ter to protect your skin.
@) Note
Do not mix any additives with the engine oil.
Additives may cause engine damage that is
not covered by your New Vehicle Limited War-
ranty.

@ For the sake of the environment
— Before changing the engine oil, make sure
you can dispose of the used engine oil cor-
rectly.
— Engine oil must always be disposed of cor-
rectly. Do not dump it in the yard, in the for-
est, or in open water, river channels, or sew-
ers.
— Have your used engine oil recycled by bring-
ing it to a used oil collection site or contact
a gas station.
Cooling system
The engine cooling system is filled with a mixture
of purified water and coolant additive at the fac-
tory. This coolant must not be not changed.
The coolant level is monitored using the g indi-
cator light. However, occasionally checking the
coolant level is recommended.
Messages
& Turn off engine and check coolant level. See
owner's manual
266
The coolant level is too low.
Stop driving and switch the engine off. Check the
coolant level > page 267.
— If the coolant level is too low, add coolant
=> page 267. Only continue driving once the in-
dicator light turns off.
|_| Coolant temperature: too high. Please let
engine run while vehicle is stationary
Let the engine run at idle for a few minutes to
cool off, until the indicator light turns off.
— If the indicator light does not turn off, do not
continue driving the vehicle. See an authorized
Audi dealer or authorized Audi Service Facility
for assistance.
|| Coolant system: malfunction! Please turn
off engine
Do not continue driving, shut the engine off, and
switch the ignition off.
— See an authorized Audi dealer or authorized
Audi Service Facility for assistance.
Applies to: vehicles with plug-in hybrid drive
B Electric drive: malfunction! Cooling system.
Please contact Service
There is a malfunction in the cooling system.
Drive to an authorized Audi dealer or authorized
Audi Service Facility immediately.
Coolant additive
The coolant additive is made of anti-freezing and
corrosion protection agents. Only add the follow-
ing coolant additives mixed with distilled water.

Coolant additive Specification

G12evo TL774L

The amount of coolant additive that needs to be
mixed with water depends on the climate where
the vehicle will be operated. If the coolant addi-
tive percentage is too low, the coolant can freeze
and damage the engine.

Checking and Filling







4K8012721BF


additive tion 3
Warm min. 40% min. -13 °F @) mae s
regions max. 45% (-25 °C) =]
Cold min. 50% max. -40 °F |
regions max. 55% (-40 °C)
@) Note |
— Before the start of winter, have an author- MIN
ized Audi dealer or authorized Audi Service
Facility check if the coolant additive in your Fig. 166 Engine compartment - Coolant expansion tank:
vehicle matches the percentage appropriate @ cover with release button; @) markings
for the climate. This is especially important
when driving in colder climates. Observe the safety precautions > page 259, Gen-
— If the G12evo coolant additive is not availa- eral information.
ble in an emergency, do not add any other Applies to: vehicles with plug-in hybrid drive:
additive. You could damage the engine. If Your vehicle has two coolant expansion tanks
this happens, only use distilled water and that are separate from each other > page 262,
restore the correct mixture ratio with the fig. 164. One expansion tank for the combustion
specified coolant additive as soon as possi- engine and one tank for the high-voltage system.
ble. The coolant expansion tank for the high-voltage
— Only refill with new coolant. system is sealed and must not be opened > /\
— Radiator sealant must not be mixed with and> /\.
the coolant. .
— You can continue driving if the permitted Checking/the:coolantilevel
G12evo coolant additive was not added. > Park the vehicle on a level surface.
However, go to an authorized Audi dealer or > Switch the ignition off.
authorized Audi Service Facility immediately > Open the hood & page 261.
to have the coolant replaced to reduce the
risk of engine damage.
— Due to the risk of engine damage, the cool-
ing system should only be refilled by an au-
thorized Audi dealer or authorized Audi
Service Facility. An authorized Audi dealer or
authorized Audi Service Facility can also pro-
vide you with important information about
the recommended coolant additive.
The coolant expansion tank for some engines is
located in the water drip tray under a cover. Slide
the cover that is located below the windshield
wiper on the front passenger's side toward the
windshield and remove the cover.
> Check the coolant level in the coolant expan-
sion tank > page 262, fig. 164 using the outer
markings @) > fig. 166. The coolant level must
be between the markings (2) when the engine is
cold. When the engine is warm it can be slight-
ly above the upper marking.
> Conventional drive system: When you add cool-
ant to the expansion tank, please refer to
=> page 266, Cooling system.
> Plug-in hybrid drive: If you add coolant to the
coolant expansion tank for the combustion en-
gine, see > page 266, Cooling system.
> Plug-in hybrid drive: If coolant is missing from
the high-voltage system coolant expansion >
267

4K8012721BF
Checking and Filling

Brake fluid

BFV-0229]



Fig. 167 Engine compartment: cap on brake fluid reservoir
Observe the safety precautions > page 259, Gen-
eral information.
Checking the brake fluid level
> Slide the cover that is located below the wind-
shield wipers on the driver's side toward the
windshield and remove the cover.
> Read the brake fluid level on the brake fluid res-
ervoir > page 262, fig. 164. The brake fluid lev-
el must be between the MIN and MAX markings
of.
The brake fluid level is monitored automatically.
Messages
GG / @ Brakes: stop vehicle and check brake
fluid level
Stop the vehicle and check the brake fluid Level.
See an authorized Audi dealer or authorized Audi
Service Facility for assistance.
Changing the brake fluid
Brake fluid should be changed at regular inter-
vals. Have the brake fluid changed by an author-
ized Audi dealer or authorized Audi Service Facili-
ty. The authorized Audi dealer or authorized Audi
Service Facility will inform you of the replace-
ment intervals.

Z\ WARNING
— If the brake fluid level is below the MIN
marking, it can impair the braking effect and
driving safety, which increase the risk of an
accident. Do not continue driving. See an au-


thorized Audi dealer or authorized Audi
Service Facility for assistance.
— If the brake fluid is old, bubbles may form in
the brake system during heavy braking. This
could impair braking performance and driv-
ing safety, which increases the risk of an ac-
cident.
— The brake fluid in your vehicle must meet
the standard VW 501 14 and is available at
an authorized Audi dealer or authorized
Audi Service Facility. If this brake fluid is not
available, another high-grade brake fluid of
equivalent quality may be used, and it must
meet
the U.S. Federal Motor Vehicle Stand-

ard (FMVSS) 116 DOT 4, Class 6.

@) Note
— If the brake fluid level is above the MAX
marking, brake fluid may leak out over the
edge of the reservoir and result in damage
to the vehicle.
— Do not allow any brake fluid to come into
contact with the vehicle paint, because it
will corrode the paint.
Electrical system
If the I / B or fl indicator light turns on,
there is a malfunction in the power supply, the
battery, or the vehicle electrical system.
/ BB Electrical system: malfunction! Safely
stop vehicle
Do not continue driving and switch the ignition
off > A\. See an authorized Audi dealer or author-
ized Audi Service Facility for assistance.
= Electrical system: malfunction! Restart not
possible. Please contact Service
If you switch the ignition off, you will not be able
to restart the vehicle. Vehicle functions or driving
stability may be limited. Drive to an authorized
Audi dealer or authorized Audi Service Facility im-
mediately.
= Electrical system: malfunction! Please con-
tact Service
269
>

Checking and Filling

Switch off all electrical equipment that is not
needed. If necessary, some equipment will be
switched off automatically. Vehicle functions or
driving stability may be limited. Drive to an au-
thorized Audi dealer or authorized Audi Service
Facility immediately.
= Electrical system: low battery charge. Bat-
tery will be charged while driving
The starting ability may be impaired.
If this message turns off after a little while, the
vehicle battery has charged enough while driving.
If this message does not turn off, drive immedi-
ately to an authorized Audi dealer or authorized
Audi Service Facility.

ZA WARNING
When there is an electrical system malfunc-
tion, vehicle functions may not work and driv-
ing stability may be limited, which increases
the risk of an accident. Do not continue driv-
ing and switch the ignition off. See an author-
ized Audi dealer or authorized Audi Service Fa-
cility for assistance.

Battery
Praia cela)
Because of the complex power supply, all work on
batteries such as disconnecting, replacing, etc.,
should only be performed by an authorized Audi
dealer or authorized Audi Service Facility > A\.
Multiple batteries with different technologies
may be installed in your vehicle:
— Vehicle battery (for example, for starting the
engine, basic power supply) > page 271, 12
Volt vehicle battery or > page 271, Other bat-
tery types
— Auxiliary battery (for example, for recuperation
or optional equipment) > page 271, Other bat-
tery types
— Plug-in hybrid drive: High-voltage battery (for
example, for electric driving) > page 119, In-
troduction.
270
Not running the vehicle for long periods of
time
The battery will gradually drain if the vehicle
does not run for long periods of time. To ensure
that the vehicle can still be started, the electrical
equipment will be limited or switched off. Some
convenience functions, such as interior lighting
or power seat adjustment, may not be available
under certain circumstances. The convenience
functions will be available again when you start
the
engine.
Even when electrical equipment is switched off,
the equipment can still drain the battery if the
vehicle is not driven for long periods of time.
Deep draining results in a chemical reaction that
destroys the inside of the battery. The battery
must be charged every month to prevent this
= page 272. Contact an authorized Audi dealer or
authorized Audi Service Facility for more infor-
mation.
Winter operation
Cold weather places an especially high load on
the 12 Volt vehicle battery. Have the battery
checked by an authorized Audi dealer or author-
ized Audi Service Facility before cold weather be-
gins.

ZA WARNING
— All work on the battery or electrical system
in your vehicle can result in injuries, chemi-
cal burns, accidents, or burns. Because of
this, all work must be performed only by an
authorized Audi dealer or authorized Audi
Service Facility.
— Never connect a charging cable or jump
start cable directly to the 12 Volt vehicle
battery. Only use the connections in the en-
gine compartment > page 272.

ZX WARNING
California Proposition 65 Warning:
— Battery posts, terminals and related acces-
sories contain lead and lead compounds,
chemicals known to the State of California
to cause cancer and reproductive harms.

Wash hands after handling.

Checking and Filling

arging the 12 Volt vehicle battery

Fig. 168 Engine compartment: connectors for a charger or
jump start cables
Observe the safety precautions > page 259, Gen-
eral information, > A\ in Battery general infor-
mation on page 270 and > /A\.
Requirement: only use chargers with a maximum
charging current of 14.8 volts. The battery ca-
bles remain connected.
The charging cable connections are located in the
motor compartment. The ground point ©) is al-
ways located on the vehicle body.
> Switch off the ignition and all electrical equip-
ment.
> Open the hood > page 261.
> Press the release lever on the positive terminal
and fold the cover upward > fig. 168.
> Clamp the charger terminal clamps to the jump
start pins according to the instructions. (Hex
head bolt under a cover @), ground point on the
vehicle body ©)).
> Insert the power cable for the charging device
into the socket and switch the device on.
> At the end of the charging process, switch the
charger off and pull the power cable out of the
socket.
> Remove the charging device terminal clamps.
> Close the cover on the positive terminal.
> Close the hood > page 261.

Z\ WARNING
— Never connect a charging cable or jump
start cable directly to the 12 Volt vehicle
battery. Only use the connections in the en-
gine compartment > page 272.

272

— A highly explosive mixture of gases can form
when charging batteries. Only charge the
battery in well-ventilated areas.
— A drained battery can freeze at tempera-
tures around 32 °F (0 °C). Do not charge or
use a frozen or thawed battery. If ice forms,
the battery housing can crack and battery
electrolyte can leak out, which increases the
risk of an explosion and chemical burns.
Contact an authorized Audi dealer or author-
ized Audi Service Facility for more informa-
tion.
— Do not connect or disconnect the charging
cable while charging because this increases
the risk of an explosion.

@ Tips
Read all of the manufacturer's instructions
for the charger before charging the battery.
Windshield washer
system

B4M-0135)


Fig. 169 Engine compartment: washer fluid reservoir cap
Observe the safety precautions > page 259, Gen-
eral information.
The windshield washer reservoir © contains the
cleaning solution for the windshield and the
headlight washer system* > fig. 169,
=> page 262. The reservoir capacity can be found
in > page 332.
To reduce the risk of lime scale deposits on the
spray nozzles, use clean water with low amounts
of calcium. Always add window cleaner to the wa-
ter. When the outside temperatures are cold, an
anti-freezing agent should be added to the water
so that it does not freeze.

4K8012721BF
Checking and Filling

Messages
g Please add washer fluid
Fill the washer fluid for the windshield washer
system and the headlight washer system* when
the ignition is switched off.
@ Note
— The concentration of anti-freezing agent
must be adjusted to the vehicle operating
conditions and the climate. A concentration
that is too high can lead to vehicle damage.
— Never add radiator anti-freeze or other addi-
tives to the washer fluid.
— Do not use a glass cleaner that contains
paint solvents, because this could damage
the paint.
Service interval display
The service interval display detects when your ve-
hicle is due for service.
The service interval display works in two stages:
— Inspection or oil change reminder: after driv-
ing acertain distance, a message appears in the
instrument cluster display each time the igni-
tion is switched on or off. The remaining dis-
tance or time is displayed briefly.
— Inspection or oil change due: if your vehicle
has reached an inspection or oil change interval
or both intervals at the same time, the mes-
sage Inspection due! or Oil change due! or Oil
change and inspection due! appears briefly af-
ter switching the ignition on or off.
Checking service intervals
You can check the remaining distance or time un-
til the next oil change or next inspection in the
Infotainment system.
Applies to MMI: Select on the home screen: VE-
HICLE > Settings & Service > Service intervals.
Resetting the indicator
An authorized Audi dealer or authorized Audi
Service Facility will reset the service interval dis-
play after performing service.
If you have changed the oil yourself, you must re-
set the oil change interval.
Applies to: MMI: To reset the display, select on
the home screen: VEHICLE > Settings & Service
> Service intervals.
@) Note
— Only reset the oil change indicator if the oil
was changed.
— Following the service intervals is critical to
maintaining the service life and value of
your vehicle, especially the engine. Even if
the mileage on the vehicle is low, do not ex-
ceed the time for the next service.
273

4K8012721BF

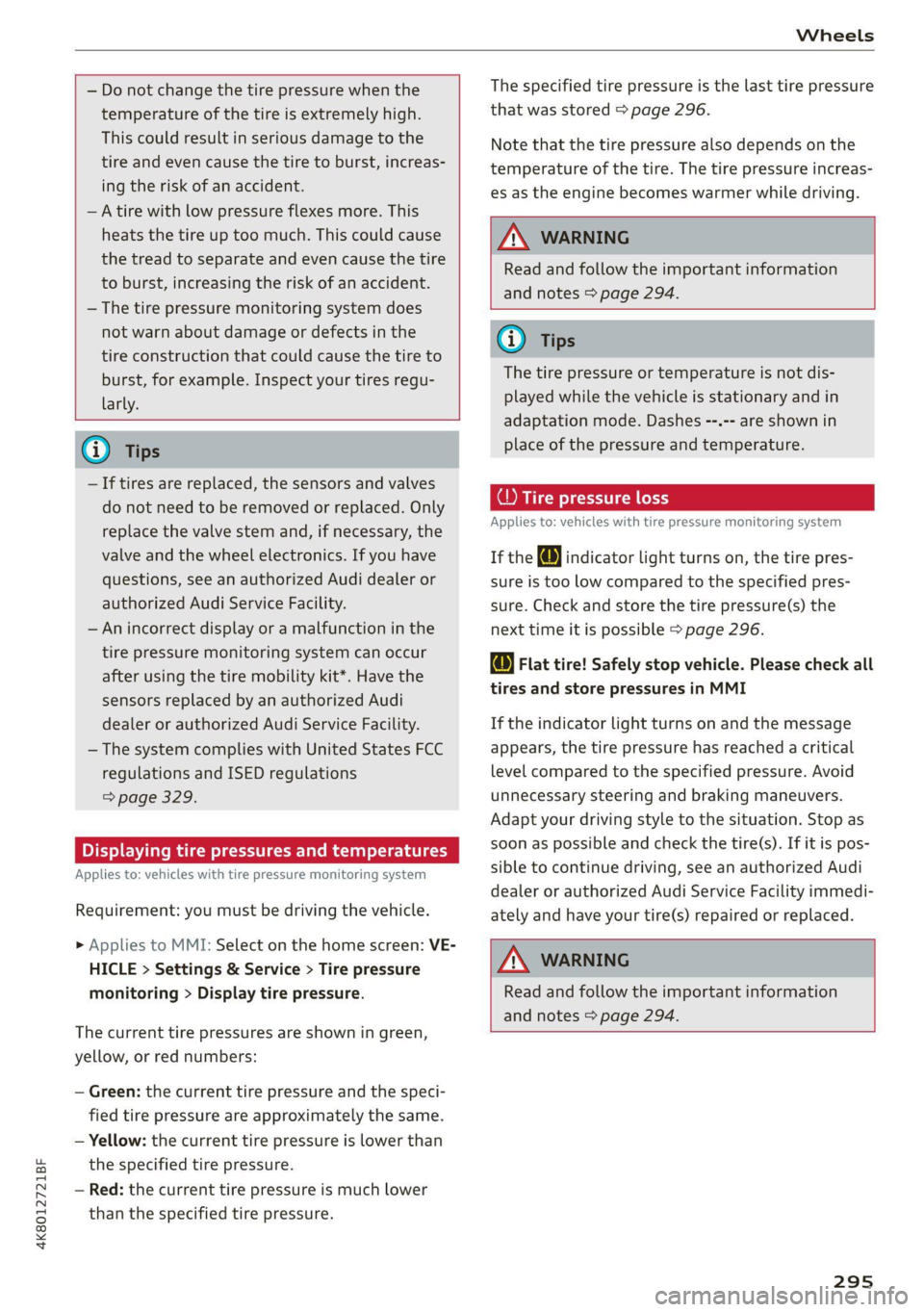

Wheels


— Do not change the tire pressure when the
temperature of the tire is extremely high.
This could result in serious damage to the
tire and even cause the tire to burst, increas-
ing the risk of an accident.
— A tire with low pressure flexes more. This
heats the tire up too much. This could cause
the tread to separate and even cause the tire
to burst, increasing the risk of an accident.
— The tire pressure monitoring system does
not warn about damage or defects in the
tire construction that could cause the tire to
burst, for example. Inspect your tires regu-
larly.

@ Tips
—If tires are replaced, the sensors and valves
do not need to be removed or replaced. Only
replace the valve stem and, if necessary, the
valve and the wheel electronics. If you have
questions, see an authorized Audi dealer or
authorized Audi Service Facility.
— An incorrect display or a malfunction in the
tire pressure monitoring system can occur
after using the tire mobility kit*. Have the
sensors replaced by an authorized Audi
dealer or authorized Audi Service Facility.
— The system complies with United States FCC
regulations and ISED regulations
=> page 329.
Displaying tire pressures and temperatures
Applies to: vehicles with tire pressure monitoring system
Requirement: you must be driving the vehicle.
> Applies to MMI: Select on the home screen: VE-
HICLE > Settings & Service > Tire pressure
monitoring > Display tire pressure.
The current tire pressures are shown in green,
yellow, or red numbers:
— Green: the current tire pressure and the speci-
fied tire pressure are approximately the same.
— Yellow: the current tire pressure is lower than
the specified tire pressure.
— Red: the current tire pressure is much lower
than the specified tire pressure.
The specified tire pressure is the last tire pressure
that was stored > page 296.
Note
that the tire pressure also depends on the
temperature of the tire. The tire pressure increas-
es as the engine becomes warmer while driving.

Z\ WARNING
Read and follow the important information
and notes > page 294.
@ Tips
The tire pressure or temperature is not dis-
played while the vehicle is stationary and in
adaptation mode. Dashes --.-- are shown in
place of the pressure and temperature.
Tire pressure loss
Applies to: vehicles with tire pressure monitoring system

If the @ indicator light turns on, the tire pres-
sure is too low compared to the specified pres-
sure. Check and store the tire pressure(s) the
next time it is possible > page 296.
@ Flat tire! Safely stop vehicle. Please check all
tires and store pressures in MMI
If the indicator light turns on and the message
appears, the tire pressure has reached a critical
level compared to the specified pressure. Avoid
unnecessary steering and braking maneuvers.
Adapt your driving style to the situation. Stop as
soon as possible and check the tire(s). If it is pos-
sible to continue driving, see an authorized Audi
dealer or authorized Audi Service Facility immedi-
ately and have your tire(s) repaired or replaced.

Z\ WARNING
Read and follow the important information
and notes > page 294.

295

4K8012721BF

Fuses and bulbs


This can cause damage to the electrical sys-
tem and increases the risk of fire.
() Note
If a new fuse burns out again shortly after you
have installed it, have the electrical system
checked as soon as possible by an authorized
Audi dealer or authorized Audi Service Facili-
ty.
G@) Tips
— The following table does not list fuse loca-
tions that are not used.


— Some of the equipment listed in the follow-
ing tables applies only to certain model ver-
sions or certain optional equipment.
Fuse assignment - left footwell
Fuse panel @® (black)

4 |Engine components



S| Brake light sensor
6 |Engine valves
7 |Engine components
8 |Engine components
9 Engine components, 48 V water pump, 48
V drivetrain generator

10 | Oil pressure sensor, oil temperature sensor

Engine components, 48 V water pump, 48
11 |V drivetrain generator, 12 V drivetrain gen-
erator

12 | Engine valves, engine mount

13 | Engine cooling

14 | Engine control module, fuel injectors

Engine sensors, ignition coils, oxygen sen-
sors
15

RAZ-0195
ay
i
Toren
BARRIER P ala


Fig. 192 Left footwell: fuse panel with plastic clip
The fuse assignment @) and @) is in the opposite
order on right-hand drive vehicles.
16 | Fuel pump






Fuse panel (2) (red)
No. | Equipment
1 |Anti-theft alarm system
2 | Engine control module
3 | Left front lumbar support
5 |Horn
6 | Parking brake
7 | Diagnostic interface
8 |Roof electronics control module
9 | Driver assistance systems control module
10 | Airbag control module
iW Electronic Stabilization Control (ESC), An-
ti-Lock Braking System (ABS)

12 | Diagnostic connection, light/rain sensor

Climate control system, vehicle electrical
1
3 system control module

14 | Right front door control module


Fuse panel (@) (black)
No. | Equipment

Climate control system compressor, vehi-
15
cle electrical system control module


Catalytic converter heating
Auxiliary battery control module, brake
16 ;
system pressure reservoir


2 |Engine components


Engine components

317

4K8012721BF

Cleaning carbon components........ 300, 302
Cleaning control « sisis + wee x x dearim & mane 301
Cleaning decorative parts andtrim... 300,301
Cleaning exhaust tail pipes.............. 300
Cleaning plastic parts.................. 301
Cleaning textiles..............-. eee eee 301
Climate control system ............00000. 87
Climate control system controls in the rear
Child Safety \OCKicw: ¢ : nee 5 2 cones ¥ 2 owen gy 46
Closing
Automatic luggage compartment lid...... 44
Convenience Closingtos « a sss « sazene 0 © emuvee 48
HOOd .. 0... cece eee 261
Luggage compartment lid............... 44
Luggage compartment lid with foot motion . 45
Panoramic glass roof..............2-00. 48
Sunshade (POOP) 's « wows « « sews se wows oo wes 48
WANGOWS « wscaic 2 2 conto seats 6% mice oo on 47
Closing aid (power closing doors).......... 36
COaStiNng wes + saeu ss eee & 5 eee ee eee ee 101
Cockpit’ diMMiINnG s « ves se mews se wees 8 2 oy 57
Cockpit (OVErvieW) si inca cs icea cca s crea 6
Color code... . cece cece ee eee ee eee eee 331
Combustion engine.................4-5 100
Combustion engine startup............... 98
Comfort auxiliary climate control.......... 91
Coming home/Leaving home
refer to Entry/exit lighting.............. 55
Compact spare tire...............00.004 311
GCOMpartMents:,
« « secs « = saree © « cesuwte ® 9 wore 83
Compass:in'thesmitron's « sss s sccnens ss aysewcs a 61
GCompliance:: « seve 2s weve sv wews ye eee oo: 329
Gonferetice Callow. » x sums ¢ o eames x weer ao 203
Configuration wizard.................04. 21
CONNECE. 1... ee eee 208
Data plans. 2 wow 2 s avon oe wows 2 woe g ve 212
Datta PRIVACY + « xaos oo emanate © exatannie © viata 324
Emergency call.............2.-.0000- 213
InfotainMentss « + wea vs wewy a x eeu 4 2 won 208
Infotainment services..............004 209
Online roadside assistance............. 214
Vehicle control services.............005 210
Connected devices
DevViceiOVvervieW. cies: so eae: av mewn @ ¥ ism 2511,
Connections
refer to Media..............00005 236, 239
Consumer information.................. 326
Consumption
Reducing........... eee eee ee eee eee 103
Consumption (fuel) . . srerice © cssese we secs ws we L?
Contacts
Importing .......... 0. cece eee ee eee 205
Updating inthe MMI.................. 205
also refer to Directory...............4. 202
Convenience keyls «oases ss sia e 6 sii so woes 36
Convenience closing.............000005 48
also refer to Vehicle key..............-. 40
Convenience opening and closing
Windows or panoramic glass roof........ 48
Coolant temperature display.............. 14
Cooling mode........ 6... eee eee 88
Cooling system
Adding
coolant’: sews 2 s wanes ss seme + a ew 267
Checking the coolant level............. 267
Coolant... ... eee eee eee eee 266
GOPMERIMOIGM Biss» « seesece # « sovsece aw enetete # 0 asin 52
Cross traffic assist (intersection assistant) .. 173
Cruise control system.............22005 151
Guptholdersienc «osu oo ew vs een oe em y 82
CuUrreNnECOnSUMPtION wes s wees s eewe gs eos LZ
D
Data module
Serial number (IMEI) ...............005 205
Data plans sesovs 2 sana 2 2 meen 6 ware © eee 212
Data: PrivaGy’s « sees 9 ¢ eames ¢ o ewe ss ew Gs 324
Date coos 3 meee 2 ¥ agen ¢ 2 EY SE @ae 2 RES 1?
SOtUING so omsccas iv onewens vw amie © Hartree wv oes 249
Daytime running lights.................. 52
Declaration of compliance............... 329
DEF (instrument cluster) .............0004 12
Demo mode
refer to Presentation mode............. 226
Destination onthe map................. 219
D@tailSix = 3 amex < eam oy seven ¢ s seme « ¢ see 219
Determining correct load limit........... 288
Digital compass............. cece eee eee 61
Dimensions ...........00 cece 331
Dimming the exterior mirrors............. 58
Dimming the rearview mirror............. 58
335
