38-31

Shift rod seal, replacing


Special tools and equipment

Removing
3385 sealing ring installer
- Removing left transmission support page 37
-125
.
- Removing Multi-Function Transmission Range (TR) Switch -F125-
page 38
-33
.

- Drive out spring dowel sleeve -1- at lever/shift rod -2- in direction of
travel toward the front (arrow), until the lever/shift rod can be pulled off
the shift rod.
Pa
ge 31 of 44 Oil
pan, oil strainer and valve bod
y, removin
g and installin
g
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.AT01.38.1

38-32


Installing - Pierce sealing ring using a small screwdriver and pull out.
- Coat outer circumference and gap between sealing lips with ATF.

Installation position: The open side of the sealing ring faces the
transmission.

- Slide new sealing ring onto 3385 sealing ring installer without canting
and drive in up to stop of pressure piece.
- Installing Multi-function switch page 38
-33
.
- Drive back spring dowel sleeve with transmission not yet removed in
opposite direction through the lever.
- Slide transmission shift lever onto shift rod and drive in spring dowel
sleeve.
- Installing left transmission support page 37
-125
.
Pa
ge 32 of 44 Oil
pan, oil strainer and valve bod
y, removin
g and installin
g
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.AT01.38.1

38-33

Multi-Function Transmission Range (TR)
Switch -F125-, removing and installing


Removing

- Removing left transmission support page 37
-
125
.

- Unbolt Multi-Function Transmission Range (TR)
Switch -F125- from transmission and pull off
from shift rod.

Installing

Note:
Set Multi-Function Transmission Range (TR) Switch -F125- onto shift rod
in centered manner. Do not cant and do not set with force. Risk of
damage at switch terminals. - Connect Multi-Function Transmission Range (TR) Switch -F125- on
shift rod. Flap part at splines in switch -3- must align with flat part of
shift rod -1-.
Pa
ge 33 of 44 Oil
pan, oil strainer and valve bod
y, removin
g and installin
g
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.AT01.38.1

38-34


Tightening torques - Rotate switch until the alignment hole -4- at switch housing can be
fitted on the alignment pin -2- at transmission housing.
- Installing left transmission support page 37
-125
.
Component
Nm
multi-function Transmission Range (TR) switch -F125- to
transmission
8
Pa
ge 34 of 44 Oil
pan, oil strainer and valve bod
y, removin
g and installin
g
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.AT01.38.1

38-35

Speedometer Vehicle Speed Sensor
(VSS) -G22-, removing and installing


Removing

- Disconnect harness connector from
Speedometer Vehicle Speed Sensor (VSS) -
G22-.

- Push retaining bracket of sensor downward, turn
and pull sensor out.

Installing

- Replace sealing rings (arrows).
- Insert O-rings with grease.
- Insert sensor.
- Engage retaining bracket at mounting bracket for flange shaft.
Pa
ge 35 of 44 Oil
pan, oil strainer and valve bod
y, removin
g and installin
g
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.AT01.38.1

38-36

Sensor for transmission RPM -G182-,
removing and installing


Note:

There is a distinction made between two types
of transmission. Transmissions with hydraulic
control E17, the sensor for transmission RPM
(inductive sensor) is secured to bottom of valve
body. Transmissions with hydraulic control
E18/2, the sensor for transmission RPM (hall
effect sensor) is secured to transmission
housing behind valve body.
Information regarding which transmission is
installed can be found in tables page 00
-4
onward.

For transmissions with hydraulic control E17

Removing

- Removing valve body page 38
-22
.

- Turn valve body on its back side and loosen connector at Sensor for
transmission RPM -1-.
Pa
ge 36 of 44 Oil
pan, oil strainer and valve bod
y, removin
g and installin
g
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.AT01.38.1

38-37


Installing - Unbolt Sensor for transmission RPM -1- at valve body.
- Tighten Sensor for transmission RPM -1- using spacer sleeves -2-
(height: 20 mm) to 7 Nm.

Installation position: Sensor-side with the connector terminals
points to valve body center.

- Connect connector to Sensor for transmission RPM -1-.
- Installing valve body page 38
-25
.
- Fill up ATF page 37
-140
.
Pa
ge 37 of 44 Oil
pan, oil strainer and valve bod
y, removin
g and installin
g
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.AT01.38.1

38-38

For transmissions with hydraulic control
E18/2

Removing

- Removing valve body page 38
-22
.

Installing - Unbolt Sensor for transmission RPM -A- from transmission.
- Bolt on Sensor for transmission RPM -A- at transmission via bolt -B-.
Tightening torque is 9 Nm.
Pa
ge 38 of 44 Oil
pan, oil strainer and valve bod
y, removin
g and installin
g
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.AT01.38.1

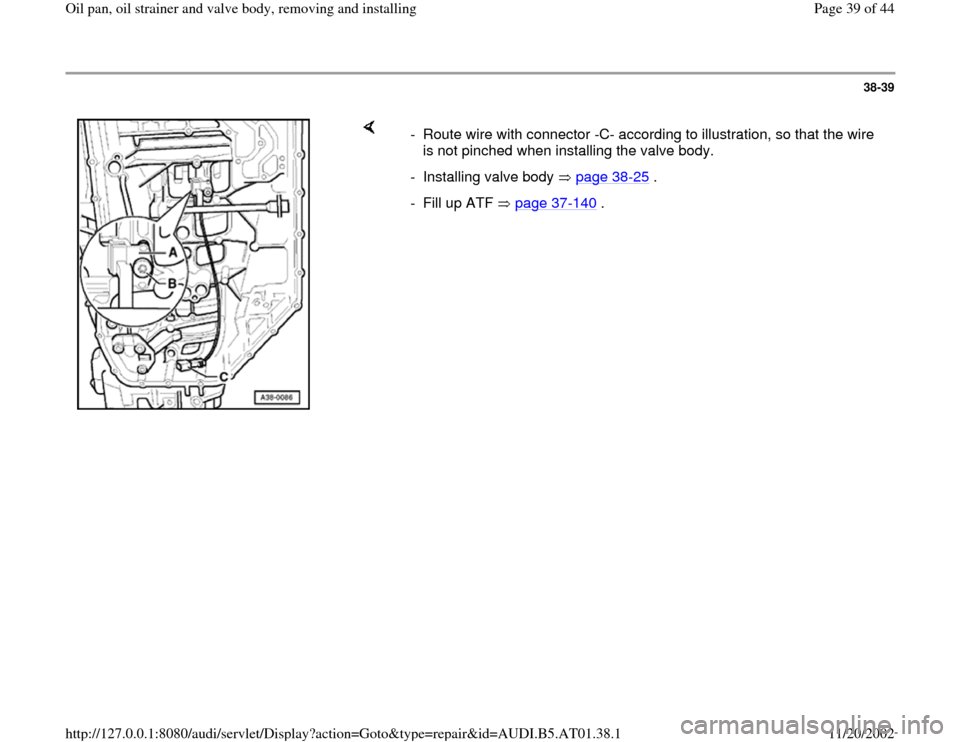

38-39


- Route wire with connector -C- according to illustration, so that the wire
is not pinched when installing the valve body.
- Installing valve body page 38
-25
.
- Fill up ATF page 37
-140
.
Pa
ge 39 of 44 Oil
pan, oil strainer and valve bod
y, removin
g and installin
g
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.AT01.38.1

38-40

Transmission Vehicle Speed Sensor
(VSS) -G38-, removing and installing


Removing

- Removing oil pan page 38
-19
.

- Disconnect harness connector from Transmission Vehicle Speed
Sensor (VSS) -G38- (arrow).

Installing - Remove Transmission Vehicle Speed Sensor (VSS) -2-.
- Install and tighten Transmission Vehicle Speed Sensor (VSS) -2- using
spacer sleeve -1- (height: 8 mm) to 6 Nm.
