24-19


- Remove Heater Core E-box cover -arrows-.

Note:
Adaptation values are erased when connector is disconnected from the
Engine Control Module (ECM), DTC memory content remains intact. - Using a screwdriver, carefully pry off retaining bracket (arrow).
- Disengage locking lugs and remove control module connector.
Pa
ge 21 of 78 Motronic in
jection s
ystem, servicin
g
11/23/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU05.24.1

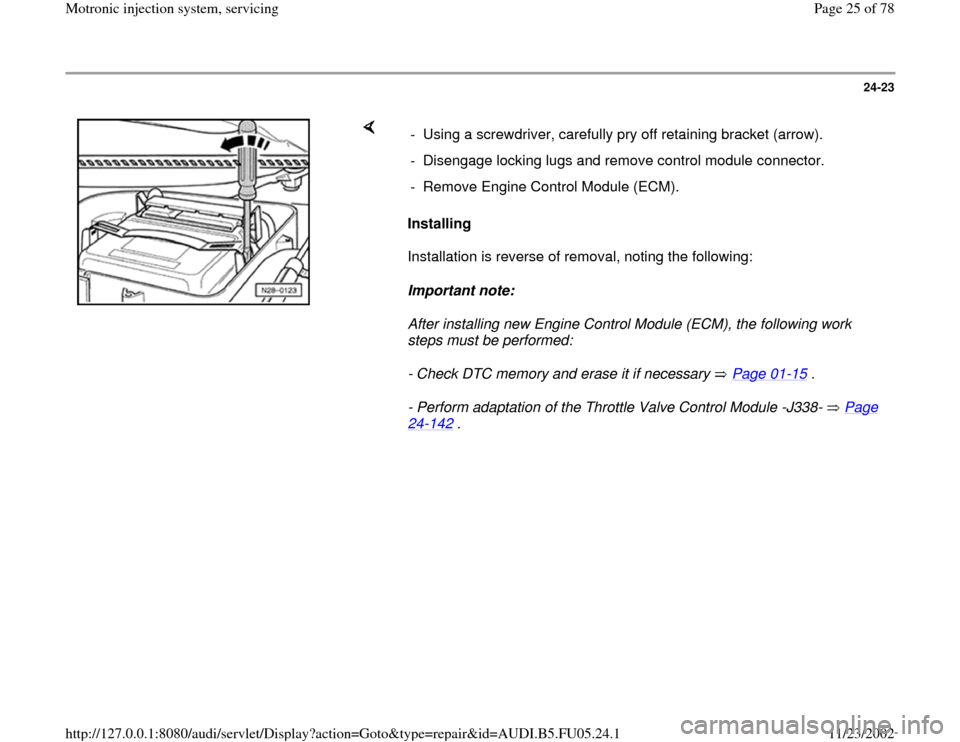

24-23


Installing
Installation is reverse of removal, noting the following:
Important note:
After installing new Engine Control Module (ECM), the following work
steps must be performed:
- Check DTC memory and erase it if necessary Page 01
-15
.
- Perform adaptation of the Throttle Valve Control Module -J338- Page
24
-142
. - Using a screwdriver, carefully pry off retaining bracket (arrow).
- Disengage locking lugs and remove control module connector.
- Remove Engine Control Module (ECM).
Pa
ge 25 of 78 Motronic in
jection s
ystem, servicin
g
11/23/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU05.24.1

24-65

Test sequence

- Connect VAS5051 tester or VAG1551 scan tool
and select the control module for engine
electronics using "address word" 01 Page 01
-
9 .

Engine must run at idle for this.Rapid data transfer
HELP
Select function XX

When indicated on display:
- Press buttons -0- and -8- to select "Read Measuring Value Block" and
press -Q- button to confirm input.
Read Measurin
g Value Block
Q
Input display group number XXX

When indicated on display:
- Press buttons -0-, -0- and -1- to select "display group number 001" and
press -Q- button to confirm input.
Read Measuring Value Block 1
1
2
3
4

Indicated on display: (1 thru 4 display fields) - Make note of engine speed in display field 1.
- Spray intake system parts with engine leak detection spray in a
systematic manner.
