bulb AUDI A8 2011 Owners Manual

4 Table of content s
D o-it- yourself ser vice . . . . . . . . .
259
What do I do now? . . . . . . . . . . . . 259
Trunk escape hand le . . . . . . . . . . . . . . 259
Emergency warning triangle . . . . . . . . 259
Vehicle tool kit . . . . . . . . . . . . . . . . . . . 260
Changing a wheel . . . . . . . . . . . . . . . . . 262

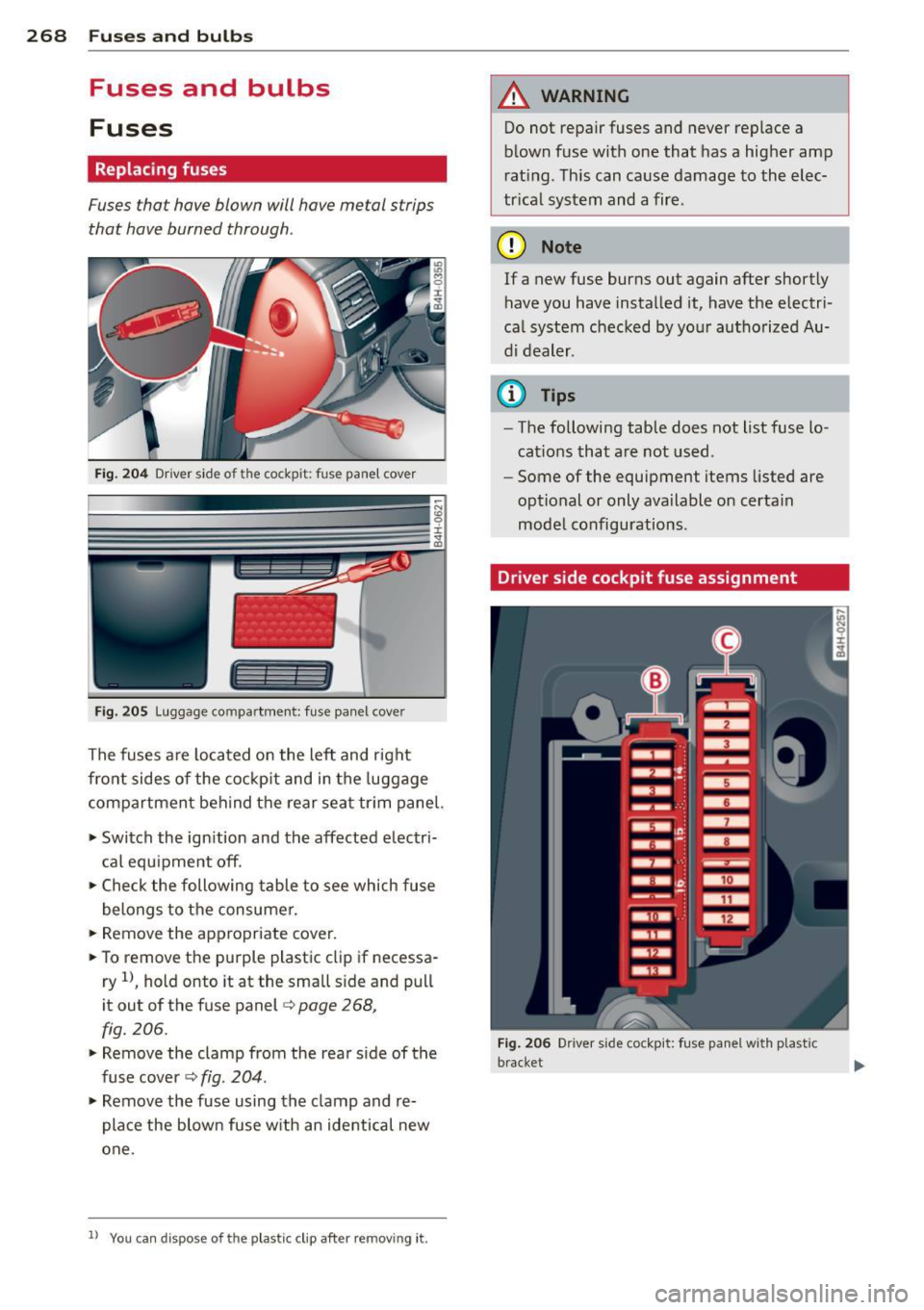

Fuses and bulbs . . . . . . . . . . . . . . . 268
Fuses .. .... ..... ..... ...... ... .. 268

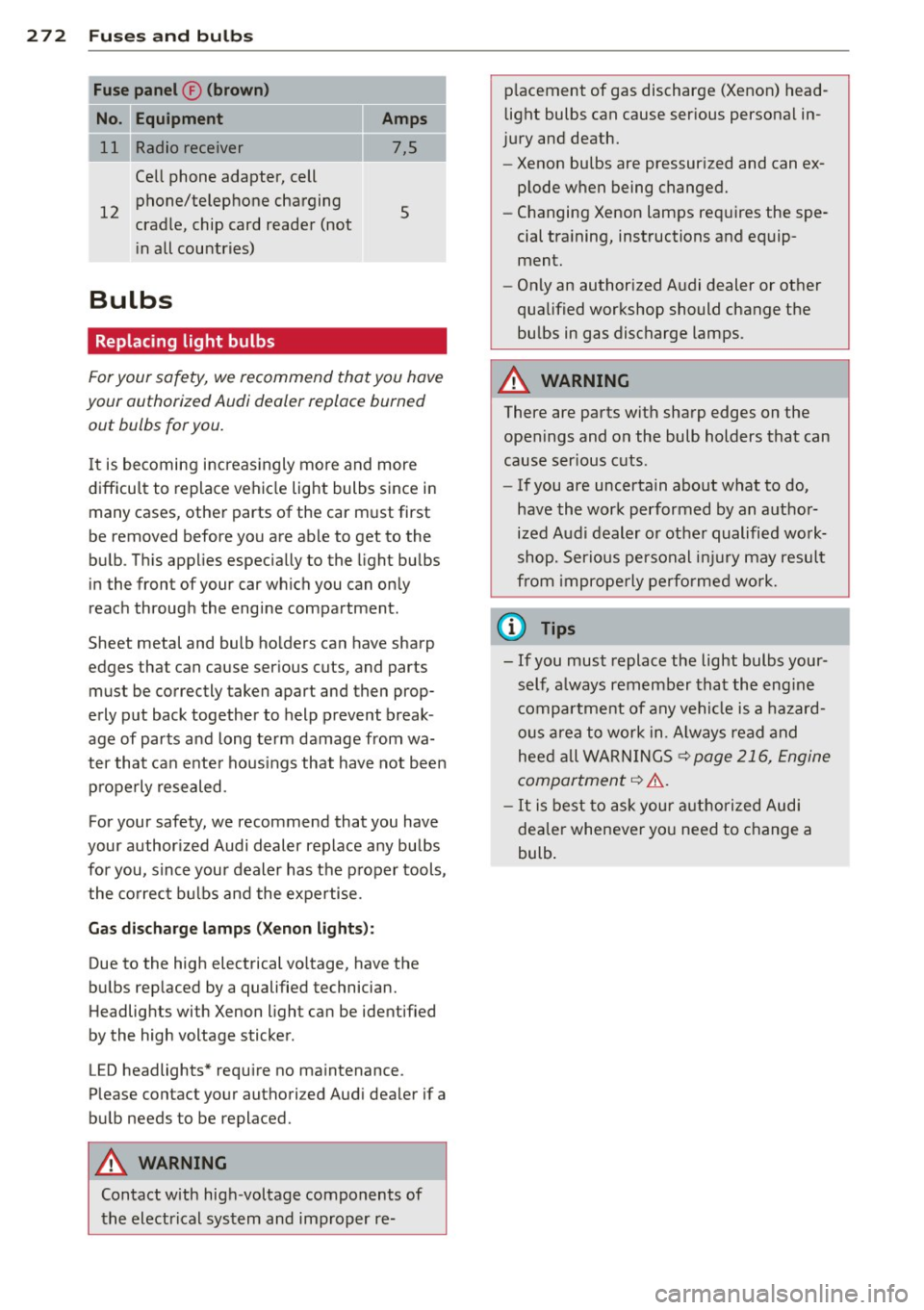

Bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . . 272
Emergency situations . . . . . . . . . 273
General . . . . . . . . . . . . . . . . . . . . . . . . . 273
Starting by push ing or tow ing . . . . . . . 273
Starting with jumper cables . . . . . . . . 273
Use of jumper cab les . . . . . . . . . . . . . . 274
E mergency towing with commercial
tow truck . . . . . . . . . . . . . . . . . . . . . . . 275
Lifting vehicle . . . . . . . . . . . . . . . . . . . . 277
Techni cal d ata . . . . . . . . . . . . . . . . . 279
General information . . . . . . . . . . 279
Explanation of technical data . . . . . . . 279
Vehicle ident ification . . . . . . . . . . . . . . 279
Weights . . . . . . . . . . . . . . . . . . . . . . . . 279
Dimensions. . . . . . . . . . . . . . . . . . . . . . 280
Data . . . . . . . . . . . . . . . . . . . . . . . . . . . 282
372 hp, 8-cylinder engine, w ith all
wheel drive . . . . . . . . . . . . . . . . . . . . . . 282
Consumer Information . . . . . . . 283
Warranty coverages . . . . . . . . . . . . . . . 283
Operating your vehicle outside the U.S.A . or Canada . . . . . . . . . . . . . . . . . 283
Audi Service Repair Ma nuals and
L it erature . . . . . . . . . . . . . . . . . . . . . . . 283
M ain tenance . . . . . . . . . . . . . . . . . . . . . 283
Addit ional accessories , modifications
and parts replacement . . . . . . . . . . . . 285
Inde x . . . . . . . . . . . . . . . . . . . . . . . . . . 28 7

Instrument s and warnin g/indi cator ligh ts 13
Jj]
Electronic Stabilization Program
!I
Windshield wipers
(ESP)./ ¢page 21
¢ page 18
~
Remote control key
I
Electronic Stabilization Program
¢page 79
(ESP)./
-¢ page 18
m
Remote control key
~
USA m odel s: ¢page 79
Ant i- lock brak ing system (ABS)
!!
Battery in remote control key
defective ¢page30
¢ page 19
•
Canada models:
I:)
Defective light bulb warn ing
Ant i- lock braking system (ABS) ¢
page 21
defective
--
¢ page 19
II
Fog lights*
¢page 21
•
Worn bra ke pads
¢ page 19
Ii
Rear fog lights*
¢page 21
•
Electromechanical parking brake
I
¢page Bl
II
Headlight range control
¢page 21
g
Tire pressure monitoring system
./
•
adaptive light*
¢ page256 ¢
page 21
11111 Tire pressure mon itoring system --
m
Light-/rain sensor faulty
¢page256 ¢page 21
[m
Electronic power contro l
Audi lane assist
¢ page20
•
¢page95
R
Malfunction indicator Lamp (MIL)
./
[i
Transmission
¢ page20 ¢page
115
•
Engine speed limitation
m
Transmission
¢ page20
¢page 115
•
Engine oil level
Im
Electronic steering column lock
¢page17 ¢page 17
--
•
Engine oil sensor
Im
Engine start system
¢ page 20
¢page 17
--
r.
Battery
~~
Dynamic steering*./
¢page 16 ¢page22
~
Tank system
•
Air suspension
¢ page20
¢page 17
Windshield washer fluid level
--
• •
Sport differential *
¢ page 21
¢page22

Instruments and warning/indicator lights 21
If the indicator light turns on and th is mes ­
sage appears, there is a ma lfunction in the
tank system.
Drive to your authorized Aud i dea ler immedi­
ately to have the mal function cor rected .
Ci:> Windshield washer flu id level
fl! Please refill washer fluid
If the symbol illuminates, add windshield
washer fluid to the washer system/headlight
washer system* ~
page 236.
~ Windshield wipers
!I Windshield wiper defective
There is a malfunct ion with the windshield
wipers.
D rive to you r autho rized Aud i deale r immedi­
ately to have the mal function cor rected.
~/}D /0$ Defective light bulb warning
I-If the indicator light turns on, a bulb has
failed. The message indicates the location of
the bulb .
ffil-if a fog lamp* has failed, the indicator
light turns on to indicate the location on the
vehicle .
rm-if a rea r fog lamp has failed, the indicator
light turns on to indicate the location on the
vehicle.
Vehicle lights: malfunction
If the message appears, there is a malfunc­
tion in the headlights or light switch .
Drive to your authorized Audi dea ler immedi­
ately to have the malfunction corrected.
A WARNING
- light bulbs are pressurized and could ex­
plode while they are being changed caus­
ing serious personal injury.
- Work with due care when handling the
high-voltage section of gas discharge (xenon)
lights. Failure to do so cou ld re­
sult in death or serious injury .
(D Tips
Have the b ulb replaced or the connection
repaired by your authorized Audi Service
department.
~(D Headlight range control
II Headlight range control: defective!
If the symbol illuminates, the head light range
control is no longer working properly. Have
the system checked and repaired at your Audi
dealer.
§0 Adaptive Light
App lies to vehicles: wit h Adaptive Lig ht
rJI Audi adaptive light: system fault
If the indicator light turns on and this mes­
sage appears, there is a malfunct ion in the
adaptive light system. The headlights still
funct ion.
Go to an authorized dealership to have the
headlights or the control unit for the Adaptive
light repaired.
@> Light/rain sensor
fl Automatic headlights/automatic wipers:
system fault
If the indicator light turns on and this mes­
sage appears, the light/rain sensor is not
funct io ni ng correctly .
For safety reasons the low beams are turned
on permanently with the switch in
AUTO.
However, you can continue to turn the lights
o n and off using the light switch . You can st ill
control all functions that are independent of
the rain sensor through the w indshield wiper
l ever.
Contact your authorized Audi dealer as soon
as possible to have the problem corrected .

22 Instruments and warning/indicator lights
~ Dynamic steering
t1r- J Steering: system fault. you can continue
driving
If the indicator light turns on and the mes­
sage appears, the steer ing may be more diffi­
cult to move or mo re sensitive than usual. The
steer ing wheel may also be at an angle when
driving straight.
Drive slow ly to your author ized Audi dealer or
qual ified workshop to have the malfunction
corrected.
t 1r J Dynamic steering: initialising
If this driver message appears and the ind ica­
tor light is flashing on the instrument panel,
dynamic steering is being reinitialized . Once
you start the engine after this is finished, the steering wheel w ill be easy to move . Re-in iti­
a lization m ight be necessary if the steering
wheel was moved hard to the left and r ight
while the vehicle was not moving. The display
goes out as soon as initialization is complete.
A WARNING
Have the dynamic steering system mal­
function repaired as soon as possible by an authorized Audi dealer or any qualified
workshop - risk of accident!
@ Tips
- The dynamic steering stability systems
are not available in the event of a system
malfunction.
- For additional information on dynamic
steering, refer to
c> page 106.
I- I Sport differential
l'I Sport differential: system fault
There is a malfunction with the sport differen ­
tial.
Drive to you r authorized Aud i dea ler immedi­
ate ly to have the malfunction corrected .
Ill Sport differential: overheating T
he transmission temperature has increased
significantly due to the sporty driving manner .
Drive in a less sporty manner until the tem­
perature returns to the normal range and the
indicator light switches of.
A WARNING Co....- -
Contact your authorized Audi dealer or a
qualified workshop if the sport differential
i s faulty or malfunct ioning. The repair
must be performed by trained personnel
using the correct oil in order to ensure
safety .
¢¢ Turn signal s
The indicator light blinks when you use either
turn signal.
Whenever you use the left ll or the right rl
turn s ignal, the indicato r light blinks . When
you use the emergency f lashers, both indica­
tor lights flash .
If one of the turn signal light bulbs burn out,
the turn signal will blink twice as fast as nor­
mal. Carefully drive to your authorized Aud i
dealer immed iate ly to have the malfunction
corrected. The indicator light does not indi­
cate a ma lfunction if a turn signal on the trai l­
er or on the vehicle fails in trai ler towing
mode.
(D Tips
For more information on the turn signals,
refer to
c> page 45.
CRUISE /C'J' Cruise control
The warning/indicator light
f;;(l)~i~ (USA mod­
els)/ . (Canada models) illuminates when
the cruise control is act ivated
c> page 84 .

234 Check ing and filling
Th e following WARNINGS are very
impo rtant when w ork ing on the b att ery :
Alwa ys hee d the fo llo w ing WARNING SYM ­
BOLS and safety precaution s when working
o n the battery .
®
@
®
Always w ear eye prot ection.
Batter y acid cont ain s sulfu ric acid.
Alwa ys wear glo ves and e ye p rote c­
tion.
No
• sparks
-flames
- smoking.
When a batt ery is charged, it produ ­
ces hydrog en ga s whi ch i s e xplo sive
a nd could cau se p ers on al injury .
Always keep the battery well out of reach of children .
.8, WARNING
Whenever working on the battery or on
the electrical system, there is the r is k of
inju ry, acc ident and even fire. Read and
heed the following WARNINGS:
- Always wea r eye protection. Do not let
battery acid or any lead particles get on
yo ur skin or clothing. Shield your eyes.
Explosive gases can cause blindness or
other injury .
- Battery acid contains sulfuric acid. Sulfu­
ric acid can cause blindness and severe
burns.
- Always wear gloves and eye p rotection .
Do not tilt the battery because ac id
could lea k out of the vent ilation open ­
ings.
- I f you get battery acid in your eyes or
on your sk in , immediately rinse with
cold water for severa l m inutes and get
medical attention.
- If you should ingest any battery acid ,
seek medical attention immediately .
- Do not expose the battery to an open
flame, electric sparks or an open light .
- Do not smoke. -
Do not interchange the positive and neg­
ative cables.
- When working on the battery, be s ure
not to short-circu it the terminals with
too ls or other metal objects. This would
cause the battery to heat up very quickly,
which could lead to damage or explosion and pe rsonal injury.
- When a battery is charged, it produces
hydrogen gas which is explosive and
could cause personal in jury.
-Always keep the battery well out of the reach of children .
- Before work is done on the electrical sys­
tem, disconnect the negat ive ground ca­
b le .
- Before performing any work on the e lec ­
tr ical system, switch off the engine and
ignit ion as well as any electrical equip­
ment. The negative cable on the battery
m ust be disconnected.
If yo u are just go­
ing to replace a light bulb, then it is
enough to switch off the lights .
- Before disconnec ting the bat tery, switch
off the anti -theft alarm system! Other ­
wise you wi ll set off the alarm.
- When disconnecting the battery, f irst
disconnect the negative cab le and then
the positive cab le .
- Before reconnecting the batte ry, ma ke
sure all e lectr ica l consumers are sw itch­
ed off . Reconnect the positive cable first
and then the negative cable . Never inter­
change the cables - this could start a fire!
- Never charge a frozen or a thawed-out
battery . It could exp lode! If a battery has
frozen, then it must be replaced. A dis­
charged batte ry can freeze over at 32 °F
(0 °() .
-Make sure the vent hose is always attach­
ed to the opening on the s ide of the bat­
tery .
- Never use batteries which are damaged.
There is the danger of an explosion! Al­ ways rep lace a damaged battery .

268 Fuses and bulbs
Fuses and bulbs
Fuses
Replacing fuses
Fuses that have blown will have metal strips
that have burned through.
Fig . 20 4 Driver side of the cockpit: fuse panel cover
F ig . 205 Luggage compartment: fuse panel cover
The fuses are located on the left and r ight
front sides of the cockp it and in the luggage
compartment behind the rear seat tr im panel.
.,. Switch the ign ition and the affected electri-
cal equ ipment off .
.,. Check the following table to see which fuse
belongs to the consume r .
.,. Remove the appropriate cover .
.,. To remove the purple plastic clip if necessa­
ry
1l, ho ld onto it at the sma ll s ide and pull
it out of the fuse panel <=>
page 268,
fig. 206.
.,. Remove the clamp from the rear s ide of the
fuse cover <=>
fig. 204 .
.,. Remove the fuse using the clamp and re­
place the blow n fuse w ith an identical new
one.
l ) You can dispose of t he plastic clip after removing it .
A WARNING
-Do not repair fuses and never replace a
b lown fuse with one that has a higher amp
rat ing. Th is can cause damage to the elec­
tr ica l system and a fire.
(D Note
If a new fuse burns out again after shortly
have you have insta lled it, have the electri­
ca l system checked by you r authorize d Au­
d i d ealer.
(D Tips
- The following table does not list fuse lo­
cat ions that are not used.
- Some of the equipment items listed are
opt ional or only ava ilable on certa in
mode l configurations.
Driver side cockpit fuse assignment
Fig . 20 6 Driver side cockp it: fuse pane l w ith plast ic
b racket

Fuse panel@ (brown)
No. Equ ipment
1 H eadlight contro l switch
I 2
Ignition lock (key identifica-
tion)
3
Rear door control mod ule
(driver's side)
5 Horn
6 Interior lights (head liner)
Steering column lever, mul-
8
tifunction steering wheel
controls, steering wheel
heating
10
Power steering column ad-
j ustment
11 Driver door control module
12
D iagnostic co nnector, light/
rain sensor
Power steering column ad-
justment
15
P ower stee ring, A/C com-
pr esso r
16 Brake booster (VS FSI)
Fuse panel © (black )
No. Equipment
1 F ront seat heating
2 Windshield wiper
3 Fr ont exterior lighting
4 Sun roof
5 Dr iver power window
6 Driver seat (pneumatic)
7 Panoramic sunroof
8 Dynamic steering
9 Fr
ont exterior lighting
I 10
Windshield/headlight *
washe r system
11
Rear power w indow (driver's
side)
12 Panoramic sunroof
Amp s
5
5
7,5 15
7,5
10/5
5
7,5 10
25
20
15
Amps
30 30
30
20
30
15
20 35
30
35
30
4 0
Fu se s and bulb s 269
Front passenger side cockpit fuse
assignment
Fi g. 2 07 Fro nt passe nger s id e co ckpit: f use pa nel w it h
plast ic brac ket
Fuse panel ® (black)
No . Equipment Amps
1 Anti-theft alarm system 5
2
Transmission control mod-
15 ule
3 Front climate control fan 40
4
Engine supply 35
6
Engine cont ro l module 5
7
Front passenger door con-7,5
t rot module
8
Fron t passe nger power w in-
30 dow
9 ESP control module 10
1 0
E S P cont ro l modu le 2 5
11
Right rear power window 30
12
Fron t passe nger seat 15

2 70 Fu ses and bulb s
Luggage compartment fuse assignment
Fig. 208 Luggage co mpar tment: fuse panel with plastic b racket
Fu se pan el A (black ) Fuse panel
@ (b lac k)
I
No.
Equ ipment Amps No
. Equipment
Amps .
l!l button, data logger, diag-
1 nostic con
nector, adaptive
5 10
Rear seat heating, refrigera-
5 j tor, interior rearview mirror
lighting system 11 Dynam
ic steer ing 5
2 Networking gateway
5 12
Selector lever, BCM-2
5
3 adaptive air suspension
5 13 Audi side ass
ist 5
4 Parking system 5 14 Engine control module
5
5 Steering column
lever
5 1
5 Starter 40
I 6 Suspension control system
5
sensor left headlight/Headlight
'
16
10/5
range control system
.
7 Belt tensioners, airbag con-
5
trol module Fuse pan el@ (red)
No. Equipment Amps
Heated washer fluid nozzles,
Homelink (garage door
8 opener), night vision system
5
control module, sport differ- 1
left reversib
le be lt tens ioner
25
2 II
R_ight reversible belt ten-
25
s1oner
ential, ioniser 3
Starter diagnos
is
5
9
Electromechan ica l park ing
5
brake con tro l module 4 DC/DC converter
7,5
5 Adaptive cruise control 7,5

Fuse panel@ (red)
No. Equipment
= '
I 6 Right headlight (headlight
with adaptive light)
I
7 ESP control module
8
9 Adaptive cruise control
Transmission control mod-
10 ule
11 Climate control system sen­
sors
Fuse panel @ (brown)
No
. II Equipment
Electromechan ical parking
1 brake
2 Suspension control system
sensor
Right rear door control mod-
3 ule
4 Smart-Modul Tank
5 Front climate control system
controls
6 Rear climate control system
controls
7 Networking gateway
8 Refrigerator
Interface for spec ial func-
9 tions
12 Selector lever
13 Ambient lighting
14 Rear exterior lighting
15 Fuel pump
16 Electromechanical parking
brake
Fuse panel @ (black)
Equipment
3 Rear sockets*
5 adaptive air suspension
6 115-V socket
7 Electromechanical parking
brake
II
Amps
10
s
5
10
5
5
Amps
5
5
7,5 5
15
10 5
15
5
10
10
20
25
30
Amps
20
15
25
30
=
Fuses and bulbs 271
Fuse panel @ (black)
No. Equipment
8 Rear seat heating
9 Rear exterior lighting
10 Rear
climate control system
blower
Rear sun shade, closing aid,
11 luggage compartment lock,
keyless
go/entry, fuel filler
door
12 luggage compartment lid
control module
Fuse panel E (red)
No. Equipment
1 Rear
seat adjustment but-
tons
3 Left rear seat
(pneumatics)
5 Trailer hitch control modu le*
6 Left rear seat
7 Right rear seat
8 Trailer hitch control module*
9 Trailer hitch control module*
10 Right rear seat (pneumatics)
Fuse panel ® (brown)
No. Equipment
1 Radio receiver/sound ampli-
fier
Sound amplifier, Bang&
2 Olufsen Advanced Sound
System
Rear Seat Enterta inment, ra-
3 dio receiver/sound amplifier
Automatic dimming interior
5 rearview mirror, rearview
camera (parking aid)
6 DVD changer
7 TV tuner
8 MMI unit/drives
9
Instrument cluster, analog
clock
10 MMI Display
Amps
25
20
20
20
30
Amps
s
7,5
20
30
30
20
15
7,5
30
30 10
5
5
5
7,5
5
5
•
•
....

272 Fuses and bulbs
Fuse panel ® (brown)
No. Equipment
= 11 Radio receiver Cell phone adapter, cell
12 phone/telephone charging
cradle, chip card reader (not
i n all countries)
Bulbs
Replacing light bulbs Amps
= 7,5
5
For
your safety, we recommend that you have
your authorized Audi dealer replace burned
out bulbs for you.
It is becoming increasingly more and more
difficult to replace vehicle light bulbs since in
many cases, other parts of the car must first
be removed before you are able to get to the
bulb . This applies especially to the light bulbs
in the front of your car which you can only
reach through the engine compartment .
Sheet metal and bulb ho lders can have sharp
edges that can cause serious cuts, and parts must be correctly taken apart and then prop­
erly put back together to help prevent break ­
age of parts and long term damage from wa­
ter that can enter hous ings that have not been
properly resealed.
For your safety, we recommend that you have
your author ized Audi dealer replace any bulbs
for you, since your dealer has the proper tools,
the correct bulbs and the expertise.
Gas discharge lamps (Xenon lights):
Due to the high electrical vo ltage, have the
bulbs replaced by a qualified technician.
H eadlights with Xenon light can be identified
by the high voltage sticker.
LED headlights* require no maintenance .
Please contact your authori zed Audi dealer if a
bulb needs to be replaced.
A WARNING
Contact with high-voltage components of
the electrical system and improper re- placement
of gas discharge (Xenon) head­
light bulbs can cause serious personal in­
jury and death.
- Xenon bulbs are pressurized and can ex­
plode when being changed.
- Changing Xenon lamps requires the spe­
cial training, instructions and equip­ ment.
- Only an authorized A udi dealer or other
qualified workshop should change the bulbs in gas discharge lamps.
A WARNING
There are parts with sharp edges on the
openings and on the bulb holders that can
cause ser ious cuts.
- If you are uncertain about what to do,
have the work performed by an author­
ized Audi dealer or other qualified work­
shop. Serious personal injury may result
from imprope rly performed wo rk.
(D Tips
- If you must replace the light bulbs your­
self, a lways remember that the eng ine
compartment of any vehicle is a hazard­
ous area to work in. A lways read and
heed all WARNINGS¢
page 216, Engine
compartment¢ &..
-It is best to ask your authorized Audi
dealer whenever you need to change a
bulb.
