A WARNING
-The ski sack is intended only for the
transportation of skis and other light ob­
jects. To reduce the risk of serious per­
sonal injury, never transport heavy or pointed objects in the ski sack.
- When brak ing rapidly or during an acci­
dent, the load could be displaced and
cause i njury to occupants.
- Sharp edges on the load must be covered
for protect ion. Always fasten the belt
ti ghtly around the sack and its contents
~fig. 68.
-For safety reasons, do not t ransport
more than two pairs of skis in the ski
sack .
- You must secure the ski sack with the
strap after loading.
- Make sure all objects tha t you are trans­
porting in the pass-th rough a re secured.
Otherwise they cou ld slide around during
s u dden braking maneuvers and cause in­
jury.
(D Tips
- Never stow the sk i sack away when it is
still wet or damp ( for example, snow
melting from skis). Allow it to dry com­
plete ly before stowing it away.
- Position skis in the ski sack w ith the
pointed ends facing the front and ski
po les w ith the pointed ends facing the
rear.
S ea ts a nd s to rage 67
Roof rack
Description and mounting locations
Additional cargo can be carried with a roof
luggage rack.
Fi g. 69 Roof r ack attac hment po ints
.,. Always read and follow the instructions pro­
vided by the roof rack man ufacturer when
the roof rack system must be installed.
If luggage or cargo is to be carr ied on the
roof, you must observe the following:
- To enhance the vehicle's streamlined design,
rai n gutters have been molded i nto the roof.
It is not poss ible to use normal roof racks.
On ly ins tall a roof rack specifically designed
for your model AB. Contact the nearest Audi dea ler for information on approved modular
roof racks for your vehicle.
- On ly use roof racks approved for your vehi ­
cle. These approved roof racks are the basis
for a complete roof rack system. Additional
attachments or carrier systems are needed
to transport luggage and sports equipment.
We recommend using roof racks from the
Audi orig inal accessories program .
- When installing the roof rack, make sure it
is o nly mounted on the des ignated locations
on the roof
Q fig . 69 .
- We recommend that you keep the installa­
tion instructions for your roof rack system
together with your Owner's literature in the
veh icle.
When sh ould the roof rack be rem oved?
-Before going through an automatic car wash
(it is best to ask the car wash operator for
adv ice)
..

68 Seats and storage
-When not in use, to reduce fuel consump­
tion, wind noise and to guard against theft.
A WARNING
- Use of an unapproved roof rack or incor­
rect mounting of an approved roof rack
can cause the roof rack or the items at­
tached to it to fall off the roof onto the
road .
- Objects falling from the roof of a vehicle
can cause a crash and personal injury .
- Only mount the roof rack on the desig­
nated locations on the roof
c::> fig. 69.
-The roof rack system must be installed
exactly according to the instructions pro­
vided.
- When driving with a roof rack system,
changes to the center of gravity and wind
resistance can change the vehicle han­
dling and lead to a collision . Always
adapt your driving and your speed to the
current conditions.
- Your vehicle warranty does not cover any
damages to the vehicle caused by using
roof racks or mounting structures not
approved by Audi for your vehicle. The
same applies to damage resulting from
incorrect roof rack installation.
- Always check the roof rack mountings
and hardware before each trip and dur­
ing a trip to make sure everything is se­
curely tightened. If necessary, retighten
the mountings and check the entire sys­
tem from time to time.
- After mounting a roof rack system, or
when you transport objects on the roof
of your vehicle, the height of the vehicle
is naturally increased. Be careful when
driving under low bridges or in parking
garages for example . This could cause
damage to the load and even the vehicle itself.
- Make sure the open rear lid and the sun­
roof* do not come into contact with the
roof rack.
Loading the roof rack
Always distribute loads evenly. Make sure
anything on the roof rack is securely tied
down.
.. Always distribute the loads on the roof rack
evenly.
.. Always attach items to the roof rack securely
before you drive off.

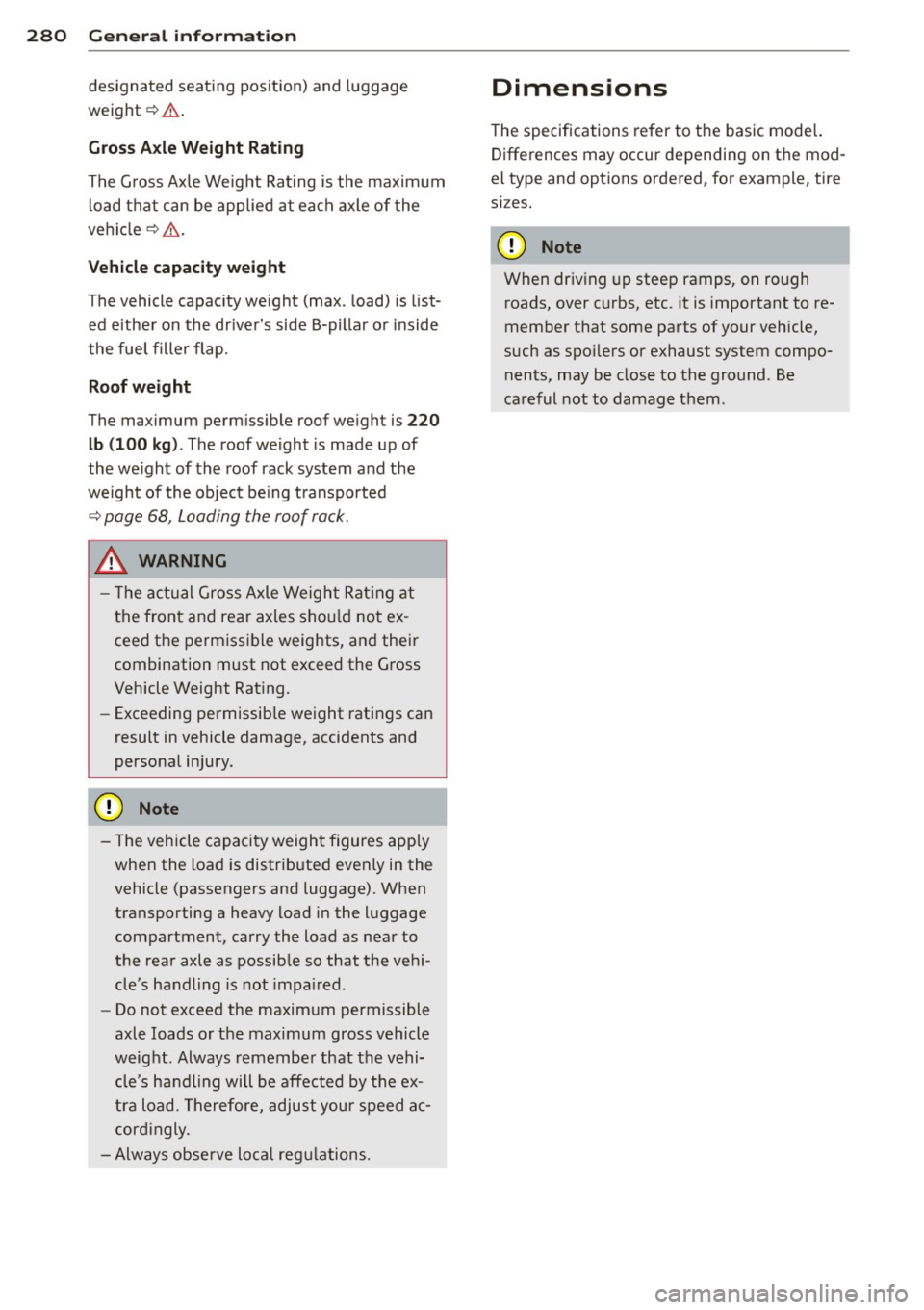

The maximum permissible roof weight is
220
lb (100 kg).
The roof weight is the total of
the weight of the roof rack, the attachments
and the cargo you are carrying. You must also
not exceed the maximum load weight for the
roof rack you are using.
When using a roof rack system which has a lower load carrying capacity, you must not use
up the total maximum permissible load carry­
ing capacity specified above. Instead, you
should load the roof rack system only to the
maximum capacity specified by the manufac­
turer of the roof rack system .
A WARNING ,_
Weak, damaged or improper straps used
to secure items to the roof rack can fail
during hard braking or in a collision and
cause serious personal injury .
- Make sure the roof rack is installed exact­
ly as specified above
c::> page 67.
- Always use suitable mounting straps for
securing items to the roof rack to help
prevent items from shifting or flying for­
ward .
- Items on the roof rack must always be securely mounted .
- The use of a roof rack can negatively af ­
fect the way a vehicle handles . Cargo
that is large, heavy, bulky, long or flat
will have a greater negative influence on
the vehicle's aerodynamics, center of
gravity and overall handling. Always
drive slowly, avoid sudden braking and
maneuvers when transporting cargo on
the roof of your vehicle .

-Never exceed the maximum permissible
load carry ing capacity of the roof of your
vehicle, the perm issible axle weights and
the permiss ible total weight of your veh i­
cle
~ page 2 79, Weights .
-Always drive slowly, avoid sudden brak­
ing and maneuvers when transporting
cargo on the roof of your vehicle .
@) For the sake of the environment
Sometimes it may be easier to leave a roof
rack installed even though you are not us­
ing it. Due to the increased a ir resistance
your vehicle will unnecessarily use more
fuel. Remove the roof rack if you are not
going to use it.
12-volt sockets
App lies to vehicles: 12-volt sockets
Electrical accessories can be connected to ev­
ery 12 -volt socket.
Fig. 70 Sect io n of the trim panel of t he luggage com ­
p ar tm en t: 12 -v ol t so cke t
Fig . 71 R ear cente r c ons ole : 12 -vo lt s ocket
~ Open the socket cover ~ fig . 70 or ~ fig. 71.
~ Inse rt the plug o f the el ectrical device into
t h e socket.
S ea ts a nd s to rage 69
There is an additional 12 volt socket in the
front center console~
page 70, fig . 72.
T he 12 volt socke ts may be used for 12-volt
appliances with maximum consumpt ion of up
to 100 watts.
Before you purchase any accessories, always
read and follow the info rmation in
~ page 285 , Additional accessories and parts
replacement.
A WARNING
The sockets and the electrical accessories
connected to them operate only when the
ignition is switched on .1ncorrect usage
can lead to ser ious injuries or burns . To re­
duce the risk of injuries, never leave chil ­
dren unattended in the vehicle w ith the ve­
h icle key.
(D Note
To avoid damaging the socket, only use
plugs that fit properly .
- Never connect eq uipment that generates
electrical current, such as a solar panel
or battery charger, to the 12 volt socket .
Th is could damage the vehicle 's electri­
cal system.
- The 12 volt socket sho uld only be used
for a short per iod of t i me as a powe r
so urce for electrical equipme nt. Please
use the elec trical sockets in the vehicle
when connecting equ ipment for longer
periods .
(D Tips
When the engine is off and ac ce ssories are
still plugged in and are on , the vehicle ba t­
tery can still be drained .

Automatic car wash
The vehicl e can b e washed in almost any
modern automatic car wash .
The vehicle paint is so durable that t he vehicle
can n ormally be washed without p roblems in
a n automatic car wash . H owever, the effect on
the paint depends to a large extent on the de­
sig n of the fac ility, the filte ring of the wash
water, the type of wash and care mater ial , etc.
If the pa int h as a dull appearance afte r go ing
through the car wash or is scratched, bring
this to the attention of the operator immedi­
ately. If necessary, use a different car wash.
Before going through a ca r wash, be s ure to
take the usual precautions such as clos ing the
windows and power roof. Factor y installed an­
tennas m ust not be removed.
If yo u have installed additional accessor ies on
the vehicle -such as spoilers, roof rack, etc. -
it is best to ask the car was h operator if these
should be removed .
When driv ing through an automatic ca r wash,
firs t se lect the
N posit ion and then sw itch the
engine off. If you switch the eng ine off when
N is engaged, the transmission remains in N
for approximate ly 30 m inutes and then Pis
engaged.
F u rther information for automatic gearboxes
~ page 112.
A WARNING
Always read and heed a ll WARNINGS and
other information
¢ page 206.
(D Note
- Fo ld the exterior mir ro rs -flat the re is a
r isk of damaging the exterio r mirrors .
Power folding exterior mirrors must not
be fo lded in or out by hand. Use the pow­
er function!
- Compare the track of your vehicle w it h
the distance between the guide ra ils of
the facility- there is a risk of damage to
t h e wheels and tires .
-
Cleaning and protec tion 207
- Compa re the height and w idth of your
vehicle with t he height and width of the
t u nnel at the facility .
Washing the vehicle by hand
A lot of water is needed when washing a vehi ­
cle by hand.
.,. Before yo u start washing, make s ure you
have read and unders tood the WARNINGS
¢ .&. in General information an page 206.
.,. First soak a ll dried d irt unt il it is soft, then
r inse it off.
.,. As you clean yo ur vehicle, start wit h the roof
and work your way down to t he bottom, us­
ing a sponge, a sponge glove or a clean
brush .
.,. Rinse the sponge o r th e sponge g love often,
flushi ng it cl ean ea ch time.
.,. Use spec ial car shampoo only fo r very persis­
tent di rt.
.,. Rinse the ca r thorough ly w ith water.
.,. Use a chamo is leather to gently w ipe the ex-
ter ior dry.
Use a separate sponge for cleaning the
whee ls , door sills and othe r regions exposed
to road dirt. In this way, yo u wi ll not scratch
the pa int with coarse particles imbedded in
the sponge the next time you wash the car.
A WARNING
- Do not clean the unde rside of the chas­
sis, fenders, wheel covers, or oth er ha rd
to rea ch parts witho ut p rotect ing you r
hands a nd ar ms . You may cut you rsel f on
sha rp-edge d meta l pa rts.
- Always read a nd heed a ll WA RNIN GS and
o ther info rmation
¢ page 206.
@ Note
- Never try to remove dirt, mud or dust if
th e su rface of the ve hicle is dry. Never
use a d ry cloth o r sponge, s in ce th is
co uld scra tch you r vehi cle's pain t or win -
-
dows. .,..
•
•

28 0 Genera l inform ation
designated seating position) and luggage
w eight ¢.&, .
Gross Axle W eight Rating
The Gross Axle Weight Rating is the maximum
l oad that can be applied at each axle of the
vehicle ¢Lr!, .
Vehicle cap acit y weight
The vehicle capac ity we ight (max . load) is list­
ed e ither on the dr iver's side B-pilla r or inside
the fuel filler flap.
Roof weight
T he m aximum perm iss ible roo f weigh t is 220
lb (100 kg ).
The roof weight is made up of
the we ight of the roof rack system and the
weight of the object be ing transported
¢ page 68, Loading the roof rack.
A WARNING
- T he ac tual Gross Axle Weight Rat ing at
the front and rear axles shou ld not ex­
ceed the permissible weights, and their
combination must not exceed the Gross
Vehicle Weight Rat ing .
- Exceeding permissib le weight ratings can
result in vehicle damage, accidents and
personal injury.
{[) Note
- The vehicle capacity weight figures apply
when the load is distributed evenly in the
vehicle (passengers and luggage) . When
transporting a heavy load in the luggage
compartment, carry the load as near to
the rear axle as possib le so that the vehi ­
cle 's ha ndling is not impa ired.
- Do not exceed the maximum permissible
axle loads or the maximum gross vehicle
weight . Always remember that the vehi­
cle's handling will be affected by the ex­
tra load . Therefore, adjust your speed ac­
cord ingly.
- Always obse rve lo ca l regu lations.
-
Dimensions
The specifications refer to the basic model.
Diff erences may occur dep ending on th e mod­
el type and options o rdered, for example, ti re
si zes.
~ Note
When driving up steep ramps, on rough
roads, over curbs, etc . it is important to re­
member that some parts of your vehicle,
such as spo ilers or exhaus t system compo­
nents, may be close to the ground . Be
careful not to damage them .

_______________________________ I~ n~ d:::: e~x 293
Leaving home ... ... .... ... .. .. .. ... .
Lifting jack ....................... .
Lifting points 45
265
277
Lifting vehicle ............. .... .. ... 277
Light
Ambience lighting ......... ...... ... 46
Com ing/Leaving home ............ ... 45
D aytime r unning lights ..............
43
Emergency flashers . . . . . . . . . . . . . . . . . 44
Exterior lighting ....... ... .. .. ......
43
Headlig ht range contro l ... .. .. .. .. .. 43
High beam ..... ...... ... .. .. .. .... 45
Low beam .. ............. .... .. ....
43
Park ing lights . ........... .. .. .. .... 43
Rear fog lights ..................... 43
Turn signa ls ....................... 45
Light/rain sensor Headlights . .. ........... .. .. .. ....
43
Intermittent (windshield wipers) .. .. .. 48
Sensor defective . . . . . . . . . . . . . . . . . . . . 21
Loading the roof rack . . . . . . . . . . . . . . . . . 68
Locking
Powe r locking switch . . . . . . . . . . . . . . . .
34
Rear lid .. .. .. ........... .. .. .. .... 35
Remote control .......... .. .. .. .. ..
3 2
Using the key ... ...... ... .. .. .. ... .
Low beams 34
43
Lower universal anchorages (Canada) 181
Lugg age compartmen t
L uggage compartment net ... .. .. ....
65
Pass-t hro ugh with ski sack . . . . . . . . . . . 66
Stowing luggage . ..... ... .. .. .. .. .
133
Tie-downs . . . . . . . . . . . . . . . . . . . . . . . . . 65
L umba r su pport
Fr ont seats . . . . . . . . . . . . . . . . . . . . . . . .
5 6
Rear seats .. .... .. .... ... .. .. .. .... 57
M
M ain tenance . ............. .... .. ... 283
Malfunct ion Indicator Lamp (MIL) 20, 27
Massage function
Front seats . . . . . . . . . . . . . . . . . . . . . . . .
56
Rear seats .. ............. .... .. .... 57
Reclining rear seat ........ .. .. .. .. .. 60
Mechanical key . . . . . . . . . . . . . . . . . . . . . .
30
Mir ro rs
Adjusting th e exterior mirrors .... .. .. .
51
Compass . ... .. .. .. . .. ... .... ... .. . 52
d' . 1mming .... .. .. ................. . 51
Vanity mirrors . . . . . . . . . . . . . . . . . 47, 48
Moni toring the Advanced Airbag System 156
Mult ifunct ion steer ing whee l ......... .. 24
N
Natura l leather .. ... ................ 213
New ti res and wheels
NH TSA
Co ntacting
N ight vision assistant ............... .
Cleaning camera lens .............. .
N umber of seats ...... .. .. ..... ... . .
0
249
135
109
208
137
Occ upant seating positions .... ... .. .. 128
Octane rat ing ... ... ................ 218
Odometer . . . . . . . . . . . . . . . . . . . . . . . . . . 26
OFF (automa tic climate control) ... .. .. . 75
Oil
refer to Engine oil ................ . 224
On-board computer . . . . . . . . . . . . . . . . . . 24
On-Boa rd Di agnost ic System (O BD)
Data Link Conne ctor (D LC) ............
28
Electronic speed limi ter . ..... ... .. .. . 28
Malfunction Indicator Lamp (MIL) . ... . 27
Open door/hood/rear lid wa rni ng ....... 27
Opening
Hood ....... .. ...... .............
222
Panoramic sunroof .. . .. .. ..... ... .. . 41
Power w indows .................... 39
Rea r lid . . . . . . . . . . . . . . . . . . . . . . . 36, 37
Slid ing/ti lting s unroof .......... .... .
40
Sun shades . . . . . . . . . . . . . . . . . . . . 42 , 47
Operate your vehicle economically and
minimize pollution ..................
199
Other equipment (efficiency program) . .. 25
p
Paint
T o uch -up . ... .. .... . ... ...... ... ..
210
Pa int No. 279
•
•

Remote control Garag e door open er (Homelink ®) .. .. . 124
Massage funct ion . . . . . . . . . . . . . . . . . . . 60
Unlock ing and locking ........... .. .. 32
Remote rear lid release ............... 35
Repair manuals ................... .. 283
Repairs Airbag system .................... 158
Replacing Fu ses . ..... .. .. ... ..... ... .. .. ... 268
Light bulbs ... ... ..... ... .. .. .. ... 272
Tires and whee ls . ..... ... .. .. .. .. . 250
Windshield wiper blades ... .. .. .. .. .. 50
Report ing Safety Defects .......... .. . 135
Reset button . . . . . . . . . . . . . . . . . . . . . . . . 26
Retractor . . . . . . . . . . . . . . . . . . . . . . . . . . 140
Reverse . .. .. ........ ......... .. .. . 112
R ims (cleaning) ..................... 211
Roof rack .... .... ...... ... .. .. .. .... 67
L oading .... .. .... .... ... .. .. .. .... 68
Roof weight . . . . . . . . . . . . . . . . . . . . . . . 68
s
SAFE . .. .. .. ... .. .. ..... ... .. .. .... 26
Safe driving hab its ...... ... .. .. .. .. . 127
Safety belt position ........ .. .. .. .. . 141
Safety belts worn by pregnant women . 142
Safety belt pretens ioner . . . . . . . . . . . . . . 143
Service and disposal . . . . . . . . . . . . . . . 1 44
Safety belt pretens ioners
P re sense . . . . . . . . . . . . . . . . . . . . . . . . 188
Safety belts . . . . . . . . . . . . . . . . . . . . . . . . 140
Adjusting .. .. .. ............ ... .. . 142
cleaning ......................... 216
D anger to passengers who do not wea r a
safety be lt . .. .. ......... .. .. .. .. . 138
F asten ing .. ............. .... .. ... 1 40
I mproperly wor n .................. 14 3
N ot wo rn . .... .. ..... ... .. .. .. ... 138
Safety belt position .... ... .. .. .. .. . 14 1
Safety instructions ..... ... .. .. .. .. . 140
Secur ing child safety seats . .. .. .. .. . 178
Special considerations for pregnant
women .. ... ............. ... ... .. 142
Unfasten ing .... ............ ... ... 142
War ning/ indicato r light .. .. .. .. .. .. . 137
Inde x 295
Warning light . ...... .. .. ..... ... .. . 16
Why YOU MUST wea r them ...... .. .. 137
Worn properly ... .. . .. ..... ... .. .. 139
Safety be lt tens ioner
drive selec t .. .. .. ................. 106
Safety be lt warning light ............ . 137
Safety compliance sticker ..... ... .. .. 279
Safe ty eq uipme nt .. ............. .... 12 7
Safety features for occupant restraint and
protection . . . . . . . . . . . . . . . . . . . . . . . . . 12 7
Safety gui delines
Seat adjustment . . . . . . . . . . . . . . . . . . . . 54
Safety instr uctions
E ngine compar tment ........... .... 2 22
f or side cu rtain airbags . ..... ... .. .. 167
for using child safety seats ... ... .. .. 172
for using safety belts . . . . . . . . . . . . . . . 140
Monito ring the Advanced Airbag Sys-
tem ............................. 158
Safety sys tems
Warning/ind icator lights ..... ... .. .. . 18
Seat adjustment Co ntrols (front seats) . . . . . . . . . . . . . . . . 55
C o ntrols (re ar seats) ........... .. .. . 57
Drive r's sea t . . . . . . . . . . . . . . . . . . . . . . . 54
F ront passenger's seat . . . . . . . . . . . . . . . 55
Front seats . . . . . . . . . . . . . . . . . . . . . . . . 54
Head restraints . . . . . . . . . . . . . . . 61, 131
Reclining rear seat .... ............. . 58
Safety gu idelines . ... ... .... ... .. .. . 54
Seat belts Why YOU MUST wea r them ... ... .. .. 137
Seat heating/ventila tion . . . . . . . . . . . . . . 76
Seating position Driver ....... .... ........... ..... 128
Front passenger ... ........... .... . 129
How to ad just the front seats ........ 129
Incor re ct sea t position .......... .. .. 131
Oc cupan ts . .. .. .. .. . .. .......... .. 128
Rear passengers .. .. .. ...... ... .. .. 130
Seat memory . . . . . . . . . . . . . . . . . . . . . . . 62
Seats (n umber) . ... .. .. ... ..... ... .. 137
Se lective unlo ck feature . . . . . . . . . . . . . . . 32
Se lector lever . . . . . . . . . . . . . . . . . . . . . . 112
Service and disposa l
Safety be lt pretensioner . . . . . . . . . . . . 144
Se rv ice interval display .. ......... .. .. . 26
•
•
