AUDI A8 2013 Owners Manual

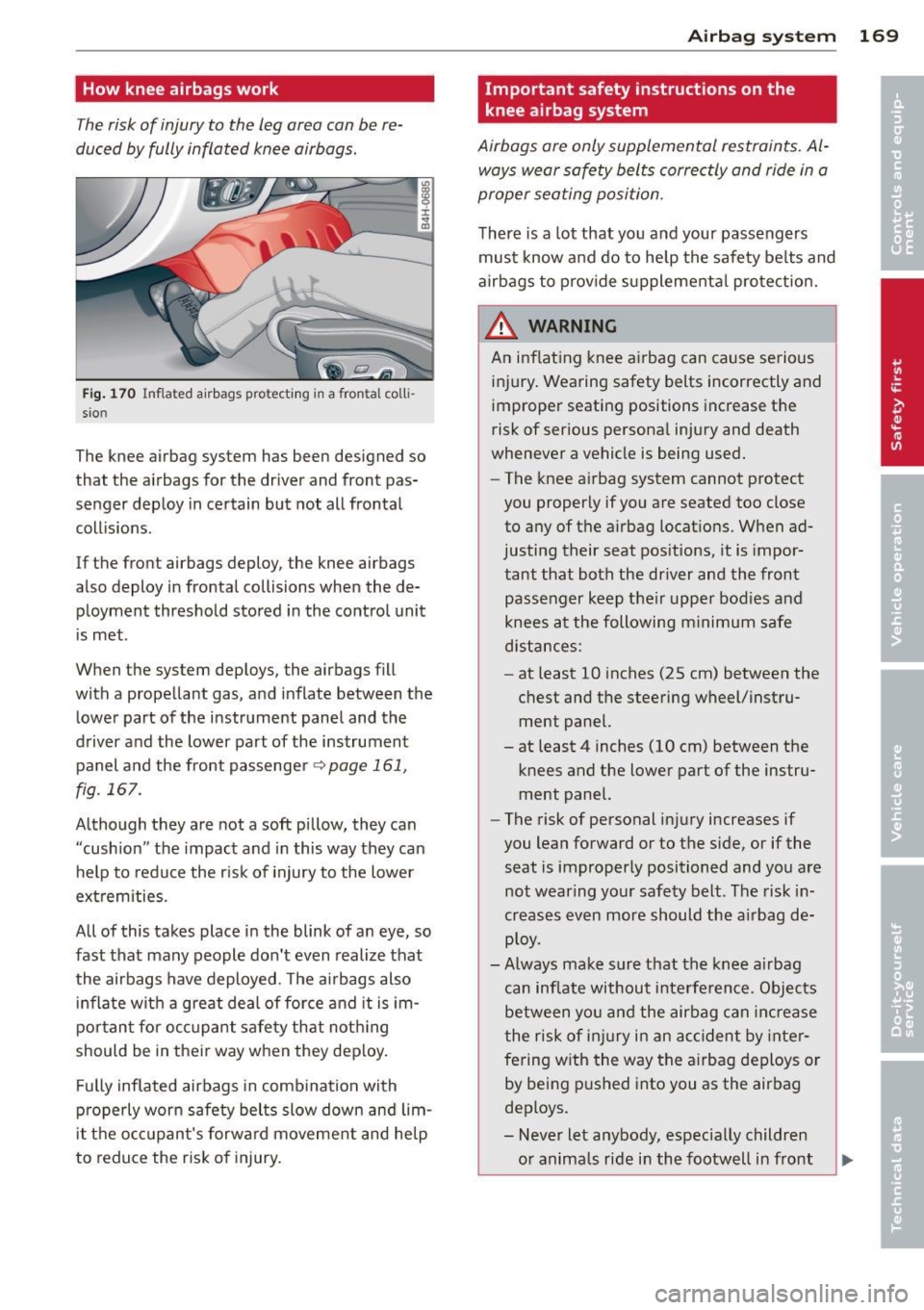

How knee airbags work
The risk of injury to the leg area con be re­
duced by fully inflated knee airbags.
Fig. 170 Inflated airbags protecting in a fro ntal coll i­
sio n
The knee airbag system has been designed so
that the airbags for the driver and front pas­
senger deploy in certain but not all frontal
collisions .
If the front airbags deploy, the knee airbags
also deploy in frontal collisions when the de­
ployment threshold stored in the control unit
is met .
When the system deploys, the airbags fill
with a propellant gas, and inflate between the
lower part of the instrument panel and the
driver and the lower part of the instrument
panel and the front passenger~
page 161,
fig . 167.
Although they are not a soft pillow, they can
"cush ion" the impact and in this way they can
help to reduce the risk of injury to the lower
extremities.
All of this takes place in the blink of an eye, so
fast that many people don't even realize that
the airbags have deployed . The airbags also
inflate with a great deal of force and it is im­
portant for occupant safety that nothing
should be in their way when they deploy.
Fully inflated airbags in combination with
properly worn safety belts slow down and lim­
it the occupant's forward movement and help
to reduce the risk of injury.
Airbag system 169
Important safety instructions on the
knee airbag system
Airbags ore only supplemental restraints . Al­
ways wear safety belts correctly and ride in a
proper seating position .
There is a lot that you and your passengers
must know and do to help the safety belts and
airbags to provide supplemental protection.
_& WARNING
An inflating knee airbag can cause serious injury. Wearing safety belts incorrectly and
improper seating positions increase the
risk of serious personal injury and death
whenever a vehicle is being used.
- The knee airbag system cannot protect
you properly if you a re seated too close
to any of the airbag locations. When ad­
justing their seat positions, it is impor­
tant that both the driver and the front
passenger keep their upper bodies and
knees at the following minimum safe
distances:
- at least 10 inches (25 cm) between the
chest and the steering wheel/instru­
ment panel.
- at least 4 inches (10 cm) between the
knees and the lower part of the instru­
ment panel.
- The risk of personal injury increases if
you lean forward or to the side, or if the
seat is improperly positioned and you are not wearing your safety belt. The risk in­
creases even more should the airbag de­ ploy.
- Always make sure that the knee airbag
can inflate without interference. Objects
between you and the airbag can increase
the risk of injury in an accident by inter­
fering with the way the airbag deploys or
by being pushed into you as the airbag
deploys.
- Never let anybody, especially children
or animals ride in the footwell in front

1 7 0 Airbag system
of the passenger seat. If the airbag de­
ploys, this can resu lt in serious or fata l
injuries.
- Never carry objects of any kind in the
footwell area in front of the driver's or
passenger's seat. Bulky objects (shop­
p ing bags, for examp le) can interfere
with or p revent proper dep loyment of
the airbag . Small objects can be
thrown through the vehicle i f the a ir­
bag deploys and injure you or yo ur pas­
sengers.
- Make sure there are no cra ck s, deep
scratches or ot her damage in the area of
the instrument pane l where the knee air­
bags are located .
- If children are incorrect ly sea ted, their
risk of inj ury i ncreases in a collision
¢ page 176, Child Safety .
Side airbags
Description of side airbags
The airbag system can provide supplemental
protection to properly restrained occupants.
----
Fi g. 1 71 Side a irbag loca tion in the driver's seat
The side airbags are lo cated i n the sides of the
front seat ba ckrests
¢fig. 171 and the rear
backrest facing the doors. They are identified
by the word "AIRBAG" .
The s ide airbag system ba sically consis ts of :
-the electronic control module and external
s ide impact sensors
- the two side airbags located in the sides of
the front backrests
- two rear side airbags -
the airbag warning light in the ins trument
cluster .
T he airbag system is mon itored elec tronically
to make certain tha t it is f unctioning p roperly
at all times. Each time you switch on the igni ­
tion, the airbag system indicator light will
come on for a few seconds (se lf diagnostics) .
T he side airbag system supplements the safe­
ty belts and can help to reduce the risk of in ­
jury to the driver's, front and rear passenger's
u pper torso on the side of the vehicle that is
struck in a side collision. The airbag dep loys
only in side impacts and only when the vehicle
acce lerat ion reg istered by the contro l unit is
high enough. If this rate is be low the refe r­
ence value p rog rammed into the control unit,
the side ai rbags will not be triggered, even
t h ough the car may be bad ly damaged as a re­
s ul t of the co llision. It is not possib le to de­
fine an airbag triggering range that will cover every possib le ang le of impact, since the cir­
cumstances will vary cons iderably between
one collis ion and another. Important factors
include, for example, the nature (hard or soft)
of the impacting object, the angle of impact,
vehicle speed, etc. ¢
page 172, Important
safety instructions on the side airbag system .
Aside from their normal safety function, safe­
ty be lts work to help keep the driver or front
passenge r in position in t he event of a s ide
co llision so that the side airbags can provide
protection.
The airbag system is
not a substitute for your
safety belt . Rather, it is part of the overa ll oc­
c u pant restraint system in you r vehicle . A l­
ways remember that t he side ai rbag system
c a n only help to protect you if you are wea ring
your sa fety be lt and wearing it p roperly. This
is another reason why you should always wear
your safety belts, not j ust because the law re­
quires yo u to do so¢
page 144, General
notes.
It is important to remembe r that w hile the
supplementa l side airbag system is designed
to reduce the likelihood of ser ious injuries,
other injur ies, for example, swelling, bru is ing, ..,..

and minor abrasions can also be associated
with deployed side airbags. Remember too,
side airbags will deploy only once and on ly in
certain k inds of accidents -your safety belts
are always there to offer protect ion.
Vehicle damage, repair costs or even the lack
of vehicle damage are not necessar ily an indi ­
cation of over-sensitive or failed airbag activa­
tion . In some collisions, both front and s ide
a irbags may inf late . Remember too, that air ­
bags will deploy only once and only in certain
kinds of collisions -your safety belts are al­
ways there to offer protect ion in those acci­
dents in wh ic h airbags are not supposed to
deploy or w hen they have already deployed .
The side airbag system will not depl oy :
- when the ignition is switched off
- in s ide collisions when the acceleration
measured by the sensor is too low
- in front-end collisions
- in rear-end collisions
- in ro llovers.
I n some types of a ccidents the front a irbags,
side curta in a irbags and side airbags may be
triggered together.
A WARNING
- Safety belts and the airbag system will
only provide protection when occupants
are in the proper seating posit ion
<=)page 172.
- If the airbag indicator light Q page 18
comes when the vehicle is be ing used,
have the system inspected immediately
by you r aut ho rized Aud i dealer. It is pos­
sible that the a irbag will inflate when it
is not supposed to, or w ill not inflate
when it should.
-
A irba g sy stem 1 71
How supplemental side airbags work
Side airbags deploy instantly and can help re­
duce the risk of upper torso injuries for occu­
pants who are properly restrained.
Fig . 1 72 Inflated side a irbags on left side of vehicle ,
rear side airbag
When the system is triggered, the a irbag is
filled with propellant gas and breaks through
a seam in the seat surface area ma rked ''AIR­
BAG".
It expands between the side trim panel
and the passenger. In orde r to help provide
th is add it ional protect ion, the side airbag
must inflate within a fraction o f a second at
very high speed and with great force. The sup­
plementa l side airbag could injure you if your
seat ing position is not proper or upright or if
items are located in the area where the sup­
plementa l side airbag expands . This applies
especially to child ren
Q page 176, Child Safe­
ty. Supplemental side airbags inflate between
the occupant and the door panel on the side
of the vehicle that is struck in certa in side co l­
lis ion
Q fig. 172.
Although they are not a soft pi llow, they can
"cushion" the impa ct and in this way they can
help to reduce t he risk of injury to the upper
part o f th e body.
A fine dust may deve lop when the airbag de­
ploys . This is normal and does not mean there
is a fire in the vehicle.

172 Airbag system
Important safety instructions on the
side airbag system
Airbags are only supplemental restraints. Al­
ways properly wear safety belts and ride in a
proper seating position.
There is a lot that you and your passengers
must know and act accordingly to help the
safety belts and airbags do their job to pro­
vide supplemental protection.
& WARNING
An inflating side airbag can cause serious
or fatal injury. Improperly wearing safety
belts and improper seating positions in­
crease the risk of serious personal injury
and death whenever a vehicle is being
used.
- In order to reduce the risk of injury when
the supplemental side airbag inflates:
- Always sit in an upright position and
never lean against the area where the
supplemental side airbag is located.
- Never let a child or anyone else rest
their head against the side trim panel
in the area where the supplemental
side airbag inflates.
-Always make sure that safety belts are worn correctly,
- Do not let anyone sitting in the front
seat put their hand or any other parts
of their body out of the window.
-Always make sure that the side airbag can inflate without interference.
- Never install seat covers or replace­
ment upholstery over the front seat­
backs that have not been specifically
approved by Audi.
- Never use additional seat cushions that
cover the areas where the side airbags
deploy.
- Damage to the original seat covers or
to the seam in the area of the side air­
bag module must always be repaired
immediately by an authorized Audi
dealer. -
Objects between you and the airbag can
increase the risk of injury in an accident
by interfering with the way the airbag
unfolds or by being pushed into you as
the airbag inflates.
- Never place or attach accessories or
other objects (such as cup holders, tel­
ephone brackets, or even large, bulky
objects) on the doors, over or near the
area marked "AIRBAG" on the seat backrests.
- Such objects and accessories can be­ come dangerous projectiles and cause
injury when the supplemental side air­
bag deploys.
- Never carry any objects or pets in the
deployment space between them and
the airbags or allow children or other passengers to travel in this position.
-Always use the built-in coat hooks only for lightweight clothing. Never leave any
heavy or sharp-edged objects in the
pockets that may interfere with side air­
bag deployment and can cause personal
injury in an accident.
- Always prevent the side airbags from be­
ing damaged by heavy objects knocking
against or hitting the sides of the seat­
backs.
- The airbag system can only be triggered
once. If the airbag has been triggered,
the system must be replaced by an au­
thorized Audi dealership.
- Damage (cracks, deep scratches etc.) to
the original seat covers or to the seam in
the area of the side airbag module must always be repaired immediately by an au­
thorized Audi dealer.
- If children are seated improperly, their
risk of injury increases in the case of an
accident
~ page 176, Child Safety.
- Never attempt to modify any compo­
nents of the airbag system in any way .
- In a side collision, side airbags will not
function properly if sensors cannot cor­ rectly measure increasing air pressure in-
side the doors when air escapes through ..,.

larger, unclosed openings in the door
panel.
- Never d rive w ith int erio r door tr im pan­
els removed.
- Never d rive when parts have been re­
moved from t he ins ide door panel and
the openings they leave have not been
p roperly closed.
- Never d rive w hen loudspeakers in the
doors have been removed unle ss the
spea ker holes have been properly
closed.
- Always make cer ta in t hat openings are
covered or filled if additional s peake rs
or other equi pment is i nstalled in the
insi de door panels.
- A lways have work on t he doors done by
a n author ized Audi dealer or qualified
wo rkshop .
Side curtain airbags
Description of side curtain airbags
The side curtain airbag system can provide
supplemental protection to properly restrain ­
ed occupants.
Fi g. 173 Side curtai n airbags, dr iver 's s ide: side curtai n
ai rbag locat ion
The side curtain airbags are located on both
sides of the interior above the front and rear
side windows ¢
fig. 173. They are ident ified
by the word "AIRBAG" on the windshie ld
frame and the center roof p illar.
The side curtain airbag system supp lements
the safety belts and can help to reduce the risk of injury for occupa nts' heads and upper
torso on the side of the veh icle tha t is struc k
Airba g system 173
in a side co llision . The side cu rtain airbag in­
flates in side impacts and only when the vehi­
cle acceleration registered by the contro l un it
is h igh eno ugh. If this rate is below the refer­
ence value programmed into the control unit,
the side airbags will not be triggered, even
though the car may be badly damaged as a re­
su lt of the co llision . It is not possib le to de­
fine an airbag triggering range that will cover every possib le ang le of impa ct, sin ce the cir­
c u mstances will vary cons iderably be tween
one collision and anothe r. Important factors
incl ude, fo r example, the nature (hard or soft)
of the impacting object, the ang le of impact,
vehicle speed, etc . ¢
page 17 4, How side cur­
tain airbags work.
Aside from their normal safety f unction, safe­
ty belts work to help keep the driver or front passenger in position in the event of a coll i­
s ion so that the side curtain airbags can pro­
vide protection .
The airbag system is not a substit ute for your
safety belt. Rather, it is part of the overall oc­ cupant restra int system in your vehicle. Al­
ways remember that the a irbag system can
o nly help to protec t you if you are wear ing
you r safety be lt and wea ring it p roperly. This
i s a nothe r reason why you should a lways wear
yo ur safe ty be lts, no t ju st because the law re­
quires you to do so ¢
page 144, General
notes .
It is impo rtant to remembe r that w hile the
s id e cu rtain air bag system is desig ned to help
reduce t he likelihood of serious injuries, other
injur ies, for examp le, swelling, br uising, and
minor ab rasions can also be associated with
these a irbags upon deployment. Remember
too, these airbags will deploy only once and
o nly in certain kinds of acc idents -your safety
belts are always the re to offer protection .
The side curtain airbag sy stem ba sically
consists of :
-The e lectronic control module and external
side impact sensors
- The side curtain airbags above the front and
rea r side windows

17 4 Airbag system
-The airbag indicator light in the instrument
panel
The airbag sys tem is monitored electro nica lly
to make certa in it is funct ion ing properly a t all
times. Each time you switch on the ignition,
the a irbag system ind icator light wi ll come on
for a few seconds (self diagnost ics).
The side curtain airb ag i s not activated :
-if the ignit ion is switched off,
- in s ide collisions when the acceleration
measured by the sensor is too low ,
- in rear-end collisions,
- in rollovers .
A WARNING
-
-Safety belts and the a irbag system will
only p rov ide protection when occ upants
are in t he p roper sea ting posit ion
c>page 57, General recommendations.
- If the airbag indicato r ligh t¢ page 18
comes whe n the vehicle is be ing used,
have the system inspected immediate ly
by your aut horized Aud i dea ler . It is pos­
sible that the airbag will inflate when it is not s upposed to, or w ill not inflate
when it should.
How side curtain airbags work
Side curtain airbags can work tog ether with
sid e airbags to h elp reduc e the risk of head
and upper torso i njurie s for occupants who
are properly res trained.
F ig . 17 4 Illust rat ion of p rin cipl e: In fl ate d side cu rt a in
airba gs on th e left sid e
The side curtain airbags inflate between the
occupant and the windows on the side of the
"' N ;g
:i: .. m
vehicle that is struck in a side collis ion
¢ fig . 174 .
When the system is triggered, the side curta in
airbag is filled w ith prope llant gas and breaks
through a seam above the front and rear side
windows identified by th e AIRBAG label. In or·
der to he lp provide this add itiona l protection,
the side curta in a irbag must inflate within the
blink of an eye at very high speed and with
great force . The side curta in a irbag could in ·
jure you if your seating pos it io n is not proper
o r upright or if items are located in the area
whe re the supplemental side curta in a irbag
infla tes. This applies especially to ch ild ren
¢ page 176.
Although they are not a soft pi llow, side cur·
ta in a irbags can "cushion" the impact and i n
th is way they can help to reduce the risk of in­
j u ry to the head and the uppe r part o f the
body.
A fine dust may deve lop w hen the airbag de·
ploys. Th is is qui te no rma l and does not mean
there is a fire in the vehicle .
Important safety instructions on the
side curtain airbag system
Airbags are only supplemental restraints . Al·
ways properly wear safety belts and rid e in a
proper seating position .
The re is a lot that you and your passengers
must know and do to he lp the safety belts and
airbags do th eir job to provide supp lemental
protection .
A WARNING
-Improperly wearing safety belts and im-
p roper seating posit ions increase the risk
of ser ious personal inju ry and death when·
ever a vehicle is being used.
- Never let occupants place any parts of
their bod ies in the area from which the
side curta in a irbags inflate.
- Always make sure that the s ide curtain
airbags can inflate without interference .

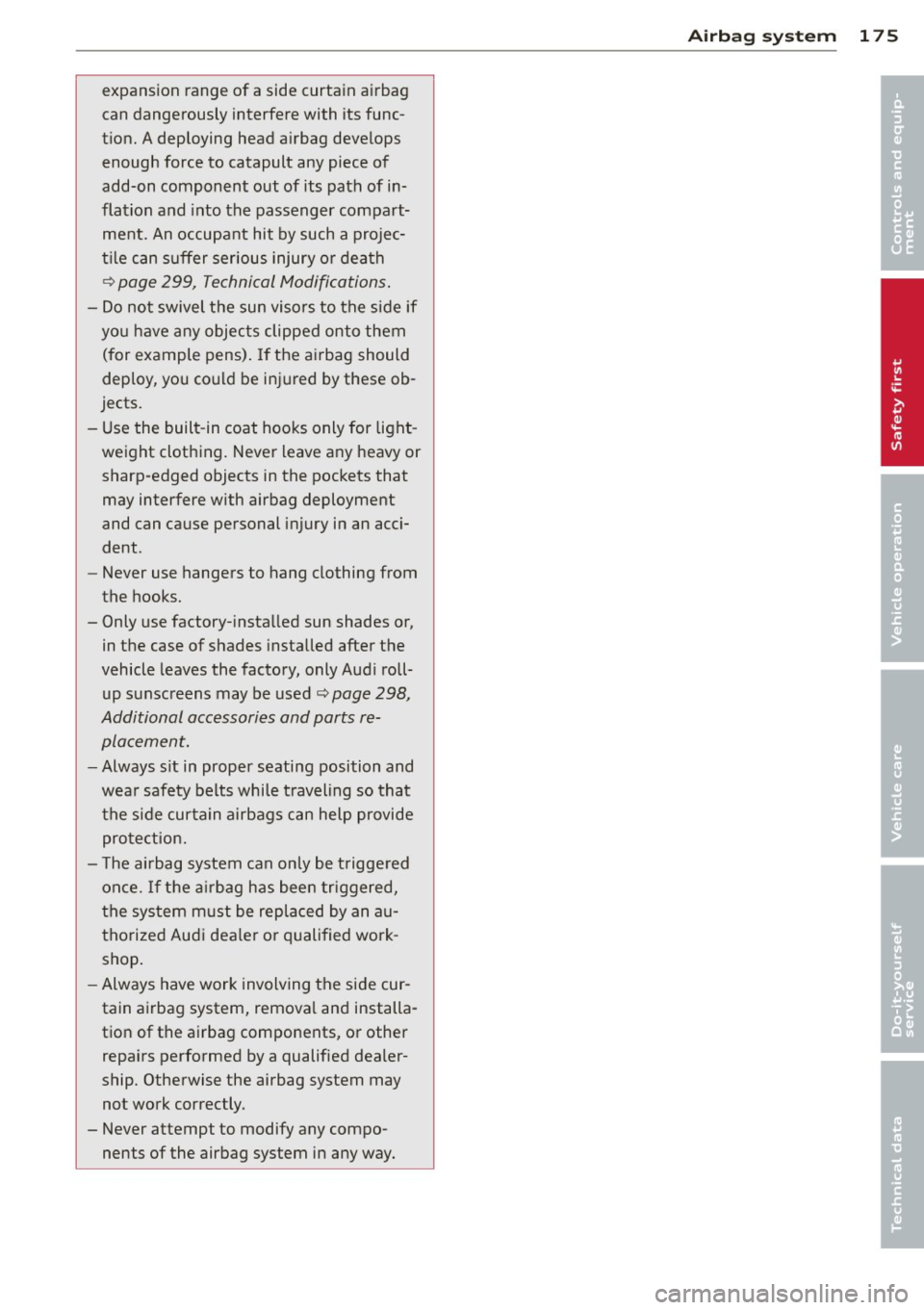

Unsui table ac cessories fitted inside the
-

expansion range of a side curtain airbag
can dangerously interfere with its func­
tion. A deploying head airbag develops
enough force to catapult any piece of add-on component out of its path of in­
flation and into the passenger compart­
ment. An occupant hit by such a projec­
tile can suffer serious injury or death
~ page 299, Technical Modifications.
- Do not swivel the sun visors to the side if
you have any objects clipped onto them (for example pens). If the airbag should
deploy, you could be injured by these ob­
jects.
- Use the built-in coat hooks only for light­ weight clothing. Never leave any heavy or sharp-edged objects in the pockets that
may interfere with airbag deployment
and can cause personal injury in an acci­
dent .
- Never use hangers to hang clothing from
the hooks.
- Only use factory-installed sun shades or, in the case of shades installed after the
vehicle leaves the factory, only Audi roll­ up sunscreens may be used~
page 298,
Additional accessories and parts re­ placement.
- Always sit in proper seating position and
wear safety belts while traveling so that
the side curtain airbags can help provide
protection.
- The airbag system can only be triggered
once. If the airbag has been triggered,
the system must be replaced by an au­
thorized Audi dealer or qualified work­
shop.
- Always have work involving the side cur­
tain airbag system, removal and installa­
tion of the airbag components, or other
repairs performed by a qualified dealer­
ship. Otherwise the airbag system may
not work correctly.
- Never attempt to modify any compo­ nents of the airbag system in any way.
Airbag system 175
•
•

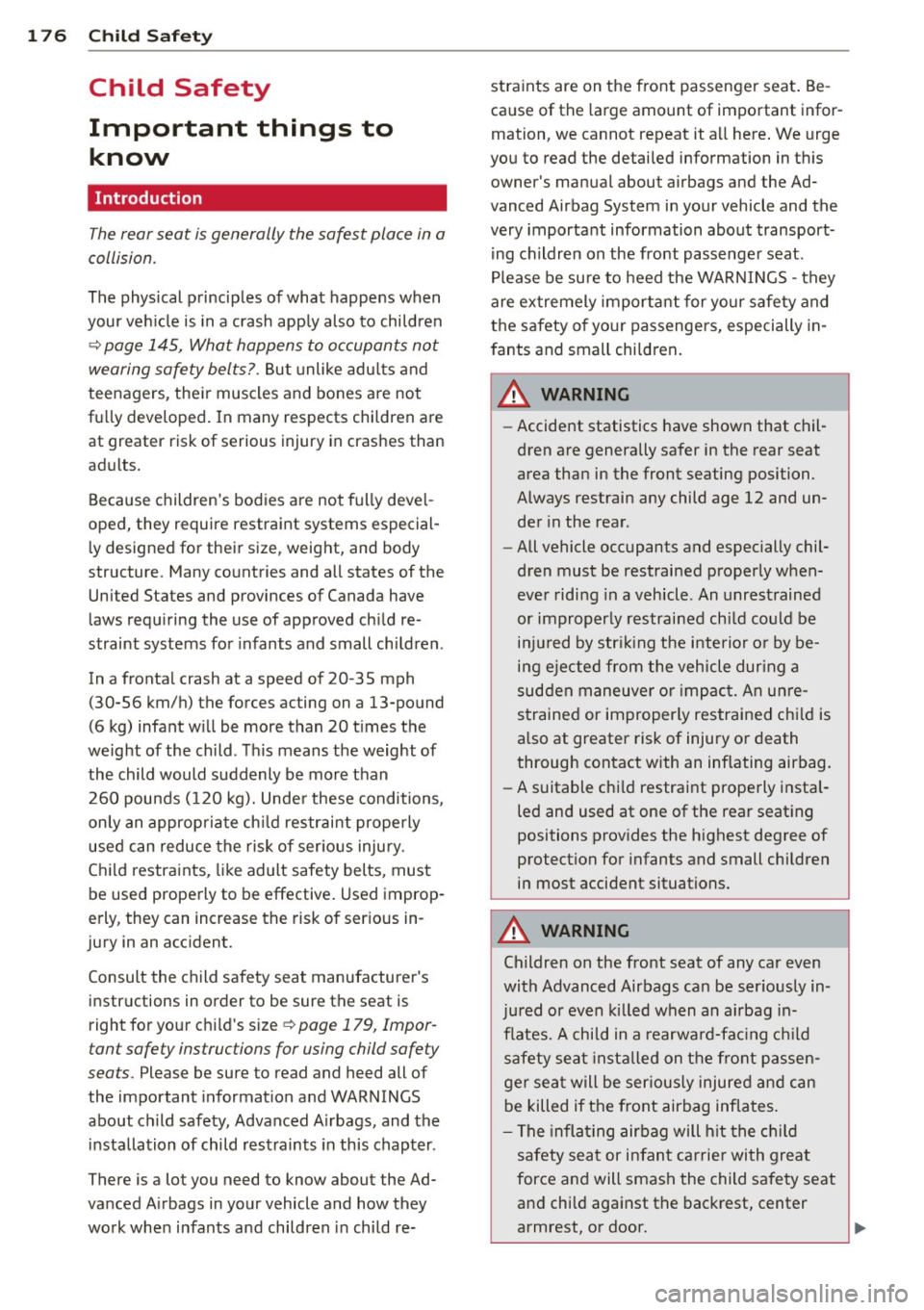

176 Child Saf ety
Child Safety
Important things to
know
Introduction
The rear seat is generally the safest place in a
collision.
The physical principles of what happens when
your veh icle is in a crash app ly also to chi ldren
~ page 145, What happens to occupants not
wearing safety belts?.
But unlike adults and
teenagers, their muscles and bones are not
fu lly developed. In many respects children are
at greater risk of serious injury in crashes than
adults.
Because children's bodies are not fully deve l­
oped, they require restraint systems especial­
ly designed for their size, weight, and body
structure. Many countries and all states of the
United States and provinces of Canada have
laws requiring the use of approved child re­
straint systems for infants and small ch ildren.
In a fronta l crash at a speed of 20 -35 mph
(30-56 km/h) the forces acting on a 13-pound
(6 kg) infant w ill be more than 20 t imes the
weight of the child. This means the weight of
the child would suddenly be more than 260 pounds (120 kg). Under these conditions,
only an appropriate ch ild restraint properly
used can reduce the risk of ser ious injury.
Child restraints, like adult safety belts, must
be used properly to be effective. Used improp­
erly, they can increase the risk of serious in­
jury in an accident.
Consult the child safety seat manufacturer's instructions in order to be sure the seat is
right for your ch ild's size ~
page 179, Impor­
tant safety instructions for using child safety
seats.
Please be sure to read and heed all of
the important information and WARNINGS
about child safety, Advanced A irbags, and the
installation of child restraints in this chapter .
There is a lot you need to know about the Ad­
vanced Airbags in your vehicle and how they
work when infants and children in child re- straints are on the front passenger seat
. Be­
cause of the large amount of important infor­
mation, we cannot repeat it all here . We urge
you to read the detailed information in this
owner's manual about airbags and the Ad­
vanced Airbag System in your vehicle and the
very important information about transport­
ing children on the front passenger seat.
Please be sure to heed the WARNINGS -they
are extremely important for your safety and
the safety of your passengers, especially in­
fants and small children.
A WARNING
-Accident statistics have shown that chil­
dren are generally safer in the rear seat
area than in the front seating position.
Always restrain any child age 12 and un­
der in the rear.
- All vehicle occupants and especially chil­
dren must be restrained properly when­
ever riding in a vehicle. An unrestrained
or improperly restrained chi ld could be
injured by str iking the i nterior or by be­
ing ejected from the vehicle during a
sudden maneuver or impact. An unre­
strained or improperly restrained chi ld is
also at greater risk of injury or death
through contact with an inflating airbag.
- A suitable chi ld restraint properly instal ­
led and used at one of the rear seating positions provides the highest degree of
protection for infants and small children
in most accident situations.
A WARNING ,_
Children on the front seat of any car even
with Advanced Airbags can be ser iously in­
jured or even killed when an airbag in­
flates. A child in a rearward-facing child
safety seat installed on the front passen­
ger seat will be ser iously injured and can
be killed if the front airbag inflates.
- The inflating airbag will hit the child
safety seat or infant carrier with great
force and will smash the child safety seat and child against the backrest, center
armrest, or door.
II>-

-Always install rear-facing child safety
seats on the rear seat.
- If you must install a rearward facing
child safety seat on the front passenger
seat in exceptional circumstances and
the
PASSENGER AIR BAG OFF light does
not come on and stay on, immediately
install the rear-facing child safety seat in
a rear seating position and have the air­
bag system inspected immediately by
your Audi dealer.
_& WARNING
If, in exceptional circumstances, you must
install a forward-facing child restraint on
the front passenger's seat:
- Always make sure the forward-facing
seat has been designed and certified by its manufacturer for use on a front seat
with a passenger front and side airbag.
- Always follow the manufacturer's in­
structions provided with the child safety
seat or carrier.
- Always move the passenger seat into its
rearmost position in the seat's fore and
aft adjustment range, as far away from
the airbag as possible before installing
the child restraint. The backrest must be
adjusted to an upright position .
- Always make sure that the
PASSENGER
AIR BAG OFF
light comes on and stays
on all the time whenever the ignition is
switched on.
(D Tips
Always replace child restraints that were
installed in a vehicle during a crash. Dam­
age to a child restraint that is not visible
could cause it to fail in another collision
situation.
Advanced front airbag system and children
Your vehicle is equipped with a front "Ad­
vanced Airbag System" in compliance with United States Federal Motor Vehicle Safety
Child Safety 177
Standard (FMVSS) 208 as applicable at the
time your vehicle was manufactured.
The Advanced Airbag system in your vehicle
has been certified to meet the "low-risk" re­
quirements for 3- and 6-year old children on
the passenger side and small adults on the driver side. The low risk deployment criteria
are intended to reduce the risk of injury
through interaction with the airbag that can
occur, for example, by being too close to the
steering wheel and instrument panel when
the airbag inflates . In addition, the system
has been certified to comply with the "sup­
pression" requirements of the Safety Stand­
ard, to turn off the front airbag for infants up
to 12 months who are restrained on the front
passenger seat in child restraints that are list­
ed in the Standard.
Even though your vehicle is equipped with an
Advanced Airbag system, all children, espe­ cially those 12 years and younger, should al­
ways ride in the back seat properly restrained
for their age and size. The airbag on the pas­
senger side makes the front seat a potentially dangerous place for a child to ride . The front
seat is not the safest place for a child in a for­
ward-facing child safety seat. It can be a very
dangerous place for an infant or a larger child
in a rearward-facing seat .
Advanced Airbags and the weight­
sensing mat in the front seat
The Advanced Airbag System in your vehicle
detects the presence of an infant or child in a
child restraint on the front passenger seat us­
ing the weight -sensing mat in the seat cush­
ion and the sensor below the safety belt latch
on the front passenger seat that measures the
tension on the safety belt.
The weight -sensing mat measures total
weight of the child and the child safety seat
and a child blanket on the front passenger seat. The weight on the front passenger seat
is related to the design of the child restraint
and its "footprint", the size and shape of the
bottom of the child restraint as it sits on the ..,.
•
•

178 Child Saf ety
seat. The weight of a child restraint and its
"footprint" vary for different kinds of chi ld re­
straints and for the d ifferent models of the
same kind of child restraint offered by child
restra int manufacturers.
The weight ranges for the individual types,
makes and mode ls of ch ild restra ints that the
NHTSA has specified in the Safety Standard
together with the weight ranges of typical in­
fants and typical 1 year-old child have been
stored in the control unit of the Advanced A ir­
bag System. When a ch ild restrai nt is being
used on the front passenger seat with a typi ­
cal 1 yea r-old ch ild, the Advanced Airbag Sys­
tem compares the we ight measured by the
weight sensing mat with the in formation stor­
ed in the electronic control unit.
The ele ctron ic cont rol unit also registers the
tension on the front passenge r safety belt.
The tension on the safety be lt fo r the front
passenger seat will be different for an ad ult
who is properly using the safety belt as com­
pared to the tension on the belt when it is
used to attach a child restraint to the seat.
The sensor below the latch for the safety belt
for the front seat passenger measu res the
tension on the be lt. The input from this sen­
sor is then used with the we ight to "decide",
whe ther there is a ch ild restraint w ith a typ ica l
1 year-o ld child on the front passenger seat
and whether or not the airbag must be turned
off .
Child restraints and Advanced Airbags
Regardless of the child restraint that you use,
make sure that it has been certified to meet
United States Federal Motor Vehicle Safety
Standards a nd has been certified by its manu­
facture r fo r u se w ith an airbag. Always be s ure
that t he ch ild res traint is p rope rly insta lled at
one o f th e rear seat ing pos itions. If in excep­
tional c ircu mstances you must use it on the
front passenger seat, caref ully read all of the
info rmation on c hild safety and Advanced Air­
bags and heed all of the applicable WARN­
INGS. Make certain that the child restraint is
correctly recognized by the weig ht-sensing mat
inside the front passenger seat, that the
front passenger airbag is turned off and that
the a irbag stat us is always cor rect ly signa led
by the
PASSENGER AIR BAG OFF light.
Many types and models of child res traints
have been available over the years, new mod­
els are introduced regu larly incorporating new
and improved des igns and older models are
taken out of product ion. Ch ild restraints are
not standard ized . Child restraints of the same
type typically have d ifferent weights and sizes
and diff erent 'footpr ints,' the s ize and shape
of the bo ttom of the ch ild restra int that sits
o n t he seat, when they a re inst alled on a vehi­
cle sea t. Th ese d ifferences make it vir tually
impossible to certify compliance with the re ­
quirements for advanced airbags with eac h
and every child restra int that has ever been
sold in the past or will be sold over the course
of the useful life of your veh icle.
For th is reason, the United States National
Highway Traffic Safety Adm inistrat ion has
published a list of specific type, makes and
models of child restraints that must be used
to certify comp liance of the Advanced Airbag
System i n your veh icle w ith the suppression
requirements of Federal Motor Vehicle Safety
Standa rd 208. These chi ld restraints are:
Subpart A - Car bed child restraints
Model
Angel Guard Angel R ide AA 2403FOF
Manufactured on or
after
September 25, 200 7
Subpart B - Rear-facing child restraints
Model Manufactured on or
after
Century SmartFit Dece mber 1, 1999
4543
Cosco Arriva September 25, 2007
22-013PAW and base
22-999W HO
Evenf lo Discove ry Ad -December 1, 1999
just Right 212
I
....
