Driver information
system
Overview
Fig. 4 Driver information system in the instrumen t cl uster
Fig. 5 Display : example of the information line
The driver information system contains informa­
tion @ that is displayed on tabs@¢ fig.
4. The
following content is possible depending on vehi­
cle equipment:
@
®
Tab Content
1 Vehicle function s:
On-board computer ¢page 24
Efficiency program*¢ page 25
Digital speedomete r
Cruise control*¢ page 88
Adapt ive cruise control and braking
guard* ¢page
90
Audi active lane assist*¢ page 99
Display darkened
Instruments and indicator lights
@ ®
Tab Content
2 Indicator lights and messages
Warn ing when a door, the hood or the
rear lid is not closed ¢ page 28
Service interval display ¢ page
26
Speed warning system ¢ page 88
3 Night vision assistant*¢ page 109
4 Audio/video
s Telephone*
6 Nav igation*
The second and third tabs are only visible if at
least one indicator light or message is shown or if
that system is switched on.
The status line © is located in the bottom part of
the display¢ fig.
4. It displays the exterior tem­
perature, time, selector lever position, tripod­
ometer and odometer.
For some vehicle functions, you can access the
trip information from the temporary memory
¢ page 25 in the line (D ¢ fig. 5.
_& WARNING
--Never rely exclusively on the outside tem­
perature display to determine if a road sur­
face is icy or not. Keep in mind that road
surfaces, especially bridges and overpasses,
could be ice covered and slippery even at an
outside temperat ure above 41 °F (+S °C).
- Always reduce your speed and dr ive with
special care in cold weather conditions when
the chance of encountering icy road surfaces increases .
(D Tips
-You can select the units used for tempera­
ture, speed and other measurements in the
MMI.
- If the vehicle is stationary, or if you are driv­
ing at a very low speed, the temperature
shown in the display might be slightly high­
er than the actual outside temperature . This
is caused by the heat being radiated from
the engine .
lllJ,,
23

Instruments and indicator lights
@ Tips
-If the data are deleted in the effic iency pro­
gram, those va lues are also reset in trip
computer.
- Once you have turned a fue l economy mes­
sage off, it will only appear again after you
turn the ign ition on again.
- The fuel economy messages are not dis­
played in every instance, but rather in inter­
vals over a period of time.
Odometer
F ig . 11 Instrument cluste r Odometer and reset button
The odometer shows you how many miles (kilo­
meters) you have driven. You can switch the dis­
play from miles to kilometers and vice versa via
the MMI.
Upper odometer
The trip odometer shows the distance driven
since it was last reset. It can be used to measure
short distances. The last dig it indicates 1/10 of a
mile (100 meters) .
You can reset the trip odometer to zero by press­
ing the Reset button~-
Lower odometer
The lower odometer shows the total numbe r of
miles (kilometers) driven.
Malfunction message
If there is a malfunct ion in the instrument clus­
ter,
DEF w ill appear in the trip odometer display
area . Contact you r a uth orized Aud i dea ler to have
the prob lem corrected .
26
Time and date display
Fig. 12 Center conso le: a nalog clock
The date and time are shown in the instrument
cluster display ¢
page 23, fig. 4. There is also an
analog clock in the center console <=:>
fig. 12.
When you open the driver's door, the date and
time appear in the instrument cluster display for
30 seconds . When the ign ition is switched on,
the time is always displayed in the status line©
regardless of the current disp lay.
You can set the time on both clocks and the date display in the MMI. Refer to the MMI owner's
manual for instructions .
Service interval display
The service interval display reminds you when
your next service is due .
Fig. 13 Instrument cluster : Service interva l display
The service interval display works in two stages:
-Inspection or oil change reminder: After a
specified number of miles, a message appears
in the instrument cluster display when switch­
ing the ignition on or off¢
fig. 13 . The remain-
ing distance or t ime is displayed briefly.
II>

rl
-Inspection or oil change due: If your vehicle is
due for an inspection or o il change or both, a
message appears br iefly in the instrument clus­
ter display when sw itching the ignition on or
off :
Inspection due! or Oil change due! or Oil
change and inspection duel.
Checking service intervals
The remaining distance or time to the next oil
change or to the next inspection can be viewed in
the MMI. Select the
ICARI function button > Car
systems
control button > Servicing & checks >
Service intervals .
In new vehicles or after resetting the display , the
display can be viewed after approximately
310 miles (500 km) .
Resetting the service interval display
Your authorized Audi dealer will reset the corre­
sponding service schedule after performing the
appropriate service on your veh icle . You also have
the possibility to reset the oil change schedule
after having performed an oil change according
to Audi specificat ions. Select the
ICARI funct ion
button
> Car systems control button > Servicing
& checks > Service intervals > Reset oil change
interval.
@) Note
- Only reset the oil change display when you
have completed an oil change.
- If you disconnect the battery terminals, no
calculations can be made for the service in­
terval display during this time and no serv­
ice remi nder w ill appear. Remember that
observing the proper service interva ls is v i­
tally important to extending the life of your
vehicle, particularly the engine, and main­
taining its value. Even if the mi leage driven
is low, the max imum period of one year
from one service to the next must not be ex­
ceeded .
(!') Tips
-The information in the Serv ice Reminder re­
mains stored even when the vehicle battery
~ i s disconnected .
Instruments and indicator lights
Head-up Display
Applies to: vehicles with Head-up Display
Fig. 14 Exampl e: ind ic a to rs in the Head-up Display
Fig. 15 Instrume nt panel: knob fo r th e He ad- up D isplay
The Head-up Display projects certain warnings or
selected information from the assistance sys­
tems* or navigation* on the windshield . The dis­
play appears wit hi n the driver's field of vision.
Switching on/off
.,. Press the knob~ to switch the Head-up Dis-
play on/off
c:> fig. 15 .
Adjusting the height
The height of the display can be adjusted to the
individual driver.
.,. Make sure you are sea ted correctly
i::>page 130 .
.,. Turn the knob~ to adjust the display .
Settings in the MMI
.,. Select: !CAR ! function button > (Car)* systems
control button > Driver Assist > Head-up Dis­
play
> Head-up Display content or Display
brightness.
27

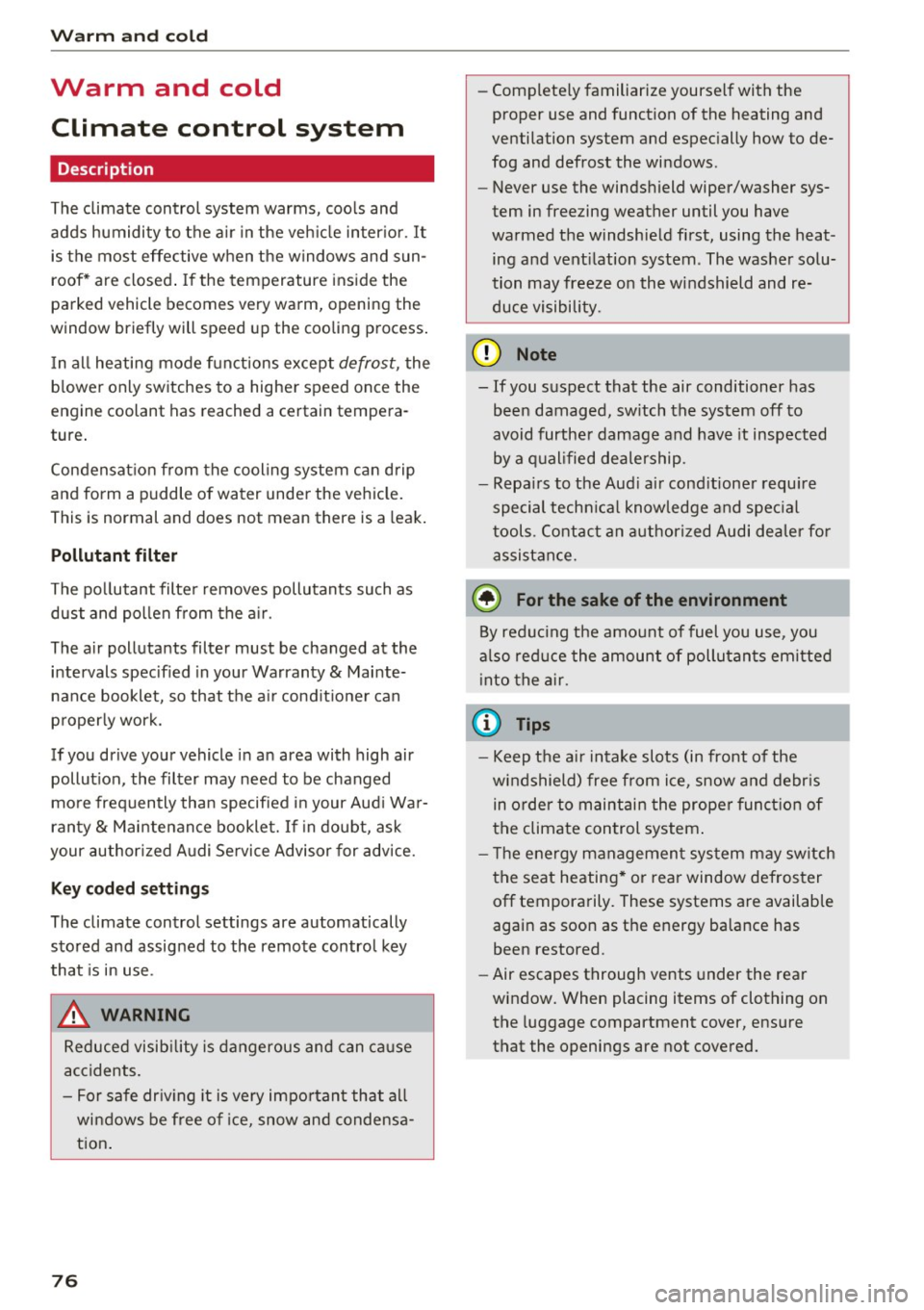

Warm and cold
Warm and cold
Climate control system
Description
The climate control system warms, cools and
adds humidity to the air in the veh icle inter ior. It
is the most effective when the windows and sun ­
roof* are closed . If the temperature inside the
parked vehicle becomes very warm, opening the
window briefly will speed up the cooling process.
I n all heating mode functions except
defrost, the
b lower only switches to a higher speed once the
engine coolant has reached a certain tempera­
ture .
Condensat ion from the cooling system can drip
and form a puddle of water under the veh icle.
This is normal and does not mean there is a leak.
P ollutant filt er
The po llutant filte r removes pollutants such as
dust and pollen from the a ir.
The air pollutants filter must be changed at the intervals specif ied in your Warranty
& Mainte­
nance booklet, so that the a ir cond it ione r can
properly work.
If you drive your vehicle in an area with high air pollut ion, the filter may need to be changed
more frequently than specified i n your Aud i Wa r­
ranty
& Maintenance booklet. If in doubt, ask
your author ized Audi Service Advisor for advice.
Key cod ed setting s
The climate control settings are automatically
stored and assigned to the remote contro l key
that is in use .
.8, WARNING
Reduced visib ility is dangerous and can ca use
accidents.
- For safe dr iv ing it is very impo rtan t that a ll
windows be free of ice, snow and condensa­
t ion .
76
- Complete ly familiarize yourself with the
proper use and function of the heating and
ventilation system and espec ially how to de­
fog and defrost the wi ndows .
- Never use the windshield wiper/washer sys­
tem in freezing weather until you have
warmed the windshield first, using the heat­ ing and vent ilation system. The washer solu­
tion may freeze on the windshield and re­
duce visibi lity.
(D Note
- If you suspect that the air conditioner has
been damaged, sw itch the system off to
avoid further damage and have it inspected
by a q ualified dealership.
- Repa irs to the Aud i air cond itioner requ ire
special techn ica l know ledge and spec ial
tools. Contact an a uthorized Audi dealer fo r
assistance.
@ For the sake of the environment
By reduc ing the amo unt of fuel you use, you
also red uce the amount of pollutants emitted
into the a ir.
(D Tips
- Keep t he a ir intake slots (in front of the
windshield) free from ice, snow and debr is
in orde r to maintain the prope r funct ion of
the climate control system .
- The energy management sys tem may sw itch
the seat heating* o r rea r window defroster
off temporarily. These systems are available
again as soon as the energy balance has
been restored.
- Air escapes through vents under the rear
window. When placing items of clothing on
the luggage compartment cover, ensure
that the openings are not covered.

(!) Windshield/headlight washer con-
tainer
(O) ................. . .
@ Jump start point(-) with hex head
screw . ..................... .
@ Jump start point(+) under a cover
© Engine oil filler cap ("t!:r.) ...... .
® Brake fluid reservoir((();) ...... .
® Coolant expansion tank (-L) .... .
0 Oil dipstick .................. . 234
233,271
233,271 225
230
227
225
The engine oil filler neck (item@) may be locat­
ed in a different area depending on the version of
the engine.
A WARNING
Before you check anything in the engine com­
partment, always read and heed all WARN­
INGS ¢
&. in Working in the engine compart­
ment on page 220.
Engine oil
Engine oil specifications
The engine oil used must conform to exact speci­
fications.
The service interval display in the instrument
cluster of your vehicle will inform you when it is
time for an oil change. We recommend that you hav e your oil changed by an authorized Audi Serv­
ice Advisor.
I f you have to top off the oil between oil changes,
use the Audi oi l quality standard specified in the
table.
Audi oil quality standard
Gasoline
VW 502 00 or
engine vw 50400
Diesel vw 507 00
engine
Using the proper engine oil is impo rtant for the
functiona lity and service life of the eng ine. Your
engine was factory-filled with a high-quality oil
;:;:: which can usually be used throughout the entire
0
~ year.
,...., Checking and Filling
(D Note
Your Limited New Vehicle Warranty does not
cover damage or malfunctions due to failure
to follow recommended maintenance and use
requirements as set forth in the Audi Owner's
Manual and Warranty
& Maintenance booklet .
- Use only a high quality engine oil that ex-
pressly complies with the Audi oil quality
standard spec ified for your vehicle's eng ine.
Us ing any other oil can cause ser ious eng ine
damage.
- Do not mix any lubricants or other additives
into the eng ine oi l. Do ing so can cause en­
gine damage.
(D Tips
If you need to add oil and there is none availa­
ble that meets the Aud i oil quality standard
your engine requires, you may add a total of no more than 0.5 quart/liter of a high-quality
"synthetic"oi l that meets the following speci­
fications.
- Vehicles with gasoline engine: ACEA A3 or
API SM with a viscosity grade of SAE OW-30,
SAE SW -30 or SAE 5W-40.
- Vehicles with diesel engine: ACEA C3 or
API C F with a viscosity grade of SAE OW-30
or SAE SW-30.
- For more information about engine oil that
has been approved for your vehicle, please
contact either your authorized Audi dealer
or Audi Customer Relations at
1 (800) 822-2834 or visit our web site at
www.audiusa.com or www.audicanada.ca.
Engine oil consumption
The engine in your vehicle depends on an ade­
quate amount of oil to lubricate and cool all of
its moving parts.
In order to provide effective lubrication and cool­
ing of internal engine components, all internal
combust ion engines consume a certain amount
of oil. O il consumption varies from eng ine to en ­
gine and may change significantly over the life of
the engine. Typ ically, engines w ith a specified
break-in period (see ¢
page 197) consume more ""
223

Index
Fastening . ..................... ... .
Improperly worn ................ ... .
Not worn .. .. .. ................ ... .
Safety belt position ........... .... .. . 141
144
139
142
Safety instructions . . . . . . . . . . . . . . . . . . . 140
Securing child safety seats . . . . . . . . . . . . 177
Special considerations for pregnant worn-
en ....... ... .. ................ ... . 143
Unfastening .. .. ............. .... .. . 143
Warning/indicator light ....... .. .. .. . 138
Warning light . . . . . . . . . . . . . . . . . . . . . . . . 16
Worn properly .................. ... .
Safety belt tensioner drive select . .. .... ........... .... .. .
Safety belt warning light ............ .. .
Safety compliance sticker .......... ... .
Safety equipment ........... ...... ... .
Safety features for occupant restraint and
protection . .. .. ............... .... .. .
Safety guidelines 140
106 138
277
129
129
Seat adjustment . . . . . . . . . . . . . . . . . . . . . 58
Safety instructions Eng ine compartment .......... .... .. .
for side curtain airbags ........ .. .. .. .
for using chi ld safety seats ..... .... .. .
for using safety belts ................ .
Monitoring the Advanced Airbag System .
Safety systems 220
167
171
140
158
Warning/indicator lights . . . . . . . . . . . . . . . 18
Saving fuel Cylinder on demand system . . . . . . . . . . . . 24
Efficiency program . . . . . . . . . . . . . . . . . . . . 25
Recuperation
Screwdriver .. .. ............... .... .. .
Seat adjustment 24
256
Controls (front seats) . . . . . . . . . . . . . . . . . 59
Controls (rear seats)
.................. 61
Driver's seat . . . . . . . . . . . . . . . . . . . . . . . . . 58
Front passenger's seat . . . . . . . . . . . . . . . . . 59
Head restraints . . . . . . . . . . . . . . . . . . . . . 132
Safety guidelines . . . . . . . . . . . . . . . . . . . . . 58
Seat covers Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . 209
Seat heating/ventilation . . . . . . . . . . . . . . . . 78
Seating position Driver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130
Front passenger ........... ...... ... . 131
294
How to adjust the front seats ......... .
Incorrect seat position .............. .
Occupants ........... .............. . 131
133
130
Rear passengers . . . . . . . . . . . . . . . . . . . . . 132
Seats Comfort seat side view
................ 66
Correct seating position . . . . . . . . . . . . . . 130
Seat symmetry . . . . . . . . . . . . . . . . . . . . . . . 66
Seats (number) . . . . . . . . . . . . . . . . . . . . . . . 138
Selective catalytic reduc tion
refer to Ad Blue. .. ... ...... ....... .. . 216
Selective unlock feature . . . . . . . . . . . . . . . . . 33
Selector lever . . . . . . . . . . . . . . . . . . . . . . . . 112
Service and disposal Safety belt pretens ioner . . . . . . . . . . . . . . 145
Service interval display . . . . . . . . . . . . . . . . . . 26
Service pos ition
refer to W indshield wipers . . . . . . . . . . . . . 55
Shift paddles .. .. .. .. .. .............. .
Ship (transporting your vehicle) ........ .
Shutting down vehicle
Side airbags Description .. .. .. .. .. ............. . .
How they work ... ... ............. .. .
llS
274
198
162
164
Side assist . . . . . . . . . . . . . . . . . . . . . . . . . . . 102
Activating and deactivating . . . . . . . . . . . . 104
Adjusting the brightness . . . . . . . . . . . . . . 104
Cleaning the sensors . . . . . . . . . . . . . . . . . 207
Sensor range .. .. .. .. ... ... .... ... . .
103
Side curtain airbags . . . . . . . . . . . . . . . . . . . 165
Description . . . . . . . . . . . . . . . . . . . . . . . . . 165
How they work . . . . . . . . . . . . . . . . . . . . . . 166
Safety instructions . . . . . . . . . . . . . . . . . . . 167
Side marker lights . . . . . . . . . . . . . . . . . . . . . 46
Ski sack
refer to Pass-through with ski sack . . . . . . . 69
Sliding/tilting sunroof Emergency closing . . . . . . . . . . . . . . . . . . . . 42
Emergency operation . . . . . . . . . . . . . . . . . . 44
Snow chains . . . . . . . . . . . . . . . . . . . . . . . . . 251
Sockets . . . . . . . . . . . . . . . . . . . . . . . . . . . 67, 72
Solar operation (automatic climate control) . 79
Sources of information about child restraints
and their use . . . . . . . . . . . . . . . . . . . . . . . . . 186
Space-saving spare tire . . . . . . . . . . . . . . . . 257
