Driving
-The interior temperature differs from the tem­
perature se lected in the A/C system.
- The windshield is being defrosted~
page 71.
-The brake pedal is pressed seve ral t imes in a
row.
- The vehicle ba tte ry charge leve l is too low.
- Power consumption is high .
Ignition is switched off automaticall y
To prevent the veh icle battery from drain ing, the
ignit ion will switch off
automatically under the
following conditions:
- The vehicle must have already been driven.
- The Start/Stop system has stopped the engine.
- T he driver's door must be open .
- T he driver's safety be lt mus t be unb uck led.
- The brake pedal must not be p ressed .
- The vehicle must be stationary .
In this case, the activated low beam is replaced
by the parking light. The parking lights will
sw itch off after app roximately 30 minutes or
when you lock the vehicle .
If the Start/Stop system has not turned off the
engine or if you have sw itched the Start/Stop sys­
tem off manually, the ignition will not be auto­ mat ically switched off and the engine w ill conti n­
ue to ru n ~ & .
A WARNING
To red uce the risk of poisoning, neve r allow
t he engine to r un i n confined s paces.
(D Tips
If you select the D, N or S selector lever posi­
tion after shifting into reverse, the vehicle
m ust be driven faste r than 6 mph (10 km/h)
in orde r fo r the engine to switch off again.
80
-
Manually switching the Start /Stop system
off /on
Appl ies to : vehicles wi th Start/Stop sys te m
If you do not wish to us e th e system, you con
switch i t off manually.
Fig . 93 Ce nte r console: Start/Stop system butto n
.,. To switch the Start/Stop-System off/on man­
ually, press the
l (A) ~I button. The LED in the but­
ton turns on when the system is switched off.
0) Tips
If yo u switch the system off d uring a stop
phase, the engine will start aga in automati­
cally .
Messages in the instrument cluster display
Applies to : vehicles wit h Start/Stop syste m
Start-stop system deactivated: Please restart
engine manually
This message appears w hen spec ific cond itions
are not me t during a stop phase. The S tart/S top
system will
not b e a ble to re sta rt the eng ine. If
the D or R se lector lever positions were engaged,
P will be selected a utomat ically . The eng ine must
be started with the
I START ENGI NE STOPI but­
ton.
Start -stop system: System fault! Currently
unavailable
There is a ma lfunction in the Start/Stop system.
Drive the vehicle to an authorized Audi dealer or
aut horized Serv ice Facility as soon as possible to
have the malfunction corrected .

C) C0 ....
"' " "' .... 0 0 :r Electromechanical
parking brake
Fig . 94 Center conso le: park ing brake
Your vehicle is equipped with an e lectromechani ­
cal parking brake@~
fig. 94. The parking brake
is designed to prevent the vehicle from rolling
un intentionally and replaces the hand brake.
Setting/manually releasing the parking
brake
.. Pull the<®> switch to set the parking brake. The
LED in the switch illuminates. The -(USA
models)/ . (Canada models) indicator light al­
so turns on in the instrument cluster display .
.. To release the parking brake manually, press
the brake or acce lerator pedal while the igni­
t ion is switched on and press the© switch at
the same time. The LED in the button and the
indicator light in the display turn off.
Releasing the parking brake automatically
Requirement: the driver's door must be closed,
the dr iver's safety belt must be latched and the
parking brake must be set.
.,. To start driving and release the park ing brake
automatically, press the acce lerator peda l as
usual.
In addition to releasing the parking brake auto­ mat ically, other convenience and safety funct ions
are available when you start driving~
page 82,
Starting from a stop.
Preventing the automatic parking brake
release
The vehicle could begin rolling unintentionally,
depending on the hill or if towing a trailer.
Driving
.. To prevent the parking brake from releasing au­
tomatically, pull and hold the(®) switch and press the accelerator peda l. The parking brake
remains set and prevents the vehicle from roll­
ing backward .
.,. You can release the<®> switch again once you
are sure that you are giving enough driving
force to the wheels by press ing the accelerator
pedal.
Emergency braking function
You can use the emergency braking function in an
emergency situation, or if the standard brake op­
eration malfunctions or is disabled.
.. Pull and hold the(®) switch.
.. As soon as you release the <®> switch or acceler-
ate, the braking stops.
Pulling and ho lding the© switch wh ile driving
the vehicle activates the emergency braking func­
tion. The vehicle is braked at all four wheels by
activating the hydraulic brake system. The brak­
ing effect is sim ilar to heavy braking ~_& .
To reduce the risk of activating the emergency
braking by mistake, a warning tone (buzzer)
sounds when the© switch is pulled . Emergency
braking stops as soon as the© switch is released
or the accelerator pedal is pressed.
Parking
.. Press the brake pedal to stop the veh icle.
.,. Pull the(®) switch to set the parking brake.
.,. Select the P selector lever position .
.,. Tu rn the engine off~_& .
.,. Turn the steering w heel when parking o n in­
clines so that the wheels w ill roll into the curb
if the vehicle starts moving.
& WARNING
-
-Do not press the acce lerator peda l inadver­
tently if a gear is selected when the vehicle
is stationary and the engine is running. Oth­
erwise, the vehicle will start to move imme­
diately and this could result in an accide nt.
- Eme rgency braking should only be used in
an emergency, when the normal brake pedal
has failed or the brake pedal is obstructed . ..,.
81

0 co .... N ,..... N .... 0 0 :c ' -To reduce the risk of an accident, never se­
lect the R or P posit ions while driving.
- Power is sti ll transmitted to the wheels
when the engine is running at idle. To pre­
vent the veh icle from "creeping", you must
keep your foot on the brake in all se lector
lever positions (except P and N) when the
engine is ru nning. Do not inadvertent ly
press the acce le ra to r pedal when the vehicle
is sta tionary. Otherwise the vehicle will start
to move immedi ately, even if the parking
bra ke is set . Th is could result in a c rash.
- Before opening the hood, se lect the P selec­
tor lever pos ition and se t the parking bra ke.
T his reduces the risk of an accident. Always
read and fo llow the applicable warnings
¢ page 2 71, Working in the engine com­
partment.
- Never leave your vehicle with the engine
running wh ile in gear. If you must leave
your vehicle when the engine is running, set the parking brake and move the selector lev­
er to the P position .
If you accidentally se lect N wh ile driving, take
your foot off the acce lerator pedal and wa it
for the engine to s low down to idle before se­
lect ing Dor S.
Driving tips
Starting the engine
.. The selector lever must be in the P or the N po ­
s it io n.
Starting from a stop
.. Press and hold the brake pedal.
.. Start the engine¢
page 76.
.. Press the button o n the selector lever and se ­
lect the D, Sor R selector lever position
¢ page 83.
.. Wait a moment unt il the transm ission shifts.
Yo u w ill notice a sl ight movement when the
gear engages.
.. Release the brake pedal and press the acce lera­
tor pedal ¢ ,&. .
Driv ing
Stopping temporarily
.. Press the bra ke pedal to stop the veh icle, for
examp le at a traffic light . Do not press the ac­
celerator pedal when doing this .
.. To prevent the vehicle from ro lling when you
start driv ing, set the parking brake when stop­
ping on steep inclines¢ ,&..
.. The parking brake will release automat ically
and the vehicle will start moving once you press
the acce lerato r pedal.
Stopping /par king
If the selector lever is not in the P position when
you open the driver's door, the vehicle could roll. The message
Transmi ssion: selector lever in
drive po sition!
appears.
.. Press and hold the brake pedal¢ ,&. .
.. Set the park ing brake.
.. To engage the P selector lever position, press
the button on the selector lever and shift into
t he P position
¢ page 83 .
Under certain conditions , such as driving in the
mountains or when towing a trailer, it may be
helpful to switch to manual mode temporar ily
and shift manually to adapt to the driv ing cond i­
tions¢
page 86.
On hills, activate the park ing brake first and then
shift into the P position¢
page 81 . This prevents
too much stress from being p laced on the loc king
mecha nism .
_& WARNING
-The vehicle can roll even i f the ignit ion is
switched off .
- Do not press the a cce le ra tor pedal when
changing the se lector lever position while
the vehicle is stationary and the engine is running . This could result in a crash .
- To reduce the r isk of an accident, neve r se ­
lect the R o r P positions while driving.
- Power is still transmitted to the wheels
when the engine is running at idle. To pre­
vent the vehicle from "creeping", you must
keep your foot on the brake in all selector
lever positions (except P and N) when the
engine is running.
-
85

0 co .... N ,..._
N .... 0 0 :c ' Air suspension*
When driv ing with a trailer, activate the trailer
mode of the air suspension. Switch the air sus ­
pension trailer mode on when you are towing a
trailer. This will limit the regulation by the air
suspension while driving. Select in the MMI:
ICARI function button > (Ca r)* systems control
button
> Vehicle settings > Air susp.: towing >
On.
Coolant temperature
The coolant temperature gauge¢ page 9 must
be observed carefully . The coolant temperature
can increase if you drive on long inclines in a low
gear at high engine speeds. Reduce your speed
i mmed iately if the LEDs in the top part of the dis­
p lay turn on.
For more information about indicator lights, re­
fer to. ¢
page 20.
A WARNING
Anyone not properly restrained in a moving
vehicle is at a much greater risk in an acci­
de nt. Never let anyone ride in you r car who is
not properly wearing the restraints p rovided
by Audi.
Trailer mode notes
Important to know -
Your veh
icle handles differently when tow ing a
tra iler because of the additional weight and d if ­
ferent weight distr ibut ion. Safety, performance
and economy will greatly depend on how careful­
ly yo u load you r trailer and operate your rig.
Before you actually tow your trailer, practice
turning, stopp ing and back ing up in a n area away
from traffic. Keep practicing until you have be­
come completely fami liar with the way your vehi­
cle-trailer comb inat io n behaves and responds.
Backing up is difficult and requires pract ice.
Backing up with a trailer gene rally requires steer­
ing action opposite to tha t when backing up your
ve hicl e without a trailer .
Maintain a greater d istance between your vehicle
and the one in front of you . You w ill need more
Trailer mode
room to stop . To compensate for the trailer, you
will need a larger than normal turning radius .
When passing, remember that you cannot accel­
erate as fast as you normally wo uld because of
the added load. Make sure you have enough room
to pass. After passing, allow p lenty of room for
your trailer before changing lanes again .
Avo id jerky starts, sharp turns or rapid lane
changes.
(D Tips
- Do not tow a trailer during the break-in peri­
od of your veh icle.
-If you tow a trailer, your Audi may requ ire
more frequent maintenance due to the ex­
tra load ¢
page 336.
Parking on a slope
Do not park on a slope with a trailer. If it cannot
be avoided, do so only after doing the following:
When parking:
" Apply the foot brake .
" Have someone place chocks under both the ve­
hicle and the trailer wheels.
"W ith chocks in place, slowly release the brakes
until the wheel chocks absorb the load.
" Tur n the whee ls towards the curb.
" App ly the parking brake.
" Select the P selector lever position.
When restarting after parking:
"App ly the foot brake.
" Start the engine .
"S elect the D selector lever position .
" Release the parking brake and slowly pull out
and away from the wheel chocks.
" Stop and have someone retrieve the wheel
chocks.
(D Tips
If you move the selector lever of the automat­
i c transmission to P before applying the park­
in g brake and before blocking the wheels, you
may have to use more force later to move the
lever out of the P posit ion.
91

Ass is t
Assist
Speed warning system
The speed warning system helps you to stay un­
der a specified maximum speed.
The speed warning system warns you if you are
exceeding the maximum speed that you have set.
A warning tone will sound as soon as your speed
exceeds the stored value slightly.
The . (USA models)
I. (Canada models) indi ­
cator light and a message appear in the instru­
ment cluster display at the same time. The./
• indicator light and the message turn off if the
speed falls back below the stored maximum
speed.
Setting a threshold is recommended if you would
like to be reminded when you reach a certain
maximum speed. Situations where you may want
to do so include driving in a country with a ge ner ­
al speed limit or if the re is a specified max imum
speed for winter tires.
Setting the warning threshold
The warning threshold is set in the Infotainment
system .
.,. Se lect :
!CAR I function button > Car s ystems
control button > Dri ver assi st > Speed warning .
(D Tips
Regardless of the speed wa rning system, you
should always monitor yo ur speed using the
speedometer and make sure you are following
the legal speed limit.
92
Cruise control system
Switching on
The cruise control system makes it possible to
drive at a constant speed starting at 20 mph (30
km/h) .
0
f
®l
0
Fig. 102 Ope rat ing leve r: cru ise co ntrol sys tem
g M 0 ±
~
.,. To switch the cr uise control on, pull the lever
into position
(D ¢ fig . 102.
.,. Drive at the speed to be maintained.
.,. To store the speed, press the button @.
The stored speed and the
[t!jl!)~i~ (USA models) I
&I (Canada models) ind icator light are d isp layed
in the instrument cluster.
This information is also shown briefly in the Head-up d isp lay* .
The speed is mainta ined by modifying engine
power or through a n active brake interven tion.
_& WARNING
-Always pay atten tion to the traffic around
you when the cruise contro l system is in op­
erat ion. You are always respons ible for your
speed and the distance between your ve hi­
cle and other vehicles.
- For safety reasons, cruise control should not
be used in the city, in stop-and-go traff ic, on
w inding roads and when road conditions are
poor (such as ice, fog, gravel, heavy rain and
hydroplaning), because this increases the
r is k of an a ccident.
- Switch t he cruise control off temporarily
when dr iving in turning lanes, highway exits
or in construction zones.
...

C) C0 ....

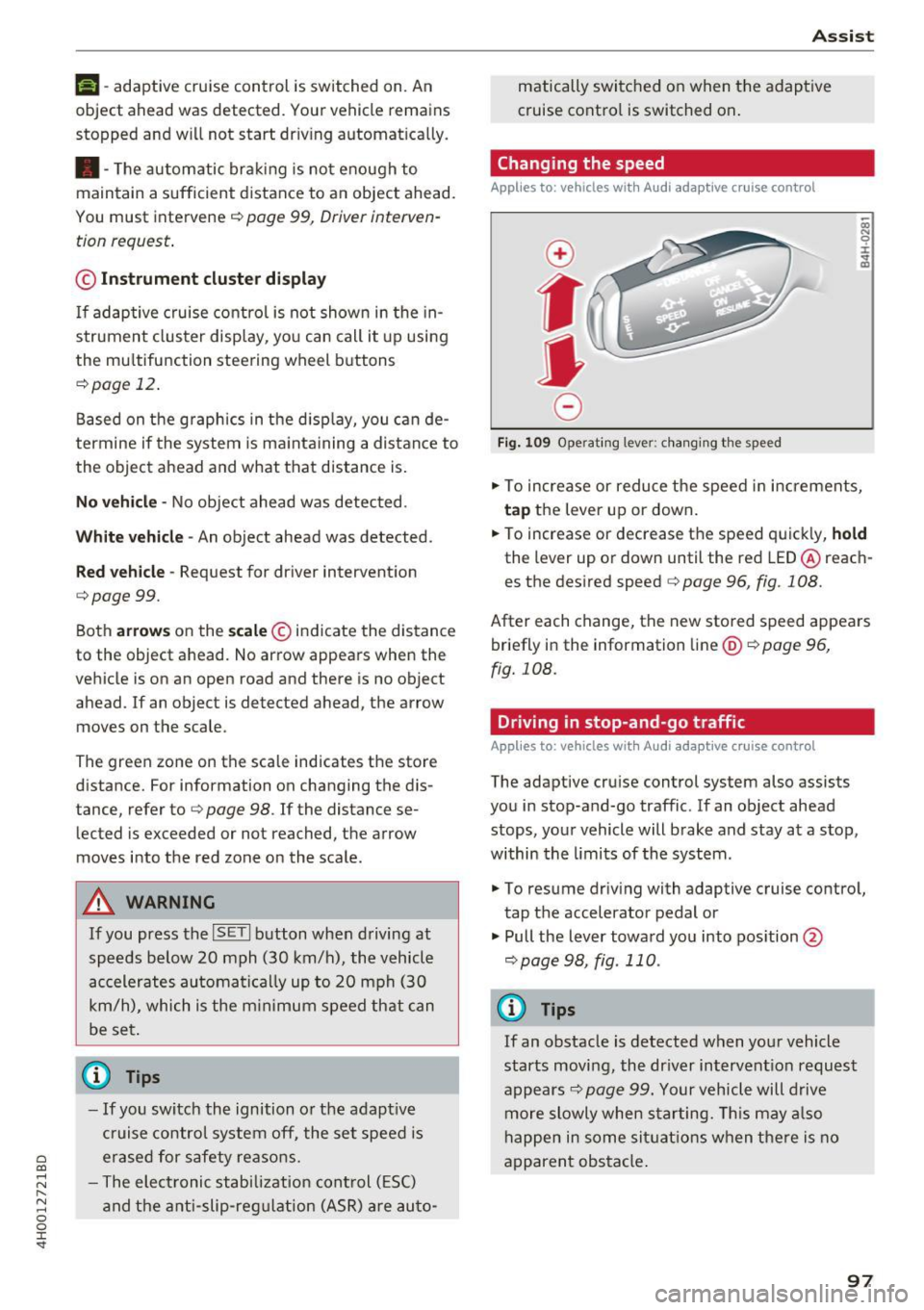

"' " "' .... 0 0 :r tij-adaptive cruise control is switched on. An
object ahead was detected. Your vehicle remains
stopped and will not start dr iv ing automat ically.
• -T he automatic braking is not enough to
maintain a sufficient distance to an object ahead.
You must intervene
c:> page 99, Driver interven­
tion request .
© Instrument clu ster di spla y
If adaptive cruise control is not shown in the in­
strument cluster display, yo u can call it up using
the mu ltifunction stee ring wheel buttons
<=:> page 12.
Based on the graphics in the d isplay, you can de­
termine if the system is ma inta ining a distance to
the object ahead and what that distance is.
No v ehi cle -No object ahead was detected.
Whit e ve hicle -An object ahead was detected .
Red vehicl e -Request for driver intervention
c:>page 99.
Both arrows on the s cale © indicate the distance
to the object ahead. No arrow appears when the
vehicle is on an open road and there is no object
ahead. If an object is detected ahead, the arrow
moves on the scale.
The green zone on the scale indicates the store
distance. For information on changing the dis­
tance, refer to
c:> page 98. If the distance se­
lected is exceeded or not reached, the arrow
moves into the red zone on the scale.
A WARNING
~=-:---
If you press the ISETI b utton when driving at
speeds be low 20 mph (30 km/h), the vehicle
accelerates automatica lly up to 20 mph (30
km/h), which is the m in imum speed that can
be set .
(D Tips
-If you switch the ignition o r the adapt ive
cruise contro l system off, the set speed is
erased for safety reasons.
- The elect ronic stab ilization cont rol (ESC)
and the a nti -slip-reg ulation (ASR) a re au to-
A ss ist
matically switched on when the adaptive
cruise control is switched on .
Changing the speed
Applies to: vehicles with Audi adaptive cruise control
0
f
•
0
Fig . 1 09 Operat ing lever : c h an gi ng the speed
co N 0 :i: ~ m
.. To increase or reduce the speed in increments,
ta p the lever up or down .
.. To increase or decrease the speed quickly,
h o ld
the lever up or down until the red LED@reach­
es the desired speed
c:> page 96, fig. 108.
After each change, the new stored speed appears
briefly in the information line@
c:> page 96,
fig. 108.
Driving in stop-and-go traffic
Applies to: vehicles with Audi adaptive cruise control
The adaptive cruise control system also assists
you in stop-and-go traffic . If an ob ject ahead
stops, your vehicle will brake and stay at a stop,
within the limits of the system.
.. To resume driving with adaptive cruise control,
tap the accelerator pedal or
.,. Pull the lever toward you into pos ition @
c:> page 98, fig . 110 .
a) Tips
If an obstacle is detected when your vehicle
starts moving, the dr iver intervent ion request
appears
c:> page 99. Your vehicle will drive
more slowly when starting. This may a lso
happen in some si tuatio ns when the re is no
apparent obstacle .
97

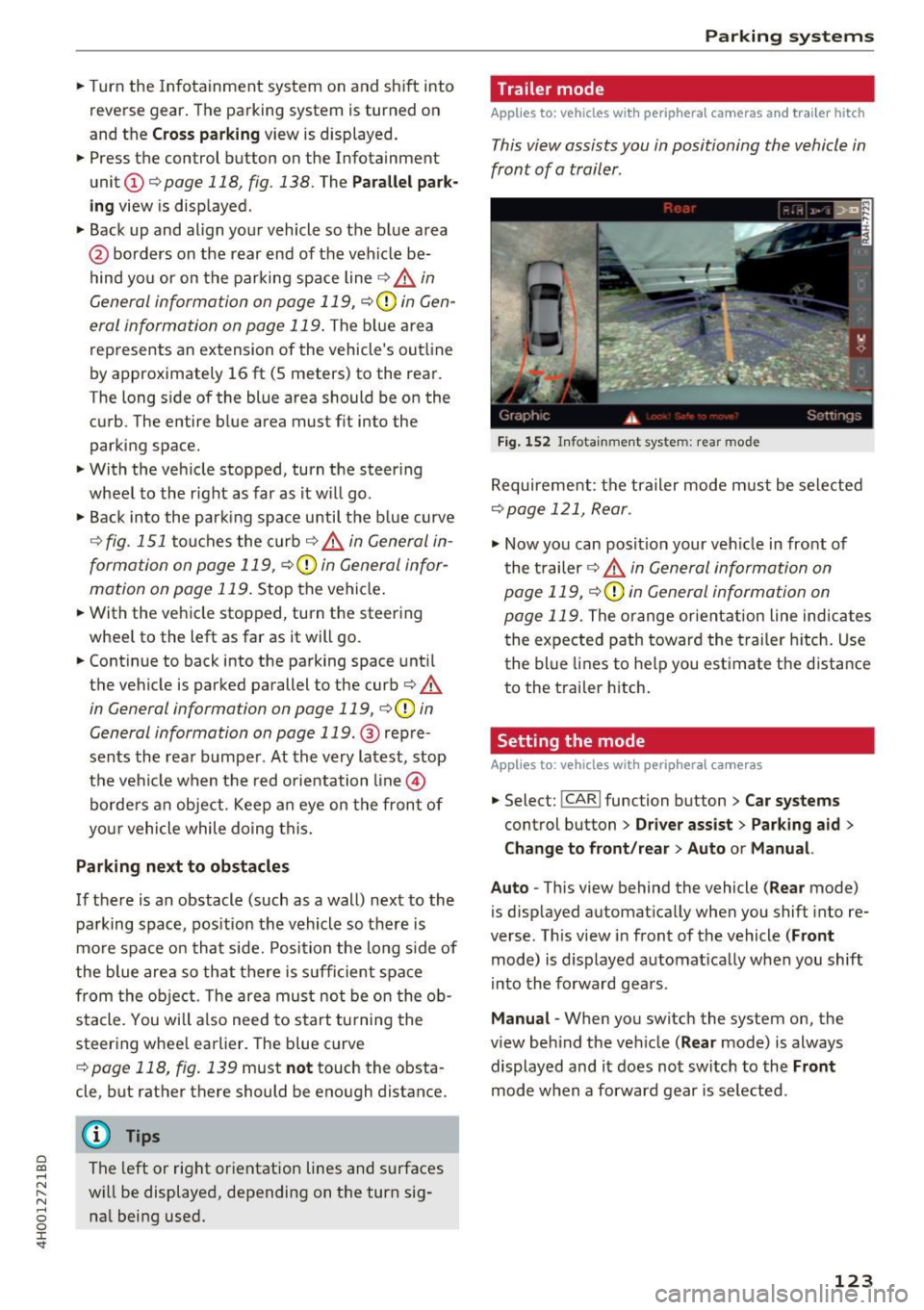

.. Turn the Infotainment system on and shift into
reverse gear. The parking system is turned on
and the
Cross park ing view is displayed.
.. Press the control button on the Infotainment
unit @¢
page 118, fig. 138. The Para llel pa rk ­
ing
view is displayed .
.. Back up and align your vehicle so the blue area
@ borders on the rear end of the vehicle be­
hind you or on the parking space line¢.,&.
in
General information on page 119, ¢(Din Gen­
eral information on page 119 .
The blue area
rep resents an extension of the vehicle's outline
by approximately 16 ft (5 meters) to the rear .
The long s ide of the blue area should be on the
curb. The entire b lue area must f it into the
parking space .
.. With the vehicle stopped, turn the steering
wheel to the r ight as far as it w ill go .
.. Back into the parking space until the b lue curve
¢
fig . 151 touches the cu rb ¢.,&. in General in­
formation on page 119, ¢(Din General infor­
mation on page 119.
Stop the vehicle .
.. With the vehicle stopped, turn the steering
whee l to the left as far as it will go.
.. Continue to back into the parking space until
the vehicle is parked parallel to the curb¢
/A
in General information on page 119, ¢(Din
General information on page 119.@
repre­
sents the rear bumper . At the very latest, stop
the vehicle when the red o rie ntation line@
bo rders an object . Keep an eye on the front of
you r vehicle while doing this.
Parking next to obstacles
If there is an obstacle (such as a wall) next to the
parking space, pos ition the vehicle so t here is
mo re space on that side. Position the long s ide of
the blue area so that there is s ufficient space
from the obje ct. The area must not be on the ob­
stacle . You will also need to start tu rning the
steering whee l earlier. The blue curve
¢
page 118, fig . 139 must n ot touch the obsta­
cle, but rather there should be enough distance.
@ Tips
C)
~ The left or right orientation lines and surfaces
"' ~ w ill be displayed, depending on the turn sig-
8 na l being used. 0 :r Parking systems
Trailer mode
Applies to : vehicles wit h peripheral cameras a nd tra iler hitch
This view assists you in positioning the vehicle in
front of a trailer .
Fig. 15 2 In fotainment system: rear mo de
Requirement: the trailer mode m ust be selected
¢page 121, Rear .
.,. Now yo u can posit ion your ve hicle in front of
the t railer
¢ .,&. in General information on
page 119,
¢ (Din General information on
page 119.
The orange orient ation line indicates
the expected path toward the trailer h itch. Use
the blue lines to help you est imate the distance
to the trailer hitch.
Setting the mode
Applies to : vehicles wit h peripheral ca meras
.,. Select: !CAR ! function button> Car systems
control button > Driver assi st > Pa rking aid >
Change to front /re ar > Auto or Manual.
Auto -
This view behind the vehicle (Rear mode)
is d isplayed automat ically when you shift into re­
verse. Th is view in front of the vehicle
( Front
mode) is d isplayed automat ica lly when you shift
i n to the forward gea rs.
Manu al -When you switch the system on, the
view beh ind the ve hicle
(Rear mode) is always
displayed and it does not switch to the
Front
mode when a forward gear is se lected .
123

C) C0 ....
"' " "' .... 0 0 :r Navigation
Opening navigation
Applies to: vehicles with navigation system
The navigation system directs you to your desti­
nation, around traffic incidents and on alterna­ tive routes,
if desired.
Fig . 179 Examp le: online map view
• Select: INAVI button.
After se lecting Navigation, the last menu that
was open is displayed.
- Sw itc hin g bet ween the m ap and th e dest ina­
t io n entr y:
press the !NAV ! button aga in.
,& WARNING
- T he demands of traffic require yo ur full at­
tent ion. Read and fo llow the guidelines pro­
vided in
~ page 134.
- Obey all traffic laws whe n driving.
- T he route calcu lated by the navigation sys-
tem is a recommendat ion for reaching your
des tination. Obey traffic lights, stopping re ­
strictions, one -way streets, lane change re ­
strictions, etc .
(D Note
- If the driving directions conflict with traffic
l aws, obey the traff ic laws.
- To reduce the risk of an ac cident, adjust the
vo lume of the navigation system so that sig­
nals from outside the vehicle, such as po lice
and fire sirens, can be heard easily at all
times.
Na vigat ion
(D Tips
-Snow and obstructions on the GPS antenna
or interference caused by trees and large
buildings can impair satellite reception and
affect the system's ability to determine the
vehicle position. Several deactivated or mal­
functioning satell ites can also interrupt GPS
recept ion and affect the system's ability to
determine the vehicle position.
- Because street names somet imes change,
the names stored in the MMI may in rare
cases d iffer from the actual street name.
- Contact your authorized Audi dealer for in­
formation on updating the navigation data.
- The navigation system can be opened in
Dem o m od e for s imulations or p lanning
purposes
9 page 174.
Entering a destination
Entering an address
Applies to : vehicles wit h navig ation system
Fig. 180 Entering a destination city
• Select: !NAV ! button> Route guida nce control
button
> Addr ess .
- Chan ging the c ount ry :
select and conf irm
C ount ry. Enter a country.
-Ent ering a d estin ation using the C ity/Zi p: se­
lect and confirm
City/Zi p. Enter a city or a ZIP
code using the speller. Select and confirm a city
from the list . Select and confirm additional de­
tails about the destinat ion, such as
Add str ee t,
S et as s topo ver, Set po int of int eres t in
cit y9
page 167 or S et di str ict. Start route
guidance .
165

Navigation

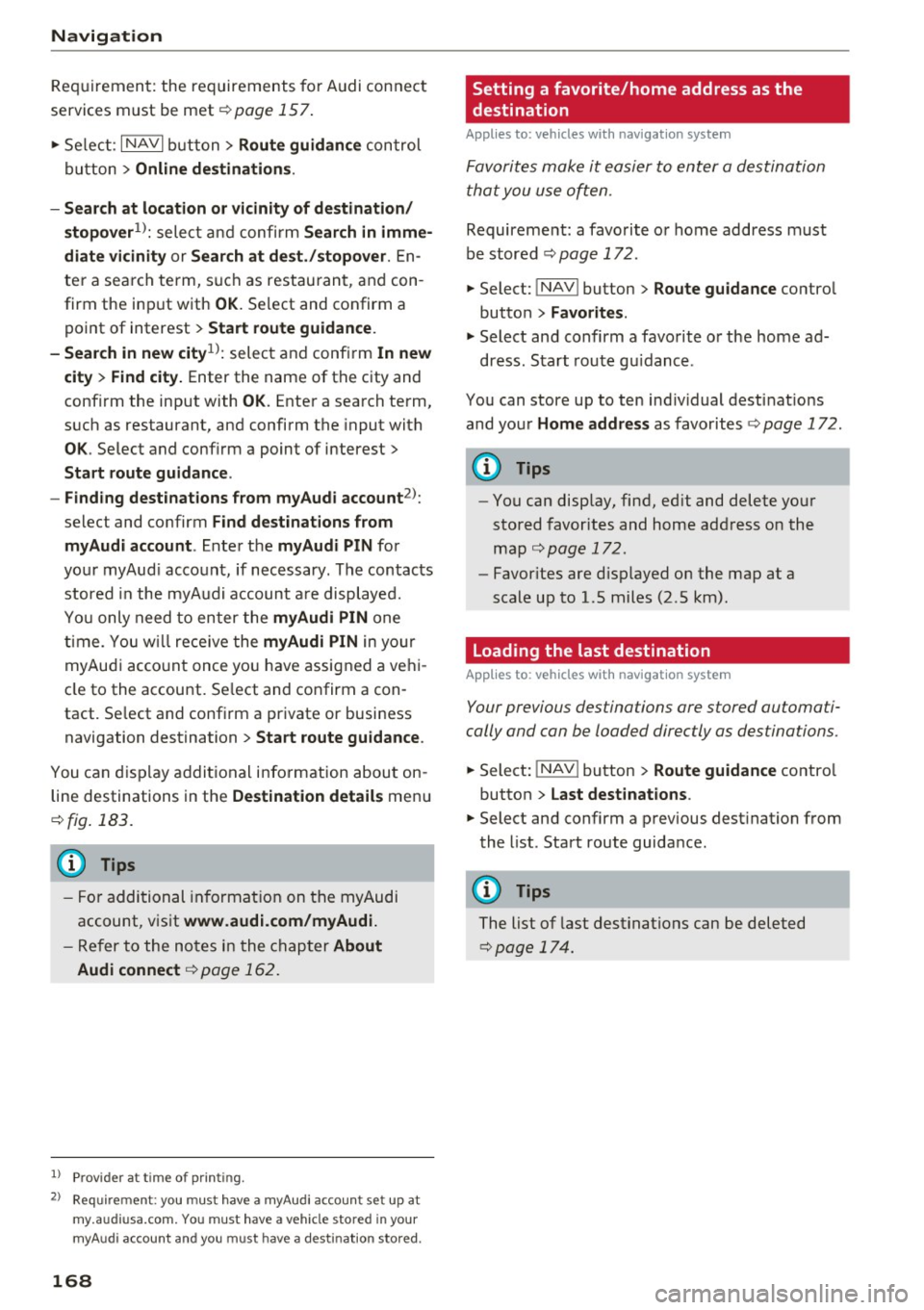

Requirement: the requirements for Audi connect
services must be met
¢page 157.
.,. Select : I NAVI button> Route guidance control
button >
Online destinations .
- Search at location or vicinity of destination/
stopover
1>: select and confirm Search in imme­
diate vicinity or Search at dest./stopover.
En­
ter a sea rch term, such as restaurant, and con­
firm the input with
OK . Select and confirm a
point of interest >
Start route guidance .
- Search in new cityl}:
select and confirm In new
city
> Find city. Enter the name of the city and
confirm the input with
OK . Enter a search term,
such as restaurant, and confirm the input with
OK . Select and confirm a point of interest>
Start route guidance .
- Finding destinations from myAudi account
2>:
select and confirm Find destinations from
myAudi account .
Enter the myAudi PIN for
your myAud i account, if necessary. The contacts
stored in the myAudi account are displayed.
You only need to enter the
myAudi PIN one
time . You will receive the
myAudi PIN in your
myAudi account once you have assigned a vehi­
cle to the account. Select and confirm a con­
tact. Se lect and conf irm a private or business
navigation destination >
Start route guidance .
You can display additional information about on­
line destinations in the
Destination details menu
¢fig . 183.
@ Tips
- F or additional information on the myAudi
account, visit
www.audi.com/myAudi.
- Refer to the notes in the chapter About
Audi connect
r:!>page 162.
1> Provider at time of prin ting.
2> Requirement : you must have a my Audi accou nt set up at
my.a udiusa.com. You must have a vehicle stored in your
myA udi account and you must have a destinat ion stored .
168
Setting a favorite/home address as the
destination
App lies to : vehicles wi th naviga tion sys te m
Favorites make it easier to enter a destination
that you use often.
Requirement: a favorite o r home address must
be stored ¢
page 172.
.,. Select: !NAV ! button > Route guidance control
button >
Favorites .
"' Select and confirm a favorite or the home ad­
dress. Start route guidance.
You can store up to ten ind iv idual destinat ions
and your
Home address as favorites ¢ page 172.
(j) Tips
-You can disp lay, find, ed it and delete your
stored favorites and home address on the
map
¢page 172.
-Favor ites are d isp layed on the map at a
scale up to 1.5 miles (2.5 km).
Loading the last destination
App lies to: vehicles wit h navigat ion syste m
Your previous destinations are stored automati­
cally and can be loaded directly as destinations.
.,. Select: !NAV ! button > Route guidance contro l
button
> Last destinations .
"'Select and confirm a previous dest ination from
the list. Start route guidance .
(D Tips
The list of last destinations can be deleted
¢page 174.

C) C0 ....
"' " "' .... 0 0 :r Setting the home address as the
destination
App lies to: ve hicles with naviga tion sys tem
Start route guidance to the home address you
set simply and quickly .
Requirement : a home address must be stored
r=;, page 172.
"'Selec t: I NAVI button> Route guidance control
button >
Home address .
"'Sta rt route guidance .
Transferring a destination from the
directory
A ppl ies to: ve hicles with naviga tion system
You can navigate directly to destinations in the
directory.
Requirement: the directory must contain con­
tacts w it h priva te/bus iness addresses stored as
desti nations.
"' Se lect :
I NAVI button> Route guidance control
button >
Dire ctory .
"'Select and confirm a contact . If a contact con­
ta ins two navigation destinations (private and
business), se lect and confirm one destination .
Sta rt route guidance.
Entering a destination using geo
coordinates
A ppl ies to: ve hicles with navigation system
"' Select : I NAVI button > Route guid ance control
button >
Address > Coordinates .
"'Select and confirm the Latitude and Longitude .
Start route guidance.
Navigat ion
Entering a stopover/route plan
A pp lies to : vehicles wit h navigat ion syste m
You can enter up to nine stopovers directly in the
route plan or using the destination input op­ tions .
Route
NV -593 W/E ~:~::~~ 'NA AVE ,,: ol
LAS VEGAS . NV
-- B,...._
~: EXCALIBUR. LAS VEGAS. N DI :
2 mi .. 7 : 10 ,~ _ _ _ _:::'.J
LUXOR RESORT AND CASINO
4 mi .. 7:15 -
...
Dcst1nat 1on
T MC
Fi g. 184 Route p la n
0- ::
•
Settings
'*' ,.dl
Requireme nt: a dest ina tion m ust be en tered
¢page 165.
"'Select: !NAV ! button > Route control button .
-Entering a destination as a stopove r: select
and confirm the symbol for entering a stopover
@ ¢ fig . 184 . Enter a dest inat ion r=;, page 165 .
Select and confirm Add to route plan . Start
route guida nce.
- Changing the route plan : press the Route con­
trol b utton . Se lect and confirm the destination
or s topove r and t hen
Change , Move , Delete or
Drive to this de stination now .
- Save route plan :
press the Route cont rol but ­
t on. Selec t and confi rm
Route memory and
t hen
Save route plan . Enter a name.
- Load route plan /Deleting : press the Route con­
t rol b utton . Se lect and con firm
Route memory
a nd then Load route plan /Delete route plan .
The following information appea rs in the rout e
plan s ide menu ¢
fig. 184:
(D Vehicle location
@ Symbol fo r ente ring a stopove r
@ Entered stopove r
@ Destinat io n
To delete all st opovers from your route plan , en­
te r th e i ndividual dest ination and start the route
guidance
r=;, page 165 .
169
