Driving safety

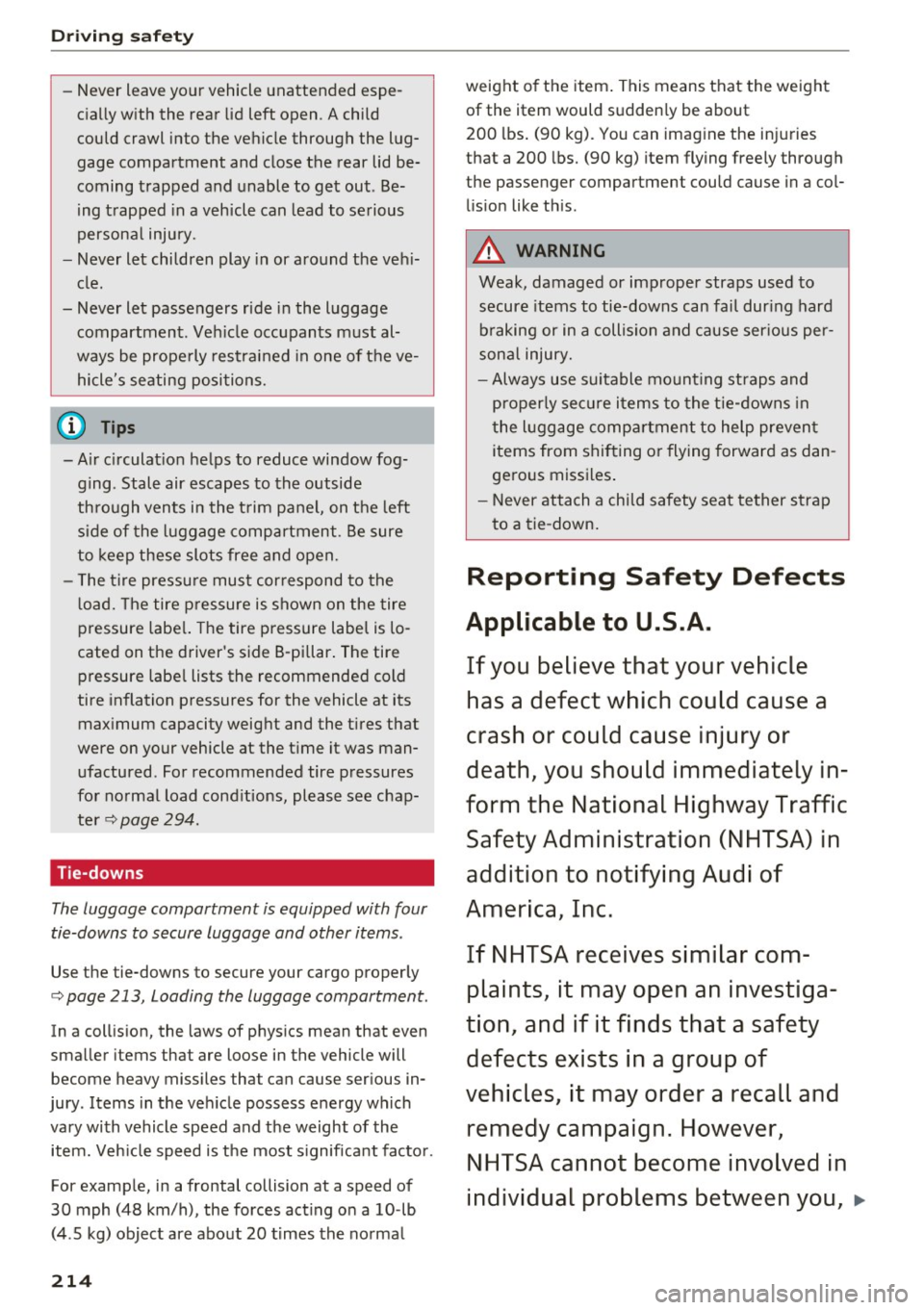

-Never leave your vehicle unattended espe­
cially with the rear lid left open. A child
could crawl into the vehicle through the lug­
gage compartment and close the rear lid be­
coming trapped and unable to get out . Be­
ing trapped in a vehicle can lead to serious
personal injury.
- Never let children play in or around the vehi­
cle.
- Never let passengers ride in the luggage compartment. Vehicle occupants must al­
ways be properly restrained in one of the ve­
hicle's seating positions.
- Air circulation helps to reduce window fog­
ging . Stale air escapes to the outside
through vents in the trim panel, on the left
side of the luggage compartment. Be sure
to keep these slots free and open.
- The tire pressure must correspond to the
load. The tire pressure is shown on the tire
pressure label. The tire pressure label is lo­
cated on the driver's side B·pillar. The tire pressure label lists the recommended cold
tire inflation pressures for the vehicle at its
maximum capacity weight and the tires that
were on your vehicle at the time it was man­
ufactured. For recommended tire pressures
for normal load conditions, please see chap­
ter
¢ page 294.
Tie-downs
The luggage compartment is equipped with four
tie-downs to secure luggage and other items .
Use the tie-dow ns to secure your cargo properly
¢ page 213, Loading the luggage compartment .
In a coll ision, the laws of physics mean that even
smaller items that are loose in the vehicle will
become heavy missiles that can cause serious in­
jury . Items in the vehicle possess energy which
vary with vehicle speed and the weight of the item. Vehicle speed is the most significant factor.
For example, in a frontal collision at a speed of
30 mph (48 km/h), the forces acting on a 10 -lb
(4 .5 kg) object are about 20 times the normal
214
weight of the item. This means that the weight
of the item would suddenly be about
200 lbs. (90 kg) . You can imagine the injuries
that a 200 lbs. (90 kg) item flying freely through
the passenger compartment could cause in a col­
lision like th is.
A WARNING
Weak, damaged or improper straps used to
secure items to tie-downs can fail during hard
braking or in a collision and cause serious per­
sonal injury.
- Always use suitable mounting straps and
properly secure items to the tie-downs in
the luggage compartment to help prevent items from shifting or flying forward as dan­
gerous missiles.
- Never attach a child safety seat tether strap
to a tie-down.
-
Reporting Safety Defects
Applicable to U.S.A.
If you believe that your vehicle
has a defect which could cause a
crash or could cause injury or
death, you should immediately in­
form the National Highway Traffic Safety Administration (NHTSA) in
addition to notifying Audi of
America, Inc.
If NHTSA receives similar com­plaints, it may open an investiga­
tion, and if it finds that a safety
defects exists in a group of
vehicles, it may order a recall and remedy campaign. However,
NHTSA cannot become involved in
individual problems between you,
11>

able to provide you with more in­
formation .
® Mud and snow capability
"M/5" or "M+S" indicates the tire
has properties making it suitable
to drive in mud or snow .
& indi­
cates a winter tire .
@Composition of the tire cord
and materials
The number of plies indicates the
number of rubberized fabric lay­
ers in the tire. In general: the
more layers, the more weight a
tire can carry . Tire manufacturers
must also specify the materials
used in the tire. These inc lude
steel, nylon, polyester and other
materials.
@ Maximum permitted load
This number indicates the max i­
mum load in kilograms and
pounds that the tire can carry.
@ Uniform tire quality grade
standards for treadwear,
traction and temperature resistance
Tread wear, traction and temper ­
ature ranges ¢
page 300.
0 @ Running direction
"' -~ The arrows indicate the running
-~ direction of unidirectional tires . ...
Wheels
You must always follow the speci­
fied runn ing d irect ion
¢ page 319 .
@ Maximum permitted
inflation pressure
This number indicates the maxi ­
mum pressure to which a tire can
be inflated unde r normal operat­
ing condit ions.
Glossary of tire and loading
terminology
Accessory weight
means the comb ined weigh t (in
excess of those standard items
which may be replaced) of auto­
matic transm ission, power steer­
ing , power brakes, power win­
dows, power seats, radio, and
heater, to the extent that these
items are available as facto ry-in­
stalled equipment (whether in ­
stalled or not) .
Aspect ratio
means the ratio of the heigh t to
the width of the tire in percent .
Numbers of 55 or lowe r indicate a
low sidewa ll for improved steer­
ing response and better overall
handling on dry pavement. .,.
285

Wheels

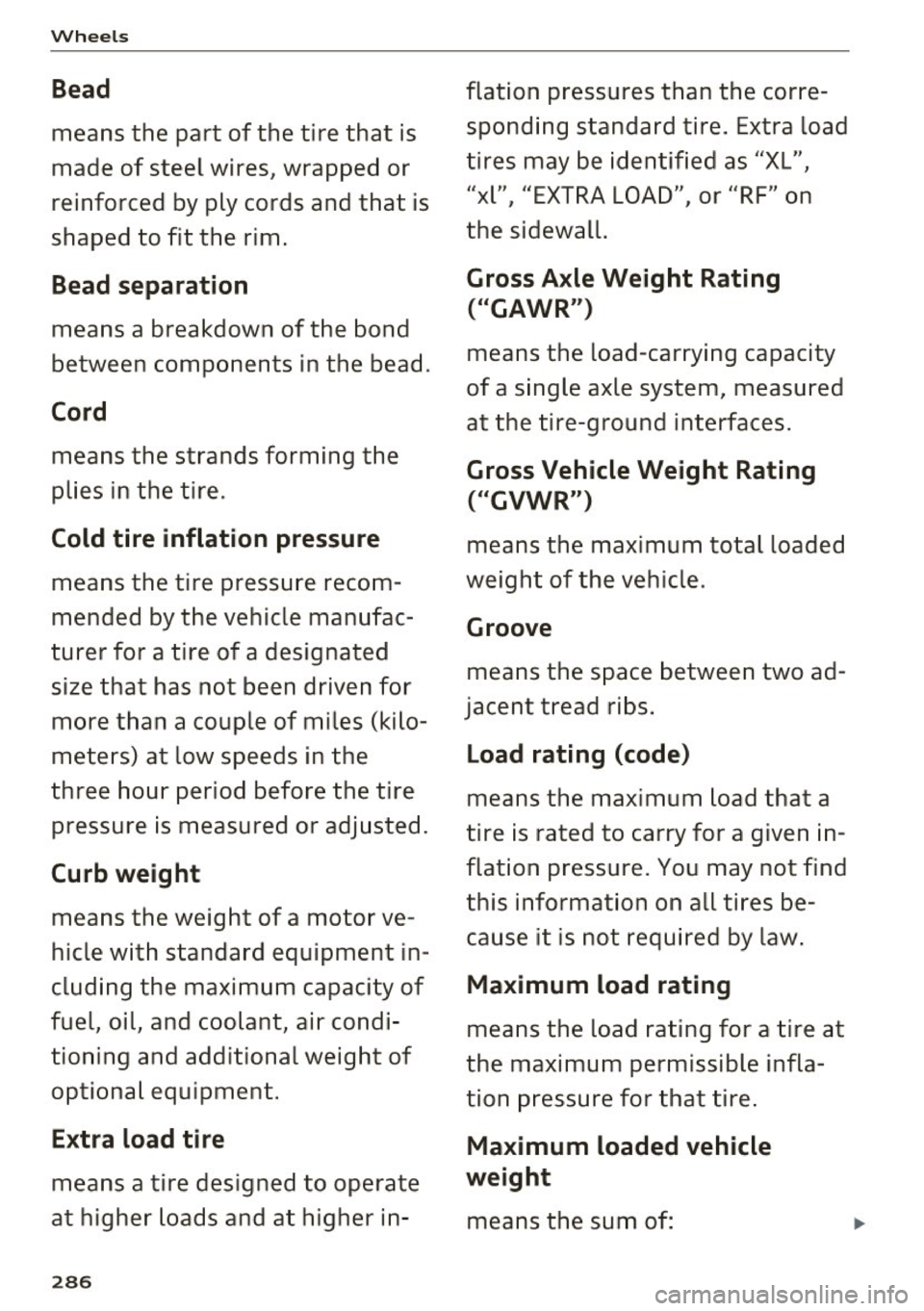

Bead
means the part of the tire that is
made of steel wires, wrapped or
reinforced by ply cords and that is
shaped to fit the rim .
Bead separation
means a breakdown of the bond
between components in the bead.
Cord
means the strands forming the
plies in the tire.
Cold tire inflation pressure
means the tire pressure recom­
mended by the vehic le manufac­
turer for a tire of a des ignated
size that has not been driven for more than a couple of miles (kilo­
meters) at low speeds in the
three hour period before the tire pressure is measured or adj usted.
Curb weight
means the weight of a motor ve­
hicle w ith standard equipment in ­
cluding the maximum capacity of
fuel, oil, and coolant, air condi ­
tioning and additiona l weight of
op tional equipment.
E x tra load tire
means a tire des igned to operate
at higher loads and at h igher in -
286
flation pressures than t he corre­
spond ing standa rd tire. Extra load
tires may be identified as "XL",
"xl" , "EXTRA LOAD" , or "RF" on
the sidewall.
Gross A xle Weight Rating
("GAWR ")
means the load-carrying capacity
of a single axle system , measured
at the ti re-gro und interfaces.
Gross Vehicle Weight Rating
("GVWR")
means the max imum total loaded
weight of the vehicle .
Groove
means the space between two ad­
jacent tread ribs .
Load rating (code)
means the maximum load tha t a
tire is rated to carry for a given in­
flation pressure. You may not find
this informat ion on all ti res be­
cause it is not required by law .
Maximum load rating
means the load rating for a tire at
the maximum permissible infla­
tion p ressure for that ti re .
Maximum loaded vehicle
weight
means the sum of:

0
"' -N
" N
-0
0
:c ...
(a) Curb weight
(b) Accessory weight
(c) Vehicle capacity weight, and
(d) Production options we ight
Ma ximum (permissible)
inflation pressure
means the maximum cold infla­
tion pressure to which a t ire may
be inflated. Also called "maxi­
mum inflation pressure."
Normal occupant weight
means 150 lbs. (68 kilograms)
times the number of occupants
seated in the veh icle up to the to­
tal seating capacity of your vehi­ c le.
Occupant distribution
means distribution of occupants
in a vehicle.
Outer diameter
means the overall diameter of an
inflated new tire.
Overall width
means the linear distance be­
tween the exteriors of the side­
walls of an inflated tire, including
elevations due to labeling, deco­
rations, or protective bands or
ribs .
Wheels
Ply
means a layer of rubber-coated
parallel cords .
Production options weight
means the combined weight of
those installed regular production
options weighing over 5 lbs. (2.3 kg) in excess of those standard
items which they replace, not pre­
viously considered in curb weight
or accessory weight, including
heavy duty brakes, ride levelers,
roof rack, heavy duty battery, and
special trim .
Radial ply tire
means a pneumatic tire in which
the ply cords that extend to the beads are laid at substantially 90
degrees to the centerline of the
tread.
Recommended inflation
pressure
see ~ page 286, Cold tire infla­
tion pressure .
Reinforced tire
means a tire designed to operate
at higher loads and at higher in­
flation pressures than the corre­ sponding standard tire. Rein ­
forced tires may be identified as .,.
287

0 a, .... N ,.... N .... g :r ..
use a spare tire* that is the same
circumference as the regular
tires.
&_ WARNING -
-Only use tire/rim combina­ tions and suitable wheel bolts
that have been approved by
Audi. Otherwise, damage to
the vehicle and an accident
could result.
-For technical reasons, it is not
possible to use tires from oth­
er vehicles -in some cases,
you cannot even use tires from
the same vehicle model.
-Make sure that the tires you
select have enough clearance
to the vehicle. Replacement
tires should not be chosen
simply based on the nominal
size, because tires with a dif­
ferent construction can differ greatly even if they are the
same size. If there is not
enough clearance, the tires or
the vehicle can be damaged
and this can reduce driving
safety and increase the risk of
an accident .
-Only use tires that are more
than six years old when abso-
Wheels
lutely necessary and drive
carefully when doing so .
-Do not use run-flat tires on
your vehicle . Using them when
not permitted can lead to ve­
hicle damage or accidents.
-If you install wheel covers on
the vehicle, make sure they al­ low enough air circulation to
cool the brake system. If they
do not, this could increase the
risk of an accident.
Tire wear/damage
Fig. 266 T ire profile: treadwear indica­
tor
Tire wear
Check the tires regularly for wear.
-Inflation pressure that is too low
or high can increase tire wear
considerably.
-Driving quickly through curves, rapid acceleration and heavy
braking increase tire wear.
291

0
"' -N .... N
-0
0
:c ...

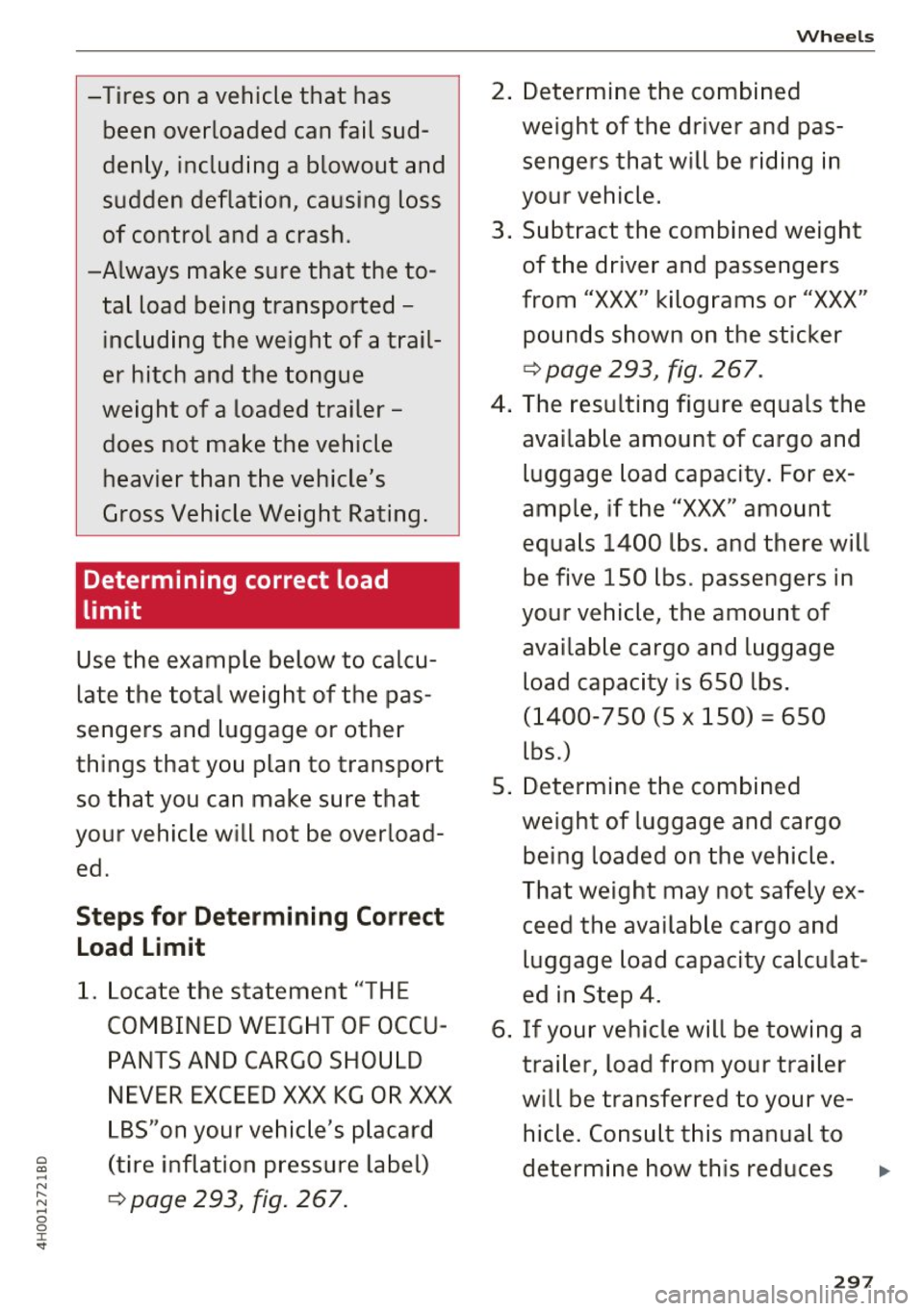

-Tires on a vehicle that has
been overloaded can fail sud­
denly, including a blowout and
sudden deflation, causing loss
of control and a crash.
-Always make sure that the to­ tal load being transported -
including the weight of a trail­
er hitch and the tongue
weight of a loaded trailer - does not make the vehicle
heavier than the vehicle's
Gross Vehicle Weight Rating.
Determining correct load
limit
Use the example below to calcu­
late the total weight of the pas­
sengers and luggage or other
things that you plan to transport so that you can make sure that
your vehicle will not be overload­
ed.
Steps for Determining Correct Load Limit
1. Locate the statement "THE
COMBINED WEIGHT OF OCCU ­
PANTS AND CARGO SHOULD
NEVER EXCEED XXX KG OR XXX
LBS "on your vehicle's placard
(tire inflation pressure label)
c::> page 293, fig. 267 .
Wheels
2. Determine the combined
weight of the driver and pas­ sengers that will be riding in
your vehicle.
3. Subtract the combined weight of the driver and passengers
from "XXX" kilograms or "XXX"
pounds shown on the sticker
c::> page 293, fig . 267 .
4. The resulting figure equals the
available amount of cargo and
luggage load capacity. For ex­
ample, if the "XXX " amount
equals
1400 lbs. and there will
be five
150 lbs . passengers in
your vehicle, the amount of
available cargo and luggage
load capacity is 650 lbs.
(1400-750 (5 X 150) = 650
lbs .)
5. Determine the combined
weight of luggage and cargo
being loaded on the vehicle.
That weight may not safely ex­ ceed the available cargo and
luggage load capacity calculat­
ed in Step 4.
6. If your vehicle will be towing a trailer, load from your trailer
will be transferred to your ve­
hicle. Consult this manual to
determine how this reduces .,..
297

~ Check and correc t the seating of the snow
chains after driving a few feet , if necessary . Fo l­
l ow the instructions from the manufacturer .
~ Note the maximum speed of 30 mph (SO km/
h). Note the loca l regulat ions.
Use of snow chains is on ly pe rmitted with certain
rim/tire combinations due to technical reasons.
Check w ith an authori zed Audi dealer or author­
ized Audi Service Fac ility to see if you may use
snow chains .
You must remove the snow chains on roads with­
out snow. Otherw ise, you could impair dr iving
ab ility and damage the tires.
_8 WARNING
Using incorrect snow chains o r insta lling snow
chains incorrectly can result in loss of vehicle
cont rol, which inc reases the risk of an acc i­
dent.
(D Note
- Snow cha ins can damage the rims/wheel
covers* if the cha ins come into d irect con·
tact with t hem . Remove the whee l cove rs*
f irst. Use coate d snow chai ns.
- Using snow cha ins tha t add more than 0.4
i nch (10.5 mm) of he igh t ca n seve rely dam­
age the wheel ho usings and other vehicle
componen ts .
- Do no t install and use s now chai ns if there is
a mal funct ion in the adaptive air suspe n­
s ion, because the vehicle heigh t will be very
l ow . If you drive with snow chains anyway,
the wheel ho usings and other vehicle com­
ponents can be severely damaged.
@ Tips
When using snow chains, it may be useful to
sw itch on sport mode ¢page
127.
Low aspect ratio tires
Your Aud i is factory-equipped with low aspect ra-
o tio tires. These t ires have been thorough ly tested co
~ and been selected specifically for your model for ,.....
~ their supe rb performance, road feel and handli ng 0 0 :c ' Wh eel s
under a var iety o f dr iv ing condit ions . Ask your au ­
thorized Audi dea le r for more detai ls.
T he low aspect rat io of t hese tires is indicated by
a nu meral o f
55 or less in the tire's si ze des igna­
tion . The n umera l represents the ratio of the
tire's sidewa ll height in relation to its tread width
expressed in percentage . Conve ntiona l tires have
a height/width ratio of 60 or more .
The performance of low-aspect- ratio tires is par­
ti cula rly sen siti ve to imprope r inflation p res­
sure. It is the refore important that low aspect
rat io tires are inflated to the specified pressure
and that the inflation pressure is regularly
checked and maintained . Tire pressures should
be checked at lea st once a month and always
before a long trip
¢ page 293 .
What you can do to avo id tire and rim
damage
Low aspect ratio tires can be damaged more eas i­
ly by impact w ith potho les, curbs, gullies or
ridges on the road, particularly if the tire is un­
der inflated .
In order to m in imize the occurrence of impact
damage to t he tires of yo ur vehicle , we recom­
me nd tha t you observe the following preca u­
tio ns:
- Always maintain recommended inflat ion pres­
sures. Check you r ti re pressu re every 2,000
m iles (3,000 km) a nd add air if necessary.
- Dr ive carefully on roads w it h potholes, deep
gullies o r ridges. The impact from dr iving
t hrough or over such obst acles can damage
your tires. Impac t with a cur b may also ca use
damage to your tires.
- After a ny impac t, im med iate ly inspect yo ur
t ires or have them inspe cted by the neares t au­
t horized A udi dealer. Replace a damaged tire as
soon as possible.
- I nspect your tires every 2,000 m iles (3,000 km)
for damage and wear. Damage is not a lways
easy to see. Damage can lead to loss of air and
underinflation, wh ich could event ually cause
tire fa ilure . If you believe that a tire may have
been damaged, replace the tire as soon as pos­
sible .
- These tires may wear more quickly than others . .,.
299

C) C0 ....
"' " "' .... 0 0 :r _& WARNING
Temperature grades apply to tires that are properly inflated and not over or underinflat­
ed .
Tire Pressure Monitoring
System (AS, S8)
(D General notes
A ppl ies to: AS, 58
Each t ire, including the spare (if provided),
should be checked monthly when cold and inflat­
ed to the inflation pressure recommended by the
veh icle manufact urer on the vehicle placard or
tire inflation pressure label. (If your vehicle has
tires of a different size than the size indicated on
the vehicle placard or tire inflation pressure la­
be l, you should determine the proper tire infla­
tion pressure for those tires).
As an added safety feature, your veh icle has been
equipped with a tire pressure monitoring system
(TPMS) that illuminates a low tire pressure te ll­
tale when one or more of your tires is significant­
ly under-inflated . Accordingly, when the low tire
pressure telltale illuminates, you should stop and
check your tires as soon as possible, and inflate
them to the proper pressure . Driving on a signifi ­
cantly under-inflated tire causes the tire to over­
heat and can lead to tire failure. Under-inflation
also reduces fuel efficiency and tire tread life,
and may affect the vehicle's handling and stop­
ping ability .
Please note that the TPMS is not a substitute for
p roper tire maintenance, and it is the driver's re­
sponsib ility to ma intain correc t tire p ressure,
even if under-inflation has not reached the level
to trigger illumination of the TPMS low tire pres­
sure telltale.
Your veh icle has also bee n eq uipp ed w ith a TPM S
mal function indicator to indicate when the sys­
tem is not operat ing properly. The TPMS mal­
function indicator is combined with the low tire
pressure telltale. When the system detects a
malfunction, the telltale will flash for approxi­
mately one mi nute and then remain cont inuously
illuminated . This sequence will continue upon
Wheels
subsequent vehicle start-ups as long as the mal ­
function exists .
When the malfunction indicator is illuminated ,
the sys tem may not be able to detect or signal
low tire pressure as intended . TPMS malfunctions
may occur for a variety of reasons, including the
i nsta llation of replacement or alternate tires or
whee ls on the vehicle that prevent the TPMS
from functioning properly. Always check the
TPMS malfunction telltale after replac ing one or
more tires or wheels on your vehicle to ensure
that the replacement or a lternate tires and
whee ls allow the TPMS to continue to function
properly.
If the Tire Pressure Monitoring System
indicator appears
Applies to: A8, 58
The tire pressure indicator in the instrument
cluster informs you if the tire pressure is too low
or if there is a system malfunction.
Fig. 269 I n strument cluste r: indicator light with messa ge
Using the ABS sensors, the tire pressure monitor­
ing system compares the tire tread c ircumfer­
ence and vibration characteristics of the individu­
al tires.
If the press ure changes in one or more
tires, this is indicated in the instrument cluster
display with an indicator light
[I] and a message.
If only one tire is affected, the location of that
tire will be indicated.
T he tire press ures must be stored in the Infotain­
ment system again each time the pressures
change (switching between partial and full load
pressure) or after changing or replacing a tire on
your vehicle
c:> page 302. The tire pressure moni­
toring system only monitors the tire pressure you have stored . Refer to the t ire pressure label for ..,.
301

Wheels
the recommended tire pressure for your vehicle
¢page 293, fig. 268.
Tire tread circumference and vibration character­
istics can change and cause a tire pressure warn­
ing if:
- the tire pressure in one or more tires is too low.
- the tire has structural damage .
- the tire was replaced or the tire pressure was
changed and it was not stored¢
page 302.
-the spare tire* is installed.
Indicator lights
IE Loss of pressure in at least one tire¢&. .
Check the tires and replace or repair if necessary.
Check/correct the pressures of all four tires and
store the pressure again in the Infotainment sys­
tem ¢
page 302 .
mm (Tire Pressure Monitoring System) Tire
pressure: System malfunction!.
Ifmm appears
after switching the ignition on or while driving
and the
IE indicator light in the instrument clus­
ter blinks for approximately one minute and then
stays on , there is system malfunction . Try to
store the correct tire pressures¢
page 302. If
the indicator light does turn off or turns on again
after a short period of time, drive to an author­
ized Audi dealer or authorized Audi Service Facili­
ty immediately to have the malfunction correct­
ed .
A WARNING
- If the tire pressure indicator appears in the
display, reduce your speed immediately and
avoid any hard steer ing or braking maneu­
vers . Stop as soon as possible and check the
t ir es and their pressure .
- The driver is responsible for maintaining the
correct tire pressure. You must check the
t ire pressure regularly.
- Under certain conditions (such as a sporty
dr iv ing style, winter cond itions or unpaved
roads), the tire pressure monitoring system
indicator may be delayed.
- Do not use run-flat tires on your vehicle. Us­
ing them when not permitted can lead to
vehicle damage or accidents .
302
(D Tips
-The tire pressure monitoring system can al­
so stop working when there is an ESC mal­
function.
- Using snow chains may result in a system
malfunction.
- The tires with the identification "AO" or
"RO" ¢
page 290 have been matched with
your Audi tire pressure monitoring system.
We recommend that you use these tires.
Storing tire pressures
App lies to: AB, 58
If the tire pressure changes or a tire is replaced ,
it must be confirmed in the Infotainment sys­
tem.
... Make sure before storing that the tire pressur es
of all four tires meet the specified values and
are adapted to the load ¢
page 291.
... Switch the ignition on.
... Select: the
ICARI funct ion button> Car Systems
control button > Servicing & checks > Tire
pressure monitoring
> Store tire pressure >
Yes, store now.
(D Tips
Do not store the tire pressures if snow chains
are installed. Othe rw ise the system could
malfunction.
Tire Pressure Monitoring System (S8 plus)
(l) General notes
App lies to : 58 plus
Each tire, including the spare (if provided),
sho uld be checked monthly when cold and inflat­
ed to the inflation pressure recommended by the
vehicle manufacturer on the vehicle placard or
tire inflation pressure label. (If your vehicle has
tires of a different size than the size indicated on
the vehicle placard or tire inflation pressure la­
bel, you should determ ine the proper t ire infla-
tion pressure for those tires). .,.

0 co .... N ,..._
N .... 0 0 :c ' As an added safety feature, your vehicle has been
equipped with a tire pressure monitoring system (TPMS) that illuminates a low tire pressure tell­
tale when one or more of your tires is significant­ ly under-inflated. Accordingly, when the low tire
pressure telltale illuminates, you should stop and
check your tires as soon as possible, and inflate
them to the proper pressure. Driving on a signifi­
cantly under-inflated tire causes the tire to over­
heat and can lead to tire failure. Under-inflation
also reduces fuel efficiency and tire tread life,
and may affect the vehicle's handling and stop­
ping ability.
Please note that the TPMS is not a substitute for
proper tire maintenance, and it is the driver's re­
sponsibility to maintain correct tire pressure,
even if under-inflation has not reached the level
to trigger illumination of the TPMS low tire pres­
sure telltale.
Your vehicle has also been equipped with a TPMS
malfunction indicator to indicate when the sys­
tem is not operating properly. The TPMS mal­
function indicator is combined with the low tire
pressure telltale. When the system detects a
malfunction, the telltale will flash for approxi­
mately one minute and then remain continuously
illuminated. This sequence will continue upon
subsequent vehicle start-ups as long as the mal­
function exists .
When the malfunction indicator is illuminated,
the system may not be able to detect or signal
low tire pressure as intended. TPMS malfunctions
may occur for a variety of reasons, including the
installation of replacement or alternate tires or
wheels on the vehicle that prevent the TPMS
from functioning properly. Always check the
TPMS malfunction telltale after replacing one or
more tires or wheels on your vehicle to ensure
that the replacement or alternate tires and
wheels allow the TPMS to continue to function
properly.
Wheels
Description
App lies to : 58 plus
The tire pressure monitoring system monitors
the pressure in the four tires when driving .
The system uses sensors that measure the tem­
perature and pressure in the tires. The data is
sent from these sensors to the control module by
radio frequency.
The Tire Pressure Monitoring System shows the current pressures and temperatures of the tires
in the Infotainment system
o page 304. It also
compares the current tire pressures with the
stored tire pressures and gives a warning in the
driver information system if the tire pressure is
different from what is stored
o page 304.
The system does not detect if the stored tire
pressures match the recommended tire pres­
sures.
- Every time the tire pressures change, for exam-
ple when the load in the vehicle changes,
- after replacing a tire, or
- if wheels with new wheel sensors are used,
you must store the tire pressures again
opage 305.
A WARNING
--The tire pressure monitoring system assists
the driver in monitoring tire pressures. The
driver is responsible for having the tires in­
flated to the correct pressure.
- Do not change the tire pressure when the
temperature of the tire is high. This could
result in serious damage to the tire and
even cause the tire to burst, increasing the
risk of an accident.
- A tire with low pressure flexes more. This
heats the tire up too much. This could cause
the tread to separate and even cause the
tire to burst, increasing the risk of an acci­
dent.
- The Tire Pressure Monitoring System does
not warn you of damage or defects in the
tire construction that could cause the tire to
burst, for example. Inspect your tires regu­
larly.
303
