Care and cleaning
Care and cleaning
General information
Regular, proper care helps to maintain your vehi­
cle's value. It can also be a requirement when
submitting warranty claims for corrosion damage
and paint defects on the body.
The necessary care products can be obtained
from an authorized Audi dea ler or authorized
Audi Service Facility. Read and follow the instruc ­
tions for use on the packaging.
A WARNING
-Using cleaning and care products incorrectly
can be dangerous to your health.
- Always store clean ing and care products out
of reach of children to reduce the r isk of poi­
sonin g.
@ For the sake of the environment
- Preferab ly purchase environmenta lly-friend­
l y cleaning products.
- Do not dispose of leftover cleaning and care
products with household trash.
Car washes
The longer that deposits such as insects, bird
droppings, tree sap or road salt remain on the ve­
h icle, the more the surface can be damaged. High
temperatures such as those caused by sunlight
increase the damaging effect.
Before washing, r inse
off heavy deposits with
p lenty of water.
Stubborn deposits such as bird droppings or tree
sap are best removed with plenty of water and a microfiber cloth.
A lso, wash the underside of yo ur vehicle once
road sa lt stops being used for the season .
Pressure washers
When washing your veh icle w ith a pressure wash­
er , al ways fo llow the operating instructions pro­
vided with the press ure washer. This is especially
important in regard to the pressure and spraying
distance. Do not aim the spray directly at the
306
seals on the side windows, doors, lids or the sun­
roof* or at tires, rubber hoses, insulating materi ­
a l, sensors* or camera lenses* . Keep a distance of
at least 16 in (40 cm).
Do not remove snow and ice with a pressure
washer.
Never use cone nozz les or high pressure nozzles.
The water temperature must not be above 140 °F
(60 °C) .
Automatic car washes
Spray off the vehicle before washing.
Make sure that the windows and roof* are closed
and the windshie ld wipers are
off . Follow instruc ­
tions from the car wash operator, especially if
there are accessories attached to your vehicle.
If possible, use car washes that do not have
brushes.
Only use car washes where the vehicle remains
stationary and the washing equipmen t moves
around the vehicle when washing and drying. Car
washes that move the vehicle t hrough the car
wash using a chain are not recommended .
Washing by hand
Clean the vehicl e starting from the top and work­
ing down using a soft sponge or cleaning brush.
Use solvent -free cleaning products.
Washing vehicles with matte finish paint by
hand
To avoid damaging the paint when washing, first
remove dust and large particles from your vehi ­
cle. Insects, grease spots and fingerprints are
best removed with a special cleaner for matte
finish paint .
Apply t he product using a microfiber cloth. To
avoid damaging the paint surface, do not use too
much pressure.
Rinse t he ve hicle thoroughly with wate r. Then
clean using a neutral shampoo and a soft micro ­
fiber clot h.
R inse the vehicl e thoroughly again and let it air
dry. Remove any water residue using a chamois.
..,..

u. co .... N
" N .... 0 0 :c ' Fuse panel @ (red)
3
Starter diagnosis, DC/DC converter (with
Start/Stop system)
4 DC/DC converter (with Start/Stop system)
5 Image processing
6
Right headlight (headlights with adaptive
light)
7 ESC control module
8
Sound actuator, AEM control module/
crankcase housing heater
9 Adapt ive cru ise control
10 Transmission control module
11 Climate control system sensors
Fuse panel © (brown)
No. Equipment
1 Electromechan ica l park ing brake
2 Suspension control system sensor
3 Rear Infotainment system control panel
4 Smart module ( tan k)
5 Front climate control system controls
6 Rea r climate control system control panel
7 Networking gateway
8 Refrigerator
9 Special functions interface
10 Cell phone adapter, Bluetooth handset
11 AEM control module
12 Selector lever
1 3 Inte rior lighting
14 Rear exterior lighting
15 Fue l pump
16 Electromechanica l parking brake
Fuse panel @ (black)
No. Equipment
1
Luggage compa rtment lid movement-acti-
vated opening
2 Luggage compartment sockets
3 Rear socket
4 Fro nt cigarette lighter
5 Adaptive air su spension
6 115 V socket
Fuses and bulbs
Fuse panel @ (black)
7 Electromechanical parking brake
8 Rear seat heat ing
9 Rear exterior lighting
10 Rear climate control blower
Rear sunshade, closing a id, luggage com-
11 partment lid lock, convenience key, fue l
filler door
12 L uggage compartment lid control module
Fuse panel © (red)
No. Equipment
1 Rear seat adjustment buttons
3 Left rear seat (pne umatic)
5 Tra iler hitch control module
6 Left rea r seat
7 Right rear seat
8 Trailer hitch control module
9 Trailer hitch control module
10 Right rear seat (pneumat ic)
Fuse panel ® (brown)
No. Equipment
1
Start/Stop system , radio receiver/sound
amplifier
2 Sound amplifier
3
Start/Stop system, Rear Seat Entertain -
ment, radio receiver/sound amplifier
5
Automat ic dimming interior rea rview mir-
r or (for Start-Stop system)
6 DVD changer (glove compartment)
7 TV tuner
8 Infotainment system control panel/drives
9 Instrument cluster, analog clock
10 Infotainment system d isp lay
11 Radio receiver
12
Rearview camera, perip heral cameras
(parking system)
325

Emergency situations
@ Tips
The discharged battery must be properly con­
nected to the vehicle's electrical system .
When jump starting or charging the battery,
never connect the negative ground cable to
the battery negative post because the battery
manager system must be able to detect the
battery's state of charge. Always connect the
negat ive g round cable to the negative ground
post of the battery manager control unit.

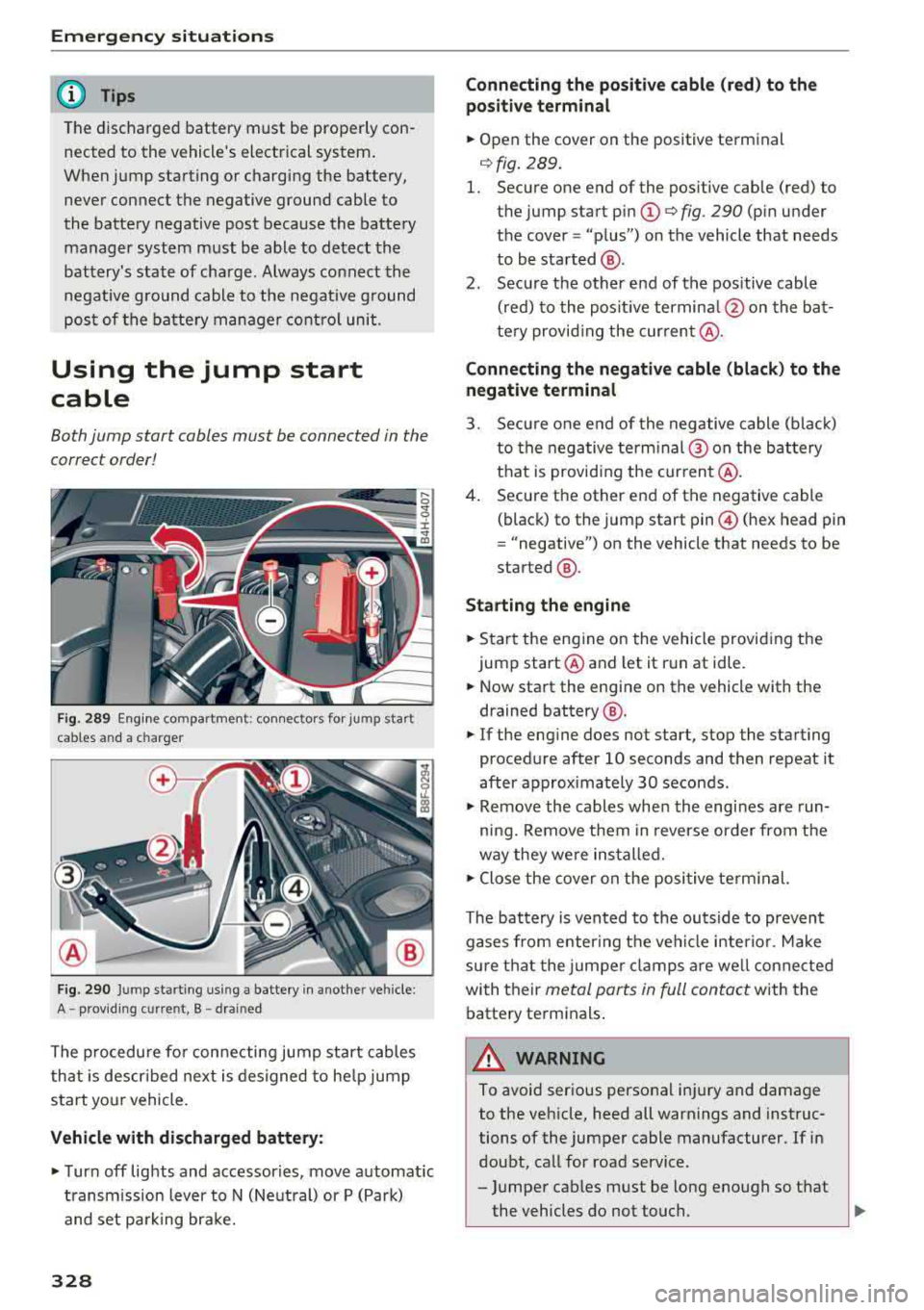

Using the jump start
cable
Both jump start cables must be connected in the
correct order!
Fig. 289 E ngin e compartme nt: co nn ectors for jump start
cables and a charger
Fig. 290 Jump starting using a battery in anot her vehicle:
A
-p rov id in g current, B -drai ned
The procedure for connecting jump start cables
that is descr ibed next is designed to help jump
start your vehicle.
Vehicle with discharged battery:
~ Turn off lights and accessories, move automatic
transmission lever to N (Neutral) or P (Park)
and set parking bra ke.
328
Connecting the positive cable (red) to the
positive terminal
~ Open the cover on the positive terminal
qfig . 289.
1. Secure one end of the pos itive cable (red) to
the jump start pin
(D q fig. 290 (pin under
the cover =
"plus") on the vehicle that needs
to be started @.
2. Secure the other end of the positive cable
(red) to the posit ive terminal @on the bat­
tery provid ing the cur rent @.
Connecting the negative cable (black) to the
negative terminal
3. Secure one end of the negative cable (black)
to the negative terminal @ on the battery
that is providing the current @.
4. Secure the other end of the negative cable
(black) to the jump start
pin @ (hex head pin
= "negative") on the vehicle that needs to be
started @.
Starting the engine
~ Sta rt the eng ine on the vehicle providing the
jump start @and let it run at idle.
~ Now start the engine on the vehicle with the
drained battery @.
~ If the engine does not start, stop the starting
procedure after 10 seconds and then repeat it
after approx imately 30 seconds.
~ Remove the cables when the engi nes are run­
ning. Remove them in reverse order from the
way they were installed.
~ Close the cover on the posi tive terminal.
The battery is vented to the outside to prevent
gases from enter ing the vehicle interior. Make
sure that the jumper clamps are well connected
with their
metal ports in full contact with the
battery terminals .
A WARNING
-To avoid serious personal injury and damage
to the vehicle, heed all warnings and instruc­
tions of the jumper cable manufacturer. If in
doubt, call for road service.
-Jumper cables must be long enough so that
the vehicles do not touch.
..,.

-When connecting jumper cables, make sure
that they cannot get ca ught in any mov ing
parts in the engine compartment.
- Before you check anything in the engine
compartment, a lways read and heed a ll
WARNINGS
¢ page 272.
(D Note
Impro per hook-u p of jum per cables can ru in
the generato r.
- Always connect P OSITIVE( +) to POSITIV E
( + ), and NEGATIVE( -) to NEGATIVE( -)
g round post of the battery manager contro l
unit.
- Check that a ll sc rew p lugs on the battery
cells are sc rewed in firmly . If not, t ighten
pl ugs p rior to connect ing clamp on negative
b atte ry te rmi nal.
- Please note t hat the procedure fo r con nect­
i ng a jumper cab le as desc ribed above ap­
p lie s specifica lly to the case of yo ur vehicle
b eing ju mp starte d. When you are g iv ing a
ju mp s tart to ano ther vehicle, do
not con­
n ect th e neg ative( -) ca b le to the neg ative
(-) t ermin al on t he disch arged batte ry @
¢ fig . 290. Instead, securely connect the
negat ive(- ) cab le to either a solid metal
component that is f irm ly bolted to the en­
gine block o r to the engine bloc k itself. If
the battery that is be ing c ha rged does not
vent to the outs ide, escap ing batte ry gas
could ignite and ex plod e!

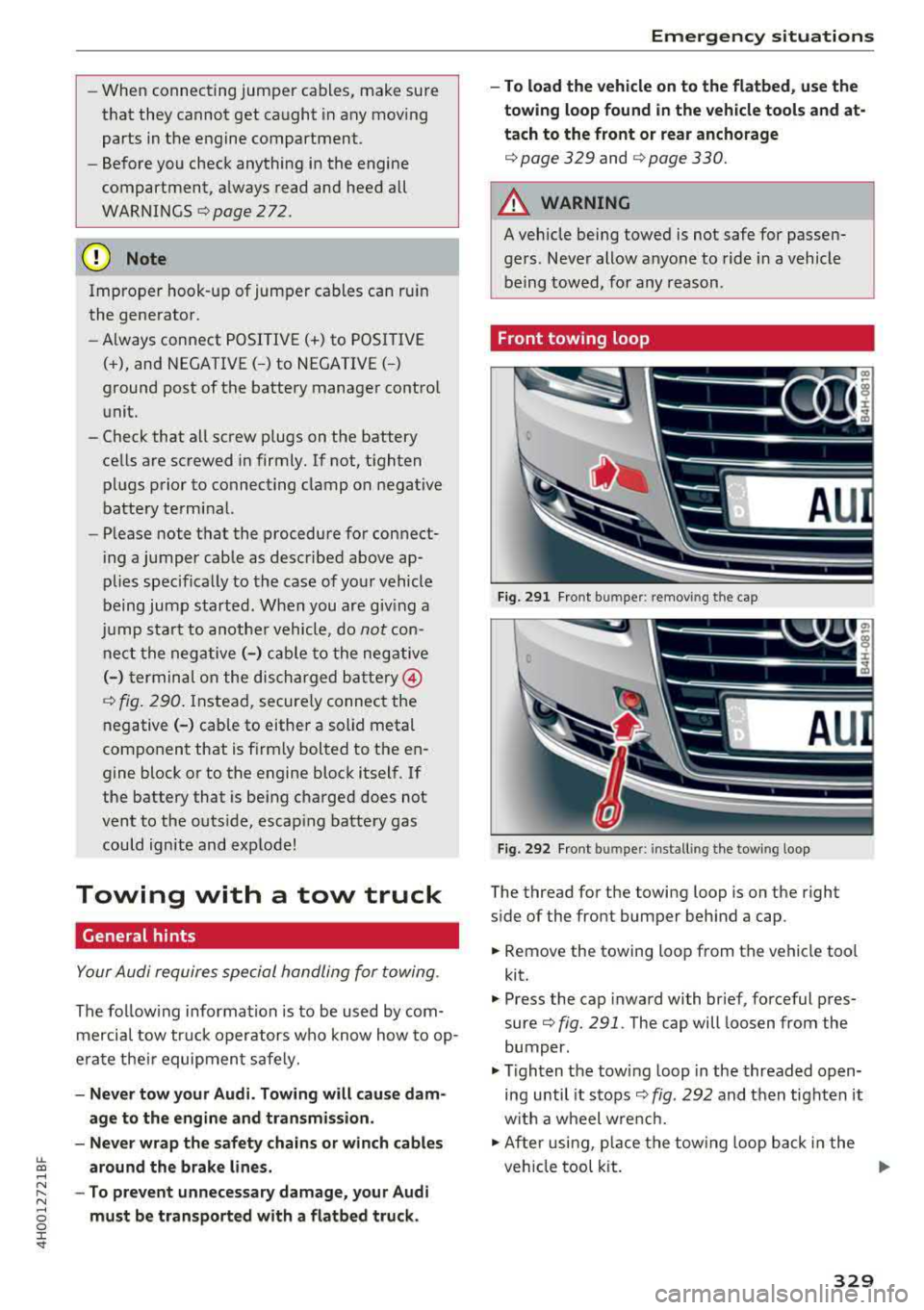

Towing with a tow truck
General hints
Yo ur Audi requires special h andling for towing .
The follow ing informa tion is to be used by com­
mercia l tow tr uck o pera tors who know how to op ­
e rat e the ir equip men t sa fely.
- Never tow your Audi. Towing will cause dam­
age to the engine and transmission.
- Never wrap the safety chains or winch cables
~ around the brake lines. ....
~ -To prevent unnecessary damage, your Audi N
8 must be transported with a flatbed truck. 0 :c ' Emergency situations
-To load the vehicle on to the flatbed, use the
towing loop found in the vehicle tools and at­
tach to the front or rear anchorage
¢ page 329 and c> page 330.
A WARNING
A veh icle being towed is not safe for passen­
ge rs. Neve r allow a nyo ne to ride in a vehicl e
b eing towed, fo r any reason.
Front towing loop
Fi g. 291 Fron t bu mpe r: removing t he cap
Fig. 292 Fron t bu mpe r: insta llin g the tow ing loop
The thread for the towing loop is on the right
s ide of the front bumper beh ind a cap.
.,. Remove the towing loo p from the vehicle too l
kit.
.,. Press the cap inward with brief, forceful pres­
sure
c> fig. 291 . The cap will loosen from the
bumper.
.,. T igh ten the tow ing loop in the threaded open ­
ing until it stops
c> fig. 292 and t hen tighten it
w ith a wheel w re nc h .
.,. Afte r usi ng, p lace the tow ing loop b ack in the
veh icle tool kit.
IJJ>-
329

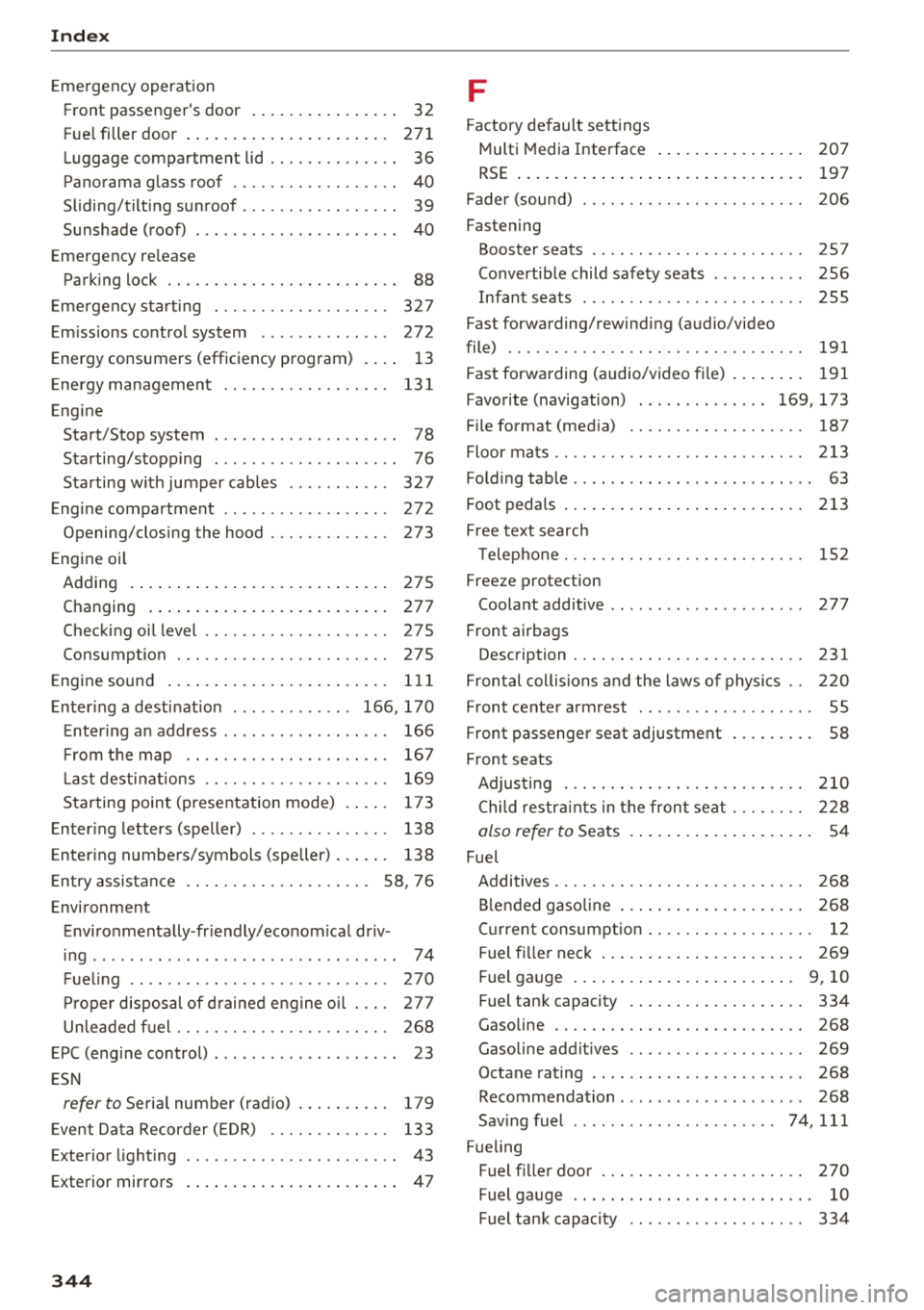

Index
Emergency operation
Fr ont passenger 's door . . . . . . . . . . . . . . . . 32
Fuel filler door . . . . . . . . . . . . . . . . . . . . . . 271
Luggage compartment lid . . . . . . . . . . . . . . 36
Panoram a glass roof . . . . . . . . . . . . . . . . . . 40
Sliding/tilting sunroof . . . . . . . . . . . . . . . . . 39
Sunshade (roof) . . . . . . . . . . . . . . . . . . . . . . 40
E mergency re lease
Parking lock . . . . . . . . . . . . . . . . . . . . . . . . . 88
Emergency starting . . . . . . . . . . . . . . . . . . . 327
Emissions control system . . . . . . . . . . . . . . 272
Energy consumers (efficiency program) . . . . 13
Energy management . . . . . . . . . . . . . . . . . . 131
E ngine
Start/Stop system . . . . . . . . . . . . . . . . . . . . 78
Starting/stopping . . . . . . . . . . . . . . . . . . . . 76
Starting with jumper cables . . . . . . . . . . . 327
E ngine compartment . . . . . . . . . . . . . . . . . . 272
Opening/closing the hood . . . . . . . . . . . . . 273
Engine oil
Adding . . . . . . . . . . . . . . . . . . . . . . . . . . . . 275
Changing . . . . . . . . . . . . . . . . . . . . . . . . . . 277
Checking oil level . . . . . . . . . . . . . . . . . . . . 275
Con sumption . . . . . . . . . . . . . . . . . . . . . . . 275
Engine sound . . . . . . . . . . . . . . . . . . . . . . . . 111
Entering a destination . . . . . . . . . . . . . 166, 170
Entering an address . . . . . . . . . . . . . . . . . . 166
From the map . . . . . . . . . . . . . . . . . . . . . . 167
La st destinations . . . . . . . . . . . . . . . . . . . . 169
Starting point (presentation mode) . . . . . 173
Entering letters (speller) . . . . . . . . . . . . . . . 138
E ntering numbers/symbols (speller) . . . . . . 138
Entry assistance . . . . . . . . . . . . . . . . . . . . 58, 76
Environment Environmentally-friendly/ economical driv -
ing ..... ... .. .. ................ ... .. 74
Fueling . . . . . . . . . . . . . . . . . . . . . . . . . . . . 270
Proper disposal of drained engine o il . . . . 277
Unleaded fu el . . . . . . . . . . . . . . . . . . . . . . . 268
EPC (engine control) . . . . . . . . . . . . . . . . . . . . 23
ESN
refer to Serial number (radio) ... .... .. .
Event Data Recorder (EDR) ........ .. .. .
E xterior lighting 179
133 43
Exterior mirrors . . . . . . . . . . . . . . . . . . . . . . . 47
344
F
Factory default settings
Multi Media Interface . . . . . . . . . . . . . . . . 207
R5E . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 197
Fader(sound) ... .. .. .. ............. .. 206
Fastening Booster seats . . . . . . . . . . . . . . . . . . . . . . . 257
Convertible child safety seats . . . . . . . . . . 256
Infant seats . . . . . . . . . . . . . . . . . . . . . . . . 255
Fast forwarding/rewinding (audio/video
file) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 191
Fast forwarding (audio/video file) . . . . . . . . 191
Favorite (navigation) . . . . . . . . . . . . . . 169, 173
File format (media) . . . . . . . . . . . . . . . . . . . 187
Floor mats.. .. .. .. .. .. ............. .. 213
Folding table . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Foot pedals . . . . . . . . . . . . . . . . . . . . . . . . . . 213
Free text search
T elephone. . . . . . . . . . . . . . . . . . . . . . . . . . 152
Freeze protection Coolant additive . . . . . . . . . . . . . . . . . . . . . 277
Front airbags
Description . . . . . . . . . . . . . . . . . . . . . . . . . 231
Frontal collisions and the laws of physics . . 220
Front center armrest . . . . . . . . . . . . . . . . . . . 55
Front passenger seat adjustment . . . . . . . . . 58
Front seats
Adjusting . . . . . . . . . . . . . . . . . . . . . . . . . . 210
Child restraints in the front seat . . . . . . . . 228
also refer to Seats . . . . . . . . . . . . . . . . . . . . 54
Fuel Additives. . . . . . . . . . . . . . . . . . . . . . . . . . . 268
Blended gasoline . . . . . . . . . . . . . . . . . . . . 268
Current consumpt ion . . . . . . . . . . . . . . . . . . 12
Fuel filler neck . . . . . . . . . . . . . . . . . . . . . . 269
Fuel gauge . . . . . . . . . . . . . . . . . . . . . . . . 9, 10
Fuel tank capacity . . . . . . . . . . . . . . . . . . . 334
Gasoline . . . . . . . . . . . . . . . . . . . . . . . . . . . 268
Gasoline additives . . . . . . . . . . . . . . . . . . . 269
Octane rating . . . . . . . . . . . . . . . . . . . . . . . 268
Recommendation . . . . . . . . . . . . . . . . . . . . 268
Saving fuel ...... .. .. ............ 74, 111
Fueling Fuel filler door . . . . . . . . . . . . . . . . . . . . . . 270
Fuel gauge . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Fuel tank capacity . . . . . . . . . . . . . . . . . . . 334

u. co .... N
" N .... 0 0 :c ' Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . 309
Convenience side view . . . . . . . . . . . . . . . . . 60
Correct seating position . . . . . . . . . . . . . . 209
Massage function . . . . . . . . . . . . . . . . . . . . . 54
Seat symmetry . . . . . . . . . . . . . . . . . . . . . . . 60
Seats (number) ................. ..... . 219
Selecting a source MMI control panel . . . . . . . . . . . . . . . . . . . 190
Selector lever
Selector lever position . . . . . . . . . . . . . . . . . 83
Serial number (radio) . . . . . . . . . . . . . . . . . . 179
Service and disposal
Safety belt pretensioner . . . . . . . . . . . . . . 226
Service interval display . . . . . . . . . . . . . . . . . 281
Settings Directory . . . . . . . . . . . . . . . . . . . . . . . . . . . 157
Media . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 191
System (MMI). . . . . . . . . . . . . . . . . . . . . . . 206
Telephone . . . . . . . . . . . . . . . . . . . . . . . . . . 155
Voice recognition system . . . . . . . . . . . . . 206
Setting the frequency band . . . . . . . . . . . . . 178
Setting the language . . . . . . . . . . . . . . . . . . 206
Shades . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40, 49
Shift paddles . . . . . . . . . . . . . . . . . . . . . . . . . . 86
Ship (transporting your vehicle) . . . . . . . . . 330
Shuffle (media) ................. ..... . 191
Side airbags Description . . . . . . . . . . . . . . . . . . . . . . . . . 243
Side assist . . . . . . . . . . . . . . . . . . . . . . . . . . . 105
Cleaning the sensors . . . . . . . . . . . . . . . . . 307
also refer to Side assist . . . . . . . . . . . . . . . 105
Side curtain airbags . . . . . . . . . . . . . . . . . . . 246
Description . . . . . . . . . . . . . . . . . . . . . . . . . 246
Safety instructions . . . . . . . . . . . . . . . . . . . 248
Side marker lights . . . . . . . . . . . . . . . . . . . . . 43
SIM card reader . . . . . . . . . . . . . . . . . . . . . . 158
Sirius (satellite radio) . . . . . . . . . . . . . . . . . . 178
Ski bag............................... 66
Sliding/tilting sunroof Emergency closing . . . . . . . . . . . . . . . . . . . . 39
Emergency operation . . . . . . . . . . . . . . . . . . 40
Snow chains . . . . . . . . . . . . . . . . . . . . . . . . . 298
Socket 115 volt . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
12 volt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Index
Software update . . . . . . . . . . . . . . . . . . . . . . 197
also refer to System update (MMI) . . . . . . 206
Software version . . . . . . . . . . . . . . . . . . . . . . 197
Software (MMI) Update ... .. .. .. .. ... .. ..... ... .. .. 207
Version . . . . . . . . . . . . . . . . . . . . . . . . . . . . 207
Solar operation (automatic climate control
system) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Sources of information about child restraints
and their use . . . . . . . . . . . . . . . . . . . . . . . . . 267
Spare tires...... .. .. ................ . 319
Spare tire (compact spare tire) . . . . . . . . . . 319
Speed-dependent volume increase . . . . . . . 205
Speedometer . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Speed warning system . . . . . . . . . . . . . . . . . . 93
Speller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138
Sport differential . . . . . . . . . . . . . . . . . . . . .
111
Start/Stop system . . . . . . . . . . . . . . . . . . . . . 78
Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Starting/stopping the engine . . . . . . . . . . . 79
Switching off/on . . . . . . . . . . . . . . . . . . . . . 80
Starting to drive . . . . . . . . . . . . . . . . . . . . . . . 82
Sta tion list . . . . . . . . . . . . . . . . . . . . . . . . . . 178
Steering . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130
Steering wheel . . . . . . . . . . . . . . . . . . . . . . . . 75
Shift paddles . . . . . . . . . . . . . . . . . . . . . . . . 86
Steering wheel heating . . . . . . . . . . . . . . . . 72
also refer to Multifunction steering wheel. 11
Steps for determining correct load limit . . . 297
Stopover . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170
Storage compartments . . . . . . . . . . . . . . . . . 63
Subwoofer (sound) . . . . . . . . . . . . . . . . . . . . 205
Sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Panorama glass roof . . . . . . . . . . . . . . . . . . 39
Sunshade Emergency operation (panorama glass roof) .40
Panorama glass roof . . . . . . . . . . . . . . . . . . 40
Rear window, rear doors . . . . . . . . . . . . . . . 49
Sun visors . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Swapping (telephone) . . . . . . . . . . . . . . . . . 150
Switching the audio output off (RSE) . . . . . 196
Symbols
refer to Indicator lights . . . . . . . . . . . . . . . . 17
SYNC (Automatic climate control) . . . . . . . . . 71
System settings . . . . . . . . . . . . . . . . . . . . . . 205
System update (MMI) . . . . . . . . . . . . . . . . . . 207
349
