homelink AUDI A8 2018 Owners Manual

lL t:0 ....
"' ......
"' .... 0 0 :c ' The following buttons are deactivated when the
va let parking function is switched on :
-1""'1 button in the driver's door
-I ""' I button on the remote control key
- Handle in the rear lid
When the valet parking function is switched on,
the message
Valet parking activated appears in
the instrument cluster display when you switch
the ignition on.
Garage door opener (Homelink)
Description
Ap plies to: vehicl es with garage door opener (Homeli nk)
Fig. 42 Garage door opene r: examples o f usage for differ­
ent systems
W ith the garage door opener (Homel ink), you
can activate systems such as the garage doors,
security systems or house lights from ins ide your
vehicle. Three buttons are integrated in the head­
liner that can be programmed to up to three re­
mote controls.
To be able to operate systems using the garage
door opener, the buttons in the headliner must
first be programmed .
A WARNING
When operating or programming the garage
door opener, make sure that no people or ob­
jects are in the area immediately surrounding
the equipment. People can be injured or prop­ erty can be damaged if struck when closing.
Opening and closing
(D Tips
-For security reasons, we recommend that
you clear the programmed buttons before selling the vehicle.
- For add itiona l information about Homelink,
visit www.homelink.com.
- For an explanation on conformity with the
FCC regulations in the United States and the
Industry Canada regulations, see
¢page 339.
Programming buttons
App lies to: vehicles with garage door opener (Home link)
Fig. 43 Headliner: controls
You can program both fixed code and rolling code
systems using this procedure.
Programming/reprogramming buttons
.. Switch the ignit ion on.
.. Press and hold the button in the headliner that
you would like to program for at least 10 sec­
onds. Or
.. Select: ! CAR ! function button> Car systems
control button > Vehicle settings > Garage
door opener > Program garage door opener.
.. Follow the instr uctions in the Infotainment sys-
tem.
Deleting button programming
The programmed buttons cannot be deleted indi­
vidually. They must be deleted all at once. Repro­
gram the buttons if necessary .
.. Select: the ICAR !function button> Car systems
control button > Vehicle settings > Garage
door opener > Clear program settings
> Yes.
41

u. co .... N

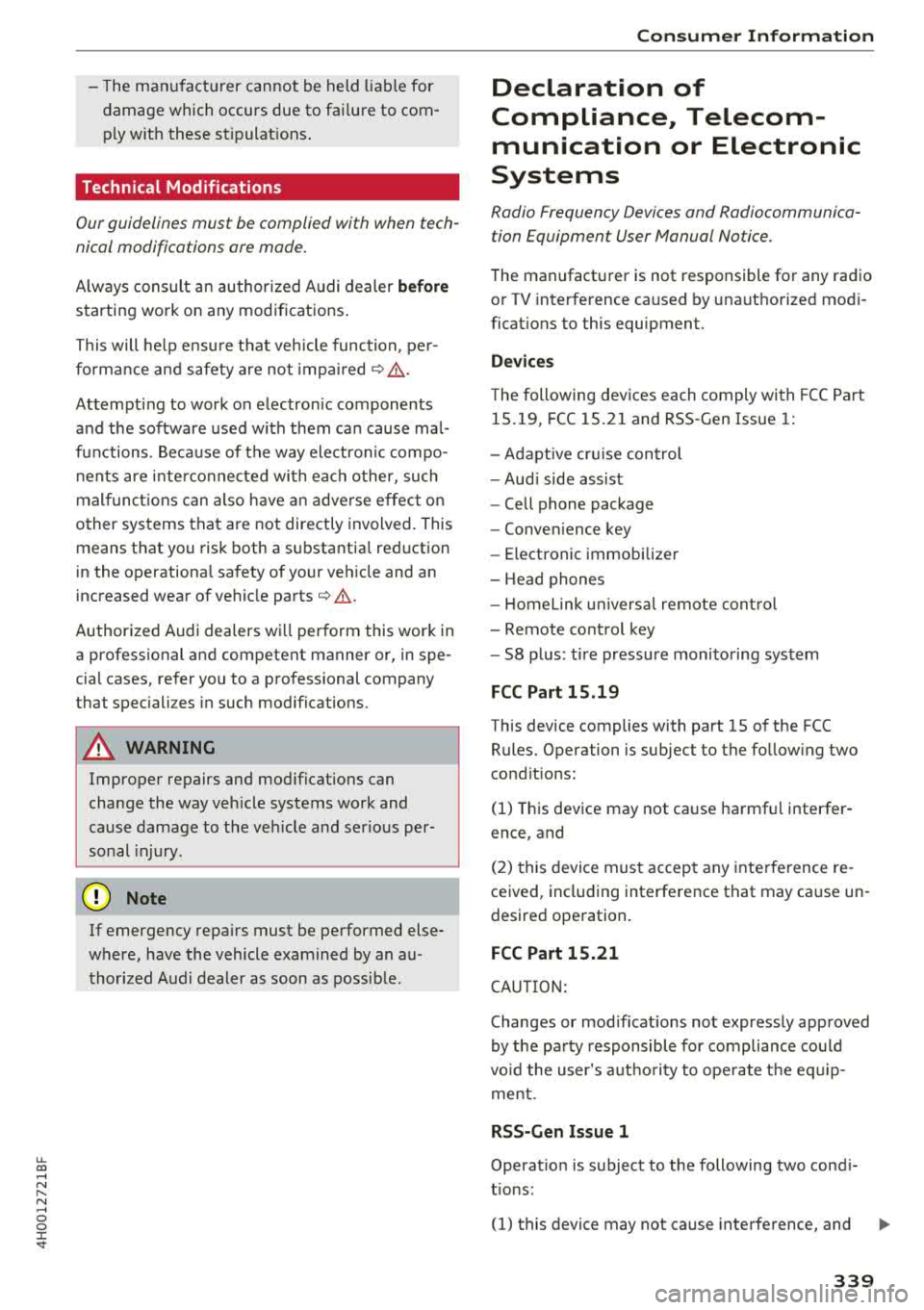

" N .... 0 0 :c ' -The manufacturer cannot be held liable for
damage which occurs due to fai lure to com­
p ly wit h these st ipulat ions .
Technical Modifications
Our guidelines must be complied with when tech­
nical modifications are made.
A lways consult an author ized A udi dealer b efore
starting work on any modifications .
This will he lp e nsu re that veh icle function, pe r­
forma nce and safety are not
impa ired ¢.&, .
Attempting to work on electron ic components
and the software used w ith them ca n cause ma l­
functions . Because of the way electron ic compo­
n ents are inte rconnected with each other, such
malfunct ions can also have an adve rse effect on
other systems that are not directly involved. This
means that you risk both a substantia l reduction
in the operationa l safety of your vehicle and an
increased wear of vehicle
parts ¢.&, .
Authorized Audi dealers wi ll per form this work in
a professional and competent manner or, in spe­
cial cases, refer you to a professional company
that spec iali zes in such modifications.
A WARNING
Improper repairs and mod ificat ions can
change the way veh icle systems work and
cause damage to the veh icle and ser ious per­
sonal injury .
@ Note
If emergency repa irs must be performed else­
where, have the vehicle examined by an au­ thor ized Audi dealer as soon as possible.
Con sum er In form ation
Declaration of
Compliance, Telecom­
munication or Electronic
Systems
Radio Frequency Devices and Radiocommunica­
tion Equipment User Manual Notice .
The manufacturer is not responsible for any radio
or TV interference caused by unauthorized mod i­
ficat ions to this equipment.
D ev ices
T he following dev ices each comply wi th FC C P art
15. 19, FCC 15 .21 and RSS -Gen Issue 1:
-Adapt ive cru ise control
-Aud i side assist
-Cell phone package
-Conven ience key
-Electronic immobilizer
-Head phones
-Homelink u niversa l remote cont rol
-Remote cont rol key
-S8 plus: tire pressure monitoring system
FCC P art 15 .19
This device complies with part 15 of the FCC
Rules. Operation is subject to the follow ing two
condit ions:
(1) This device may not cause harmfu l interfer ­
ence, and
(2) this device must accept any interference re­
ceived, including interference that may ca use un­
desired operation.
FCC Part 15.21
CAU TION:
Changes or mod ificat ions not expressly approved
by the pa rty responsible for compliance could
vo id the user's aut ho rity to ope rate t he eq uip­
ment .
RSS-Gen Issue 1
Operat ion is subject to the following two cond i­
t ions:
(1) this device may not cause interference, and
3 39

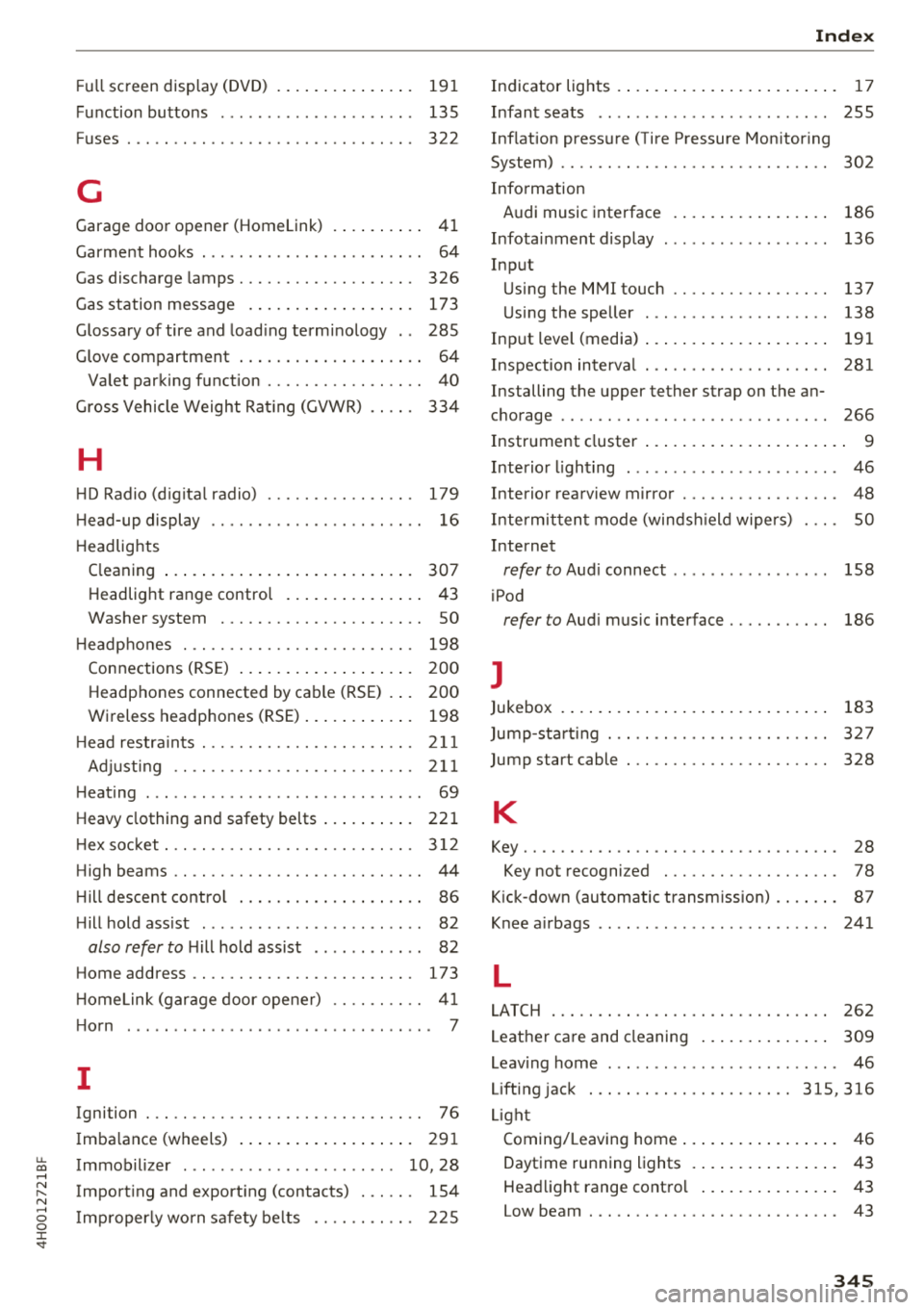

Full screen disp lay (DVD) . . . . . . . . . . . . . . . 191
Function buttons . . . . . . . . . . . . . . . . . . . . . 135
Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 322
G
Garage door opener (Homelink) . . . . . . . . . . 41
Garment hooks . . . . . . . . . . . . . . . . . . . . . . . . 64
Gas discharge lamps . . . . . . . . . . . . . . . . . . . 326
Gas station message . . . . . . . . . . . . . . . . . . 173
Glossary of tire and loading terminology . . 285
Glove compartment . . . . . . . . . . . . . . . . . . . . 64
Valet parking function . . . . . . . . . . . . . . . . . 40
Gross Vehicle Weight Rating (GVWR) . . . . . 334
H
HD Radio (digital radio) . . . . . . . . . . . . . . . . 179
Head-up display . . . . . . . . . . . . . . . . . . . . . . . 16
Headlights Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . 307
Headlight range control . . . . . . . . . . . . . . . 43
Washer system . . . . . . . . . . . . . . . . . . . . . . 50
Headphones . . . . . . . . . . . . . . . . . . . . . . . . . 198
Connections (RSE) . . . . . . . . . . . . . . . . . . . 200
Headphones connected by cable (RSE) . . . 200
Wireless headphones (RSE) . . . . . . . . . . . . 198
H ead restra ints. ............... .. .. .. . 211
Adjusting . . . . . . . . . . . . . . . . . . . . . . . . . . 211
Heating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
Heavy clothing and safety belts . . . . . . . . . . 221
H ex socket. .. .. ............. .. .. .. .. . 312
High beams . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
H ill descent control . . . . . . . . . . . . . . . . . . . . 86
Hill hold assist . . . . . . . . . . . . . . . . . . . . . . . . 82
also refer to Hill hold assist . . . . . . . . . . . . 82
Home address .. ............... .. .. .. . 173
HomeLink (garage door opener) . . . . . . . . . . 41
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
I
Ignition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
Imbalance (wheels) . . . . . . . . . . . . . . . . . . . 291
~ Immobilizer . . . . . . . . . . . . . . . . . . . . . . . 10, 28 ....
~ Importing and exporting (contacts) . . . . . . 154 N .... g Improperly worn safety belts . . . . . . . . . . . 225
:c ' Index
Indicator lights . . . . . . . . . . . . . . . . . . . . . . . . 17
Infant seats . . . . . . . . . . . . . . . . . . . . . . . . . 255
Inflation pressure (Tire Pressure Monitoring
System) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 302
Information Audi music interface . . . . . . . . . . . . . . . . . 186
Infotainment display . . . . . . . . . . . . . . . . . . 136
Input Using the MMI touch . . . . . . . . . . . . . . . . . 137
Using the speller . . . . . . . . . . . . . . . . . . . . 138
Input level (media) . . . . . . . . . . . . . . . . . . . . 191
Inspection interval . . . . . . . . . . . . . . . . . . . . 281
Installing the upper tether strap on the an-
chorage .... .. .. .. ................. .. 266
Instrument cluster . . . . . . . . . . . . . . . . . . . . . . 9
Interior lighting . . . . . . . . . . . . . . . . . . . . . . . 46
Interior rearview mirror . . . . . . . . . . . . . . . . . 48
Intermittent mode (windsh ield wipers) . . . . SO
Internet
refer to Audi connect . . . . . . . . . . . . . . . . . 158
iPod
refer to Audi music interface . . . . . . . . . . . 186
J
Jukebox 183
Jump-starting . . . . . . . . . . . . . . . . . . . . . . . . 327
Jump start cable . . . . . . . . . . . . . . . . . . . . . . 328
K
Key........ .. .. .. .. ............... .. . 28
Key not recognized . . . . . . . . . . . . . . . . . . . 78
Kick-down (automatic transmission) . . . . . . . 87
Knee airbags . . . . . . . . . . . . . . . . . . . . . . . . . 241
L
LATCH
262
Leather care and cleaning . . . . . . . . . . . . . . 309
Leaving home . . . . . . . . . . . . . . . . . . . . . . . . . 46
Lifting jack ... .. .. .. ............. 315, 316
Light Coming/Leaving home . . . . . . . . . . . . . . . . . 46
Daytime running lights . . . . . . . . . . . . . . . . 43
Headlight range control . . . . . . . . . . . . . . . 43
Low beam . .. .. .. .. ............... .. . 43
345

Index

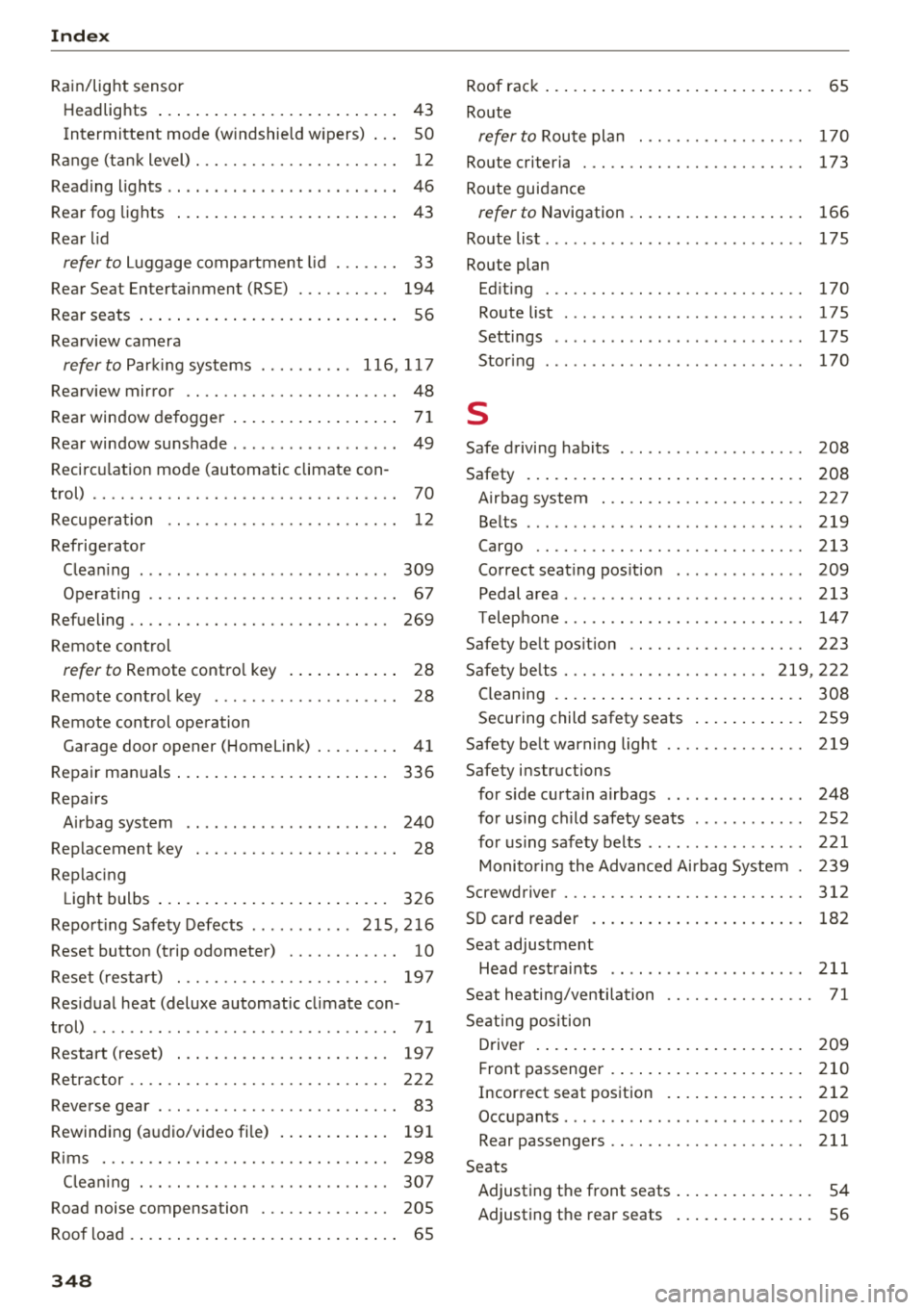

Rain/light sensor
H eadlights . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Intermittent mode (windshield wipers) . . . SO
Range (tank level) . . . . . . . . . . . . . . . . . . . . . . 12
Reading lights . . . . . . . . . . . . . . . . . . . . . . . . . 46
Rear fog lights . . . . . . . . . . . . . . . . . . . . . . . . 43
Rear lid
refer to Luggage compartment lid . . . . . . . 33
Re ar Se at Entertainment (RSE) . . . . . . . . . . 194
Rear seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Rearview camera
refer to Parking systems ....... .. . 116 ,117
Rearview mirror . . . . . . . . . . . . . . . . . . . . . . . 48
Rear window defogger . . . . . . . . . . . . . . . . . . 71
Rear window sunshade . . . . . . . . . . . . . . . . . . 49
Recircu lation mode (automatic climate con-
trol) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Recuperation . . . . . . . . . . . . . . . . . . . . . . . . . 12
Refrigerator Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . 309
Operating . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Refueling . . . . . . . . . . . . . . . . . . . . . . . . . . . . 269
Remote control
refer to Remote control key . . . . . . . . . . . . 28
Remote control key . . . . . . . . . . . . . . . . . . . . 28
Remote control operation Garage door opener (Homelink) . . . . . . . . . 41
Repair manuals . . . . . . . . . . . . . . . . . . . . . . . 336
Repairs Airbag system . . . . . . . . . . . . . . . . . . . . . . 240
Replacement key . . . . . . . . . . . . . . . . . . . . . . 28
Replacing Light bulbs . . . . . . . . . . . . . . . . . . . . . . . . . 326
Reporting Safety Defects ........... 215,216
Reset button (trip odometer) . . . . . . . . . . . . 10
Reset (restart) . . . . . . . . . . . . . . . . . . . . . . . 197
Residual heat (deluxe automatic climate con-
trol) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Restart (reset) . . . . . . . . . . . . . . . . . . . . . . . 197
Retractor . . . . . . . . . . . . . . . . . . . . . . . . . . . . 222
Reverse gear . . . . . . . . . . . . . . . . . . . . . . . . . . 83
Rewinding (audio/video file) . . . . . . . . . . . . 191
Rims . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 298
Clean ing . . . . . . . . . . . . . . . . . . . . . . . . . . . 307
Road noise compensation . . . . . . . . . . . . . . 205
Roof load . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
348
Roof rack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Route
refer to Route plan . . . . . . . . . . . . . . . . . . 170
Route criteria . . . . . . . . . . . . . . . . . . . . . . . . 173
Route guidance
refer to Navigation . . . . . . . . . . . . . . . . . . . 166
Route list . . . . . . . . . . . . . . . . . . . . . . . . . . . . 175
Route plan Editing . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170
Route list . . . . . . . . . . . . . . . . . . . . . . . . . . 175
Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . 175
Storing 170
s
Safe driving habits . . . . . . . . . . . . . . . . . . . . 208
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 208
Airbagsystem ... .. .. ............. .. 227
Belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 219
Cargo .... .... .. .. .. ............. .. 213
Correct seating position . . . . . . . . . . . . . . 209
Pedal area ....... .. .. ............... 213
Telephone. .. .. .. .. .. ... .. ..... ... .. 147
Safety be lt position . . . . . . . . . . . . . . . . . . . 223
Safety belts . .. .. .. .. .. ........... 219,222
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . 308
Securing child safety seats . . . . . . . . . . . . 259
Safety be lt warning light . . . . . . . . . . . . . . . 219
Safety instructions for side curtain airbags . . . . . . . . . . . . . . . 248
for using child safety seats . . . . . . . . . . . . 252
for using safety belts . . . . . . . . . . . . . . . . . 221
Monitoring the Advanced Airbag System . 239
Sc rewdrive r . . . . . . . . . . . . . . . . . . . . . . . . . . 312
SD card reader . . . . . . . . . . . . . . . . . . . . . . . 182
Seat adjustment Head restraints . . . . . . . . . . . . . . . . . . . . . 211
Seat heating/ventilation . . . . . . . . . . . . . . . . 71
Seating position Driver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 209
Front passenger . . . . . . . . . . . . . . . . . . . . . 210
Incorrect seat position . . . . . . . . . . . . . . . 212
Occupants. . . . . . . . . . . . . . . . . . . . . . . . . . 209
Rear passengers . . . . . . . . . . . . . . . . . . . . . 211
Seats Adjusting the front seats . . . . . . . . . . . . . . . 54
Adjusting th e rear seats . . . . . . . . . . . . . . . 56
