fuel consumption AUDI A8 2021 Owners Manual

Instrument cluster

When engine oil temperatures are low, the dis-
play --- °F (--- °C) appears in the instrument clus-
ter. The engine has reached its operating temper-
ature when the engine oil temperature is be-
tween 176 °F (80 °C) and 248 °F (120 °C) under
normal driving conditions. The engine oil temper-
ature may be higher if there is heavy engine load
and high temperatures outside. This is not a
cause for concern as long as the B or 2 indica-
tor lights do not turn on.
Boost indicator
Applies to: vehicles with boost indicator
Depending on vehicle equipment, the current en-
gine load (meaning the current boost pressure)
may be indicated by a bar in the instrument clus-
ter.
> Open the vehicle functions tab and switch to
the enhanced view > page 13.
Vehicle functions
The trip computer is displayed in the first tab of
the driver information system. Additional vehicle
functions can be accessed depending on the vehi-
cle equipment.
> Press the [=] button on the multifunction steer-
ing wheel.
— Trip computer > page 16
— Reduced display > page 14
— Reset trip odometer > page 15
— Energy flow display > page 115
—Lap times > page 158
— Lap statistics > page 159
On-board computer
Resetting values to zero
Requirement: the Consumption, Short-term
memory, or Long-term memory display must be
selected.
> To reset the values in one of the memories to
zero, press and hold the left thumbwheel on
16
the multifunction steering wheel for one sec-
ond, or
> Select on the instrument cluster: vehicle func-
tions tab > EI button > Reset mi.
Depending on the vehicle equipment, you can call
up the following displays in the on-board com-
puter one at a time by turning the left thumb-
wheel on the multifunction steering wheel:
— Time and date > page 263
— Plug-in hybrid drive: range display
— Average consumption > page 16
— Short-term memory overview
— Long-term memory overview
— Energy consumers > page 16
— Driver assistance
— Traffic sign recognition and traffic light infor-
mation
Short-term memory and long-term memory
The short-term memory collects driving informa-
tion from the time the ignition is switched on un-
til it is switched off. If you continue driving within
two hours after switching the ignition off, the
new values will be included when calculating the
current trip information.
Unlike the short-term memory, the long-term
memory is not erased automatically. You can se-
lect the time period for evaluating trip informa-
tion yourself.
Average consumption
The current consumption can be shown using a
bar graph. The average consumption stored in
the short-term memory is also displayed. If the
bar is green, your vehicle is saving energy (for ex-
ample, using recuperation).
Energy consumers
The Energy consumers view lists other equip-
ment that is currently affecting fuel consump-
tion. The display shows up to three equipment
items. The equipment using the most power is
listed first. If more than three items using power
are switched on, the equipment that is currently
using the most power is displayed. A gauge also
shows the current total consumption of all other
equipment.

Driving

— Green: recuperation
@ Tips
The energy flow display can also be displayed
in the instrument cluster under the vehicle
functions tab.

e monitor
Applies to: vehicles with plug-in hybrid drive
RAX-0139 Doe cc ae ar 1)
Ire
Pl) 18 5)

Fig. 98 Range monitor
You can display the projected range of the vehi-
cle.
» Applies to: MMI: Select on the home screen:
VEHICLE > Vehicle data.
> You may need to scroll down to the Range
monitor display.
@ Range potential (value)
@ Range potential (graphic)
@®) Total range (graphic)
@ Total range (value)
© Electric range (value)
Range potential: the value indicates an addition-
al amount of distance that can be gained by turn-
ing off certain convenience functions. The con-
venience functions with high energy usage are
listed on the display.
@) Tips
— The range can also be displayed in the in-
strument cluster in the on-board computer.
— The range that is indicated is based on the
previous and predicted consumption values.
For example, these can be affected if con-
venience functions are turned on.
116
Statistics
Applies to: vehicles with plug-in hybrid drive
You can display statistics about the trips traveled
using electric power and those using fuel. The
values are taken from the short-term memory
and long-term memory of the on-board comput-
er.
> Select on the home screen: VEHICLE > Vehicle
data.
> If necessary, scroll to the e-tron short-term
statistics or e-tron long-term statistics.
Vehicle sound
Applies to: vehicles with plug-in hybrid drive
The electric drive system generates considerably
less noise than a combustion engine. An artificial
engine sound is generated when driving electri-
cally so that the vehicle can be heard from the
outside when driving. The vehicle sound auto-
matically fades out at higher speeds when the
sounds from the tires and wind start increasing.

ZA\ WARNING
Other road users may not be able to defini-
tively hear electric vehicles when they are
driving. This increases the risk of an accident
particularly when driving in areas with little
traffic, when maneuvering, or when driving in
reverse.



aaitt lala MV dieolalaat ile] Umea late lig
driving
Your driving style greatly influences the amount
of fuel and energy consumed, the environmental
impact, and the wear on the engine, brakes, and
tires. Note the following information for efficient
and environmentally-conscious driving:
— Turn off electrical equipment that is not need-
ed, for example seat heating*.
— Anticipate upcoming traffic situations while
driving to avoid unnecessary acceleration and
braking.
— Avoid driving at high speeds.

Checking and Filling

corrosion damage and damage to plastic or
rubber components in the fuel system.
— Do not use gasoline that does not meet the
specifications.
— If you are unable to find out if a specific gas-
oline mixture meets the specifications, ask
the gas station operator or their fuel suppli-
er.
— Do not use any gasoline mixture whose
composition cannot be identified.
— Audi does not assume any responsibility for
damage to the fuel system or for perform-
ance problems caused by using gasoline
mixtures different from those specified.
This type of damage also does not fall under
the New Vehicle Limited Warranty or under
the emissions control system warranty.
— If you notice a higher fuel consumption or
poor handling or performance problems due
to such gasoline mixtures, Audi recom-
mends fueling with unblended gasoline.
Gasoline additives
An important issue for many automobile manu-
facturers is combustion residue in the engine
that results from the use of certain fuels.
Although types of gasoline differ depending on
the manufacturer, there are similarities. Certain
substances in the gasoline may cause deposits in
the engine. Additives in the gasoline that should
keep the engine and fuel system clean do not all
function equally.
Audi recommends using TOP TIER Detergent Gas-
oline. For additional information on TOP TIER De-
tergent Gasoline, visit www.toptiergas.com.
If you use incorrect fuels over a long period of
time, the maximum engine performance may be
impaired by combustion residue.
@) Note
— Damage or malfunctions caused by the use
of incorrect types of gasoline are not cov-
ered by the New Vehicle Limited Warranty.
— Only gasoline additives that have been ap-
proved by Audi may be used.
270
Refueling
Messages
A Tank system: malfunction! Please contact
Service
There is a malfunction in the fuel tank system.
Drive to an authorized Audi dealer or authorized
Audi Service Facility immediately to have the
malfunction corrected.
Messages
Applies to: vehicles with plug-in hybrid drive
A Fuel filler door: malfunction! Unlock fuel
filler door manually. See owner's manual
There is a malfunction. You must manually un-
lock the fuel filler door > page 273.
Al Warning! Vehicle performance may be limit-
ed
The fuel tank is almost empty. You must antici-
pate a significant power loss. Refuel immediate-
ly.
& Please refuel and charge battery. Total
range: x mi (km)
or
f& Tank system: please refuel immediately and
charge battery. Total range: x mi (km)
If this indicator light turns on and this message
appears, refuel as soon as possible. Otherwise,
the high-voltage battery is drained > page 131.
AY Fuel filler door open. Please press button
again to refuel
Fueling is possible for a little while after pressing
the G) button. You must press the A button
again if the time limit is exceeded.

4N0012721BF
Checking and Filling

> Wait approximately two minutes.
» Applies to MMI: Select on the home screen: VE-
HICLE > Settings & Service > Oil level.
> Read the oil level in the display. Add engine oil
if the bar in the oil level indicator is just below
“min” > page 279.
@) Note
If the engine oil level is too low or too high,
there is a risk of engine damage.
@) Tips
The oil level indicator in the display is only an
informational display. If the oil level is too
low, a minimum oil warning appears in the in-
strument cluster. Add oil and close the hood.
The current oil level will be displayed on the
MMI the next time the ignition is switched on.
@) Tips
The engine oil consumption may be up to
0.5 quart/600 miles (0.5 liter/1,000 km), de-
pending on driving style and operating condi-
tions. Consumption may be higher during the
first 3,000 miles (5,000 km). The engine oil
level must be checked regularly. It is best to
check each time you refuel your vehicle and
before long drives.
— Because of the lubrication and cooling of
the engine, combustion engines consume
oil. The oil consumption varies depending
on the engine and may change during the
service life of the engine. Engines generally
consume more oil at the beginning during
the break-in period. Then oil consumption
stabilizes after the break-in period.
— Under normal conditions, oil consumption
depends on the quality and viscosity of the
oil, the engine RPM, the climate conditions,
and the road conditions. The dilution of oil
from condensation or fuel residue as well as
the age of the oil also play a role. Because
engine wear increases with mileage, oil con-
sumption will increase again over time until
it may be necessary to replace worn compo-
nents.
— Because all these variables play a role, it is
not possible to define an oil consumption
standard. Therefore, the oil level must be
checked regularly.
— If you believe that your engine has in-
creased its oil consumption, contact an au-
thorized Audi dealer or authorized Audi
Service Facility to determine the cause.
Please note that an exact oil consumption
measurement must be done with the neces-
sary care and accuracy and may take time.
An authorized Audi dealer or authorized
Audi Service Facility is trained in accurately
measuring the oil consumption.
— You can find information on engine oil and
engine oil capacities for the USA at www.
audiusa.com/help/maintenance, or for Can-
ada at www.audi.ca/ca/web/en/
customer-area/care-and-maintenance/
audi-service-schedules.html, or call
800-822-2834.
Adding engine oil

RAZ-0013|


Fig. 182 Engine compartment: engine oil filling opening
cover (example)
Observe the safety precautions > page 274, Gen-
eral information.
> Turn the engine off.
> Open the hood > page 276.
>» Unscrew the cap %~ for the engine oil filler
opening > fig. 182.
> Carefully add 0.5 quart (0.5 liter) of the correct
oil > page 277.
> Close the engine oil filler opening cap.
> Close the hood > page 276.
> Restart the ignition after two minutes and read
the current oil level in the MMI > page 278,
Checking the engine oil level.
279

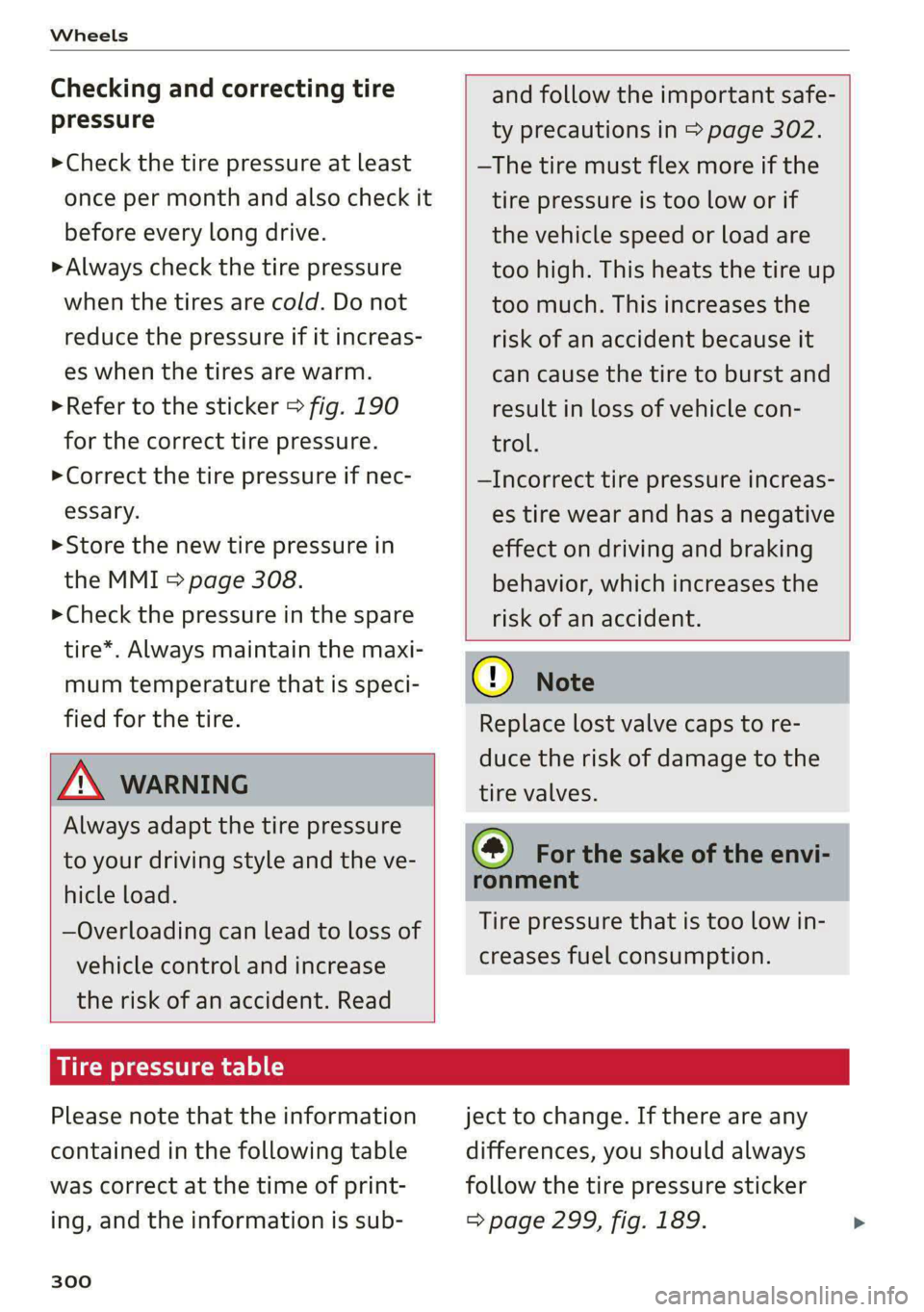

Wheels

Checking and correcting tire
pressure
> Check the tire pressure at least
once per month and also check it
before every long drive.
> Always check the tire pressure
when the tires are cold. Do not
reduce the pressure if it increas-
es when the tires are warm.
>Refer to the sticker > fig. 190
for the correct tire pressure.
>Correct the tire pressure if nec-
essary.
> Store the new tire pressure in
the MMI & page 308.
> Check the pressure in the spare
tire*. Always maintain the maxi-
mum temperature that is speci-
fied for the tire.


and follow the important safe-
ty precautions in > page 302.
—The tire must flex more if the
tire pressure is too low or if
the vehicle speed or load are
too high. This heats the tire up
too much. This increases the
risk of an accident because it
can cause the tire to burst and
result in loss of vehicle con-
trol.
—Incorrect tire pressure increas-
es tire wear and has a negative
effect on driving and braking
behavior, which increases the
risk of an accident.


Z\ WARNING
Always adapt the tire pressure
to your driving style and the ve-
hicle load.
—Overloading can lead to loss of
vehicle control and increase
the risk of an accident. Read

() Note
Replace lost valve caps to re-
duce the risk of damage to the
tire valves.
©) For the sake of the envi-
ronment
Tire pressure that is too low in-
creases fuel consumption.
Uc ecm] )
Please note that the information
contained in the following table
was correct at the time of print-
ing, and the information is sub-
300
ject to change. If there are any
differences, you should always
follow the tire pressure sticker
> page 299, fig. 189.

4N0012721BF
Wheels

& Loose wheel warning: malfunction! See
owner's manual
There is a system malfunction. Drive immediately
to an authorized Audi dealer or authorized Audi
Service Facility to have the malfunction repaired.

ZA\ WARNING
Wheel bolts that are tightened incorrectly can
become loose and result in loss of vehicle con-
trol, which increases the risk of an accident.
— If a message appears, reduce your speed im-
mediately and avoid any hard steering or
braking maneuvers. Stop as soon as possible
and check the wheel bolts.
— Check your wheels for damage. Have the
damaged wheels checked and/or replaced
immediately by an authorized Audi dealer or
authorized Audi Service Facility.
— Under certain conditions (such as a sporty
driving style, winter conditions, or unpaved
roads), the message may be delayed.
— The driver is responsible for ensuring that

the wheels are attached correctly.
@) Tips
— The loose wheel warning system can also
stop working when there is an ESC malfunc-
tion.
— Using snow chains may result in a system
malfunction.
Winter tires significantly improve the vehicle's
handling when driving in winter conditions. Be-
cause of their construction (width, compound,
tread pattern), summer tires provide less traction
on ice and snow.

> Use winter tires on all four wheels.
> Only use winter tires that are approved for your
vehicle.
> Please note that the maximum permitted
speed may be lower with winter tires > A\ in
General information on page 289. An author-
ized Audi dealer or authorized Audi Service Fa-
cility can inform you about the maximum per-
mitted speed for your tires.
> Check the tire pressure after installing wheels
=> page 299.
The effectiveness of winter tires is reduced great-
ly when the tread is worn down to a depth of
0.16 in (4 mm). The characteristics of winter tires
also decrease greatly as the tire ages, regardless
of the remaining tread.
@) For the sake of the environment
Reinstall summer tires at the appropriate
time, because they provide better handling
when roads are free of snow and ice. Summer
tires cause less road noise, tire wear, and fuel
consumption.
(i) Tips
You can also use all season tires instead of
winter tires. Please note that in some coun-
tries where winter tires are required, only win-
ter tires with the 4 symbol may be permit-
ted.
Snow chains improve both driving and braking in
winter road conditions.
> Only install snow chains on the front wheels.
> Check and correct the seating of the snow
chains after driving a few feet, if necessary. Fol-
low the instructions from the manufacturer.
> Note the maximum speed of 30 mph
(50 km/h). Observe the local regulations.
Use of snow chains is only permitted with certain
rim/tire combinations due to technical reasons.
Check with an authorized Audi dealer or author-
ized Audi Service Facility to see if you may use
snow chains.
Use fine-mesh snow chains. They must not add
more than 0.40 inch (10.5 mm) in height, includ-
ing the chain lock.
You must remove the snow chains on roads with-
out snow. Otherwise, you could impair driving
ability and damage the tires.
305

4N0012721BF
Accessories and technical changes

Usually maintenance and repair work requires
special tools, measuring devices, and other
equipment that is available to trained vehicle
technicians in order to help ensure that your vehi-
cle and all of its systems operate correctly, relia-
bly, and safely. Performing work on the vehicle
incorrectly can impair the operation and reliabili-
ty of your vehicle and may void one or more of
your vehicle's warranties.
Technical Modifications
Interference with electronic components, their
software, the wiring, and data transfer may cause
malfunctions. Because of the way electronic com-
ponents are interconnected, such malfunctions
can also impair systems that are not directly in-
volved. This means that you risk both a substan-
tial reduction in the operational safety of your ve-
hicle and increased wear of vehicle components.
Some convenience functions, such as the conven-
ience turn signal function, individual door open-
ing function, and displays, can be reprogrammed
using special workshop equipment. If functions
are reprogrammed, the information and descrip-
tions about these functions in this Owner's Man-
ual may no longer apply to the changed func-
tions. Audi recommends that an authorized Audi
dealer or authorized Audi Service Facility perform
and verify any reprogramming procedures.


— Never perform any work in the engine com-
partment unless you know exactly how to
carry out the job and have the correct tech-
nical information and the correct tools.
— If you are uncertain about what to do, have
the work performed by an authorized Audi
dealer, an authorized Audi Service Facility,
or another qualified workshop. Serious per-
sonal injury may result from improperly per-
formed work.


ZA WARNING
Maintenance work, repairs, or technical modi-
fications to the vehicle (such as installing ad-
ditional equipment) that is not performed
correctly can cause serious injuries and in-
crease the risk of an accident.


Z\ WARNING
The engine compartment in any motor vehicle
is a potentially dangerous area and can cause
serious personal injury.
— Always use extreme caution when doing any
work in the engine compartment. Always
follow commonly accepted safety practices
and use common sense. Never risk personal
injury.

@) Note
— Maintenance work, repairs, or technical
modifications to the vehicle (such as instal-
ling additional equipment) that is not per-
formed correctly can cause vehicle damage.
— If emergency repairs must be performed,
take your vehicle to an authorized Audi deal-
er or authorized Audi Service Facility as soon
as possible.
— Audi is not liable for damage to the vehicle
resulting from failure to comply with these
guidelines.
@) For the sake of the environment
— Regular maintenance can help protect the
environment.
— Technical modifications to the vehicle can
have a negative impact on fuel consumption
and vehicle emissions.
@) For the sake of the environment
Certain components in your vehicle such as
undeployed airbag modules, pretensioners
and remote control batteries may contain Per-
chlorate Material - special handling may ap-
ply, See www.dtsc.ca.gov/hazardouswaste/
perchlorate. When the vehicle or parts of the
restraint system including airbag modules
and safety belts with pretensioners are scrap-
ped, all applicable laws and regulations must
be observed. Your authorized Audi dealer is
familiar with these requirements and we rec-
ommend that you have your dealer perform
this service for you.
339

Detailsts » swccu © x wweove ox seivean a x seme 2 2 wees 233)
Determining correct load limit........... 303
Digital compass ..............0 eee eee 68
DIMENSIONS): « : wees « « wees sg eas ge eR ae 343
Dimming the exterior mirrors............. 64
Dimming the rearview mirror............. 64
Directory .... 2... eee cee eee eee 216
BUSINGSS;Card wen = waam 2 2 weien x > mane a o 216
SeOttiNQS: css « serene ¢ v suewas ev ere Sw eee & 219
Display
CLEARTITG Ae = «: susnens a oi urea ao cieeie « 0) anetine 0 i 313
DispOSalecie «+ sssoee a 0 ensues wo mezess vv arate @ 338
DistamC@ enc o «vse ov wasen a a oawe 2 a wm ¥ os 16
Distance warning sews so ssc + awson 9 & secon 175
Doors
Ghildisafiety lOGk seccas x 0 neue x cnemen « 0 aseasin 3 51
Door contact switch...............200-. 62
Mechanically unlocking and locking....... 44
Power closing/closing aid............... 41
Driver information system................ 13
Drives
refer to Media...............0-4- 250, 253
Drive select
refer to Audi drive select............... 124
Drive systeM.... 0.0... ee eee eee eee 114, 118
Audi drive select .............0.000008 124
Driving down hills.............2.-00 eee 122
Driving program........ see e eens 110,174
Driving through water.................. 122
Drivingueiime’, so sxeusie «i coissen © a onmvire © eaten wo 2 16
Driving tips
Driving through water...............-- 122
Efficient driving : see: sy esse ss ores 5 ces 116
Uphill and downhill................... 122
Driving UpHillsss « » sess x = wavs a & saws 2 5 wee 122
DVDidfivein: « « saves 2 = cms 5 2 ewes & ese Fe 251
Dynamic all-wheel steering.............. 127
E
| 220
S@CtiNGS news « woes © s woos 4 & ween & 3 rane 220
EDL
refer to Electronic Differential Lock...... 129
EDR
refer to Event Data Recorder (EDR)...... 333
348
Efficiency assiStccc «sows 6 = meee ow eeaee ¥ o 164
Predictive control...............00005 170
Electrical system ..... 0.0... 0. eee eee ee 284
Electric range... . 2... eee eee eee 238
Electromechanical parking brake......... 121
Electronic Differential Lock.............. 129
Electronic immobilizer sss. 5 s een so mayen 4 os 46
Electronic Stabilization Control........... 129
Embedded SIM card s « saga « ¢ secon ae was ¢ 3 223
Emergency assist. ..........00-.0ee eee 186
Emergency assistance.................. 317
Emergency braking function............. 121
Emergency call...............-00. 218, 227
Emergency flashers.............---000-- 61
Emergency Mode w icies saw es cee ee een 112
Emergency operation
DOORS iss secwous « os exewans = x caamene = exanems = > wR & = 44
Fuel filler door... ..... 00... eee eee eee 273
Luggage compartment lid............... 51
Panoramic:glass rOOF sre. 6 2 sree «2 severe o oe 54
Emissions control system.........-.0005 273
Eneroy COnsUMMersios se neww + wen a s eee a sg 16
Enéroy flow display’: sce: ss swam + s aes vee 115
Energy management............--...0- 117
Energy recovery.............0..0.0000. 114
Engine
Breakinigniti's « seus « segues x ¢ awe 3 eee Ze 114
Coolant. ascvons vs acne wo awcvces 0 a semana w stamese 281
Emergency stop.......--..00-.ee eee 107
JUMP StACING « ¢ gems + a eee gy eS 8s ee 323
Start/Stop system « secs so sews oe enews ¥ oo 117
Starting/stopping.............0.-000 107
Engine braking effect
refer to Recuperation................. 114
Engine compartment
Opening and closing the hood.......... 276
OVERVIEW « cscs +o soeces «a sserens wo aewens © a ow 277
Safety precautions..............0000 0 274
Engine oil
AGING « xsins < = cevan ¢ § Sates 7 5 Ee FS ESR 277
CHANGING ie: @ 2 ween 2s eee sa ee oe ewe 2 280
Checking oil level... .. 0... . cee ee eee eee 277
Consumption....................200- 277
Indicator lights. 5 ws s ewes » s wwe as eens 278
Replacement interval................. 287
Temperature display................0-. 1s

4N0012721BF
Index

Engine sound
Audi drive select.......... 0.00 eee eee 124
Engine start system..................0. 108
Engine stop
refer to Start/Stop system............. 117
Entry/exit lighting. ..............0eeee ee 61
Entry assistance.................-0 020s 73
also refer to Exit assistance............. 73
Environment
Unleaded gasoline................200. 269
ES@
refer to Electronic Stabilization Control... 129
ESG:SPOltis ss wees es serow so ens x e ewe ze 130
eSIM
refer to Embedded SIM card............ 223
Event Data Recorder (EDR).............. 333
EVimOde » wes s pasa 3 wuss os wee 6 = see 5 115
EXit:aSSiStani@Giis « x comm « < ems « RGERS eS 73
Exit Warning’: « s sos © ¢ wea © i eews oy Rees 184
Exterior antenna...............0..000. 212
Exterior lighting................0022-00. 58
Exterior mirrors... ........0..0.00000005 64
FOLGING'SELtINGSi: + x sams ¢ s sue x eee Ya: 42
External voice operation..............0.5 35
F
Factory default settings
Multi Media Interface................. 264
Factory settings
Rear:Seat: Remote .. seices és iiss oo ones oo 263
Fast rOUtC sess + eeu 2 2 gow sv cere oe ee 231
Favorites: < 2 vw ¢ 2 esis < ¢ dees + enews oon 22
Bluetooth « « scons 2 a swavwne x 2 awaene © event we © oe 266
Navigation... ........ 00. c cece eee eee 232
Telephoti@s:s: = « aae¢ = oven & s seem os ree 215
Federal Communications Commission (FCC) . 341
File formats (media drives).............. 258
Fog (windows) ...........00ee ee ee ee eee 102
Folding
tray table............0....000 00. 96
FOOCHEATIAG sioncase x 0 veces: + 6 asians «a seman © Hane 102
Footrests initeat's « + sesscea 0 2 omen a 2 own 9 w one 77
Footwell temperature.................. 103
For the sake of the environment
Disposing of engine oil................ 280
FUGUING:: < = sews 2 2 wows x o eee ge eee Fo ee 271
L@AKS boxe smansos x samen ow menos we aun a 275
FAQKaNG@rsces 2 o sce 2 o sees oo sR oo 102, 103
Free text search
Mediai. 2 2 sssxass a 0 sananis wo oreness 6 H emeneen & a1 ene 257
Radio... 2.2.2... eee eee eee eee eee 245
also refer to Intelligent search.......... 231
Freeze protection
COOLANE scsnis av aaneiss 6 4 insunse aw aves & 8 eswIEHE 281
Windshield washer system............. 287
Frequency band...............--000 ee 242
also refer to Frequency band........... 242
Front center armrest...............0.00. 73
Front collision warning
refer to Audi pre sense front............ 178
Front passenger's seat adjustment
R@ar : saws ¢ + eae ¢ » ews so meee st se es oe 75
Front passenger’s seat adjustment
PrOmtis 2 2 soveas 2 a ravens oe awe 2 a mee 2 x eNO 73
Rear... eee eee 73
Front wiper blades
Changing................0.00 ee eee eee 67
ClOANiNG’s « = seas a o ses + o sews so ews ev Ge 67
FUl@ls aguas 3 = imue x 2 eae ¢ EEE FE BEE ea 269
INAGIEIVE Se cecscics ow casi 2 ws amano © ctawais We oe 270
Current consumption...............000. 16
Fuel QaUg@ asx ¢ < oes « v ness sp rere se ee 12
Fueltankicapacity’ « s scsi «6 meow © waco « 344
Gasoline. 0.1... cece eee 269
Reducing fuel consumption............ 116
Fueling
Fuel filler GOOF ox « « cawy 6 ewes 2s yews ss 2 271,
Fuel filler door emergency release....... 273
Fuel tank capacity... ...... eee eee eee 344
G
Garage door opener............--000000- 55
Garment hooks ..............0000eee eee 97
GaSOL Meise ue a sxsweme 1 = anemaine = 5 onetime ws cemntene fe 3 269
Additives... 0.0.0.0... cc cece eee ee eee 270
Gasoline MIRCUNE wee 2» yew 2 o sews + same 269
GAWR
refer to Gross Axle Weight Rating (GAWR) . 344
GeaTsis « o scsn +s men 2 2 neon 2 rece Y oe 349
