also reduces fuel efficiency and tire tread life,
and may affect the vehicle's handling and stop­
ping ability.
Please note that the TPMS is not a substitute for
proper tire maintenance, and it is the driver's re­
sponsibility to maintain correct tire pressure,
even if under-inflation has not reached the level
to trigger illumination of the TPMS low tire pres­
sure telltale.
Your vehicle has also been equipped with a TPMS
malfunction indicator to indicate when the sys­
tem is not operating properly. The TPMS mal­
function indicator is combined with the low tire
pressure telltale. When the system detects a
malfunct ion, the telltale will flash for approxi­
mately one minute and then remain continuous ly
illuminated. This sequence will continue upon
subsequent vehicle start-ups as long as the mal­
function exists.
When the malfunction indicator is illuminated,
the system may not be ab le to detect or signal
low tire pressure as intended . TPM S malfunctions
may occur for a variety of reasons, including the
installation of replacement or alternate tires or
wheels on the vehicle that prevent the TPMS
from functioning properly . Always check the
TPMS malfunction telltale after replacing one or
more tires or wheels on your vehicle to ensure
that the replacement or alternate tires and
wheels allow the TPMS to continue to function
properly.
Wheels
If the Tire Pressure Monitoring System
indicator appears
Applies to vehicles : wi th tire pressure mo nito rin g sys te m
The tire pressure indicator in the instrument
cluster informs you if the tire pressure is too low
or if there is a system malfunction.
Fig. 160 Instrument cluster : indicator lig ht with message
Using the ABS sensors, the tire pressure monitor­
ing system compares the tire tread circumfer­
ence and vibration characterist ics of the ind ividu ­
al tires. If the pressure changes in one or more
t ire s, this is indicated in the instrument cluster
display with an indicator light
[I] and a message.
If only one tire is affected, the location of that
ti re will be indicated.
The tire pressures must be stored in the Infotain­
ment system again each time the pressures
change (switching between partial and full load
pressure) or after changing or replacing a tire on
your vehicle ~
page 210. The tire pressure moni­
toring system on ly monitors the tire pressure you
have stored. Refer to the tire pressure label for
the recommended tire pressure for your vehicle
¢ page 201, fig . 159.
Tire tread c ircumference and vibration character­
istics can change and cause a tire pressure warn­
ing if :
- the tire pressure in one or more tires is too low.
- the tir e has str uctural damage.
- the tir e was replaced or the tire pressure was
changed and it was not stored¢
page 210.
-the spare tire* is installed .
Indicator lights
[I] Loss of pressure in at least one tire¢,& .
Check the tires and replace or repair if necessary . ..,
209

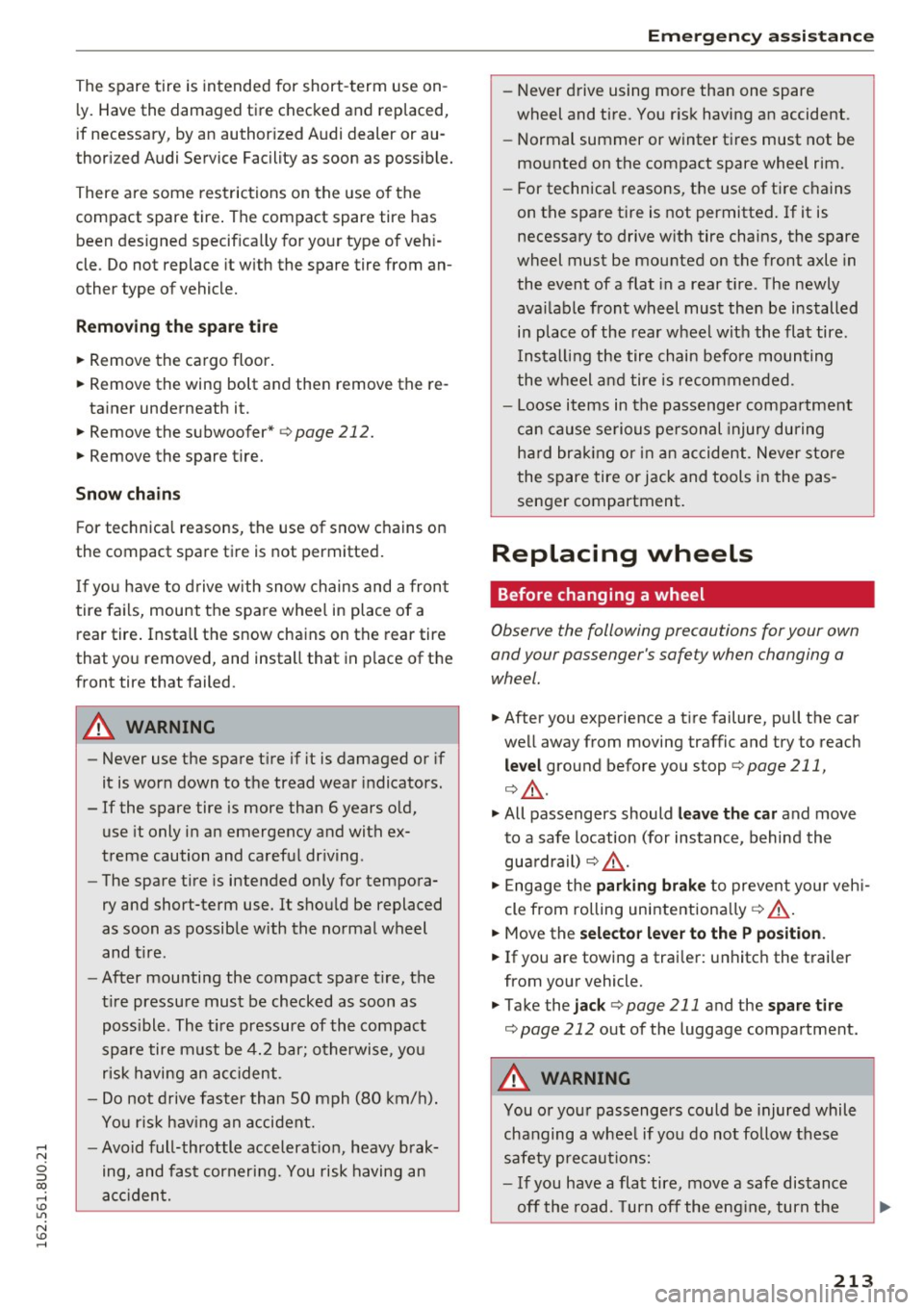

The spare tire is intended for short-term use on­
ly. Have the damaged tire checked and replaced,
if necessary, by an author ized Audi dealer or au­
thor ized Audi Service Facility as soon as possib le.
There are some restrictions on the use of the
compact spare tire . The compact spare tire has
been designed specif ically for your type of veh i­
cle . Do not replace it with the spare tire from an­
other type of vehicle.
R emo ving th e spar e tire
... Remove the cargo floor .
... Remove the wing bolt and then remove the re-
tainer underneath it.
... Remove the subwoofer*
¢ page 212.
... Remove the spare tire.
Snow cha in s
For technical reasons, the use of snow chains on
the compact spare tire is not permitted.
If you have to drive with snow chains and a front
tire fails, mount the spare wheel in place of a
rear tire. Install the snow chains on the rear tire
that you removed, and install that in p lace of the
front tire that failed.
A WARNING
- Never use the spare t ire if it is damaged or if
it is worn down to the tread wear indicators.
- If the spare tire is more than 6 years o ld,
use it only in an emergency and with ex­
treme caution and carefu l dr iving.
- The spare tire is intended on ly for tempora­
ry and short-term use. It shou ld be replaced
as soon as possible with the normal wheel
and t ire.
- After mounting the compact spare t ire, the
t ire pressure must be checked as soon as
poss ible. The t ire pressure of the compact
spare tire must be 4.2 bar; otherwise, yo u
risk having an accident.
- Do not d rive faster than 50 mph (80 km/h).
Yo u risk hav ing an accident.
- Avoid full-throttle accelerat ion, heavy b rak­
ing, and fast cornering. You risk having an
acc ident.
Em ergenc y ass is tanc e
-Never drive using more than one spare
wheel and tire. You r isk having an accident.
- Normal summer or winter tires must not be
mounted on the compact spare wheel rim.
- For technical reasons, the use of tire chains
on the spare tire is not permitted. If it is
necessary to drive w ith tire chains, the spare
wheel must be mounted on the front axle in
the event of a flat in a rear t ire. The newly
ava ilable front wheel must then be installed
in place of the rear wheel with the flat tire.
I nstalling the tire chain befo re mounting
the wheel and tire is recommended .
- Loose items in the passenger compartment
can cause se rious personal injury during
ha rd bra king or i n an accident. Never store
the spare tire or jack and tools in the pas­
senger compartment.
Replacing wheels
Before changing a wheel
Observe the following precautions for your own
and your passenger's safety when changing a
wheel.
... After you experience a tire failure, pull the car
well away from moving traffic and try to reach
lev el ground before you stop¢ page 211,
¢ .&_.
... All passengers should le av e the car and move
to a safe location (for instance, behind the
gua rdrail)
c:::> .lll ·
... Engage the parking brake to prevent your veh i­
cle from rolling unintentiona lly
c:::> .&_ .
... Move the selector le ver to the P po sit ion .
... If you are towing a trai ler: unhitch the trailer
from your vehicle.
... Take the
jack ¢ page 211 and the spa re ti re
¢page 212 out of the luggage compartment.
A WARNING
You or your passengers could be injured while
changing a whee l if you do not follow these
safety pre caut ions:
- If you have a flat tire, move a safe distance
off the road. Turn off the eng ine, turn the
