[i] Adjusting seat heating*
Pressing the button switches the seat heating
on at the highest setting ( leve l 3) . The LEDs
indicate the temperature level. To reduce the
temperature, press the button again. To
switch the seat heating off, press the button
repeatedly until the LED turns off .
After 10 minutes, the seat heating automati­
cally switches from leve l 3 to leve l 2.
lil Adjusting seat ventilation*
Pr ess ing the button switches the seat venti la­
tion on at the highest setting (level 3). The
LE Ds indicate the ventilation leve l. To reduce
the ventilation leve l, press the button again.
To switch the seat ventilat ion off, press the
button repeatedly until the LED turns off.
I.., FRONT I Switch the defroster on/off
The windshield and side windows are defrost­
ed or cleared of condensation as quickly as possib le. The maximum amo unt of air flows
mainly from the vents below the windshield.
Recirculation mode switches off . The tempera­
ture is controlled automat ically.
The
IAU TOI button switches the defroster off.
IClil REAR I Switching rear window heater
on/off
The rear window heater only operates when
the engine is running.
It switches off auto­
matica lly after a few minutes, depend ing on
the outside temperature.
To prevent the rear window heater from
switching off automatically, press and hold
the
lllii) REAR I button for more than 2 seconds.
This remains stored unt il the ignition is
switched off.
Air vents
You can open and close the center and rear air
vents using the thumbwheels . The levers ad­
just the direction of the airflow from the vents.
You can adjust the air temperature in the rear by turning the thumbwheel toward the red
Warm and cold 81
side to make it warmer or toward the blue
side to make it cooler .
A WARNING
-Do not use the recircu lation for extended
periods of time. The windows could fog
up since no fresh a ir can enter the vehi­
cle . If the windows fog up, press the air
recirculation button aga in immed iately
to switch off the air recirculation func­
tion or select defrost.
- Individuals with reduced sensitivity to
pa in or temperature could develop burns
when using the seat heating* funct ion.
To reduce the risk of injury, these individ­
uals shou ld not use seat heating.
(D Note
To avoid damage to the heating elements*
in the seats, do not kneel on the seats or
place heavy loads on a small area of the
seat.
(D Tips
The seat heating* only works when the
seat detects body weight on it. Placing ob­
jects on the seat could create enough
weight to switch seat heating on .
Setup
The basic climate control settings can be ad­
justed in the radio or MMI*.
.,. Select: I CAR I function button> A/C control
but ton. Or
.,. Select:
I CAR I function button > Car sys-
tems*
control button > AC.
Automatic recirculation
When switched on, automatic recirculation
controls the recirculation mode automatically.
If the windows fog up, press the lqj> FRON T I
button.
Synchronization
When synchronization is switched on, the
same settings are applied to both the driver
liJ>,

82 Warm and cold
and front passenger, excep t for the sea t heat ­
ing/ventilation *. Synchronization switches
off
when yo u ad just the settings on the front pas ­
senger's side .
You can a lso swi tch synchron iza tion on by
p ress ing and ho lding t he knob on the d river's
side .
Supplementary heater*
The s upp lement ary heat er war ms the i nter io r
of vehicles with flex ible fue l eng ines * or hy­
b rid dr ive * more quickly. The supp lementary
heate r is cont ro ll ed automatically in the
Auto
setting.

234 Checking and filling
-Apply the parking brake.
- Move selector lever of automatic trans- mission to P (Park).
- Always let the engine cool down. Hot components will burn skin on contact.
- To reduce the risk of being burned, never
open the hood if you see or hear steam
or coolant escaping from the engine
compartment. Wait until no steam or
coolant can be seen or heard before care­
fully opening the hood.
- Keep children away from the engine com­ partment.
- Never spill fluids on hot engine compo­
nents. They can cause a fire.
- Never touch the radiator fan. The auxili­
ary electric fan is temperature controlled
and can switch on suddenly.
- Never open the coolant reservoir cap
when the engine is still warm. The cool­
ant system is pressurized and hot cool­ ant could spray out .
- Protect your face, hands and arm from
steam or hot engine coolant by placing a
thick rag over the cap when you open the
coolant reservoir .
- Do not remove the engine cover under
any circumstances. This increases the
risk of burns.
- If work on the fuel system or the electri­
cal system is necessary:
- Always disconnect the battery.
- Never smoke or work near heaters or
open flames. Fluids in the engine com­
partment could start a fire.
- Keep an approved fire extinguisher im­
mediately available.
- To avoid electrical shock and personal in­
jury while the engine is running or being
started, never touch:
- Ignition cables
- Other components of the high voltage
electronic ignition system.
- If you must perform a check or repair
with the engine running: -
First, fully apply the parking brake,
move selector lever of automatic trans­
mission to P (Park).
- Always use extreme caution to prevent
clothing, jewelry, or long hair from get­
ting caught in the radiator fan, V-belts
or other moving parts, or from contact­ ing hot parts. Tie back hair before
starting, and do not wear clothing that
will hang or droop into the engine.
- Minimize exposure to emission and
chemical hazards
c:> &, .
&_ WARNING
California Proposition 65 Warning:
- Engine exhaust, some of its constituents,
and certain vehicle components contain
or emit chemicals known to the State of
California to cause cancer and birth de­
fects and reproductive harm. In addition,
certain fluids contained in vehicles and
certain products of component wear con­
tain or emit chemicals known to the
State of California to cause cancer and
birth defects or other reproductive harm.
- Battery posts, terminals and related ac­
cessories contain lead and lead com­
pounds, chemicals known to the State of
California to cause cancer and reproduc­
tive harms. Wash hands after handling.
(D Note
When adding fluids, always make sure that
they are poured into the proper container
or filler opening, otherwise serious dam­
age to vehicle systems will occur.
@ For the sake of the environment
To detect leaks in time, inspect the vehicle
floor pan from underneath regularly. If
you see spots from oil or other vehicle flu­
ids, have your vehicle inspected by an au­
thorized Audi dealer.

-Never mount used tires on yo ur vehicle if
yo u are not sure of their "previous histo­
ry." Old used tires may have been dam­
aged even though the damage cannot be
seen that can lead to sudden tire failure
and loss of vehicle control.
- If you notice unusual vibration or if the
vehicle pulls to one side when d riving, al­
ways stop as soon as it is safe to do so
and check the wheels and tires for dam­
age .
(D Note
Please note that summe r and wi nte r tires
are designed for the cond itions that are
Glossary of tire and loading terminology
Accessory weight means the comb ined weight (in excess of
those sta ndard items which may be rep laced)
of au toma tic transmission, power steer ing ,
power brakes, power windows, power seats,
radio, and heater, to the extent that these
items are availab le as factory-installed equip­
ment (whether installed or not) .
Aspect ratio
means the rat io o f the height to the w idth of
the tire in percent . Numbers of 55 or lower in ­
dicate a low sidewall for improved steering re­
sponse and better overa ll handling on dry
pavement .
Bead
means the part of the t ire t hat is made o f
steel wires, wrapped or reinforced by ply cords
and that is shaped to fit the r im.
Bead separation
means a b reakdown of the bond between
components in the bead .
Cord means the strands forming the plies in the
tire.
Tire s an d wheel s 249
typica l in those seasons . Aud i recommends
using winter tires during the winter
months . Low temperatures signif icant ly
dec rease the e lasticity of summer t ires,
which affects tract ion and brak ing ability.
If summer t ires are used i n very co ld tem ­
peratures, cracks ca n form o n the tread
bars , res ulting in perma nen t tire damage
that can cause loud driving noise and un­
bala nced ti re s. Audi i s not respon sible for
th is type of damage .
Cold tire inflation pressure
means the t ire p ress ure recommended by t he
vehicle manufacture r fo r a tire o f a des ignated
s ize t hat has not bee n driven for more than a
coup le o f miles (k ilometers) at low speeds in
the three hour period before the tire press ure
is m easured or adjusted.
Curb weight
me ans the we ight of a motor ve hicle with
st andard equipmen t incl ud ing the max imum
capacity of fuel, oi l, and coolant, air condi ­
tioning and additional weig ht of optiona l
equipment.
Extra load tire
means a t ire design to oper ate a t higher load s
and at higher inflation pressures than the cor­
responding standa rd tire . Extra load tires may
be identified as "XL", "x l", "EXTRA LOAD", o r
"RF" on the sidewal l.
Gross Axle Weight Rating ("GAWR")
me ans the load-ca rry ing capac ity of a single
axle system , measured at the tire -ground in­
te rfaces.
Gross Vehicle Weight Rating ( "GVWR ")
mea ns the maximum total loaded we ight of
the ve hicl e. .,..
•
•

I
I
I
-No. Consumer
6
Headlights range control sys-
tern/Co rnering light
7 Headligh t (corner ing l ight)
Control modules (electrome-
8
chanical parking brake, shock
absorber, quattro Sport, trailer
hitch), DCDC converter
9 Adaptive cruise contro
l or high
voltage battery (hybrid drive)
12 Headlight range contro
l, park­
ing system
13 Airbag
14 Rear wiper
15 Auxiliary fuse (ins
trument pan ­
el)
Auxilia ry fuse terminal 15 (en-
16 gine area)
Fuse panel
@ (brown )
1 E lectric exhaust door
2
3
4
5
6
7 Brake light sensor or brake ped­
al movement sensor (hybrid
drive)
Fuel pump
Brake booster (hybrid drive)
Left seat heating with/without
seat venti
lation
ESC
Horn
Left fron t door (window regula -
8 tor, central locking, mirror,
sw itch, lighting)
-9 Wiper motor
10 ESC
Left rear door (window regula­
l l tor, sw itch, light ing)
12 Rain and light sensor
Fuse panel © (red)
3 Lumbar support
4 Dynam ic ste ering
5 Climatized cupholder
-Amps
5/ 7,5
7,5
5
5/7,5
5
5
5
15
10
40
5/10
5
25
25
1 5/30
5
15
30
30
2 5
30
5
10
35 10
-
Fu se s and bulb s 281
No. Consumer
6 W
indshield washer system,
headlamp washer system 35
7
Vehicle electrical system control
module 1 20
8
Vehicle electrical system control
module 1 30
9 Panorama su
nroof
10 Vehicle elec
trical system control
30
mod ule 1
11 Sun shade (panorama sunroof)
20
12 Anti-theft alarm warning sys-
tern 5

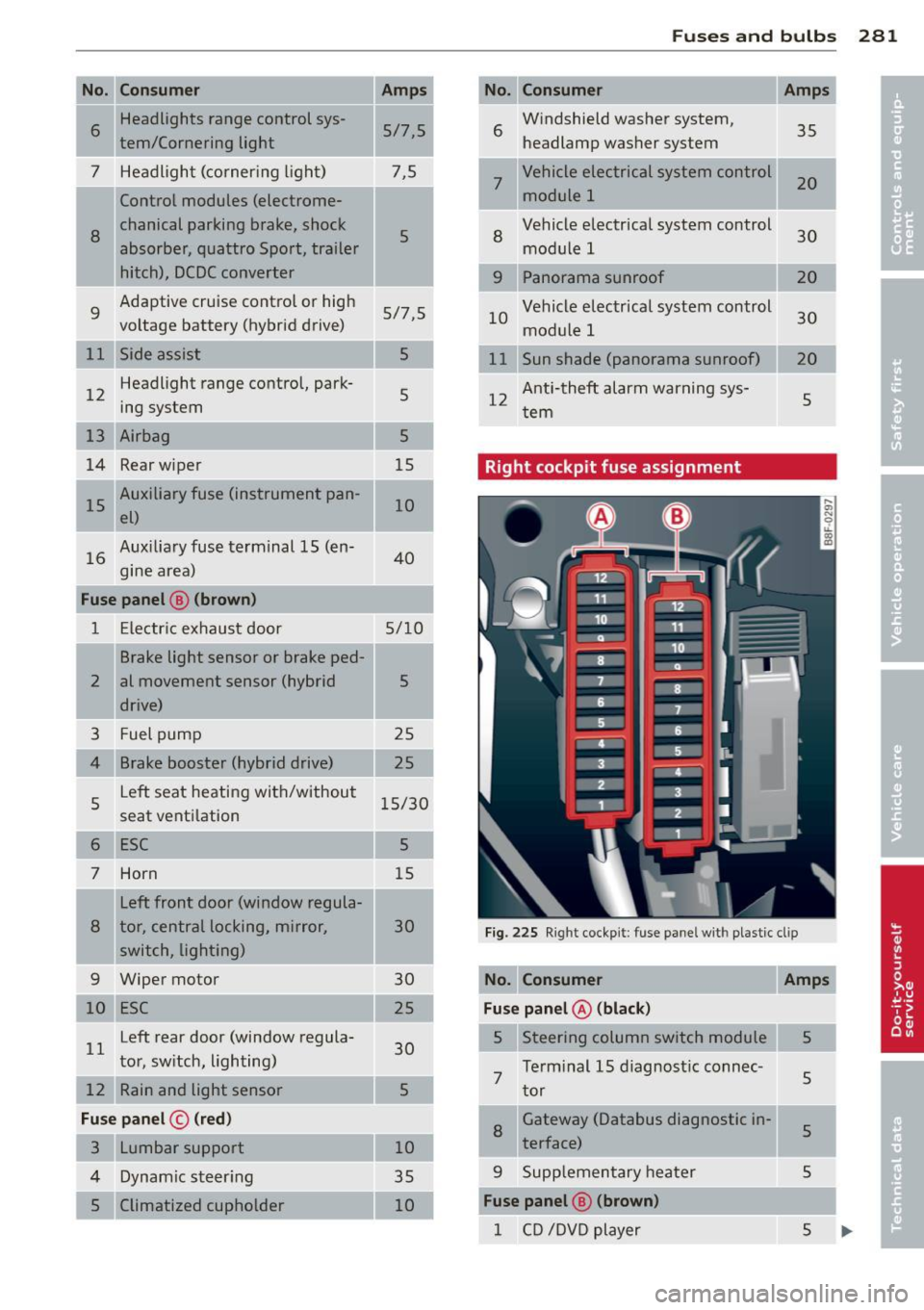

Right cockpit fuse assignment
Fi g. 22 5 Right cockp it : fuse panel wit h plast ic cl ip
No. Consumer Amps
Fuse panel @ (black )
5 Steering column switch module 5
7 Te
rm inal 15 d iagnost ic connec-
tor
5
8 Gateway (Databus diagnostic in-5 terface)
-..
9 Supp
lementary heater 5
Fuse panel @ (brown)
1 CD /D V D p layer 5

282 Fuses and bulbs
I
-
No. Consumer
2 Wi-Fi
3 MMI/Radio
4 Instrument cluster
5 Gateway (instrument cluster
control
module)
6 Ignition lock
7 Light switch
8 Climate control system blower
9 Steering column lock
10 Climate control system
11 Terminal 30 diagnostic connec-
tor
12 Steering column switch module
Right luggage compartment fuse
assignment
Amps
5
5/20
5
5
5 5
40
5
10
10
5
Fig. 226 Right luggage compartment: fuse panel with
plastic cl ip
No. Consumer Amps
Fuse panel
@ (black)
1 Luggage compartment lid con-
30
trol module
2 Trailer control module 15
3 Trailer control module 20
4 Trailer control module
20
-No. Consumer Amps
5 Electromechanical
parking
5
brake
•
6 Electronic damping control 15
7 Electromechanical parking
30
brake
8 Rear exterior lighting 30
9 quattro Sport
35
10 Rear exterior lighting 30
11 Vehicle electrical system control
20
module
12 Terminal 30
5
Fuse panel c (brown)
1 Luggage compartment lid con-
30
trol module
2 12-volt socket, cigarette lighter
DCDC converter path 1 or high
3 voltage battery blower (hybrid 40
drive)
4 DCDC
converter path 2, DSP
30
amplifier, radio
7 Electromechanical
parking
30
brake
Right front door (window regu-
9 later, central locking, mirror, 30
switch, lighting)
11 Rear
right door (window regula-
30
tor, switch, lighting)
12 Cell phone prep 5
Fuse panel© (black)
1 Right front seat heating
15
2 Automatic dimming rearview
5
mirror
3 Instrument panel terminal 30
4 MMI 7,5
Rearview camera
Rear window heater
8 Rear Seat Entertainment
12 High voltage battery (hybrid
drive)
