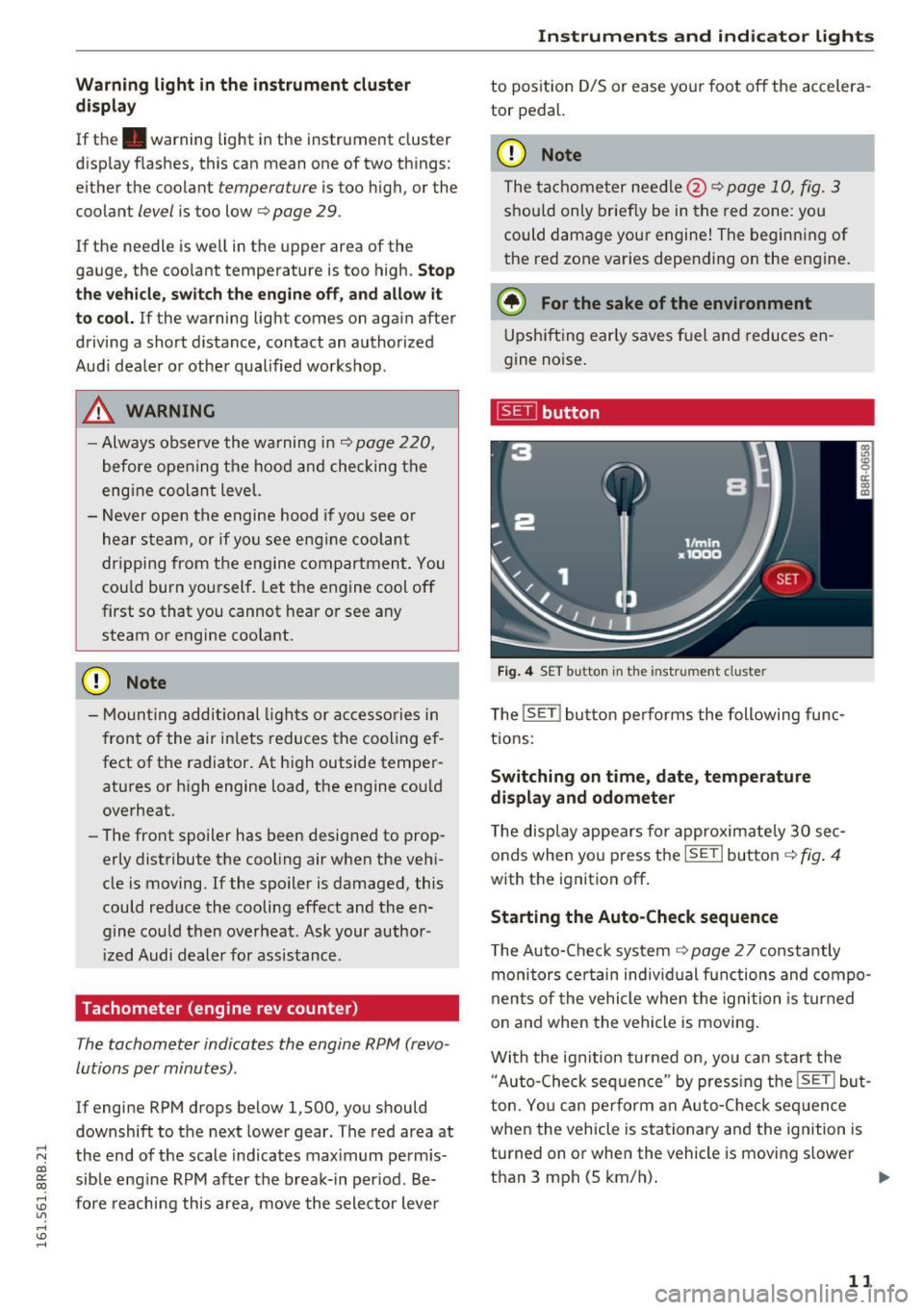

Warning light in the instrument cluster
display
If the . warning light in the instrument cluster
display flashes, this can mean one of two things:
either the coolant
temperature is too high, or the
coolant
level is too low~ page 29.
If the needle is well in the upper area of the
gauge, the coolant temperature is too high.
Stop
the vehicle, switch the engine off, and allow it
to cool. If the warning light comes on again after
driving a short distance, contact an authorized
Audi dealer or other qualified workshop .
..&, WARNING
- Always observe the warning in ~ page 220,
before opening the hood and checking the
engine coolant level.
- Never open the engine hood if you see or
hear steam, or if you see engine coolant
dr ipping from the engine compartment. You
cou ld burn yourself. Let the engine cool off
first so that you cannot hear or see any
steam or engine coo lant.
CD Note
- Mounting additional lights or accessories in
front of the air inlets reduces the cooling ef­
fect of the radiator. At high outside temper­
atures or high engine load, the engine could
overheat.
- The front spoiler has been designed to prop­
erly distribute the cooling air when the vehi­
cle is moving. If the spoiler is damaged, this
could reduce the cooling effect and the en­
gine could then overheat. Ask your author­
iz ed Audi dealer for assistance.
Tachometer (engine rev counter)
The tachometer indicates the engine RPM (revo­
lutions per minutes) .
If engine RPM drops below 1,500, you should
downshift to the next lower gear. The red area at
the end of the scale indicates max imum permis­
sible engine RPM after the break-in period . Be-
~ fore reaching this area, move the selector lever U"I
..... \!) .....
Instruments and indicator lights
to posit ion D/S or ease your foot off the accelera­
tor pedal.
CD Note
The tachometer needle@~ page 10, fig. 3
should only briefly be in the red zone: you
could damage your engine! The beginning of
the red zone varies depending on the engine.
@ For the sake of the environment
Upshifting early saves fuel and reduces en­
gine noise.
~ button
Fig. 4 SET button in the instrument cluster
The !SET ! button performs the following func­
tions:
Switching on time, date, temperature
display and odometer
The display appears for approximately 30 sec­
onds when you press the
ISETI button ~fig . 4
with the ignition off .
Starting the Auto-Check sequence
The Auto-Check system ~ page 2 7 constantly
monitors certain individual functions and compo­
nents of the vehicle when the ignition is turned
on and when the vehicle is moving.
With the ignit ion turned on, you can start the
"Auto-Check sequence" by press ing the
!SE TI but­
ton. You can pe rform an Auto-Check seq uence
when the vehicle is stationary and the ignition is
turned on or when the vehicle is moving slower
than 3 mph (5 km/h).
IIJ,,,
11

,....,
N
co
er::
co

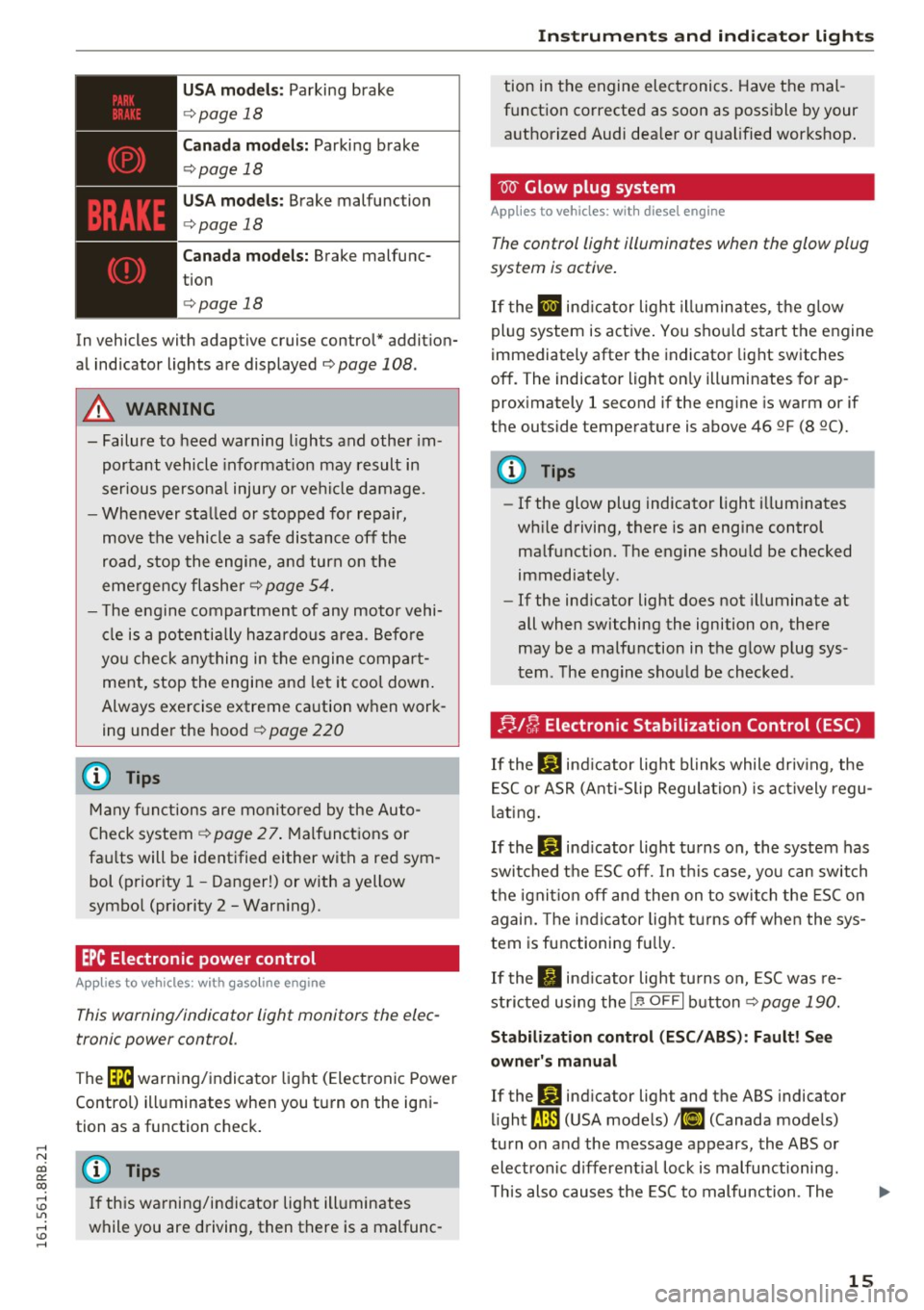

,...., USA m ode ls: Parking brake
¢ page 18
Can ad a mo dels : Parking brake
¢ page 18
USA models: Brake malfunc tion
¢ page 18
Canad a model s: Brake malfunc­
tion
¢ page 18
In vehicles with adaptive cruise control* addit ion­
al indicator lights are displayed
¢ page 108.
A WARNING
-Failure to heed warning lights and other im ­
portant vehicle informat ion may result in
serious persona l injury or vehicle damage.
- Whenever stalled or stopped for repair,
move the vehicle a safe distance off the
road, stop the engine, and turn on the
emergency flasher¢
page 54.
-The e ngine compartment of any motor vehi­
cl e is a potentia lly hazardous area . Befo re
yo u check any thing in the engine compart­
ment, stop the engine and let it cool down .
Always exercise extreme caution when work­
ing under the hood ¢
page 220
@ Tips
Many functions are monitored by the Auto­
Check system ¢
page 2 7. Malfunctions or
fau lts will be ident ified either with a red sym­
bol (priority 1 - Danger!) or with a yellow
symbo l (pr iority 2 -Warn ing) .
EPC Electronic power control
App lies to vehicles: with gaso line engine
This warning/indicator light monitors the elec­
tronic power control .
The Ga warning/indicator light (Electronic Power
Control) illuminates when you turn on the ign i­
tion as a function check.
@ Tips
If this warning/indicator light illuminates
while you are driving, then there is a malfunc-
In strum ents an d ind ic a to r ligh ts
tion in the engine electronics . Have the mal­
function corrected as soon as possible by your
authorized Audi dea ler or qualified workshop .
W Glow plug system
Applies to vehicles: with diesel eng ine
The control light illuminates when the glow plug
system is active.
If t he II ind icator light illuminates, the g low
plug system is active . You shou ld start the engine
immediately after the indicator light switches
off. The indicator light on ly illuminates for ap­
prox imately 1 second if the eng ine is warm or if
the outside temperature is above 46
Q F (8 Q().
(D Tips
- If the glow plug indicator light illuminates
wh ile driving, there is an engine control
ma lfunction. The engine should be checked
immediately .
-If the ind icator light does not illuminate at
all when switching the ignition on, there
may be a malfunction in the glow plug sys­
tem. The engine shou ld be checked.
;;./G, Electronic Stabilization Control (ESC)
If the Bl indicator light bl inks while driv ing, the
E SC or ASR (Ant i-Slip Regulat ion) is act ively regu­
lating .
If the
Bl ind icator light turns on, the system has
switched the ESC off. In t his case, you can swit ch
the ignit io n off and then on to switch the ESC on
again. The indicator light t urns off when the sys­
tem is functioning fu lly.
If the . indicator light tu rns o n, ESC was re­
stricted usi ng the !.$
O FF I button ¢ page 190.
Stabili za tion control (E S C / ABS ): Fau lt! See
owner' s manual
If the liJ ind icator light and the ABS indicator
light
LtB (USA models) ; ti] (Canada models)
turn on and the message appears, the ABS or
electronic d ifferent ial lock is malfu nctioning.
T his also causes the ESC to malfunction . The
15

,....,
N
co
er::
co

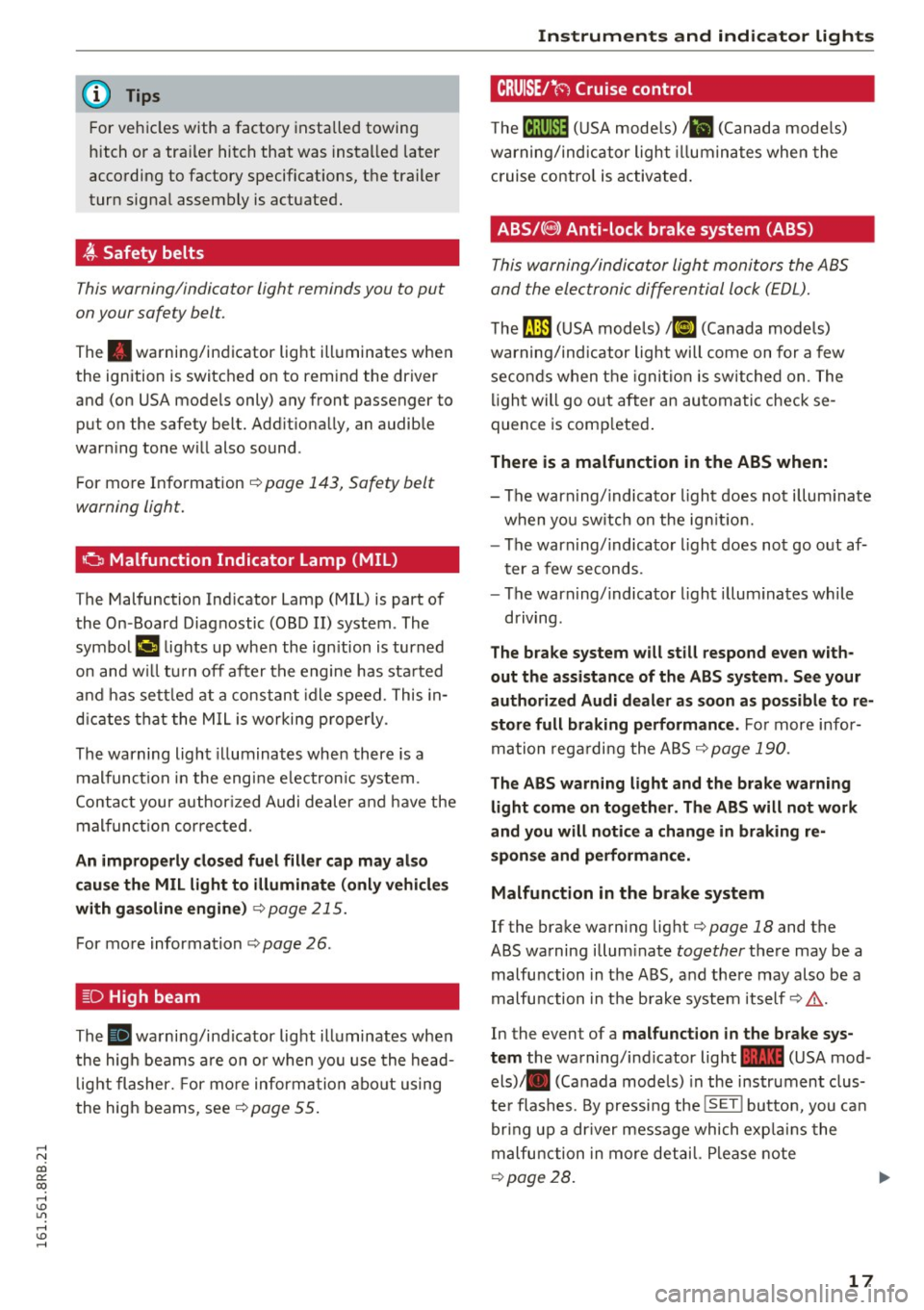

,...., @ Tips
For vehicles with a factory insta lled towing
hitch o r a tra iler hitch that was installed later
according to factory specifications, the trailer
turn signa l assembly is actuated .
~ Safety belts
This warning/indicator light reminds you to put
on your safety belt.
The . warning/in dicator lig ht ill uminates when
the ign ition is switc hed on to remin d the driver
and (on USA models only) any front passenger to put on the safety belt. Add it iona lly, an audib le
war ning tone w ill also so und .
For mo re Info rmat ion ¢
page 143, Safety belt
warning light.
o Malfunction Indicator Lamp (MIL)
The Malfunction Ind icator Lamp (MIL) is part o f
the On -Board Diagnostic (OBD II) system . The
symbo l ¢4 lights up when the ign ition is turned
on an d w ill tur n off aft er the engi ne has st arted
a nd has set tled at a cons tan t idle speed. This in­
d icat es that t he MIL is workin g pro p erl y.
The warning light illuminates when there is a
malfunct io n in the eng ine e lec tron ic system .
Cont act your au thor ized A udi de aler an d have the
mal func tion cor re cted.
An improperly closed fuel filler cap may also
cause the MIL light to illuminate (only vehicles
with gasoline engine)
c:> page 215.
For mo re information c:> page 26 .
[D High beam
The. warni ng/indicator lig ht ill uminates when
the hig h beams a re on o r when yo u use the head­
l igh t fl asher. For mor e inform ation a bo ut using
the high beams, see
c:> page 55 .
Instruments and ind icator lights
CRUISE/• (-) Cruise control
The (~jll)~i* (U SA mode ls) tlil (Canada mode ls)
w arni ng/ind icator ligh t illumin ates whe n the
cr uise contro l is activated.
ABS/{ @) Anti-lock brake system (ABS)
This warning/indicator light monitors the AB S
and the elec troni c differen tial lock ( EDL).
T he ~ (USA mode ls) l [iJ (Canada mode ls)
warni ng/indica tor light will come on for a few
se co nd s when t he ig nition i s sw itc hed on. The
lig ht will go o ut a fter an au toma tic check se­
quence is comp lete d.
There is a malfunction in the ABS when:
-The warning/ indica to r li ght does no t illum inate
when y ou switch on the ig nitio n.
- The warn ing/ indica to r li gh t does no t go out af­
t er a few seconds .
- The warning/ indica to r li ght illum ina tes while
driv ing .
The brake system will still respond even w ith ·
out the assistan ce of the ABS system. See your
authorized Audi dealer as soon as possible to re­
store full braking performance .
For more info r­
mation reg arding the ABS
c:> page 190 .
The ABS warning light and the brake warning
light come on together. The ABS will not work
and you will notice a change in braking re­
sponse and performance.
Malfunction in the brake system
If the brake warn ing lig ht ¢page 18 and the
ABS wa rning illum inate
together the re may be a
malfu nction in t he A BS, and th ere may also be a
malfu nction in t he b rake system itself ¢&. .
In the event of a
malfunction in the brake sys­
tem
the warning/ind icator light 1111 (USA mod ­
els) . (Canada models) in the instrument clus­
te r flashes. By pressi ng the
!SET I button, you ca n
bri ng u p a driver message which exp lains the
m alfu nction in more det ail. Please note
¢ page 28.
17

,....,
N
co
er::
co

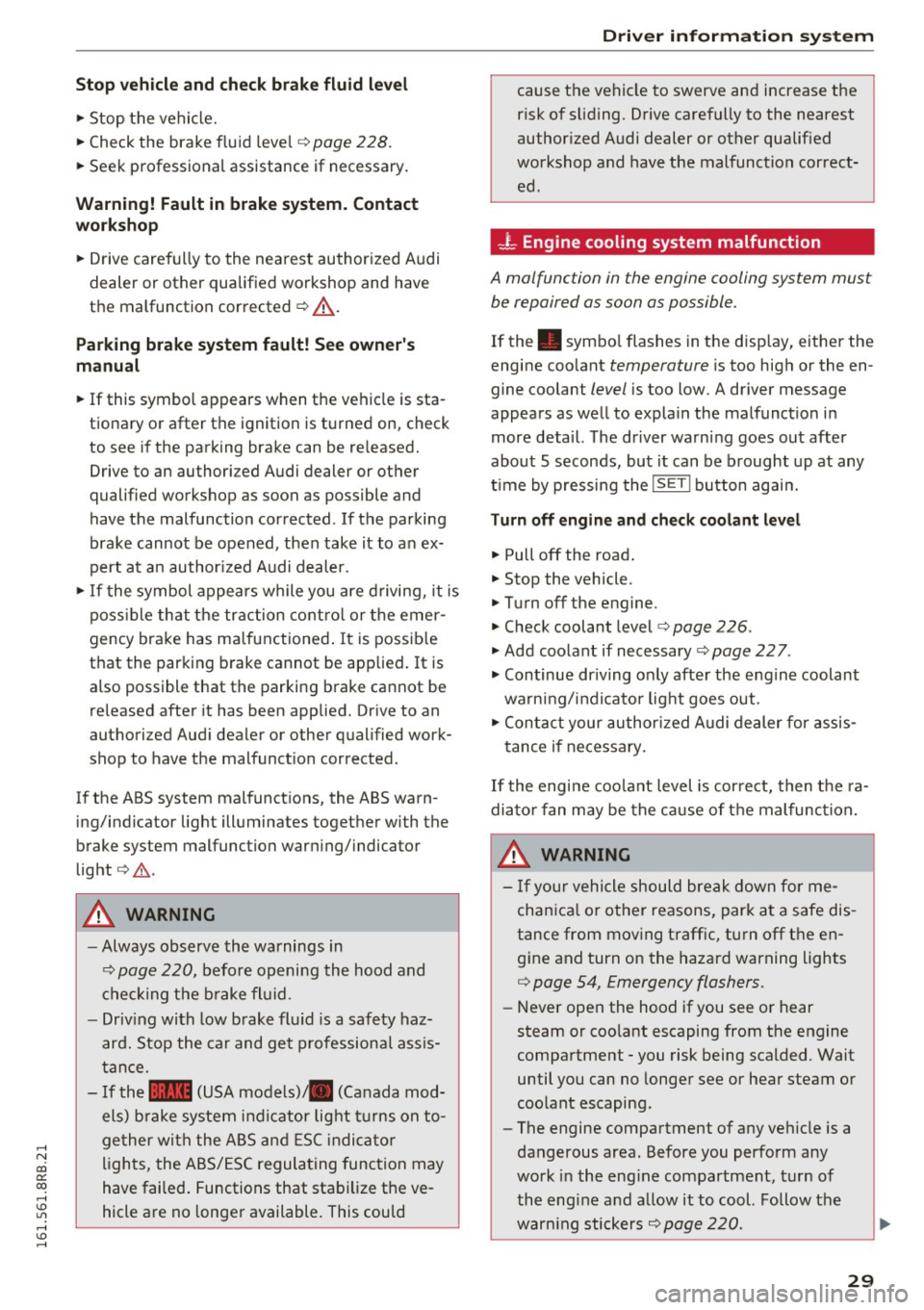

,...., Stop vehicle and check brak e flu id l evel
"' Stop the vehicle.
"' Check the brake fluid leve l
c::>page 228.
"'Seek professional assistance if necessary.
Warn ing! Fault in brake s ystem. Contact
worksho p
"' Drive carefully to the nearest authorized Audi
dealer or other qualified workshop and have
the malfunction corrected
c::> A_ .
Parking brake s ystem fault! See own er's
manual
"' If this symbol appears when the vehicle is sta­
tionary or after the ignition is turned on, check
to see if the parking brake can be released.
Drive to an authorized Audi dealer or other
qualified workshop as soon as possible and
have the malfunction corrected . If the parking
brake cannot be opened, then take it to a n ex­
pert at an authorized Audi dealer.
"' If the symbol appears while you are d riving, it is
poss ible that the traction contro l or the emer­
gency brake has ma lfunctioned . It is possib le
that the parking brake cannot be app lied .
It is
also possible that the parking brake cannot be
released after it has been applied. Drive to an
authorized Aud i dealer or other qualified work­
shop to have the malfunct ion corrected.
If the ABS system malfunctions, the ABS warn­ ing/indicator light illuminates together with the
brake system malfunction warn ing/ indicator
light
c::> _&. .
A WARNING
-Always observe the warnings in
c::> page 220, before opening the hood and
c heck ing the b rake fl uid.
- Driv ing with low brake fl uid is a safety haz­
ard. Stop the car and get professiona l assis­
tance.
- If the
111111 (USA models) . (Canada mod­
els) b rake system indicator light turns on to­
ge ther with the ABS and ES C i ndica to r
lights, the ABS/ESC regulating function may
have failed . Functions that stabilize the ve ­
hicle are no longer available. This could
Dri ver informa tion system
cause the vehicle to swerve and increase the
risk of s liding. Drive carefully to the nearest
authorized Audi dealer or other qualified
workshop and have the malfunction correct­
ed.
- L Engine cooling system malfunction
A malfunction in the engine cooling system must
be repaired as soon as possible.
If the . symbo l flashes in the disp lay, either the
engine coo lant
temperature is too high or the en­
gine coolant
level is too low. A driver message
appears as well to explain the malfunct ion in
more deta il. The driver warn ing goes out after
about 5 seconds, but it can be brought up at any
t ime by pressing the
!SET ! button agai n.
Turn off engine and ch eck cool ant l evel
"'Pull off the road .
"' Stop the vehicle .
"' Turn off the engine.
"' Check coolant level
c::> page 226 .
"'Add coolant if necessary ~ page 227.
"'Continue driving only after the eng ine coolant
warning/indicator light goes out.
"' Contact your au thor ized Audi dealer for assis­
tance if necessary.
If the engine coo lant level is correct, then the ra­
diato r fan may be the ca use of the malfunct ion.
A WARNING
- I f you r vehicle should break down fo r me-
chan ica l or other reasons, par k at a safe dis ­
tance from moving traffic, tu rn off the en­
g ine and turn on the hazard warning lights
c::> page 54, Emergency flashers.
- Never open the hood if you see or hear
steam or coo lant escaping from the engine
compartment -you risk being scalded. Wait
until you can no longer see or hea r steam or
coo lant escaping.
- The engine compartment of any vehicle is a
dangerous area. Before you perfo rm any
work in the eng ine compartment, turn of
the engine and a llow it to cool. Follow the
~
warn ing stickers c::>page 220. Ill-
29

Driver information s ystem

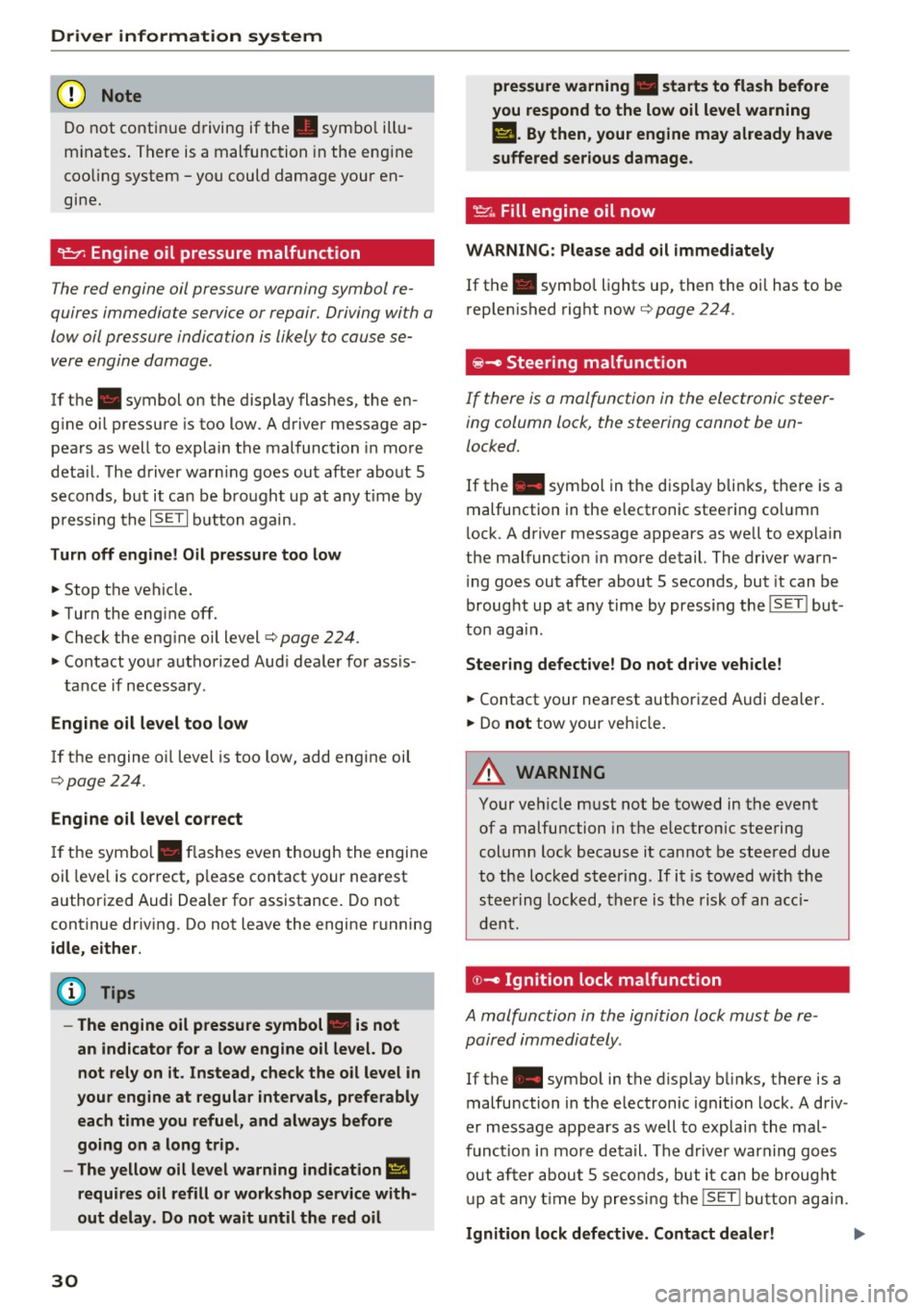

CJ) Note
Do not contin ue driving if the. symbo l ill u­
m inates . There is a malfunction in the eng ine
cooling system -you could damage your en­
gine.
'l=:;r: Engin e oil pressure malfunction
The red engine oil pressure warning symbol re­
quires immedia te service or repair. Driving wi th a
low oil pressure indi cation is likely to cause se­
vere engine damage .
If the . symbol on the display flashes, the en ­
g ine oil pressure is too low . A driver message ap­
pears as well to explain the malfunction in more
deta il. The driver warn ing goes ou t afte r about 5
seconds, but it ca n be bro ugh t up at any t ime by
p ressing the
IS ET I but ton again.
Turn off engine! Oil pressure too low
• Stop the veh icle .
• Turn the eng ine off.
• Check the eng ine oi l level
c> page 224.
• Contact your authorized Aud i dealer for ass is -
tance if necessary .
Engine oil level too low
If the engine oil level is too low, add eng ine oil
c>page224.
Engine oil level correct
If the symbo l. flashes even though the engine
oil leve l is correct, p lease contact your nearest
authorized Audi Dealer for assistance. Do not
continue dr iv ing . Do not leave the engine running
idle, either .
(D Tips
- The engine oil pressure symbol. is not
an indicato r for a low engine oil level. Do
not rely on it. Instead, check the oil level in
your engine at regular intervals, preferably each time you refuel, and always before
going on a long trip .
- The yellow oil level warning indication
Ill
requires oil refill or workshop service with­
out delay. Do not wait until the red oil
30
pre ssure warning • starts to flash before
you respond to the low oil level warning
II. By then , your engine may already have
suffered serious damage.
~ ... Fill engine oil now
WARNING : Please add oil immediately
If the . symbol lights up, then the oil has to be
r ep lenished right now
c> page 224 .
@-Steer ing malfunction
If there is a malfunction in the electronic steer ­
ing column lock, the steering cannot be un­
locked.
If the . symbo l in t he d isp lay bli nks, the re is a
malfunction in the e lectronic stee ring co lumn
l ock. A driver message appears as well to exp la in
the malfunct ion in more detail. The driver warn­
i ng goes out afte r about 5 seconds, but it can be
broug ht up at any time by press ing the
ISET ! but ­
ton aga in.
Steering defective! Do not drive vehicle!
• Contact your nea rest authorized Audi dealer .
• Do
not tow your veh icle .
A WARNING
Your ve hicle must not be towed in the event
of a malfunction in the electronic steering
column lock because it cannot be steered due
to the loc ked st eering . If i t is towed with the
ste ering locked, t here is t he risk of an a cci­
d ent.
© -Ignition lock malfunct ion
A malfunction in the ignition lock must be re­
paired immediately.
If the . symbo l in the display b links , there is a
malfunction in the e lectronic ignition lock . A d riv ­
e r message appears as well to explai n the mal­
funct ion in more de tail. The d rive r warning goes
out af ter abou t 5 se co nds, b ut it can be brought
u p at any t ime by pressi ng the
!SE T! b utton ag ain .
Ignition lock defective. Contact dealer! ..,..

,....,
N
co
er::
co

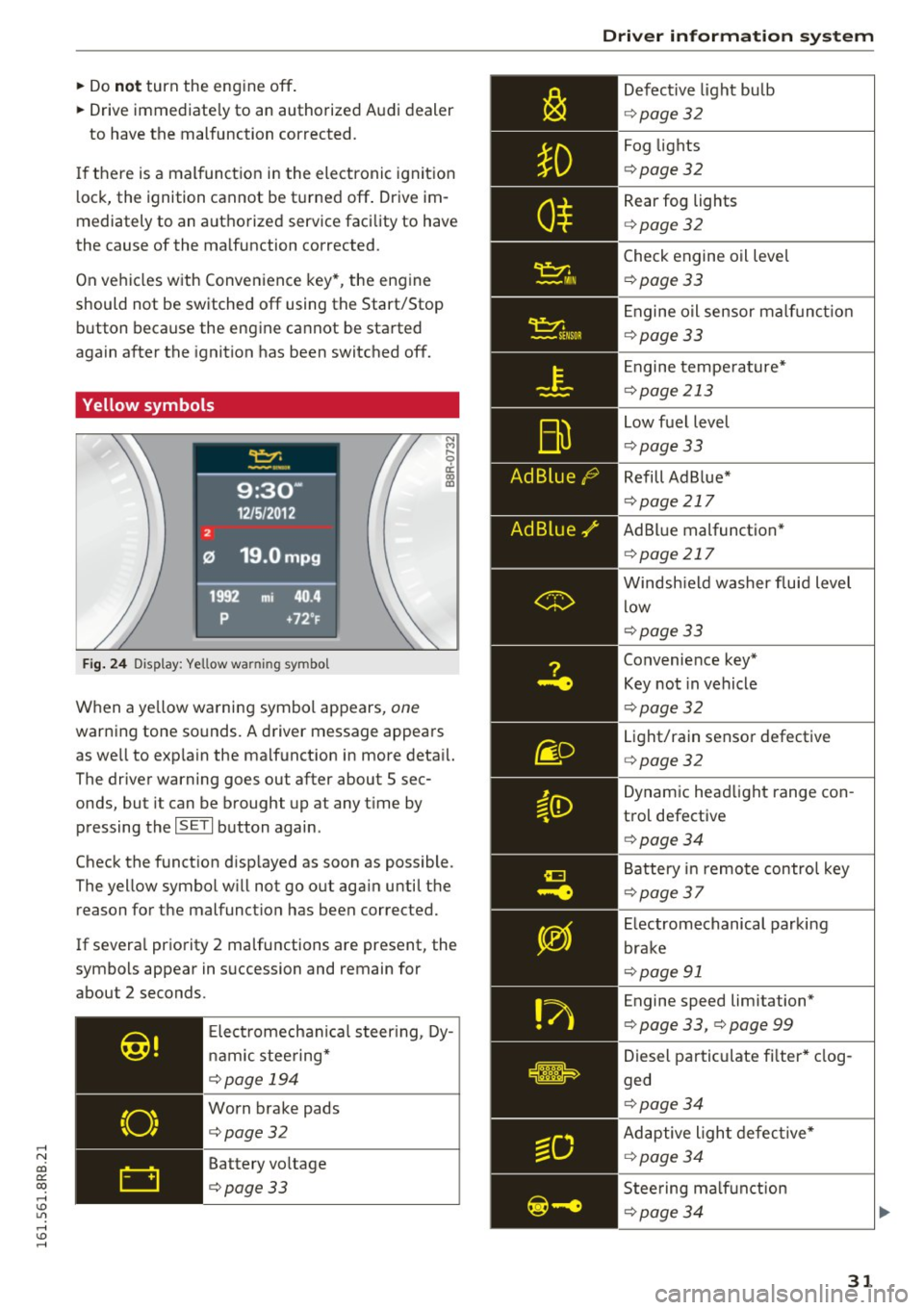

,...., ~ Do not turn the engine off.
~ Drive immediate ly to an authorized Audi dealer
to have the malfunction corrected .
If there is a malfunction in the electronic ignition
lock, the ignition cannot be turned off . Drive im­
mediately to an authorized service facility to have
the cause of the malfunction corrected.
On vehicles with Convenience key*, the engine
should not be switched off using the Start/Stop button because the engine cannot be started
again after the ignition has been switched off.
Yellow symbols
Fig. 24 Display: Yellow warning symbo l
N M
9 a: a, a,
When a yellow warning symbol appears, one
warning tone sounds. A driver message appears
as well to exp la in the malfunction in more detail.
The driver warning goes out after about 5 sec­
onds, but it can be brought up at any t ime by
pressing the
ISETI button again.
Check the function disp layed as soon as possible.
The yellow symbol w ill not go out aga in until the
reason for the malfunct ion has been corrected.
If severa l priority 2 ma lfunctions are present, the
symbols appear in succession and remain for
about 2 seconds.
Elect romechan ical steering, Dy­
nam ic stee ring*
¢page 194
Worn brake pads
¢page32
Battery voltage
¢page33
Driver information system
Defective light bulb
¢page 32
Fog lights
¢pag e 32
Rear fog lights
¢page 32
Check engine oil leve l
¢page 33
Engine oil sensor malf unc tion
¢page 33
Engine temperature*
¢page 213
Low fuel level
¢pag e 33
Refill Ad Blue*
¢page 217
AdBlue malfunction *
¢page 217
Windshield washer fluid level
low
¢page 33
Convenience key*
Key not in vehicle
¢pag e 32
Light/rain sensor defective
¢page 32
Dynamic headlight range con­
trol defective
¢ page 34
Battery in remote control key
¢page 37
Electromechanical parking
brake
¢page 91
Engine speed limitation*
¢ page 33, ¢ page 99
Diesel particulate fi lter * clog­
ged
¢pag e 34
Adaptive light defective*
¢page 34
Steering malfunction
¢page 34
31

Driver information system
Ignition lock malfunction
<=>page 34
Adaptive dampers*
c:> page 34
Windshield wiper defective
c:>page34
Tire pressure monitoring sys­
tem* Loss of tire pressure
c:>page252
Tire pressure monitoring sys­
tem* System not available
c:>page252
Automatic transmission mal­
function
<=> page 126
Hybrid drive*
c:> page99
The speed warnings warning threshold
J raj
and warning threshold 2 ISi are also yellow
symbols in some models. The warning is al­
ways shown as a small symbol in the upper
area of the display
c:> page 94.
-?e Key not in vehicle
Applies to veh icles: w ith Conven ie nce key
II Is the key in the vehicle?
This reminder appears along with the
II symbol
if the master key is removed from the vehicle
with the engine running. It is intended to remind
you (e.g. when changing drivers) not to continue the journey without the master key .
If the master key is no longer in the vehicle, you
cannot switch off the ignition after stopping the
engine and you also cannot start the engine
again . You also cannot lock the vehicle from the
outside .
l) - : USA models only
32
·@ Light/rain sensor defective
fl Automatic headlights/ automatic wipers
defective
If the symbol illum inates, the light sensor has
failed. For safety reasons the low beams are
turned on permanently with the switch in
AUTO.
However, you can continue to turn the lights on
and off using the light switch. In the case of a de­
fect in the rain sensor, the windshield wiper lever
functions are still available. Have the light/rain
sensor checked as soon as possible by an author­ ized Audi dealer.
(0) Worn brake pads
£i1 Brake pads!
If the warning light illuminates, immediately
contact your authorized Audi dealer or qualified
workshop to have all brake pads inspected. On USA models the warning light
£i1 comes on to­
gether with the warning light
1111. Both sets of
brake pads on an axle must a lways be replaced at
the same time.
_8. WARNING
Driving with bad brakes can cause a collision
and serious personal injury.
-If the warning light £i1 and the warning
light
llll1 l with the message Brake pads!
comes on in the instrument cluster display,
immediately contact your authorized Audi
dealer or qualified workshop to have all
brake pads checked or replaced if necessary.
~l}D 10$ Defective light bulb warning
S:1 -If the indicator light turns on, a bulb has
failed. The message indicates the location of the
bulb .
Im-If a front fog lamp has failed, the indicator
light turns on to indicate the location on the vehi-
cle.
~

,....,
N
co
er::
co

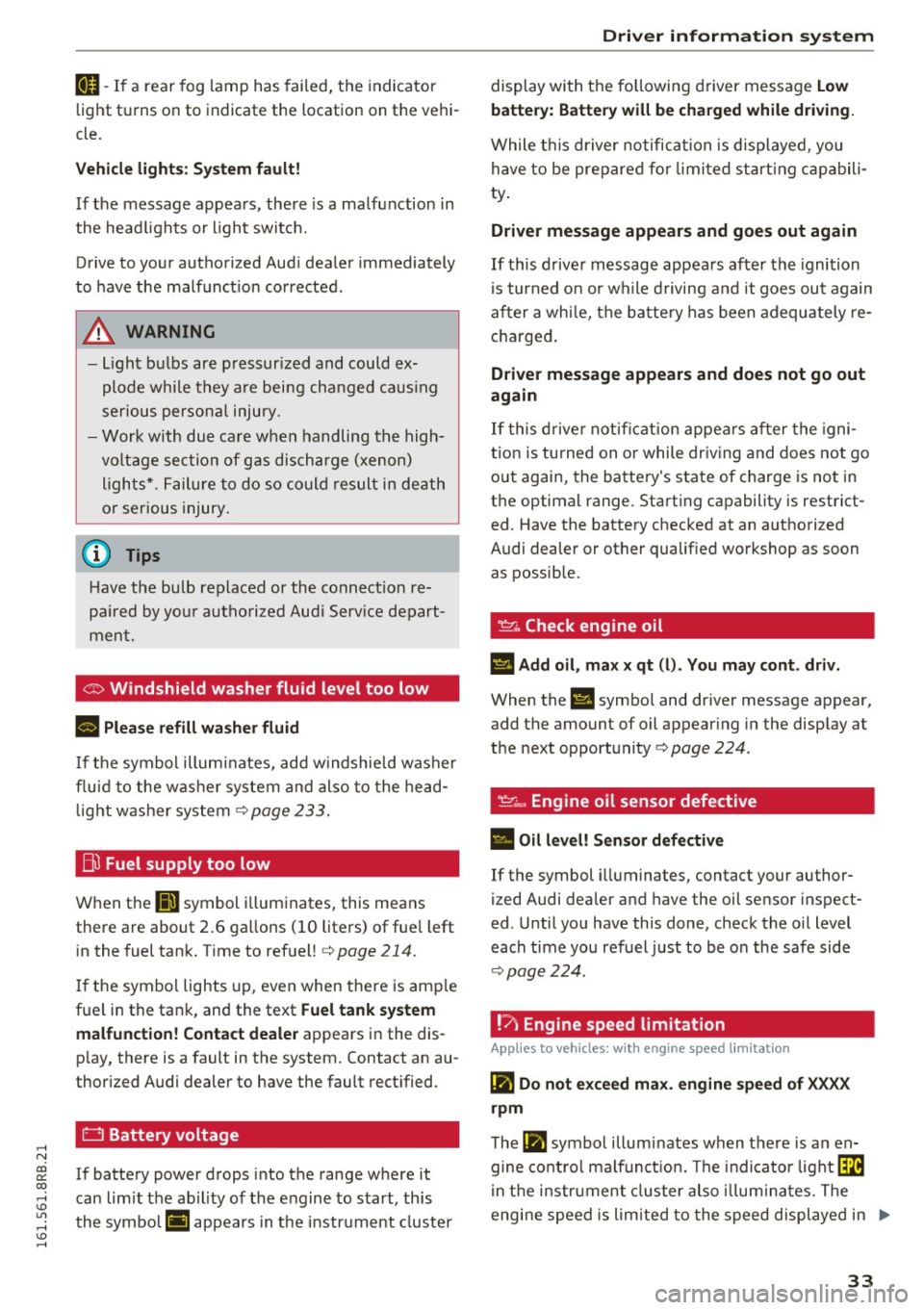

,...., IJ-If a rear fog lamp has failed, the indicator
light tu rns on to indicate the location on the vehi­
cle.
Vehicle light s: System fault!
If the message appears, there is a ma lfunction in
the head lights or light switch.
Drive to your authorized Aud i dealer immediately
to have the malfunct ion corrected .
A WARNING
-Light bu lbs are pressur ized and could ex­
plode while they are being changed caus ing
ser ious persona l injury.
-
- Work with due care when handling the high­
voltage section of gas dis charge (xenon)
ligh ts*. Failure to do so co uld result in death
or serious injury .
@ Tips
Have the bulb replaced or the connect ion re­
pa ired by yo ur autho rized Aud i Serv ice depart­
men t.
<:;::> Windshield washer flu id level too low
llt Plea se refill washer fluid
If the symbol illumi nates, add w indshield was her
fluid to the washer system and also to the head­
light washer system
c::> page 233 .
Bil Fuel supply too low
When the liD symbol i llum inates, this means
there are about 2.6 ga llons ( 10 liters) of fue l left
in the fuel tank. Time to refuel!
c::> page 214.
If the symbol lights up, even when there is amp le
fuel in the tank, and the text
Fuel tank sy stem
malfun ction! Contact deale r
appears in the dis­
p lay, there is a fault in the system. Contact an au­
thor ized Audi dealer to have the fault rect ified.
D Battery voltage
If battery power drops into the range where it
can limit the ab il ity of the engine to start, th is
the symbol (•) ;ippears in the instrument cluster
Dri ver informa tion system
display with the following driver message Lo w
batter y: Batte ry will be char ged while dri ving.
While t his driver notification is disp layed , you
have to be prepared for limited start ing capabili ­
ty .
Driver message appears and goes out again
If this d rive r message appea rs after the ignition
is turned on or while d riving a nd it goes ou t again
after a whi le, the battery has been adequately re ­
charged .
Driver message appears and does not go out
again
If this drive r notificat ion appea rs after the igni­
tion is tu rned on or while driv ing and does not go
out again, the battery's state of charge is not in
the optimal range. Start ing capability is restrict­
ed . Have the battery checked at an authorized
Audi dealer or other qualified workshop as soon as possible.
~ Check engine oil
II Add oil, ma x x qt (l). You may cont. driv.
When the Ill symbol and dr iver message appear,
add the amount of oil appear ing in the disp lay at
the next opportunity
c::> page 224 .
'l:7;,.. Engine oil sensor defective
• Oil le vel! Sen sor defecti ve
If the symbol illuminates, contact your author­
ized Audi dea ler and have the oil sensor inspect­
ed . Until you have this done, check the oil level
each time you refuel just to be on the safe side
c::> page 224.
! ? Engine speed limitation
Applies to vehicles: with engine speed limitation
II! Do not exceed max. engine spe ed of XXXX
rpm
T he II! symbol illuminates when there is an en­
gine co ntrol malf unct ion. The indi cator light ~
in t he i nstr ument cluster also illum ina tes. The
engine speed is limited to the speed displayed in ..,.
33

Driver information s ystem
the dr iver information system . Keep in m ind that
the engine speed will not exceed the value dis ­
p layed in the dr iver information system, for ex­
ample when downshifting.
Please go to an autho rized Aud i dea le r or other
qualified workshop to have the ma lfunction re ­
pa ired .
,m.. Diesel particulate filter clogged
Applies to veh icles: w ith diesel e ngi ne and d iesel pa rt icu late
f ilte r
II Particulate filter See owner's manual
When the II symbol illum inates, you can a lter
your driving sty le to assis t the fi lter self-cleaning
p rocess . Drive for approx ima tely 15 minutes with
the selector lever in the S position a t a min imum
speed of 37 mph (60 km/ h) a nd an engine speed
of approximate ly 2,000 RPM . The tempe rature
increase that w ill result from this can burn off
the soot in the fi lter. The symbol will sw itch off
when the clean ing is successful. After a success ­
fu l cleaning, there is no need to br ing the car to
an author ized deal er or qualified workshop b e­
cause this is part of no rm al veh icle oper ation.
If t he symbo l
II does not switch off, see you r
author ized dealer or other qualif ied workshop to
have the prob lem cor rected.
For more information on the diesel particulate
fi lter, refer to
c> page 198.
A WARNING
Always ada pt your speed to the c urrent
w eather, road and traffic conditions . Y ou
should never dis obey traffi c la ws in orde r to
follow driving re co m mend ation s.
~()) Headlight range control defective
II Headlight range control defective!
If th e symbol II ill um ina tes, the dynamic head­
lig ht ra nge co ntrol is no longer wo rking prope rly.
H ave t he sys tem checked and repa ired at you r au­
t hor ized Audi dealer .
34
~O Adaptive light defective
Applies to vehicles: with adaptive light
mil Audi adaptive light : defe ctive
When this symbol mil ill uminates, it means that
adaptive ligh t is defective. Go to a n author ized
Audi dealer to have the head lights or the contro l
u nit for the adapt ive light repa ired.
@ -Steering malfunction
El! Steering lock: Contact dealer!
If the El! symbo l in t he d isp lay comes on, there
i s a n elect ronic stee ring column lock malfu nc­
tion.
D rive to your author ized A udi dealer immed iate ly
to have the malfunc tion cor rected .
A WARNING
Your ve hicl e m ust not be towed in the event
of a m alfunction in the elec tronic s teering
column lo ck bec ause it c an no t b e stee red due
to the lo cked steering. If i t i s towed w ith the
steering locked, there is the risk of an acc i­
dent .
~ Ignition lock malfunction
m Ignition lock defective
If the l3 symbo l in the d isplay comes on, the re is
a malfunction i n the elect ronic ignition lock .
Please go to an authorized A udi dealer or other
qualified workshop to have the malfunct ion re­
paired.
; Adaptive dampers
App lies to vehicles: with Aud i drive se lect
R Suspension : System fault!
If the R symbol in the d isp lay comes on, the re is
a mal function in the adaptive dampers. Please go
to an authorized Aud i dea le r or other qualified
workshop to have the ma lfunction repaired.
· ~ Windshield wipers faulty
El Windshield wipers defective

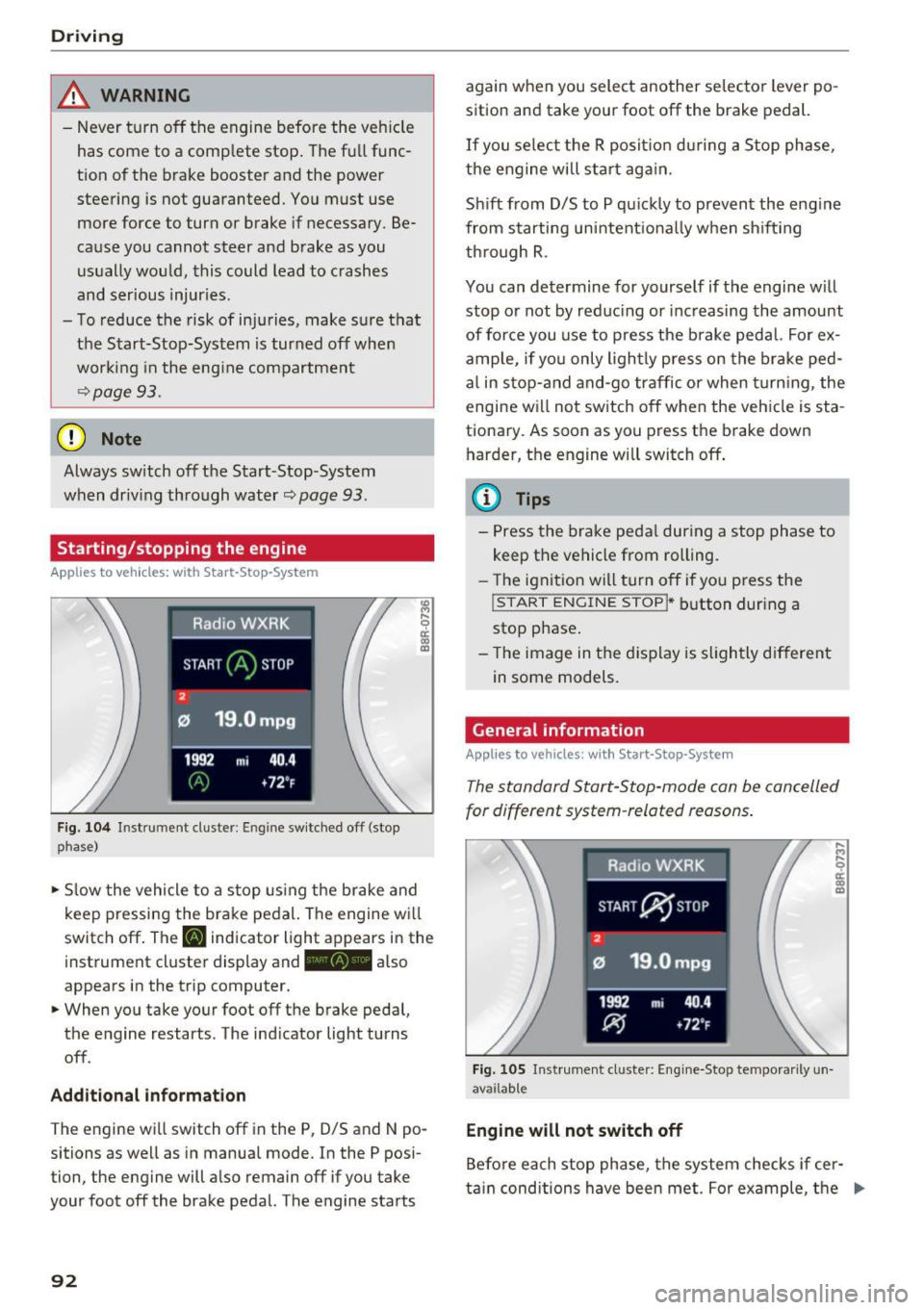

Driving
_& WARNING
-Ne ver turn off the engine before the veh icle
has come to a comp lete stop . The f ull func­
t ion of the brake booster and the power
steering is not guaranteed. Yo u must use
more force to turn or brake if necessary . Be­
ca use you cannot steer and b rake as you
us ually wou ld, this could lead to crashes
and serious injur ies.
- To reduce the risk of inju ries, make s ure that
t h e S tart -Stop-System is turned off whe n
wor king in the eng ine compart ment
9page 93 .
(D Note
Always sw itch off the Start-Stop-System
when dr iv ing th rough water
9 page 93 .
Starting/stopping the engine
Applies to veh icles: w ith Start -Stop -System
F ig . 104 In strum ent cluste r: En gin e sw itc hed off (stop
phase}
• Slow the vehicle to a s top using the brake and
k eep pressing the bra ke pe dal. The engine w ill
switc h off . The
[I] ind icator light appears in the
i nst rument cluste r display and -also
appears in the t rip computer.
• When you take yo ur foot off the b rake peda l,
the engine restarts . The ind icator light tu rns
off .
Add itional informat ion
The eng ine wi ll switch off in the P, D/S and N po­
sitions as we ll as in manua l mode. In the P pos i­
tion, the eng ine will a lso remain off if you take
your foot off the brake pedal. The engine starts
92
again w hen you select another se lecto r lever po ­
sition and take your foot off the brake pedal.
If you se lect t he R posit io n dur ing a Stop phase,
the e ngine will sta rt ag ain.
Sh ift from D/S to P qu ic kl y to prevent the eng ine
from starting uni ntent io na lly when sh if ti ng
th rough R.
You can determine for yourself if t he engine w ill
stop o r not by re duc ing or inc reasing the amount
of force you use to p ress the b rake pedal. Fo r ex­
amp le, if yo u only ligh tly press o n the brake ped­
a l in s top- and and-go traffic or when turning, the
engine will not switch off when the veh icle is sta ­
tiona ry. As soon as you press the brake down
h arder, the engine will switch off .
{i) Tips
-Press the brake peda l during a stop phase to
keep the vehicle from rolling.
- The igni tio n wi ll turn off if y ou press the
! START ENGINE STOPI * button dur ing a
stop p hase .
- Th e image in the displ ay is s ligh tly d ifferent
in some models.
General information
Applies to vehicles: with Start-Stop-System
The standard Start-S top-mode can be can celled
for different system -related reasons .
Fig. 1 05 In str um ent cl uste r: E ngi ne-Stop te mpo rari ly un ­
ava ilab le
Engine will not switch off
.... .., .... 0
~ m
Befo re each sto p phase, t he system checks if cer­
ta in conditions have been met. For example, t he .,.
