Driving
engine will not be switched off in the following
situations:
- T he eng ine has not reached the mi nimum re·
quired temperature fo r Start-Stop-mode .
- T he inter io r temperat ure selected by the A/C
system has not been reached.
- T he outs ide temperatu re is ext remely high/low.
- The w indshield is being defrosted
c:> page 79 .
-The park ing system* is switched on.
- The battery charge leve l is too low.
- The steering wheel is sharply tu rned or there is
a steering movement.
- After engaging the reverse gear.
- On sharp inclines.
tij appea rs in the instrument cluster display and
6/i;Ff-Flf 1lso appears in the tr ip comp ute r.
Engine automatically restarts
The stop phase is interrupted in the following sit·
uations, fo r example . The engi ne restarts without
any action by the dr iver .
- The inter ior temperatu re varies from the tern·
perature se lected in the A/C system .
- The w indshield is beeing defrosted
c:> page 79.
- The brake pedal is pressed severa l times in a
row.
- The battery charge leve l becomes too low.
Switching the ignit ion off automat ically
To prevent the battery from dra ining, the ignition
will switch off
automat ically when all of the fol ·
low ing conditions have bee n met:
- The veh icle has already been driven.
- The eng ine has been turned off by the Start ·
Stop-System.
- The driver's door is opened .
- T he driver's seat bel t is removed .
- T he brake pedal is no t pressed down.
- T he veh icle is sta tionary.
In th is case, the activated low beam will be re·
p laced by the s ide marker lights . T he side marker
90
lights w ill switch off a fter approximate ly 30 mi·
nutes or when you lock the vehicle.
If t he S tart-S to p-Sy stem has not tu rne d off the
engine or if yo u have swi tched the S tar t-Stop·
System off manually, the ignition wi ll
not be au ­
tomatica lly switched off and t he eng ine wi ll con­
tin ue to run
c:> A .
_& WARNING
Never a llow the engine to run in conf ined
spaces· danger of asphy xiat ion .
(D Tips
-
If you shift into the 0/5 or N positions after
shift ing into reverse, the vehicle must be dr iv·
en faste r than 6 mph
(10 km/h) in o rder for
the eng ine to switch off again.
Switching the Start -Stop-System on /off
manually
App lies to: vehicles with Start-Stop-System
If you do not wish to use the system, you can
switch it off manually.
F ig . 10 5 Ceri ter co nsole: S tar t-Stop -System bu tton
.. To swit ch the Start-Stop -System on/off man ­
ually, press t he
l(A) .. I button . The LED in the but·
ton turns on when the system is switched off .
I n vehicles withou t the MMI*, the
l(A)"'I button is
fo und underneath the se lector lever.
(D Tips
I f yo u swit ch the sy stem off dur ing a stop
p hase, the engi ne will start ag ain automati·
cally .

CD
CD
.... N ,-... N .... 0 0 C<'. 00

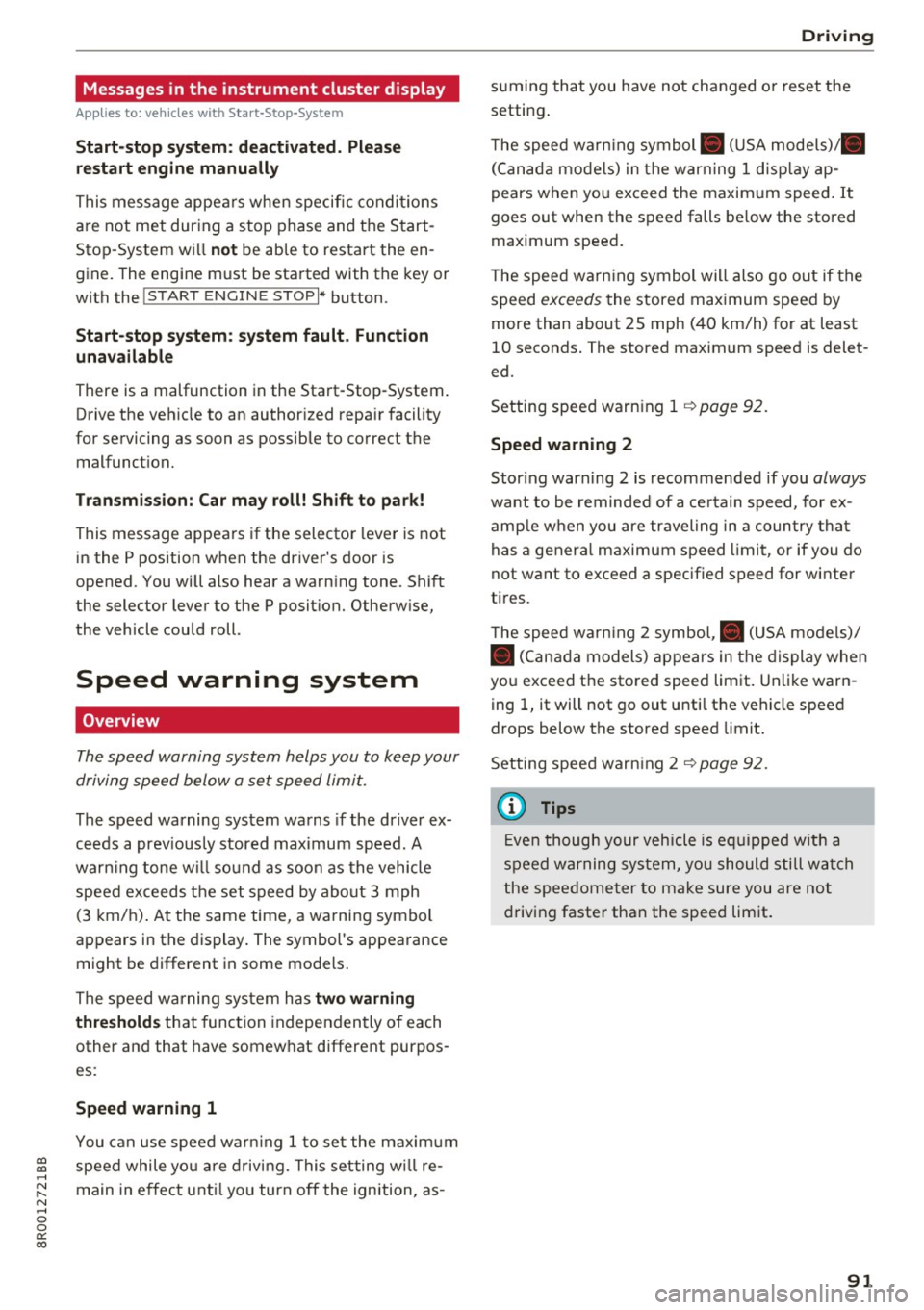

Messages in the instrument cluster display
Applies to: vehicles with Start-Stop -System
Start-stop system : deactivated. Please
restart engine manually
This message appea rs whe n speci fic conditions
a re not met dur ing a stop phase and the S tart­
Stop-System w ill
not be able to restart the en ­
gine. The engine must be started with the key or
with the
! S TAR T ENGINE STOPI* button.
Start-stop system : sy stem fault. Function
una vailable
There is a malfunction in the Start-Stop-System .
Drive the ve hicle to an author ized repa ir facility
for servicing as soon as possible to correct the
malfunct ion.
Transmis sion: Car may roll! Shift to park!
This message appears if the selecto r lever is not
in the
P position w hen the driver's door is
opened. You will also hear a warn ing tone. Shift
the selector lever to the
P posit ion. Otherw ise,
the vehicle could roll.
Speed warning system
Overview
T he speed warning system helps you to keep your
driving speed below a set speed limit.
The speed warning system wa rns if the driver ex­
ceeds a prev io usly stored maximum speed. A
war ning tone w ill sound as soon as the vehicle
speed ex ceeds t he set speed by abo ut
3 m ph
(3 km/ h). At the same time, a warni ng symbo l
appears in the display. The symbol's appearance
might be different in some models .
The speed w arning sys te m has
two warning
threshold s
that function independen tly of each
other an d that have somewhat different purpos­
es:
Speed warning 1
You can use speed war ning 1 to se t the maxim um
speed while yo u are dr iving. This setting w ill re­
main in e ffec t unti l you turn
off the ign ition, as -
Driving
su ming tha t you have not changed or reset the
setting .
T he speed wa rn ing symbol . (U SA mode ls)/ .
(Cana da mo dels) in the warn ing 1 disp lay ap­
pears when you exceed the maxim um s peed.
It
goes out when the speed falls be low the stored
max imum speed.
T he spee d warn ing symbol will also go out if the
speed
exceeds the stored max imum speed by
more than about
25 mph (40 km/h) for at least
10 seconds . The stored max imum speed is delet ­
ed .
Setting spee d warn ing
1 r=> page 92.
Speed warning 2
Stor ing warn ing 2 is recomm ended if you always
want to be reminded of a ce rtain speed, for ex­
amp le when you are traveling in a coun try tha t
ha s a genera l maximum speed limi t, or if you do
not want to e xceed a specified speed for winte r
ti res.
T he spee d wa rn ing
2 symbol, . (USA mo dels)/
• (Cana da models) appears in the display when
yo u exceed the stored speed limit . Unli ke warn ­
ing
1, it will not go out until t he vehicle spee d
drops below the stored speed limit.
Setting spee d warn ing
2 r=> page 92.
(D Tips
Eve n though your vehicle is e quippe d w ith a
s peed w arning system, yo u should still w atch
t he spee dome ter to ma ke sure you are not
d riving faste r than the speed lim it.
91

Driving

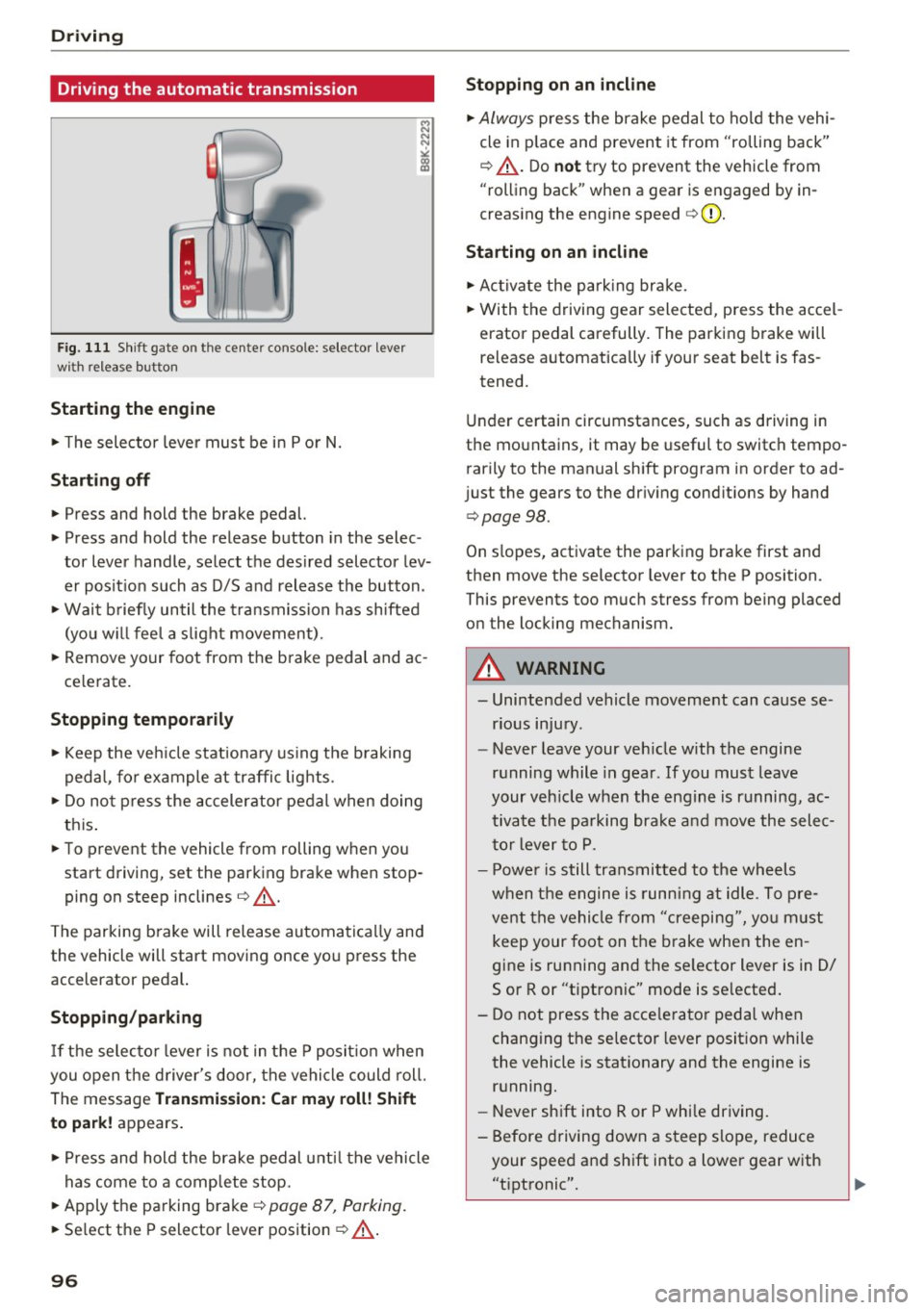

Driving the automatic transmission
F ig. 111 Shift gate o n the cen te r co nso le: selecto r lever
wi th re lease button
Starting the engine
.. The selector leve r must be in P o r N.
Starting off
.. Press and hold the brake pedal.
.. Press and hold the release button in the selec ­
tor lever handle, select the des ired selector lev­
er posit ion such as D/S and release t he button.
.. Wai t briefly until the transmission has shifted
(you w ill feel a s light movement) .
.. Remove your foot from t he b rake pedal and ac ­
ce lerate.
Stopping temporarily
.. Keep the veh icle stat iona ry using the b raking
pedal, fo r example at traffi c lights .
.. Do not p ress the accelerator pe dal when doing
th is .
.. To preve nt the vehicle from rolling when you
start driving, set the parking brake w hen stop­
ping on steep inclines¢_&. .
The parking b rake will release automatica lly and
the vehicle will start moving once you press the
accelerator pedal.
Stopp ing /parking
If t he se lec to r l ever i s not in t he P posit io n w hen
you open t he d river's door, the vehicle could roll.
The message
Transmission: Ca r ma y roll! Shift
to pa rk!
appears .
.. Press and hold the brake pedal unti l the vehicle
has come to a comp lete stop.
.. Apply t he parking brake¢
page 87, Parking .
.. Se lect the P selector lever position ¢ _&. .
96
Stopping on an incline
.. Always press the brake pedal to ho ld the vehi­
cle in p lace and prevent it from "rolling back"
¢ _&. . D o
not try to prevent the vehicle from
"rolling back" when a gear is engaged by in­
creas ing the engine speed ¢(D .
Starting on an incline
.. Ac tivate the pa rk ing br ake .
.. With the driving gear selected, press the accel ­
erator pedal carefully. The parking brake will
re lease a utomatically if your seat belt is fas ­
tened.
Under certain circumstances, such as driving in
the mountains, it may be useful to switch tempo­ rarily to the manual sh ift program in order to ad­
j ust the gears to the dr iv ing cond it ions by hand
¢ page 98 .
On slopes, activate the parking brake first and
then move the selector lever to the P position.
This prevents too m uch stress from being placed
on the locking mechanism.
A WARNING
- Unintended vehicle moveme nt can cause se­
rious injury .
- Never leave your veh icle with the engine
r u nning while in gear . If you mus t leave
your veh icle when the engine is running, ac­
tiva te t he pa rking bra ke and move the selec­
t o r lever to P .
- P owe r is still transmitted to the wheels
w hen t he engine is running at idle . To pre­
vent the vehi cle from "creeping", yo u m ust
keep your foot on the brake when the en ­
gine is running and the se lector lever is in 0/
Sor R or "tiptronic" mode is se lected .
- Do not press the acce le ra tor pedal when
changing t he se lector lever posit ion while
the vehicle is stat ionary and the engine is
running.
- Never shift into R or P whi le driving.
- Before driving down a s teep slope, reduce
your spee d and sh ift into a lower gear with
"t i pt ronic" .

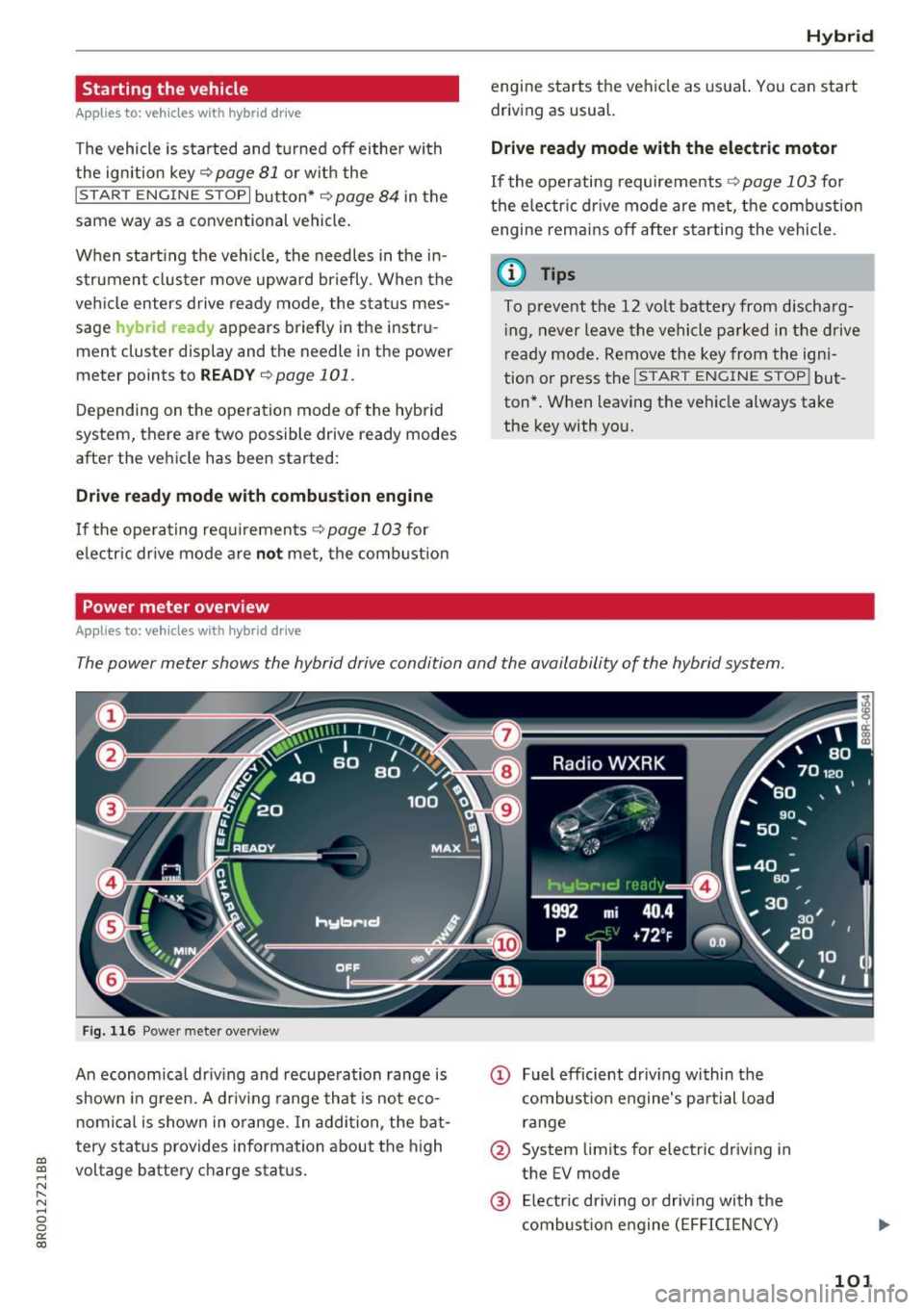

Starting the vehicle
Applies to: vehicles with hybrid drive
The vehicle is started and turned off either wi th
the ign ition key <;>
page 81 or with the
IS TAR T ENG INE S TOPI button* 9 page 84 in t he
same way as a conventional vehicle .
W hen start ing the veh icle, the needles in the in­
s trument clus ter move upward briefly . When the
ve hicle enters d rive ready mode, the s tatus mes­
sage
hybrid ready appears briefly in t he instru­
ment cluster display and the needle in the power
meter points to
READY 9 page 101.
Depending on the ope ration mode of the hybrid
sys tem, there are two possible drive ready modes
after the vehicle has been started:
Drive ready mode with combustion engine
If the ope rat ing req uiremen ts
r;!) page 103 for
e lectric dr ive mode are not met, the combust ion
Power meter overview
Applies to: vehicles with hybrid drive
Hybrid
engine starts the veh icle as usual. You can start
driving as usual.
Drive ready mode with the electric motor
If the operating requireme nts
9 page 103 for
the e lectr ic dr ive mode a re met, the comb ustion
engi ne rema ins off after starting the vehicle .
(j) Tips
To p revent the 12 vo lt batte ry from discha rg ­
i ng, never le ave the vehicle pa rked in the drive
ready mo de. Remove the key from the igni­
tion or press the
I START E N GINE STOP ! but­
ton* . When leaving the vehicle always take
the key with yo u.
The power meter shows the hybrid drive condition and the availability of the hybrid system.
Fig . 116 Power mete r overv iew
An econom ica l dr iv ing and recupe ra tion range is
shown in g reen. A driv ing range that is no t
eco­
nomi cal is shown in o range. In addition , the bat­
tery s tat us provides informatio n about the high
a,
~ voltage batte ry c harge stat us.
N r-­N ...... 0 0
0:
co
@ Fuel efficient driv ing wi thin the
c ombus tion engine's pa rtial load
r a nge
@ System limits for electric driving in
the EV mode
@ El ectr ic dr iving o r driv ing with the
c ombust ion engine ( EFFICI ENCY)
101

Hybrid

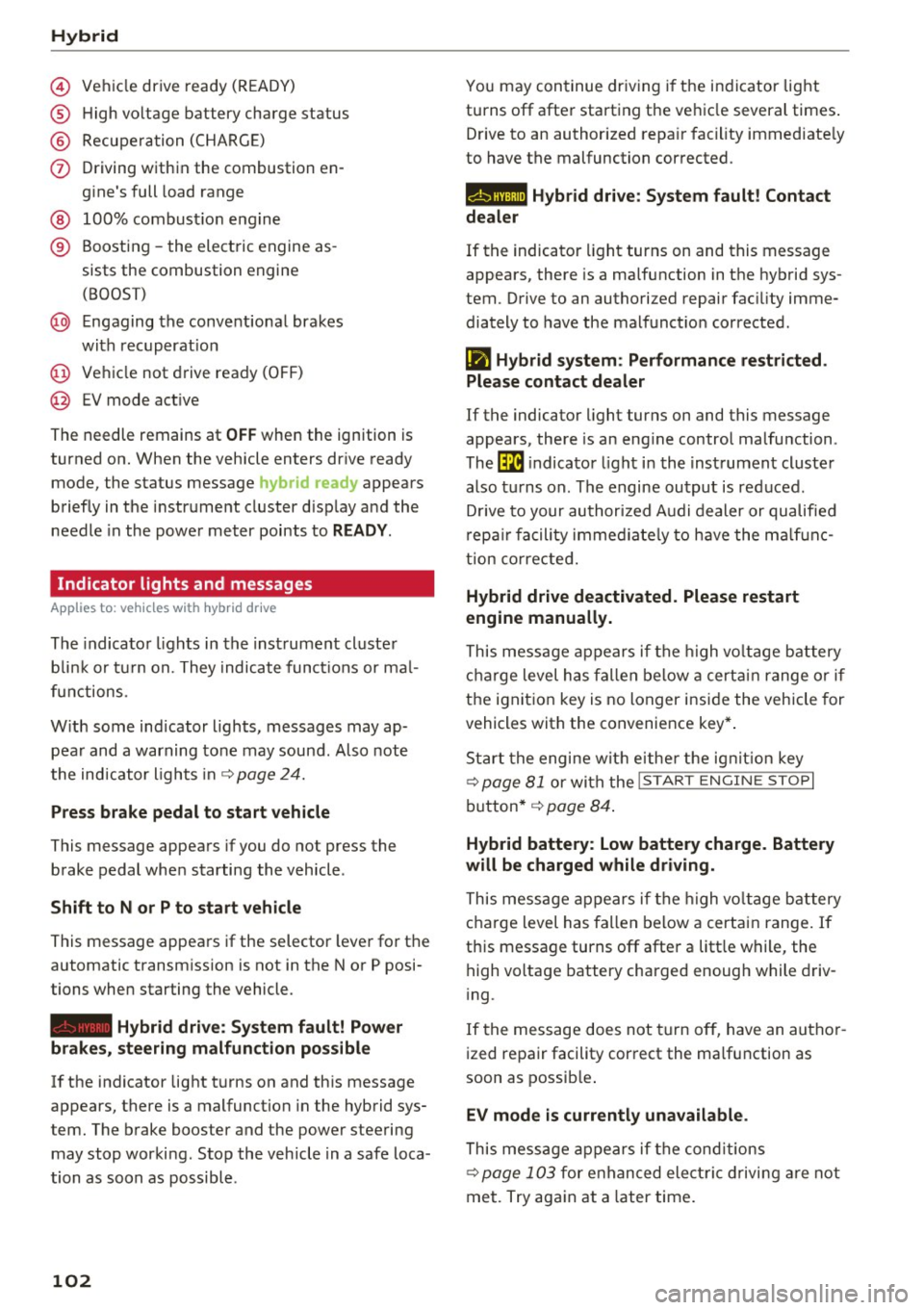

© Vehicl e drive ready (READY)
® High voltage battery charge status
® Recuperation (CHARGE)
(j) Driving within the combustion en-
gine's full load range
® 100% combust ion engine
® Boosting -the electric engine as-
sists the combustion engine
(BOOST)
@ Engaging the conventional brakes
with recuperat ion
@ Vehicle not drive ready (OFF)
@ EV mode act ive
The needle remains at
OFF when the ignition is
turned on. When the vehicle enters drive ready
mode, the status message
hybrid ready appears
briefly in the instrument cluster display and the
needle in the power meter points to
READY.
Indicator lights and messages
App lies to: ve hicles w ith hyb rid drive
The indicator lights in the instrument cluster
b lin k or tu rn on. They indicate functions or mal­
f unct ions.
With some indicator lights, messages may ap­
pear and a warning tone may sound . Also note
the indicator l ights in
¢page 24.
Press brake pedal to start vehicle
This message appears if you do not press the
brake pedal when starting the vehicle .
Shift to N or P to start vehicle
This message appears if the selector lever for the
automatic transmission is not in the Nor P posi­
tions when starting the vehicle.
- Hybrid drive: System fault! Power
brakes, steering malfunction possible
lfthe indicator light turns on and this message
appears, there is a malfunction in the hybrid sys­
tem . The brake booster and the power steering
may stop working. Stop the vehicle in a safe loca­
tion as soon as possible.
102
You may continue driving i f the i ndicator light
turns off after starting the vehicle several times .
Drive to an authorized repair facility immediate ly
to have the malfunction corrected .
Q/ij:@,j rlybrid drive: System fault! Contact
dealer
If the indicator light turns on and this message
appears, there is a malfunction in the hybrid sys­
tem. Drive to an authorized repair fac ility imme­
diately to have the malfunct ion corrected.
(II Hybrid system: Performance restricted.
Please contact dealer
If the indicator light turns on and this message
appears, there is an eng ine control malfunction .
The
ffa i ndicator light in the instrument cluster
also turns on. The engine output is reduced.
D rive to your authorized Audi dealer or qualified
r epa ir facility immediate ly to have the malfunc­
tion corrected.
Hybrid drive deactivated. Please restart
engine manually.
This message appears if the high vo ltage battery
charge level has fallen below a certain range or if
the ignition key is no longer inside the vehicle for
vehicles with the convenience key* .
Start the engine wit h eithe r the ignition key
¢
page 81 or with the !START ENGINE STOPI
button* ¢ page 84.
Hybrid battery: Low battery charge. Battery
will be charged while driving.
This message appears if the high vo ltage battery
charge level has fallen below a certain range. If
this message turns off after a litt le while, the
high voltage battery charged enough while driv­
i ng.
If the message does not turn off, have an author­
ized repair facility correct the ma lfunction as
soon as possib le .
EV mode is currently unavailable .
This message appears if the conditions
¢ page 103 for enha nced elect ric driving are not
met. Try again at a la ter time .

Audi drive select
Audi drive select
Drive settings
Introduction
Applies to: vehicles with Audi drive select
Drive select provides the possibility to experience
d ifferent types of vehicle settings in one veh icle.
F or instance, using the three
Comfort, Auto and
Dynamic modes, the driver can switch from a
sporty to a comfortable driving mode with the
press of a button.
Addit ionally, in vehicles with MM I*, the vehicle
setup for Individual* mode can be customized by
you. This makes it possible to combine settings such as a sporty engine tuning with comfortable
steering .
A WARNING
-
Improper use of the drive select can cause
collisions, other accidents and serious person­
al injury .
Description
Applies to: vehicles with Audi drive select
The vehicle setup in each mode depends on the
veh icle's features . However, the engine, auto­
mat ic transmission and steering are a lways in­
volved.
Engine and automatic transmission
Depending on the mode, the engine and the au ­
tomatic transmission respond quicker or in a
more balanced manner to accelerator pedal
movements . In the sporty dynamic mode, the au­
tomatic transmission shifts at higher RPMs.
Steering
The steering adapts in terms of steering effort
and steering ratios. Indirect steer ing that moves
easi ly, like the steering in comfort mode, is best
suited to long drives on a highway. In contrast,
dynamic mode provides sporty, direct steering.
The follow ing applies to vehicles with dynam ic
steer ing*: the stee ring rat io changes based on
veh icle speed in order to ma inta in optim um
steer ing effort for the driver at all times. This
122
sets the steering to be less sensitive at higher
speeds in order to provide improved vehicle con­
tro l. At reduced speeds, however, steering is
more direct in order to keep the steering effort as
minimal as possible when the driver is maneuver­
ing the vehicle . At low and average speeds, dy­
nam ic steering addit ionally prov ides more re­
spons ive steering performance .
Adaptive dampers*
The adaptive dampers* use sensors to record in­
formation regarding steering movements, brak­ ing and acceleration operations by the driver,
road surface, driving speed, and load . This makes
i t possible to adapt damp ing to the driving situa­
tion virtually in real time . Drive select also makes
i t possible to sat isfy the desire for sporty suspen­
sion (Dynamic) and comfortable suspension
(Comfort) without giving up balanced tuning (Au­
to).
Engine sound*
The sound of the eng ine is adapted to the select­
ed mode and ranges from subtle to sporty.
Adaptive cruise control*
The behavior whe n accelerating can be adjusted
from comfortable to sporty, depending on the
drive select mode. Adaptive cruise control also
r esponds to the driv ing behavior of the vehicle
ahead in a more conservative or sporty manner .
(D Tips
- In some models, the maximum vehicle
speed can only be reached in the
Auto and
Dynamic modes.
- Selecting the
Dynamic mode results in spo r­
ty shifting characteristics. The S gear posi­
tion engages automatically.
- In veh icles that have dynamic steering*, op­
erating noise is heard when starting or stop­
ping the engine. This does not indicate a
prob lem.

a,
a,
..... N ,....
N ..... 0 0
0:
co

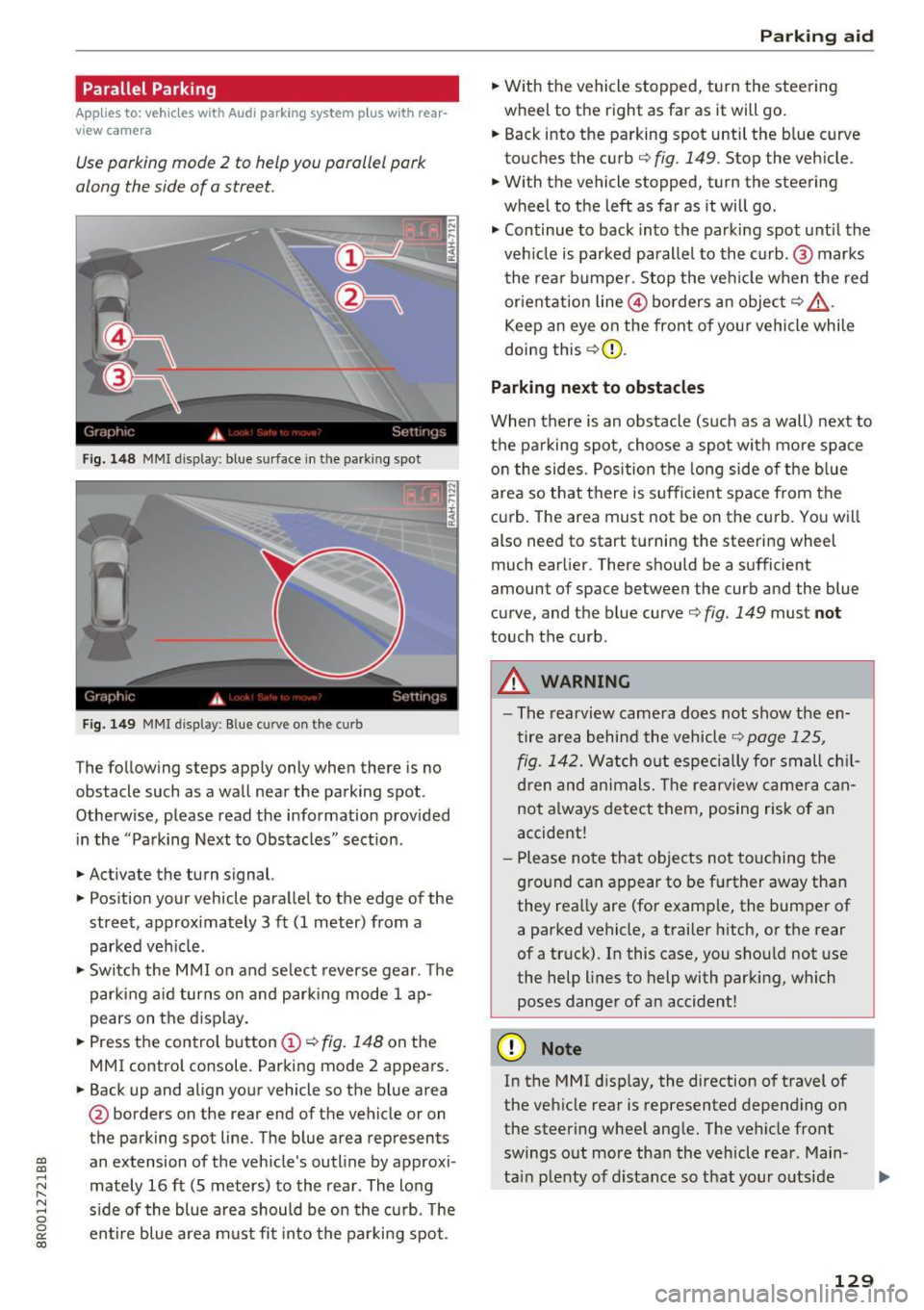

Parallel Parking
Applies to: vehicles with Aud i parking system plus with rear­
view camera
Use parking mode 2 to help you porollel pork
along the side of a street.
Fig. 148 MMI display: blue surface in the parking spot
Fig. 1 49 MMI display : Blue curve on the curb
The following steps apply only when there is no
obstacle such as a wall near the parking spot.
Otherwise, please read the information prov ided
in the "Parking Next to Obstacles" sect ion.
.,. Activate the turn signal.
.,. Pos ition your vehicle paralle l to the edge of the
street, approx imately 3 ft (1 meter) from a
parked veh icle.
.,. Swi tch the M MI on and se lect reverse gear. The
park ing a id turns on and park ing mode 1 ap­
pears on the d isplay .
.,. Press the control button
(D ¢ fig. 148 on the
MMI control console. Parking mode 2 appears.
.,. Back up and align yo ur vehicle so the b lue area
@ borders on the rear end of the vehicle or on
the parking spot line. The blue area represents
an extension of the vehicle's outline by approxi­
mately 16 ft (S meters) to the rear. The long
s ide of the blue area should be on the curb. The
en tire blue area must fit into the parki ng spot.
P ark ing aid
.,. With the vehicle stopped, turn the steering
wheel to the right as far as it will go.
.,. Back into the parking spot until the b lue curve
touches the curb¢
fig. 149. Stop the vehicle.
.,. With the vehicle stopped, turn the steering
wheel to the left as far as it will go .
.,. Continue to back into the parki ng spot unt il the
veh icle is parked parallel to the c urb. @ marks
the rear bumpe r. Stop the ve hicle when the red
orientat ion line @ borders an object¢
& ­
Keep an eye on the front of yo ur vehicle while
doing this ¢(D.
Parking next to obstacles
When there is an obstacle (such as a wall) next to
th e parking spot, choose a spot with mo re space
o n t he sides. Pos ition the long side of the b lue
area so that there is sufficient space from the
curb. The area must not be on the curb. You wi ll
also need to start turning the steering wheel
much earlier. There should be a sufficient
amount of space between the curb and the blue
curve, and the blue curve¢
fig. 149 must not
touch the curb.
A WARNING
-The rearview camera does not show the en­
tire area behind the vehicle¢
page 125 ,
fig. 142.
Watch o ut especially fo r small ch il­
d ren and animals. The rearview came ra can­
not a lways detect them, posing risk of an
accide nt!
- P lease note that o bjects no t touching the
g ro und can appear to be further away tha n
they rea lly are (for e xamp le, the bumper of
a parked vehicle, a trailer h itch, or the rear
of a truck). In this case, you shou ld not use
the help lines to help with parking, which poses danger of an accident!
(D Note
In the M Ml d is play, the direction o f travel of
the veh icle rear is represented depend ing on
the steer ing whee l ang le. The ve hicle front
swings o ut more tha n the vehicle rea r. Main­
ta in plenty of distance so that your o utside
129

Index
Child safety . . . . . . . . . . . . . . . . . . . . . . . . . . 168
Important safety instructions for using child
safety seats . . . . . . . . . . . . . . . . . . . . . . . .
171
Installing a child restraint using the LATCH
system . . . . . . . . . . . . . . . . . . . . . . . . . . . .
182
Mounting and releasing the anchorage
hook
. ... .. .. .. ... ... ... .... .. .. .. . 182
Tether anchors .. ................ ... . 183
Tether straps ... .... ......... .... .. . 183
Child safety locks
Rear doors . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Child safety seats
Booster seats . . . . . . . . . . . . . . . . . . . . . . .
176
Convertible child seats . . . . . . . . . . . . . . . 175
Danger of using child restraints in the front
seat ..... .. .... .......... ...... ... .
149
How do I properly install a child safety seat
. h' l ? in myve 1c e .... ................ ... . 171
Infant seats . . . . . . . . . . . . . . . . . . . . . . . . 17 4
L ATCH system . . . . . . . . . . . . . . . . . . . . . .
182
Lower anchorages ............ .... .. .
Safety instructions .................. .
Unused safety belts on the rear seat ... .
Ch ild seats 182
171
173
174
Securing . . . . . . . . . . . . . . . . . . . . . . . . . . . 178
Cigarette lighter . . . . . . . . . . . . . . . . . . . . . . . 73
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . 204
Cleaning/removing ice from windows . . . . .
206
Cleaning Alcantara . . . . . . . . . . . . . . . . . . . . 207
Clean ing artificial leather. . . . . . . . . . . . . . . 207
Cleaning carbon parts . . . . . . . . . . . . . 206, 207
Cleaning controls . . . . . . . . . . . . . . . . . . . . . 206
Clean ing decorative parts/trim . . . . . . . . . . 206
Cleaning displays . . . . . . . . . . . . . . . . . . . . . 206
Cleaning exhaust tail pipes . . . . . . . . . . . . . 205
Cleaning plastic parts . . . . . . . . . . . . . . . . . . 206
Cleaning rims 205
Clean ing textiles . . . . . . . . . . . . . . . . . . . . . . 207
Climate control
Air vents . . . . . . . . . . . . . . . . . . . . . . . . . . . .
79
Automatic recirculation . . . . . . . . . . . . . . . . 79
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
Supplementary . . . . . . . . . . . . . . . . . . . . . . . 80
Synchronizing . . . . . . . . . . . . . . . . . . . . . . . . 79
Climate control system . . . . . . . . . . . . . . . . . 77
Climatized cupholder . . . . . . . . . . . . . . . . . . .
72
282
Clock 10
Closing
Panoramic sliding sunroof. . . . . . . . . . . . . . 44
Coat hooks . . . . . . . . . . . . . . . . . . . . . . . . . . .
76
Compass mirror . . . . . . . . . . . . . . . . . . . . . . . 58
Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . 279
Consumer information . . . . . . . . . . . . . . . . . 276
Consumer Information . . . . . . . . . . . . . . . . . 138
Contacting NHTSA . . . . . . . . . . . . . . . . . . . . 138
Convenience
Closing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Opening . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Convenience key . . . . . . . . . . . . . . . . . . . . . . . 3 7
Indicator lights . . . . . . . . . . . . . . . . . . . . . .
85
Locking and unlocking vehicle . . . . . . . . . . . 37
Starting engine (START ENGINE STOP but-
ton) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
84
Stopping the engine (START ENGINE STOP
button) . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
85
Switching on ignition . . . . . . . . . . . . . . . . . . 84
Convertible child safety seats . . . . . . . . . . . 175
Convertible locking retractor
Activating . . . . . . . . . . . . . . . . . . . . . . . . . .
180
Deactivating . . . . . . . . . . . . . . . . . . . . . . . . 180
Using to secure a child safety seat . . . . . . 180
Cooled cupholder . . . . . . . . . . . . . . . . . . . . . . 72
Cooling box in glove compartment . . . . . . . . 75
Cooling mode (climate control) . . . . . . . . . . . 78
Cooling system
Adding coolant . . . . . . . . . . . . . . . . . . . . . .
223
Coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . . 223
Coolant level checking . . . . . . . . . . . . . . . . 223
Cornering light . . . . . . . . . . . . . . . . . . . . . . . . 51
Cruise control
Changing speed . . . . . . . . . . . . . . . . . . . . . .
93
Preselect speed . . . . . . . . . . . . . . . . . . . . . . 93
Switching off . . . . . . . . . . . . . . . . . . . . . . . . 93
Switching on . . . . . . . . . . . . . . . . . . . . . . . . . 92
Warning/indicator lights . . . . . . . . . . . . . . . 14
Cruising range . . . . . . . . . . . . . . . . . . . . . . . . . 19
(upholders . . . . . . . . . . . . . . . . . . . . . . . . 71, 73
Heated and cooled . . . . . . . . . . . . . . . . . . . . 72
D
Data recorder
Date display 188
10

Index
Side airbags Description . . . . . . . . . . . . . . . . . . . . . . . . . 162
How they work . . . . . . . . . . . . . . . . . . . . . . 164
Side assist Activating and deactivating . . . . . . . . . . . . 120
Adjusting the brightness . . . . . . . . . . . . . . 120
Cleaning the sensors . . . . . . . . . . . . . . . . . 205
Description . . . . . . . . . . . . . . . . . . . . . . . . . 118
Sensor range . . . . . . . . . . . . . . . . . . . . . . . 119
Side curtain airbags . . . . . . . . . . . . . . . . . . . 165
Description . . . . . . . . . . . . . . . . . . . . . . . . . 165
How they work . . . . . . . . . . . . . . . . . . . . . . 166
Safety instructions . . . . . . . . . . . . . . . . . . . 167
Side marker lights . . . . . . . . . . . . . . . . . . . . . 49
Snow chains . . . . . . . . . . . . . . . . . . . . . . . . . 245
Socket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Sound system display Driver information display . . . . . . . . . . . . . . 17
Sources of information about child restraints
and their use . . . . . . . . . . . . . . . . . . . . . . . . . 185
Speedometer . . . . . . . . . . . . . . . . . . . . . . . . . 10
Speed warning system . . . . . . . . . . . . . . . . . . 91
Start-Stop-System Engine does not switched off . . . . . . . . . . .
89
Engine starts automatically . . . . . . . . . . . . 89
Indicator lights . . . . . . . . . . . . . . . . . . . . . . 89
Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . 91
Starting/stopping the engine . . . . . . . . . . . 89
Sw itching off/on . . . . . . . . . . . . . . . . . . . . . 90
Start/Stop system . . . . . . . . . . . . . . . . . . . . . 88
START ENGINE STOP button (Convenience key) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84, 85
Starting from rest . . . . . . . . . . . . . . . . . . . . . . 87
Starting off with a trailer . . . . . . . . . . . . . . . . 87
Starting the engine . . . . . . . . . . . . . . . . . 81, 84
Starting (engine) . . . . . . . . . . . . . . . . . . . . . 101
Steering Electromechanical power assist ..... . 191, 0
Indicator light . . . . . . . . . . . . . . . . . . . . . . 191
Locking the steering . . . . . . . . . . . . . . . . . . 8 1
Malfunction .. .. ................ .. 27, 3 1
Manually adjusting the steering wheel . . . . 81
also refer to Electromechanical power as-
sist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 191
Steering wheel column Adjusting manually . . . . . . . . . . . . . . . . . . . 81
Steps for determining correct load limit . . . 244
290
Stopping the engine . . . . . . . . . . . . . . . . . 83, 8S
Stopping (engine) . . . . . . . . . . . . . . . . . . . . . 101
Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
(upholder door pockets . . . . . . . . . . . . . . . . 73
Glove compartment . . . . . . . . . . . . . . . . . . . 75
Sun shade . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Sun visors . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Supplementary (climate control) 80
Switches Emergency flashers . . . . . . . . . . . . . . . . . . . 51
Symbols Red . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Yellow.... .. .. .. .. .. .. ........... .. . 28
T
Tachometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Tail lights
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . 205
TOI clean diesel
refer to Ad Blue ... .. .. ............... 214
Technica l data . . . . . . . . . . . . . . . . . . . . . . . . 272
Technical modifications . . . . . . . . . . . . . . . . 278
Tether anchors . . . . . . . . . . . . . . . . . . . . . . . 183
Tether strap . . . . . . . . . . . . . . . . . . . . . . . . . 183
Tie-down rings . ... .. .. ............ 67, 137
tiptronic Automat ic Shift Lock (ASL) . . . . . . . . . . . . . 95
Driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
Emergency mode . . . . . . . . . . . . . . . . . . . . . 98
Hill descent control . . . . . . . . . . . . . . . . . . . 97
Kick-down . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
Manual shift program . . . . . . . . . . . . . . . . . 98
Selector lever . . . . . . . . . . . . . . . . . . . . . . . . 94
tiptronic (automatic transmission) . . . . . . . . 94
Tire Mobility System . . . . . . . . . . . . . . . . . . . 107
Tire Mobility System (tire repair set) . . . . . . 253
Tire pressure mon itoring system
Loss of air pressure . . . . . . . . . . . . . . . . . . . 13
Tires .... ... .. .. .. .. .. ........ ..... .. 230
Low aspect ratio tires . . . . . . . . . . . . . . . . 246
Repair set . . . . . . . . . . . . . . . . . . . . . . 107, 253
Replacing . . . . . . . . . . . . . . . . . . . . . . . . . . 255
Service life . . . . . . . . . . . . . . . . . . . . . . . . . 238
Tire pressure . . . . . . . . . . . . . . . . . . . . . . . 240
Tire pressure monitoring system ... 247, 248
Tire pressure table . . . . . . . . . . . . . . . . . . . 241
