Ignition lock malfunction
¢ page 31
Adaptive dampers*
¢ page 31
Windshield wiper defective
¢ page 31
Tire pressure monitoring sys­
tem*
Loss of ti re pressure
¢ page248
Tire pressure monitoring sys­
tem *
System not ava ilable
¢page248
Automatic t ransm iss ion mal­
function
¢ page98
Hybr id d rive*
¢ page 102
The speed warnings wa rning thresho ld 1 1aj
and warning th reshold 7 ISi are also yellow
symbo ls in some models. The warning is al ­
ways shown as a small symbol in the upper area of the display
¢ page 91.
-le Key not in vehicle
Appl ies to : ve hicl es with Conve nien ce key
!I Is the ke y in the v ehicle ?
This reminder appears along with the !I symbol
if the master key is removed from the vehicle
with the eng ine running . It is intended to rem ind
you (e .g . when chang ing drivers) not to conti nue
the journey without the master key.
If the master key is no longer in the veh icle, you
cannot switch off the ignition after stopping the
engine and you a lso cannot start the engine
aga in . You also cannot lock the veh icle from the
ou ts ide .
CD
CD
.... N ,-... N .... 0 0
~ 1) - : USA mod els onl y
Dri ver informa tion system
@f> Light/rain sensor defective
fl Automati c headlight s/ automati c wip ers
d efective
If the symbol illum inates , the light sensor has
failed . For safety reasons the low beams are
tu rned on permanently with the switch in
AUTO .
However, yo u can cont inue to turn t he lig hts on
and off us ing the light switch. In the case of a de ­
fect in the rain sensor, the windshield wipe r lever
functions are still available. Have the light/rain sensor checked as soon as poss ible by an author­
i z ed Audi dealer.
{0) Worn brake pads
liJ Brake pads!
If the warning light illuminates , immediat ely
contact your authori zed Audi dealer or qualified
workshop to have all brake pads inspected . On
USA mode ls the warning light
liJ comes on to­
gether w ith the warning light
1111 . Both sets of
brake pads on an axle must a lways be replaced at
the same time.
&_ WARNING
Driving w ith b ad b rakes can cause a collision
and serious personal injury .
- If the warn ing light liJ and the warn ing
light
llll1 l with the message Brake pad s!
comes on in the instrument clus ter display,
immed iate ly contact yo ur authorized Aud i
dealer o r qualified workshop to have a ll
brake pads checked or replaced if necessary .
~!}0 10$ Defective light bulb warning
J:1 -If the indicator light turns on, a bu lb has
failed. The message indicates the location of the
bulb .
II-If a front fog lamp has fa iled, the ind icator
li ght turns on to indicate the location on the vehi-
c le.
~
29

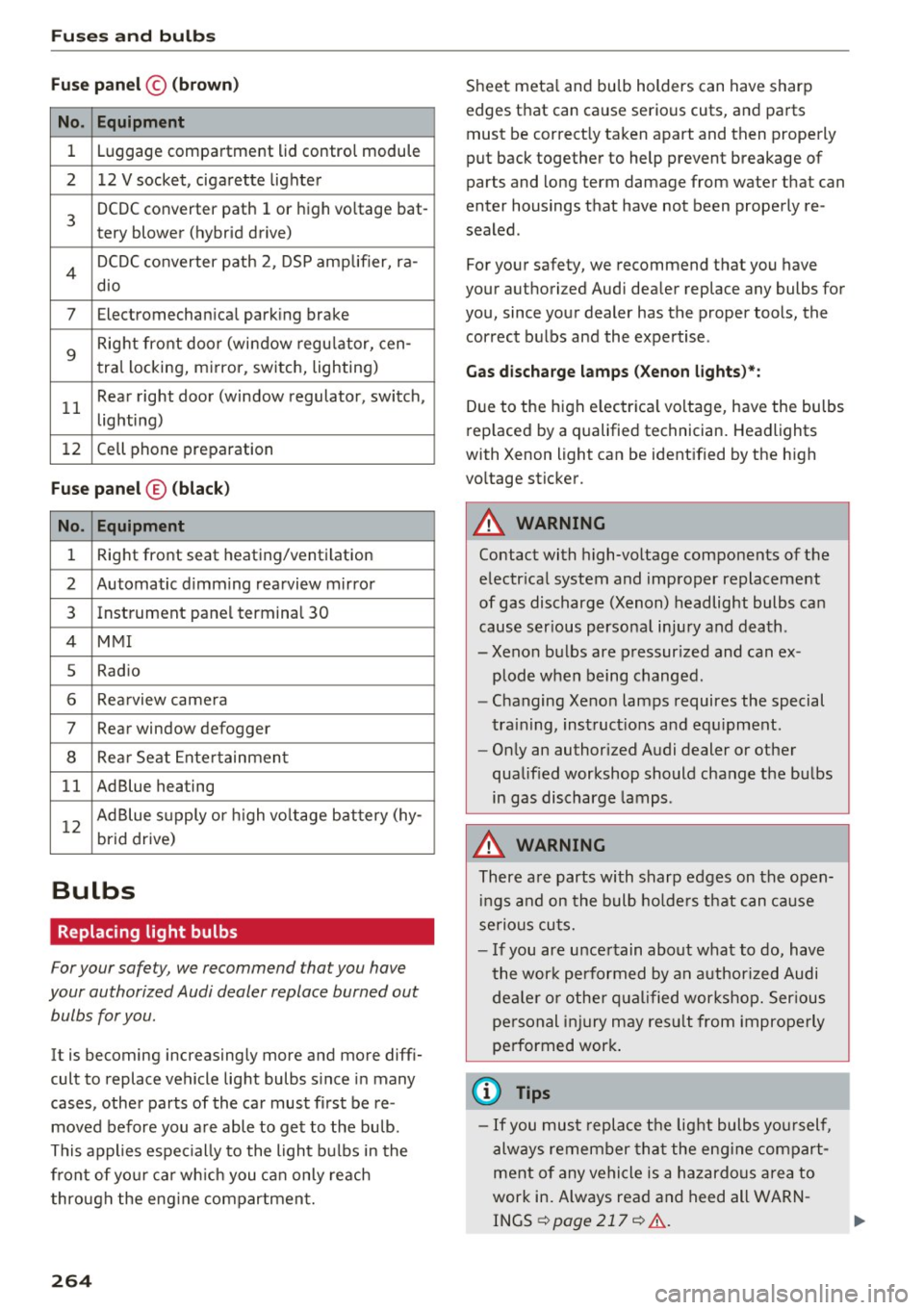

Fuses a nd bul bs
Fu se pa nel© (bro wn)
No. Equipment
1 Luggage compartment lid control module
2 12 V socket, cigarette lighter
3
DCDC converter path 1 or high vo ltage bat-
tery blower (hybrid drive)
4 DCDC converter path 2, DSP amp lifier, ra-
dio
7 Electromechanical
parking brake
9
Right front door (window regu lator, cen-
tral locking, mirror, switch, lighting)
11 Rear right
door (window regulator, switch,
lighting)
12 Cell phone preparation
F
use panel © (black )
No. Equipment
1 Rig ht
front seat heating/venti lation
2 Automatic dimming rearview mirror
3 Instrument
panel terminal 30
4 MMI
5 Radio
6 Rearview camera
7 Rear window defogger
8 Rear Seat Entertainment
11 AdBlue heating
12 Ad Blue supply or h
igh vo ltage battery (hy-
brid drive)
Bulbs
Replacing light bulbs
For your safety, we recommend that you have
your authorized Audi dealer replace burned out bulbs for you.
It is becoming increasingly more and more diffi­
cult to replace vehicle light bulbs since in many
cases, other parts of the car must first be re ­
moved before you are able to get to the bu lb.
This applies espec ially to the light bulbs in the
front of your ca r wh ich you can only reach
through the eng ine compartment.
2 6 4
Sheet meta l and bu lb holders can have sharp
edges that can cause serious cuts, and parts
must be correctly taken apart and then properly
put back together to help prevent breakage of
parts and long term damage from water that can
enter housings that have not been properly re­
sealed.
For your safety, we recommend that you have
your authorized Audi dealer replace any bulbs for
you, since your dealer has the proper tools, the correct bulbs and the expertise.
Ga s d ischar ge lam ps (Xeno n light s)*:
Due to the high e lectrica l voltage, have the bulbs
rep laced by a qualified technician. Headlights
with Xenon light can be identified by the h igh
voltage sticker.
A WARNING
-
Contact with high-voltage components of the
electr ical system and improper replacement
of gas discharge (Xenon) headlight bulbs can
cause ser ious persona l injury and death .
- Xenon bulbs are pressur ized and can ex­
plode when being changed .
- Changing Xenon lamps requires the special
tra ining, instruct ions and equ ipment .
- Only an authorized Audi dealer or other
qualified workshop should change the bulbs
in gas discharge lamps .
A WARNING
There are parts with sharp edges on the open­
ings and on the bulb ho lders that can cause
serious cuts.
- If you are uncertain about what to do, have
the wor k performed by an authorized Audi
dea ler or other qual ified workshop. Ser ious
personal injury may resu lt from improperly
performed work .
(D Tips
-If you must replace the light bulbs you rself,
always remember that the eng ine compart­
ment of any vehicle is a hazardous area to
work in. Always read and heed all WARN­
INGS
¢page 217 ¢ &.
