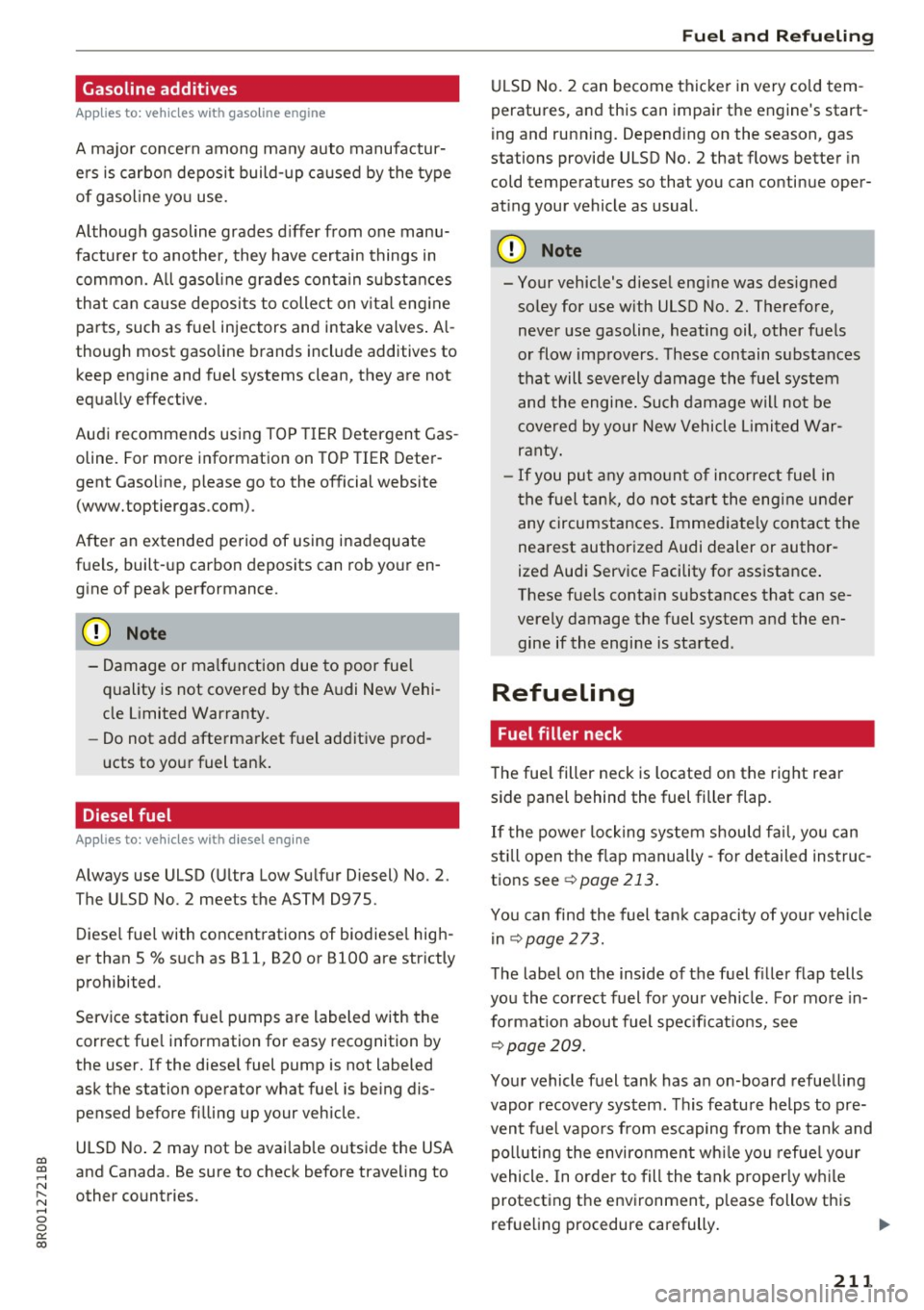

Gasoline additives
Applies to: vehicles with gasoline engine
A major concern among many auto manufactur­
ers is carbon deposit build-up caused by the type
of gasoline you use.
Although gasoline grades differ from one manu­
facturer to another, they have certain things in
common. All gasoline grades contain substances
that can cause deposits to collect on vital engine parts, such as fuel injectors and intake valves . Al ­
though most gasolin e brands include additives to
keep engine and fuel systems clean, they are not
equally effe ctive.
Audi recommends using TOP TIER Detergent Gas­
oline. For more information on TOP TIER Deter­
gent Gasoline , please go to the official website
(www.toptiergas.com).
After an extended period of using inadequate
fuels, built-up carbon depos its can rob your en­
gine of peak performance.
CD Note
- Damage or malfunction due to poor fuel
quality is not covered by the Audi New Vehi­
cle Limited Warranty .
- Do not add aftermarket fuel additive prod­
ucts to your fuel tank.
Diesel fuel
Applies to: veh icles with diesel eng ine
Always use ULSD (Ultra Low Sulfur Diesel) No. 2.
The ULSD No . 2 meets the ASTM 0975.
Diesel fuel with concentrations of biodiesel high­
er than S % such as 811,820 or 8100 are strictly prohibited.
Service station fuel pumps are labeled with the
correct fuel information for easy recognition by
the user. If the diesel fuel pump is not labeled
ask the station operator what fuel is being dis­
pensed before filling up your vehicle .
ULSD No . 2 may not be available outside the USA
and Canada. Be sure to check before traveling to
other countries.
Fuel and Refueling
ULSD No. 2 can become thicker in very cold tem­
peratures, and this can impair the engine 's start­
ing and running. Depending on the season, gas
stations provide ULSD No.
2 that flows better in
cold temperatures so tha t you can continue oper­
ating your vehicle as usual.
CD Note
- Your vehicle's diesel engine was designed
soley for use with ULSD No.
2. Therefore,
never use gasoline, heating oil, other fuels
or flow improvers . These contain substances
that will severely damage the fuel system
and the engine. Such damage will not be
covered by your New Vehicle Limited War­
ranty.
- If you put any amount of incorrect fuel in
the fuel tank, do not start the engine under
any circumstances. Immediately contact the
nearest authorized Audi dealer or author­
ized Audi Service Facility for assistance.
These fuels contain substances that can se­
verely damage the fuel system and the en­ gine if the engine is started .
Refueling
Fuel filler neck
The fuel filler neck is located on the right rear
side panel behind the fuel filler flap.
If the power locking system should fail, you can
still open the flap manually -for detailed instruc­
tions see
¢ page 213.
You can find the fuel tank capacity of your vehicle
in
¢ page 273.
The label on the inside of the fuel filler flap tells
you the correct fuel for your vehicle. For more in­
format ion about fuel specificat ions, see
¢ page 209.
Your vehicle fuel tank has an on-board refuelling
vapor recovery system. This feature helps to pre­
vent fuel vapors from escaping from the tank and polluting the environment while you refuel your
vehicle. In order to fill the tank properly while
protecting the environment, please follow this
refueling procedure carefully.
211

Fuel and R efue li ng

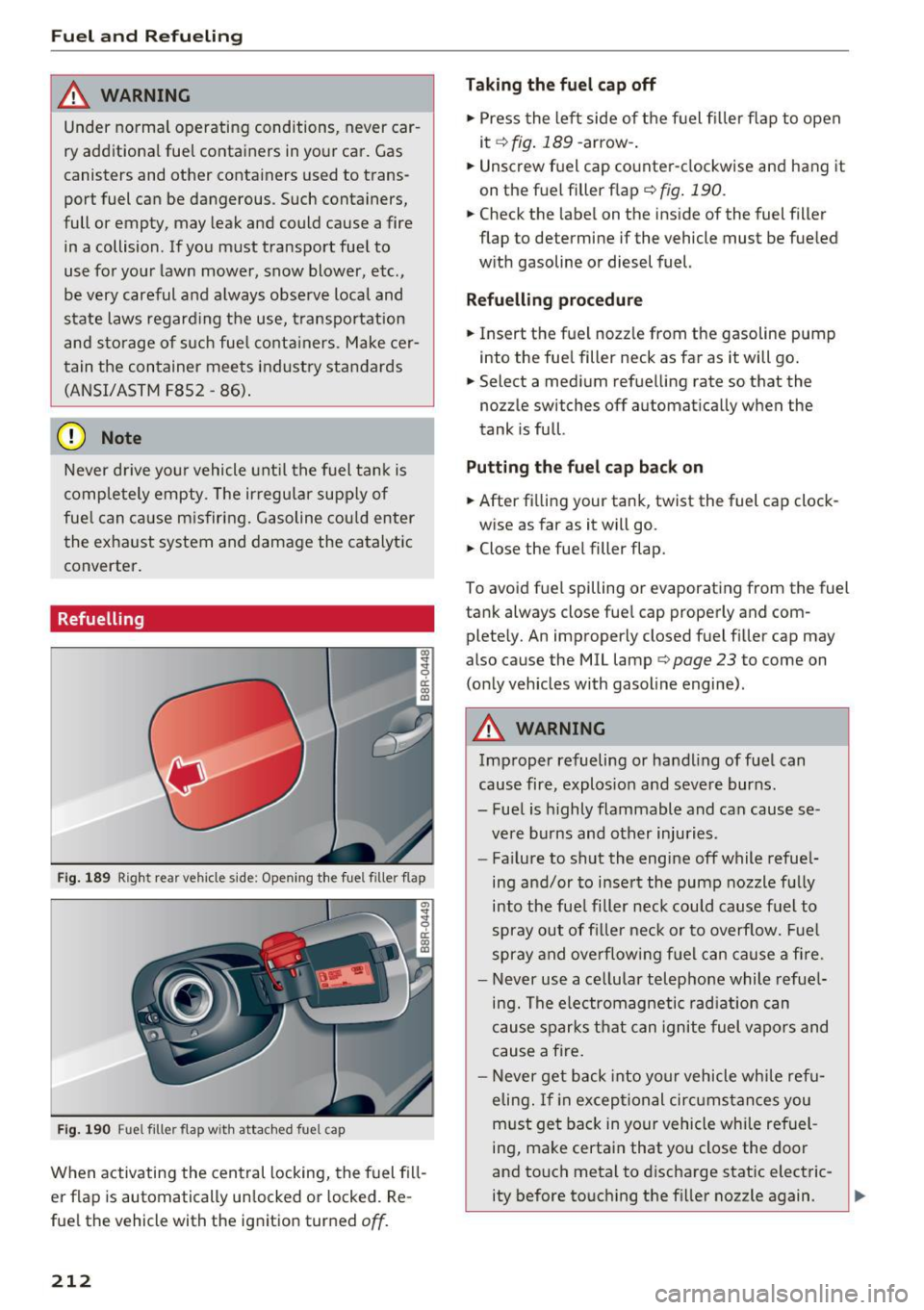

_& WARNING
Under normal operating conditions, never car ­
ry additional fuel containers in you r car. Gas
canisters and other containers used to trans­
port fuel can be dangerous . Such containers,
full or empty, may leak and could cause a fire
in a collision. If you must transport fuel to
use for your lawn mower, snow blower, etc.,
be very careful and a lways observe local and
state laws regarding the use, transportation
and sto rage of such fue l conta iners. Make cer­
tain the container meets industry standards (ANSI/ASTM F852 -86) .
(D Note
Never drive you r vehicle unt il the fuel tank is
comp letely empty. The irregular supply of
fue l can cause m isfiring. Gasoline cou ld enter
the exhaust system and damage the catalytic
converter.
Refuelling
Fig. 189 Right rear veh icle side: Opening the fuel filler flap
Fig. 190 Fuel filler flap wit h attac hed fuel cap
When activating the central locking, the fuel f ill­
er flap is automatically unlocked o r locked. Re­
fuel the vehicle with the ignition turned
off.
212
Taking th e fue l cap off
.. Press the left side of the fuel fi ller flap to open
it
¢ fig. 189 -ar row-.
.. Unscrew fuel cap counter-clockwise and hang it
on the fuel filler flap¢
fig. 190 .
.. Check the label on the inside of the fuel filler
flap to determine if the vehicle must be fueled
w ith gasoline or diesel fuel.
Refuelling procedur e
.. Insert the fuel nozzle from the gasoline pump
into the fuel filler neck as far as it will go.
.. Select a medium refuelling rate so that the
nozzle switches off automatically when the
tank is full.
Putting th e fu el c ap b ack o n
.. After filling your tank, twist the fuel cap clock-
wise as far as it will go.
.. Close the fuel filler flap.
To avoid fuel spilling or evaporating from the fuel
tank always close fuel cap properly and com­
plete ly. An improperly closed fuel filler cap may
also cause the MIL lamp¢
page 23 to come on
(only vehicles with gasoline engine).
_& WARNING
Improper refueling or handling of fuel can
cause fire, explos ion and severe burns.
- Fuel is highly flammable and can cause se­
vere burns and other injuries.
-
- Fa ilure to shut the engine off while refuel­
ing and/or to insert the pump nozzle fully into the fue l filler neck could cause fuel to
spray out of fi ller neck or to overflow. Fue l
spray and ove rflowing f uel can ca use a fire .
- Never use a ce llular telephone while refuel­
ing. The electromagnetic radiation can
cause sparks t hat can ignite fuel vapors and
cause a fire.
- Never get back into your vehicle whi le refu­
eling. If in exceptional circumstances you
must get back in your vehicle wh ile refuel­
ing, make certain that you close the door
and touch metal to discharge static electric-
ity before touching t he f iller nozzle again. .,_
