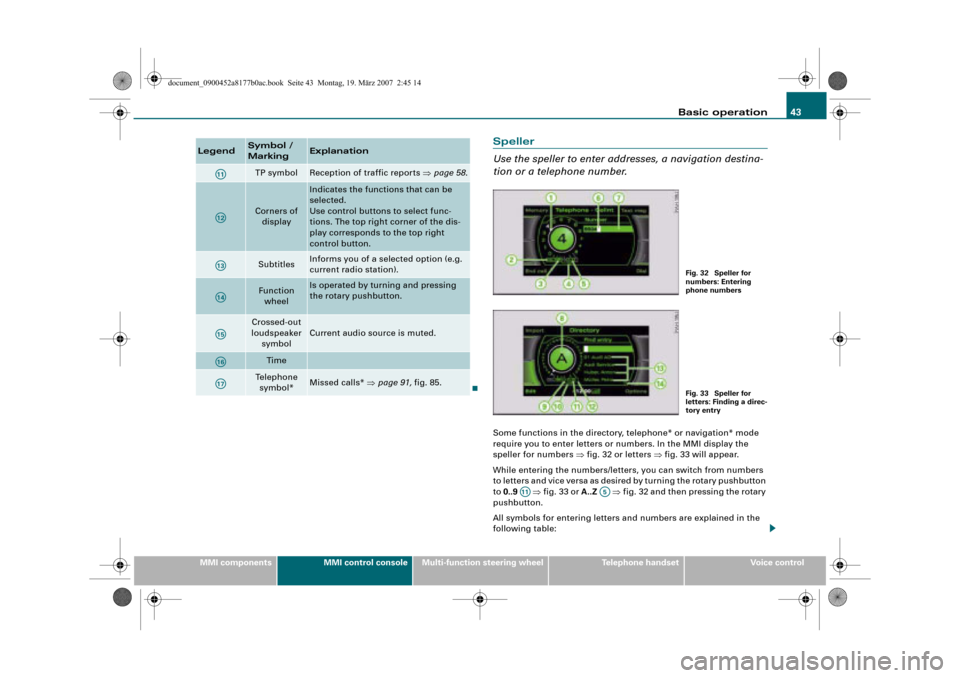

Basic operation43
MMI componentsMMI control consoleMulti-function steering wheelTelephone handsetVoice control
Speller
Use the speller to enter addresses, a navigation destina-
tion or a telephone number.
Some functions in the directory, telephone* or navigation* mode
require you to enter letters or numbers. In the MMI display the
speller for numbers
fig. 32 or letters
fig. 33 will appear.
While entering the numbers/letters, you can switch from numbers
to letters and vice versa as desired by turning the rotary pushbutton
to 0..9
fig. 33 or A..Z
fig. 32 and then pressing the rotary
pushbutton.
All symbols for entering letters and numbers are explained in the
following table:
TP symbolReception of traffic reports
page 58.
Corners of
display
Indicates the functions that can be
selected.
Use control buttons to select func-
tions. The top right corner of the dis-
play corresponds to the top right
control button.
SubtitlesInforms you of a selected option (e.g.
current radio station).
Function
wheelIs operated by turning and pressing
the rotary pushbutton.
Crossed-out
loudspeaker
symbolCurrent audio source is muted.
Time
Telephone
symbol*Missed calls*
page 91, fig. 85.
LegendSymbol /
MarkingExplanation
A11
A12
A13
A14
A15
A16
A17
Fig. 32 Speller for
numbers: Entering
phone numbers
Fig. 33 Speller for
letters: Finding a direc-
tory entry
A11A5










Basic operation45
MMI componentsMMI control consoleMulti-function steering wheelTelephone handsetVoice control
Switching the MMI display on and off
Switching off the display
– Starting from any one of the Setup menus, press the
control button for Display.
– Turn the rotary pushbutton to Switch off display

fig. 34 and press the rotary pushbutton. The display
will be switched off.
Switching on the display
– Press or turn the rotary pushbutton, or
– Press a function selector button, or
– Press a control button, or
– Press the button.
Note
After switching off the display, you can still change the station on a
selected audio/video source using the arrow buttons on the MMI
control console.
Adjusting the volume
Current audio/video* source
Adjust the volume or mute the audio sources using the
ON/OFF button.
Increasing and reducing the volume
– Turn the ON/OFF button clockwise or anti-clockwise. The
volume level you select is stored in the memory.
Mute
– Briefly press the ON/OFF button. A crossed-out loud-
speaker will appear in the MMI display.
Unmute
– Briefly press the ON/OFF button, or
– Turn the ON/OFF button.
When you switch on the MMI system, very high/very low volume
levels are automatically reduced/increased to a preset level.
If you activate the mute/pause function by pressing the ON/OFF
button briefly before switching off the MMI, the mute/pause func-
tion will remain active when the MMI is switched on again.
Fig. 34 Switching off
the MMI display
RETURN
Fig. 35 Increasing,
reducing and muting
volume of MMI system










Basic operation 46
If you are in CD mode, the CD playback will be paused while the
mute function is activated.
Note
You can also adjust the volume by scrolling the right thumbwheel
on the multi-function steering wheel up and down without having
to remove your hands from the steering wheel
page 129.
Other audio sources
The volume of the voice guidance*, traffic reports*, the
speech dialogue system* and the telephone* can be
adjusted separately.
The system automatically sends a test message while the
settings are being adjusted.
– Starting from any of the audio, TV*, or SETUP menus,
press the control button for Sound
page 41.
– Turn the rotary pushbutton and select Volume settings.
– Press the rotary pushbutton. The Volume settings menu
will appear on the MMI display
fig. 36.
– Turn the rotary pushbutton to select an item in the menu.– Press the rotary pushbutton. Now you can adjust the
volume for the selected item.
– Turn the rotary pushbutton to select the desired volume.
– Press the rotary pushbutton to confirm your adjustment.
Note
Select Audio during route guid. to adjust the volume of the current
audio source during route guidance (spoken navigation
directions).
Adjusting the sound
Basic settings
Fig. 36 Volume
settings
Fig. 37 Selecting
balance





!




Basic operation47
MMI componentsMMI control consoleMulti-function steering wheelTelephone handsetVoice control
– Starting from any of the audio, TV*, or SETUP menus,
press the control button for Sound
page 41.
– Turn the rotary pushbutton to select an item in the menu
(e.g. Balance
page 46, fig. 37).
– Press the rotary pushbutton. The selected item will
appear larger on the MMI display
fig. 38.
– Turn the rotary pushbutton clockwise or anti-clockwise to
adjust the sound settings.
– Press the rotary pushbutton to confirm your adjustment.
The following sound settings are available:
•Balance: Varies left and right volume levels
•Fader: Varies front and rear volume levels
•Tr e b l e
•Bass
•GALA (speed-dependent volume control)
•Subwoofer* (for extra bass depth)6)
•DSP *
page 47
•DSP Bang & Olufsen*
page 48
•Volume settings for other audio sources
page 46
The settings for treble and bass are effective for the currently
selected function. The settings for balance and fader apply regard-
less of the selected function.
Applies to vehicles: with DSP
Digital Signal Processing (DSP)
With the sound focus function you can achieve three-
dimensional sound effects. GALA adjusts the volume level
and sound settings to the vehicle's speed.
Displaying the DSP menu
– Starting from any of the audio, TV*, or SETUP menus,
press the control button for Sound
page 41.
– Turn the rotary pushbutton to DSP and press to confirm.
The DSP menu will appear on the MMI display
fig. 39.
Sound focus
– Turn the rotary pushbutton to Sound focus and press to
confirm.
6)The subwoofer cannot be adjusted if your vehicle is equipped with the Bang
& Olufsen* sound system.
Fig. 38 Adjusting
balance
Fig. 39 Adjusting
three-dimensional
sound effects (sound
focus)










Basic operation49
MMI componentsMMI control consoleMulti-function steering wheelTelephone handsetVoice control
– Press the rotary pushbutton to confirm your
adjustment.
Setting the time
You can choose between a quartz clock and a radio-
controlled clock*. If you have chosen the quartz clock,
you must set the time and date yourself. The radio-
controlled clock* receives the time and date automati-
cally.
Calling up the Time setting menu
– Press the function selector button marked .
– Press the Time control button. The Time setting menu
will appear on the MMI display.
Selecting the time source*
7)
– Turn the rotary pushbutton to Time source and press to
confirm.– Turn the rotary pushbutton to quartz or radio clock* and
press to confirm. When the time source is selected as
radio clock*, the “signal reception symbol” appears on
the rev counter display.
Setting the time (only possible for time source:
quar t z)
– Turn the rotary pushbutton to Time and press to confirm.
The hour display will be highlighted in white on the MMI
display.
– To set the hour, turn the rotary pushbutton clockwise or
anti-clockwise and press it. The minute display will then
be highlighted in white on the MMI display.
– To set the minutes, turn the rotary pushbutton clockwise
or anti-clockwise.
– Confirm the time setting by pressing the rotary push-
button.
Setting the date (only possible for time source:
quar t z)
– Turn the rotary pushbutton to Date and press the rotary
pushbutton. The date display will then be highlighted in
white on the MMI display.
– To set the day, turn the rotary pushbutton clockwise or
anti-clockwise and press it. The month display will then
be highlighted in white on the MMI display.
– To set the month, turn the rotary pushbutton clockwise
or anti-clockwise and press it. The year display will then
be highlighted in white on the MMI display.
– To set the year, turn the rotary pushbutton clockwise or
anti-clockwise.
7)Applies to vehicles with radio-controlled clock
Fig. 41 Time setting
SETUP










Basic operation51
MMI componentsMMI control consoleMulti-function steering wheelTelephone handsetVoice control
– Press the button , the rotary pushbutton
and the top right control button simultaneously.
– Then release the buttons. The MMI system will switch off
and then restart.
Other settings
MMI menu language
– Select: Function selector button > control button
Settings > Menu language.
The language of texts shown on the MMI display and the driver
information system as well as the language of the voice guidance*
can be altered.
You can select the languages German, English, French, Italian,
Spanish, Portuguese, Dutch or Russian.
Measurement units
– Select: Function selector button > control button
Settings > Measurement units.
You can alter the measurement units shown on the MMI display, the
driver information system and the air conditioner display.
The units for distance (km or miles), speed (km/h or mph), tempera-
ture (°C or °F) and pressure (bar or psi) can be set.
Applies to vehicles: with speech dialogue system
Speech dialogue system
– Select: Function selector button > control button
Settings > Speech dialogue system.
Repeat command
If Repeat command is activated, the speech dialogue system* will
repeat your commands when switching to another function.
Deleting all name tags
All the name tags (spoken names or telephone numbers) you have
stored will be deleted.
Default settings
– Select: Function selector button > control button
Settings > Default settings.
This function resets the general settings, the sound settings as well
as several of the radio, CD, TV/AV*, telephone* and navigation*
settings to the default settings.
Brightness of the MMI display
– Select: Function selector button > control button
Display > Brightness.
You can alter the brightness of the display by turning the rotary
pushbutton clockwise or anti-clockwise.
SETUPA1A2
A3
SETUP
SETUP
SETUP
SETUP
SETUP










Listening to the radio53
MMI componentsMMI control consoleMulti-function steering wheelTelephone handsetVoice control
Listening to the radio
Introduction
The radio has four wavebands: FM, MW, LW and DAB* (digital radio).
The stations which are currently within reception range are
displayed in a station list and can be selected. Of course you can
tune the radio to the next available station or scan all stations via
the MMI control console. You can store your favourite stations in
any order on a memory list.
FM (very high frequency)
The FM station list (max. 30 stations) is updated automatically. You
can set the station list to display the five radio stations that you listen to most frequently at the top of the station list. Other available
stations will appear further down the list
fig. 43.
Radio stations that appear in grey lettering cannot be selected as
they are not within reception range.
Medium and long wave (MW/LW band)
The MW and LW station lists (max. 30 stations) must be updated
manually
page 54, fig. 46.
When you leave the range of reception the stations in the station
lists will still be displayed, but the reception will be poor.
Digital radio* (DAB frequency)
If you are listening to “Digital Audio Broadcasting”* the station list
shows so-called ensembles. Ensembles cover a specific area (e.g. a
city or region) and comprise various radio stations. The frequency
range can be restricted to regional ensembles
page 62.
The station list (max. 60 stations) must be updated manually. This
may take some time.
If you leave the range of reception, ensembles or radio stations
which can no longer be received are marked with the symbol

fig. 44. The symbol disappears as soon as the ensemble or radio
station can be received again.
If the MMI has been switched off for more than ten minutes (ignition
key removed), the last five ensembles that you listened to will auto-
matically be checked for reception when the MMI is switched back
on. Any ensembles that are no longer available will not appear in the
station list.
Fig. 43 FM station list
Fig. 44 DAB station list
showing stations no
longer receivedA1










Listening to the radio55
MMI componentsMMI control consoleMulti-function steering wheelTelephone handsetVoice control
Selecting a station from the station
list

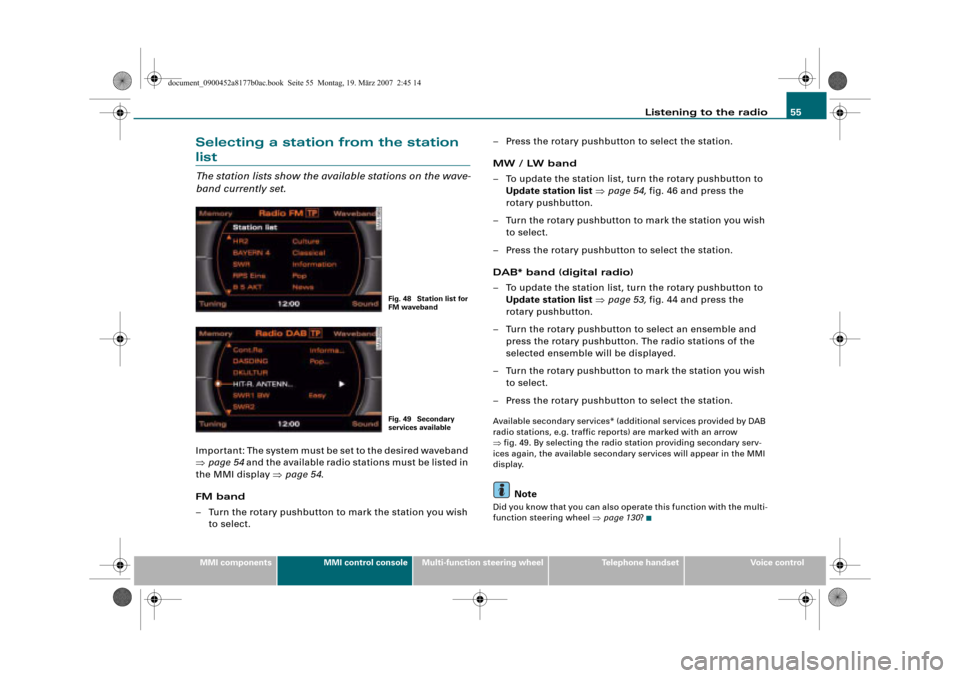

The station lists show the available stations on the wave-
band currently set.
Important: The system must be set to the desired waveband

page 54 and the available radio stations must be listed in
the MMI display
page 54.
FM band
– Turn the rotary pushbutton to mark the station you wish
to select.– Press the rotary pushbutton to select the station.
MW / LW band
– To update the station list, turn the rotary pushbutton to
Update station list
page 54, fig. 46 and press the
rotary pushbutton.
– Turn the rotary pushbutton to mark the station you wish
to select.
– Press the rotary pushbutton to select the station.
DAB* band (digital radio)
– To update the station list, turn the rotary pushbutton to
Update station list
page 53, fig. 44 and press the
rotary pushbutton.
– Turn the rotary pushbutton to select an ensemble and
press the rotary pushbutton. The radio stations of the
selected ensemble will be displayed.
– Turn the rotary pushbutton to mark the station you wish
to select.
– Press the rotary pushbutton to select the station.
Available secondary services* (additional services provided by DAB
radio stations, e.g. traffic reports) are marked with an arrow

fig. 49. By selecting the radio station providing secondary serv-
ices again, the available secondary services will appear in the MMI
display.
Note
Did you know that you can also operate this function with the multi-
function steering wheel
page 130?
Fig. 48 Station list for
FM waveband
Fig. 49 Secondary
services available










Listening to the radio57
MMI componentsMMI control consoleMulti-function steering wheelTelephone handsetVoice control
– Press the rotary pushbutton again to stop the SCAN func-
tion. The system will select the station currently
playing.
Storing stations
The memory list can contain up to 25 stations from all
wavebands.
Important: You must first select a TV channel
page 56.Using the rotary pushbutton
– Press and hold the rotary pushbutton until the station
appears in a free position on the memory list.
– Turn the rotary pushbutton clockwise or anti-clockwise to
change the position on the memory list.
– To store the station to the position on the memory list,
press the rotary pushbutton.
Using the Memory control button
– Press the Memory control button.
– Turn the rotary pushbutton and select Store station name

fig. 53.
– Press the rotary pushbutton. The selected channel will
appear in a free position on the memory list.
– Turn the rotary pushbutton clockwise or anti-clockwise to
change the position on the memory list.
– To store the station to the position on the memory list,
press the rotary pushbutton.
Using the Tuning control button
– Press the control button for Tuning.
– Turn the rotary pushbutton to STORE
fig. 52.
– Press the rotary pushbutton. The selected channel will
appear in a free position on the memory list.
– Turn the rotary pushbutton clockwise or anti-clockwise to
change the position on the memory list.
– To store the station to the position on the memory list,
press the rotary pushbutton.
Fig. 52 Storing a
station
Fig. 53 Storing a
station










Listening to the radio59
MMI componentsMMI control consoleMulti-function steering wheelTelephone handsetVoice control Traffic reports are automatically recorded for about one hour after
the MMI has been switched off. The recorded reports can be called
up via the TP memo function
page 121. Use the options Timer 1
and Timer 2 to set specific times at which you want to record traffic
reports
page 123.
Regional station function
Important: The radio must be set to the FM waveband

page 54.
– Select: Function selector button > function
selector button > Regional stations.
Some FM stations split up their transmission and provide different
regions with regional programmes with differing content.
Regional station function on
All regional stations can be received.Regional station function off
Only the regional station with the strongest reception can be
received.
Station reception
Important: The radio must be set to the FM, MW or LW wave-
band
page 54.
– Select: Function selector button > function
selector button > Station reception.
Station reception - local
The automatic search function (in FM, MW and LW waveband) will
only stop at stations/frequencies with a strong reception signal.
Station reception - distant
The automatic search function (in FM, MW and LW waveband) will
also stop at stations/frequencies with a weaker reception signal.
Station names
Important: The radio must be set to the FM waveband

page 54.
– Select: Function selector button > function
selector button > Station names.
Station names - scrolling
Scroll texts transmitted by FM stations will appear in the MMI
display.
Station names - fixed
Scroll texts transmitted by FM stations will not appear in the MMI
display. The current scroll text in the display will freeze.
TP symbolFunction
Filled inThe Traffic Programme function is activated.
Traffic news stations can be received and traffic
reports will cut in.
Not filled inThe Traffic Programme function has been
switched off. Traffic news stations can be
received, but no traffic reports will cut in.
Crossed outThe Traffic Programme function is activated. No
traffic news station can be received. No traffic
reports will cut in.
Not displayedThe Traffic Programme function has been
switched off. No traffic news station can be
received.
RADIO
SETUP
RADIO
SETUP
RADIO
SETUP
