AUDI Q7 2010 Owner´s Manual

& WARNING (continued)
• Make sure the forward-facing seat has been designed and certi·
fied by its manufacturer for use
on a front seat with a passenger
front and side airbag.
• Always follow the manufacturer's instructions provided with
the child safety seat or infant carrier.
• Always move the front passenger seat into the rearmost posi­
tion of the passenger seat's fore and aft adjustment range, and as
far away from the airbag as possible before installing the child
restraint.
• Always make sure that nothing prevents the front passenger's
seat from being moved to the rearmost position in its fore and aft
adjustment range.
• Always make sure the backrest is in an
upright position.
• Make sure that the PASSENGER AIR BAG
OFF light comes on
and stays on all the time whenever the ignition is switched
on.
• If the light does not stay on, perform the checks => page 220,
"Monitoring the Advanced Airbag System".
• Take the child restraint off the front passenger seat and install
it properly at one of the rear seat positions if the PASSENGER AIR
BAG
OFF light does not stay on whenever the ignition is switched
on. a
Safety first Vehicle OP-eration
Child Safety

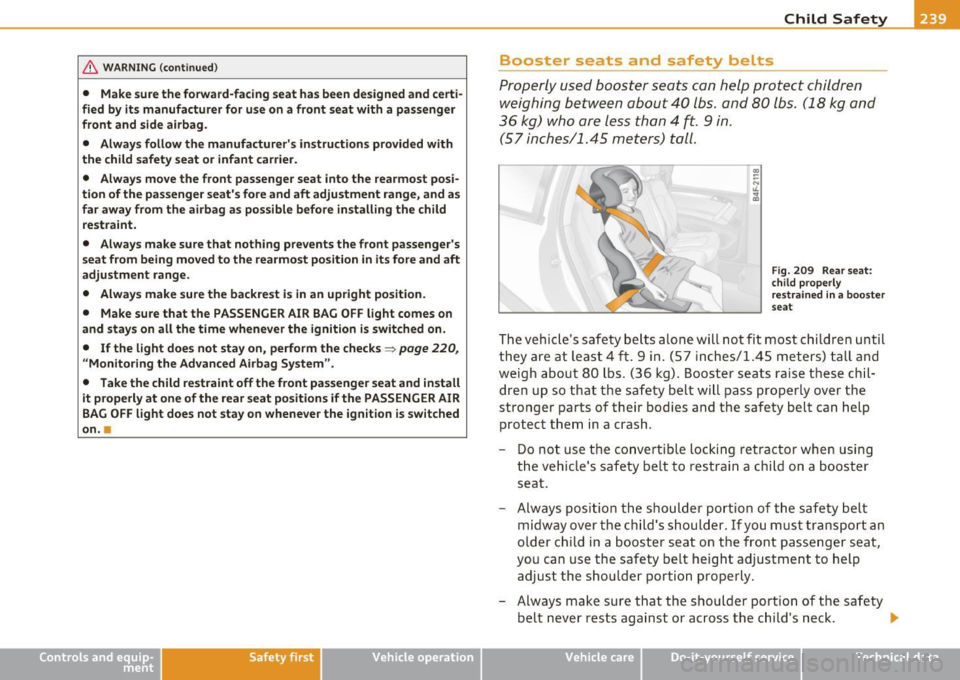

Booster seats and safety belts
Properly used booster seats can help protect children
weighing between about 40 lbs. and 80 lbs. (18 kg and
36 kg) who are less than 4 ft.
9 in.
(57 inches/1.45 meters) tall .
Fig. 209 Rear seat:
child properly
restrained in a booster
seat
The vehicle's safety belts alone will not fit most children until
they are at least 4 ft. 9 in. (57 inches/1.45 meters) tall and
weigh about 80 lbs. (36 kg). Booster seats raise these chil­
dren up so that the safety belt will pass properly over the
stronger parts of their bodies and the safety belt can help
protect them in a crash.
- Do not use the convertible locking retractor when using
the vehicle's safety belt to restrain a child on a booster
seat.
- Always position the shoulder portion of the safety belt
midway over the child's shoulder. If you must transport an
older child in a booster seat on the front passenger seat,
you can use the safety belt height adjustment to help
adjust the shoulder portion prop erly.
- Always make sure that the shoulder portion of the safety
belt never rests against or across the child's neck.
9'>
Vehicle care Do-it-yourselt service iTechnical data

• .___C_ h_ il_d _ S_a _ f_ e _ t--= y '------------------------------------------------

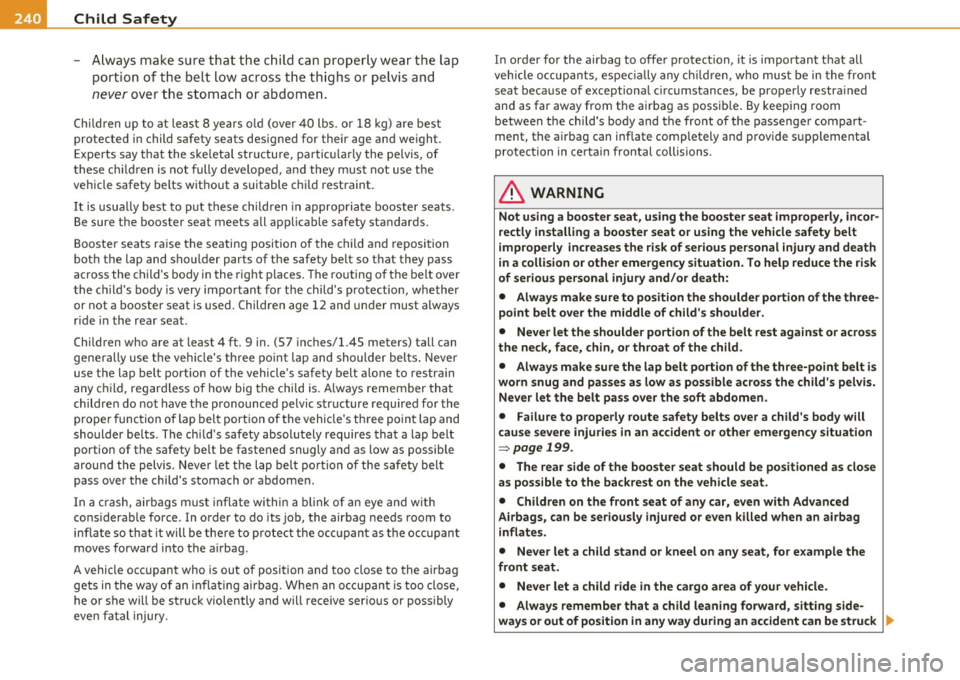

- Always make sure that the child can properly wear the lap
portion of the belt low across the thighs or pelvis and
never over the stomach or abdomen.
Children up to at least 8 years old (over 40 lbs. or 18 kg) are best
protected in child safety seats designed for their age and we ight.
Experts say that the skeletal structure, particularly the pelvis, of
these children is not fully developed , and they must not use the
vehicle safety belts without a suitable child restraint .
It is usually best to put these children in appropriate booster seats.
Be sure the booster seat meets all appl icable safety standards.
Booster seats raise the seating position of the child and reposition
both the lap and shoulder parts of the safety belt so that they pass
across the child's body in the right places. The routing of the belt over
the child's body is very important for the child's protection, whether
or not a booster seat is used . Children age 12 and under must always
ride in the rear seat.
Chi ldren who are at least 4 ft. 9 in . (57 inches/1.45 meters) tall can
generally use the vehi cle's three point lap and shoulder belts. Never
use the lap belt portion of the vehicle's safety belt alone to restra in
any child, regardless of how big the child is. Always remember that
children do not have the pronounced pelvic structure required for the
proper function of lap belt portion of the vehicle 's three point lap and
shoulder belts . The chi ld's safety absolutely requires that a lap belt
portion of the safety belt be fastened snugly and as low as possible
around the pelvis . Never let the lap belt portion of the safety belt
pass over the child's stomach or abdomen.
In a crash , airbags must inflate within a blink of an eye and with
cons iderable force . In order to do its job, the airbag needs room to
inflate so that it will be there to protect the occupa nt as the occupant
moves forward into the a irbag .
A vehicle occupant who is out of position and too close to the airbag
ge ts in the way of an inflat ing airbag . When an occupant is too close,
he or she will be struck violently and will receive serious or possibly
even fatal injury. In order
for the airbag to offer protection, it is important t hat all
vehicle occupants, especially any children, who must be in the front
seat because of exceptional c ircumstances, be properly restrained
and as far away from the airbag as possible. By keeping room
between the child's body and the front of the passenger compart­
ment, the airbag can inflate completely and provide supplemental
protection in certain frontal collisions.
& WARNING
Not using a booster seat, using the booster seat improperly, incor­
rectly installing a booster seat or using the vehicle safety belt
improperly increases the risk of serious personal injury and death
in a collision or other emergency situation. To help reduce the risk
of serious personal injury and/or death:
• Always make sure to position the shoulder portion of the three­
point belt over the middle of child's shoulder.
• Never let the shoulder portion of the belt rest against or across
the neck, face, chin, or throat of the child.
• Always make sure the lap belt portion of the three-point belt is
worn snug and passes as low as possible across the child's pelvis.
Never let the belt pass over the soft abdomen.
• Failure to properly route safety belts over a child's body will
cause severe injuries in an accident or other emergency situation
~ page 199.
• The rear side of the booster seat should be positioned as close
as possible to the backrest on the vehicle seat.
• Children on the front seat of any car, even with Advanced
Airbags, can be seriously injured or even killed when an airbag
inflates.
• Never let a child stand or kneel on any seat, for example the
front seat.
• Never let a child ride in the cargo area of your vehicle.
• Always remember that a child leaning forward, sitting side­
ways or out of position in any way during an accident can be struck ._

_____________________________________________ C _h_i_ld _ S_ a_ f_ e_ t__. y'--- __

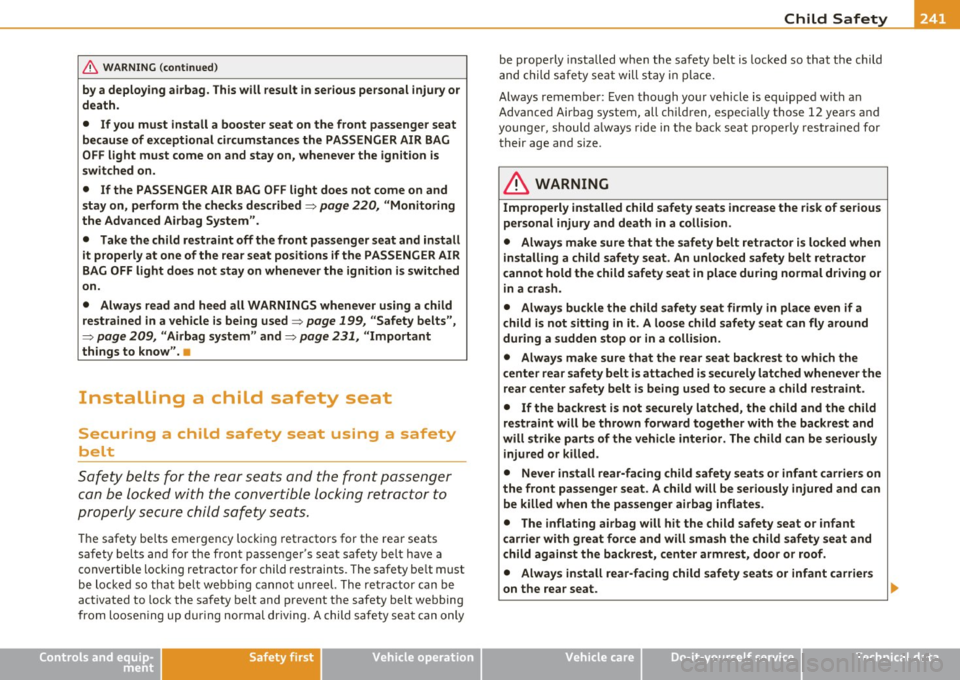

& WA RNING (c on tinued )
by a deploying airbag . This will result in se rious personal injury or
death.
• If you must install a booste r seat on the front passenger seat
because of exceptional cir cumstance s the PASSENGER AIR BAG
OF F light must come on and stay on , whenever the ign ition is
s wit ched on .
• If the PASSENGER
AIR BAG OFF light does not come on and
stay on, perform the checks described => page 220, " Monitoring
the Advanced Airbag System".
• Take the child re straint off the front passenger seat and install
it prope rly at one of the rear seat positions if the PASSENGER AIR
BAG OFF light does not stay on whenever the ignition i s sw itched
on.
• Always read and heed all WARNINGS whenever u sing a child
restrained in a vehicle is being used=>
page 199 , "Safety belts",
=> page 209, "Airbag sy ste m " and => page 231, "Important
things to know ".•
Installing a child safety seat
Securing a child safety seat using a safety
belt
S afet y belts f or t he rear se ats a nd the fr ont pa ssenger
can be l ocke d wit h the co nverti ble lockin g retract or to
p ro p erly sec ure chi ld safety seats .
The safety be lts emergency lo ck ing retractors for the rear seats
safety belts and fo r the fron t passe nger's seat safety belt have a
convertib le locking retractor for child restraints . The safety be lt must
be locked so that belt webbing cannot u nreel. The retractor can be
activated to lock the safety be lt and prevent the safety belt webbing
from loose ning up du ring normal dr iv ing. A child safety seat can only
Controls and equip­ ment Safety first Vehicle operation be properly
installed when the safety belt is locked so that the child
and child s afety se at will s tay in place.
Always remember: Even though yo ur vehicle is equipped w ith a n
Advanced Airbag system, all chi ldren, especia lly those 12 yea rs and
younger, should a lways ride in th e back sea t pro perly res train ed fo r
their age and size .
& WARNING
Improperly installed child safety seats increase the risk of serious
personal injury and death in a collision.
• Always make sure that the safety belt retractor is locked when
installing a child safety seat . An unlocked safety belt retractor
cannot hold the child safety seat in place during normal driving o r
in a crash.
• Always buckle the child safety seat firmly in place even if a
child is not sitting in it . A loose child safety seat can fly around
during a sudden stop or in a collision.
• Always make sure that the rear seat backrest to which the
center rear safety belt is attached is securely latched whenever the
rear center safety belt is being used to secure a child restraint .
• If the backrest is not securely latched, the child and the child
restraint will be thrown forward together with the backrest and
will strike parts of the vehicle interior. The child can be seriously
injured or killed.
• Never install rear -facing child safety seat s or infant carrier s on
the front passenger seat . A child will be seriously injured and can
be killed when the pa ssenger airbag inflates.
• The inflating airbag will hit the child safety seat or infant
carrier with great force and will sma sh the child safety seat and
child against the backrest, center armrest, door or roof .
• Always in stall rear-facing child safety seats or infant carrier s
on the rear seat. _,.
Vehicle care Do-it-yourself service Technical data

-L-___::C~h...:.: i:.:: l .:::d ~S:::.::: a..:..f .::. e ..::tY L- ___________________________________________ _

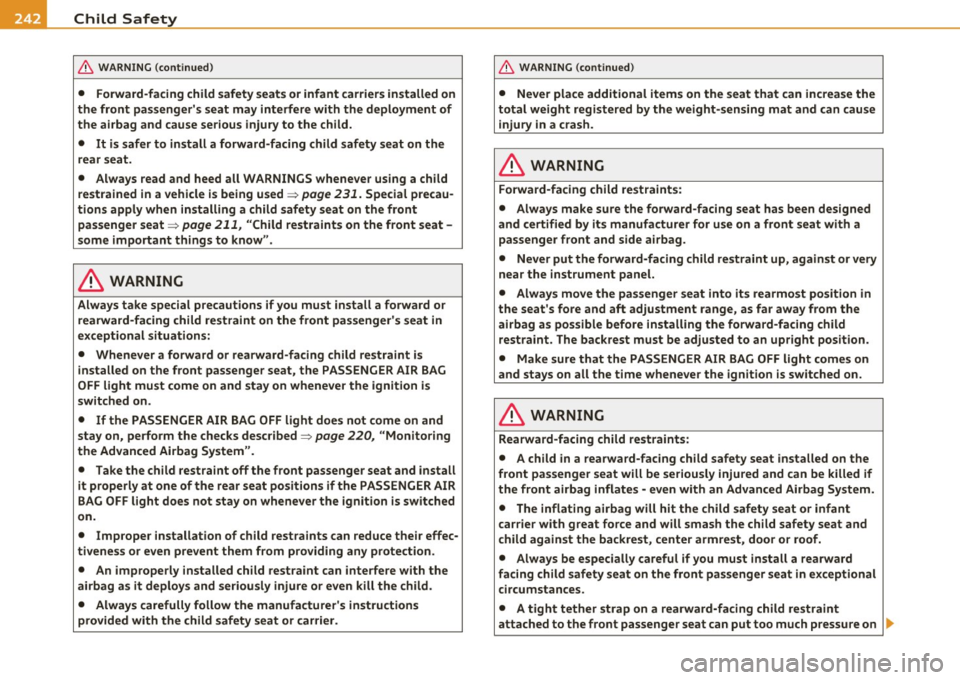

& WARNING (continued)
• Forward-facing child safety seats or infant carriers installed on
the front passenger's seat may interfere with the deployment of
the airbag and cause serious injury to the child.
• It is safer to install a forward-facing child safety seat on the
rear seat.
• Always read and heed all WARNINGS whenever using a child
restrained in a vehicle is being used~
page 231. Special precau­
tions apply when installing a child safety seat on the front
passenger seat~
page 211, "Child restraints on the front seat -
some important things to know".
& WARNING
Always take special precautions if you must install a forward or rearward-facing child restraint on the front passenger's seat in
exceptional situations:
• Whenever a forward or rearward-facing child restraint is
installed on the front passenger seat, the PASSENGER AIR BAG
OFF light must come on and stay on whenever the ignition is
switched on.
• If the PASSENGER AIR BAG OFF light does not come on and
stay on, perform the checks described~
page 220, "Monitoring
the Advanced Airbag System".
• Take the child restraint off the front passenger seat and install
it properly at one of the rear seat positions if the PASSENGER AIR
BAG OFF light does not stay on whenever the ignition is switched
on.
• Improper installation of child restraints can reduce their effec­
tiveness or even prevent them from providing any protection.
• An improperly installed child restraint can interfere with the
airbag as it deploys and seriously injure or even kill the child.
• Always carefully follow the manufacturer 's instructions
provided with the child safety seat or carrier.
& WARNING (continued)
• Never place additional items on the seat that can increase the
total weight registered by the weight-sensing mat and can cause injury in a crash.
& WARNING
Forward-facing child restraints:
• Always make sure the forward-facing seat has been designed
and certified by its manufacturer for use on a front seat with a
passenger front and side airbag.
• Never put the forward-facing child restraint up, against or very
near the instrument panel.
• Always move the passenger seat into its rearmost position in
the seat's fore and aft adjustment range, as far away from the
airbag as possible before installing the forward-facing child
restraint. The backrest must be adjusted to an upright position.
• Make sure that the PASSENGER AIR BAG OFF light comes on
and stays on all the time whenever the ignition is switched on.
& WARNING
Rearward-facing child restraints:
• A child in a rearward-facing child safety seat installed on the
front passenger seat will be seriously injured and can be killed if
the front airbag inflates - even with an Advanced Airbag System.
• The inflating airbag will hit the child safety seat or infant
carrier with great force and will smash the child safety seat and
child against the backrest, center armrest, door or roof.
• Always be especially careful if you must install a rearward
facing child safety seat on the front passenger seat in exceptional
circumstances.
• A tight tether strap on a rearward-facing child restraint
attached to the front passenger seat can put too much pressure on .,

_____________________________________________ C _h_i_ld _ S_ a_ f_ e_ t ... Y'--- __

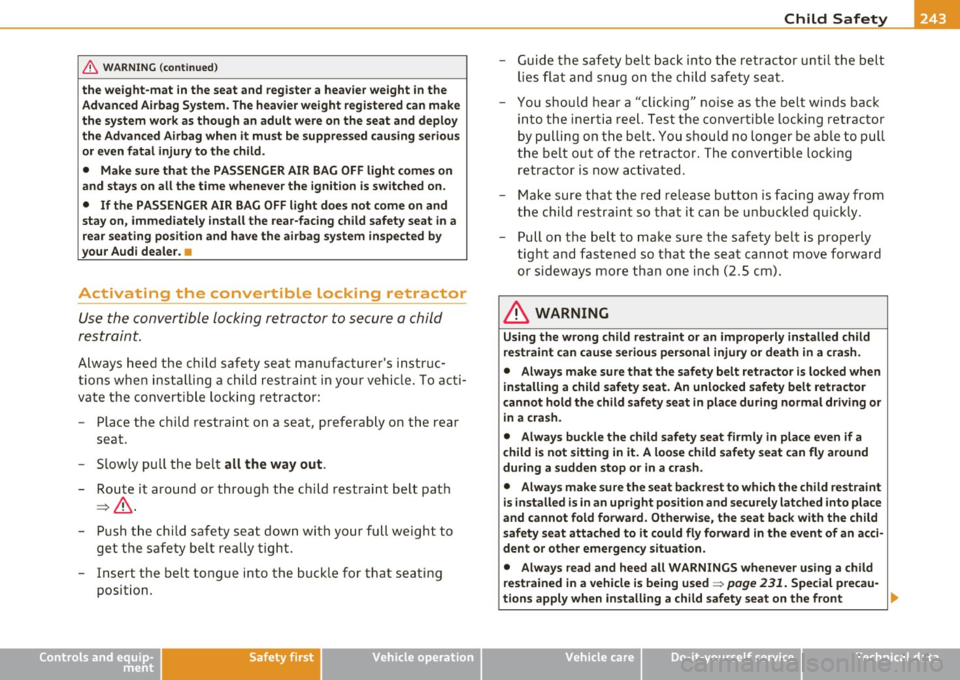

& WARNING (continued)
the weight-mat in the seat and register a heavier weight in the
Advanced Airbag System. The heavier weight registered can make
the system work as though an adult were on the seat and deploy
the Advanced Airbag when it must be suppressed causing serious
or even fatal injury to the child.
• Make sure that the PASSENGER AIR BAG OFF light comes on
and stays on all the time whenever the ignition is switched on.
• If the PASSENGER AIR BAG OFF light does not come on and
stay on, immediately install the rear-facing child safety seat in a
rear seating position and have the airbag system inspected by
your Audi dealer. •
Activating the convertible locking retractor
Use the convertible locking retractor to secure a child
restraint.
Always heed the child safety seat manufacturer 's instruc­
tions when installing a child restraint in your vehicle. To acti­
vate the convertible locking retractor:
- Place the child restraint on a seat, preferably on the rear
seat .
- Slowly pull the belt
all the way out.
- Route it around or through the child restraint belt path
=>& .
- Push the child safety seat down with your full weight to
get the safety belt really tight.
- Insert the belt tongue into the buckle for that seating
position.
Controls and equip­ ment Safety first Vehicle operation
-
Guide the safety belt back into the retractor until the belt
lies flat and snug on the child safety seat.
- You should hear a "clicking" noise as the belt winds back into the inertia reel. Test the convertible lock ing retractor
by pulling on the belt. You should no longer be able to pull
the belt out of the retractor. The convertible lock ing
retractor is now activated.
- Make sure that the red release button is facing away from the child restraint so that it can be unbuckled quickly .
- Pull on the belt to make sure the safety belt is properly tight and fastened so that the seat cannot move forward
or sideways more than one inch (2 .5 cm) .
& WARNING
Using the wrong child restraint or an improperly installed child
restraint can cause serious personal injury or death in a crash.
• Always make sure that the safety belt retractor is locked when
installing a child safety seat. An unlocked safety belt retractor
cannot hold the child safety seat in place during normal driving or
in a crash.
• Always buckle the child safety seat firmly in place even if a
child is not sitting in it. A loose child safety seat can fly around
during a sudden stop or in a crash.
• Always make sure the seat backrest to which the child restraint
is installed is in an upright position and securely latched into place
and cannot fold forward. Otherwise, the seat back with the child
safety seat attached to it could fly forward in the event of an acci­
dent or other emergency situation.
• Always read and heed all WARNINGS whenever using a child
restrained in a vehicle is being used=>
page 231. Special precau-
tions apply when installing a child safety seat on the front
lill-
Vehicle care Do-it-yourself service Technical data

lffll,___C_ h_ il_d _ S_a _ f_ e _ t-= y ;....._ ____________________________________________ _

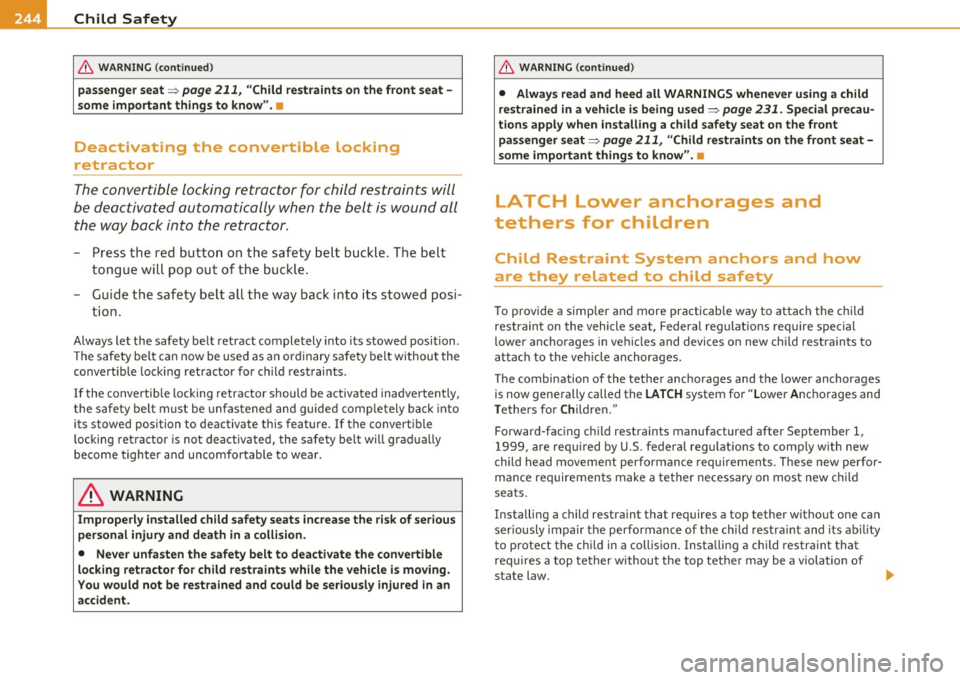

& WARNING (conti nued)
passenger seat => page 211, "Child restraints on the front seat -
s ome important thing s to know ".•
Deactivating the convertible locking
retractor
The convertible lockin g retractor for child restraints will
be d eac tiv a ted aut omatic all y when the bel t is wou nd all
t he wa y back in to the retrac tor.
-Press the r ed button on the sa fety belt buckl e. T he b elt
t o ngue will po p out of t he buckle .
- Guid e the safety belt a ll the way back into its stowe d posi-
t ion.
Always le t the sa fety be lt retrac t co mple tely i nto i ts s tow ed position .
The safety bel t can now be used as a n or dinary sa fe ty belt withou t the
convert ib le locking ret ractor fo r chi ld rest raints .
If the convertible locking retractor should be activated inadvertently,
t he s afety be lt mus t be unfa stened and guide d comple tely b ack in to
its stowed position to deactivate this feature. If t he convert ib le
lo ckin g ret ractor is no t d eactiv ated , the sa fe ty bel t w ill grad ually
become tighter and uncomfo rtable to wea r.
& WARNING
Imp roperly installed child safety seats increase the risk of serious
personal injury and death in a colli sion.
• Never unfasten the safety belt to deactivate the convertible
locking retractor for child restraints while the vehicle is moving.
You would not be restrained and could be seriously injured
in an
accident.
& WARNING (con tinued )
• Alway s read and heed all WARNINGS whenever u sing a child
restrained in a vehicle is being used
=> page 231. Special precau­
tions apply when installing a child safety seat on the front
pass enger seat =:>
page 211, "Child restraints on the front seat -
some impo rtant things to know ".•
LATCH Lower anchorages and
tethers for children
Child Restraint System anchors and how
are they related to child safety
T o prov ide a simpler and more practicable way to attach the child
restrain t on the vehicle seat, Federa l regulat io ns re quire spe cial
lower ancho rages in ve hicles and devices o n new chi ld restraints to
at ta ch to the ve hicle an chor ages.
The combination of the tether anchorages and t he lower anchorages
is now gene rally called the
LATCH system fo r "Lowe r Ancho rages and
T ethers for Childre n."
Forward-fac ing c hild restraints manufactured after Se ptember 1,
199 9, are requ ired by U .S. feder al reg ulat ion s to comp ly w ith new
child head moveme nt performance requirements . These new perfor­
m anc e req uire men ts ma ke a tether nece ssary on m ost new child
seats.
Insta lling a child restraint that req uires a top tether w ithout one can
ser iously impair t he p erf or mance of th e chi ld res tra int and its ab ility
to p rotect the ch ild in a collision. Insta llin g a c hild rest raint that
req uires a top te ther w ithout t he top tet her m ay be a v iol at ion of
state law. ..

Child restraint manufacturers offer LATCH lower anchorages on the ir
c hild seats with hook-on or push-on connectors attached to adjust­
able straps .
I n addition to the LATCH lower anchorages, these child restraint
systems usually require the use of tet he r straps to he lp keep the child
restra int f irm ly in place.
& WARNING
Improper installation of child restraints will increase the risk of
injury and death in a crash.
• Always follow the instructions provided by the manufacturer
of the child restraint you intend to install in your vehicle.
• Never install a child restraint without a properly attached top
tether strap if the child restraint manufacturer's instructions
require the top tether strap to be used.
• Improper use of child restraint LATCH lower anchorage points
can lead to injury in a colli sion . The LATCH lower anchorage points
are designed to withstand only those loads imposed by correctly
fitted child restraints .
• Never mount two child restraint systems on one LATCH lower
anchorage point .
• Never secure or attach any luggage or other item to the LATCH
lower anchorages .
(I) Tips
• In Canada, the terms "top tether " with " lower universa l anchor­
ages" (or "lower universal anchorage bars") are used to describe the
system .
• In other countries, the term "ISO FIX" is used to describe the lower
anchorages. •
Safety first Vehicle OP-eration
Location
Child Safety

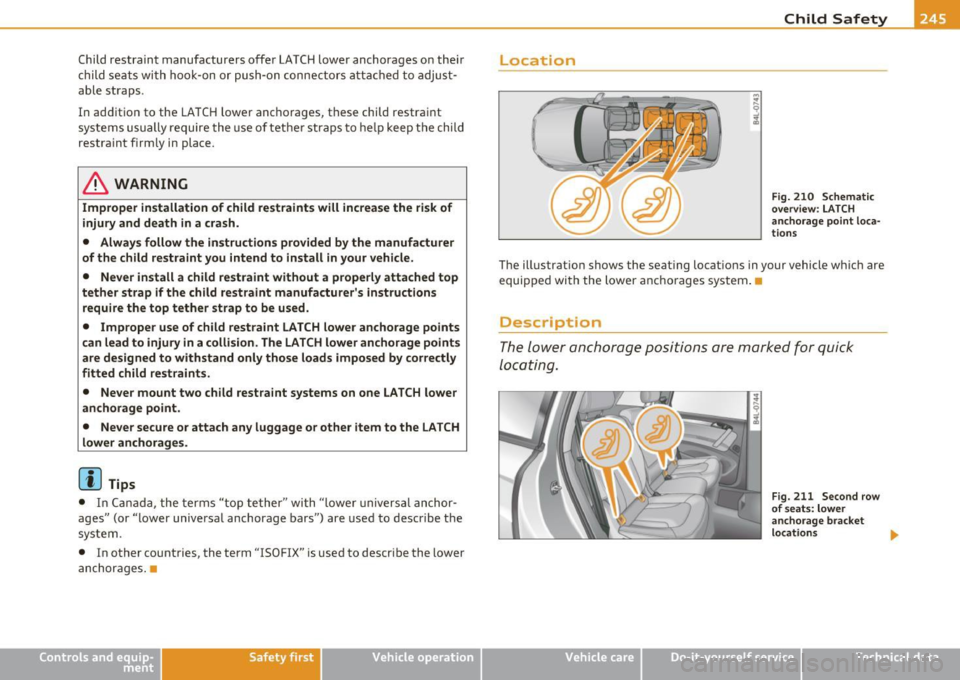

Fig. 210 Schematic
overview: LATCH
anchorage point loca­
tions
The illustrat ion shows the seating locations in your vehicle whic h are
equipped with the lower anchorages system. •
Description
The lower anchorage positions are marked for quick
locating.
Vehicle care
Fig. 211 Second row
of seats: lower
anchorage bracket
locations ..
Do-it-yourselt service iTechnical data

___ C_h _i_ld _ S_ a_ f_ e_ t_,, y'-----------------------------------------------

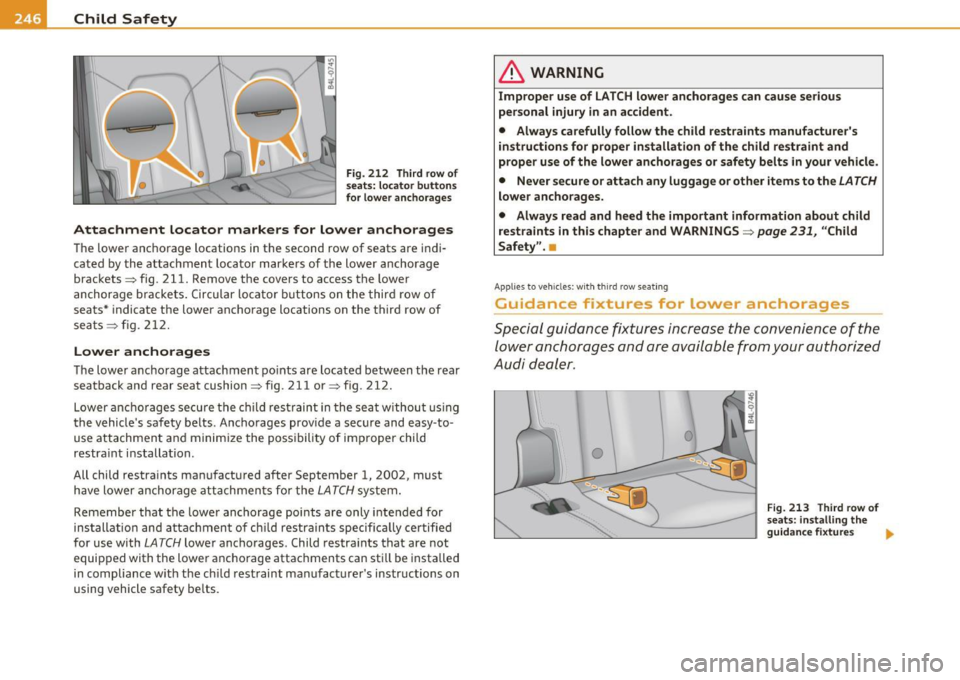

Fig. 212 Third row of
seats: locator buttons
for lower anchorages
Attachment locator markers for lower anchorages
The lower anchorage locations in the second row of seats are indi­
cated by the attachment locator markers of the lower anchorage
brackets :::::, fig . 211. Remove the covers to access the lower
anchorage brackets. Circular locator buttons on the third row of
seats * indicate the lower anchorage locations on the third row of
seats :::::, fig. 212.
Lower anchorages
The lower anchorage attachment points are located between the rear
seatback and rear seat cushion:::::, fig. 211 or:::::, fig . 212.
Lower anchorages secure the child restraint in the seat without using
the vehicle's safety belts . Ancho rages prov ide a secure and easy-to­
use attachment and minim ize the poss ibility of improper chi ld
restra int installation .
All child restra ints manufactured after September 1, 2002, must
have lower anchorage attachments for the
LATCH system.
Remember that the lower anchorage points are only intended for
ins tallatio n and attachment of child restrain ts specifica lly certified
for use with
LATCH lower anchorages . Child restraints that are not
equipped with the lower anchorage attac hments can still be installed
in compliance w ith the ch ild restraint manufact urer's instructions on
using vehicle safety be lts.
& WARNING
Improper use of LATCH lower anchorages can cause serious
personal injury in an accident.
• Always carefully follow the child restraints manufacturer's
instructions for proper installation of the child restraint and
proper use of the lower anchorages or safety belts in your vehicle.
• Never secure or attach any luggage or other items to the
LATCH
lower anchorages.
• Always read and heed the important information about child
restraints in this chapter and WARNINGS :::::,
page 231, "Child
Safety". •
Applies to veh icles: wi th third row seating
Guidance fixtures for lower anchorages
Special guidance fixtures increase the convenience of the
lower anchorages and are available from your authorized
Audi dealer.
o,
Fig. 213 Third row of
seats: installing the
guidance fixtures ..

I
I I
I I
I I
0

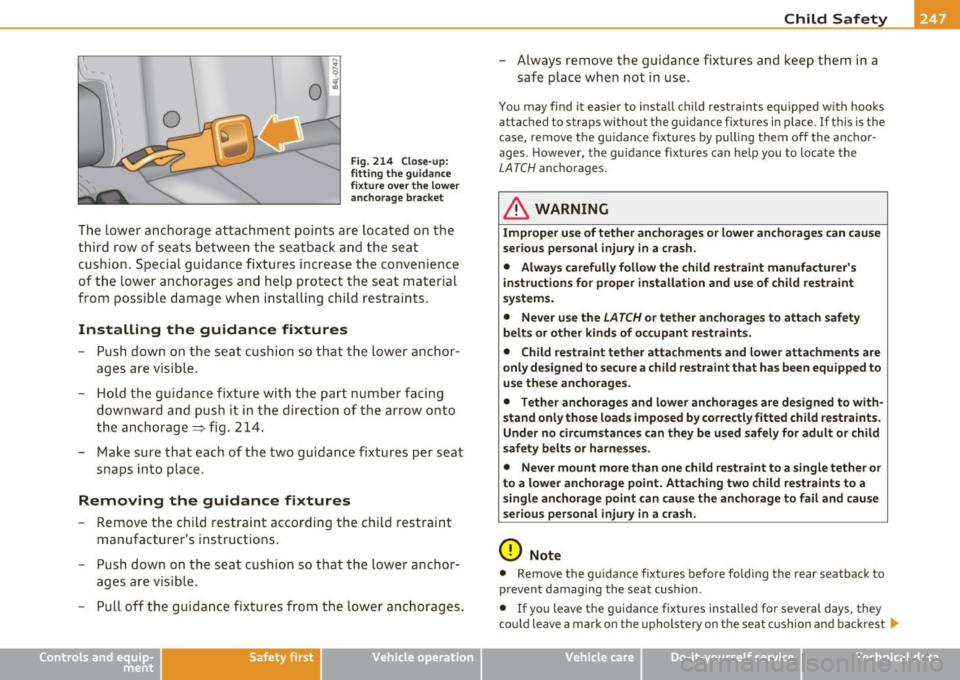

Fig. 214 Close-up:
fitting the guidance
fixture over the lower
anchorage bracket
The lower anchorage attachment points are located on the
third row of seats between the seatback and the seat
cushion. Special guidance fixtures increase the convenience
of the lower anchorages and help protect the seat material
from possible damage when installing child restraints.
Installing the guidance fixtures
- Push down on the seat cushion so that the lower anchor­
ages are visible.
- Hold the guidance fixture with the part number facing
downward and push it in the direction of the arrow onto
the anchorage => fig. 214.
- Make sure that each of the two guidance fixtures per seat snaps into place.
Removing the guidance fixtures
- Remove the child restraint according the child restraint
manufacturer's instructions.
- Push down on the seat cushion so that the lower anchor­
ages are visible.
- Pull off the guidance fixtures from the lower anchorages.
Safety first Vehicle OP-eration
Child Safety
-Always remove the guidance fixtures and keep them in a
safe place when not in use.
You may find it easier to install child restraints equipped with hooks
attached to straps without the guidance fixtures in place. If this is the
case , remove the guidance fixtures by pulling them off the anchor­
ages. However , the guidance fixtures can help you to locate the
LATCH anchorages.
& WARNING
Improper use of tether anchorages or lower anchorages can cause
serious personal injury in a crash.
• Always carefully follow the child restraint manufacturer's
instructions for proper installation and use of child restraint
systems.
• Never use the
LATCH or tether anchorages to attach safety
belts or other kinds of occupant restraints.
• Child restraint tether attachments and lower attachments are
only designed to secure a child restraint that has been equipped to
use these anchorages.
• Tether anchorages and lower anchorages are designed to with­
stand only those loads imposed by correctly fitted child restraints.
Under no circumstances can they be used safely for adult or child
safety belts or harnesses.
• Never mount more than one child restraint to a single tether or
to a lower anchorage point. Attaching two child restraints to a
single anchorage point can cause the anchorage to fail and cause
serious personal injury in a crash.
0 Note
• Remove the guidance fixtures before folding the rear seatback to
prevent damaging the seat cushion .
• If you leave the guidance fixtures installed for several days, they
could leave a mark on the upholstery on the seat cushion and backrest•
Vehicle care Do-it-yourselt service iTechnical data

• .___C_ h_ il_d _ S_a _ f_ e _ t--= y '------------------------------------------------
in the area that the guidance fixtures were installed . The upholstery
would also be permanently stretched around the guidance fixtures.
This applies especially to leather seats .•

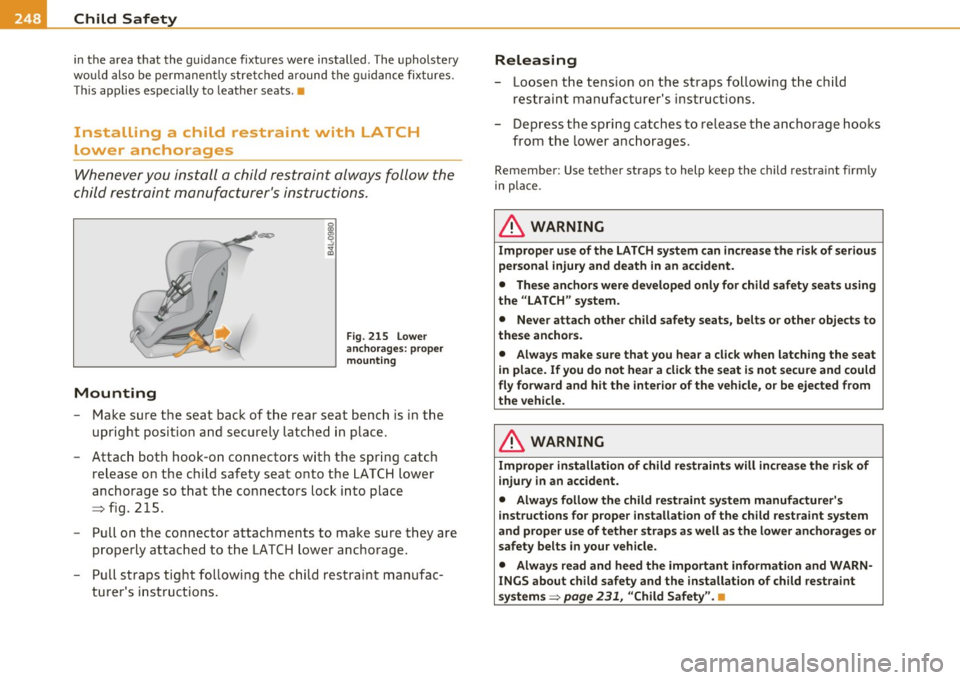

Installing a child restraint with LATCH
lower anchorages
Whenever you install a child restraint always follow the
child restraint manufacturer's instructions.
Mounting
Fig. 215 Lower
anchorages: proper
mounting
- Make sure the seat back of the rear seat bench is in the
upright position and securely latched in place.
- Attach both hook-on connectors with the spring catch
release on the child safety seat onto the LATCH lower
anchorage so that the connectors lock into place
~ fig. 215.
- Pull on the connector attachments to make sure they are
properly attached to the LATCH lower anchorage.
- Pull straps tight following the child restraint manufac­
turer's instructions.
Releasing
- Loosen the tension on the straps following the child
restraint manufacturer's instructions.
- Depress the spring catches to release the anchorage hooks
from the lower anchorages.
Remember: Use tether straps to help keep the child restraint firmly
in place.
& WARNING
Improper use of the LATCH system can increase the risk of serious
personal injury and death in an accident.
• These anchors were developed only for child safety seats using
the "LATCH" system.
• Never attach other child safety seats, belts or other objects to
these anchors.
• Always make sure that you hear a click when latching the seat
in place. If you do not hear a click the seat is not secure and could
fly forward and hit the interior of the vehicle, or be ejected from
the vehicle.
& WARNING
Improper installation of child restraints will increase the risk of
injury in an accident.
• Always follow the child restraint system manufacturer's
instructions for proper installation of the child restraint system
and proper use of tether straps as well as the lower anchorages or
safety belts in your vehicle.
• Always read and heed the important information and WARN­
INGS about child safety and the installation of child restraint
systems ~
page 231, "Child Safety". •
