width AUDI Q7 2010 Owner´s Manual

1111....__A_ u_ d_i_ s_id _e_ a_s _s_ i_ s _t _________________________________________________ _
Applie s to veh icle s: w ith si de assist
Sensor detection area
Fig . 1 52 Sc hem ati c
i ll us tra tion: Se nsor
d ete cti on area
Th e detection => fig. 152 of the ra dar sensor de tection area is made
up of:
• the approach area (light green area)
(D, abo ut 230 feet (70 m)
beh ind the veh icle, and
• the "blind spot" (dark green area) @.
T he rada r sensors cove r the ad jace nt left a nd right la nes. O the r lanes
are
not covered by the radar sensors.
[I) Tips
S ide assist does not measure actua l lane width. The system assumes
a fixe d lane w idt h. Detect ion in the le ft and right lanes is based on
this assumed lane width. When driving on narrow roads or whe n
dr iving to the left o r right o f the center of a travel lane, it is possi ble
tha t vehicles will be detected that are
not in the lane next to the lane
you a re us ing =>
page 159 . •
A pplie s to ve hicl es: wi th si de assist
Operation
Side assis t comp ares the di stance and differen ce i n s peed of dete cted
vehicles with the speed of your vehicle. Whenever the difference in
speed and dis tance is registe red as not able if you were to c hange
lanes, a signa l light appears on the respect ive m irror .
Th e signa l can light up if you are passed by a vehicle or if you are
passing ano ther veh icle.
If you pass anot her vehicle slow ly (difference in speed less than 9
m ph, or 15 km/h), the signal ligh t w ill c ome o n as soo n as the other
vehicle is in your blind spot and is detected by side ass ist . When the
difference i n spee d is greater, the signal light w ill not come on .•
A ppli es to ve h icles : w it h sid e ass ist
Informational and alert stage signals
Side ass ist has two signa l stages:
• the informational stage signa l, and
• the alert stage signal.
Side assist helps you by using the appropr iate signa l stage,
depending on w het her o r no t you have activated the turn signal, and
thus have indicated that you are or are not changing lanes.
Informational stage signal
As long as you have not activated the turn signa l, s ide assist informs
you of detected vehicles that a re reg istered as be ing in a no table loca­
tion if you we re to change lanes. Whenever the detected vehicle's
differen ce i n spee d and dis tance is registe red by s ide ass ist as
notable, the signal light on the respective mir ror produces muted
ill umin ation.
T he br ightness of the i nfo rmat iona l stage sig na l is desig ned not to be
as intense, so t hat it does not inte rfe re with yo ur v iew of the road
w hen you are d rivi ng and have no intention of chang ing lanes . When .,,,

1111....__A_ u_ d_i_ s_ id_ e_ a_s _s_ i_ s _t _________________________________________________ _
@ Signal on outside mirror does not light up
If you activate your turn signa l in driving situation @, the signal still
does not light up on the outside mirror~
& in "Safety tips" on
page 160. •
Applies to vehicles : w ith side assist
MMI settings
The basic brightness setting of the signal on the outside
mirror can be adjusted via the MMI.
-Select: Function button ( CAR j > Systems * > Audi side
assist .
The brightness of the signal l ight for both the info rmationa l and alert
stages is automatically adjusted to ambient light conditions . In addi­
tion , you can adjust the
basic brightness separate ly, via the bright­
ness function.
Whi le mak ing the adjustment, the new brightness setting is
displayed briefly . The br ightness d isplayed is that of the informa­
tional stage signal. The alert stage signal br ightness is linked to the
info rmational stage signal brightness.
The informational stage signal brightness should be adjusted so that
you notice the signal illumination when you look in the outside
mirror, but not when you look forward through the windshield.
In very dark or light surroundings, the automatic brightness setting
adjusts signal light brightness to maximum or minimum intensity, as
needed. In circumstances such as these, you may not notice any
change in the brightness on the outside mirror when adjusting the
basic brightness.
You may not notice the change until lighting conditions are normal
again.
W Tips
• Side assist is not active when the basic br ightness is adjusted. The
signal light comes on brief ly to help you make the adjustment.
• Your settings are automatically stored and ass igned to the remote
control key being used. •
Appli es to vehicles: w it h si de assis t
General information
Side ass ist has limits and cannot detect vehicles under all road and
weather conditions . Please remember system limitations and never
rely on the system, especially when:
• driving through curves~
page 158,
• lanes a re of different width s~ page 159 . •
Ap plies to vehicles: w ith side ass ist
When driving through curves
Side assist cannot detect vehicles in curves with a turning radius of
less than 328 feet (100 m).
When driving through a curve, it is poss ible that side assist may
registe r a vehicle two lanes over, and the signal on the outside mir ror
will light up.•

_________________________________________________ A_ u_d _ i_ s_id _ e_ a_s _s_ i_s _t __ _
App lies to vehicles : with sid e assist
Lane width
Fig. 157 Lanes of a
normal width are
in
detection area
Fig. 158 Narrow
lanes: Side assist may
detect vehicles two
lanes away
Side assist's detection area is designed to cover lanes of standard
width to the left and right of your travel lane, depending on whether
you drive in the center of your lane or closer to the edge.
If you drive in narrow lanes, side assist's detection area may also
include other lanes - especially if you tend to drive on the edge of your
lane => fig . 158. Under these conditions, vehicles can also be
detected that are two lanes away, and side assist then could switch
between the informational and warning stage signals.
When driving in very wide lanes, vehicles in the adjacent lane may not
be detected because they are not inside the detection area .•
Controls and equip ­
ment Safety first
Notes
Ap
plies to veh icles: with s ide ass ist
Messages in instrument cluster display
If side assist turns off automatically, the indicator light on the button
will go out and you will see a message in the instrument cluster
display :
Audi side assist not available: sensors blocked
The side assist sensors are built into the rear bumper on the left and
right (not visible on the outside)=>
page 152, fig. 149 . To ensure
that you do not adversely affect the way side assist functions, foreign
objects (such as stickers or bicycle racks) should not be attached to
the area on the rear bumper where the sensors are located. If side
assist functions are adversely affected, you will see this message in
the instrument cluster display . Remove anything that may be
blocking the sensors.
If no vehicle is detected for a longer period of time while driving, side
assist will also switch off automatically.
Audi side assist currently not available
If there is a temporary problem (such as the vehicle's battery charge
being low), side assist cannot be activated temporarily .
Audi side assist: system fault
Have the system checked by an authorized Audi dealer or qualified
workshop.
Audi side assist not available when towing
The radar sensor's view is limited when towing a trailer. For vehicles
with a factory installed towing hitch or a trailer hitch that was
installed later according to factory specifications, side assist is auto­
matically deactivated as soon as the electrical connection to the
trailer's electrical socket is made, and this status message appears in
the instrument cluster display . Deactivation cannot be guaranteed .,,_
Vehicle care Technical data

Cleaning and protection Ill
---------------=---------=----

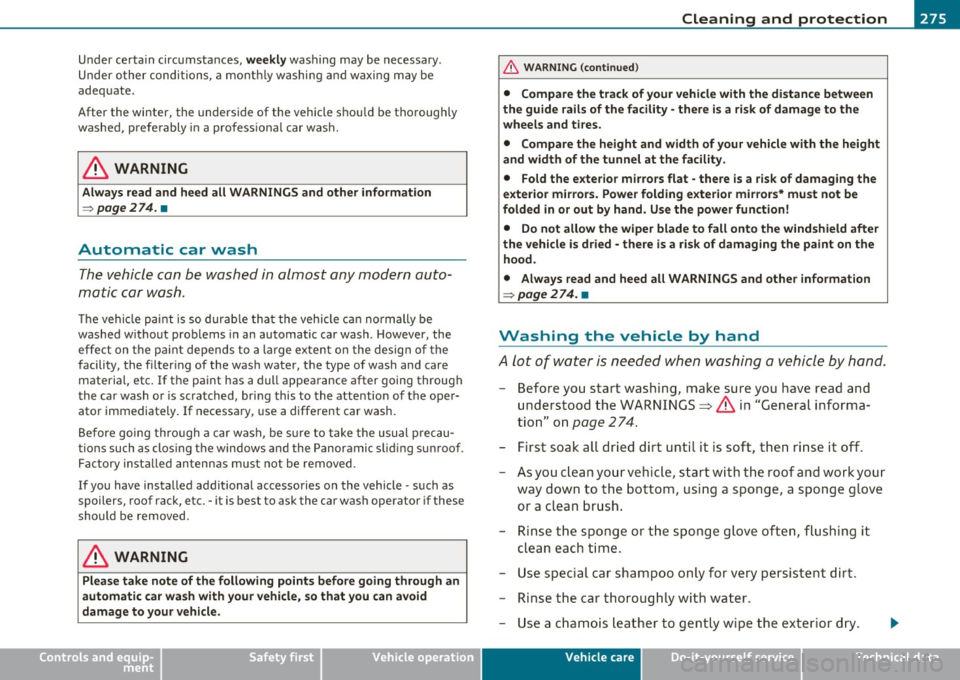

Under certain circumsta nces, weekly was hing may be necessary .
Und er other c ond it ions, a monthl y w ashi ng and waxing m ay be
adequate.
After the winter, the unders ide of the vehicle s hou ld be t horoughly
w ashe d, p refe rably in a pr ofess ional ca r was h.
& WARNING
Always read and heed all WARNINGS and other information
~ page 274. •
Automatic car wash
The ve hicle ca n be w ashed in alm ost any mo dern auto­
matic car w ash .
Th e ve hicl e p aint is so du ra ble th at t he vehicle c an nor mally be
washed w itho ut problems in an automatic car wash . H owever, the
effe ct on the pai nt de pend s to a large ex ten t on t he desig n of t he
facili ty, th e fil ter ing of the was h water, t he type of wash and care
material, etc . If t he pa int has a du ll appea rance a fter going throu gh
t he ca r wash o r is sc ratched, bri ng this to the a tte ntion of the ope r­
ator immediately . If necessa ry, use a different car wash .
B efo re go ing throu gh a c ar wa sh, be sure to ta ke the us ual pr eca u­
t ions such as clos ing the windows and the Panoramic s lid in g su nroof.
Fa ctor y in stall ed a ntenn as mu st not be re moved .
If you have ins talled addit ional accessories on the vehicle -su ch as
spoilers, roof rack, etc . - it is best to ask the car wash ope rato r if these
sho uld be removed.
& WARNING
Please take note of the following points before going through an
automatic car wash with your vehicle , so that you can avoid
damage to your vehicle.
Safety first
& WARNING (co ntinued )
• Compare the track of your vehicle with the distance between
the guide rails of the facility -there is a risk of damage to the
wheels and tires.
• Compare the height and width of your vehicle with the height
and width of the tunnel at the facility.
• Fold the exterior mirrors flat -there is a risk of damaging the
exterior mirrors . Power folding exterior mirrors* must not be
folded in or out by hand. Use the power function!
• Do not allow the wiper blade to fall onto the windshield after
the vehicle is dried · there is a risk of damaging the paint on the
hood .
• Always read and heed all WARNINGS and other information
~page 274. •
Washing the vehicle by hand
A lot of wat er is n eeded when washing a v ehicl e by hand.
- Before yo u sta rt wash ing , m ak e sure you have read and
u nd ers tood the WARN IN GS =>
& in "Gener al in forma­
t io n" o n page
274.
- F ir s t soa k all dried dir t until it is soft, t hen rinse i t off.
- A s you cle an yo ur vehi cle, sta rt with the roof and work y our
way down to the bottom , us ing a sponge , a sp onge glove
or a cle an bru sh .
- Rin se the sp ong e or the sp o ng e glo ve often, flu shing it
cl ean each t im e.
- U se s pecia l car shampoo on ly for v ery pe rsiste nt dirt .
- R inse the car thoroug hly wi th wate r.
- U se a ch a m ois le ath er to gently w ipe t he ex ter ior dry. •
Vehicle care Technical data

-~_T_ ir_e_ s_ a_ n_ d_ w_ h_e_ e_ ls _______________________________________________ _
Groove
means the space between two adjacent tread ribs.
Load rating (code)
means the maximum load that a tire is rated to carry for a given infla­
tion pressure. You may not find this information on all tires because
it is not required by law.
Maximum load rating
means the load rating fo r a tir e at the maximum permissible inflation
pressure for that tire.
Maximum loaded vehicle weight
means the sum of:
(a) Curb weight
(b) Accessory weight
(c) Vehicle capacity weight, and
(d) Production options weight
Maximum (permissible) inflation pressure
means the maximum cold inflation pressure to which a tire may be
inflated. Also called "maximum inflation pressure."
Normal occupant weight
means 150 lbs. (68 kilograms) times the number of occupants seated
in the vehicle up to the total seating capacity of your vehicle.
Occupant distribution
means distr ibution of occupants in a vehicle .
Outer diameter
means the overall diameter of an inflated new tire.
Overall width
means the linear distance between the exteriors of the sidewalls of
an inflated tire, including elevations due to labeling, decorations, or
protective bands or ribs.
Ply
means a layer of rubber -coated paralle l cords.
Production options weight
means the combined weight of those installed regular production
options weigh ing over 5 lbs. (2.3 kg) in excess of those standard
items which they replace, not previously considered in curb weight or
accessory weight, including heavy duty brakes, ride levelers, roof
rack, heavy duty battery, and special trim.
Radial ply tire
means a pneumatic tire in which the ply cords that extend to the
beads are laid at substantially 90 degrees to the centerline of the
tread .
Recommended inflation pressure
see=> page 315, "Cold tire inflation pressure".
Reinforced tire
means a tire design to operate at higher loads and at higher inflation
pressures than the corresponding standard tire. Reinforced t ires may
be identified as "XL ", "x l", "EXTRA LOAD", or "RF" on the sidewall.
Rim
means a metal support for a tire or a tire and tube assembly upon
wh ich the tire beads are seated .
Rim diameter
means nominal diameter of the bead seat . If you change your wheel
size, you w ill have to purchase new tires to match the new rim diam­
eter .
Rim size designation
means rim diameter and width.
Rim width
means nom inal distance between rim flanges.

___ T_ i_ r _e _s_ a_n_ d_ w_ h_ e_e_ l_ s _______________________________________________ _

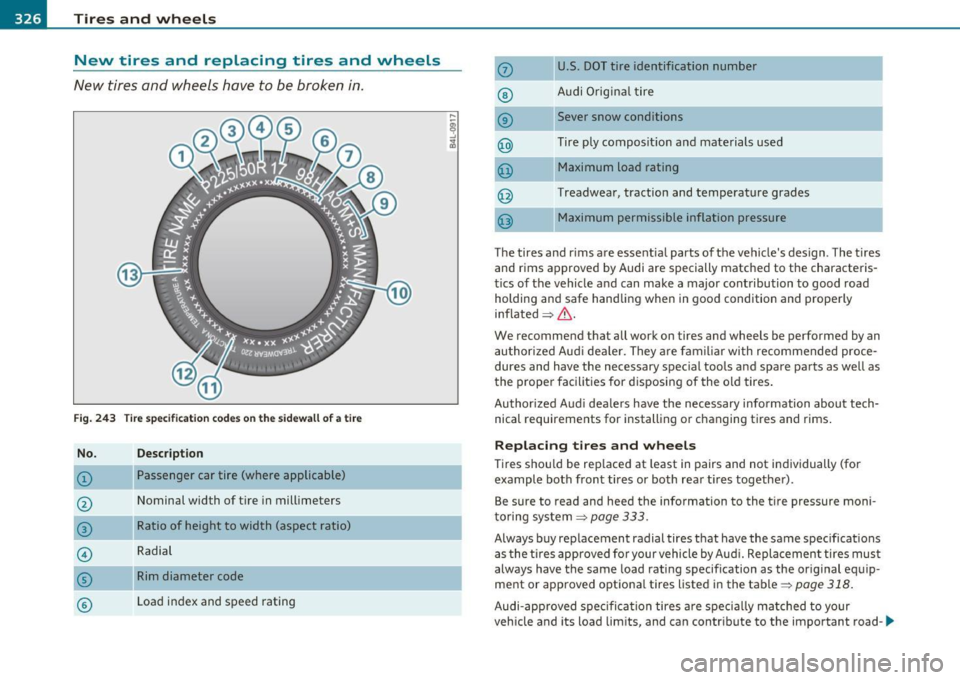

New tires and replacing tires and wheels
New tires and wheels have to be broken in.
Fig. 24 3 Tire sp ecificat io n co des o n the side wall of a tire
No.
©
@
®
©
©
©
Des cript ion
Passenger car tire (where applicable)
Nominal width of t ire in mill imeters
Ra tio of height to width (aspect ratio)
Radial
Rim diameter code
Load index and speed rating
0
©
®
@
@
U.S . DOT tire identification number
A udi O rigi na l tire
Sever snow conditions
Tire ply composit io n and materials used
Maximum load rating
@ Treadwear, traction and temperature grades
@ Maximum permissible inflation pressure
The tires and r ims are essent ial parts of the vehicle's des ign. The t ires
and r ims approved by Audi are specially matched to the characteris­
tics of the vehicle and can make a major contribution to good road holding and safe hand ling when in good condition and properly
inflated
~ & .
We recommend that all work on tires and wheels be performed by an
author ized Aud i dea le r. They a re fam iliar with recommended proce­
dures and have the necessary special tools and spare parts as well as
the prope r facilit ies for d isposing of the old tires .
Author ized Aud i dea le rs have the necessary information about tech­
nical requireme nts for installing or changing tires and rims .
Replacing tires and wheels
Tires shou ld be rep laced at least in pairs and not individually (for
example both front tires or both rear t ires togethe r) .
Be sure to read and heed the information to the t ire pressure moni­
t oring system~
page 333.
Always buy replacement radial tires that have the same spec ificat ions
as the ti res approved fo r your vehicle by Aud i. Replacemen t tires must
always have the same load rating specif ication as the or iginal eq uip ­
me nt or approved opt iona l tires listed in the table~
page 318.
Audi -app roved spe cifi cati on tires are specia lly mat ched to yo ur
vehicle and its load lim its, and can contr ibute to the important road-..,_

________________________________________________ T_i_re _ s_ a _ n_d_ w_ h_ e_ e_l_s __ __
holding, driv ing characteristics, and safety of the vehicle. The table
( =>
page 318) lists specifications of the tires approved for the Audi
models covered by your Owner's Literature .
Th e tire pressure label located on the driver's side B-pillar
=> page 318, fig. 240 lists the specifications of the original equ ip­
ment tires insta lled on your vehicle at the time it was manufactured.
Federal law requires tire manufacturers to place standardized infor­
mation on the sidewall of all tires=>
page 326, fig. 243. This infor­
mation identifies and describes the fundamenta l characteristics, the
quality grade of the tir e and also provides a tire ident ification number
for safety standard certification and in case of a reca ll.
Tire specifications
Knowledge of tire specifications makes it easier to choose the correct
tires . Radial tires have the tire spec ifications marked on the s idewall,
for example:
P255 / 55 R 18 109 H XL
This contains the following information:
P Indicates the tire is for passenger cars (where applicable)
255 Nominal tire width in mm of the tire from sidewall edge to side-
wall edge. In general, the larger the number, the wider the tire
55 Height/width ratio in percent (aspect ratio)
R Tire construction: Rad ial
18 Rim d iameter code ( in inches)
109 Load rating code
H Speed rating letter code
XL (or "xl", "EXTRA LOAD", or "RF" Indicates that the tire is a"Rein­
forced" or an "Extra Load" tire
M+S (or "M/5") Indicates that the t ire has some mud and snow capa­
bility
The tires could also have the info rmation of direction of rotation
=> page 314.
Safety first
Tire manufacturing date
The manufacturing date is a lso indicated on the tire sidewa ll
(poss ibly only on the
inner side of the wheel):
"DOT ... 2209 ... "means, for example, that the tire was produced in
t he 22nd week of 2009.
Speed rating (Letter code)
The speed rat ing letter code on the wheels ind icates the maximum
permissible road speeds =>
& in "Winter tires" on page 330.
P up to 93 mph (150 km/h)
Q up to 99 mph (158 km/h)
R up to 106 mph (1 70 km/h)
S up to 110 mph (180 km/h)
T up to 118 mph ( 190 km/h)
U up to 124 mph (200 km/h)
H up to 130 mph (210 km/h)
V up to 149 mph (240 km/h)
3>
Z over 149 mph (240 km/h)3>
W up to 168 mph (270 km/h)3
)
Y up to 186 mph (298 km/h)3>
Your vehicle is normally factory equ ipped with t ires, which possess
excellent driving characte ristics and give yo ur Audi opt imum dr iv in g
comfort. An electronic speed limiter=>
page 26will normally prevent
your vehicle from going faster than the tire speed rating
=> &.
U.S. DOT Tire Identification Number (TIN) and tire
manufacture date
Th is is the tire's "ser ial number" . It begins w ith the letters "DOT" and
indicates that the tire meets all federal standards. The next two
numbers or letters indicate the plant where it was manufactured, and
the last four numbers represent the week and year of manufacture .
For example, the numbers 2209 mean that the tire was produced in
~
3> F o r tires w ith a maximum speed capab ili ty over 149 mph (240 km/h), tire
manufact urers somet imes use the letters "ZR."
Vehicle care Technical data

-Tires and wheels PW~---------------
Wheel bolts
Wheel bolts must al ways be tightened to the correct
torque .
The design of wheel bolts is matched to the factory installed rims. If
different r ims a re fitted, the cor rect wheel bolts with the r ig ht leng th
and correctly shaped bolt heads must be used. Th is ensures that
w heels are fitted secure ly and that t he br ake system func tion s
correctly .
In certain circ umstances, you may not use whee l bolts from a
different veh icle -even if it is the same model~
page 368.
&_ WARNING
Improperly tightened or maintained wheel bolts can become
loose causing lo ss of control , a c ollision and seriou s personal
injury .
• Always keep the wheel bol ts and the thread s in the wheel hub s
clean so the wheel bolts can turn easily and be properly t ighten ed .
• Never gr ease or oil the wheel bolt s and the threads in the wh eel
hubs. They can become loose while driving if greased or oiled, even
if tightened to the specified torque.
• Only use wheel bolts that belong to the rim being installed.
• Never use different wheels bolts on your vehicle .
• Alway s maintain the correct tightening torque for the wheel
bolt s to reduce the risk of a whee l los s. If the tightening torque of
the wheel bolts is too low , they can loosen and come out when the
vehicle is moving . If the tightening torque i s too h igh, the wheel
bolts and threads can be damaged and the wheel can become
loose .
0 Note
The spe cifie d torq ue for the whee l bolts is 120 ft lb (160 Nm) wi th a
tolerance of ± 7,4 ft lb( ± 10 Nm). Torque whee l bolts diagona lly. After changing a wheel, the torq
ue m ust be checked as soo n as
possible wi th a t orqu e w rench -prefer ably by an auth o riz ed Audi
dealer or qualified workshop. •
Low aspect ratio tires
Your Audi is factory-equipped with low aspect ratio tires. These tires
h ave bee n thorou ghly teste d and been se lec ted spe cifically fo r yo ur
model for their superb performance, road feel and hand ling u nder a
var iety of dr iving con ditions . Ask your authorized A udi dea le r for
more deta ils.
The low aspect ratio of these t ires is ind icated by a n umera l of
55 or
le ss
in t he tire 's s ize designation . T he numera l rep resents the ratio o f
the tire's sidewall he ight in relat ion to its tread width exp ressed in
pe rcen tage . Co nven tional ti res have a heig ht/w idth r atio o f 60 o r
more.
The performance of low-aspect-ratio tires i s particularly sensitive to
improper inflation pressure. It is therefore important that low
aspect ratio tires are inflated to the specified pressure and that the
inflation pre ssure is regularly checked and maintained. Tire pre s­
sures should be checked at least once a month and always before a
long trip~
page 320, "Che cking t ire press ure".
What you can do to avoid tire and rim damage
Low aspe ct ratio tires ca n be damaged more eas ily by imp act wi th
potholes, curbs, gul lies or ridges on the road, part icu lar ly if the tire is
unde rinfl ated.
I n order to minimize the occu rrence of impact damage to the tires of
your vehicle, we recommend that yo u observe the follow ing p recau ­
tions:
• Always ma inta in recommen ded inflation p ressures. Check your
t ire press ure every 2,000 m iles (3,00 0 km) a nd a dd air i f ne cess ary.
• Drive ca ref ully on roads with potho les, dee p gullies or ridges. The
i m pact from d riving t hrough or over such obsta cles can damage you r
tires. Impact w it h a c urb may also cause damage to your tires . .,_

___ D_ a_t _a _____________________________________________________ _
350 hp, a-cylinder engine, with all wheel drive
Engine data
Maximum output SAE net
Maximum torque SAE net
No. of cylinders
Displacement
Stroke
Bore
Compression ratio
Fuel
Dimensions (approx.)
Length (with license plate bracket)
Width (with outside mirrors folded) He ight (unloaded)
Turning circle diameter (curb to curb)
Capacities (approx.)
Fuel tank
-Total capacity
- Reserve (of total capacity)
Windshield and headlight* washer fluid container
Engine oil
with filter change hp @rpm
lb-ft@
rpm
CID (cm
3 )
in (mm)
in (mm) 350@ 6800
325
@3500
8 cylinder
254 (4163)
3.65 (92.8)
3 .33 (84 .5)
12.5: 1
Premium unleaded (91 AKI) Recommended for maximum engine pe rformance . Fur­
ther details~
page 287, "Fuel supply"
in (mm)
in (mm)
in (mm)
ft (m) 200
.3 (5089)
78.1 (1983)
68.4 (1737)
39 .4 (12)
gal (liters)
gal (liters)
quarts ( liters)
quarts (liters) 26.4 (100)
2.6-3.2
(10-12)
4 .8 (4.5)
9.6 (9.1)
•
