Tires and wheels -________________ f!ffl
If you wish to improve comfort when operating the vehicle at
normal load (up to 3 occupant s), you can adjust tire pres sures to
those specified for normal vehicle load . Before operating the
vehicle at maximum lo ad, you must increase the tire p res sures to
those specified for maximum vehicle load=>& .
Bear in mind that the tire press ure monitor ing system can only
mon itor the t ire pressu re s you h ave sto red . T he sys tem does no t
recogn ize the load cond it ion of your vehicle.
Th e effectiveness of t he tire pressu re monitoring system will be
impa ired if you store normal load pressu res but then operate the
vehicle at its maxim um loa d=> & . See the
illustration=> fig. 241 for the location of the label on driver's
side B- pillar (colo r of the act ual la bel and ex act l ocation on the
vehicle will vary slig htly).
N ote that the fo llow ing tab le is accurate at the time of going to press
and is subjec t to change. I n the even t of discrepancies , the tire pres­
sure label located on the dr iver's side B-pi llar a lways takes prece­
dence .
T he table below lists the recommended cold t ire inflation pressures
for the Audi model covered by your Owne r's Literature at t he ve hicle's
capac ity weight and the tire sizes insta lled on the respective models
as original equipment, or as a factory option .
Engine Tire designation Tire pressure front Tire pressure rear
(displace- normal load normal load
ment in
liter) condition
(up
full load condition (up
full load
to
3 occu- condition to 3 occu- condition
pants) pants)
PSI kPA PSI PSI kPA PSI kPA
255/55 R18 109H XL All Season
35 240 44 300
35 240 49 340
265
/50 R19 110H XL All Season 35 240 44
300 35 240 49 340
6-cylinder 275/45 R20 110H XL All Season 35 24 0 44 3 00 35 240 4 9 340
3.0/3.0 TDI
275 /45 R20 llOY XL High Performance 35 240
44 300
35 240 49 340
295
/35 R2110 7Y XL High Performance 36 250 44
300 35 240 49 340
XL= reinforced or extra load tire
. It may also appear as xl , EXTRA LOAD, or RF on the tire sidewall .
The correct tire p ress ure for t he spare wheel is loca ted on a labe l o n
the driver 's s ide B-pillar.
Beca use technical c hanges may be made to vehicle equipment dur ing
the model year, always compare the tire size des ignation on the t ire
pressu re labe l on yo ur vehicle with the t ires on your vehicle. Make
sure that the tire size informat ion on t he v ehicle labe l is the same as
the size of the t ires o n the vehicle. This is especially important if the
vehicle belo ngs to so meone else or you bo ug ht the vehicle with
Safety first
differe nt r im s/ tires or you bo ugh t the vehicle as a prev iously owned
vehicle.
Remember, yo ur safety and t hat of your passengers also depends o n
making sure that load limits are not exceeded. Vehicle load includes
everybody and everything in an d on the vehi cle. These load limits are
t e chnically refer red to as the veh icle's G ross Veh icle Weig ht Rating
("GVW R"). The Gross Axle Weight Rati ng ("GAWR") is the maximum
load tha t can be applied at ea ch of the ve hicle's two ax les . T he G ross ..
Vehicle care Technical data

Tires and wheels -_____________ --=-=--=.:..:......:..::....:.=----Vf'II
gauge and keep chec king the press ure until you reach t he press ure
th at i s cor rect fo r t he lo ad ( pass en ge rs and l uggage) and kind of
dr iving you plan to do .
If the press ure i n any t ire is too low, note the difference betwee n th e
pressu re in t he cold tire a nd the pressure you need and add the air
that you need to reach the correct pressure for t he ve hicle load
( pass enge rs and lugg age) f or th e tires on yo ur vehicle as l ist ed on t he
on your vehicle and in this manua l and the kind of driving you p lan to
do.
Never exceed the maximum inflation pressure listed on the tire
sidewall for any reason.
Remember that the ve hicle m anufac tur er, no t the tire manufa cture r,
determines t he correct tire press ure for the t ires on your veh icle.
It is important to check the tire pressure when the t ires a re co ld .
• Read the requ ired t ire pr essure from t he t ire pr essure lab el. T he
tire pressure labe l is locate d on t he driver's side 8- pillar. Th e tire pres­
s u re labe l lists t he re com men ded col d tire inflat io n pr essures fo r the
vehicle at its maxim um capac ity we ight and the t ires t hat were on
yo ur vehicle at the t ime it was ma nufact ured. For r ecom mende d tire
pressures fo r norma l load cond it ions, please see chapter
=> page 322.
• Turn the valve stem cap co unter -clockw ise to remove it from the
t ire v alve.
• Place the air press ure gauge on the valve.
• The tire p ressures sho uld on ly be checked and adjusted wh en the
tires are cold. The slightly raised press ures of wa rm tires must not be
re du ced.
• Adjust the tire p ress ure to the loa d you are ca rry ing.
• Reinstall the valve stem cap o n the valve .
When should I check the tire pressure?
The correct tire press ure is especially important at high speeds. The
pressu re shoul d there fore be c hec ke d at least once a mo nth a nd
Safety first
always before start ing a journey . Do not forget to check t he t ire pres­
s u re for the spare w heel.
When should I adjust the tire pressures?
Adju st the tir e pre ssure to the load y ou ar e carry ing. A fter ch anging a
wheel
or replac ing wheels you have to adjust t he t ire p ressures on all
w heels. I n addition , you m ust th en s tore the new tire press ures i n the
t ir e pressu re monitoring system=>
page 339.
& WARNING
Incorrect tire pressures and/or underinflation can lead sudden tire
failure, loss of control, collision, serious pers onal injury or even
death.
• When the warning symbol appears in the instrument
cluster, stop and inspect the tires.
• Incorrect tire pressure and/or underinflation can cause
increased tire wear and can affect the handling of the vehicle and
stopping ability.
• Incorrect tire pressure s and/or underinflation can also lead to
sudden tire failure, including a blowout and sudden deflation,
causing loss of vehicle control.
• The driver is responsible for the correct tire pressures for all
tires on the vehicle. The applicable pressure values are located on a sticker on the driver's side B-pillar.
• Only when all tires on the vehicle are filled to the correct pres­
sure, the tire pressure monitoring system can work correctly.
• The use of incorrect tire pressure values can lead to accidents or
other damage. Therefore it is essential that the driver observe the
specified tire pressure values for the tire s and the correct pres­
sures for the function of the tire pressure monitoring system.
• Always inflate tires to the recommended and correct tire pres-
sure before driving off. .,_
Vehicle care Technical data

___ T_ i_ r _e _s_ a_n_ d_ w_ h_ e_e_ l_ s _______________________________________________ _
New tires and replacing tires and wheels
New tires and wheels have to be broken in.

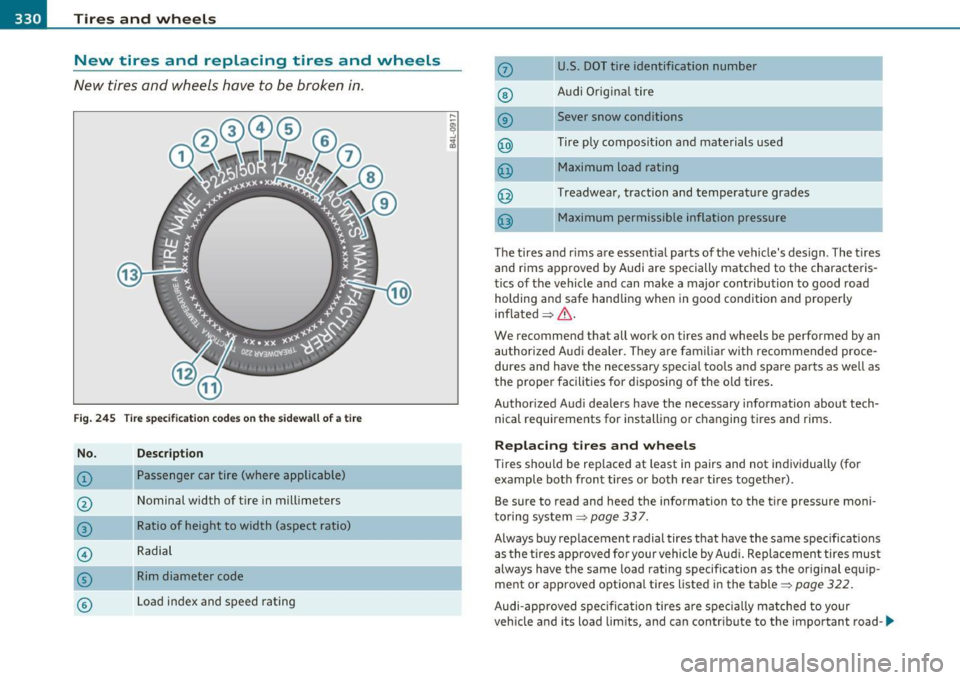

Fig. 245 Tir e speci fication co des o n the sidew all of a tire
No.
©
@
®
©
©
©
Des cript ion
Passenger car tire (where applicable)
Nominal width of t ire in mill imeters
Ra tio of height to width (aspect ratio)
Radial
Rim diameter code
Load index and speed rating
0
©
®
@
@
U.S . DOT tire identification number
A udi O rigi na l tire
Sever snow conditions
Tire ply composit io n and materials used
Maximum load rating
@ Treadwear, traction and temperature grades
@ Maximum permissible inflation pressure
The tires and r ims are esse ntial parts of the vehicle's des ign. The tires
and r ims approved by Audi are specially matched to the characteris­
tics of the vehicle and can make a major contribution to good road holding and safe hand ling when in good condition and properly
inflated
~ & .
We recommend that all work on tires and wheels be performed by an
author ized Aud i dea le r. They a re fam iliar with recommended proce­
dures and have the necessary special tools and spare parts as well as
the prope r facilit ies for d isposing of the old tires .
Author ized Aud i dea le rs have the necessary information about tech­
nical requireme nts for installing or changing tires and rims .
Replacing tires and wheels
Tires shou ld be rep laced at least in pairs and not individually (for
example both front tires or both rear t ires togethe r) .
Be sure to read and heed the information to the t ire pressure moni­
t oring system~
page 33 7.
Always buy replacement radial tires that have the same spec ificat ions
as the ti res approved fo r your vehicle by Aud i. Replacemen t tires mus t
always have the same load rating specif ication as the or iginal eq uip­
me nt or approved opt iona l tires listed i n the table ~
page 322.
Audi -app roved spe cifi cati on tires are spe cia lly mat ched to yo ur
vehicle and its load lim its, and can contr ibute to the important road-..,_

-Tires and wheels PR:1-------------------
the 22nd week of 2010. The other numbers are marketing codes that
may or may not be use d b y the ti re manu facture r. T his in format ion is
used to contact consumers if a tire de fect requires a recall.
Audi Original tire
T ires with the ident ificat ion "AO" or "RO" have been specially
m atche d w ith your Audi. We recommend using on ly these t ire s
because t hey meet the hig hest standards regard ing safety a nd
dr iving charac teris tics when used corre ctly. Your aut horize d Aud i
dea ler w ill glad ly provide you wi th mor e informatio n.
Tire ply composition and materials used
T he number of p lies indicates the number of layers of rubber-coated
f abr ic in the tire. In ge ne ral, the greate r the numbe r of p lies, the
more weig ht a tire ca n support. Tire manufac turers also mus t indi­
c ate the materials in the t ire, which incl ude stee l, nylon, polyes ter,
and others .
Maximum Load Rating
This number ind icates the maximum load in k ilograms and pounds
t ha t can be carried by the tire .
Tire quality grading for treadwear, traction, and
temperature resistance
Tread wear, traction and temperat ure grades~ page 333.
Maximum Permissible Inflation Pressure
Th is number is the greatest amount o f air press ure t hat should eve r
be pu t in the tire under no rm al driv in g c ond ition s.
& WARNING
• Using incorrect or unmatched tires and/ or wheels or improper
tire and wheel combinations can lead to loss of control , collis ion
and seriou s personal injury.
& WARNING (co ntinued )
• Always use tires, rims and wheel bolts that meet the specifica­
tions of original factory-installed tires or other combinations that have been specifically app roved by the vehicle manufacturer.
• Tires age even if they are not being used and can fail suddenly,
especially at high speeds . Tires that a re more than 6 years old can
only be used in an emergency and then with special care and at
lower speeds.
• Never mount used tires on your vehicle if you are not sure of
their "previous history ." Old used tires may have been damaged
eventhoughthedamagecannotbeseenthatcanleadtosudden
tire failure and loss of vehicle control.
• All four wheels must be fitted with radial tires of the same
type , size (rolling circumference) and the same tread pattern.
Driving with different tires reduces vehicle handling and can lead
to a loss of control.
• If the spare tire is not the same as the tires that are mounted
on the vehicle - for example with winter tires - only use the spare
tire for a short period of time and drive with extra care . Refit the
no rmal road wheel as soon as safely possible .
• Never drive faster than the maximum speed for which the tires
on your vehicle are rated because tires that are driven faster than
their rated speed can fail suddenly .
• Ove rloading tire s cause heat build-up, sudden tire failure,
including a blowout and sudden deflation and loss of control.
• Temperature grades apply to tires that are properly inflated
and not over or underinflated.
• For technical rea sons it is not always possible to use wheels
from other vehicles- in some cases not even wheels from the same
vehicle model.
• If you install wheel trim discs on the veh icle wheels, make sure
that the air flow to the brakes is not blocked . Reduced airflow to
the brakes can them to overheat , increasing stopp ing distances
and causing a colli sion.
~

Tires and wheels -________________ fWII
& WARNING (co ntinued )
• Run flat t ires may onl y be u sed on vehicles that were equipped
with them at the factory. The vehicle must have a chassi s de signed
for run flat tires. Incorrect use of run flat tires can lead to vehicle
damage or accident s. Check with an authorized Audi dealer or tire
specialist to see if your vehicle can be equipped w ith run flat tires .
If run flat tires are u sed, they mu st be in stalled on all four wheel s.
Mixing t ire types is not permitted.
0 Note
• For techn ical reaso ns, it is not generally poss ible to use the wheel
r ims from o ther vehicles. This c an hold t rue for wheels o f th e s ame
vehicle type.
• If the sp are tire is different from the tires t hat yo u have mo unted
on your vehicle (for examp le w inter t ires or wide profile tires), then
use the spare t ire for a short per io d of t ime on ly and d rive wi th ex tra
care . Replace the flat t ire with the tire matching the others on your
vehicle as soon as possible.
• Never dr ive without the valve stem cap . The valves could get
d amaged .
~ For the sake of the environment
Dispose of old t ires in accordance wit h the loca l req uirements .•
Uniform tire quality grading
• Tr ead we ar
• Tract ion AA A B C
• Temperatu re A B C
Quality g rades can be found where app licab le on the tire side wa ll
be tween tread s hou lde r an d max imum se ct io n w idt h~
page 330,
fig. 245 .
Safety first For example:
Tread wear 200
, Tract ion AA , Temperat ure A.
All passenger car ti res must confo rm to Federa l Safety Requirements
in addition to these grades.
Tread wear
T he tread wear grade is a compa rative rat ing based on the wear rate
o f th e tire when tested under contro lled conditions o n a specifie d
government test cou rse .
For example, a tire graded 150 would wear one and one half (1 1/2)
ti mes a s we ll on t he governme nt co urse a s a tire graded 10 0 .
The relat ive pe rformance o f tires depe nds upon the actua l conditions
o f their use, however, and m ay depar t sig nificantly from the norm
due to variations in d riving hab its, se rvice practices and differences in
road characte rist ics and cl imate.
Traction
Th e traction grades , from highes t to lowe st, are AA, A, Band C. Those
grades repr esen t the t ire's ability to stop on wet pavemen t as
measu red under con trolled con dit io ns on s pecified government test
surfaces of asphalt and conc rete. A tire marked C may have poor t rac­
tion performance ~& .
Temperature
The tempera ture grades are A (the highest), B, an d C, represen ting
t he t ire's res ista nce to the gene ra tion of heat a nd its ab ility to d issi­
pa te heat when teste d unde r contro lled condi tions on a spec ified
indoor laboratory tes t wheel.
S ustained h igh temperature ca n cause the material of the tire to
degene rate and red uce tire li fe, and excessive tem per at ure c an lead
to sudden tire failure ~& .
Th e grade C cor responds to a leve l of perfo rmance which a ll
passenger car tires mus t meet under the Federal Motor Veh icle
Sa fety Standa rd No. 1 09 . G rades Band A represent higher levels of
performance o n the labo ra tory test w hee l than the minim um
req uired by law . .,_
Vehicle care Technical data

lffll,.___T_ ir_e_ s _ a_ n _ d_ w_ h_e_ e_ ls _______________________________________________ _
in. WARNING
The traction grade assigned to this tire is based on straight-ahead
braking traction test s, and d oes not include acceleration ,
cornering, hydroplaning or peak tra ction chara cteristics .
in. WARNING
The temperature grade fo r this tire is established for a tire that is
properly inflated and not overloaded. Ex cessive speed, underinfla ­
tion, or excessive load ing, either separately or in comb inat ion, can
c ause heat buildup and po ssible tire failure. •
Winter tires
Winter tires can improve v ehicl e handling on snow and
ice . At temper atures below 45 °F (7 °C) we recommend
ch anging to w inter tires.
In some heavy snow areas, loca l governme nts may requ ire true
w inter o r "snow" tires, those with very deep ly c ut trea d. These tires
sho uld only be used in pa irs and be installed on all four whee ls. Make
sure you p urchase snow tires that are the same size and construct ion
type as the ot her t ires on your ve hicle.
Your vehicle is equipped with a ll-wheel drive, th is will improve trac­
tion dur ing wi nter dr iv ing, even w it h the standar d tires. Howeve r, we
strong ly recommend that you always eq uip a ll four wheels on yo ur
veh icle with correctly fitte d winter t ires or all-season ti res, when
w inte r road conditio ns are exp ect ed. This also imp roves th e veh icle's
bra king perfo rmance an d red uces stopping distances.
S um mer tir es p rovide le ss grip on ice and snow .
Winter tires (snow tires) m ust always be fitted on all four wheels.
Ask your aut horized Audi dealer or q ualified workshop for permitted
winter tire sizes . Use only ra dial w inter tires. W
inter tires lose the ir effectiveness when the tread is wor n down to
a dep th o f 0. 157 inch ( 4 mm).
On ly drive w ith w inter t ires under w inter cond it io ns. S umme r tires
han dle better when the re is no snow or ice on the roads and the
tempe ra ture is a bove 45 °F (7 °C).
If you have a flat tire, see notes on spare wheel=>
page 330.
Please always remember that winter tires may have a lower speed
rat ing than the tires originally installed on yo ur veh icle at t he time it
was man ufact ured . Please see=>
page 331, "Speed rating (letter
c ode)" for a list ing of t he speed ra ting le tte r c odes and the maxi mum
speed at which the tires can be driven .
Th e spee d rat ing let ter code (=>
page 3 21) is on the side w all of the
tire=>
page 330.
in. WARNING
Winter tires have maximum speed limits that may be lower than
your vehicle 's maximum speed . Always know the maximum speed
before dr iving off. Never drive faster than the speed permitted for
your specifi c winter tires . This will caus e damage to the tires
lead ing to an accident and serious personal injury to you and your
pa ssengers.
in. WARNING
Driving fa ster than the maximum speed for whi ch the winter tires
on your vehicle were designed can cause t ire failure including a
blowout and sudden deflation , lo ss of control , crash es and seriou s
personal injuries. Have worn or damaged tires replaced immedi­
ately.
• Winter tires have maximum speed rating that may be lower
than your vehicle's maximum speed .
• Never drive faster than the speed for which the winter or other
tires installed on your vehicle are rated.
~

________________________________________________ T_i_re _ s_ a _ n_d_ w_ h_ e_ e_l_s __ ,n
• After any impact, immediately inspect your tires or have them
inspected by the nearest authorized Audi dealer. Replace a damaged
tire as soon as possible.
• Inspect your tires every 2,000 miles (3,000 km) for damage and
wear . Damage is not always easy to see . Damage can lead to loss of
air and underinflation, wh ich could eventually cause tire failure. If
you believe that a tire may have been damaged, replace the tire as
soon as possible.
• These tires may wear more quickly than others .
• Please also remember that, while these tires deliver responsive
handling, they may ride less comfortably and make more noise than
other choices.
Reduced performance in winter/cold season
conditions
All tires are designed for certain purposes. The low aspect ratio, ultra high performance tires originally installed on your vehicle are
intended for maximum dry and wet road performance and handling.
Th ey are not su itable for cold, snowy or icy weather conditions. If you
drive under those circumstances, you should equip your vehicle with
all -season or winter tires, which offer better traction under those
conditions. We suggest you use the recommended snow or all-season
tires specified for your vehicle, or their equiva lent.
Refer to~
page 334 for more detailed i nformat ion regard ing w inter
tires. •
Tire pressure monitoring system
General notes I)
Each tire, including the spare (if prov ided), should be checked
month ly when cold and inflated to the inflation pressure recom­
mended by the vehicle manufacturer on the vehicle placard or tire
inf lation pressure label. (If your vehicle has tires of a different size
than the size ind icated o n the vehicle p lacard o r tire inflation pressure
Safety first
label, you should determine the proper tire inflation pressure for
t hose tires.)
As an added safety feature, your vehicle has been equipped with a t ire
pressure monitoring system ( TPMS) that illuminates a low tire pres ­
s ur e telltale when one or more of your tires is significantly under­
inflated. According ly, when the low tire pressure te lltale illuminates,
you should stop and check your tires as soon as possible, and inflate
them to the proper pressure. Driving on a sign ificantly under- inflated
tire causes the tire to overheat and can lead to tire failure. Unde r­
inflation also reduces fuel efficiency and tire tread life, and may
affect the vehicle's handling and stopping ability.
Please note that the TPMS is not a substitute for proper t ire ma inte­
nance, and it is the driver's responsibility to maintain correct tire
pressure, even if unde r-inflation has not reached the level to trigge r
illumination of the TPMS low tire pressure telltale.
Your vehicle has also been eq uipped with a TPMS mal function indi­
cator to indicate when the system is not operating properly . The
TPM S malfunction indicator is combined with the low tire pressure
telltale . When the system detects a ma lfunct ion, the telltale will
flash for approximately one minute and then remain continuously
illuminated . T his sequence will continue upon subsequent vehicle
start-ups as long as the malfunction exists.
When the malfunction indica tor is illum inated, the system may not
be able to detect or signal low tire pressure as intended. TPMS
ma lfunctions may occur fo r a variety of reasons, including the instal­
lat ion of replacement or alternate tires or wheels on the veh icle that
prevent the TPMS from functioning properly. Always check the TPMS
malfunction telltale after replac ing one or more tires or wheels on
your vehicle to ensure that the rep lacement or a lternate tires and
wheels allow the TPMS to continue to function properly .•
Vehicle care Technical data

.,.,___W __ h_a_ t_ d_ o_ I_ d_o_ n_ o_w _ ? _____________________________________________ _

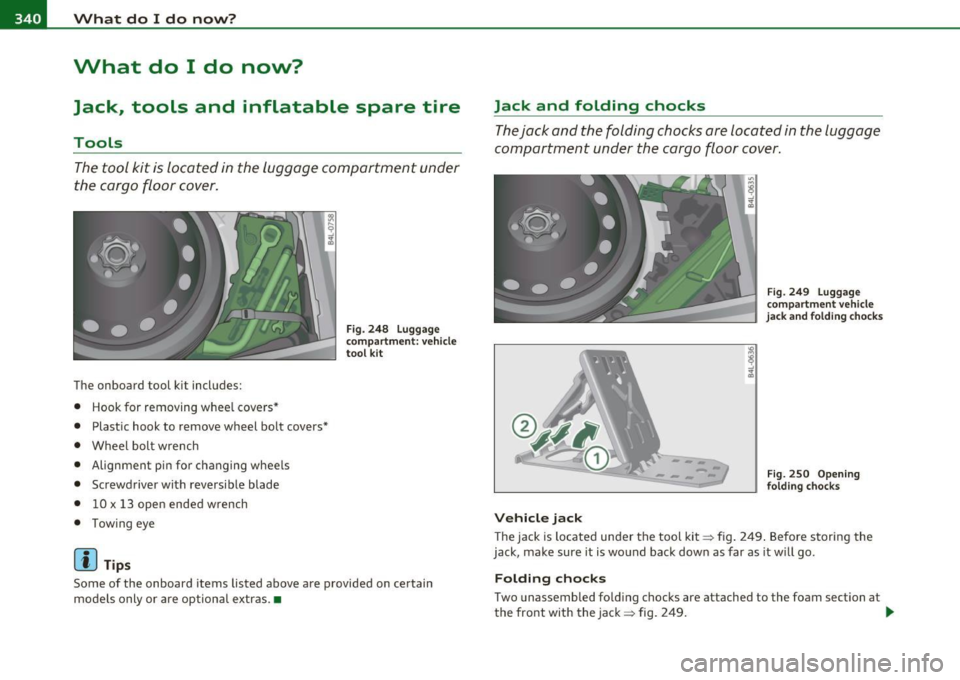

What do I do now?
Jack, tools and inflatable spare tire
Tools
The tool kit is located in the luggage compartment under
the cargo floor cover .
The onboard tool kit includes:
• Hook for removing whee l cove rs *
• Plastic hook to remove w heel bolt covers*
• Wheel bol t wrench
• Alignm ent pin for changing whee ls
• Screwdriver with reversib le blade
• 1 0 x 13 open ended wrench
• Towing eye
[ i J Tips
F ig . 24 8 L uggag e
c om part ment : ve hicle
to ol k it
Some of the onboard items listed above are provided on certain
mode ls only or are optiona l extras. •
Jack and folding chock s
The jack and the folding chocks are located in the luggage
compartment under the cargo floor cover.
---
----~ -
Vehicle jack
Fi g. 24 9 Lug gag e
com partme nt vehicl e
jack an d foldin g c hocks
Fig . 25 0 Opening
f o lding cho cks
T he jack is located under the tool kit=> fig . 249 . Before storing the
jack, make sure it is wo und back down as far as it w ill go .
Folding chock s
Two unassembled fo lding chocks are a ttached to the foam section at
the front with the jack=> fig. 249.
~

_______________________________________________ W __ h_a _t_ d_o_ I_ d_o_ n_ o_ w_ ? _ __._
Release the two hook-and-loop fasteners, and remove the two
chocks . To use the chocks, you first have to raise the support plate
=>
page 340, fig . 250 (D and then insert the locking plate with the
two "tabs" into the elongated holes in the base plate @=>& .
& WARNING
• The chock cannot fulfil its function and may lose its stability if
the "tabs" on the support plate are not inserted correctly into the
elo ngated holes in the base plate. If this happens, the vehicle may
start to move while a wheel is being changed.
• Never use the folding chocks if they are damaged or if they
have not been assembled correctly.
& WARNING
Improper use of the vehicle jack can cause serious personal inju­
ries.
• Never use the jack supplied with your Audi on another vehicle,
particularly on a heavier one. The jack is only suitable for use on
the vehicle it came with.
• Using a bumper jack to raise the vehicle will damage the
bumper system. The jack may slip, causing injury.
• Never support your vehicle on cinder blocks, bricks or other
objects . These may not be able to support the load and could cause
injury when they fail.
• Never start or run the engine while the vehicle is supported by
the jack.
• If you must work under the vehicle, always use safety stands
specifically designed for this purpose.
• Always make sure the inflatable spare tire and even a flat tire
are secured in place and not loose, otherwise they could fly
forward, causing personal injury to passengers in the vehicle in an
accident or sudden maneuver. •
Vehicle OP-eration
Applies to vehicles : with bass box
Removing bass box
Before the inflatable spare tire can be taken out, the bass
box must be removed.
Fig. 251 Spare wheel
well: Bass box
Removing bass box
-Squeeze the locking tabs=> fig. 251 (D of the connector.
- Disconnect the connector @ and place the lead to one
side.
- Turn the large screw counter-clockwise.
- Carefully remove the bass box.
Installing bass box
-Carefully place the bass box in the wheel. The inscription
"FRONT" on the bass box must face forward.
- Reconnect the connector that was removed.
- Secure the bass box with the large screw. •
Vehicle care Do-it-yourself service iTechnical data
