warning AUDI Q7 2017 Owner´s Manual

Table of contents
About this Owner's Manual ... .. .
Cockpit ... .. ............... .... .. .
Cockpit overview ................ .
Controls at a glance ... .......... .. .. .
Instrument cluster .. .......... .. .. .. .
Multifunction steering wheel ... .. .. .. .
Driver information system ............ .
H ead-up display .... .. ..... ... .. .... .
On -Board Diagnostic System (OBD) .. .. .
Indicato r lights . ................ ... .
Starting and driving ......... ... .
6
8
8
8
10
12
15
20
21
22
34
Opening and closing . . . . . . . . . . . . . 34
Central lock ing . . . . . . . . . . . . . . . . . . . . . . 34
L uggage compartment lid . . . . . . . . . . . . . 40
Ch ild safety lock . . . . . . . . . . . . . . . . . . . . . 43
Power windows . . . . . . . . . . . . . . . . . . . . . 43
Panorama glass roof . . . . . . . . . . . . . . . . . 45
Garage door opener (Homelink) . . . . . . . . 46
Lights and Vision . . . . . . . . . . . . . . . . . 48
Exterior lighting . . . . . . . . . . . . . . . . . . . . . 48
Interior lighting . . . . . . . . . . . . . . . . . . . . . 51
V1s1on . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Windshield wipers . . . . . . . . . . . . . . . . . . . 55
Dig ital compass . . . . . . . . . . . . . . . . . . . . . 57
Seats and storage . . . . . . . . . . . . . . . . 59
General information . . . . . . . . . . . . . . . . . 59
Front seats . . . . . . . . . . . . . . . . . . . . . . . . . 59
Rear seats . . . . . . . . . . . . . . . . . . . . . . . . . . 60
H ead restraints . . . . . . . . . . . . . . . . . . . . . 63
M emory function . . . . . . . . . . . . . . . . . . . . 64
Ashtray . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Sockets . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Sto rage . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Luggage compartment . . . . . . . . . . . . . . . 67
Roof rack . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Warm and cold .. .......... .. .. .. . 71
Climate control system . . . . . . . . . . . . . . . 71
3 zone deluxe automatic climate control . 72
4-zone deluxe automatic climate control . 7 5
Steer ing wheel heating . . . . . . . . . . . . . . . 77
2
Driving ..... .. .. .. .. ... .......... . .
General information . ... ........... . .
Steering .......... .. .. . .......... . .
Start ing and stopping the eng ine ..... . .
Start/Stop system .. .. ............. . .
E le ctromechanical parking brake ...... .
Start ing to drive .. .. .. ........ ..... . .
Offroad driving ... ... ...... ....... .. .
T ilt angle display . .. .. ... .......... . .
Automat ic transmission
Trailer towing ... .. ............. . .
Driving with a trail er .. .. ........... . .
T railer towing information
79
79
81
82
84
87
88
89
90
91
98
98
100
Driver assistance . . . . . . . . . . . . . . . . . 102
Assistance systems . . . . . . . . . . . . . . 102
Electronic speed limiter . . . . . . . . . . . . . . . 102
Speed warning system . . . . . . . . . . . . . . . . 102
Cruise control system . . . . . . . . . . . . . . . . 102
Camera-based traffic sign recognit ion . . . 104
Pred ictive efficiency assist. . . . . . . . . . . . . 105
Audi adaptive cruise contro l . . . . . . . . . . . 107
Pred ictive control (eff ic ie ncy assist) . . . . . 113
Traffic jam assist . . . . . . . . . . . . . . . . . . . . 114
Distance indicat or and distance warnin g 116
Messages . . . . . . . . . . . . . . . . . . . . . . . . . . 116
Audi pre sense . . . . . . . . . . . . . . . . . . . . . . 117
Audi pre sense basic . . . . . . . . . . . . . . . . . . 118
Audi pre sense front . . . . . . . . . . . . . . . . . 118
Audi pre sense rea r . . . . . . . . . . . . . . . . . . 120
Audi pre sense city . . . . . . . . . . . . . . . . . . . 121
Settings in the Infotainment system . . . . 122
Messages . . . . . . . . . . . . . . . . . . . . . . . . . . 122
Audi active lane assist . . . . . . . . . . . . . . . . 123
Audi s ide assist . . . . . . . . . . . . . . . . . . . . . 126
Night vision assist . . . . . . . . . . . . . . . . . . . 131
Audi drive select . . . . . . . . . . . . . . . . . . . . . 134
Parking systems 138
General information . . . . . . . . . . . . . . . . . 138
Rear parking system . . . . . . . . . . . . . . . . . 139
Parking aid plus . . . . . . . . . . . . . . . . . . . . . 139
Rearview camera . . . . . . . . . . . . . . . . . . . . 140
Periphera l cameras . . . . . . . . . . . . . . . . . . 143
Adjusting the parking aid . . . . . . . . . . . . . 146

About this Owner's Manual
This Owne r's Man ual applies to a ll versions of
this mode l.
It contains important information,
tips, suggestions and warn ings for using your ve­
h icle.
Keep this manual in your vehicle at all times . This
is especially important if you loan your vehicle to
others or sell it.
This owner's manua l describes the
equipment
range
specified for this mode l at the time of
printing. Individual equipment options described
may on ly be available at a later date or may only
be offered in certain countries .
Some sections in this manual do not apply to all
vehicles. When this is the case, the beginning of
the sect ion ind icates the
validity, for example
"Applies to vehicles : with cruise contro l system".
Optional or vehicle-specific equipment is also
ident ified with an asterisk
"*" .
The illustrations in this manual are a guide.
Some of the detai ls in your vehicle may differ
from the illustration.
All
directions , such as "left", "right", "front" and
"rear", are based on the vehicle's direct ion of
travel.
* Optional or vehicle
-specific equipment
.,._ The section continues on the next page.
c::> & Cross reference to a "WARNING" with in a
section. If a page number is indicated, the
WARNING is located outs ide of the section.
&, WARNING
Text with this symbol contains information
about safety and how to reduce the risk of se­
rious personal injury or death.
(D Note
Text with this symbol contains informat ion
about reducing the risk of damage to your ve­
hicle.
@ For the sake of the environment
Text with this symbol contains informat ion on
protecting the environment.
6
-
(D Tips
Text with this symbol contains additional use­
fu l information.

u co ...... N r-... N ...... 0
0
:E: ' (!) side assist displays, warning abo ut
exiting the vehicle ..... ... .. .. .
@ Door handle
@ Cent ral locking switch ....... .. .
@ Memory buttons ........... .. .
® Vent
® Thumbwhee l for vent and button
for wide vent, depending on equip-
ment ... .. .... .. .... ... ... . .
0 Lever for:
- T urn s ignals and high beams . . .
- High beam assistant .... .. .. .
- Active lane assist ........... .
- T raffic jam assist ........... .
@ Mu lt if unction steer ing whee l with:
- Horn
- Drive r's airbag . ..... ... .. .. .
- Drive r informat ion system con -
trols . ... .... .. .... ... .. .. .
- Audio/v ideo, telephone, nav iga­
tion and voice recognition con -
t rols .. .. ... .. ..... ... .. .. .
- Button @/steering wheel heating
- Sh if t paddles .......... .. .. .
® Instrument cluster ........... .
@ Reset t rip odometer ...... .. .. .
@ W indshield washe r system lever
@ I STAR T ENGINE ST OPI button .. .
@ Steer ing whee l adjustment, de -
pending on equipmen t
- Mechan ica l .............. .. .
- Power .... .. .. ..... ... .. .. .
@ Leverfo r:
- C ruise cont rol sys tem
- Adaptive cruise cont rol ...... .
@ Data link connector for On-board
Diagnostic System (OBD II) . ... .
@ H ood release .... . .... .... ... .
@ Ins trumen t illum ination ... .. .. .
@ Button for switch ing the head-up
d isplay on/off, adjust ing the
height .. .. ........ ..... .. .. .
@ Sw itch for lugg age compa rtment
lid . ... .. .. .. .. .. .... ... .. .. .
@ H eadlight control sw itch .... .. .
126
38
64
7 1
49
49
123
114
27 7
1 2
14
1 4
94
10
12
55
82
81
8 1
10 2
107
2 1
323
52
20
4 0
48
Coc kpit o ve rv iew
@ Buttons fo r:
- All-weather lights
- Night vision assist .......... .
- Rea r fog lights ..... . ..... .. .
@ Power exte rior m irror adjustment
@ Power windows .............. .
@ Infotainment system display
@ Lockable glove compa rtme nt
@) Front passenger 's airbag .... .. .
@ Drives for CD, DVD, SI M cards .. .
@ Swi tch for cooled glove compa rt-
me nt ...... ................ .
@ Depend ing on equ ipment, buttons
for :
- drive select ................ .
- Sta rt/Stop system ... ..... .. .
- Electronic Stabilization Control
(ESC) . .. .. .. .. ... ....... .. -
- Emergency flashers ......... .
- Parking system ............. .
- Hill hold ass ist .. .. .. ..... .. .
- Extend ing/retracting the Info-
tainment system disp lay ... .. .
@ Climate contro l system .... ... . .
@) Storage compartment and outlet
@ Cup holder and mount for vehicle
key .... .... .. .. ............ .
@ Infotai nment system on/off
button . .. .. . ............... .
@ Center armrest w ith sto rage com ­
partment. Depending on vehicle
equipment, it may have:
- Aud i m usic interface ........ .
@ Starting the engine if the re is a
malfunction ... .. ... .. ..... .. .
@ E lectromechanical parking brake
@ Automa tic tr ansmission se lector
lever ... .. .. .. ... .. .. ..... .. .
@ Infotainment system unit
(D Tips
48
131
48
52
43
157
67
27 7
229
6 7
134 84
149
so
138
150
1S7
71
6 7,66
66
156
2 35
84
87
91
156
Some the equipment listed here is only instal­
l ed in certa in models or is available as an op­
tion.
9

& WARNING
Do not assume the roads are free of ice based
on the outside temperature display. Be aware
that there may be ice on roads even when the
outs ide temperature is around 41 °F ( +S °C)
and that ice can increase the risk of accidents .
@ Tips
-Depending on vehicle equipment, the in­
strument illumination (needles and gauges)
may turn on when the lights are off and the
i gnition is sw itched on . The illumination for
the gauges reduces automat ically and even ­
tually turns off as brightness outside in­
creases . This funct ion reminds the driver to
turn the low beams on at the app ropr iate
time .
- You can se lect the u nits used for tempe ra­
tu re , speed and othe r measureme nts in the
Infotainment system¢
page 249.
-If your vehicle is stationary or if yo u are driv­
i ng at very low speeds, the temperat ure dis­
played may be s ligh tly higher than the ac­
tua l tempe ra ture outside due to the heat ra ­
diating from the engine.
- At temperatures below 41 °F (+S °C), a
snowflake symbol appears in front of the
temperature display¢.&. .
Coolant temperature indicator
The coolant tempe rature display (D ¢ page 10,
fig . 3
or ¢ page 10, fig. 4 only funct ions when
the ignition is switched on . To prevent engine
damage, please observe the follow ing notes
about t he temperature ranges.
Cold r ange
If only the L EDs at the bottom of the gauge turn
on, the engine has not reached operating tem­
perature yet . Avo id h igh engine speeds, full ac ­
celerat ion and heavy engine loads .
Normal range
~ The engine has reached its operating temper a-,.....
~ ture once the L EDs up to the center of the gauge
8 turn on . If the . indicator light in the instru-o :E: ' Coc kpit o ve rv iew
ment cluster d isp lay turns on, the coo lant tem ­
peratur e is too high
¢ page 26.
(D Note
-Aux iliary headlights and ot her a ccesso ries in
front o f the coo ling -air intake impa ir the
cooling effect of the coolant . This increases
the risk of the engine overheating dur ing
high outside temperat ures and heavy en­
gine load.
- The front spoiler a lso helps to distribute
cooling air correctly while driving. If the
spoiler is damaged, the cooling effect will
be impaired and the r isk of the eng ine over ­
heating will increase . See an authorized
Audi dealer or author ized Audi Service Fa­
cility for assistance .
@ Tips
Diesel engines: due to the h igh efficiency of
these engines, the engine may not a lways
r each operat ing temperatu re in cold outside
temperat ures . This is norm al and no t a cause
f or concern.
Tachometer
The ta chometer displays the engine speed in rev­
olutions per minute (RPM).
T he beg inning of t he red zone in the tachometer
indica tes the maxim um permissible engi ne speed
f o r all gea rs once the engi ne h as bee n broken in.
Be fore reach ing t his zone, you shou ld shift into
the next h ighest gear, select the D/S se lector lev­
er posit io n, or remove yo ur foot from the acc eler­
ator pedal.
(D Note
The need le in the tachometer @¢ page 10,
fig . 3
or ¢ page 10, fig . 4 may on ly be in t he
r ed area of the gauge for a sho rt time or there
i s a risk of engine damage . The location where
the red zone begins varies depending on the
engine.
IJII,,
11

Cockpit overv iew
® Distance to the next m aneuver
@ Display of the expressway, highway or main
road onto whic h you will be turn ing
(z) Dire ct ion arrow for the upcoming maneuver
® A bar graph appears when a direction arrow
is displayed. The fewer bars are shown, the
shorter the d istance is unt il the turn .
® Current veh icle positio n
@ Additional information (on-board computer)
The fo llow ing funct ions are a lso available when
route guidance is active:
- Changing the voi ce guidan ce v olum e: turn the
right thumbwhee l up o r down dur ing vo ice
guidance.
& WARNING
T he ro ute calc ulated by the navigation system
is a recommendation for reachi ng your desti­
nation. Obey traffic lights, stopping restric ­
tions, one-way streets, lane change restr ic­
tions, etc.
@ Tips
- Also see the chapter c::> page 8, Controls at a
glance.
- An exclamation point" !" in front of the
street name indicates that the informat ion
about this street or this section of the route
is not comp lete in the navigation data con­
tained in the MMI. Obey traffic laws in one­
way streets a nd pedestria n zones.
Head-up display
Appl ies to: ve hicles w ith head -up displ ay
Fig. 1 8 Instrument pane l: knob fo r the head -up d isp lay
20
The head -up disp lay pro jects certain wa rnings or
selected information from the assist systems* or navigation * on the windsh ield . The display ap­
pears w ith in the driver's field of vision.
Switching on /off
.. To switch t he head- up d is play on or o ff, press
the knob~ ¢
fig. 18.
Adjusting the height
The he ight of the d isplay can be adjusted to the
i ndivid ua l driver.
.. Make sure you are seated correctly
c::> page 257 .
.. Tu rn the knob~ to adjust the disp lay.
Settings in the Infotainment system
.. Select in the Infotainment system: IMENU ! but­
ton
> V eh icle > left control button > Driver as­
s istance
> Head-up di splay .
Di splay content
In the Infotainment system, you can specify
which information should be disp layed: For ex­
ample, this can include navigation information*,
adaptive cruise control* or camera-based traffic
s ign recognition*.
The display of certain information and some of
the red indicator lights cannot be hidden in the
Infotainment system.
Brightness
You can adjust the display brightness in the Info­
ta inment system. The display br ightness decreas­
es automatically as the amount of light decreas­
es. The background brightness is adjusted w ith
the i nstr ument illumination
c::> page 52.
Picture rotation
You can rotate the picture in the Infotainment
system clockwise or counterclockwise .
(D Note
To prevent scra tches on the glass coveri ng the
h ead-up display, do not p lace any objects in
the projection opening. ..,_

u (0 ...... N r--. N ...... 0
0
:E @ Tips
-Sunglasses w ith polarization fi lters and un ­
favorable lighting conditions can have a negative effect on the display.
- An optimum display depends on the seat
position and the height adjustment of the
head-up display.
- A specia l windshield is needed for the head­
up display function.
- For information on cleaning, see ¢
table In­
terior cleaning on page
356.
On-Board Diagnostic
System (OBD)
Malfunction indicator lamp (MIL)
The malfunction indicator lamp (MIL) ¢'4 in the
instrument cluster is part of the On-Board Diag­
nostic System (OBD II).
The indicator light turns on when the ignition is
switched on and turns off once the engine is
started and is running in idle at a stable speed.
This indicates that the MIL is functioning correct­
ly .
If the light does not turn off after starting the
engine
or turns on while driving, this may indi­
cate there is a malfunction in the engine. If the indicator turns on, the catalytic converter may be
damaged .
Drive
with reduced engine performance (avoid
high speeds for extended periods of time and/or
fast acceleration) and have the malfunction cor­
rected. See an authorized Audi dealer or author ­
ized Audi Service Fac ility .
The electronic speed limiter may be faulty if the
indicator light turns on . For additional informa­
tion, see¢
page 102, Electronic speed limiter .
The MIL indicator light may also turn on if the
fuel filler cap is not closed correctly
c> page 316.
Cockpit overview
On-Board Diagnostics
Fig. 19 Locatio n of Data Li nk Connector (DLC)
On-Board Diagnostics monitors the components
of your emission control system. Each monitored
component in your engine system has been as­
s igned a code. In case of a malfunction , the com­
ponent will be identified and the fault stored as a
code in the control module memory.
The MIL light may also illuminate if there is a
leak in the on-board fuel vapor recovery system.
If the light illuminates after a refueling, stop the
vehicle and make sure the fuel filler cap is prop­
erly closed (only vehicles with gasoline engine)
<=>page 316 .
In order to make an accurate diagnosis, the stor­
ed data can only be displayed using special diag­
nostic equipment (generic scan tool for OBD).
In order to connect the special diagnostic equip­
ment, push the plug into the Data Lin k Connector
(DLC). The DLC is located to the right of the hood
release
¢ fig . 19 .
Your authorized Aud i dealer or qualified work­
shop can interpret the code and perform the nec­
essary repair.
_& WARNING ~ ~ ·
Do not use the diagnostic connector for per-
sonal use. Incorrect usage can cause malfunc­
tions, which can increase the risk of a colli­
sion!
21

u co ...... N r-... N ...... 0
0
:E: ' '
D
AUTO
Canada models:
E lect romechanical pa rking bra ke
¢page 26
H ill descent assist
c::;,page 150
Child safety lock
c::;,page43
U SA models :
Speed warning system*
c::;,page 102
C anada model s:
Speed warning system *
¢page 102
Active lane ass ist*
¢page 124
Audi side assist*
c::;, page 131
Camera-based traffic sign recogni­
tion*
c::;, page 105
Night vision assist*
c::;, page 134
H igh beam assistant*
c::;, page 49
High beams
c::;, page 49,
High beam assistant*
c::;, page 49
BRAKE /(©) Brake system
If th is ind icator lig ht turns on, there is a malfunc­
tion in the brake system.
1111 (USA models ) /. (Canada models )
B ra ke s: stop vehicle a nd check bra ke fluid le vel
Stop the vehicle and check the brake fluid leve l.
See an authorized Audi dealer or authorized Audi
Service Facility for assistance if necessary .
1111 (USA mod els ) /. (Canada mod els)
Brak es: malfuncti on! Stop vehicle safel y
If the indicator light turns on and th is message
appears, there is a malfunction in the brake
boos ter.
Coc kpit o ve rv iew
If the ABS ind icator light 9 (USA models) I
liJ (Canada models), the ESC indicator light Bl
and the brake system indicator light 1111 (USA
models)
I . (Canada models) all turn on and
t hi s message appears, then the ABS, ESC and
braking d istribution are malfunctioning
c::;, &. .
Do not continue dr iving. See an author ized Audi
dealer or authorized Audi Service Fac ility for as­
s istance
c::;, &. .
1111 (USA model s) /. (Canada model s) Park­
ing brake : malfunction! Safe ly stop vehicle. See
owne r's manual
- If the indicator light and the message appear
when the vehicle i s stationar y or after switch­
ing the ignition on ,
check if you can release the
parking brake. If you cannot release the park­
ing brake, see an authorized Audi dealer or au­
thorized Audi Service Facil ity. If you can release
the parking brake and the message st ill ap­
pea rs, see an author ized Audi dealer or author­
i zed Aud i Service Faci lity immediately to have
t he ma lfu nction corrected.
- If the ind icator light and message appear
wh ile
driv ing ,
the hill start ass ist or emergency brak­
ing function may be ma lf u nctioning. It may not
be possible to set the par king b rake o r re lease
it once it has been set. Do not park you r vehicle
on hills . See an authorized Audi dea le r or au ­
thorized A udi Service Facility for assistance.
Brake boo ster : res tricted . Yo u can continu e d riv­
ing . Pl eas e conta ct Service
T here is a ma lf u nction in the brake booster. The
brake booste r is ava ilable, but its effectiveness is
red uced. Br aking behavior may be d ifferent from
how it normally f un ct ions and the brake pedal
may vibrate .
D rive to an authori zed A udi dealer or autho rized
A udi Se rvice Fac ility immed iate ly to have the
malfunction corrected.
A WARNING
- Read and fo llow the warnings in
c::;, page 322, Working in the engine com­
partment
before opening the hood and
checking the brake fluid level.
25

Cockpit over view
- If the brake system indicator light does not
turn off or it turns on while driv ing, the
brake fluid level in the reservoir is too low,
and this increases the risk of an acc ident .
Stop the vehicle and do not continue dr iv­
ing . See an author ized Audi dealer or au­
tho rized Aud i Serv ice Facility fo r ass istance.
- If the bra ke system indicator light turns on
together with the ABS and ESC ind icator
l igh ts, the ABS/ ESC regula ting func tion may
be malfunctioning. Fun ctions that stabili ze
the vehicle are no longer ava ilable . This
could cause the vehicle to swerve, which in­
c reases the risk that the ve hicle w ill slide.
Do not continue driving. See an author ized
Audi dealer or author ized Audi Service Facili­
ty for assistance.
PARK/( ®)/ !® Electromechanical parking
brake
If t h e - (USA models) I. (Canada models)
i nd ic ator lig ht t urns on , the par king brake was
se t.
I f t he - (USA models)/ . (Canada mode ls) in­
d ica tor light is blin king , the bra king fo rce has not
bu ilt up e nou gh o r it has decre ased. Select the P
selec to r l eve r posit ion to secure the veh icle .
Make sure the indicator light is off befo re yo u
start driving.
Ill Parking brake: malfunction! Plea se contact
Service
There is a malfunc tion in the park ing brake . Dr ive
to a n author ized Audi dealer or author ized A udi
Serv ice Fa cil ity immedi ately to h ave t he m alfunc­
t ion cor rec ted .
II (USA models )/ (Ci1) (Canada model s) Parking
brake: caution! Vehicle parked too steep
There is not enoug h braking force to hold the ve­
h icle in place. The brakes have over heated. The
ve hicle co uld ro ll away eve n on a small i ncline.
Ill (USA models )/ ¢Cil)J (Canada models ) Parking
brake : applied
26
If this message appears, press the brake pedal
first and then release the parking brake if neces­ sa ry.
Ill (USA model s)/ ¢Ci1) (Canada models) Parking
brake: emergency braking
The eme rgency brak ing func tion was tr iggered .
Please re lease parking brake
Release the parking brake if this message ap­
pears.
Please press brake pedal to relea se parking
brake
To release t he pa rking brake , press the brake
pedal and press the ~ button at t he same time,
o r start driving with hill start assis t
q page 88,
Starting to drive.
(D Tips
For addi tiona l informat ion on the parking
brake, see~
page 8 7.
-L Cooling system
• Turn off engine and check coolant level. See
owner 's manual
The coo lant level is too low.
Do not con tinue dr iv ing and switch the e ng ine
off. Che ck the coolant leve l
q page 328 .
- If the coo lant level is too low, add coolant
q page 328 . Only continue driving once the in­
dicato r ligh t turns off.
• Coolant temperature: too high . Let engine
run with vehicle stationary
Let the engine run at idle fo r a few min utes to
cool off, until the indicator lig ht turns off .
- If the indicator light does not tu rn off, do no t
continue driving the vehicle. See an authorized
Audi dea le r or a uthori zed Audi Service Facility
for assistance.
A WARNING
- Never open the hood if you can see or hear
steam or coolant escaping from the engine

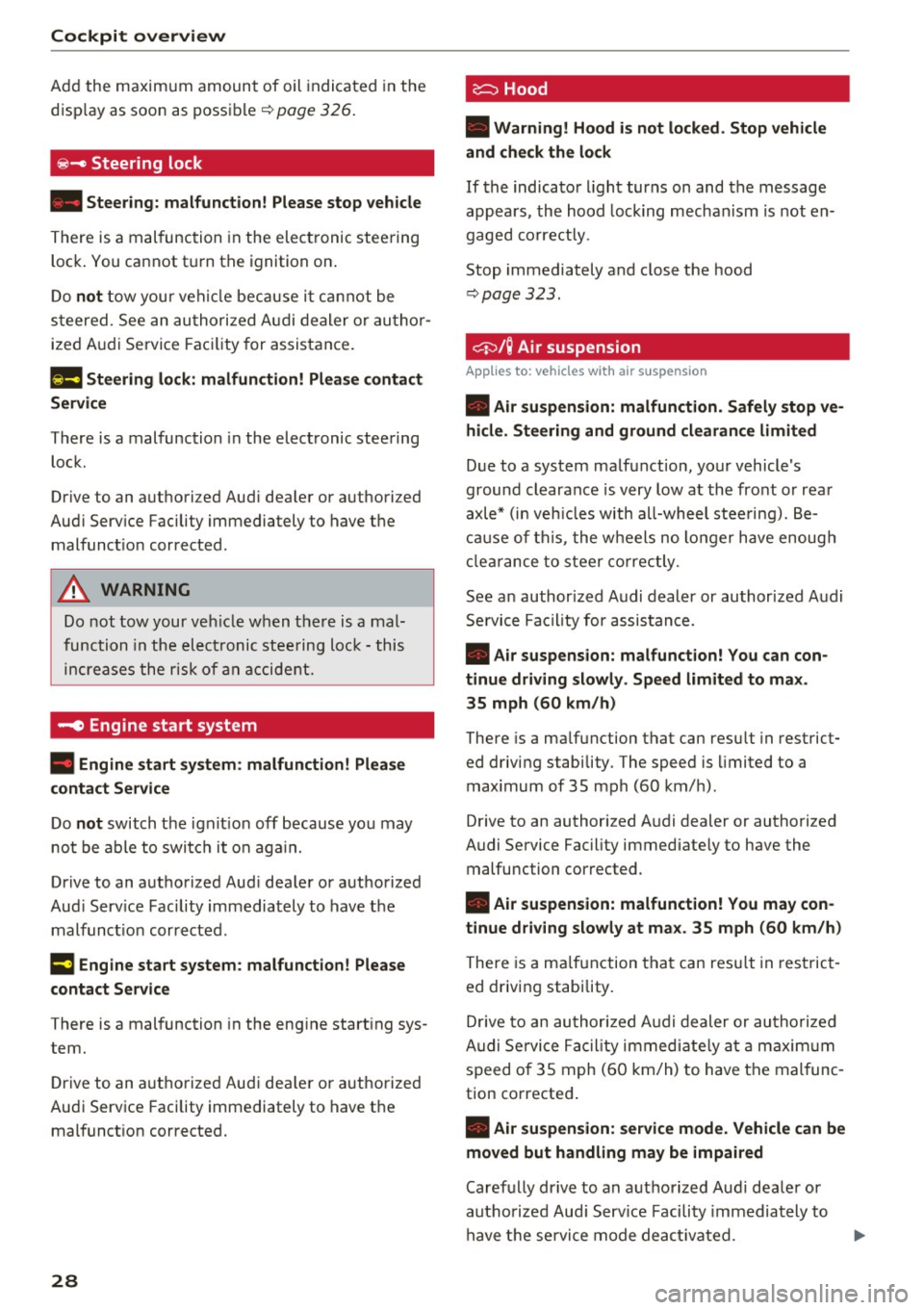

Cockpit over view
Add the maximum amount of oil indicated in the
disp lay as soon as possible¢
page 326.
~- Steering lock
• Steerin g: malfunction ! Plea se stop vehicle
There is a malfunction in the electronic stee ring
lock . You cannot t urn the ignition on .
Do
not tow your vehicle because i t cannot be
s teered. See an au thori zed A udi dealer o r au tho r­
ized Aud i Service Faci lity for assistance .
Ell Steering lock : malfunc tion! Plea se contact
Service
There is a malfunction in the electronic steering
lock .
Drive to an authori zed Aud i dea ler or authori zed
Aud i Serv ice Facility immediately to have the
malfunct ion corrected.
A WARNING
-
Do not tow your veh icle when the re is a mal­
function in the electronic stee ring loc k - this
increases the risk of an accident.
~ Engine start system
• Engin e s tart system : malfunction ! Plea se
c on tact Service
Do not switch the ignit ion off because you may
not be able to switc h it o n aga in.
Drive to an authorized Aud i dealer or authorized
Aud i Serv ice Fac ility immediately to have the
malfunct ion corrected .
= Engine start system : malfunction ! Plea se
c ontact Service
There is a malfunction in the engine start ing sys­
tem.
D rive to an a uthorized Audi dea ler or authorized
Aud i Service Facility imm ediately to have t he
malfunct ion corrected.
28
· c:::::::, Hood
• Warning! Hood i s not lo cked. Stop vehicl e
and ch eck the lo ck
If the indicator light turns on and the message
appears , the hood lock ing mechanism is not en­
gaged co rrectly .
Stop immediately and close the hood
¢ page 323 .
0/Q Air suspension
Applies to: vehicles with air suspension
• Air suspension : malfunction . Saf ely stop ve ­
hi cle. St ee ring and ground clearan ce limited
Due to a system malfunction, you r vehicle's
ground clearance is very low at the front or rea r
axle* (in veh icles with all-wheel stee ring). Be­
ca use of this, the wheels no longer have enoug h
clea rance to steer co rrectly.
See an author ized Audi dealer or authorized Audi
Se rvice Facility for assis tance .
• Air s uspens ion: mal func tion! You can con­
t inu e driv ing slowl y. Speed limited to max .
35 mph
(60 k m /h)
There is a ma lfunction that can resu lt in restrict­
ed driving s tabili ty . T he speed is limited to a
max imum of 35 mph (60 km/h) .
Drive to an authorized Audi dealer or authorized
Audi Service Facility immediate ly to have the
malfunc tion corrected .
• Air suspens ion: malfunction! You m ay con ­
tinue dri ving slowl y at m ax. 3 5 mph
(60 km /h )
There is a ma lfunction that can res ult in restric t­
ed driving stability .
D rive to an authori zed A udi dealer or authori zed
Audi Se rvice Fac il ity immediate ly a t a maxim um
speed of 35 mph (60 km/h) to have the mal func­
tion corrected .
• Air su spen sion: service mode. Vehicle can b e
m oved but han dling may be impaired
Carefully drive to an a uthorized Aud i dealer or
autho rized Aud i Serv ice Facility immediately to
have the service mode deactivated.
jll,,

u co ...... N r-... N ...... 0
0

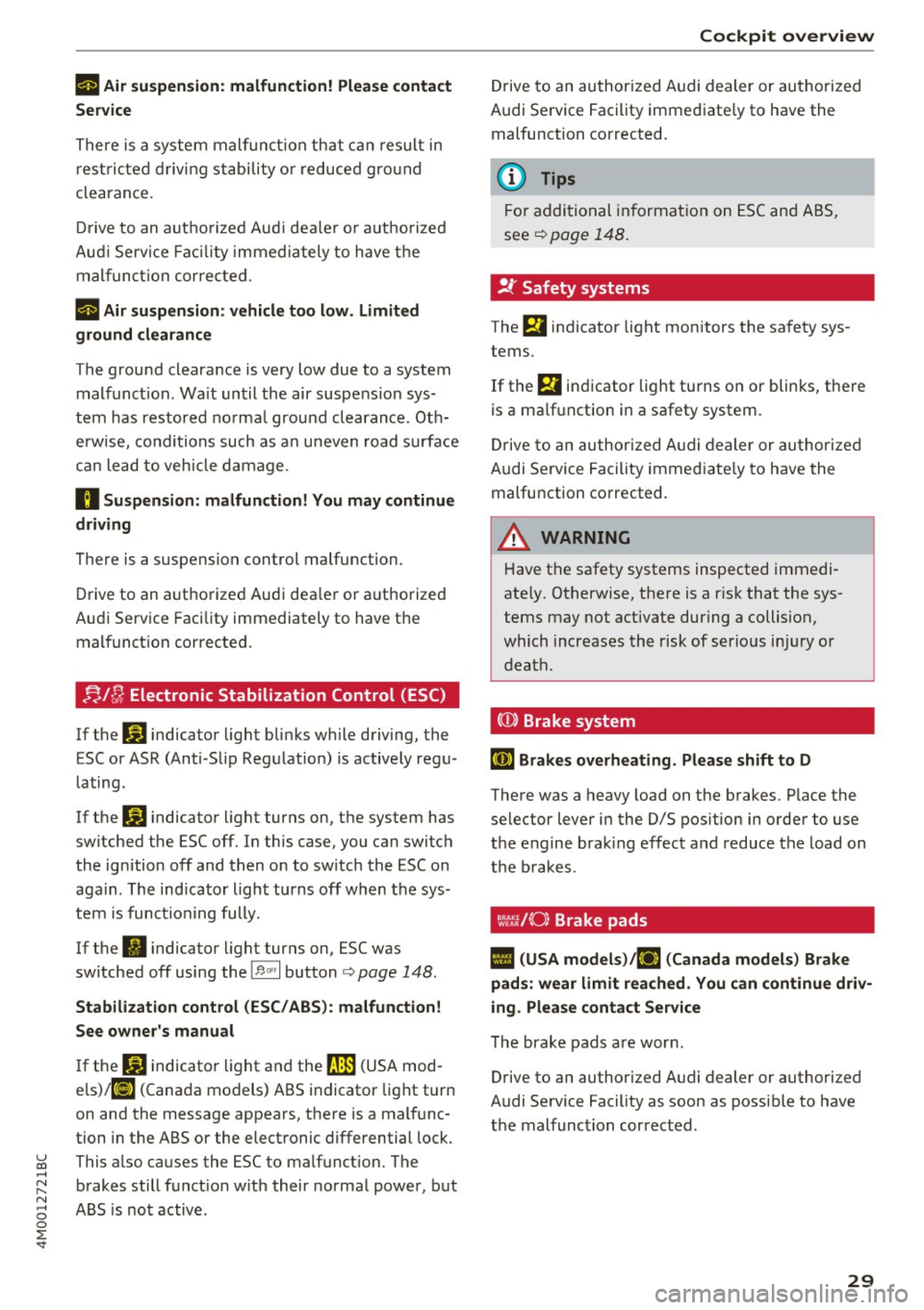

:E: ' II Air suspension: malfunction! Please contact
Service
There is a system malfunction that can result in
rest ricted driving stability or reduced ground
clearance.
Drive to an authorized Audi dea le r or authorized
Aud i Service Facility imm ediately to have the
malfunct ion corrected.
II Air suspension: vehicle too low. Limited
ground clearance
T he ground clearance is very low due to a system
malfunction. Wait until the air suspens ion sys­
tem has restored normal ground clearance . Ot h­
e rwise, conditions such as an uneven road s urface
can lead to vehicle damage .
B Suspension: malfunction! You may continue
driving
There is a suspension control malfunction .
Drive to an authorized Audi dea ler or authorized
Audi Service Faci lity immediately to have the
malfunct ion corrected.
J=J,t !J Electronic Stabilization Control (ESC)
If the D] indicator light blinks while driving, the
ESC or ASR (Anti -Slip Regulation) is actively regu ­
l ating .
If thE:
G1 indicator light turns on, the system has
switched the ESC off. In this case, you can switch
the ignition off and then on to switch the ESC on
aga in . The ind icator l ight turns off when the sys­
tem is functioning fully.
If the
fil indicator light turns on, ESC was
sw itched off using the
!B ,« I button <=> page 148.
Stabilization control (ESC/ ABS): malfunction!
See owner's manual
If thE: DJ indicator light and the fJ]J (USA mod­
els)/ 11] (Canada models) ABS indicator light turn
on and the message appears, there is a malfunc­
tion in the ABS or the electronic differential lock.
This a lso causes the ESC to malfunct ion. The
brakes still funct ion w ith their normal power, but
ABS is not active . Cockpit overview
Drive to an authorized Audi dealer or authorized
Audi Service Facility immediate ly to have the
malfunction corrected.
(D Tips
For additional information on ESC and ABS,
see
¢ page 148.
!f Safety systems
The E,i indicator light monitors the safety sys­
tems.
If the m indicator light turns on or blinks, there
is a ma lfunction in a safety system .
Drive to an authorized Audi dealer or authorized
Audi Service Facility immed iate ly to have the
malfunction corrected.
,& WARNING ~ -
Have the safety systems inspected immedi­
ately. Otherwise, there is a r isk that the sys­
tems may not activate during a collision,
which increases the risk of serious injury or
death.
((D) Brake system
liJ Brakes overheating. Please shift to D
There was a heavy load on the brakes. P lace the
selector lever in the D/S pos ition in order to use
the engine braking effect and reduce the load on
the brakes.
wt:t./(0) Brake pads
II (USA models).!EiJ (Canada models) Brake
pads: wear limit reached. You can continue driv­
ing. Please contact Service
The brake pads are worn.
Drive to an authorized Audi dealer or authorized
Audi Service Facility as soon as possible to have
the malfunction corrected.
29
