AUDI R8 COUPE 2020 Owner's Guide
Manufacturer: AUDI, Model Year: 2020, Model line: R8 COUPE, Model: AUDI R8 COUPE 2020Pages: 308, PDF Size: 82.41 MB
Page 31 of 308
4S1012721BA
Opening and closing

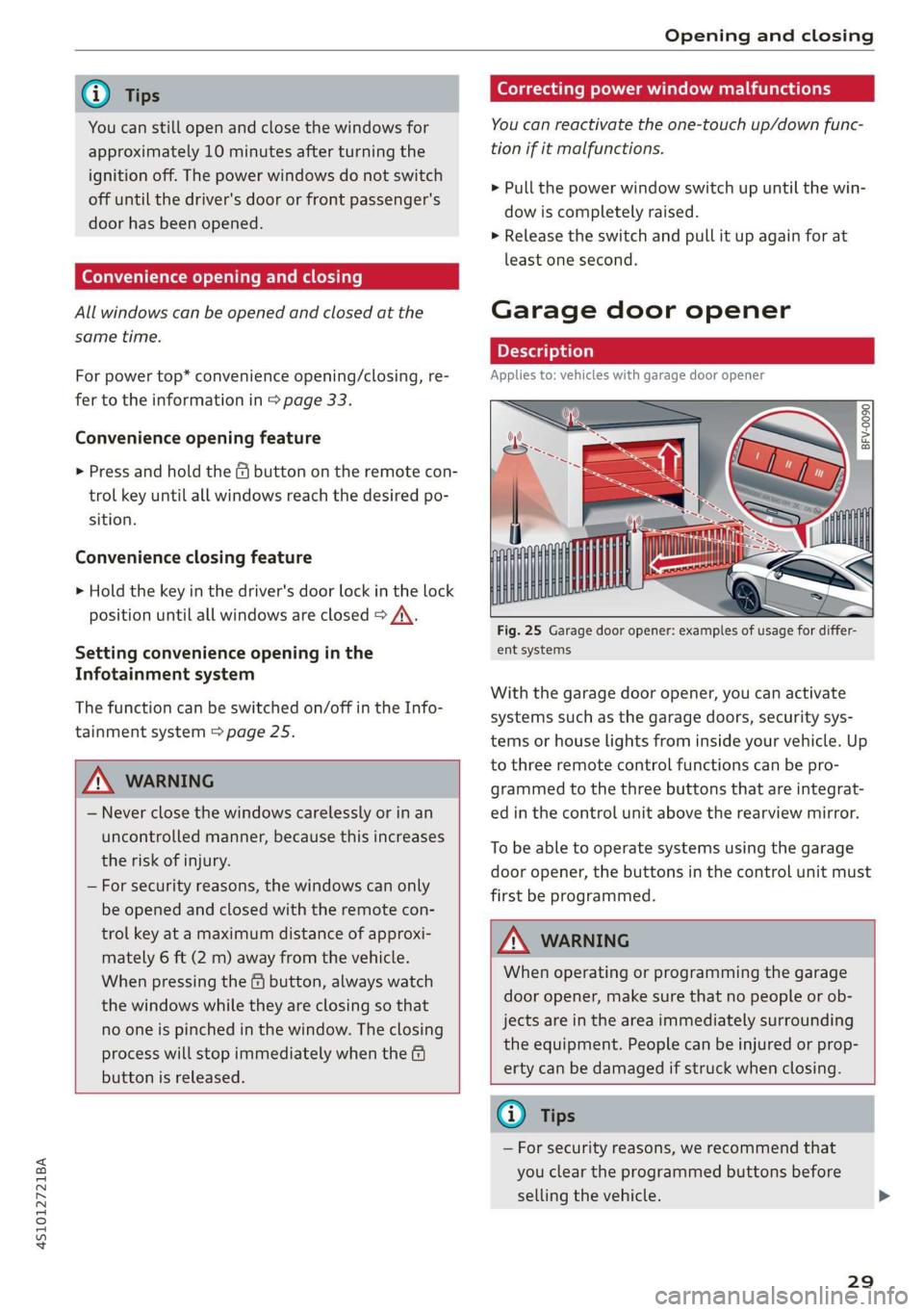

@) Tips
You can still open and close the windows for
approximately 10 minutes after turning the
ignition off. The power windows do not switch
off until the driver's door or front passenger's
door has been opened.
Convenience opening and closing
All windows can be opened and closed at the
same time.
For power top* convenience opening/closing, re-
fer to the information in > page 33.
Convenience opening feature
> Press and hold the @ button on the remote con-
trol key until all windows reach the desired po-
sition.
Convenience closing feature
> Hold the key in the driver's door lock in the lock
position until all windows are closed > /\.
Setting convenience opening in the
Infotainment system
The function can be switched on/off in the Info-
tainment system > page 25.
Z\ WARNING
— Never close the windows carelessly or in an
uncontrolled manner, because this increases
the risk of injury.
— For security reasons, the windows can only
be opened and closed with the remote con-
trol key at a maximum distance of approxi-
mately 6 ft (2 m) away from the vehicle.
When pressing the f button, always watch
the windows while they are closing so that
no one is pinched in the window. The closing
process will stop immediately when the fa
button is released.
Correcting power window malfunctions
You can reactivate the one-touch up/down func-
tion if it malfunctions.
> Pull the power window switch up until the win-
dow is completely raised.
>» Release the switch and pull it up again for at
least one second.
Garage door opener
Applies to: vehicles with garage door opener
2 a 3 2
> z
oO
Fig. 25 Garage door opener: examples of usage for differ-
ent systems
With the garage door opener, you can activate
systems such as the garage doors, security sys-
tems or house lights from inside your vehicle. Up
to three remote control functions can be pro-
grammed to the three buttons that are integrat-
ed in the control unit above the rearview mirror.
To be able to operate systems using the garage
door opener, the buttons in the control unit must
first be programmed.
Z\ WARNING
When operating or programming the garage
door opener, make sure that no people or ob-
jects are in the area immediately surrounding
the equipment. People can be injured or prop-
erty can be damaged if struck when closing.
@® Tips
— For security reasons, we recommend that
you clear the programmed buttons before
selling the vehicle.
29

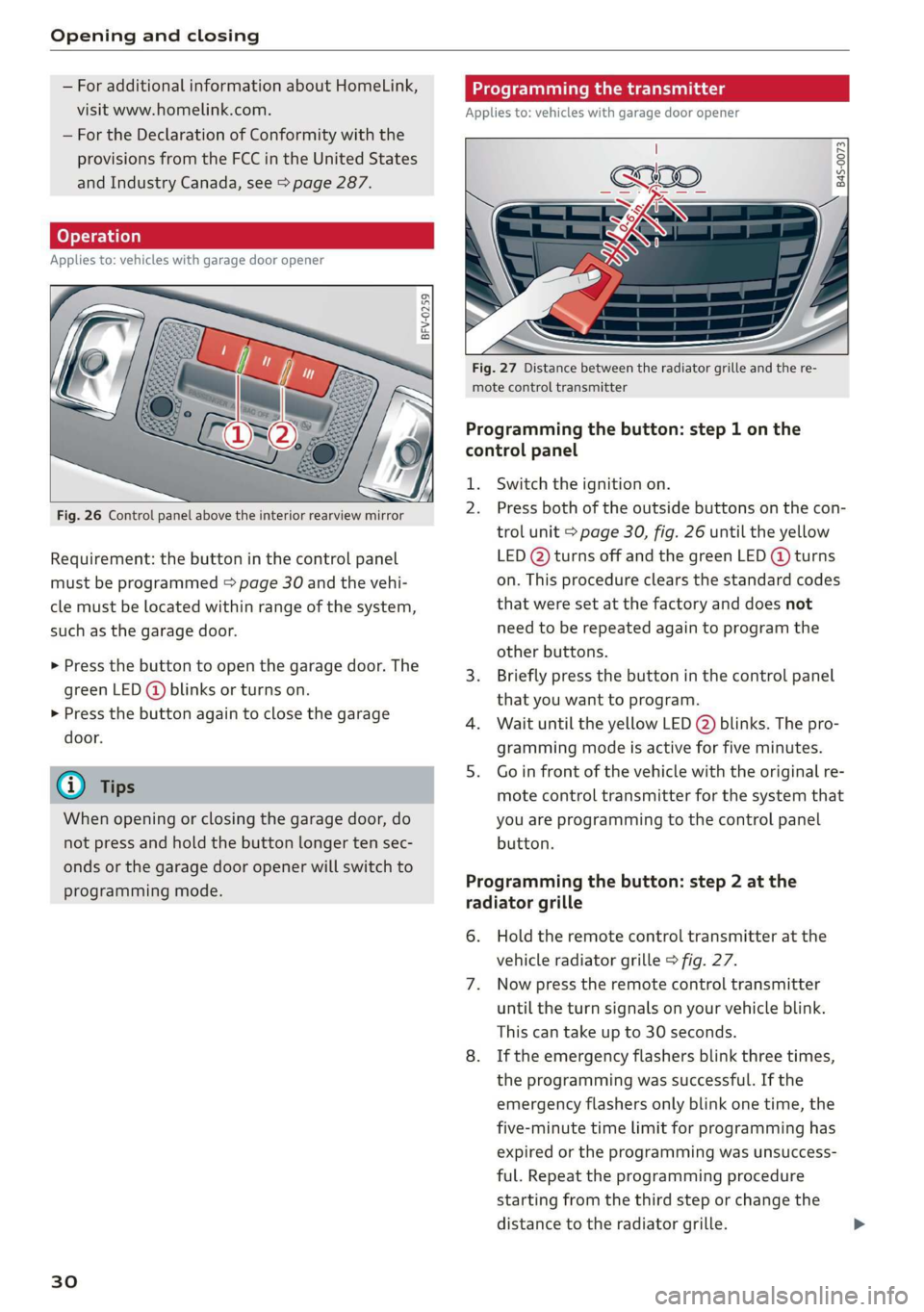

Page 32 of 308
Opening and closing
— For additional information about HomeLink,
visit www.homelink.com.
— For the Declaration of Conformity with the
provisions from the FCC in the United States
and Industry Canada, see > page 287.
Applies to: vehicles with garage door opener
g
8
om z 5
Fig. 26 Control panel above the interior rearview mirror
Requirement: the button in the control panel
must be programmed & page 30 and the vehi-
cle must be located within range of the system,
such as the garage door.
> Press the button to open the garage door. The
green LED (@) blinks or turns on.
> Press the button again to close the garage
door.
@ Tips
When opening or closing the garage door, do
not press and hold the button longer ten sec-
onds or the garage door opener will switch to
programming mode.
30
Programming the transmitter
Applies to: vehicles with garage door opener
B4S-0073
Fig. 27 Distance between the radiator grille and the re-
mote control transmitter
Programming the button: step 1 on the
control panel
1. Switch the ignition on.
2. Press both of the outside buttons on the con-
trol unit > page 30, fig. 26 until the yellow
LED @) turns off and the green LED @ turns
on. This procedure clears the standard codes
that were set at the factory and does not
need to be repeated again to program the
other buttons.
3. Briefly press the button in the control panel
that you want to program.
4. Wait until the yellow LED @) blinks. The pro-
gramming mode is active for five minutes.
5. Go in front of the vehicle with the original re-
mote control transmitter for the system that
you are programming to the control panel
button.
Programming the button: step 2 at the
radiator grille
6. Hold the remote control transmitter at the
vehicle radiator grille > fig. 27.
7. Now press the remote control transmitter
until the turn signals on your vehicle blink.
This can take up to 30 seconds.
8. Ifthe emergency flashers blink three times,
the programming was successful. If the
emergency flashers only blink one time, the
five-minute time limit for programming has
expired or the programming was unsuccess-
ful. Repeat the programming procedure
starting from the third step or change the
distance to the radiator grille.
Page 33 of 308
4S1012721BA
Opening and closing

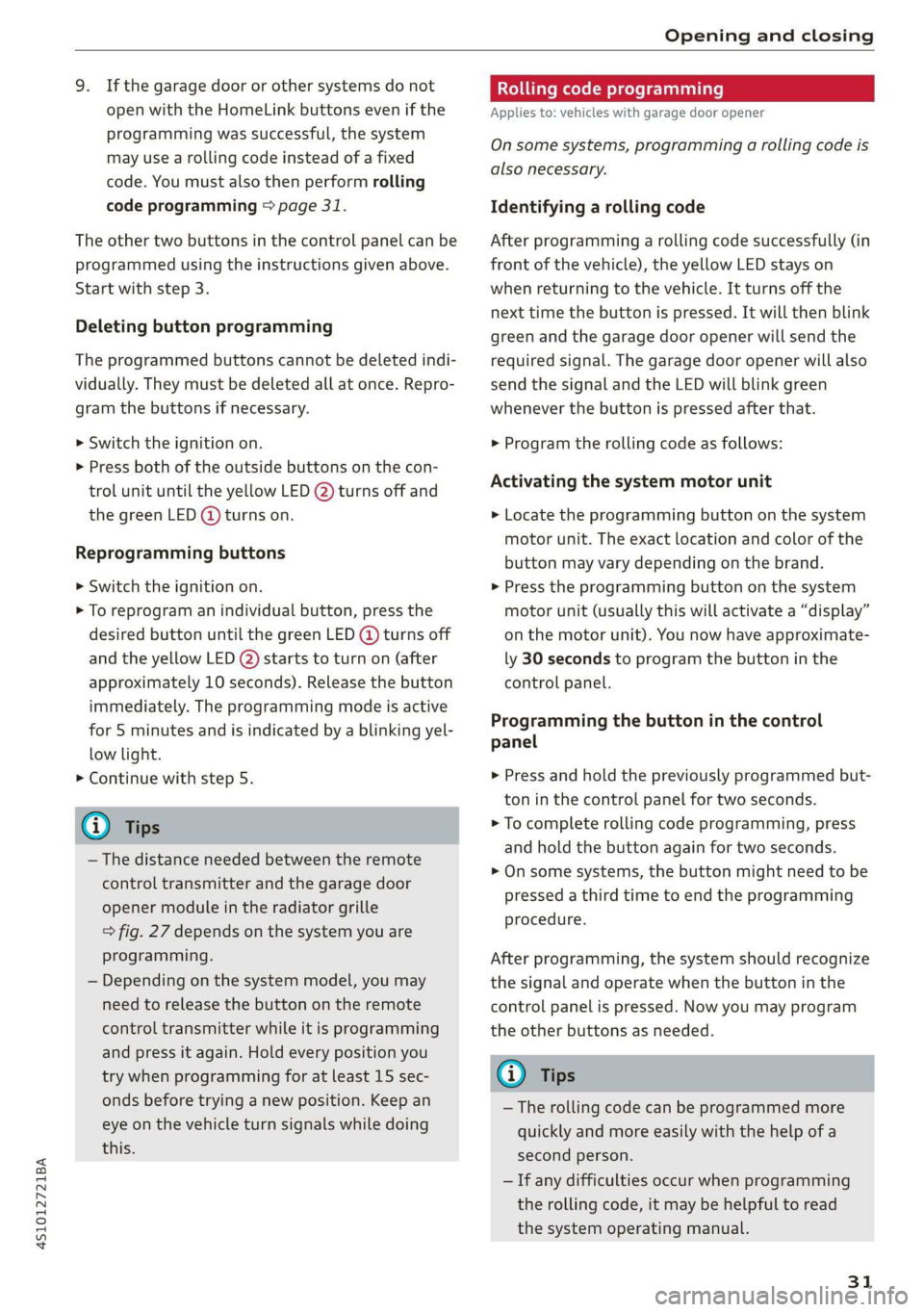

9. Ifthe garage door or other systems do not
open with the HomeLink buttons even if the
programming was successful, the system
may use a rolling code instead of a fixed
code. You must also then perform rolling
code programming > page 31.
The other two buttons in the control panel can be
programmed using the instructions given above.
Start with step 3.
Deleting button programming
The programmed buttons cannot be deleted indi-
vidually. They must be deleted all at once. Repro-
gram the buttons if necessary.
> Switch the ignition on.
> Press both of the outside buttons on the con-
trol unit until the yellow LED @ turns off and
the green LED (@) turns on.
Reprogramming buttons
> Switch the ignition on.
> To reprogram an individual button, press the
desired button until the green LED @ turns off
and the yellow LED (2) starts to turn on (after
approximately 10 seconds). Release the button
immediately. The programming mode is active
for 5 minutes and is indicated by a blinking yel-
low light.
> Continue with step 5.
G) Tips
— The distance needed between the remote
control transmitter and the garage door
opener module in the radiator grille
=> fig. 27 depends on the system you are
programming.
— Depending on the system model, you may
need to release the button on the remote
control transmitter while it is programming
and press it again. Hold every position you
try when programming for at least 15 sec-
onds before trying a new position. Keep an
eye on the vehicle turn signals while doing
this.
Rolling code programming
Applies to: vehicles with garage door opener
On some systems, programming a rolling code is
also necessary.
Identifying a rolling code
After programming a rolling code successfully (in
front of the vehicle), the yellow LED stays on
when returning to the vehicle. It turns off the
next time the button is pressed. It will then blink
green and the garage door opener will send the
required signal. The garage door opener will also
send the signal and the LED will blink green
whenever the button is pressed after that.
> Program the rolling code as follows:
Activating the system motor unit
> Locate the programming button on the system
motor unit. The exact location and color of the
button may vary depending on the brand.
> Press the programming button on the system
motor unit (usually this will activate a “display”
on the motor unit). You now have approximate-
ly 30 seconds to program the button in the
control panel.
Programming the button in the control
panel
> Press and hold the previously programmed but-
ton in the control panel for two seconds.
> To complete rolling code programming, press
and hold the button again for two seconds.
> On some systems, the button might need to be
pressed a third time to end the programming
procedure.
After programming, the system should recognize
the signal and operate when the button in the
control panel is pressed. Now you may program
the other buttons as needed.
@) Tips
— The rolling code can be programmed more
quickly and more easily with the help of a
second person.
— If any difficulties occur when programming
the rolling code, it may be helpful to read
the system operating manual.
31
Page 34 of 308

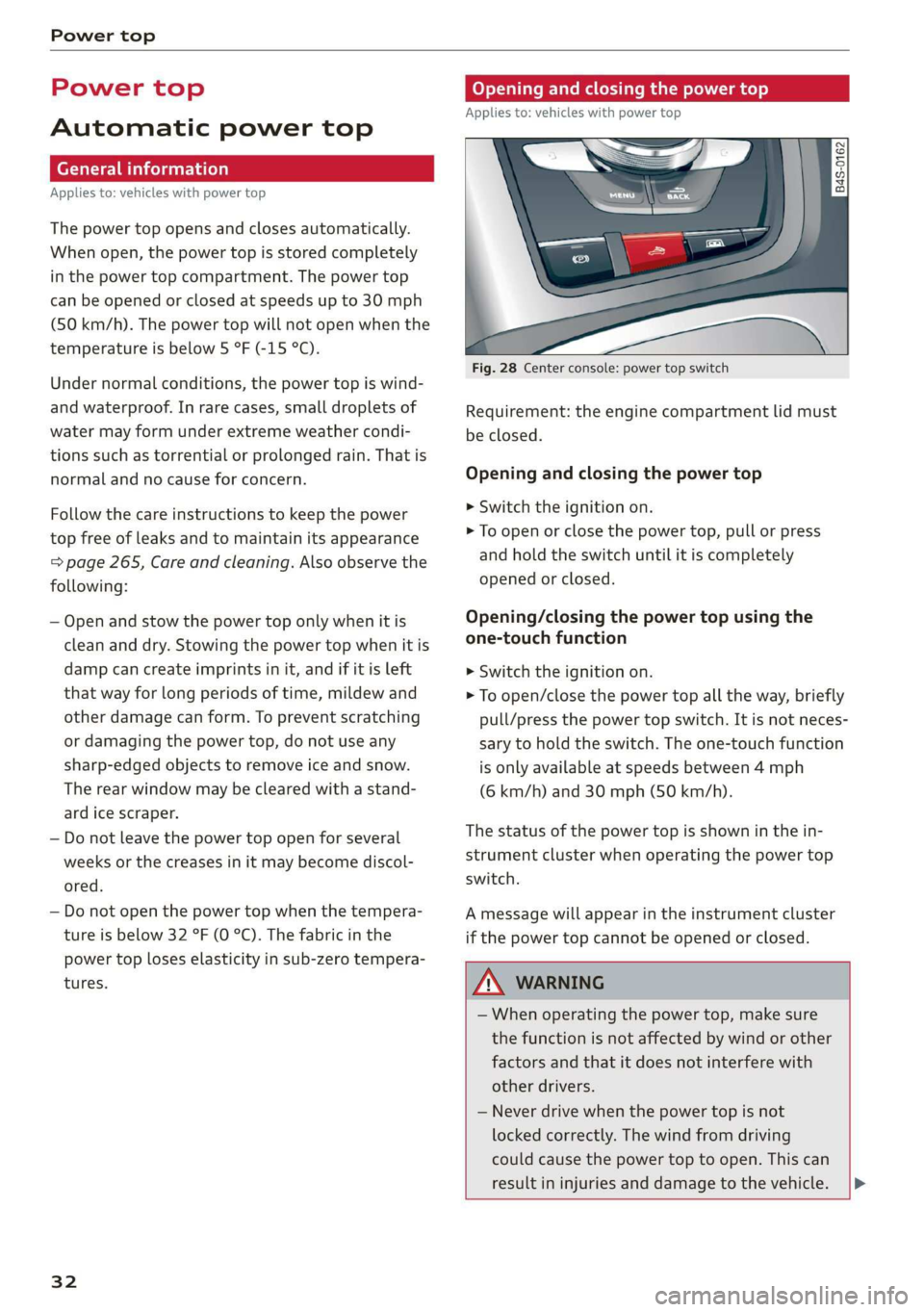

Power top
Power top
Automatic power top
ere eleurl lela)
Applies to: vehicles with power top
The power top opens and closes automatically.
When open, the power top is stored completely
in the power top compartment. The power top
can be opened or closed at speeds up to 30 mph
(50 km/h). The power top will not open when the
temperature is below 5 °F (-15 °C).
Under normal conditions, the power top is wind-
and waterproof. In rare cases, small droplets of
water may form under extreme weather condi-
tions such as torrential or prolonged rain. That is
normal and no cause for concern.
Follow the care instructions to keep the power
top free of leaks and to maintain its appearance
= page 265, Care and cleaning. Also observe the
following:
— Open and stow the power top only when it is
clean and dry. Stowing the power top when it is
damp can create imprints in it, and if it is left
that way for long periods of time, mildew and
other damage can form. To prevent scratching
or damaging the power top, do not use any
sharp-edged objects to remove ice and snow.
The rear window may be cleared with a stand-
ard ice scraper.
— Do not leave the power top open for several
weeks or the creases in it may become discol-
ored.
— Do not open the power top when the tempera-
ture is below 32 °F (0 °C). The fabric in the
power top loses elasticity in sub-zero tempera-
tures.
32
Opening and closing the power top
Applies to: vehicles with power top
Fig. 28 Center console: power top switch
Requirement: the engine compartment lid must
be closed.
Opening and closing the power top
> Switch the ignition on.
> To open or close the power top, pull or press
and hold the switch until it is completely
opened or closed.
Opening/closing the power top using the
one-touch function
> Switch the ignition on.
> To open/close the power top all the way, briefly
pull/press the power top switch. It is not neces-
sary to hold the switch. The one-touch function
is only available at speeds between 4 mph
(6 km/h) and 30 mph (50 km/h).
The status of the power top is shown in the in-
strument cluster when operating the power top
switch.
A message will appear in the instrument cluster
if the power top cannot be opened or closed.
ZA\ WARNING
— When operating the power top, make sure
the function is not affected by wind or other
factors and that it does not interfere with
other drivers.
— Never drive when the power top is not
locked correctly. The wind from driving
could cause the power top to open. This can
result in injuries and damage to the vehicle. |P>
Page 35 of 308
4S1012721BA
Power top

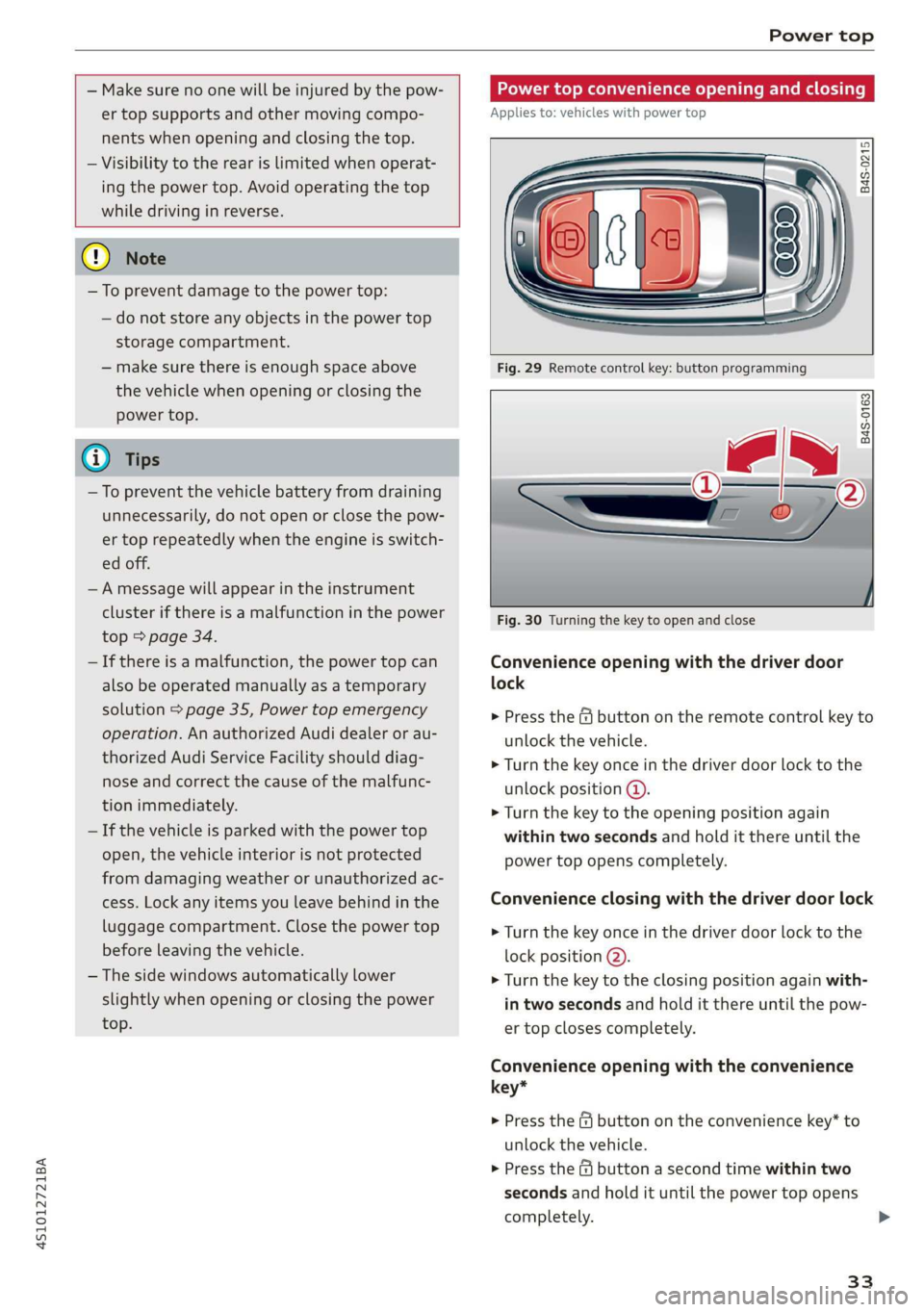

— Make sure no one will be injured by the pow-
er top supports and other moving compo-
nents when opening and closing the top.
— Visibility to the rear is limited when operat-
ing the power top. Avoid operating the top
while driving in reverse.
e Note
— To prevent damage to the power top:
— do not store any objects in the power top
storage compartment.
— make sure there is enough space above
the vehicle when opening or closing the
power top.
@ Tips
—To prevent the vehicle battery from draining
unnecessarily, do not open or close the pow-
er top repeatedly when the engine is switch-
ed off.
—A message will appear in the instrument
cluster if there is a malfunction in the power
top > page 34.
—If there is a malfunction, the power top can
also be operated manually as a temporary
solution > page 35, Power top emergency
operation. An authorized Audi dealer or au-
thorized Audi Service Facility should diag-
nose and correct the cause of the malfunc-
tion immediately.
— If the vehicle is parked with the power top
open, the vehicle interior is not protected
from
damaging weather or unauthorized ac-
cess. Lock any items you leave behind in the
luggage compartment. Close the power top
before leaving the vehicle.
— The side windows automatically lower
slightly when opening or closing the power
top.
Power top convenience opening and closing
Applies to: vehicles with power top
B4S-0215
Fig. 29 Remote control key: button programming
B4S-0163
Fig. 30 Turning the key to open and close
Convenience opening with the driver door
lock
> Press the G@ button on the remote control key to
unlock the vehicle.
> Turn the key once in the driver door lock to the
unlock position @).
> Turn the key to the opening position again
within two seconds and hold it there until the
power top opens completely.
Convenience closing with the driver door lock
> Turn the key once in the driver door lock to the
lock position @).
> Turn the key to the closing position again with-
in two seconds and hold it there until the pow-
er top closes completely.
Convenience opening with the convenience
key*
> Press the &@ button on the convenience key” to
unlock the vehicle.
> Press the @ button a second time within two
seconds and hold it until the power top opens
completely. >
33

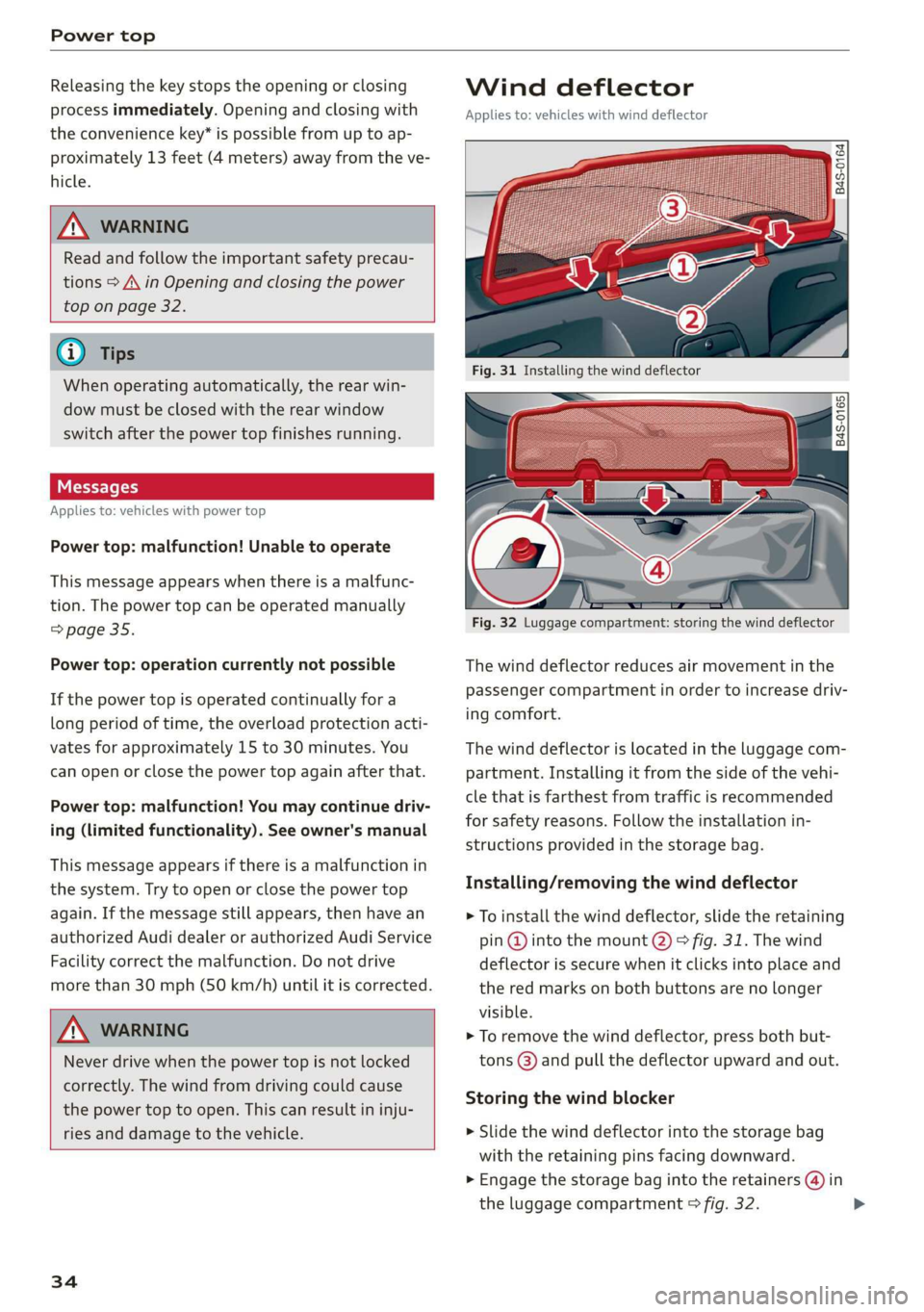

Page 36 of 308
Power top
Releasing the key stops the opening or closing
process immediately. Opening and closing with
the convenience key* is possible from up to ap-
proximately 13 feet (4 meters) away from the ve-
hicle.
ZX WARNING
Read and follow the important safety precau-
tions > A\ in Opening and closing the power
top on page 32.
G) Tips
When operating automatically, the rear win-
dow must be closed with the rear window
switch after the power top finishes running.
Messages
Applies to: vehicles with power top
Power top: malfunction! Unable to operate
This message appears when there is a malfunc-
tion. The power top can be operated manually
=> page 35.
Power top: operation currently not possible
If the power top is operated continually for a
long period of time, the overload protection acti-
vates for approximately 15 to 30 minutes. You
can open or close the power top again after that.
Power top: malfunction! You may continue driv-
ing (limited functionality). See owner's manual
This message appears if there is a malfunction in
the system. Try to open or close the power top
again. If the message still appears, then have an
authorized Audi dealer or authorized Audi Service
Facility correct the malfunction. Do not drive
more than 30 mph (50 km/h) until it is corrected.
Z\ WARNING
Never drive when the power top is not locked
correctly. The wind from driving could cause
the power top to open. This can result in inju-
ries and damage to the vehicle.
34
Wind deflector
Applies to: vehicles with wind deflector
B4S-0164
Fig. 31 Installing the wind deflector
1D)
9)
3 Q
+ ao
Fig. 32 Luggage compartment: storing the wind deflector
The wind deflector reduces air movement in the
passenger compartment in order to increase driv-
ing comfort.
The wind deflector is located in the luggage com-
partment. Installing it from the side of the vehi-
cle that is farthest from traffic is recommended
for safety reasons. Follow the installation in-
structions provided in the storage bag.
Installing/removing the wind deflector
> To install the wind deflector, slide the retaining
pin @ into the mount @) > fig. 31. The wind
deflector is secure when it clicks into place and
the red marks on both buttons are no longer
visible.
> To remove the wind deflector, press both but-
tons @ and pull the deflector upward and out.
Storing the wind blocker
> Slide the wind deflector into the storage bag
with the retaining pins facing downward.
> Engage the storage bag into the retainers () in
the luggage compartment © fig. 32.

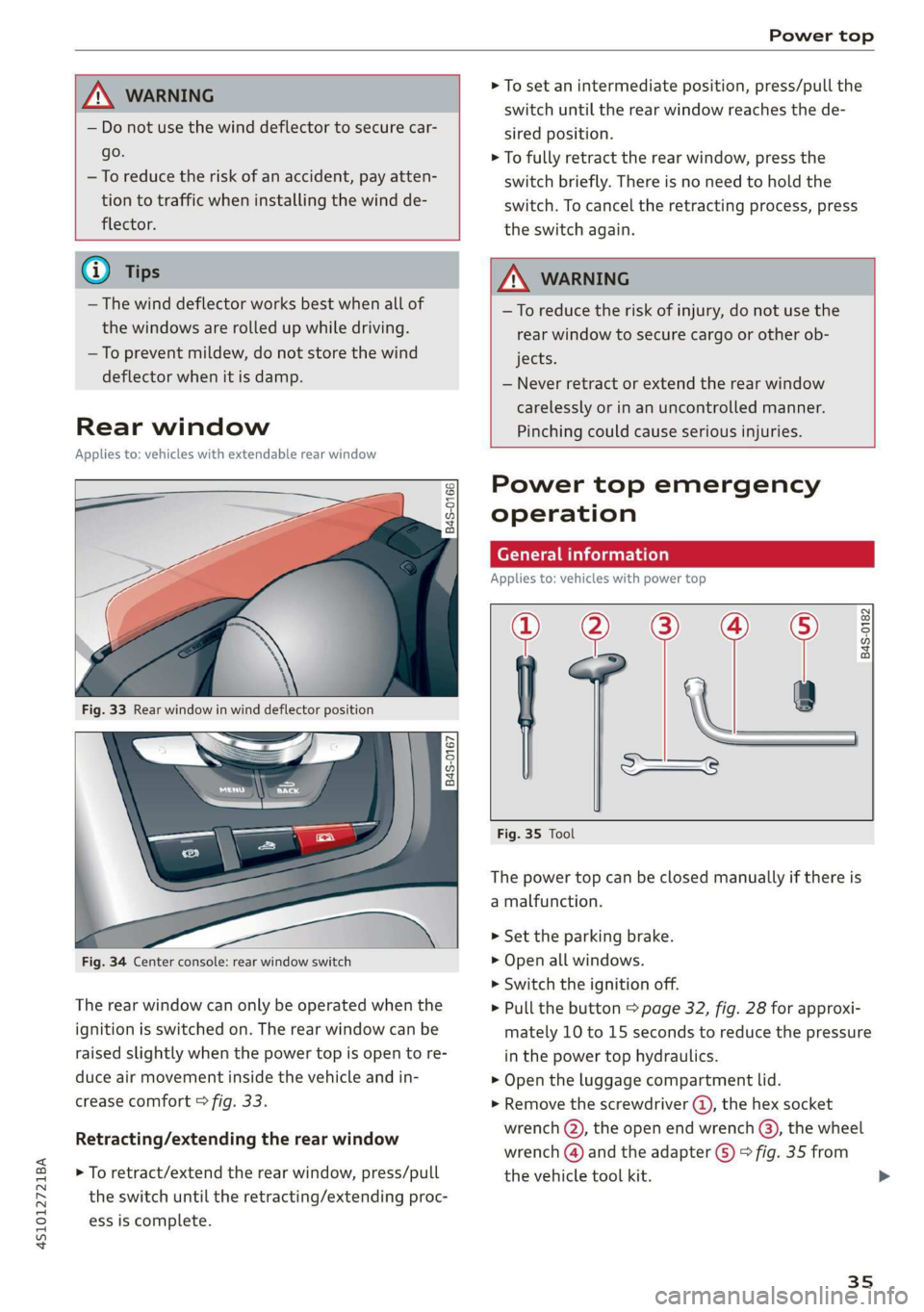

Page 37 of 308
4S1012721BA
Power top
AN WARNING
— Do not use the wind deflector to secure car-
go.
—To reduce the risk of an accident, pay atten-
tion to traffic when installing the wind de-
flector.
(i) Tips
— The wind deflector works best when all of
the windows are rolled up while driving.
—To prevent mildew, do not store the wind
deflector when it is damp.
Rear window
Applies to: vehicles with extendable rear window
oO oS
8 a + a
Fig. 33 Rear window in wind deflector position
|
848-0167]
Fig. 34 Center console: rear window switch
The rear window can only be operated when the
ignition is switched on. The rear window can be
raised slightly when the power top is open to re-
duce air movement inside the vehicle and in-
crease comfort © fig. 33.
Retracting/extending the rear window
> To retract/extend the rear window, press/pull
the switch until the retracting/extending proc-
ess is complete.
> To set an intermediate position, press/pull the
switch until the rear window reaches the de-
sired position.
> To fully retract the rear window, press the
switch briefly. There is no need to hold the
switch. To cancel the retracting process, press
the switch again.
ZA WARNING
—To reduce the risk of injury, do not use the
rear window to secure cargo or other ob-
jects.
— Never retract or extend the rear window
carelessly or in an uncontrolled manner.
Pinching could cause serious injuries.
Power top emergency
operation
General information
Applies to: vehicles with power top
a
| 9
——s
Fig. 35 Tool
B4S-0182
The power top can be closed manually if there is
a malfunction.
> Set the parking brake.
> Open all windows.
> Switch the ignition off.
> Pull the button > page 32, fig. 28 for approxi-
mately 10 to 15 seconds to reduce the pressure
in the power top hydraulics.
> Open the luggage compartment lid.
> Remove the screwdriver ®, the hex socket
wrench (Q), the open end wrench (3), the wheel
wrench () and the adapter (5) > fig. 35 from
the vehicle tool kit.
35
Page 38 of 308
Power top
Only close the power top manually in an emer-
gency. Have a second person assist. Drive to an
authorized Audi dealer or authorized Audi Service
Facility immediately to have the malfunction cor-
rected.
ZX WARNING
— There is a risk of pinching the hands or other
people during all of the power top emergen-
cy operation steps.
— Make sure all windows are lowered during
emergency operation.
— Do not reach into the power top supports
or other moving components.
— Never drive when the power top is not
locked correctly. The wind from driving
could cause the power top to open. This can
result in injuries and damage to the vehicle.
iG) Tips
Emergency locking is not intended for long-
term use or long drives. The power top will
not be completely waterproof after using the
emergency locking procedure because the
seals will not be seated correctly. Only close
the power top manually in an emergency.
Drive to an authorized Audi dealer or author-
ized Audi Service Facility immediately to have
the malfunction corrected.
Step 1: Retract the rear window
Applies to: vehicles with power top
2
J
SZ Q + oO
removing the cover
36
using the hex socket wrench to roll down the rear window
The rear window must be retracted in order to
close the power top. If the rear window cannot be
operated with the switch > page 35, you can roll
down the rear window.
> Open the storage compartment between the
seat backrests.
> Remove the cover with the screwdriver.
> Press the hex socket wrench firmly into the
opening until it audibly engages.
> Turn the bolt clockwise until the rear window is
lowered.

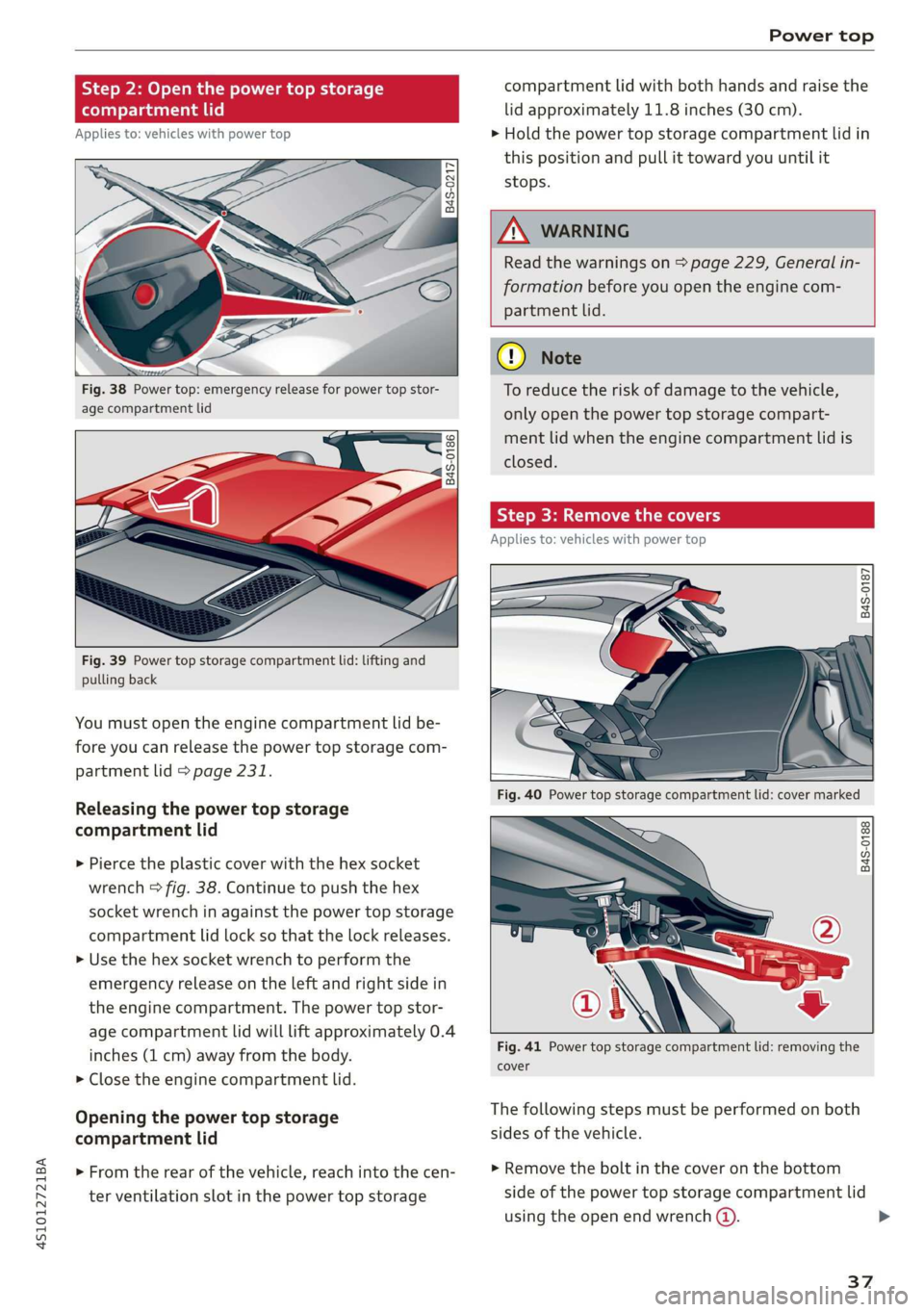

Page 39 of 308
4S1012721BA
Power top
Step 2: Open the power top storage
compartment lid
Applies to: vehicles with power top
~ a 2
a + a
Fig. 38 Power top: emergency release for power top stor-
age compartment lid
B4S-0186
Fig. 39 Power top storage compartment lid: lifting and
pulling back
You must open the engine compartment lid be-
fore you can release the power top storage com-
partment lid > page 231.
Releasing the power top storage
compartment lid
> Pierce the plastic cover with the hex socket
wrench > fig. 38. Continue to push the hex
socket wrench in against the power top storage
compartment lid lock so that the lock releases.
>» Use the hex socket wrench to perform the
emergency release on the left and right side in
the engine compartment. The power top stor-
age compartment lid will lift approximately 0.4
inches (1 cm) away from the body.
> Close the engine compartment lid.
Opening the power top storage
compartment lid
> From the rear of the vehicle, reach into the cen-
ter ventilation slot in the power top storage
compartment lid with both hands and raise the
lid approximately 11.8 inches (30 cm).
> Hold the power top storage compartment lid in
this position and pull it toward you until it
stops.
ZX WARNING
Read the warnings on > page 229, General in-
formation before you open the engine com-
partment lid.
©) Note
To reduce the risk of damage to the vehicle,
only open the power top storage compart-
ment lid when the engine compartment lid is
closed.
Step 3: Remove the covers
Applies to: vehicles with power top
2) rd
Q + a
B4S-0188
-
Fig. 41 Power top storage compartment lid: removing the
cover
@
The following steps must be performed on both
sides of the vehicle.
> Remove the bolt in the cover on the bottom
side of the power top storage compartment lid
using the open end wrench (4).
37

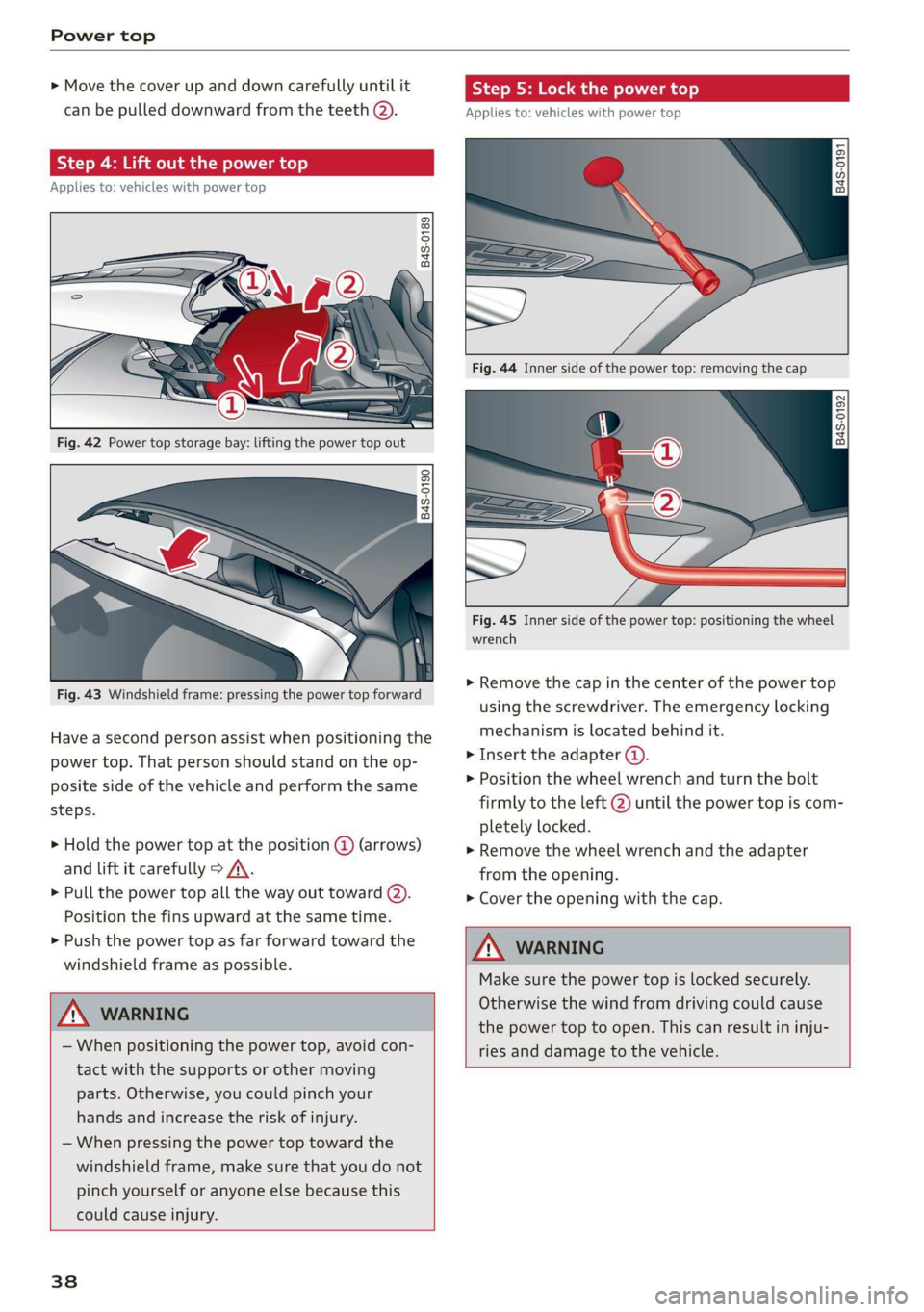

Page 40 of 308
Power top
> Move the cover up and down carefully until it
can be pulled downward from the teeth @).
Step 4: Lift out the power top
Applies to: vehicles with power top
Q ©
5 Q + ao
Fig. 42 Power top storage bay: lifting the power top out
B4S-0190
Fig. 43 Windshield frame: pressing the power top forward
Have a second person assist when positioning the
power top. That person should stand on the op-
posite side of the vehicle and perform the same
steps.
> Hold the power top at the position @ (arrows)
and lift it carefully > A\.
> Pull the power top all the way out toward (2).
Position the fins upward at the same time.
> Push the power top as far forward toward the
windshield frame as possible.
ZX WARNING
— When positioning the power top, avoid con-
tact with the supports or other moving
parts. Otherwise, you could pinch your
hands and increase the risk of injury.
— When pressing the power top toward the
windshield frame, make sure that you do not
pinch yourself or anyone else because this
could cause injury.
38
Step 5: Lock the power top
Applies to: vehicles with power top
2
2 Q
+ a
B4s-0192
Fig. 45 Inner side of the power top: positioning the wheel
wrench
> Remove the cap in the center of the power top
using the screwdriver. The emergency locking
mechanism is located behind it.
> Insert the adapter ().
> Position the wheel wrench and turn the bolt
firmly to the left @ until the power top is com-
pletely locked.
> Remove the wheel wrench and the adapter
from the opening.
> Cover the opening with the cap.
WARNING
Make sure the power top is locked securely.
Otherwise the wind from driving could cause
the power top to open. This can result in inju-
ries and damage to the vehicle.
