Child safety

The vehicle's safety belts alone will not fit most
children until they are at least 4 ft 9 in (57 in/
1.45 m) tall and weigh about 80 lbs (36 kg).
Booster seats raise these children up so that the
safety belt will pass properly over the stronger
parts of their bodies and the safety belt can help
protect them ina crash.
> Do not use the convertible locking retractor
when using the vehicle's safety belt to restrain
a child on a booster seat.
> The shoulder belt must lie as close to the cen-
ter of the child's collar bone as possible and
must lie flat and snug on the upper body. It
must never lie across the throat or neck. The
lap belt must lie across the pelvis and never
across the stomach or abdomen. Make sure the
belt lies flat and snug. Pull on the belt to tight-
en if necessary.
Children up to at least 8 years old (over 40 lbs or
18 kg) are best protected in child safety seats de-
signed for their age and weight. Experts say that
the skeletal structure, particularly the pelvis, of
these children is not fully developed, and they
must not use the vehicle safety belts without a
suitable child restraint.
It is usually best to put these children in appro-
priate booster seats. Be sure the booster seat
meets all applicable safety standards.
Booster seats raise the seating position of the
child and reposition both the lap and shoulder
parts of the safety belt so that they pass across
the child's body in the right places. The routing of
the belt over the child's body is very important
for the child's protection, whether or not a boos-
ter seat is used.
Never use the lap belt portion of the vehicle's
safety belt alone to restrain any child, regardless
of how big the child is. Always remember that
children do not have the pronounced pelvic struc-
ture required for the proper function of lap belt
portion of the vehicle's three point lap and
shoulder belts. The child's safety absolutely re-
quires that a lap belt portion of the safety belt be
fastened snugly and as low as possible around
the pelvis. Never let the lap belt portion of the
safety belt pass over the child's stomach or abdo-
men.
In acrash, airbags must inflate within a blink of
an eye and with considerable force. In order to do
its job, the airbag needs room to inflate so that it
will be there to protect the occupant as the occu-
pant moves forward into the airbag.
A vehicle occupant who is out of position and too
close to the airbag gets in the way of an inflating
airbag. When an occupant is too close, he or she
will be struck violently and will receive serious or
possibly even fatal injury.
In order for the airbag to offer protection, it is
important that all vehicle occupants, especially
any children, who must be in the front seat be-
cause of exceptional circumstances, be properly
restrained and as far away from the airbag as
possible. By keeping room between the child's
body and the front of the passenger compart-
ment, the airbag can inflate completely and pro-
vide supplemental protection in certain frontal
collisions.

Z\ WARNING
Not using a booster seat, using the booster
seat improperly, incorrectly installing a boos-
ter seat or using the vehicle safety belt im-
properly increases the risk of serious personal
injury and death in a collision or other emer-
gency situation. To help reduce the risk of se-
rious personal injury and/or death:
— The shoulder belt must lie as close to the
center of the child’s collar bone as possible
and must lie flat and snug on the upper
body. It must never lie across the throat or
neck. The lap belt must lie across the pelvis
and never across the stomach or abdomen.
Make sure that the belt lies flat and snug.
Pull on the belt to tighten if necessary.
— Failure to properly route safety belts over a
child's body will cause severe injuries in an
accident or other emergency situation
=> page 180.
— The rear side of the child safety seat should
be positioned as close as possible to the
backrest on the vehicle seat.

219

Child safety


— Children on the front seat of any car, even
with Advanced Airbags, can be seriously in-
jured or even killed when an airbag inflates.
— Never let a child stand or kneel on the seat.
— Never let a child ride in the cargo area of
your vehicle.
— Always remember that a child leaning for-
ward, sitting sideways or out of position in
any way during an accident can be struck by
a deploying airbag. This will result in serious
personal injury or death.
— If you must install a booster seat on the
front passenger seat because of exceptional
circumstances the PASSENGER AIR BAG
OFF %; light must come on and stay on,
whenever the ignition is switched on.
— If the PASSENGER AIR BAG OFF 3; light
does not come on and stay on, perform the
checks described > page 198, Monitoring
the Advanced Airbag System.
— If the PASSENGER AIR BAG OFF %; light
does not come on and stay on whenever the
ignition
is switched on the inflating airbag
will hit the child safety seat or infant carrier
with great force and will smash the child
safety seat and child against the backrest,
center armrest, door or roof. Have the air-
bag system inspected immediately by your
Audi dealer.
— Always read and heed all WARNINGS when-
ever using a child restrained in a vehicle is
being used = page 180, Safety belts,
=> page 187, Airbag system and > page 211,
Important information.

Securing child safety
seats
Trae e Mal CRT e REL ila
bys
Safety belts for the front passenger can be
locked with the convertible locking retractor to
properly secure child safety seats.
The safety belt emergency locking retractor for
the front passenger’s seat safety belt have a con-
vertible locking retractor for child restraints. The
safety belt must be locked so that belt webbing
220
cannot unreel. The retractor can be activated to
lock the safety belt and prevent the safety belt
webbing from loosening up during normal driv-
ing. A child safety seat can only be properly in-
stalled when the safety belt is locked so that the
child and child safety seat will stay in place.
Always remember: Even though your vehicle is
equipped with an Advanced Airbag system, a
child should always ride in the seat properly re-
strained for its age and size.

ZA\ WARNING
Improperly installed child safety seats in-
crease the risk of serious personal injury and
death in a collision.
— Always make sure that the safety belt retrac-
tor is locked when installing a child safety
seat. An unlocked safety belt retractor can-
not hold the child safety seat in place during
normal driving or in a crash.
— Always buckle the child safety seat firmly in
place even if a child is not sitting init. A
loose child safety seat can fly around during
a sudden stop or in a collision.
— If the backrest is not securely latched, the
child and the child restraint will be thrown
forward together with the backrest and will
strike parts of the vehicle interior. The child
can be seriously injured or killed.
— The inflating airbag will hit the child safety
seat or infant carrier with great force and
will smash the child safety seat and child
against the backrest, center armrest, door
or roof.
— Forward-facing child safety seats or infant
carriers installed on the front passenger's
seat may interfere with the deployment of
the airbag and cause serious injury to the
child.
— Always read and heed all WARNINGS when-
ever using a child restrained in a vehicle is
being used > page 211. Special precautions
apply when installing a child safety seat on
the front passenger seat > page 188, Child
restraints on the front seat - some impor-
tant things to know.

4S1012721BA
Child safety


ZA\ WARNING
Always take special precautions if you must
install a forward or rearward-facing child re-
straint on the front passenger's seat in excep-
tional situations:
— Whenever a forward or rearward-facing
child restraint is installed on the front pas-
senger seat, the PASSENGER AIR BAG OFF
#; light must come on and stay on whenever
the ignition is switched on.
— If the PASSENGER AIR BAG OFF %; light
does not come on and stay on, perform the
checks described > page 198, Monitoring
the Advanced Airbag System.
— If the PASSENGER AIR BAG OFF %; light
does not come on and stay on whenever the
ignition is switched on the inflating airbag
will hit the child safety seat or infant carrier
with great force and will smash the child
safety seat and child against the backrest,
center armrest, door or roof. Have the air-
bag system inspected immediately by your
Audi dealer.
— Improper installation of child restraints can
reduce their effectiveness or even prevent
them from providing any protection.
— An improperly installed child restraint can
interfere with the airbag as it deploys and
seriously
injure or even kill the child.
— Always carefully follow the manufacturer's
instructions provided with the child safety
seat or carrier.
— After checking to make sure that the child
restraint is properly installed, make certain
that the child restraint is correctly recog-
nized by the capacitive passenger detection
system in the front passenger seat and that
the PASSENGER AIR BAG OFF %; light sig-
nals the correct front passenger frontal air-
bag status.


ZA\ WARNING
Forward-facing child restraints:
— Always make sure the forward-facing seat
has been designed and certified by its manu-
facturer for use on a front seat with a pas-
senger front and side airbag.

— Never put the forward-facing child restraint
up, against or very near the instrument pan-
el
— Always move the passenger seat into its
rearmost position in the seat's fore and aft
adjustment range, as far away from the air-
bag as possible before installing the for-
ward-facing child restraint. The backrest
must be adjusted to an upright position.
— Make sure that the PASSENGER AIR BAG
OFF 3%; light comes on and stays on all the
time whenever the ignition is switched on.

ZA WARNING
Rearward-facing child restraints:
—A child in a rearward-facing child safety seat
installed on the front passenger seat will be
seriously injured and can be killed if the
front airbag inflates - even with an Ad-
vanced Airbag System.
— The inflating airbag will hit the child safety
seat or infant carrier with great force and
will smash the child safety seat and child
against the backrest, center armrest, door
or roof.
— Always be especially careful if you must in-
stall a rearward facing child safety seat on
the front passenger seat in exceptional cir-
cumstances.
— Make sure that the PASSENGER AIR BAG
OFF %; light comes on and stays on all the
time whenever the ignition is switched on.
— If the PASSENGER AIR BAG OFF #; light
does not come on and stay on, have the air-
bag system inspected by your Audi dealer.
Activating the convertible locking retractor
Use the convertible locking retractor to secure a
child restraint.

Always heed the child safety seat manufacturer's
instructions when installing a child restraint in
your vehicle. To activate the convertible locking
retractor:
> Place the child restraint on a seat.
> Slowly pull the belt all the way out.
221

Child safety

> Route it around or through the child restraint
belt path > A\.
> Push the child safety seat down with your full
weight to get the safety belt really tight.
> Insert the belt tongue into the buckle for that
seating position.
> Guide the safety belt back into the retractor un-
til the belt lies flat and snug on the child safety
seat.
> You should hear a “clicking” noise as the belt
winds back into the inertia reel. Test the con-
vertible locking retractor by pulling on the belt.
You should no longer be able to pull the belt
out of the retractor. The convertible locking re-
tractor is now activated.
> Make sure that the red release button is facing
away from the child restraint so that it can be
unbuckled quickly.
> Pull on the belt to make sure the safety belt is
properly tight and fastened so that the seat
cannot move forward and sideways more than
lin (2.5 cm).

ZA WARNING
Using the wrong child restraint or an improp-
erly installed child restraint can cause serious
personal injury or death in a crash.
— Always make sure that the safety belt retrac-
tor is locked when installing a child safety
seat. An unlocked safety belt retractor can-
not hold the child safety seat in place during
normal driving or in a crash.
— Always buckle the child safety seat firmly in
place even if a child is not sitting in it. A
loose child safety seat can fly around during
a sudden stop or ina crash.
— Always make sure the seat backrest to which
the child restraint is installed is in an up-
right position. Otherwise, the seatback with
the child safety seat attached to it could fly
forward in the event of an accident or other
emergency situation.
— Always read and heed all WARNINGS when-
ever using a child restrained in a vehicle is
being used = page 211. Special precautions
apply when installing a child safety seat on
the front passenger seat > page 188, Child

222

restraints on the front seat - some impor-
tant things to know.
Deactivating the convertible locking
tela tel
The convertible locking retractor for child re-
straints will be deactivated automatically when
the belt is wound all the way back into the re-
tractor.

> Press the red button on the safety belt buckle.
The belt tongue will pop out of the buckle.
>» Guide the safety belt all the way back into its
stowed position.
Always let the safety belt retract completely into
its stowed position. The safety belt can now be
used as an ordinary safety belt without the con-
vertible locking retractor for child restraints.
If the convertible locking retractor should be ac-
tivated inadvertently, the safety belt must be un-
fastened and guided completely back into its
stowed position to deactivate this feature. If the
convertible locking retractor is not deactivated,
the safety belt will gradually become tighter and
uncomfortable to wear.

ZA\ WARNING
Improperly installed child safety seats in-
crease the risk of serious personal injury and
death in a collision.
— Never unfasten the safety belt to deactivate
the convertible locking retractor for child re-
straints while the vehicle is moving. You
would not be restrained and could be seri-
ously injured in an accident.
— Always read and heed all WARNINGS when-
ever using a child restrained in a vehicle is
being used > page 211. Special precautions
apply when installing a child safety seat on
the front passenger seat > page 188, Child
restraints on the front seat - some impor-
tant things to know.

4S1012721BA
Child safety

Tether anchors and tether straps
Applies to: vehicles with Tether anchors and tether straps
a
9° db
+ a

Fig. 171 Tether strap: proper routing and mounting (Ver-
sion A)
eS aS
9
db t a

Fig. 172 Tether strap: proper routing and mounting (Ver-
sion B)
The tether strap anchor bracket is located behind
the front passenger's seat at the rear panel to
the engine compartment.
A tether is a straight or V-shaped strap that at-
taches the top part of a child restraint to special
anchorage points in the vehicle.
The purpose of the tether is to reduce the for-
ward movement of the child restraint in a crash,
in order to help reduce the risk of head injury that
could be caused by striking the vehicle interior.
Forward facing child restraints manufactured af-
ter September 1, 1999, are required by U.S. fed-
eral regulations to comply with new child head
movement performance requirements. These
new performance requirements make a tether
necessary on most new child safety seats.
Installing a child restraint that requires a top
tether without one can seriously impair the per-
formance of the child restraint and its ability to
protect the child in a collision. Installing a child

restraint that requires a top tether without the
top tether may be a violation of state law.

Improper installation of child restraints will
increase the risk of injury and death in a crash.
— Always follow the instructions provided by
the manufacturer of the child restraint you
intend to install in your Audi.
— Improper use of child restraint anchors (in-
cluding tether anchors) can lead to injury in
a collision. The anchors are designed to
withstand only those loads imposed by cor-
rectly fitted child restraints.
— Never attach two child restraint systems to
one tether strap or tether anchorage.
— Never use child restraint tether anchorages
to secure safety belts or other kinds of occu-
pant restraints.
— Never secure or attach any luggage or other
items to the tether anchors.
— Ifa tether or other strap is used to attach a
child restraint to the front passenger seat,
make sure that it is not so tight, that it caus-
es the weight-sensing mat to measure more
weight than is actually on the seat.
— The heavier weight registered can make the
Advanced Airbag System work as though an
adult were on the seat and deploy the Ad-
vanced Airbag when it must be suppressed
causing serious or even fatal injury to the
child.
— Never install a rearward facing child safety
seat on the front passenger seat unless the
PASSENGER AIR BAG OFF %; light comes
on and stays on. If the PASSENGER AIR
BAG OFF 3%; light does not come on and stay
on the inflating airbag will hit the child safe-
ty seat or infant carrier with great force and
will smash the child safety seat and child
against the backrest, door or roof. Have the
airbag system inspected immediately by
your authorized Audi dealer.
— Never install a child restraint without a
properly attached top tether strap if the
child restraint manufacturer's instructions
require the top tether strap to be used.

223

Child safety

Installing the tether strap on the
anchorage
Applies to: vehicles with Tether anchors and tether straps
Installing the tether strap
> Release or deploy the tether strap on the child
restraint according to the child restraint manu-
facturer's instructions.
> Guide the upper tether strap sideways (Version
A) > page 223, fig. 171 or under (Version B)
=> page 223, fig. 172 the head restraint.
> Remove the cover to expose the anchor bracket.
> Attach the tether strap anchorage hook into the
opening of the tether anchorage.
> Pull on the tether strap hook so that the spring
catch of the hook is engaged.
> Tighten the tether strap firmly following the
child restraint manufacturer's instructions.
Releasing the tether strap
> Loosen the tension following the child restraint
manufacturer’s instructions.
> Depress the spring catch on the hook and re-
lease it from the anchorage.
©) Note
If you leave the child restraint with the tether
strap firmly installed for several days, this
could leave a mark on the upholstery on the
seat cushion and backrest in the area where
the tether strap was installed. The upholstery
would also be permanently stretched around
the tether strap. This applies especially to
leather seats.
Using tether straps on rearward-facing
Riera)
Applies to: vehicles with Tether anchors and tether straps
Currently, few rear-facing child restraint systems
come with a tether. Please read and heed the
child restraint system manufacturer's instruc-
tions carefully to determine how to properly in-
stall the tether.

Z\ WARNING
A child in a rearward-facing child safety seat
installed on the front passenger seat will be

224

seriously injured and can be killed if the front
airbag inflates - even with an Advanced Airbag
System.
— The inflating airbag will hit the child safety
seat or infant carrier with great force and
will smash the child safety seat and child
against the backrest, center armrest or
door.
— Never install a rearward facing child safety
seat on the front passenger seat unless the
PASSENGER AIR BAG OFF 3; light comes
on and stays on. If the PASSENGER AIR
BAG OFF ¥; light does not come on and stay
on the inflating airbag will hit the child safe-
ty seat or infant carrier with great force and
will smash the child safety seat and child
against the backrest, door or roof. Have the
airbag system inspected immediately by
your authorized Audi dealer.

Additional information
Sources of information about child
restraints and their use
There are a number of sources of additional infor-
mation about child restraint selection, installa-
tion and use:
NHTSA advises that the best child safety seat is
the one that fits your child and fits in your vehi-
cle, and that you will use correctly and consis-
tently.
Try before you buy!
U.S.
National Highway Traffic Safety Adminis-
tration
Tel.: 1-888-327-4236 (TTY: 1-800-424-9153)
www.nhtsa.gov
National SAFE KIDS Campaign
Tel.: (202) 662-0600
www.safekids.org
Safety BeltSafe U.S.A.
Tel.: (800) 745-SAFE (English)
Tel.: (800) 747-SANO (Spanish)
www.carseat.org

4S1012721BA

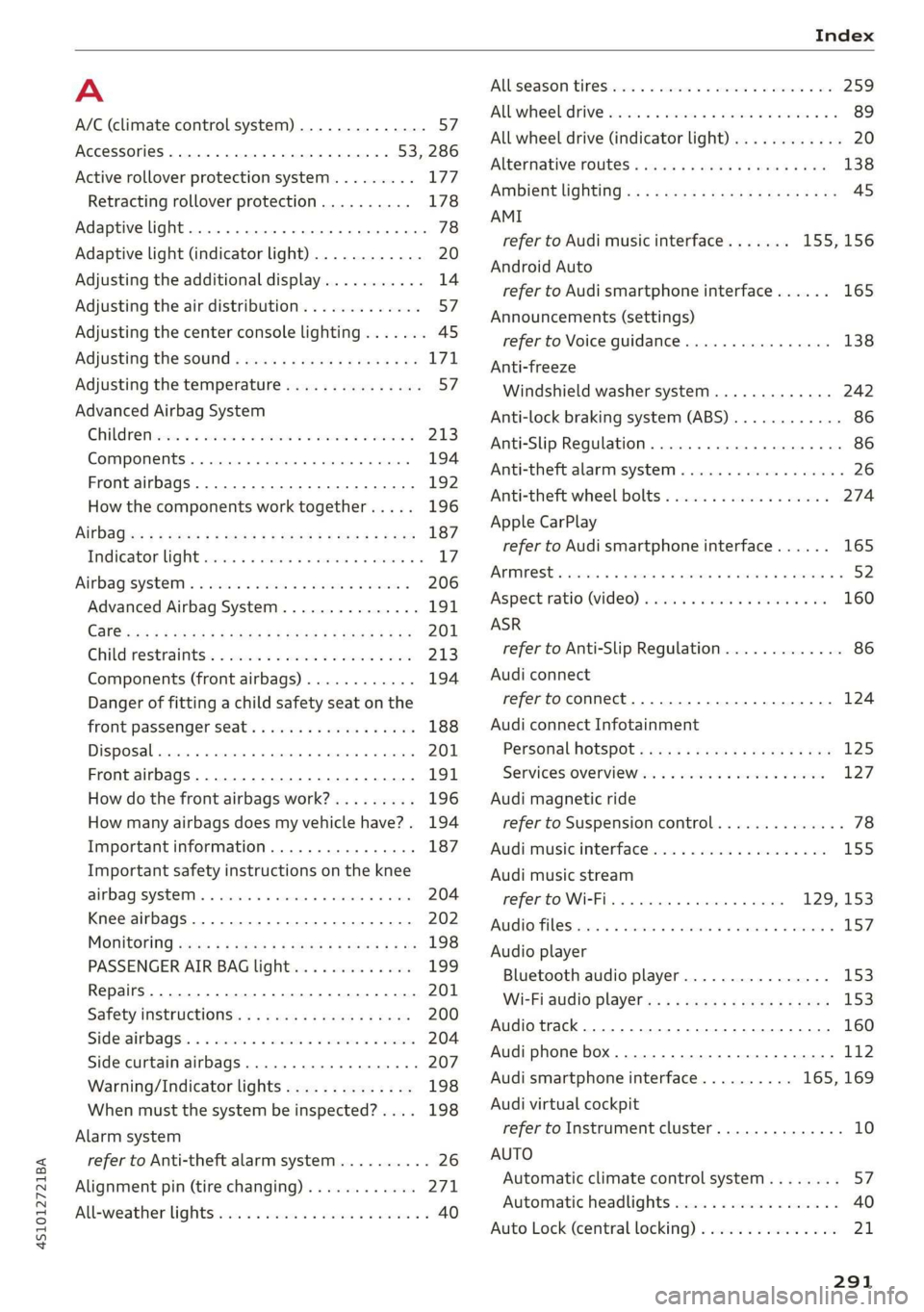

A
A/C (climate control system) .............. 57
ACCESSOFICES .. 0... ee eee eee 53, 286
Active rollover protection system......... 177
Retracting rollover protection.......... 178
Adaptive light. ......... 0.0.0 cece ee eee 78
Adaptive light (indicator light) ............ 20
Adjusting the additional display........... 14
Adjusting the air distribution............. 57
Adjusting the center console lighting....... 45
Adjusting the sound..............-.0005 171
Adjusting the temperature............... 57
Advanced Airbag System
Gilde mcesc « » asc «a aren os aoeuem so wweecn 2 213
Components. .......... 000s eee eee aes 194
Front airbags............-. cee eee eee 192
How the components work together..... 196
AirbaGion < + says + © wows so wwe ¢ ome 2 ee 187
Tindieator Light wisi «2 vesrevs & x covsens xo enenom « © 17
Airbag’system « «wees + wae ws saver 0 6 asseee 206
Advanced Airbag System............... 191
Cal Giccc s 2 wees & 2 ween Fs eee Fe eeeS Ee 201
Childtrestraints.« « wwivcw 2 3 seowws v2 meow 2 wees 213
Components (front airbags)...........- 194
Danger of fitting a child safety seat on the
front passenger seat..............000. 188
Disposal... .. 0.0... cee eee eee ee eee 201
Front airbags.............. eee eee eee 191
How do the front airbags work?......... 196
How many airbags does my vehicle have?. 194
Important information................ 187
Important safety instructions on the knee
AiKbaAgIsyStEMMs « sasssus ss assis wo snenace a o wr 204
Knee airbags...........-..00--00 eee 202
MONITORING saves « = cezge a 2 eae Fe Qa ez ee 198
PASSENGER AIR BAG light............. 199
Repairs... 06... eee eee 201
Safety Instructions. << veces eewe se ree 200
Siderairbags’. « «sic. ci ewan x + cece « eecee 204
Side curtain airbags...............000. 207
Warning/Indicator lights.............. 198
When must the system be inspected?.... 198
Alarm system
refer to Anti-theft alarm system.......... 26
Alignment pin (tire changing) ............ 271,
All-weather lights ......... 0.0.0 c eee eeee 40
AlUS@aSON TINCS secs es eos ee were © o meee we 259
Allwheel drive wicou. 6 neva ss eswa ev eve oe 89
All wheel drive (indicator light)............ 20
Alternative routes ........ceseceeeeeees 138
AMBIENCE UGH se + 3 eee s saves @ 8 Hee GE He 45
AMI
refer to Audi music interface....... 155,156
Android Auto
refer to Audi smartphone interface...... 165
Announcements (settings)
refer to Voice guidance................ 138
Anti-freeze
Windshield washer system............. 242
Anti-lock braking system (ABS)............ 86
Anti-Slip Regulation................00 00 86
Anti-theft alarmrsyster «voces so eons « « wie © 26
Anti-theft wheel bolts...............04. 274
Apple CarPlay
refer to Audi smartphone interface...... 165
APM ests: sssaws « «arene 6 acca vo wescene a @ esesess oe 52
Aspect ratio (Wide0) sess « . icews « 6 naews o 0 ve 160
ASR
refer to Anti-Slip Regulation............. 86
Audi connect
refertoconnect...................005 124
Audi connect Infotainment
Personal hotspot « vss s cease ss eeu s coer 125
Services overvieW...........0000000 ee 127
Audi magnetic ride
refer to Suspension control.............. 78
Audi music interface................0-- 155
Audi music stream
refer to Wi-Fi...........00200 ee 129, 153
Audio files... 0.02... cece eee ee eee 157
Audio player
Bluetooth audio player................ 153)
Wi-Fi audio player....... 0... cee cece ee 153
Audio track. ......... 0.00 e eee eee ee 160
Audi phone box.............-.000 ee eee 112
Audi smartphone interface.......... 165, 169
Audi virtual cockpit
refer to Instrument cluster.............. 10
AUTO
Automatic climate control system........ 57
Automatic headlights.................. 40
Auto Lock (central locking) ............... 21.

Index

Automatic belt retractor................ 183
Automatic climate control system
refer to Climate control system (automatic) . 57
Automatic post-collision braking system.... 86
Automatic transmission.................- 67
Launch Control Program..............-- 70
Parking lock emergency release.......... 73
Automatic transmission (S tronic)
Emergency program..............+000- 72
KIGKSAOW Mires v0 ences a 0 manors w ananite « oxenens «6 71
Manual shifting................2-.000- 71
Selector lever positions................- 67
Automatic wiper/washer system........... 47
Automatic zoom (navigation) ............ 141
AUX input... 2... eee eee eee 156
Average fuel consumption................ 14
Average speed..... 2.2... cee eee 14
B
BACKIBUEEON 5 wssens so snsnente « oxenen oo ateeean «sma 93
Balancei(SOUnd) eswisue so seasive «areca wv avons 171
Band
refer to Frequency band............... 146
Bassx(SOUnG) « sence uo ssesnes a a anexene a acagene a 6 ane 171
Batteny, sesciss ov axeuius 6 a axveins wo anveana © 6 eaves a 6 240
Charging.............. eee eee eee eee 242
WINtEPOPEration 5 « wea se came ge ween see 240
Befor@drivitiG sscs 2 2 came s 2 wate sb eee a is 173
Better route (navigation)................ 144
Blower... cece eee eee 57
Bluetooth
Audio player < s..s ss ices ci resa ct eeneee 153
Connecting acell phone............... 110
SettingS
0... cece eee ee eee eee 169
BoosterSeats’, « cscs + + wvosse a 0 vssness © o micas + 218
Brake fluid
Checking the brake fluid level........... 239
BRAK CS: ansse sx ccvmans 6 1 acixaue 9 0 anmeee ow emeete a 0) orate 88
Brake assist... 2.0.0... eee eee eee 86
Brake assist systeM..........: cee een eee 86
Brake:bOO@ster’. senso « « swine a 0 sania © anotane © 6 88
Brake fllid.. 2... eee eee ee 239
Electromechanical parking brake......... 65
Emergency braking function............. 65
Indicator lights................0000005 16
New brake pads ...... 0... cee ee eee eee 88
292
Break-in security feature................. 26
Breaking in
New brake pads. ..............-0000005 88
NEW TiRGStas « ¢ scion x s caum @ x aes 2 2 Heme 4G 251
Browser
refer to Media center...............-.. 158
Bulb failure (indicator light).............. 19
Bulb replacement.............-0ee eee ee 282
Buttons
Control: pariel (MMD) «se » & seam « x ogee oe 93
Cc
Cable (USB adapter/AUX connector cable).. 155
California Proposition 65 Warning........ 230
Battery speeificees:: «cies «x wasn ay wees 2 5 241
Galllist: » wersn so soee ¢ gees & sere gos were 114
Call Options sca < sae ¢ + neem « e eee & goes 122
Capacities
PUCETANG: 5s osscu oo scams v anna a 2 eee 2 8 290
Washer fluid reservoir... . cewee ees 290
Car REY sarees weauens wo wrecies a ame oo renee» 6 are 22
Carwash 2 ase so wens © 0 mene oo mene © 2 sae 265
Catalytic ConVerter’s « sens as caves xs eases a 2: 229
Cell phone
Playing:Music « wii so ensens o & cowie « 0 como 153
also refer to Telephone................ 110
Cell phone compartment
refer to Audi phone box............005 112
Center armrest............ 00.002 e eee 52
Central locking.............. cece eee ee 21
AUTO LOCK: » weave 2 namin 2 yen 3 2 ee a 2 Bas 21
Gonvenienee:key cscsese x ssw o syiens oo wswene 24
Convenience opening and closing......... 29
Mechanically unlocking and locking....... 26
Remote control key.........eseeeeeeeee 23
Setting......... 0.0.02 eee eee eee eee 25
Central locking switch..............20--. 25
Ceramic Drake Sisccis + + assens si ssetue ow cvaeere ow 88
Certifications « i ssuve s 6 amas «a saesne a 0 smvve 287
Changing light bulbs................... 282
Charging
refer to Power sourceS...........--.+--5 53,
Charging the battery (mobile devices). 112, 156
Child restraint
Danger of using child restraints in the front

4S1012721BA

Child restraints
Where can I get additional information
about child restraints and their use?..... 224
Child Safety: + < sce ss wees so hea vB eas ee 211
Important safety instructions for using child
safety seats. 6.6... ... cece eee eee eee 214
Tether anchors............0.00000000- 223
Tetherstraps sco « ¢ sien 3 & secs s ¥ cares 223
Child safety seats ........ 0... cee eee eee 216
BoOstenseatsiin. i a scum a a smvcone a sansom a oe 218
Convertible child seats................ 217
How do I properly install a child safety seat
in my-vehicle? . « ses x 2 snes +o wren oo woes 214
Infant seats ........... 0... e cree 216
Safety instructions.............-..00- 214
SOGUMING a x saves 3 & smasais 3 & inasons © 0 aweuane 6 swans 220
ClaSSiGVIEW:: s & nea s x news os nee ys eR a BE 13
GLEAMING) cuss = & meme & & teee so RewE Fe ORS Ee 265
Cleaning/removing ice from windows...... 267
Cleaning Alcantara.............-.00000. 268
Cleaning artificial leather............... 268
Cleaning carbon components........ 267, 268
Cleaning controls..............00 eee ee 268
Cleaning decorative parts andtrim........ 267
Cleaning displays w5. 0. cvs eres eee 268
Cleaning exhaust tail pipes.............. 267
Cleaning plastic parts.................. 268
GleaniNG His’: « = wee x » seme ss eee ss ews 266
Cleaning seat covers.............022005 268
Cleaning textiles................00000. 268
Cleaning the Audi virtual cockpit.......... 268
Cleaning the instrument cluster.......... 268
Cleaning the tail lights................6. 266
Cleaning the wind deflector............. 267
Climate control system (automatic)........ 57
Driverselectinn. © + sosvine ss samen suarecs 2 «sain 78
hot esis: = a move 2 wewanes v euceews ae cece oe aRENTO 167
Closing
Convenience closing..............-.... 29
Engine compartment lid............... 231
Luggage compartment lid............... 27
WINGOWS « seosvos o » range soem » © nese oo vere 28
Cockpit (overview) « « coca © + cen + seuss a © eomawoe 6
Color number's « sess ss masse sv eee we ew 289
Coming home iss: « wer 2s mews so eee ov wee 44
Commands (voice recognition system) ..... 104

GOMPAartMeENtsiin. 5 v cesses sv cswssne 6 a ermewce w 6 e008 53
Compass inthe mirror...............000- 49
Compliance: « « seas 5 = caes so eae oo caw a 287
Conference call vais so cease cows se cows ve 115
CONMGCE sas go sews so hele & one & ews ea Be 124
Data: Privactyrocs = 0 wiwew + eon mo name «6% eae 130
Infotainment.......... 0. eee eee 124
Infotainment services..............00. 126
Connection manager............--00 eee 168
Connections
referto Media...........-...0-0- 150, 157
Connection settings.................... 168
Consumer information...............00 284
Consumption (fuel) ..............0 eee aes 15
GOMEAGES «. cneseins os smannce © oxaneae x eects wo 6 santas 120
Additional directory................0.. 169
IMPOrtiNG/EXPOFtING wea sv mows +» new « ¢ 121
Memory:capacity cis . 2 evine s s swine + oxsnins 122
Searching ........ 6.6.05. 120
Showing details..............--..+--- 121
Storing
as destination................. 137
Control DUCCOMS sie x x secs vs mane ¥ anes vo 13)
Control buttons (operating the MMI)....... 94
Control knob with joystick function......... 97
Convenience key.........-.-0e eee eee eee 22
Tndicator light o sscccs so sais oo wan 2 6 woman s 61
Unlocking and locking..............0005 24
Convenience opening and closing
Setting......... 0.0.00. 29
Windows’: » sews » 2 mews 2 x saues 4 2 enw a 2 29
Convertible child safety seats............ 217
Convertible locking retractor
ACtIVALING iin + 2 cai 5 2 nae + on wo eeesEK 221,
Deactivating............ 0. eee eee eee ee 222
Using to secure a child safety seat....... 221
Cooling mMode........ ee eee eee eee eee 87
Cooling system
Adding coolant.................. 237, 238
COOlANE cers. os wersna s senses @ somes oe Me 236
Coolant level checking
Coolant temperature indicator........... 10
Indicator light « sic ss crew ae owen ee eee 17
Grosshainsis « s wann x ¥ caw + nen ws eee ¥ oe 133
Cruise control systeM.... 0... eseee eee euee 74
CUP Holdersiiss ss sees s ¢ ees ss ees se ee 9 53
Current fuel consumption................ 14
293

4S1012721BA
Index

Indicator light cscs x = somens + a meee «2 meee < 233
Replacement interval..............00. 243
Temperature indicator...............005 15
Engine Start/Stop mode
refer to Start/Stop system.............. 64
Enhanced View save 2s cence 2s qeew s sees ¢ oe 13
Entering characters/numbers (speller) ...... 99
Entering letters (speller)...............05 99
Environment
Unleaded gasoline................205. 226
ESC
refer to Electronic Stabilization
Control (ESC)...............0..0 0c eee 86

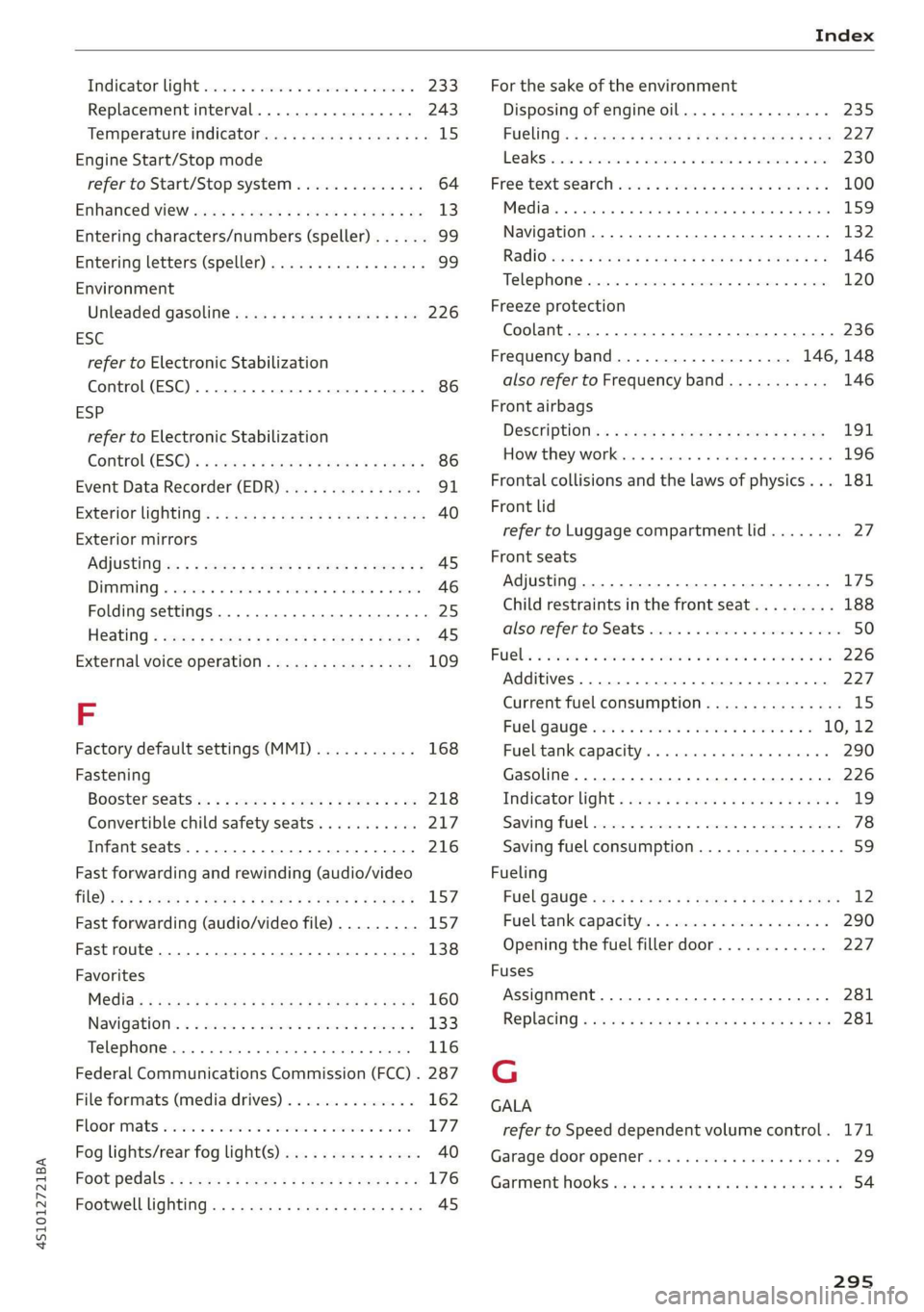

ESP
refer to Electronic Stabilization
Control.(ES€).« » swam «2 saws 4 2 moe xo eet 86
Event Data Recorder (EDR) wv... eeu. ss eves 31
EXterior liQhting’s s sass ¢ 2 sues § ¢ wane 3 2 cae 40
Exterior mirrors
AGjUStING ws = ¢ sons 2 = news 2 o paws Fe eee ee 45
DIMMING « ccseess «0 ssenams x oi cements + enetome © season 46
Folding settings.................00 eee 25
Heating « sews « = ees x eg eo eee gs eee AS
External voice operation................ 109
FE
Factory default settings (MMI)........... 168
Fastening
Booster seats. « «ssc ss news 4 o ere x oe 218
Convertible child safety seats........... 217
Infant seats
Fast forwarding and rewinding (audio/video
FIG) cw & = wees y e ewes 2 e eee Fy ees oe eS 157
Fast forwarding (audio/video file)......... 157
Fastroute............... 0.00.0 e eee 138
Favorites
MO@did:: : seems ¢ 3 aazns x 5 BaeeS 4 E RES En ew 160
Navigation © ssa « 2 snes 3 0 ous © a sees 3 133
Telephone ........ 0.0... cece eee eee 116
Federal Communications Commission (FCC) . 287
File formats (media drives) .............. 162
Floor mats s:ccss sx cts a pecs @ 2 cae eo eres 177
Fog lights/rear fog light(s)............... 40
Foot pedals: ¢ 2e0: se sews se sees so eee eee 176
Footwell lighting...............0..- eee 45

For the sake of the environment
Disposing of engine oil................ 235
FUGLING: < = sews 2 2 wows ¢ 8 eee go eee Fe 227
LO AKS hose 2 wecsanisos & ayewees zw wane wx ewer Se ome 230
Free:textiseareh svcsiue o svscime v sawn 2 2 omen a 100
Mei ai. «5 cesses oo: enesone 0 sccenm «mvs 9 6 sexe 159
Navigation.................0..00000- 132
ReGiO yay x» wise 5 x amuse 4 2 seven & e eeu 6 146
Telephone......... 0.0... c eee eee eee 120
Freeze protection
Coolant...... 2... ee eee eee eee 236
Frequency band................... 146, 148
also refer to Frequency band........... 146
Front airbags
DeSCriptiOnis: : sac ss eee « x eee sp eee 191
How they works «esos 6 o suse « 0 saesns © 0 0 196
Frontal collisions and the laws of physics... 181
Front lid
refer to Luggage compartment lid........ 27
Front seats
Adjusting... 0.0... 0.0 e eee eee eee eee 175
Child restraints in the front seat......... 188
alsovreferto Seats esses ss emer vs enone ve ewe 50
RUC his & souroes Additives. ............ 000. e eee eee eee 227
Current fuel consumption............... 15
FUCUQaUGC esr: ce omen x eee ea eres ve 10, 12
Fuel tank capacity. ........ cee eee 290
Gasoline... 0... eee eee eee 226
InGicator light » saw ¢ « weww 2» mows sa mewn & 19
Saving fuel...... 2.0... eee eee eee ee 78
Saving fuel consumption................ 59
Fueling
FUCL GAUGE is 3 s woes s & wees «2 oe se eee 12
Fueltankeapacity's « 5 soc es eeu e wane ae 290
Opening the fuel filler door............ 227
Fuses
Assignment...........-.0-.0-00- eee 281
Replacing « mswe ¢ x wows = anew 9 ¢ wea 8 e we 281
G
GALA
refer to Speed dependent volume control. 171
Garage:door opener cies ss wae o win so ween o 29
GarmenthOoks secs s occ & o ewes ¢ e ewes eae 54
295
