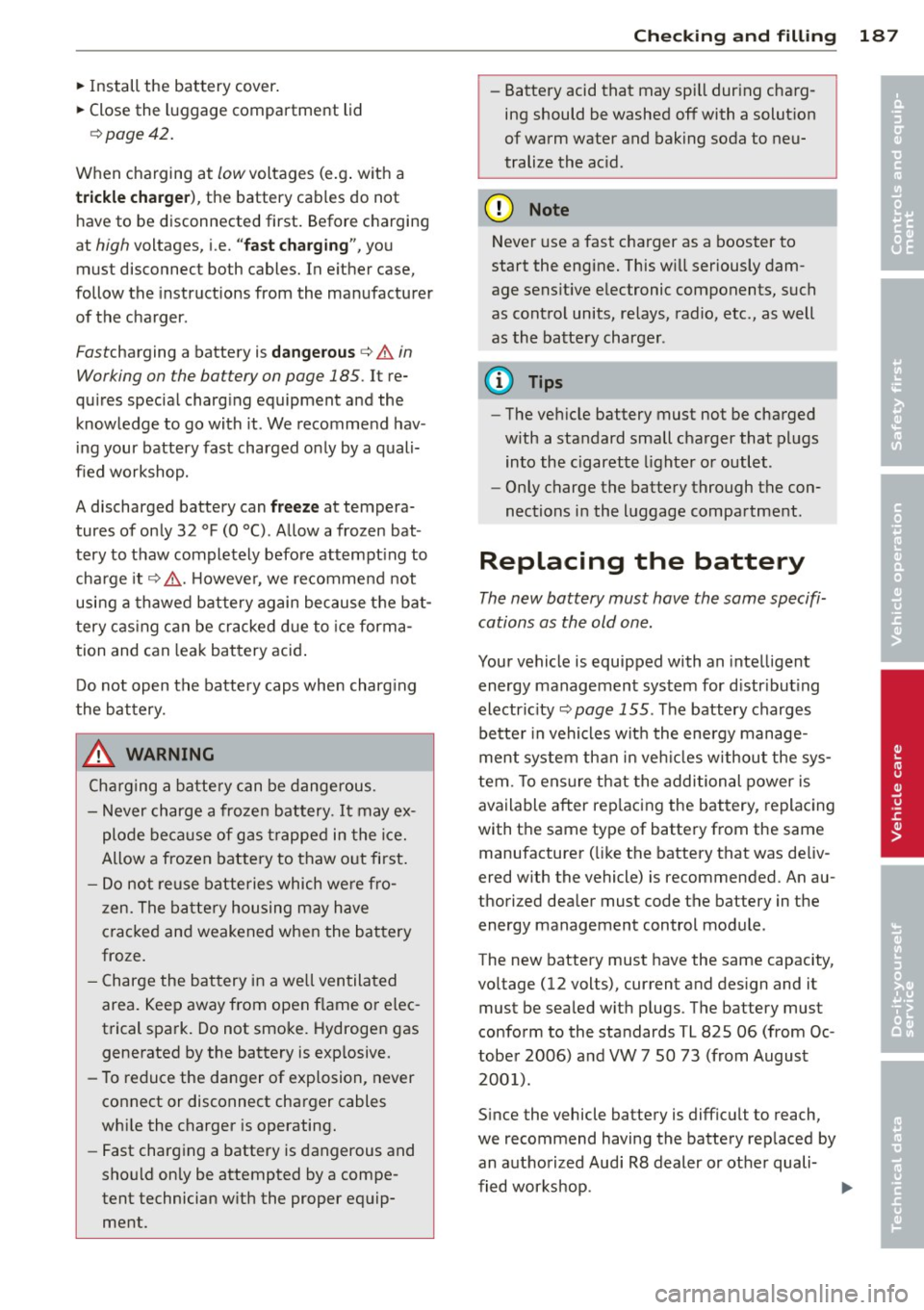

~ Install the battery cover.
~ Close the luggage compartment lid
¢page 42.
When charging at low voltages (e.g. with a
trickle charger), the battery cables do not
have to be disconnected first. Before charging
at
high voltages, i.e. "fast charging", you
must disconnect both cables. In either case,
follow the instructions from the manufacturer
of the charger .
Fastcharging a battery is
dangerous ¢.&. in
Working on the battery on page 185 .
It re­
quires special charging equipment and the knowledge to go with it. We recommend hav ­
ing your battery fast charged only by a quali­
fied workshop.
A discharged battery can
freeze at tempera­
tures of only 32 °F (0 °C) . Allow a frozen bat ­
tery to thaw completely before attempting to
charge it¢ ,&. . However, we recommend not
using a thawed battery again because the bat­
tery casing can be cracked due to ice forma­
tion and can leak battery acid.
Do not open the battery caps when charging
the battery.
_& WARNING
-
Charging a battery can be dangerous.
- Never charge a frozen battery .
It may ex­
plode because of gas trapped in the ice.
Allow a frozen battery to thaw out first.
- Do not reuse batteries which were fro­
zen. The battery housing may have
cracked and weakened when the battery
froze.
- Charge the battery in a well ventilated
area. Keep away from open flame or elec­
trical spark. Do not smoke. Hydrogen gas
generated by the battery is explosive.
- To reduce the danger of explosion , never
connect or disconnect charger cables
while the charger is operating.
- Fast charging a battery is dangerous and
should only be attempted by a compe­
tent technician with the proper equip­ ment.
Checking and filling 187
- Battery acid that may spill during charg­
ing should be washed off with a solution
of warm water and baking soda to neu­
tralize the acid .
@ Note
Never use a fast charger as a booster to
start the engine. This will seriously dam­
age sensitive electronic components, such
as control units, relays, radio, etc ., as well
as the battery charger .
(D Tips
-The vehicle battery must not be charged
with a standard small charger that plugs
into the cigarette lighter or outlet .
- Only charge the battery through the con­
nections in the luggage compartment.
Replacing the battery
The new battery must have the same specifi­
cations as the old one.
Your vehicle is equipped with an intelligent
energy management system for distributing
electricity ¢
page 155. The battery charges
better in vehicles with the energy manage­
ment system than in vehicles without the sys­
tem. To ensure that the additional power is
available after replacing the battery , replacing
with the same type of battery from the same
manufacturer (like the battery that was deliv­
ered with the vehicle) is recommended. An au­
thori zed dealer mus t code the battery in the
energy management control module .
T he new battery must have the same capacity,
voltage (12 volts), current and design and it
must be sealed with plugs. The battery must
conform to the standards TL 825 06 (from Oc ­
tober 2006) and VW 7 50 73 (from August 2001).
Since the vehicle battery is difficult to reach,
we recommend having the battery replaced by
an authorized Audi R8 dealer or other quali-
fied workshop . ..,. •
•

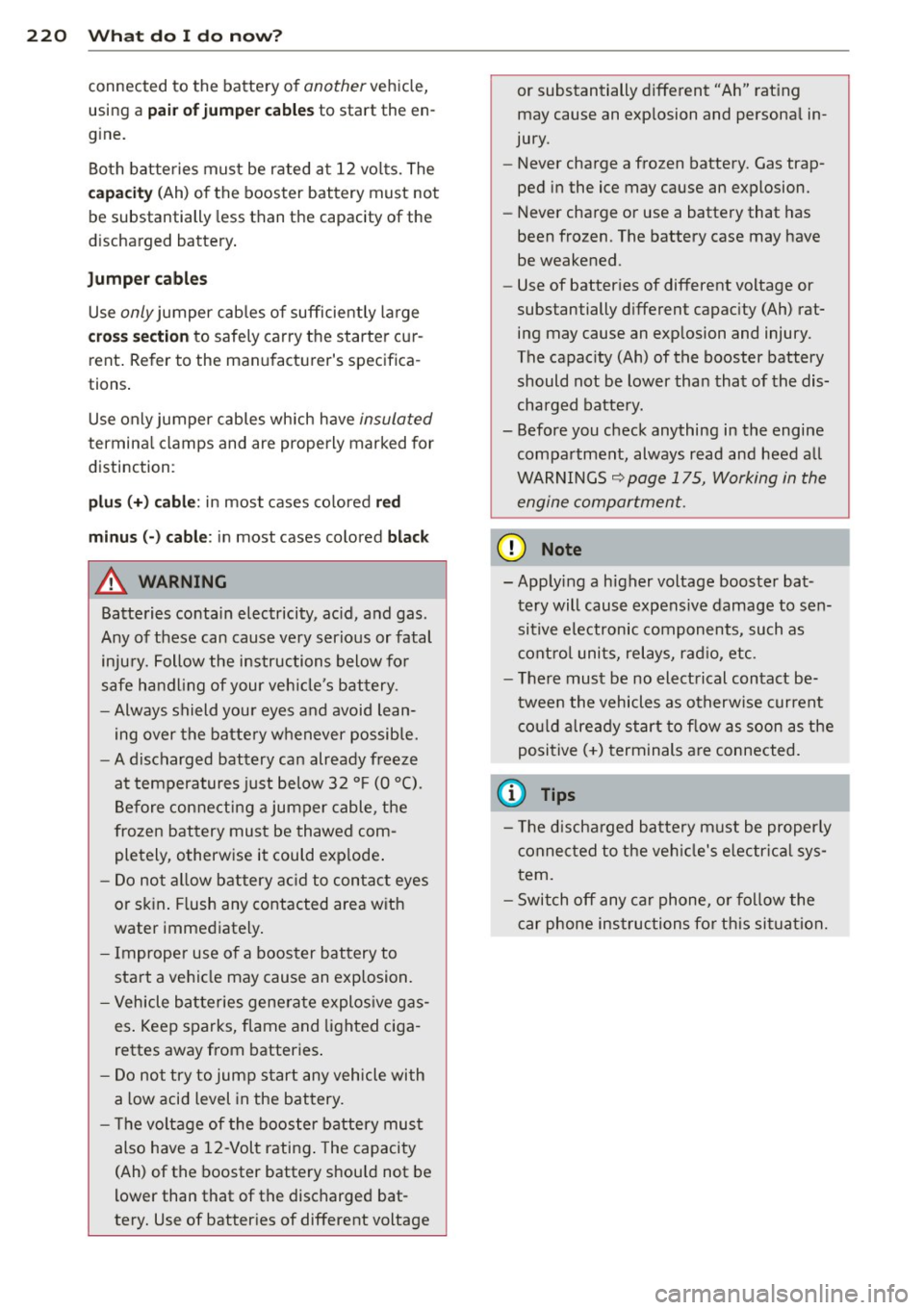

220 What do I do now?
connected to the battery of another vehicle,
using a pair of jumper cables to start the en­
gine.
Both batteries must be rated at 12 volts. The
capacity (Ah) of the booster battery must not
be substantially less than the capacity of the
discharged battery.
Jumper cables Use
only jumper cables of sufficiently large
cross section to safely carry the starter cur­
rent. Refer to the manufacturer's specifica­
tions.
Use only jumper cables which have
insulated
terminal clamps and are properly marked for
distinction :
plus(+) cable: in most cases colored red
minus(-) cable: in most cases colored black
A WARNING
Batteries contain electricity, acid, and gas .
Any of these can cause very serious or fatal
injury. Follow the instructions below for
safe handling of your vehicle's battery.
- Always shield your eyes and avoid lean­
ing over the battery whenever possible.
- A discharged battery can already freeze
at temperatures just below 32 °F (0 °C).
Before connecting a jumper cable, the
frozen battery must be thawed com­
pletely, otherwise it could explode.
- Do not allow battery acid to contact eyes
or skin. Flush any contacted area with
water immediately.
- Improper use of a booster battery to
start a vehicle may cause an explosion.
- Vehicle batteries generate explosive gas­
es. Keep sparks, flame and lighted ciga­
rettes away from batteries.
- Do not try to jump start any vehicle with
a low acid level in the battery.
- The voltage of the booster battery must
also have a 12-Volt rating. The capacity
(Ah) of the booster battery should not be
lower than that of the discharged bat­
tery. Use of batteries of different voltage or substantially different
"Ah" rating
may cause an explosion and personal in­
jury.
- Never charge a frozen battery. Gas trap­
ped in the ice may cause an explosion.
- Never charge or use a battery that has
been frozen . The battery case may have
be weakened .
- Use of batteries of different voltage or
substantially different capacity (Ah) rat­
ing may cause an explosion and injury.
The capacity (Ah) of the booster battery should not be lower than that of the dis­
charged battery.
- Before you check anything in the engine compartment, always read and heed all
WARNINGS
9 page 175, Working in the
engine comportment.
(!) Note
-Applying a higher voltage booster bat ­
tery will cause expensive damage to sen­
sitive electronic components, such as
control units, relays, radio, etc.
- There must be no electrical contact be­
tween the vehicles as otherwise current
could already start to flow as soon as the
positive(+) terminals are connected.
(D Tips
- The discharged battery must be properly
connected to the vehicle's electrical sys­
tem.
- Switch off any car phone, or follow the
car phone instructions for this situation.

224 Fuses and bulbs
Fuse panel@
Consumer
Automatically dimming in-
side mirror, ga rage door
8 opener (Homel ink), washer
pump relay, power outlets
relay
10
~ button
11 Pressure sensor, climate
controls
12 Airbag
Fuse panel @
No . II Consumer
1 Radiator fan (1)
2 Radia tor fan (2)
3 Exterior lighting
4 Exterior lighting
6 Blower regulator
Fuse panel @
No . II Consumer
1 Rear view camera
2
Tire pressure monitoring
system
4
Cell phone package, te le-
phone antenna amplifier
5 Instrument cluster
6 Networking gateway
7 Steering column lever
8
Diagnostic interface, brake
pedal switch, selector lever
9 Rain/light sensor
10 Light switch
11 Special functions control
module
15 Sound amplifier
Radio
Fuse panel E
No. Consumer
3 Auxiliary water pump
5 Supply terminal 15, starter
Amps
10
10 5
5
II Amps
40 40
40
40
40
II Amps
5
10
7.5 5
5
5
10 5
5
5
30
20
Amps
10
30
Fuse panel @
No. Consumer
6 Pump for brake booster
7 Horn
8 Wiper motor
9 Wiper motor
10 Headlight washer system
12 Power outlets and cigarette
lighter
Fuse panel
®
No. !!Consumer
1
2
4
6
7
8
~~·
E lectronic Stabilization Pro­
gram
Electronic Stabilization Pro­
gram
Rear window defogger
Power locking system
Interior lights, washer noz­
zles
Anti-theft alarm sys tem
Climate controls
Heated seats
Lumbar support
11 Control module for doors
12 Control module for doors
Bulbs
Note
Amps
15
20
30
30
30
20
ll Amps ,
10
25
30
20
20
5
10
25 10
30 10
Your vehicle is equipped with maintenance­
free headlights and rear lights. However, if a
bulb has to be changed, please consult your
authorized Aud i dealer or other qualified
workshop .
