buttons AUDI RS5 CABRIOLET 2013 User Guide

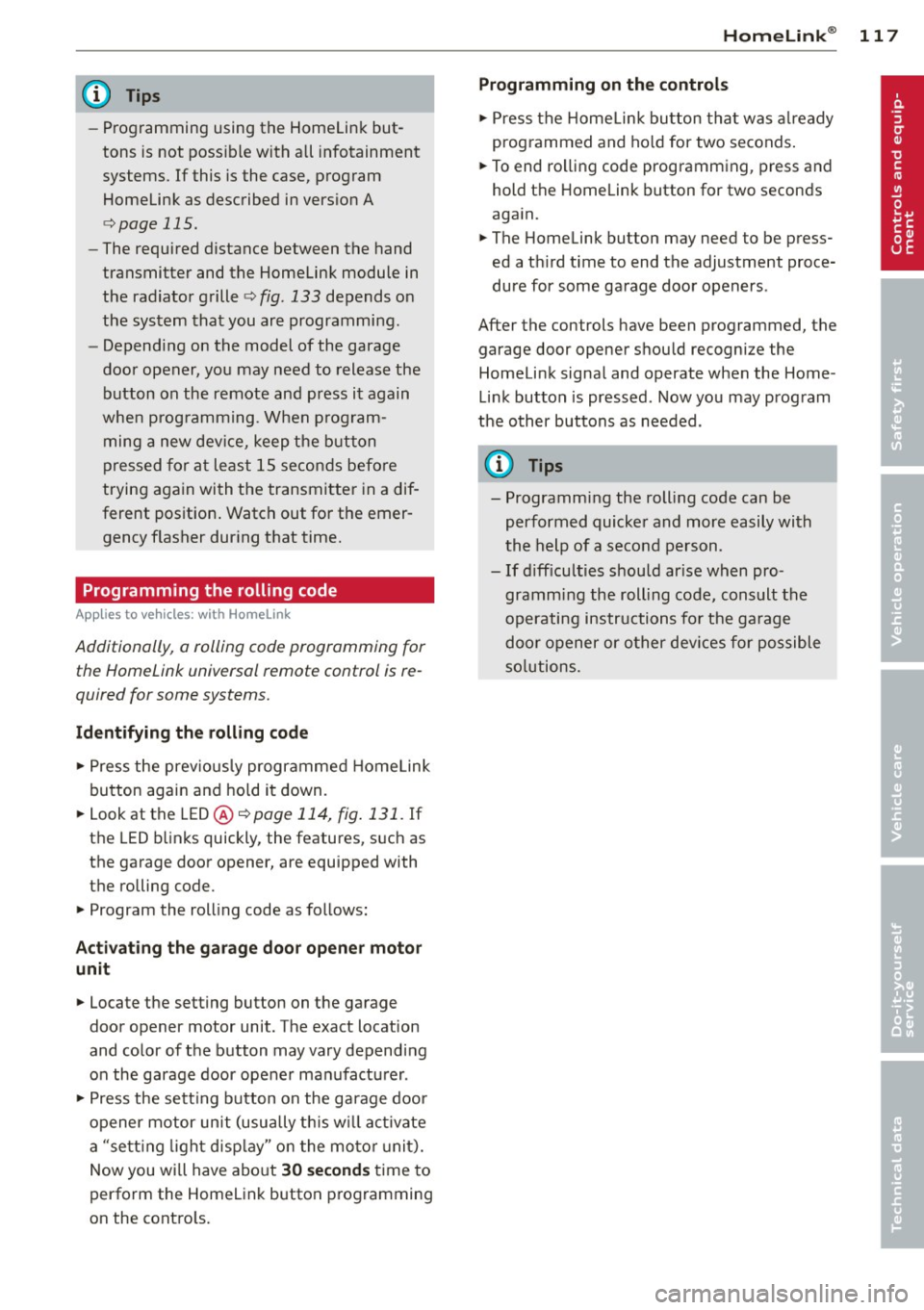

@ Tips
-Programming using the Homelink but­
tons is not possible with all infotainment
systems. If this is the case, program Homelink as described in version A
<=> page 115.
-The required distance between the hand
transmitter and the Homelink module in
the radiator grille<=>
fig. 133 depends on
the system that you are programming.
- Depending on the model of the garage
door opener, you may need to release the
button on the remote and press it again
when programming. When program­
ming a new device, keep the button
pressed for at least 15 seconds before
trying again with the transmitter in a dif­
ferent position. Watch out for the emer­ gency flasher during that time.
Programming the rolling code
App lies to vehicles: with Home link
Additionally, a rolling code programming for
the Homelink universal remote control is re­
quired for some systems.
Identifying the rolling code
"'Press the previously programmed Homelink
button again and hold it down.
"'Look at the LED@<=>
page 114, fig. 131. If
the LED blinks quickly, the features, such as
the garage door opener, are equipped with
the rolling code.
"'Program the rolling code as follows:
Activating the garage door opener motor
unit
"'Locate the setting button on the garage
door opener motor unit. The exact location
and color of the button may vary depending
on the garage door opener manufacturer .
"'Press the setting button on the garage door
opener motor unit (usually this will activate
a "setting light display" on the motor unit).
Now you will have about
30 seconds time to
perform the HomeLink button programming
on the controls.
Homelink® 11 7
Programming on the controls
"'Press the Home Link button that was already
programmed and hold for two seconds.
"'To end rolling code programming , press and
hold the Home link button for two seconds
again.
"'The Homelink button may need to be press­
ed a third time to end the adjustment proce­
dure for some garage door openers .
After the controls have been programmed, the garage door opener should recognize the
Homelink signal and operate when the Home ­
Link button is pressed . Now you may program
the other buttons as needed .
(D Tips
- Programming the rolling code can be
performed quicker and more easily with
the help of a second person.
- If difficulties should arise when pro­
gramming the rolling code, consult the
operating instructions for the garage
door opener or other devices for possible
solutions.

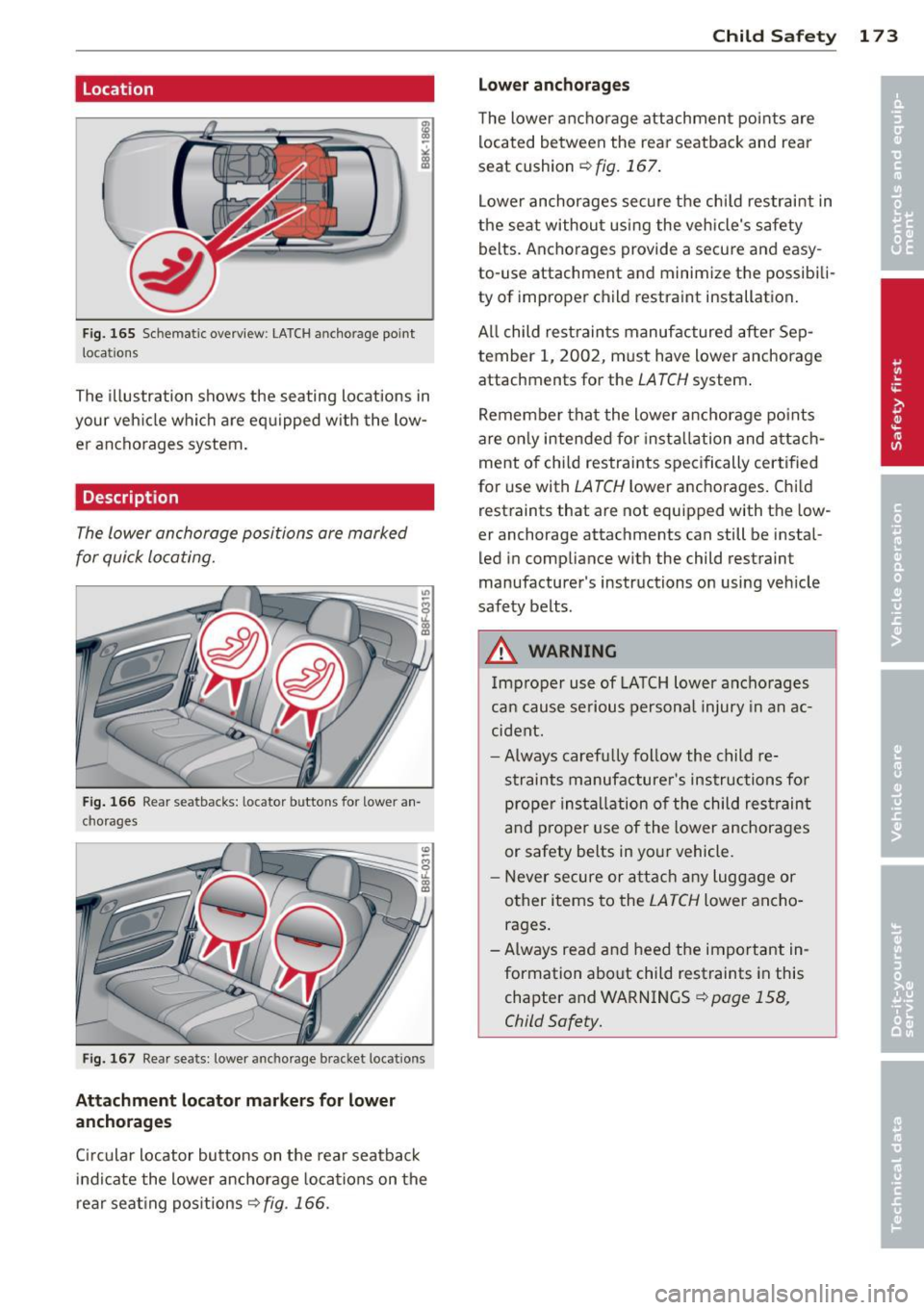

Location
Fig. 165 Schematic overview: LATCH anchorage point
locations
The illustration shows the seating locations in
your veh icle which are equipped w ith the low­
er anchorages system.
Description
The Lower anchorage positions are marked
for quick Locating.
Fig . 166 Rear seatbacks: locator bu tto ns for lower an­
chora ges
Fig. 167 Rear seats: lower ancho rage bracket locations
Attachment locator markers for lower
anchorages
C ircular locator buttons on the rear seatback
i ndi cate the lower anchorage locations on the
rea r seat ing pos itions
¢ fig . 166.
Child S afety 173
Lo w er anchorag es
The lower anchorage attachmen t points are
located between the rear seatback and rear
seat cushion
c:;, fig . 167 .
Lower anchorages secure the chi ld restraint in
the seat withou t using the vehicle's safety
belts. Anchorages provide a secure and easy­
to-use attachment and minimize the possibili ­
ty of improper child restraint installation .
All child restraints manufactured after Sep­
tember 1, 2002, must have lower anchorage attachments for the
LATCH system .
Remember that the lower anchorage po ints
are only intended for insta llation and a ttach­
ment of chi ld restraints specifically certified
for use with
LATCH lower anchorages. Chi ld
restraints that are not equipped with the low­
er anchorage attachments can still be insta l­
led in compliance with the child restraint
manufacturer 's instructions on using vehicle
safety belts.
A WARNING
Imp roper use of LATCH lower anchorages
can cause serious persona l injury in an ac­
cident.
- Always carefully follow the child re­
straints manufacturer's instructions for proper insta llation of the child res traint
and p roper use of the lower anchorages
or safety belts in your vehicle.
- Never secure or attach any luggage or
other items to the
LATCH lower ancho ­
rages.
- Always read and heed the important in­
formation about child restraints in this
chapter and WARNINGS
c:;, page 158,
Child Safety.

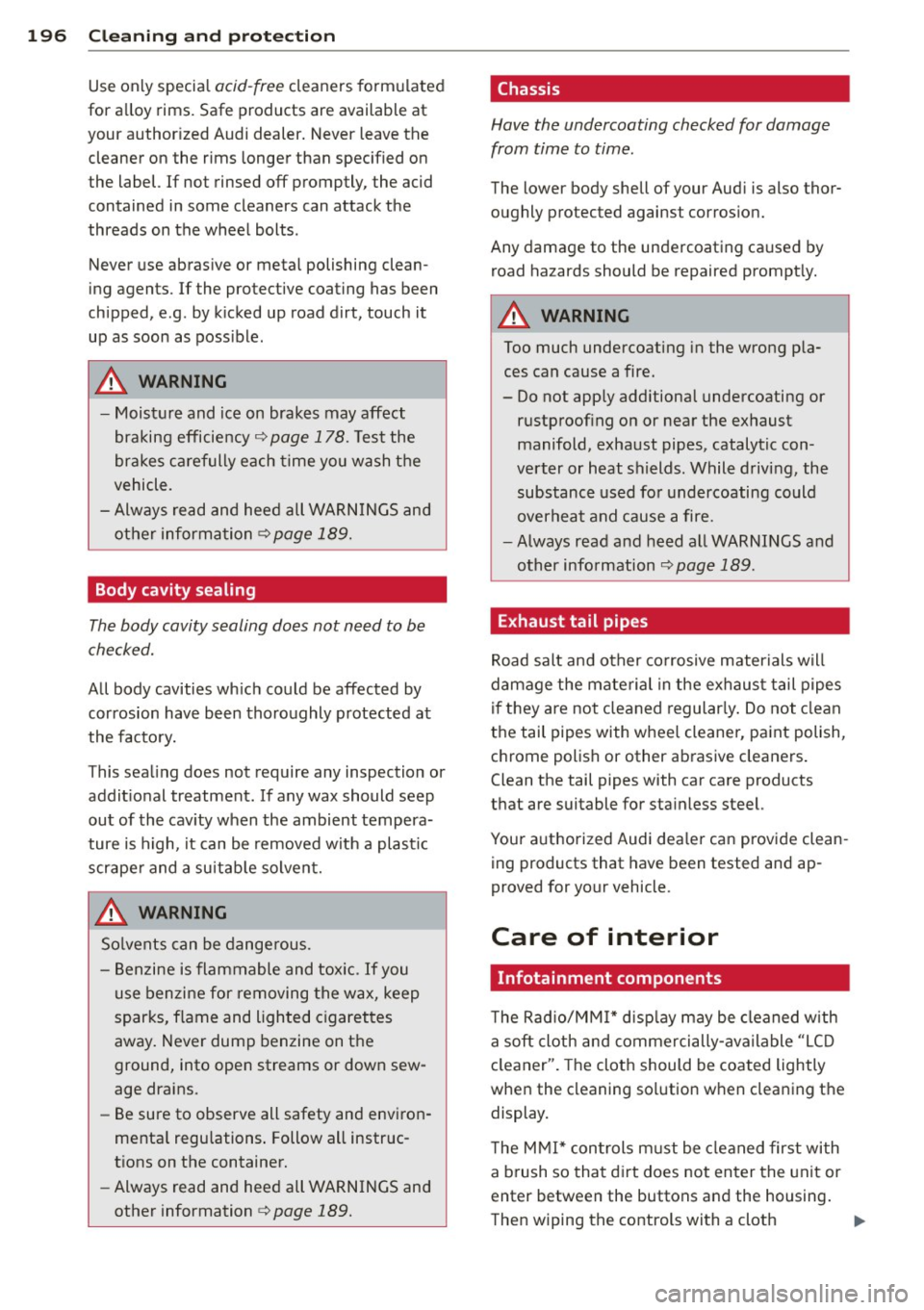

196 Cleaning and protection
Use only special acid -free cleaners form ulated
for a lloy rims. Safe products are available at
your author ized Audi dealer . Never leave the
cleaner on the rims longer than specified on
the label.
If no t rinsed off promptly, the acid
contained in some cleaners can attack the
threads on the wheel bolts .
Never use abras ive or metal polishing clean ­
ing agents. If the protective coating has been
chipped, e .g . by k icked up road dirt, touch it
up as soon as poss ible.
A WARNING
- Moist ure and ice on brakes may affect
braking efficiency ~
page 178. Test the
br ake s ca refully each time you wash the
vehicle.
- Always read and heed all WARNI NGS and
other informa tion ~
page 189.
Body cavity sealing
-
The body cavity sealing does not need to be
checked.
A ll body cavities wh ich could be affected by
corrosion have been thoroughly protected at
the facto ry.
T his sea ling does not require any inspection or
addit io nal treatment. If any wax should seep
out of the cav ity when the ambient tempera­
ture is high, it can be removed w it h a plastic
scrape r and a su itab le so lven t.
A WARNING
So lvents can be dange rous.
- B enzine is flammable and t oxic.
If you
use benzine for removing the w ax, keep
spar ks, flame and lighted cigaret tes
away. Never dump benzine on t he
ground, into open streams or down sew­
age drains.
- Be sure to observe all safety and env iron­
menta l regulations . Follow all instruc­
t ions on the container.
- Always read and heed all WAR NIN GS and
other information
¢ page 189. Chassis
Have the undercoating checked for damage
from time to time.
The lower body shell of your Aud i is also thor­
oughly protected against cor ros io n.
Any damage to the unde rcoating ca used by
road ha zards should be repaired prompt ly.
A WARNING ....__
Too much undercoating in the wrong p la­
ces can cause a fire.
- Do not app ly additional undercoating or
r u stp roof ing on or near the exhaust
manifold, exhaust pipes, catalytic con­
ver ter or heat shields. While driving, the
substance used fo r undercoating could
overhea t and cause a fire.
- Always read and heed all WAR NINGS and
o ther info rmation ¢
page 189.
Exhaust tail pipes
Road salt and o ther co rrosive materials w ill
damage the mate ria l in the e xhaus t ta il pipes
i f they are not cleaned regular ly . Do not clean
the tail pipes with w hee l cleaner, pa int polish,
c h rome polish or other ab rasive cleane rs .
Clean the tail pipes with car care products
t h at are suitable for sta inless steel.
Your a uthorized Audi dea ler can prov ide clean ­
ing products that have been tested and ap­
proved for your vehicle .
Care of interior
Infotainment components
The Rad io/MM !* disp lay may be cleaned w ith
a soft cloth and comme rcially-ava ilable "LCD
cl eaner". The clot h should be coated lightly
whe n the cleaning solution w hen clea ning t he
display.
T he M MI* con trols m ust be clean ed first wi th
a b rush so tha t dirt does not en ter the uni t or
enter between the buttons an d the housing.
The n wiping the controls with a cloth ..,.
