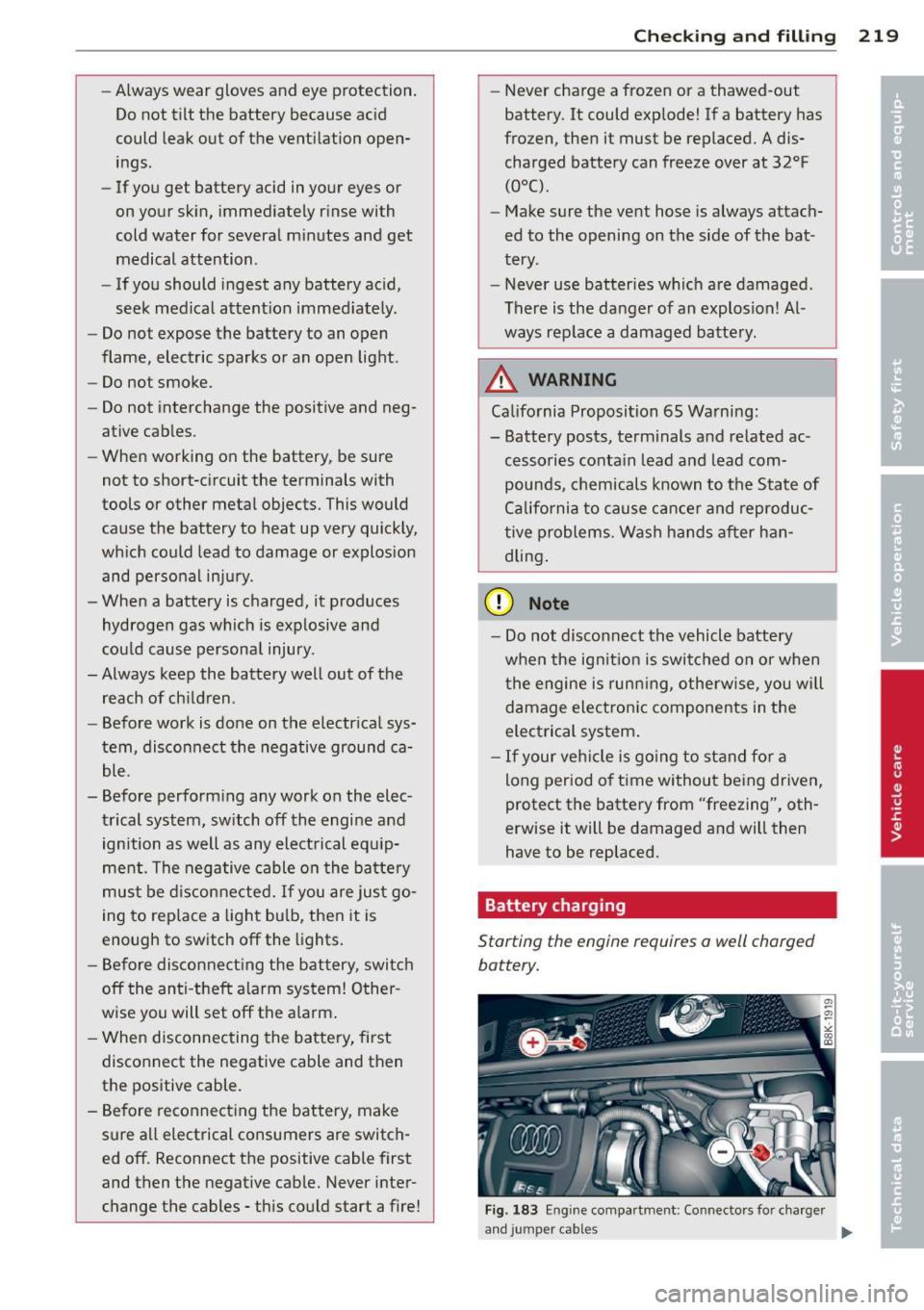

-Always wear gloves and eye protection.
Do not tilt the battery because acid
could leak out of the ventilation open­
ings .
- If you get battery acid in your eyes or
on your skin, immediately rinse with
cold water for several minutes and get
medical attention.
- If you should ingest any battery acid,
seek medical attention immediately.
- Do not expose the battery to an open
flame, electric sparks or an open light .
- Do not smoke.
- Do not interchange the positive and neg-
ative cables .
- When working on the battery, be sure
not to short-circuit the terminals with
tools or other metal objects. This would cause the battery to heat up very quickly,
which could lead to damage or explosion
and personal injury .
- When a battery is charged, it produces
hydrogen gas which is explosive and
could cause personal injury .
- Always keep the battery well out of the
reach of children .
- Before work is done on the electrical sys­
tem, disconnect the negative ground ca­
ble.
- Before performing any work on the elec­ trical system, switch off the engine and
ignition as well as any electrical equip­
ment. The negative cable on the battery
must be disconnected.
If you are just go­
ing to replace a light bulb, then it is
enough to switch off the lights.
- Before disconnecting the battery , switch
off the anti-theft alarm system! Other­
wise you will set off the alarm.
- When disconnecting the battery, first
disconnect the negative cable and then
the positive cable.
- Before reconnecting the battery, make
sure all electrical consumers are switch­
ed off. Reconnect the positive cable first
and then the negative cable. Never inter­
change the cables - this could start a fire!
Checking and filling 219
- Never charge a frozen or a thawed-out
battery . It could explode! If a battery has
frozen, then it must be replaced. A dis­
charged battery can freeze over at 32°F
(ooc).
- Make sure the vent hose is always attach­
ed to the opening on the side of the bat­
tery .
- Never use batteries which are damaged.
There is the danger of an explosion! Al ­
ways replace a damaged battery .
A WARNING
California Proposition 65 Warning:
- Battery posts, terminals and related ac­
cessories contain lead and lead com­
pounds, chemicals known to the State of
California to cause cancer and reproduc­
tive problems . Wash hands after han­
dling.
(D Note
- Do not disconnect the vehicle battery
when the ignition is switched on or when
the engine is running, otherwise, you will
damage electronic components in the
electrical system.
- If your vehicle is going to stand for a
long period of time without being driven,
protect the battery from "freezing", oth­
erwise it will be damaged and will then
have to be replaced.
Battery charging
Start ing the engine requires a well charged
battery.
Fig . 183 Eng in e compart ment : Co nnectors fo r charger
and jum per cab les
1111>

Battery replacement
The new battery must have th e sam e specifi­
cations and dim ensions as the original equip­
ment battery.
Intell igent energy management in your vehi­
cle is respons ible for d istr ibuting the e lectr i­
cal energy throughout your vehicle
c::>
pag e 182. The intel ligent e nergy ma nage­
men t system w ill keep the eng ine ba tte ry
ch arged be tte r th en vehicles w ithout t his sys ­
tem . To make sure the additional e lectrica l en ­
e rgy is available once again after you have
changed th e battery, we recommend that you
install batteries of the same type and man u­
facture only (the same as those installed at
the time your vehicle was delivered). Specifi­
cations a re listed on the battery hous ing. Your
author ized Audi d ealer must code the battery
in the energy management system to enable
you to u se the ene rgy man agement func tions
correctly a fter rep lac ing the b att ery.
If it is not poss ible to use a battery of this
type, the new battery must have the same ca­
paci ty, voltage ( 12-volts), ampe rage, con­
s truc tion and pl ug sea ling.
W hen insta lli ng the battery, make sure the ig­
ni tion and all e lectr ical c ons umers a re turned
off.
CD Note
Ma ke s ure the venti lation hose on the s ide
of the bat tery is connected, ot he rwise
fumes or ba ttery a cid c an leak out.
@, For the sake of the environment
Because of the probl em of proper d isposa l
of a batte ry, we recommend your autho r­
i z e d Au di d ealer change the batt ery for
you. Batter ies co ntain s ulfu ric ac id and
lead and m ust always be dis posed of prop ­
erly i n complia nce w ith all environmental
reg ulations. D isposin g of vehicle batteries
improper ly is very dangerous to the envi­
ronment.
Checkin g and fillin g 221
Windshield/headlight*
washer container
Fig. 184 Engine compartment: Cover on th e win d·
s hi eld and headlig ht' washer fluid conta iner
The was her fluid container is marked w ith the
symbol Won its cap c::>
fig. 184, c::> page 209,
fig. 177.
.. Before you check anything in the engine
compartment,
always read and heed all
WARNINGS c::> &. in Working in the engine
compartment on page 207.
.. Lift the fi ller cap tongue to add washer flu­
id. You can fi ll the containe r to t he top .
.. Press the cap back o nto the fi lle r nec k afte r
filling the container.
You can find the reservo ir
capacity in t he table
in c::>
page 263.
Clean water should be used when filling up. If
poss ible, use soft water to prevent scaling on
the washer jets. A lways add a glass cleane r
solution (with frost pro te ction in t he winter).
CD Note
Do not mix engine coo lant antifreez e or
a ny other addit ives to f ill up t he win d­
sh ield washer rese rvo ir.
•
•

24 6 What do I do no w?
• Engage the par king br ake to prevent your
vehicle from rolling unintentionally
c> _&..
• Move the sel ector le ver to the P po sition.
• Take the jack c> page 243 out of the luggage
compartment.
A WARNING
You or your passengers could be injured
wh ile cha nging a wheel if you do not fol­
low these safety precautions:
- If you have a flat t i re, move a safe dis­
tance off the road . Turn off the engine,
tu rn the emergen cy flashers on and use
other wa rning dev ices to alert other mo­
torists.
- Make su re that passengers wait i n a safe
pla ce away from the vehicle and well
away from the road and traff ic.
- T o help prevent the veh icle from mov ing
sudden ly and possibly slipping off the
jack, a lways fully set the parking brake
and block the whee l diagona lly opposite
the whee l being changed with the fo ld­
ing chocks or other objects. When one
front whee l is lifted off the ground, plac­
ing the Automat ic Transmiss ion in "P"
(Pa rk) w ill
not prevent the vehicle from
moving.
- Before you change a wheel, be sure the ground is level and firm . If necessary,
use a sturdy board unde r the jack.
- Always store the vehicle tool kit, the
jack* and the replaced tire in the luggage
compartment
c> page 124.
(D Note
If you are chang ing the wheel on a steep
incline, use a rock or similar object to
b loc k the opposite wheel to prevent the
veh icle from mov ing.
Obey all laws.
-
Changing a wheel
When you change a wheel, follow these­
quence described below step-by-step and in
exactly that order .
l. Remove the wheel bolt caps* . For more
details see also
c> page 247, Wheels with
wheel bolt caps.
2. Loosen the wh eel bolts c>page 247.
3. Locate the p roper mounting point fo r the
ja ck a nd align the jack below that point
c>page248 .
4. Lift the car with the jack c> page 248 .
5. Remove the wheel with the flat tire and
then insta ll the other wheel
c> page 249.
6. Tighten all wheel bolts lightly.
7.
Lower the vehicle with the jack .
8. Use the wheel bolt w rench and
firmly
t ighten all wheel bolts in a crisscross pat­
te rn
c> page 247.
9. Replace the wheel bolt cap s*.
A WARNING
Always read and fo llow all WARN INGS and
informat ion c> .&. in Raising the vehicle on
page 248
and c> page 250 .
After changing a wheel
A wheel change is not comple te without the
doing the following .
• Always store the vehicle tool kit, the jack*,
and the rep laced tire in the luggage com ­
partment
c> page 124.
• As soon as possib le, have the t ightening
torque s
on all whee l bolts checked with a
torque wrench. The correct tightening tor­
que is 90 ft lbs. (120 Nm).
• Have the flat tire
re plac ed as soon as possi­
ble.
(D Tips
- If you not ice that the wheel bolts are
corroded and difficult to turn while
chang ing a tire, they should be replaced
before you check the tightening torque .

Emergency situations
General
This chapter is intended for trained emer­
gency crews and working personnel who have the necessary tools and equipment to
perform these operations.
Starting by pushing or
towing
(D Note
Vehicles with an automatic transmission
cannot be started by pushing or towing.
Starting with jumper
cables
If necessary, the engine can be started by
connecting it to the battery of another vehi­
cle.
If the engine should fail to start because of a
discharged or weak battery, the battery can be
connected to the battery of
another vehicle,
using a
pair of jumper cables to start the en­
gine.
Jumper cables
Use only jumper cables of sufficiently
largecross section to carry the starter current
safely. Refer to the manufacturer's specifica­
tions.
Use only jumper cables with
insulated termi­
nal clamps which are distinctly marked:
plus(+) cable in most cases colored red
minus(-) cable
in most cases colored black .
A WARNING
Batteries contain electricity, acid, and gas.
Any of these can cause very serious or fatal
injury. Follow the instructions below for
safe handling of your vehicle's battery.
- Always shield your eyes and avoid lean­
ing over the battery whenever possible.
Emergency situations 255
-A discharged battery can freeze at tem­
peratures just below 32 °F (0 °C). Before
connecting a jumper cable, you must
thaw the frozen battery completely, oth­
erwise it could explode.
- Do not allow battery acid to contact eyes
or skin . Flush any contacted area with
water immediately .
- Improper use of a booster battery to
start a vehicle may cause an explosion.
- Vehicle batteries generate explosive gas­
es. Keep sparks, flame and lighted ciga­
rettes away from batteries.
- Do not try to jump start any vehicle with
a low acid level in the battery.
- The voltage of the booster battery must
also have a 12-Volt rating. The capacity
(Ah) of the booster battery should not be
lower than that of the discharged bat­
tery. Use of batteries of different voltage
or substantially different "Ah" rating
may cause an explosion and personal in­
jury.
- Never charge a frozen battery. Gas trap­
ped in the ice may cause an explosion.
- Never charge or use a battery that has
been frozen. The battery case may have
be weakened.
- Use of batteries of different voltage or
substantially different capacity (Ah) rat­
ing may cause an explosion and injury.
The ca pa city (Ah) of the booster battery
should not be lower than that of the dis­
charged battery.
- Before you check anything in the engine
compartment, always read and heed all
WARNINGS¢
page 200, Engine com­
partment.
(D Note
- Applying a higher voltage booster bat­
tery will cause expensive damage to sen­
sitive electronic components, such as
control units, relays, radio, etc .
- There must be no electrical contact be­
tween the vehicles as otherwise current
could already start to flow as soon as the
positive(+) terminals are connected. ..,. •
•

270 Index
Automatic climate control Air vents ... ............... .. .... .. 71
Operation . . . . . . . . . . . . . . . . . . . . . . . . . 70
Setup . .. ............... .. .. .... .. 72
Automatic power top ....... .. .. .... .. 42
Automatic transmission . . . . . . . . . . . . . . . 85
Emergency release . . . . . . . . . . . . . . . . . . 91
Removal lock (ignition key) . .. .. .. .. . . 74
S tron ic .. .... ........... .. .. .... .. 85
also refer to S tron ic transmission ..... 85
Automatic wipers .............. .. .. .. 57
Auto Safety Hotline ................. 126
Average speed . . . . . . . . . . . . . . . . . . . . . . . 25
Avoid damaging the vehicle . . . . . . . . . . . 184
B
Battery . . . . . . . . . . . . . . . . . . . . . . . 17,217
Battery location inside the luggage com-
partment .. ............... .. .... . 218
Charging . .. ..... ........... ... .. . 219
Important warnings when working on
the battery . .............. ... .. ... 218
Jump starting . ........... .... .... . 255
L ow . .. .. ............... .. .. .... . 182
Replacing the battery .............. 221
State of charge . . . . . . . . . . . . . . . . . . . . 182
Winter operation .......... ... .... . 217
Working on the battery .... .. .. .. .. . 218
Before driving ... .......... .. .. .. .. . 118
Belt positioner .. .... ...... .. .. .. .. . 132
Blended gasoline .................. . 202
Blower (automatic climate cont rol) . . . . . . 71
Body cavity sealing ......... .. .. .... . 196
Booster seats .............. ... .... . 166
Brake fluid Changing the brake fluid ....... .. .. . 217
Check ing the brake fluid level . .. .. .. . 216
Reservoir .. ............. .. .. .. .. . 216
What is the cor rect brake fluid level? .. 216
What should I do if the brake fluid warn-
ing light comes on? ........ ... .. .. . 216
Brake system .............. .. .. .... . 216
Anti-lock braking system . .. .. .. .... .. 19
Brake assist system ....... .. .. .. .. . 176
Brake fluid ............... ... .... . 216
Brake fluid specifications for refill and re­
placement . . . . . . . . . . . . . . . . . . . . . . . 217 Brake light defective .
. . . . . . . . . . . . . . . 21
Brake power assist unit .......... ... 178
Brakes ... ... .. .. .. .............. . 178
Ceramic brakes . .. ............. .... 178
Electromechanical parking brake . .... . 79
Warning/indicator lights ............. 15
Worn brake pads symbol . . . . . . . . . . . . . 20
Braking Emergency braking function ..... .. .. . 81
braking guard . .. . .. ............ .. .. . 92
Messages ..... .. .. .............. .. 99
Settings . . . . . . . . . . . . . . . . . . . . . . . . . . 99
Break-in period .. .. ... .......... .. .. 184
Tires ... .. .. .. .. .. ... ........ .. .. 184
Bulbs ...... .. .. .. .. ........... .... 254 C
California Proposition 65 Warning ... .. 208
Battery specific . . . . . . . . . . . . . . . . . . . 219
Capacities . ..... .. .. .............. . 263
Car care ...... .. .. .. ...... ..... .. .. 189
Interior . . . . . . . . . . . . . . . . . . . . . . . . . . 196
Plastic and vinyl .. ............. .... 194
Care of exterior .. .. ............. .... 189
Cargo area
refer to Luggage compartment... 67, 124
Catalytic converter . ............. .... 185
Center armrest . . . . . . . . . . . . . . . . . . . . . . 64
Central locking .... ................ .. 31
Central locking switch ............... 35
Convenience key .. ............. ..... 35
Remote contro l key . . . . . . . . . . . . . . . . . 34
Ceramic brake rotors New brake pads .. ................ . 178
Certification .. .. .. .......... ...... . 267
Changing a flat tire ................. . 245
Changi ng a wheel ... .............. .. 245
Changing engine oil ............... .. 213
Chassis Undercoating .... ................ . 196
Checking Engine coolant level .............. .. 214
Checking tire pressure ..... ...... .. .. 228

272 Index
Data recorder ..... ..... ... .. .. .... . 176
Date display . .............. ... .. ... . 12
Daytime running lights. . . . . . . . . . . . 52, 53
Declaration of compl iance
Adaptive cruise control . ... .. ... ... . 267
Audi side assist .. ..... ... .. .. .... . 267
Ce ll phone package .. ... .. .. ... ... . 267
Convenience key ..... ..... .... .... . 267
Electronic immobili zer ..... .. .. .. .. . 267
H omelink ® universal remo te control . . 267
Remote control key ........... .. .. . 267
Defective light bulb warning . . . . . . . . . . . 2 1
Defrosting (w indows) ..... .. .. .. .. .. .. 71
Determin ing correct load limit . .. .. ... 230
D igita l clock ............. ... .. .... .. 12
Dig ita l compass ............ ... .. .. .. 59
Dimensions .. ............... .. .... . 262
D imm ing the rea rview mir ro r .. .. .. .. . . 56
Doors emergency lock ing . ..... .. .. .. .. .. .. 36
Driver information system Eng ine oil temperature indicator ...... 28
Open door or front lid warning . . . . . . . . 24
Outside temperature display .. .... .. .. 24
Sound system display . . . . . . . . . . . . . . . 24
Driver seat
refer to Seat ing pos ition . . . . . . . . . . . . 119
Driving safely ............. .. .. .. .. . 118
Driving through water . . . . . . . . . . . . . . . 184
Driving time . . . . . . . . . . . . . . . . . . . . . . . . 25
Dust filter
refer to Po llutant filte r (automatic AC
sys tem) .. .. ............. .. .. .... .. 69
Dynamic steering . . . . . . . . . . . . . . 104 , 180
E
Easy entry function ......... .. .. .. .. .. 63
Electro -mechanical power assist . . . . . . . 180
Electromechanical park ing brake
E me rgency braking ....... .. .. .. .. . . 81
I ndicator ligh t . . . . . . . . . . . . . . . . . . . . . 79
Par king .. .. .. . .......... .. .. .. .. .. 80
Releasing and clos ing ... .. .. .... .. . . 79
Starting assist . .. ..... ... .. .. .... .. 80
Starting from rest ..... ... .. .. .... .. 80
Warn ing/ indicator lights ..... .. .... .. 16 El
ectronic differential lock ( EDL) . . . . . . . 176
Warning/indicator lights ..... ... .. .. . 19
El ectronic immob ilizer . . . . . . . . . . . . 12, 3 7
Electronic power control (EPC) warning/indicator light . . . . . . . . . 20
E lectronic Stabilization Contro l (ESC) . .. 176
Warning/indicator lights ..... ... .. .. . 19
E mergen cy actua tion
Doors .. .. .. .. .. .. ........... .. .. . 36
Ignit ion key ..... ... .. ..... .... . .. . 34
Emergency brak ing .... .. .. ... ..... .. . 81
Emergency flasher . . . . . . . . . . . . . . . . . . . 54
Warning/ind icator lights ........ .. .. . 22
E mergency key . . . . . . . . . . . . . . . . . . . . . . 32
Starting engine . ... ... ..... ... .. .. . 76
Emergency operation Emergency bra king funct ion (pa rking
brake) .. .. .. .. .. .. ... ........ .. .. . 81
Luggage compartment lid . . . . . . . . . . . . 38
Power top ..... .. .. ... ..... ... .. .. . 47
Emergency starting ................ . 255
Emergency towing . ............. .... 257
E nergy management ............ .. .. 182
Battery power . . . . . . . . . . . . . . . . . . . . . 17
Drive r notif ication . . . . . . . . . . . . . . . . . . 17
Engine Compartment .. .. ... .......... .. .. 209
Coolant . .. .. .. .. ............. .. .. 214
Hood . .... .... ................... 207
Starting . . . . . . . . . . . . . . . . . . . . . . 7 4 , 77
Starting with jumper cables ... .. .. .. 255
Stopping . . . . . . . . . . . . . . . . . . . . . . 76, 78
E ngine compartment
Sa fety instr uctions ............. .... 207
Working the eng ine compartment 207
Engine coolant In dicator light ... ............. .... . 18
Engine coolant system ........... .... 214
Adding coolant ..... ... ..... ... .. .. 214
Checking coolant level .............. 214
Checking the engine coo lant level . .. .. 214
Radiator fan . .. .. ............. .. .. 216
Engine coolant temperature Temperature gauge .............. .. . 10
Engine data ..... .. .. ... ..... ... .. .. 263

K
Key ... .... .. .. .... .. .... ... .. .. .... 32
Battery rep lacement ... ... .. .. .. .. .. 33
Check light ..... ...... ... .. .. .. .... 33
Emergency key . . . . . . . . . . . . . . . . . 32, 76
Ignition/engine on/off ............... 74
Key replaceme nt . . . . . . . . . . . . . . . . . . . 32
Mechanical key . . . . . . . . . . . . . . . . . 32, 33
removing . . . . . . . . . . . . . . . . . . . . . . . . . 76
u nl ocking/ locking . . . . . . . . . . . 34, 35, 36
Kick-down . . . . . . . . . . . . . . . . . . . . . . . . . . 89
Knee airbags .... .. ..... ... .. .. .. ... 152
Descript io n ..... .. .... ... .. .. .. ... 152
How t hey work . ... .... ... .. .. .. ... 153
Important safety instructions . . . . . . . . 154
L
Lane Change Ass istant
refer to side assist ..... ... .. .. .. .. . 10 1
L ap time r .. .. .... ......... .... .. .. .. 28
E v a lu ating times . . . . . . . . . . . . . . . . . . . 29
Pausing tim ing . .. ..... ... .. .. .. .. .. 28
Starting ... .. .. ...... ... .. .. .. .... 28
L A T CH .. .. ...................... .. 172
D escr ip ti on ..... ......... .... .. .. . 173
I ns tall ing a chi ld res traint ........... 174
L ocat ion . . . . . . . . . . . . . . . . . . . . . . . . . 17 3
M ounting and releasing the ancho rage
hook . ..... .. ... ..... ... .. .. .. ... 174
L aunch Cont ro l Program .............. 90
Leather . . . . . . . . . . . . . . . . . . . . . . . . . . . 198
C leaning . ................ ...... .. 199
L eaving home . . . . . . . . . . . . . . . . . . . . . . . 53
L eft ha nd d rive . ........... .. .. .. .... 54
Lifting jack .. ............. .... .. ... 248
L ifting vehicle .. .. .. .... ... .. .. .. ... 259
Light adapt ive light ...... ...... .. .. .. .. .. 52
Com ing/ Leavi ng home ............... 53
D aytime r unning lig hts . . . . . . . . . . 52, 53
E xterior lighting . . . . . . . . . . . . . . . . 5 2, 53
I nter ior/reading .. ..... ... .. .. .. .. .. 55
L ow beam . ... .... .... ... .. .. .. .... 52
Rear fog lights . . . . . . . . . . . . . . . . . . . . . 52
Side marker lights . . . . . . . . . . . . . . . . . . 52
Travel mode . . . . . . . . . . . . . . . . . . . . . . . 54
Inde x 275
Light/ rain senso r
Head lights . ... .... . ... ...... ... .. . 52
Intermittent (w indshie ld w ipers) ... .. . 57
Sensor defective . . . . . . . . . . . . . . . . . . . . 22
L ights
E mergency flashe rs . . . . . . . . . . . . . . . . . 54
Hig h beam . ..... ... .. .. ..... ... .. . 53
Turn signals ... .. .. .. ... ..... ... .. . 53
Locking Re ar li d ... .... .. .. . ............... 37
Locking/unlock ing
at the lock cylinder . . . . . . . . . . . . . . . . . . 36
by remote control . . . . . . . . . . . . . . . . . . 34
with t he centra l locking sw itch ... .. .. . 35
wi th t he conve nien ce key .......... .. . 35
Low beams . . . . . . . . . . . . . . . . . . . . . . . . . 52
Lower anchorage locator button ... .. .. 173
Lower universal a nc horage bars (Canada) 172
Lower universal anchorages (Canada) 172
Luggage Stow ing . ... .... .. . .. .. ..... ... .. 124
Luggage compartm ent . . . . . . . . . . . . . . . . 67
En larging . .. .. .. ................. . 67
Li d ............................... 37
L oad ing ... .. .... .. . .. .. ..... ... .. 124
S ki sack ... .. .... .. . .. .. ..... ... .. . 68
Tie-downs . . . . . . . . . . . . . . . . . . . . 68, 125
Luggage compar tment l id
E mergency un lock ing .. ......... .. .. . 38
Lumbar support . . . . . . . . . . . . . . . . . . . . . 62
M
Maintenance .. .. .. .... ........... .. 264
Malfunc tion Ind icator Lamp (MIL) . . 20, 29
Matte finish paint ................... 192
Mechan ica l key . . . . . . . . . . . . . . . . . . 32, 33
Memo ry func tion . . . . . . . . . . . . . . . . . . . . 64
Mileage Average ................ ........... 25
Instantaneous ... .. . .. .... ...... .. . 25
Mirrors Adjusting the exterior mirrors . . . . . . . . . 5S
Compass .. .. .. .. ................. . 59
dimming .. ... .... ........... ...... 56
Vanity mir ro rs .... ........... ...... 57
Monitoring the Advanced Airbag System 148
•
•
