82 On the road
-For reasons of safety, cruise contro l
should not be used in the city, in stop­
and-go traff ic, on twisting roads and
when road conditions are poor (such as
ice, fog, gravel, heavy rain and hydro­
planing) - risk of accident .
- Turn off the cruise control temporar ily
when ente ring turn lanes, highway exit
lanes or in construction zones.
- Please note that inadvertently "rest ing"
yo ur foot on the accelerator peda l causes
the cruise control not to brake. This is
because the cr uise con trol is overridden
by the d river 's acce lerat ion.
- If a bra ke system malfunction such as
overheat ing occurs when the cru ise con­
tro l system is sw itched on, the braking
function in the system may be switched
off. The othe r cruise control f unctions re­
ma in active as long as the indicator light
@;rn~i~ (US models) !lB (Canadian mod­
els) is on.
The brake lights illuminate as soon as the brakes apply automatically.
Changing speed
.,. To increase/decrease the speed in incre­
me nts, tap the lever in the
0 10 d irection
q page 81, fig . 94 .
.,. To increase/decrease the speed qu ickly, hold
the leve r in the
010 direction unti l the de­
s ired speed is d isplayed.
You can also press the accelerator pedal down
to increase your speed, e.g. if you want to
pass someone. The speed yo u saved earl ier
will resume as soon as you let off of the accel ­
erator pedal.
I f, however, you exceed your saved speed by
6 mph ( 10 km/h) for longe r than 5 m in utes,
the cruise cont ro l w ill be turned off tempo ra­
rily. The green symbol in the display turns
white. The saved speed remains the same.
Presetting your speed
You can preset your desired speed while the
vehicle is not moving .
.,. Switch on the ign ition.
.,. Pull lever into position
(D q page 81,
fig . 94 .
.,. Press the lever in the 0 or 0 direction to
increase or decrease your speed .
.,. Release the lever to save that speed .
This function makes it poss ible, for example,
to save the speed you want before dr iving on
the h ighway. Once on the h ighway, act ivate
the cr uise control by pulling the lever toward
(D .
Switching off
Temporary d eacti vat ion
.,. Press the b rake pedal , or
.,. Press the lever into position @(not clicked
into place)
q page 81, fig. 94, or
.,. Dr ive for longer than 5 m inutes at more
than 6 mph (10 km/h) above the stored speed.
S w itching off complete ly
.,. Press lever into position @(clicked into
p lace), or
.,. Switch the ignit ion off.
The speed you saved will be retained if the cruise control has been switched off tempora ­
rily . To resume the saved speed, let up on the
brake and pull the lever to posit ion
(D .
Switching the ignition off erases the saved
speed.
A WARNING "'---
You shou ld only return to the saved speed
if it is not too fast for the current traffic
conditions - r isk of an accident!

"' N
a: LL co
rl I.O
"' rl
"' rl

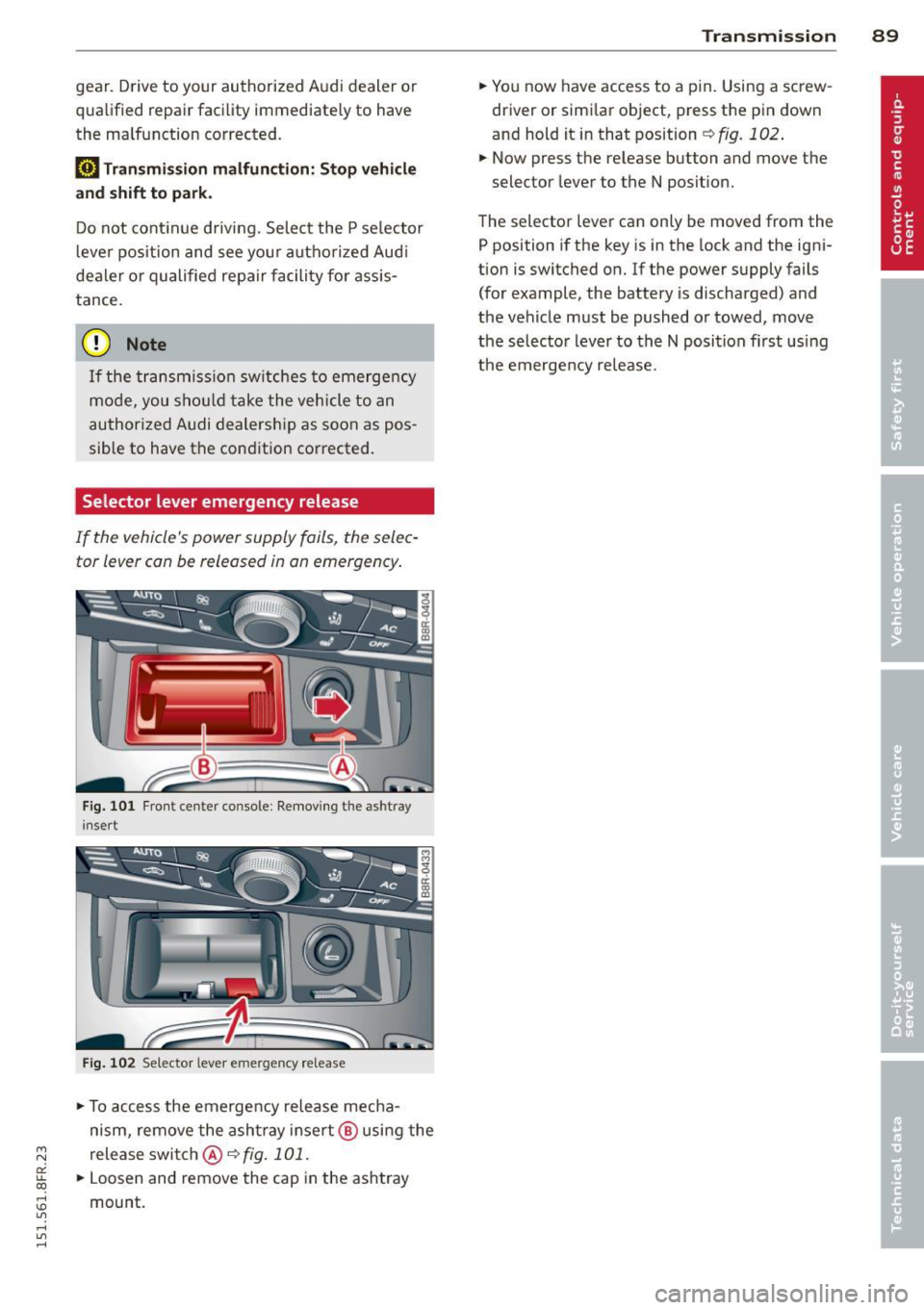

gear. Drive to your autho rized A ud i dealer o r
q ua lified repair fac ility immediate ly to have
the ma lfunction corrected .
m] Transmission malfunction: Stop vehicle
and shift to park .
Do not cont inue driving. Select the P se lector
l eve r position and see yo ur autho rized Aud i
dealer or qualified repa ir facili ty for assis ­
tance.
(D Note
If the transmiss io n sw itches to emerge ncy
mo de, you sh ould take the vehicle to an
au thor ized Audi dealersh ip as soon as pos ­
sible to have the cond ition co rrected.
Selector lever emergency release
If th e vehicle's power supply fails, the s elec­
tor lever can be released in an emergency.
Fi g. 10 1 Fro nt ce nter co nsole : Re movi ng t he ash tray
i nser t
Fig. 10 2 Select o r lever e mergency re lea se
.. To access the emerge ncy release mecha ­
nism, remove the ash tray insert @ using the
release swi tch @ r:!>
fig. 101.
.. Loosen and remove the cap in the ashtray
mount.
Transm ission 89
.. You now have access to a pin. Using a screw ­
driver or simi lar object, press the pin down
and hold it in that position
<=> fig. 102.
.. Now press the re lease button and move the
selec tor lever to the N posit ion.
The selector lever can only be moved from the P position i f the key is in the lock and the ign i­
tion is switc hed on. If the power supply fails
(for example , the battery is discharged) and
the ve hicle must be pushed or towed , move
the selec to r lever to the
N posit ion first using
t h e emerge ncy release.

90 Audi adaptive cruise control and braking guard
Audi adaptive cruise
control and braking
guard
Introduction
App lies to vehicles: with Audi adaptive cruise co ntrol
The adaptive cruise control system assists the
driver by regulating vehicle speed and helping
to maintain a set distance to the vehicle
ahead, within the limits of the system .
If the
system detects a moving vehicle up ahead,
adaptive cruise control can brake and then ac ­
celerate your vehicle. This he lps to make driv­
ing more comfortable on long highway
stretches.
The braking guard system can warn you about
an impending collision and initiate braking
maneuvers
c:::> page 96.
Adaptive cruise control and braking guard
have technical limitations that you must
know, so please read this section carefully, un­
derstand how the system works and use them
properly at all times.
General information
General information
Applies to vehicles: with Audi adaptive cruise co ntrol
Fig. 103 Front of the vehicle: Position of radar senso r
The area that contains the radar sensor
c:::> fig. 103 must never be cove red by stickers
or other objects or obstructed with dirt, in­
sects, snow or i ce that will interfere with the
adaptive cruise control system and braking
guard. For information on cleaning, refer to
c:::> page 184. The same applies for any modifi­
cations made in the front area . T
he function of the adaptive cruise cont rol
system and braking guard is limited under
some condit ions:
- Objects can only be detected when they are
within sensor range
c:::>page 92, fig . 106.
-The system has a limited ability to detect
objects that are a short d istance ahead, off
to the side of your vehicle or moving into
your lane.
- Some kinds of vehicles are hard to detect;
for examp le motorcycles, vehicles with high
ground clearance or overhanging loads may
be detected when it is too late or they may
not be detected at all.
- When driving through curves
c:::> page 91.
-Stat ionary objects c:::> page 91 .
A WARNING
-
Always pay attention to traffic when adap-
tive cruise contro l is switched on and brak­
ing guard is active. As the driver, you are
still respons ible for starting and for main­
tain ing speed and distance to other ob­
jects. Braking guard is used to assist you.
The driver must always take action to avoid
a col lision. The driver is always responsible
for braking at the correct time.
- Im proper use of adaptive cruise con trol
can cause collisions, other accidents and
serio us personal injury.
- Never let the comfor t and convenience
that adaptive cruise control and braking
guard offer distract you from the need to
be alert to traffic conditions and the
need to remain in full control of your ve­
h icle at a ll times,
- Always remember that the adaptive
cru ise contro l and brak ing guard have
lim its -they will not s low the vehicle
down or maintain the set distance when
you drive towards an obstacle or some ­
thing on or near the road that is not
mov ing, such as vehicles stopped in a
traffic jam, a stalled or disabled vehicle.
If registered by the radar sensor, vehicles
or obsta cles that are not moving can
trigger a co llision warning and if

92 Audi adaptive cruise control and braking guard
Audi adaptive cruise
control
Description
Applies to vehicles: with Audi adap tive cruise co ntrol
Fig. 106 Detect ion range
What can Audi adaptive cruise control do?
The adaptive cruise control works in conjunc­
tion with a radar sensor installed in the front
of the vehicle¢
page 90, fig . 103, which is
subject to designated system limits
¢page 92. Stationary objects are disregard­
ed .
On open roads w ith no traffic, adaptive cruise
control works like a regular c ruise control sys­
tem. The stored speed is maintained. When
approaching a moving vehicle detected up
ahead, the adaptive cruise control system au ­
tomatically slows down to match that vehi­
cle's speed and then maintains the distance
that the driver previously stored . As soon as
the system does not detect a vehicle up
ahead, adaptive cruise control accelerates
back up to the stored speed.
Which functions can be controlled?
When you switch adaptive cruise contro l on,
you can set the current speed as the "control speed"
¢ page 92, Switching on and off.
When driving, you can stop cruise control
¢
page 94 or change the speed ¢ page 93
at any time.
You can also set the distance to the object
ahead and set the adaptive cruise control driv­ ing program
¢page 94.
Switching on and off
Applies to vehicles: with A udi adapt ive cruise contro l
Fig. 107 Selector lever : switc hing on/off
Fig. 108 Instrumen t cluster: Audi adaptive cruise con ­
tro l
You can set any speed between 20 mph and
95 mph (30 and 150 km/h).
Indicator lamps and messages in the instru­
ment cluster disp lay inform you about the cur­
rent system status and settings.
Switching Audi adaptive cruise control on
.,. Pull the lever towa rd you into position@
¢
fig. 107. ACC standby appears in the in­
strument cluster display.
Setting the speed and activating
regulation
.,. To set the current speed, press the ISETI but-
ton ¢
page 11, fig. 4. The set speed is .,..

"' N
a: LL co
rl I.O
"' rl
"' rl
Audi side assist Lane change assistant
Description
Applies to vehicles: with Audi side assist
Fig. 114 Sensor dete ction ra n ge
Fig. 115 Disp la y on the exterio r mirro r
Side assist he lps you mon itor your blind spot
and traffic behind you r veh icle. With in the
limits of the system, it warns you about
vehicles that are coming closer or that are
traveling w ith you within sensor range
(D
c::, fig . 114 : if a lane change is class ified as crit­
ical, the display@ in the exterior mirror
c::>
fig. 115 turns on.
The display in the left exterior mirror provides
assistance when making a lane change to the
le ft, while the display in the right exterior mir­
r or provides assistance when making a lane
change to the right.
Information stage
As long as you do not activate the turn signal,
side assist
informs you about vehicles that are
detected and classified as crit ical. The display
in the respective mirror turns on, but is d im.
Audi side assist 99
The display remains dim intentionally in the
information stage so that your view toward
the front is not disturbed .
Warning stage
If you activate the turn signal, side assist
warns you about vehicles that are detected
and classified as critical. The display in the re ­
spective mirror blinks brightly . If this hap­
pens, check traff ic by glanc ing in the rearview
mirror and over your shoulder
c::> A in General
information on page 100 .
@ Tips
-You can adjust the brightness of the dis­
play @c::>
page 101.
General information
Applies to vehicles: with A ud i side ass ist
®
®
©
Fig. 116 D riving s it u atio ns
Fig . 117 Rea r of th e ve hicl e: pos it io n of the senso rs

"' N
a: LL co
rl I.O
"' rl
"' rl
General Information
Applies to vehicles: with parking system (rear, with rear
view ca mera)
Fig . 125 Covered area (D and uncove red area @of the
rear view came ra
Fig. 126 Trunk lid : Locatio n of the rear view camera
Sensors in the bumper
Sensors are located in the front and rear
bumpers. If these detect an obstacle, audible
and visual signals warn you. The range at
which the sensors begin to measure is approx­
i mately :
side 3
ft (0.90 m)
front center 4
ft (1.20 m)
side 2
ft (0.60 m)
rear center 5 .2 ft (1.60 m)
Distance warning when reversing starts when
an obstacle is detected in the range of the
parking assist system. As the distance de­
creases, the time interva l between the audib le
tones becomes shorter.
When the distance is less than 1 ft (0 .30 m),
the tone becomes continuous. At this point
you should stop backing up.
If the d istance to an obstacle stays the same,
the volume of the distance signal chime is
gradually reduced after about 4 seconds (does
Park assist 107
not affect the continuous signal tone). Ap­
proaching another obstacle will cause the dis­
tance signal to sound again at the norma l vo l­
ume .
Rear view camera coverage area
The MMI display shows the area covered by
the rear view camera
c:> fig. 125 (!). Objects
that are not in the area covered @are not
shown on the MMI display .
We recommend that you practice parking with
the rear view camera in a traffic-free location
or parking lot to become familiar with the sys­
tem, the orientation lines, and their function.
When doing this, there should be good light
and weather cond itions.
In the MMI display, objects or vehicles appear
closer or further away if:
-you are driving in reverse gear from a leve l
surface onto an incline, or a downward
slope,
-you are driving in reverse gear toward pro­
trud ing ob jects,
- the vehicle is car ry in g too much load in the
rear.
The accuracy of the orientation lines and blue
surfaces diminishes if:
- the rear view camera does not provide a reli­
able image, for example, in poor visibility
conditions or if the lens is dirty,
- the image on the screen is not vis ible due to
sun glare and reflection.
Caring for the rear view camera lens
The rear view camera is located above the rear
license plate bracket. For the parking assist to
operate, the lens
c:> fig . 126 must be kept
clean:
- Dampen the lens with a household alcohol­
based glass cleaner, and clean the lens with
a dry cloth
c:> (D.
- Remove snow with a hand brush and ice
preferably with a de-ic ing spray
c:> (D.

114 Driving Safely
• Always keep both feet in the footwell so
that you are in control of the vehicle at all
times.
For detailed information on how to adjust the
driver's seat, see
¢page 61.
A WARNING
Drivers who are unbelted, out of position
or too close to the airbag can be seriously
injured by an airbag as it unfolds. To help
reduce the risk of serious personal injury:
- Always adjust the driver's seat and the
steering wheel so that there are at least
10 inches (25 cm) between your breast­
bone and the steering wheel.
- Always hold the steering wheel on the
outside of the steering wheel rim with
your hands at the 9 o'clock and 3 o'clock positions to help reduce the risk of per­
sonal injury if the driver's airbag inflates.
- Never hold the steering wheel at the
12 o'clock position or with your hands at
other positions inside the steering wheel
rim or on the steering wheel hub. Hold­
ing the steering wheel the wrong way
can cause serious injuries to the hands,
arms and head if the driver's airbag de­
ploys.
- Pointing the steering wheel toward your
face decreases the ability of the supple­
mental driver's airbag to protect you in a
collision.
- Always sit in an upright position and nev­
er lean against or place any part of your
body too close to the area where the air­
bags are located.
- Before driving, always adjust the front
seats and head restraints properly and
make sure that all passengers are prop­
erly restrained.
- Never adjust the seats while the vehicle
is moving . Your seat may move unexpect­
edly and you could lose control of the ve­
hicle.
- Never drive with the backrest reclined or
tilted far back! The farther the backrests
are tilted back, the greater the risk of in- jury due to incorrect positioning of the
safety belt and improper seating posi­
tion.
- Children must always ride in child safety
seats ¢
page 152. Special precautions
apply when installing a child safety seat
on the front passenger seat¢
page 131.
Proper seating position for the front
passenger
The proper front passenger seating position
is important for safe, relaxed driving .
For your own safety and to reduce the risk of
injury in the event of an accident, we recom ­
mend that you adjust the seat for the front
passenger to the following position :
• Move the front passenger seat back as far as
possible . There must be a minimum of
10 inches (25 cm) between the breastbone
and the instrument panel¢,&. .
• Adjust the angle of the seatback so that it is
in an upright position and your back comes
in full contact with it whenever the vehicle is
moving.
• Applies to vehicles with adjustable head re­
straints: Adjust the head restraint so the up­
per edge is as even as possible with the top
of your head. If that is not possible, try to
adjust the head restraint so that it is as
close to this position as possible.
• Keep both feet flat on the floor in front of
the front passenger seat.
• Fasten and wear safety belts correctly
¢page 126.
For detailed information on how to adjust the
front passenger's seat, see
¢ page 60.
A WARNING
-
Front seat passengers who are unbelted,
out of position or too close to the airbag
can be seriously injured or killed by the air­ bag as it unfolds. To help reduce the risk of
serious personal injury:

118 Driving Safely
the pedals or the ability to control the
vehicle.
- Never place or install floor mats or other
floor coverings on top of already instal­
led floor mats. Additional floor mats and
other coverings will reduce the size of
the pedal area and interfere with the
pedals.
- Always properly reinstall and secure floor
mats that have been taken out for clean ­
ing.
- Always make sure that objects cannot
fall into the driver footwell while the ve­
hicle is moving. Objects can become
trapped under the brake pedal and accel­
erator pedal causing a loss of vehicle
control.
Stowing luggage
Loading the luggage compartment
All luggage and other objects must be prop­
erly stowed and secured in the luggage com­
portment.
Fig. 133 Safe load pos itio nin g: place heavy objects as
low a nd as fa r forward as possible.
-M N 0 u.
l:l
Loose items in the luggage compartment can
shift suddenly, changing vehicle handling
characteristics . Loose items can also increase
the risk o f serious personal injury in a sudden
vehicle maneuver or in a collision .
... Distribute the load evenly in the luggage
compartment .
... Always place and properly secure heavy
items in the luggage compartment as low
and as far forward as possible
cc> fig . 133 .
... Secure luggage using the tie-downs provid­
ed
c:> poge 67.
... Make sure that the rear seatback is securely
latched in place.
A WARNING ,..__
Improperly stored luggage or other items
can fly through the vehicle causing serious
personal injury in the event of hard brak­
ing or an accident. To help reduce the risk
of serious personal injury:
-Always put objects, for example, luggage
or other heavy items in the luggage com­
partment.
- Always secure objects in the luggage
compartment using the tie-down eyelets
and suitable straps.
A WARNING
Heavy loads will influence the way your ve­
hicle handles. To help reduce the risk of a
loss of control leading to serious personal
injury:
-Always keep in mind when transporting
heavy objects, that a change in the cen­
ter of gravity can also cause changes in
vehicle handling:
- Always distribute the load as evenly as
possible.
- Place heavy objects as far forward in
the luggage compartment as possible.
- Never exceed the Gross Axle Weight Rat­
ing or the Gross Vehicle Weight Rating
specified on the safety compliance stick­
er on the left door jamb. Exceeding per­
missible weight standards can cause the
vehicle to slide and handle differently .
- Please observe information on safe driv­
ing
~ page 112.
A WARNING
To help prevent poisonous exhaust gas
from being drawn into the vehicle, always
keep the rear lid closed while driving.
- Never transport objects larger than
those fitting completely into the luggage
~
