AUDI S3 2011 Owners Manual

___________________________________________ C_ h_il _d _ S_a _f _e _t =c,. y __ _
& WARNING
Rearward-facing child restraints:
• A child in a rearward-facing child safety seat installed on the
front passenger seat will be seriously injured and can be killed if
the front airbag inflates -even with an Advanced Airbag System.
• The inflating airbag will hit the child safety seat or infant
carrier with great force and will smash the child safety seat and
child against the backrest, center armrest, door or roof.
• Always be especially careful if you must install a rearward
facing child safety seat on the front passenger seat in exceptional
circumstances.
• A tight tether strap on a rearward-facing child restraint
attached to the front passenger seat can put too much pressure on
the weight-mat in the seat and register a heavier weight in the
Advanced Airbag System. The heavier weight registered can make
the system work as though an adult were on the seat and deploy
the Advanced Airbag when it must be suppressed causing serious
or even fatal injury to the child.
• Make sure that the PASSENGER AIR BAG OFF light comes on
and stays on all the time whenever the ignition is switched on.
• If the PASSENGER AIR BAG OFF light does not come on and
stay on, immediately install the rear-facing child safety seat in a
rear seating position and have the airbag system inspected by
your Audi dealer. •
Activating the convertible Locking retractor
Use the convertible locking retractor to secure a child
restraint.
Always heed the child safety seat manufacturer's instruc­
tions when installing a child restraint in your vehicle. To acti­
vate the convertible locking retractor:
Controls and equip­
ment Safety first Vehicle operation
-
Place the child restraint on a seat, preferably on the rear
seat.
- Slowly pull the belt
all the way out.
- Route it around or through the child restraint belt path
=>& .
- Push the child safety seat down with your full weight to
get the safety belt really tight.
- Insert the belt tongue into the buckle for that seating
position.
- Guide the safety belt back into the retractor until the belt
lies flat and snug on the child safety seat.
- You should hear a "clicking" noise as the belt winds back
i nto the inertia reel. Test the convertible locking retractor
by pulling on the belt. You should no longer be able to pull
the belt out of the retractor. The convertible locking
retractor is now activated.
- Make sure that the red release button is facing away from
the child restraint so that it can be unbuckled quickly.
- Pull on the belt to make sure the safety belt is properly
tight and fastened so that the seat cannot
move forward
or sideways more than one inch (2.S cm).
& WARNING
Using the wrong child restraint or an improperly installed child
restraint can cause serious personal injury or death in a crash.
• Always make sure that the safety belt retractor is locked when
installing a child safety seat. An unlocked safety belt retractor
cannot hold the child safety seat in place during normal driving or
in a crash. ._
Vehicle care Do-it-yourself service Technical data

• .___C_ h_ il_d _ S_a _ f_ e _ t--= y '------------------------------------------------

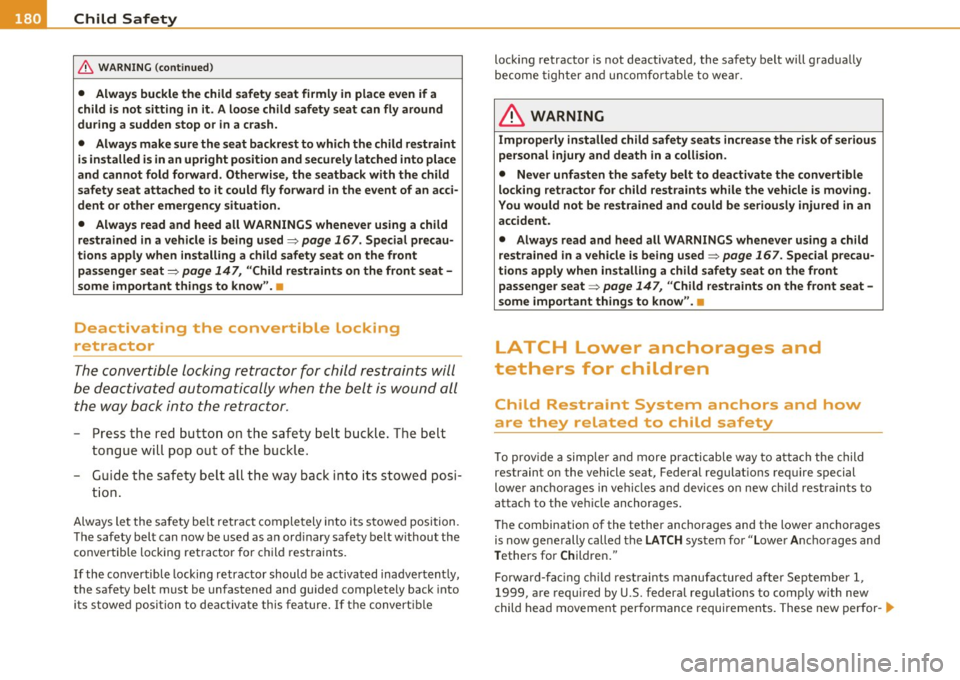

& WA RNING (conti nued)
• Always bu ckle the child safety seat firmly in place even if a
child i s not sitting in it . A loo se child safety seat can fly around
during a sudden stop or in a crash.
• Always make sure the seat backre st to which the child restraint
is installed is in an up right position and securely latched into place
and cannot fold forward . Otherwise, the seatback with the child
safety seat attached to it could fly forward in the event of an acci ·
dent or other emergency situation.
• Alway s read and heed all WARNINGS wheneve r using a child
restrained in a vehicle is being used=>
page 167. Special precau­
tions apply when installing a ch ild safety seat on the front
passenger seat =>
page 147, "Child restraints on the front seat -
some important things to know ".•
Deactivating the convertible Locking
retractor
The convertible l ocking retrac tor for child restraints will
be d eactivated automatically when the belt is wound all
the way back into the retractor.
- P ress t he red butto n on t he safety be lt buckle . T he belt
to ngue will pop out o f the buckle.
- G uid e the s afety belt all the way back in to its stowed posi-
t ion .
Always le t the safety be lt retract comple tely i nto i ts s towed position.
T he safety bel t can now be used as an ord inary safety belt without the
convertib le locking ret ractor for ch ild rest raints.
If th e convertible locking r etractor should be activated inadve rtently,
the safety be lt must be un fastened and guided comp letely back into
i t s s towe d position to de activa te th is fe ature. If th e convert ible locking retractor is
not deact ivated, the safety belt w ill gradua lly
become tigh ter and uncomfo rtable to we ar.
& WARNING
Improperly in stalled child safety seats increase the risk of serious
personal injury and death in a collision.
• Never unfasten the safety belt to deactivate the convertible
lo cking retractor for child restraints while the vehicle is moving.
You would not be restrained and could be seriou sly injured in an
a ccident .
• Always read and heed all WARNINGS whenever u sing a child
restrained in a vehicle is being used =>
page 167. Special precau·
tions apply when in stalling a child safety seat on the front
passenger seat =>
page 147, "Child restraints on the front seat -
s ome important things to know ".•
LATCH Lower anchorages and
tethers for children
Child Restraint System anchors and how
are they related to child safety
T o prov ide a s imp le r a nd more practic able way to a ttach the child
restraint on the vehicle seat, Federal regulat ions require special
lowe r anch orages in ve hicl es and devi ces on new ch ild rest rain ts to
attac h to the veh icle anchorages.
Th e combination of the tether anchorages and the lower anchorages
is now gene rally called the
LATCH sys tem fo r "Lowe r Anch orages and
T ethers for Children ."
Forw ard -fa cing child res train ts manuf actured aft e r September 1,
1999, are required by U.S. federa l regu lat ions to comp ly with new
c hild head moveme nt performan ce requirements. These new per for -
~

mance requirements make a tether necessary on most new ch ild
seats.
Installing a child restra int that requires a top tether w ithout one can
seriously impair the performance of the chi ld restrai nt and its ability
to prote ct the child in a collision. Insta lling a child restraint tha t
requires a top tether without the top tether may be a violation of
state law.
Child restraint manufacturers offer LATCH lower anchorages on the ir
child seats with hook -on or push-on connectors attached to adjust­
able straps .
In addition to the LATCH lower anchorages, these child restraint
systems usually require the use of tet he r straps to he lp keep the child
restra int firm ly in place.
& WARNING
Improper installation of child restraints will increase the risk of
injury and death in a crash.
• Always follow the instructions provided by the manufacturer
of the child restraint you intend to install in your vehicle.
• Never install a child restraint without a properly attached top
tether strap if the child restraint manufacturer 's instructions
require the top tether strap to be used.
• Improper use of child restraint LATCH lower anchorage points
can lead to injury in a collision . The LATCH lower anchorage points
are designed to withstand only those loads imposed by correctly
fitted child restraints .
• Never mount two child restraint systems on one LATCH lower
anchorage point .
• Never secure or attach any luggage or other item to the LATCH
lower anchorages .
Safety first Vehicle OP-eration
Child Safety
(I) Tips
• In Canada, the terms "top tether" with "lower universal anchor­
ages" (or " lower universal anchorage bars") are used to describe the
system.
• In other countries, the term "ISO FIX" is used to descr ibe the lower
anchorages. •
Location
Fig. 148 Schematic
overview: LATCH
a nchorage point loca­
tions
Th e illustrat io n shows the seat ing locat ions in your vehicle whic h are
equipped with the lower anchorages system. •
Vehicle care Do-it-yourselt service iTechnical data

___ C_h _i_ld _ S_ a_ f_ e_ t_,, y'-----------------------------------------------

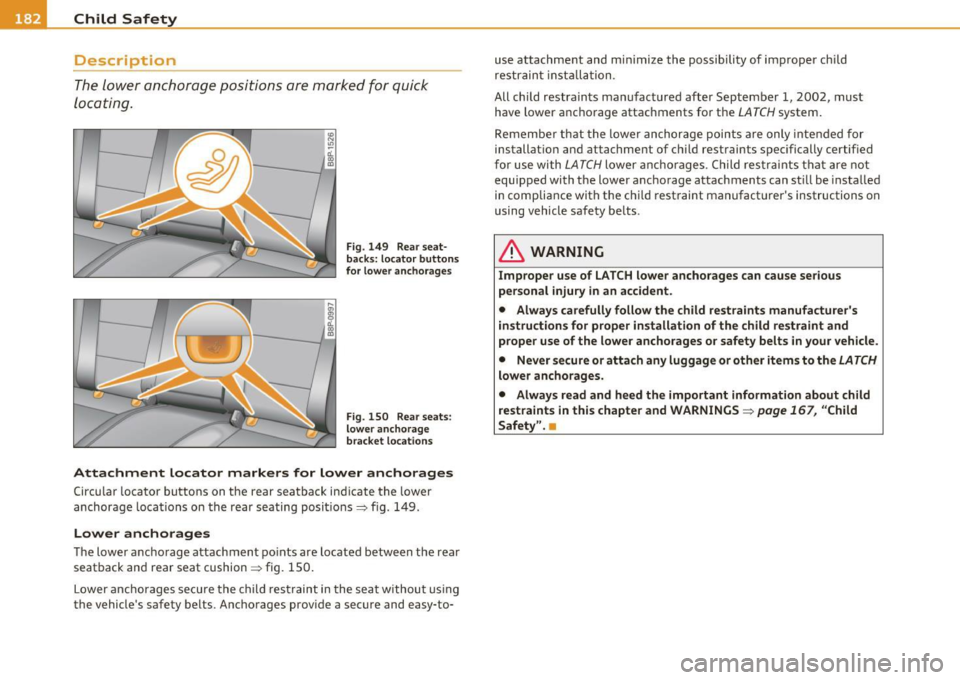

Description
The lower anchorage positions are marked for quick
locating.
Fig. 149 Rear seat­
backs: locator buttons
fo r lower anchorages
Fig . 150 Rear seats:
lower anchorage
bracket locations
Attachment locator markers for lower anchorages
Circu lar locator buttons on the rear seatback indicate the lower
anchorage locations on the rear seating positions:::;, fig. 149.
Lower anchorages
The lower anchorage attachment points are located between the rear
seatback and rear seat cushion:::;, fig . 150.
Lower anchorages secure the child restraint in the seat without us ing
the vehicle's safety belts. Anchorages prov ide a secure and easy-to- use attachme
nt and minimize the possibility of improper child
restrain t installat ion.
All ch ild restraints manufactured after September 1, 2002, must
have lower anchorage attachments for the
LATCH system.
Remember that the lower anchorage points are only intended for
installat ion and attachment of ch ild restraints specifically certif ied
for use with
LATCH lower anchorages . Child restraints that are not
equ ipped with the lower anchorage attachments can st ill be installed
in compliance with the ch ild restraint manufact urer's instructions on
using vehicle safety belts .
& WARNING
Improper use of LATCH lower anchorages can cause serious
per sonal injury in an accident.
• Always carefully follow the child restraints manufacturer 's
instructions for proper installation of the child restraint and
proper use of the lower anchorages or safety belts in your vehicle.
• Never secure or attach any luggage or other items to the
LATCH
lower anchorages.
• Always read and heed the important information about child
restraints in this chapter and WARNINGS :::;,
page 167, "Child
Safety". •

_____________________________________________ C _h_i_ld _ S_ a_ f_ e_ t ... Y'--- __
Installing a child restraint with LATCH
lower anchorages
Whenever you install a child restraint always follow the
child restraint manufacturer's instructions .
Mounting
Fig. 151 Lower
anchorages: proper
mounting
- Remove the cover* to access the lower anchorage attach ­
ment points.
- Make sure the seatback of the rear seat bench is in the
upright position and securely latched in place .
- Attach both hook-on connectors with the spring catch
release on the child safety seat onto the LATCH lower
anchorage so that the connectors lock into place
=> fig. 151.
-Pull on the connector attachments to make sure they are
properly attached to the LATCH lower anchorage.
- Pull straps tight following the child restraint manufac­
ture r's instructions.
Controls and equip­
ment Safety first Vehicle operation
Releasing
-
Loosen the tension on the straps following the child
restraint manufacturer's instructions.
- Depress the spring catches to release the anchorage hooks
from the lower anchorages .
Remember: Use tether straps to help keep the child restraint firmly
in place.
& WARNING
Improper use of the LATCH system can increase the risk of serious
personal injury and death in an accident.
• These anchors were developed only for child safety seats using
the "LATCH" system.
• Never attach other child safety seats, belts or other objects to
these anchors.
• Always make sure that you hear a click when latching the seat
in place. If you do not hear a click the seat is not secure and could
fly forward and hit the interior of the vehicle, or be ejected from
the vehicle.
& WARNING
Improper installation of child restraints will increase the risk of
injury in an accident.
• Always follow the child restraint system manufacturer's
instructions for proper installation of the child restraint system
and proper use of tether straps as well as the lower anchorages or
safety belts in your vehicle.
• Always read and heed the important information and WARN­
INGS about child safety and the installation of child restraint
systems =>
page 167, "Child Safety". •
Vehicle care Do-it-yourself service Technical data

___ C_h _i_ld _ S_ a_ f_ e_ t_,, y'-----------------------------------------------

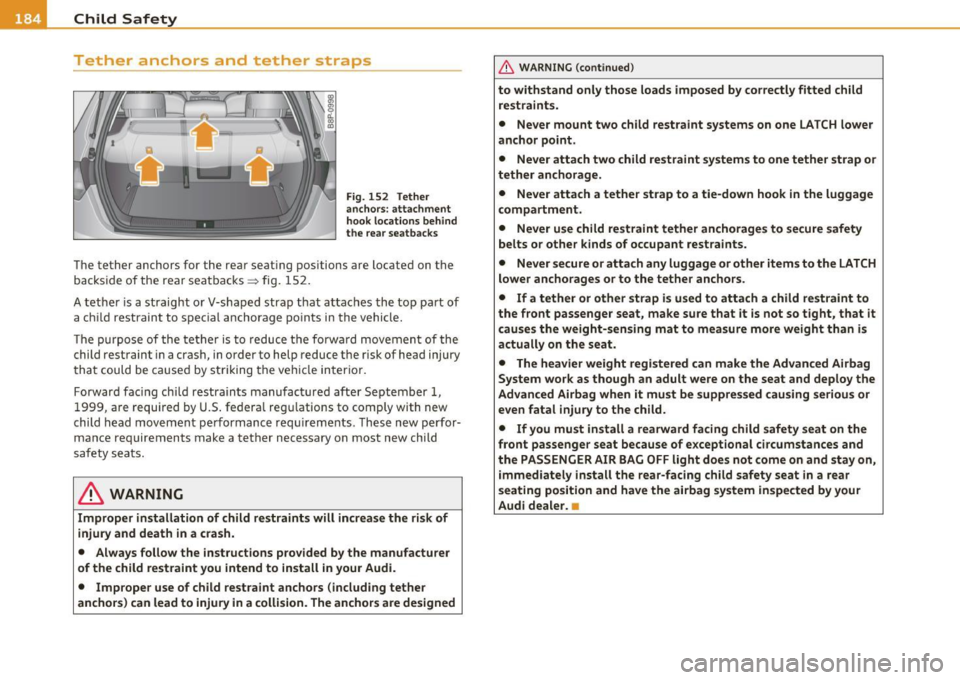

Tether anchors and tether straps
Fig . 152 Tether
an chors: a ttachment
ho ok locatio ns behind
t h e rea r seatba cks
The tether anchors for the rear seat ing pos itions are located on the
backside of the rear seat backs
=> fig. 152.
A tethe r is a st raight o r V-sha ped strap that a tta che s the to p pa rt of
a ch ild restraint to spec ial anchorage po ints in the vehicle .
T he pu rpose of the te the r is to reduce t he fo rw ar d m ovemen t of the
child restraint in a crash, in order to help reduce the risk of h ead injury
t ha t could be c ause d by st riking the ve hicle in terio r.
Forwar d fac ing chi ld re stra in ts manu fac tur ed after Sept em ber 1,
1 999, are requ ired by U.S . federa l reg ulations to comply with new
child head movem ent pe rformanc e req uirem ents. T h ese new p erf or­
mance requirements make a tether necessary on most new chi ld
saf ety seats.
& WARNING
Improper installation of child restraints will increase the risk of
injury and death in a crash.
• Always follow the instructions provided by the manufacturer
of the child restraint you intend to install in your Audi.
• Improper use of child restraint anchors (including tether
anchor s) can lead to injury in a collision. The anchors are designed
& WARNING (co ntinued )
to withstand only those loads imposed by correctly fitted child
restraint s.
• Never mount two child restraint systems on one LATCH lower
anchor po int .
• Never attach two child restraint systems to one tether strap or
tether anchorage.
• Never attach a tether strap to a tie-down hook in the luggage
compartment.
• Never use child restraint tether anchorages to secure safety
belts or other kinds of occupant restraints.
• Never secure or attach any luggage or other items to the LATCH
lower anchorages or to the tether anchors .
• If a tether or other strap is used to attach a child restraint to
the front passenger seat, make sure that it is not so tight, that it
causes the weight-sensing mat to measure more weight than is
actually on the seat .
• The heavier weight registered can make the Advanced Airbag
System work as though an adult were on the seat and deploy the
Advanced Airbag when it must be suppressed causing serious or
even fatal injury to the child.
• If you must install a rearward facing child safety seat on the
front passenger seat because of exceptional circumstances and
the PASSENGER AIR BAG OFF light does not come on and stay on,
i mmediately install the rear-facing child safety seat in a rear
seating position and have the airbag system inspected by your
Audi dealer. •

Installing the upper tether strap on the
anchorage
Installing the tether strap
Fig. 153 Tether strap:
proper routing and
mounting
Fig. 154 Tether strap:
proper routing and
mounting
- Release or deploy the tether strap on the child restraint
according to the child restraint manufacturer's instruc­
tions .
- Guide the upper tether strap
under the rear head restraint
and into the rear cargo area=> fig. 154 (raise the head
restraint if necessary).
- Slide the tether strap hook over the anchor bracket.
Safety first Vehicle OP-eration
Child Safety
-Pull on the tether strap hook so that the spring catch of
the hook engages .
- Tighten the tether strap firmly following the chi ld
restraint manufacturer's instructions.
Releasing the tether strap
- Loosen the tension following the child restraint manufac ­
turer's instructions.
- Depress the spring catch on the hook and release it from
the anchorage.
0 Note
If you leave the child restraint with the tether strap firmly installed
for several days, this could leave a mark on the upholstery on the seat
cush ion and backrest in the area where the tether strap was installed.
Th e upholstery would also be permanent ly stretched around the
tether strap. This applies especially to leather seats.•
Using tether straps on rearward-facing
child restraints
Currently, few rear-facing child restraint systems come w ith a tether.
Please read and heed the child rest raint system manufacturer's
instructions carefully to determine how to properly install the tether.
& WARNING
A child in a rearward-facing child safety seat installed on the front
passenger seat will be seriously injured and can be killed if the
front airbag inflates· even with an Advanced Airbag System.
• The inflating airbag will hit the child safety seat or infant
carrier with great force and will smash the child safety seat and
child against the backrest, center armrest, or door. ,-
Vehicle care Do-it-yourselt service Technical data

•L_---=C:..:h..:.. i:..: l .=d ~S=-= a..:..f .= e ~ty ~ --------------------------------------------

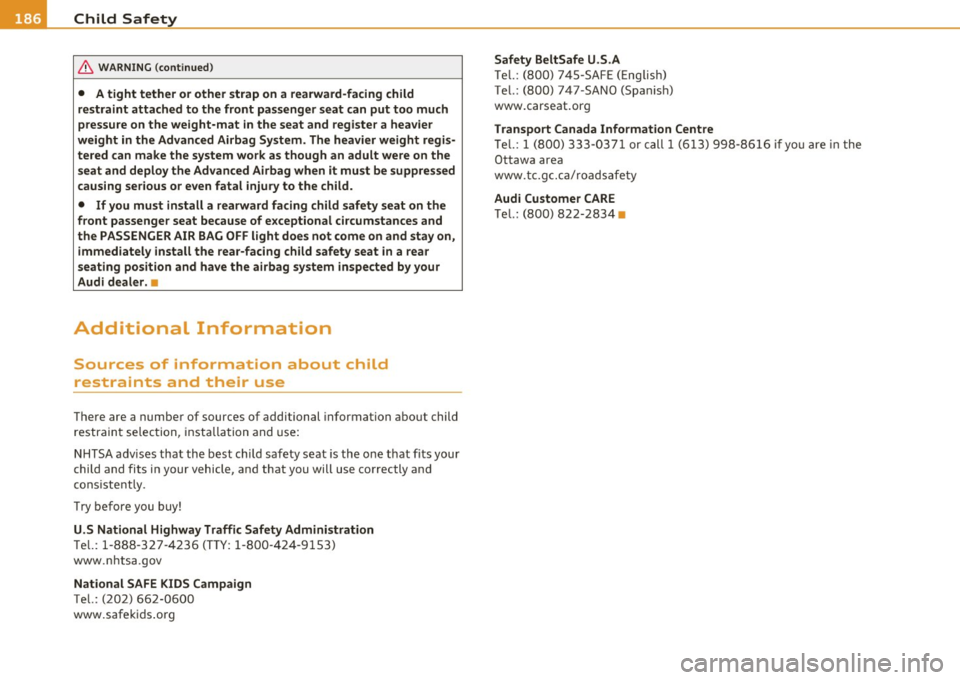

& WA RNING (conti nued)
• A tight tether or other strap on a rearward-facing child
restraint attached to the front passenger seat can put too much
pressure on the weight -mat in the seat and registe r a hea vier
weight in the Advanced Airbag System . The heavier w eight regis­
tered can make the system work as though an adult were on the
s eat and deploy the Advanced Airbag when it mu st be suppressed
causing se rious or e ven fatal injury to the child.
• If you must install a rearward facing child safety seat on the
front p assenger seat because of e xceptional circumstances and
the PASSENGER AIR BAG OFF light does not come on and stay on,
immediately install the rear -facing child safety seat in a rea r
s eating position and have the airbag system inspected by your
Audi dealer. •
Additional Information
Sources of information about child
restraints and the ir use
There are a number of sources of additional information abo ut child
restrain t selec tion, insta llation and use:
NHTSA adv ises that the best chi ld safety seat is the o ne that fits you r
child and fits in your vehicle, and that you will use correctly and
c ons iste ntly .
Try before you buy !
U.S National Highway Traffic Safety Administration
T e l. : 1-888-327 -4236 (T TY: 1-800 -424 -9 153)
www.n htsa.gov
National SAFE KIDS Campaign
Tel. : (202) 662-0600
www.safekids .org
Safety BeltSafe U.S.A
T e l. : ( 800 ) 74 5-SAF E (E ng lish)
Tel.: (800) 747 -SANO (Spa nish)
www.carseat .or g
Transport Canada Information Centre
Te l. : 1 (800) 333-0371 or call 1 (6 13) 998 -8 6 16 if yo u are in t he
Ottawa area
www. tc.gc.ca/ro ads afety
Audi Customer CARE
T el.: (800) 822-2834 •

___________________________________________ C_ h_il _d _ S_a _f _e _t =c,. y __ l!'II
Controls and equip­
ment Safety first Vehicle operation
Vehicle care Do-it-yourself service Technical data

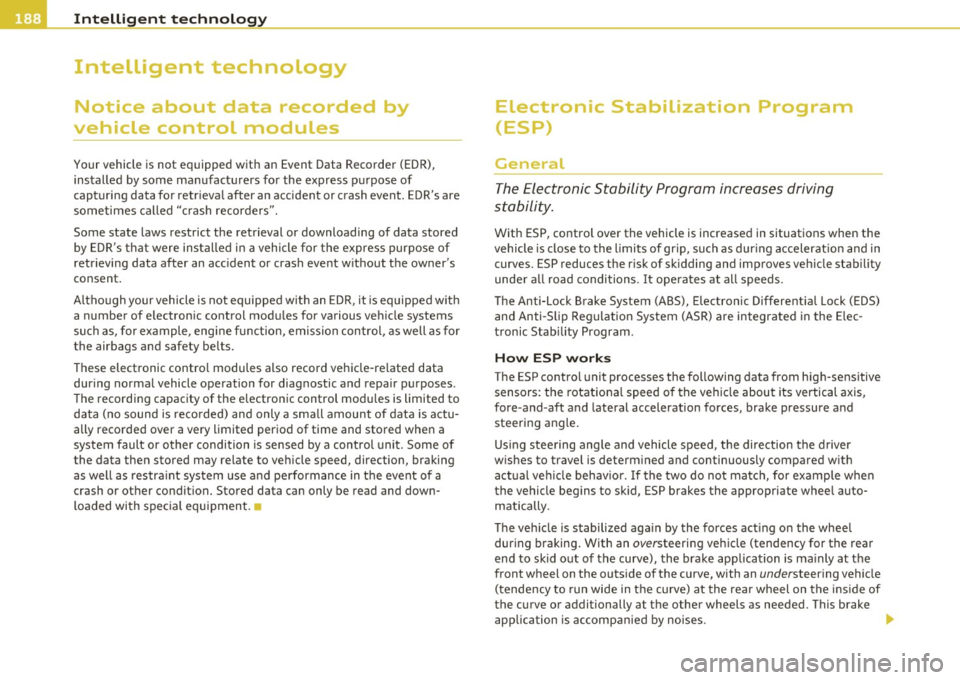

Intelligent technology
'-----------------------------------------------
Intelligent technology
Notice about data recorded by
vehicle control modules
Your vehicle is not equipped with an Event Data Recorder (EDR),
installed by some manufacturers for the express purpose of
capturing data for retrieva l after an accident or crash event. ED R's are
sometimes called "crash recorders".
Some state laws restrict the retrieval or downloading of data stored
by ED R's that were installed in a vehicle for the express purpose of
retrieving data after an accident or crash event without the owner's
consent.
Although your vehicle is not equipped with an EDR, it is equipped w ith
a number of electronic control modu les for various vehicle systems
such as, for example, engine function, emission control, as well as for
the airbags and safety belts.
T hese electronic contro l modules also record vehicle-re lated data
during normal vehicle operation for diagnostic and repair purposes .
Th e recording capacity of the e lectronic control modu les is limited to
data (no sound is recorded) and only a sma ll amount of data is actu­
ally recorded over a very limited period of time and stored when a
system fault or other condition is sensed by a control unit. Some of
the data then stored may relate to vehicle speed, direction, braking
as well as restraint system use and performance in the event of a
crash or other condition. Stored data can only be read and down­
loaded with special equipment.
Electronic Stabilization Program
(ESP)
General
The Electronic Stability Program increases driving
stability .
With ESP, contro l over the vehicle is increased in situations when the
vehicle is close to the limits of grip, such as dur ing accelerat ion and in
curves. ESP reduces the risk of sk idding and improves vehicle stability
unde r all road conditions.
It operates at all speeds.
The Anti-Lock Brake System (ABS), Electronic Differential Lock (EDS) and Anti-Slip Regulation System (ASR) are integrated in the Elec­
tronic Stability Program .
How ESP works
The ESP control unit processes the following data from high-sensitive
sensors: the rotationa l speed of the vehicle about its vertical axis,
fore-and -aft and lateral acceleration forces, brake pressure and
steering angle .
Us ing stee ring ang le and vehicle speed, the direction the driver
wishes to travel is determined and continuously compared with
actual vehicle behavior. If the two do not match, for example when
the vehicle beg ins to skid, ESP brakes the appropriate whee l auto­
matically.
The vehicle is stabilized aga in by the forces act ing on the whee l
during braking. With an oversteering veh icle (tendency for the rear
end to skid out of the curve), the brake app lication is mainly at the
front wheel on the outside of the curve, with an understeering vehicle
(tendency to run wide in the curve) at the rear wheel on the insid e of
the curve or additionally at the other wheels as needed. This brake
application is accompanied by noises. _,
