Unlocking/locking w ith the key
In the event that the power locking system fails,
the driver's door can locked and unlocked using
the door lock.
F ig . 23 Driver 's door: door lock
a, 0 0 0 :> Q) a,
• To unlock the driver's door, turn the key to the
open position
® ·
• To lock the driver's door, move the selector lev
er to the P position and turn the key once to the
close posit ion
@ .
The settings in the MMI specify if the entire vehi
cle or one of the doors is unlocked when unlock ing the vehicle
c:::> page 39.
A WARNING
Read and follow all WARNINGS c:::> .& in Key
set on page 35
(D Tips
For information on additional remote control
key or convenience key functions, refer to
c:::> page 43, Convenience opening/closing .
Central locking switch
Fig. 24 Driver's door : central lock ing switch
Open ing and closing
• To lock the vehicle, press the @] button c:::> _&..
• To unlock the vehicle, press the [fil button
c:::> fig. 24.
When locking the vehicle with the central locking
switch, the following applies:
- Opening the door and the luggage compart
ment lid from the
outside is not possible (for
security such as when stopped at a light).
- The LED in the central locking switch turns on
when all doors are closed and locked .
- Front doors: you can open the doors individual
ly from the inside by pulling the door handle.
- Rear doors: pu ll on the door hand le
once to un
lock the door. Pull on the door handle
again to
open the door .
- In the event of a crash with a irbag deployment ,
the doors unlock automat ically to allow access
to the vehicle.
_&. WARNING
-The power locking switch works with the ig
nition off and automatically locks the entire
vehicle when the
1§) button is pressed.
- The central locking switch is inoperative
when the vehicle is locked from the outside.
- Locked doors make it more difficult for
emergency workers to get into the vehicle,
which puts lives at risk. Do not leave anyone
behind in the vehicle, especially children.
(D Tips
Your vehicle will lock automatically at a speed
of 9 mph (15 km/h)
c:::> page 35. You can un
l ock the vehicle again using the central lock
ing opening function.
Setting central locking
App lies to vehicles: wit h drive r info rmatio n system
Various settings can be adjusted in the MMI:
Adjusting door unlocking
You can determine which doors should unlock
when opening the vehicle.
39
Page 42 of 328
Opening and closin g
"'Se lect : the IMENU ! button> Car> Syste m s*
contro l button > V ehicl e settin gs > Central
loc king > Door unlock ing.
Select ing All and pressing the~ button on the
remote control key un locks the entire vehicle .
I f you select
Dri ver and then press the~ button
on the remote contro l key , o nl y the drive r's door
will unlo ck. In veh icles w ith a convenience key,
only the front door whose handle you pull will
un lock . If you pr ess the ~ button twic e, the en
tire veh icle w ill unlock. If you press the~ button,
the entire vehicle w ill always lo ck.
F olding * th e ex ter ior m irrors
"'Se lect : the IMENU ! button> Car > Sy stem s*
contro l button > Ve hicl e s ett ing s > Central
lo ck ing > Fold m irro rs.
For more information,
refer to
c> page 50, Adjusting the exterior
mirrors.
If you select On , the exter ior mirrors wi ll fold in
automatically when you press the~ button on
the remote control key <=>
page 50.
T on e wh en locking
"' Se lect : the IMENU ! button> Car> S yst em s*
contro l button > V ehicl e sett ing s > Ce ntral
loc king > Tone wh en lo cking.
When checked off./, a tone will sou nd when you
lock the vehicle .
I f you press the~ button twice , the entire veh i
cle will lock. There is a locking to ne at the same
time
1l.
Electronic immobilizer
The immobilizer prevents unauthorized use of
your vehicle.
A microch ip in the key automat ically deactivates
the electronic immob ilizer when the key is locat
ed in the vehicle. If yo u remove the key from the
ve hicle, the electro nic immobilize r activates
again a utomat ica lly.
l) Th is fun ction is not a vail able in al l co un tries.
40
A WARNING ,_ -
A lways take the key w ith you whenever you
leave your veh icle. The electronic immobilizer
can be deactivated with the key, so this could make it possible for unauthorized persons to
start the engine and operate vehi cle systems
such as the power windows or sun roof. This
can increase the ris k of serious injury .
(D Tips
-The veh icle cannot be started if an unau
tho rized key is used. It may not be possib le
to start the veh icle unde r ce rtain c ircum
stances, for examp le if there is ano ther ra
dio module like the key from another vehi
cle or a transponder on the same keychai n.
- For an exp lanation on conformity w ith the
FCC regulations in the Un ited States and the
Industry Canada regulations, refer to
<=> page 309.
Safety central locking
App lies to vehicles : wit h safety cent ra l locking
Sa fety central locking provides the possib ility , to
only un lock the dr iver 's door and the fuel filler
door . The rest of the vehicle remains locked .
Unlocking the driver's door and the fuel filler
doo r
"' Press the remote control key or convenience
key
[§il button once or turn the key once in the
open ing d irection .
Unlocking all doors , the luggag e
compartment lid and th e fu el filler door
"' Press the remote control key or convenience
key
[§il button twice within five seconds or turn
the key
twice w ithin five seconds in the opening
di rect ion.
When unlock ing just the driver 's door, the a nti
theft alarm system* is also immediately deacti
vated .
In veh icles with an MMI, you can directly adjust
the safety central locking
c> page 39 .
Page 43 of 328
.... N
0 > CX)
rl I.Cl U"I
rl I.Cl ....
Front passenger's door and rear doors
emergency locking
All doors must be locked separately if the power
locking system fails .
Fig. 25 Em erge ncy doo r loc kin g
The driver's door can be locked using the door
lock cylinder
c:> page 39.
,.,
6
i
The emergency lock on the other doors is located
on the side of the front passenger's and rear
doors. It is only visible when the door is open.
~ Pull the cover cap out of the opening .
~ Insert the key bit in the slot inside and turn the
key all the way to the right (right door) or left
(left door).
Once the door has been closed, it can no longer
be opened from the outside. The door can be un
locked and opened from the inside by pulling the
door handle once.
If the child safety lock on the rear doors is act i
vated, pull the inner door handle first. Then you
can open the door from the outside.
Open ing and closing
Luggage compartment
lid
Opening and closing the luggage
compartment lid
Fig. 26 Luggage compar tme nt lid: opening (hand le)
Fig. 27 Luggage compar tme nt lid/hand le (example): clos
ing
Opening the luggage compartment lid
~ Press and hold the l.:::1 1 button on the remote
control key for at least one second, or
~ Push the handle in the luggage compartment
lid
c:> fig . 26, or
~ Pull the ~ button* in the driver's door@
r=!)page 8, fig . 1.
Closing the luggage compartment lid
~ Use the inside grip to pull the luggage com
partment lid down and allow it to drop gently
to close it
c:> fig . 2 7 c:> £ .
.&_ WARNING
-After closing the luggage compartment lid,
make sure that it is latched. Otherwise the
luggage compartment lid could suddenly
open when driv ing, which increases the risk
of an accident.
.
41
Page 44 of 328
Opening and clo sin g
- Never drive with the luggage compartment
lid ajar or open, because poisonous gases
can enter the vehicle interior and create the
risk of asphyxiation .
- Never leave your vehicle unattended when
the luggage compartment lid is open. A
child could climb into the vehicle thro ugh
the luggage compartment. If the luggage
compartment lid was then closed, the child
would be trapped in the vehicle and unable
to es cape. To reduce the risk of inju ry, do
not allow ch ildre n to p lay in or around the
vehicle. A lways keep the luggage compart
ment lid and the doors closed when the ve
hicle is not in use.
- Always make sure no one is in the luggage
compartment lid's range of motion when it
is closing, especially near the h inges. Fin
gers or hands could be pinched .
(D Tips
-When the vehicle is locked, the luggage
compartment lid can be unlocked separately by p ressing the
l.::s l button on the remote
control key. The luggage compartment lid l ocks automatically when it is closed again .
- In case of an emergency or a faulty handle,
the luggage compartment lid can be opened
from the inside
o page 42 .
luggage compartment lid emergency
release
The luggage compartment lid can be released in
an emergency from the inside.
-
F ig. 28 (A3 Spor tback) L uggage co mpa rtment open ing: ac
cess to emergency re lease
42
To reach the emergency release mechanism, the
rear bench seat backrest must be folded down.
o page 65
Emergency release (A3 Sportback )
.. Pry off the cove r using the key bi t on the
opened ve hicl e
key
.. Insert the key in the opening behind the cover
@ and pull the key in the direction of the arrow
until the lock re leases.
Child safety lock
Child safety lock
Applies to vehicles: with mechanical child safety lock
The child safety locks t prevent the rear doors
from opening from the inside.
Fi g. 29 Rea r doo rs : ch ild sa fety lock
.. To t urn the ch ild safety locks on , tu rn the igni
tion key in the direction of the ar row.
.. To turn
off , turn the ignition key opposite the
direct ion of t he arrow.
When the child safety locks are activated, the in
s ide door handles do not work and the doors can
on ly be opened from the outside.
The child sa fety lock only func tions on the door in
which it was activated.
Page 45 of 328
.... N
0 > CX)
rl I.Cl U"I
rl I.Cl ....
Power windows
Controls
The driver can control all power windows.
Fig. 30 Driver 's doo r: powe r w in dow contro ls
All power window sw itches h ave a two- stage
function :
Opening the windows
,-. N M 0
:::i co co
• Press the switch to the first level and hold it
u nti l the w indow reaches the desire d position .
• Press t he swi tch b riefly to the
second stop to
au toma tically open the window.
Closing the windows
• Pull the swi tch up to the first lev el and hold it
u ntil the w indow reaches the desired position .
• Pull the swi tch b rief ly to the
s econd stop to au-
tomat ically close the window.
Power window switches
(D Left front doo r
@ Righ t fr ont door
@ Left rear door
© Right rear door
® Safety bu tton
Child safety lock
When the safety button ® is p ressed, the~
s ymbol in t he button t urns on. The power win
dow switc hes in the re ar doors a re swi tched off.
A WARNING
-Always re move the ign it io n key whe n you
leave yo ur vehicle, eve n for a short period of
t ime. This app lies part icu larly when children
remain in the vehicle. Otherwise the c hil-
Open ing and closing
dren cou ld start the e ngine o r operate elec
tr ica l equipment such as power windows.
The power windows cont inue to funct io n un
til the driver's door or fron t passenger's
door has bee n opened.
- Pay careful attention when closi ng the w in
dows. It co uld cause injury by p inch ing .
- When locking the vehicle from outside, the
ve hicle must be unoccup ied si nce the win
dows can no longe r be o pened in an emer
gency.
@ Tips
A fter tu rning the ignition off you can st ill
open and close the windows for approximate
ly 10 seconds. The power windows are not
sw itched off unti l the drive r's doo r or front
passe nger 's doo r has been opened.
Convenience opening /closing
Wi th the convenience ope ning/closing func tion,
yo u ca n cen tral ly and easily open the windows
and the panorama sun roof * from the outs ide.
Convenience opening
• Press the open button [fil] on t he remote cont rol
key u ntil all wind ows and the pa norama sun
roof* have reached the desired pos ition, o r
• Ho ld the key in the dr iver's door lo ck until a ll
windows and the panorama s unroof* have
reached t he des ired position.
Convenience closing
• Ho ld the key in the dr iver's door lo ck in the lock
position unt il a ll w in dows an d t he panor am a
sunroof* a re closed .
Convenience closing with the convenience
key*
• Touch the sen so r* on o ne of the front door han
d les and co nti nu e touching it until all of the
windows and the panorama s unroof* are
closed . Do not place you r hand in the door han
dle when do ing th is .
43
Page 46 of 328
Opening and clo sin g
Adju st ing the con venien ce op en ing in the
MMI
.. Select: the I MENU ! button >Car > Sys tems*
control button > Vehicle sett ings > Central
l oc king > Lo ng -p res s to open w indows
To enable convenience opening of the w indows
and the roof*, the
front wind ow , rea r wind ow *
and roof * functions must be switched on.
A WARNING
-Never close the windows or panorama sun
roof* careless ly or in an uncontrolled man
ner, because this increases the risk of injury .
- For security reasons, the windows can only
be opened with the remote control key at a
maximum d istance of approximately 6 feet
(2 mete rs) from the vehicle.
- Pay attention when using the lock cylinder
to close the windows and the panorama
s u nroof* so that no one is pinched. Closing
stops when the key is moved into the start
ing position .
Correcting power window malfunctions
-
After disconnecting the vehicle battery, the one
touch up and down feature must be activated
again.
.. Pull the power window sw itch until the w indow
is comp letely raised.
... Release the sw itch and pull it agai n for at least
one second.
Panorama roof
Description
App lies to veh icles : with panoramic sunroof
Fig . 3 1 Sect ion of head liner: panorama glass roof butto n
44
The button has two stages . In the second stage,
the roof automatically runs to the end position
(open/closed) when the button is operated brief
ly. The movement can be stopped by pressing the
button.
@ Tilting and sliding
.. To tilt the sunroof completely, press the switch
briefly to the second level.
.. To close the roof completely, pull the button
down briefly to the second level or s lide the
button forward briefly to the second level
Q &_.
.. To select an intermediate position, press/pu ll
the switch in the first level until the desired po
sition is reached .
@ Opening and closing
.. To open the sunroof completely, slide the but
ton back to just befo re the second level.
.. To close the roof complete ly, push the button
forward b riefly to the second leve l or pull the
button down briefly to the second leve l¢ ,& .
.. To sele ct an intermediate posit ion, p ress/pu ll
the switch forward/back in the first level until
the desired position is reached.
A wind def lector integrated in the panorama sun
roof adapts automatically to the sunroof posi
tion. Th is reduces wind noise to a minimum in all
panorama s unroof positions.
You can sti ll operate the panorama sunroof for
about 10 minutes after the ignit ion is switched
off. The switch is deactivated once the driver's or
front passenger's door is opened.
Sun blind
The sun shade can be opened and closed manual
l y, depending on the position of the panorama
sunroof. The sun s hade can be opened partially.
A WARNING
Be caref ul when closing the panoramic sun
roof - otherwise serious injury could result! Al
ways take the ignition key with you when leav-
-
ing the veh icle. ti,.
Page 47 of 328
,....,
N
0 > co ,....,
Always close your panoramic sunroof when leaving your vehicle. Sudden rain can cause
damage to the interior equipment of your ve
hicle, particularly the electronic equ ipment.
- For information about convenience open
i ng/closing, refer to¢
page 43.
-The panorama sunroof can only be opened
when the temperature is warmer than -4°F
(-20 °().
Panorama sunroof emergency closing
App lies to vehicles: with panoramic sunroof
If the panorama sunroof detects resistance or an
object in its path while closing, the sunroof will
open aga in automat ically . If the sunroof fails to
close after remov ing the object and after t rying
to close a second t ime, you can perfo rm an emer
gency clos ing.
~ Within five seconds after the sunroof opens au
tomat ica lly, pull the switch unt il the roof
closes .
If you let go of the sw itch early, the panorama
sunroof will open aga in.
Op ening and cl osing
45
Page 48 of 328
Lights and Vision
Lights and Vision
Exterior lighting
Switching lights on and off
Fig. 32 Instrument pa nel: lig ht sw it c h (ex am ple)
I
The headlights only work when the ignition is
sw itched on . The headlights turn off automati
cally when the engine is switched on or when the
ignit ion is switched off . Only the side-marker
lights stay on .
A warning symbol w ill appear in the driver infor
mat ion disp lay if the system is not functioning
correctly ¢page 25.
Light switch ·f!-·
Turn the switch¢ fig. 32 to the corresponding
posi tion . When the ligh ts are sw itched on, the re
spective symbol turns on .
O -lights off . In som e countr ies, th e day tim e
r unning lights * are turned on and off together
with the ign ition.
- USA mode ls: the daytime running lights switch
on automatically when th e ignition is switched
on and the light switch ¢ fig. 32 is set to the
0
or the AUTO position (only in daylight) . The
Daytime runn ing lights can be switched on and
off in the MMI ¢ page 48 ¢
,&..
-Canad a models : the daytime runni ng lights
switch on automatically when the ignit ion is
switched on and the light switch¢ fig . 32 is in
the
O pos it ion, :oo~ or the AUTO position (only in
daylight)
~ ,&. .
AU TO* -automatic headlights switch o n and off
dependi ng on br igh tness, for example in tw ilight,
du ring ra in or in tunne ls. In veh icles with inte
g ra ted day time r unning lights*, ei ther the day-
46
time runn ing lights or the headlights will turn on
automatica lly, depending on the amount of light
(may vary depending on the country) .
;oo~ -Par king light
iD -low beam headlig hts
The following w ill happen in these light switch
pos itions when you lock the vehicle:
- io -Low beam headlight: the entire exterior
lighting is switched off
- AU TO* : the Coming home* f unction is turned
on ¢page48
Fog lights* /rear fog light (s )
Press the cor respondi ng b utton ¢fig. 32:
~0 -Front fog ligh ts* (not pictured) . This b utton
r ep laces the b utton for all-weath er lights
"1io.
When the fog lig hts are sw itched on, the }0 sym
bo l in the b utton ill uminates.
0$ -Rear fog light(s) When the rear fog lights are
swi tched on, the
0$ symbo l in the b utton illumi
na tes.
All-weather lights*
apples to vehicles with L ED headlights .
Press the correspondi ng button
'wlD ~ fig . 32 on
the light switch :
'?IP -All-wea ther lights. The symbo l "1$D in the
button lights up when all-weather lights are
switched on .
In vehicles with all-wea ther lights , the front
li g ht s are adjusted automatically so that you are
l ess likely to see g lare from your own head lights,
for example when driving on a wet road.
Headlight range control system
The head light range adjusts a utom atically whe n
there is a change in vehicl e load and during brak
ing and acce lerating so that the headlights do
not cause g la re for oncoming traffic .
Audi adaptive light*
The adaptive light only functions when the ligh t
swi tch is in the AU TO pos it ion. Yo u can de activate
adaptive ligh t in the M MI
~ page 48. .,.
Page 49 of 328
.... N
0 > CX)
.... I.Cl U"I
.... I.Cl ....
When switched on, adaptive light adjusts to
curves depending on the vehicle speed and steering wheel angle. This provides better lighting
through the curve. The system operates in a
speed range from approximately 6 mph (10 km/
h) to 68 mph (110 km/h).
Static cornering light* (vehicles with adaptive
light) -the cornering light switches on automati
cally when the steering wheel is turned at acer
tain angle at speeds up to approximately 44 mph
(70 km/h) and when the turn signal is activated
at speeds up to approximately 25 mph (40 km/
h). The area to the side of the vehicle is illuminat
ed better when turning.
Speed dependent light distribution* -The speed
dependent light distribution adapts the light in
towns and on highways or expressways . Intersec
tions can also be illuminated on vehicles with a
navigation system* .
Highway light function*
(Vehicles with adaptive light or LED headlights) -
This function adapts the lighting for highway
driving based on vehicle speed .
& WARNING
-Automatic headlights* are only intended to
assist the driver. They do not relieve the
driver of responsibility to check the head
lights and to turn them on manually accord
ing to the current light and visibility condi
tions. For example, fog cannot be detected by the light sensors . So always switch on the
low beam under these weather conditions
and when driving in the dark
io.
-Accidents could occur if you cannot see the
road ahead of you well and if others on the
road cannot see you . Always switch your
headlightsonsothatyoucanseetheroad
ahead of you and others can see your vehicle
from behind.
- The rear fog lights should only be turned on
in accordance with traffic regulations, to
prevent glare for traffic behind your vehicle .
-If the battery has been discharging for a
while, the parking lights may switch off au
tomatically to conserve the battery charge
Lights and Vision
for the next time the engine is started. Al·
ways make sure your vehicle complies with
legal regulations regarding sufficient and
safe lighting when parking it. Avoid using
the parking lights for several hours.
- Please observe legal regulations when using
the lighting systems described .
@ Tips
-The light sensor for the automatic head
lights* is in the rearview mirror mount.
Therefore, do not place any stickers in this
area on the windshield.
- Some functions of the exterior lighting can
be adjusted
¢ page 48 .
-If you turn off the ignition while the exterior
lights are on and open the door, you will
hear a warning tone.
- In some market-specific versions, the tail
lights do not turn on when switching on the
daytime running lights .
- In cool or damp weather, the inside of the
headlights, turn signals and tail lights can
fog over due to the temperature difference
between the inside and outside. They will
clear shortly after switching them on. This
does not affect the service life of the light
ing.
- A message will appear in the instrument
cluster if there is a malfunction in the light
sensor
¢ page 25.

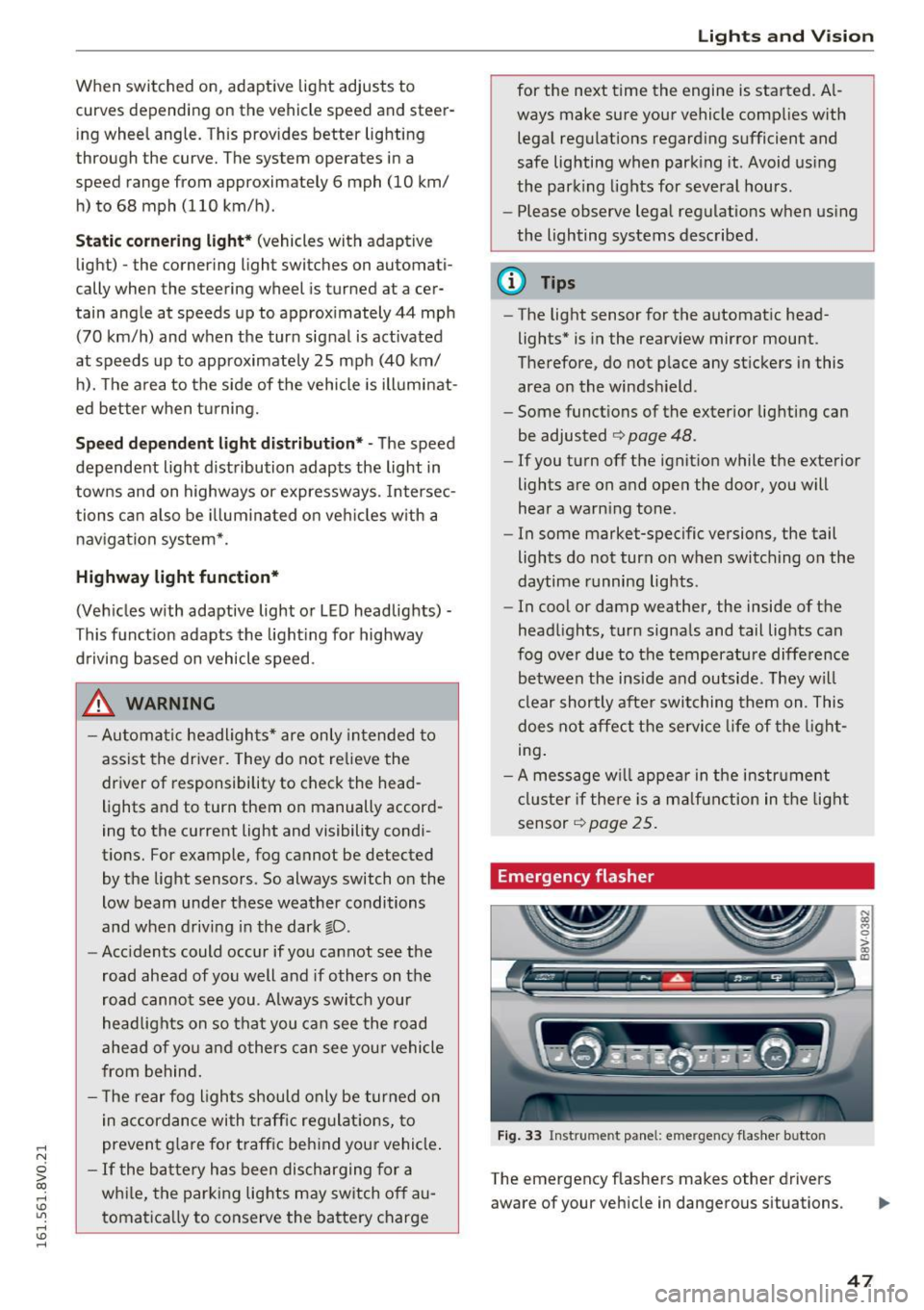

Emergency flasher
Fig. 33 Inst rume nt panel: e merge ncy flasher butto n
The emergency flashers makes other drivers
aware of your vehicle in dangerous situations .
N Cl) M 0
> Cl) (0
47
Page 50 of 328
Lights and Vision
.,. Press the~ button to switch the emergency
flashers on or off.
You can indicate a lane change or a turn whe n the
emergency f lashers are sw itched on by using the
turn signal lever. The emergency flashers stop
temporarily .
The emergency flashers also work when the igni
tion is turned off.
(0, Tips
You s hou ld sw itch the emergency flashers on
if:
- You are the last car in a traff ic jam so that
a ll other vehicles appro ach ing from be hind
can see yo u, or if
- You r vehicle has bro ke n down or you are
having an eme rgency, or if
- Y our vehicle is being towed or if you a re
tow ing another vehicle .
Turn signal and high beam lever
The lever operates the turn signals, the high
beams and the headlight fla sher.
F ig. 34 Turn signal and h igh bea m lever
Tu rn signal s¢¢
N
0
.... 9 ::i:
;ii
The turn signals activate when you move the lev
er into a turn signal position when the ignition is
sw itched on.
(D -Turn signal
@ -Turn signal
The turn signal blinks three times if you tap the
lever (conven ience turn s ignal).
48
High beams and headlight flasher [D
Move the lever to the corresponding position:
@ -high beams on
@-high beams off or headlight flasher
The
II i ndicator light in the instrument cl uster
turns on.
A WARNING
High beams can cause glare for other drivers,
which increases the risk of an accident. For
this reason, only use the high beams or the
headlight flasher when they will not create
gla re for othe r drive rs .
Adjusting the exterior lighting
The settings are adjusted in the MMI.
.,. Select : the I MENU I button > Car > Systems *
control button > Vehicle settings > Exte rior
light ing .
Automatic headlights
Yo u can adjust the following settings in the Au
tomati c headlights
menu:
Activation time -you can ad ju st if the headlights
swi tch on
Early , Medium or Late acco rd ing to t he
sensi tivity of the light sensor.
Audi adaptive light * -you can sw itch adaptive
li gh t
On an d Off .
Coming home, Leaving home*
The coming home f unction illuminates the area
outside the vehicle when you turn the ignition off
and open the driver 's door . To turn the function
o n, select
Lights when leaving car > On .
The leaving home illum inates the area outside
the ve hicle when you unlock the vehicle . To turn
the function on, se lec t
Lights when unlocking
car > On .
The coming home and leav ing home functions
o nl y operate when it is dark and the light sw itch
i s in the
AUTO pos ition . ..,.
