low oil pressure AUDI S4 2018 Owners Manual

Cockpit over view
Red indicator ligh ts
26
--------------
Central indicator light
¢page 25,
Aud i pre sense*
¢ page 120
USA model s:
Brake system ./
¢page28
Cana da m od els:
Brake system ./
¢ page28
USA models :
Electromechan ical parking brake
¢ page29
Canada models:
Electromechan ica l parking brake
¢page29
Cooling system
¢ page30
Engine oil pressure
¢ page 31
E ngine oil level
¢ page 31
Alter nator
¢ page30
Safety belt
¢page30
Electromechan ica l steering ./
¢page 150
Steering lock
¢ page 31
Engine start system
¢ page 31
Transmiss ion (automatic t ransm is ­
sion)
¢ page 96,
Clutch (manual transmission)
¢page32
Hood
¢ page32
Adapt ive cr uise control*./
¢ page 110
Traffic jam assist*
¢ page 116 Ad B
lue*
¢ page 319
Ad Bl ue*
¢ pag e 319
Yellow indi cator lights
--------------
Central indicator light
¢ page25
Electronic Stabi lization Control
( E SC)
¢ page32
Elec tronic Stab il izat io n Contro l
(ESC)
./
¢ page32
Electronic Stab ilizat ion Control
(ESC)
¢ page 147
Brake system
¢ page 33
USA models:
Ant i- lock braking system (ABS)./
¢ page32
Canad a model s:
Ant i-lock b raking system (ABS) ./
¢ page32
Safety systems ./
¢page32
USA mode ls:
Brake pads
¢ page33
Ca nad a model s:
Brake pads
¢ page 33
E lec tromechanical parking brake
¢ page29
Tire p ressure
¢ page352
Tire pressure
¢page 352
Engine contro l
¢page 33
Engine contro l (diesel engine)
¢ page 33

a co .... N ,....
N .... 0 0
3 co
charge. Drive to an authorized Audi dealer or au­
thorized Audi Service Facility immediate ly.
Do not stop the eng ine, or you will not be able to
start it aga in. If yo u can no longer sta rt the en­
gine, see an authorized A udi dealer or authorized
Audi Service Facility for assistance .
(•) Elec trical system : malfunction! Plea se c on­
tact Se rvic e
Drive to an authorized Aud i dea le r or authorized
Aud i Service Faci lity immediately . Because the ve­
h icle battery is discharg ing , turn off all unneces ­
sary e lectr ica l equipment s uch as the radio . See
an authorized Audi dealer or authorized A udi
Service Facility if the battery charge level is too
l ow .
(•) Ele ctrical system : low battery charge . B at­
tery w ill be charg ed while driv ing
The start ing ability may be impaired .
If th is message turns off after a little while, the
vehicle battery charged enough wh ile driving .
If the message does not turn off and stay off
when dr iving, have an authori zed Aud i dea ler or
author ized Audi Service Facility repair the mal­
function.
~ Engine oil pressure
• T u rn off engine . O il pr essure too low
Stop the eng ine and do no t continue driving.
Check the engine oil
level ¢ page 32 7.
-If the engine oil level is too low, add engine oil
¢ page 327. Only cont inue driv ing once the in­
dica tor light turns off.
- If the engine oil level is correct and the indica­
tor light sti ll turns on, turn the engine off and
do not continue driving. See an authori zed Audi
dealer or au thor ized Audi Service Facility for as­
s istance.
@ Tips
The oil pressure warning is not an o il level in­
dicator. Always check the oil level regularly.
Coc kpit o ve rv iew
~ Engine oil level (MIN)
• Plea se add oil imm ediatel y.
Add engine oil immediately ¢ page 327 .
Ill Please add ma x. x qt (l) oil. You can contin ·
ue d riv ing
Add the maximum amount o f oi l indicated in the
display as soon as possible
¢ page 32 7 .
@ -Steering lock
• Steering: m alfunction! Ple ase stop vehicle
T he re is a ma lfunction in the e lectronic steering
l ock. You cannot turn the ignition on.
Do
not tow your vehicle because it cannot be
stee red. See an authorized Audi dea ler or author­
ized Audi Se rvice Facili ty for assistance.
Em Ste ering lo ck : malfunct ion! Pl eas e contact
Ser vic e
There is a malfunction in the electron ic steering
lock.
Drive to an au thori zed Audi dealer or authori zed
Audi Service Facility immed iately to have the
malfunction corrected .
_& WARNING ,-
Do not tow your vehicle when there is a mal-
f u nction in the electro nic steer ing lock· t his
i n cr eases the risk of an a cc ident.
~ Engine start system
• Engine s tart sy stem: malfun ction! Ple ase
cont act S erv ice
Do not switch the ignition off because you may
not be able to switch it on again.
Drive to an authorized Audi dealer or authorized
Audi Se rvice Facility immed iately to have the
malfu nction corrected .
= Engine sta rt system: mal function! Ple ase
cont act S erv ice
-
There is a ma lf u nction in the engine starting sys-
tem.
~
31

Cockpit overview
!?i Engine speed limitation
(ill Maximum engine speed: XXXX rpm
The engine speed is automatically limited to the
speed displayed in the instrument cluster. This
protects the engine from overheating.
The engine speed limitation deactivates once the
engine is no longer in the critical temperature
range and you have released the accelerator ped­
al once.
If the engine speed limitation was activated by
an engine control malfunction, the
II indicator
light also turns on. Make sure the engine speed
does not go above the speed displayed, for exam­
ple when downshifting. Drive to an authorized
Audi dealer or authorized Audi Service Facility im­
mediately to have the malfunction corrected.
~ ;,,. Engine oil sensor
• Oil level system: malfunction! Please con­
tact Service
The sensor to check the engine oil level has
failed. Drive to an authorized Audi dealer or au­
thorized Audi Service Facility immediately to have
the malfunction corrected.
• Oil level sensor: oil change necessary. Please
contact Service
Fuel has entered the engine oil as a result of fre­
quent short drives. Avoid high engine speeds, full
acceleration and heavy engine loads. Drive to an
authorized Audi dealer or authorized Audi Service
Facility immediately to have the oil changed .
• Oil pressure sensor: malfunction! Please
contact Service
There is a malfunction in the oil pressure sensor.
Drive to an authorized Audi dealer or authorized
Audi Service Facility immediately to have the
malfunction corrected.
f Engine warm-up request
0 Please warm up engine
Fuel has entered the engine oil, either from low
outside temperatures or frequent short drives.
34
Drive until the engine is warm so that the fuel in
the engine oil will evaporate. Avoid high engine speeds, full accelerating and heavy engine loads
when doing this.
Eli) Tank system
ID Please refuel
If the indicator light turns on for the first time
and the message appears, there are about 2.1
gallons (8 liters) of fuel left in the tank.
(jg Please refuel immediately
If the indicator light turns on the message ap­
pears, the fuel tank is almost empty. Refuel the
vehicle immediately.
ID Tank system: malfunction! Please contact
Service
Th ere is a malfunction in the fuel tank system.
Drive to an authorized Audi dealer or authorized
Audi Service Facility immediately to have the
malfunction corrected.
{!) Tips
For more information on fueling, see
¢page 317 .
,_ Washer fluid level
m Please add washer fluid
Fill the washer fluid for the windshield washer
system and the headlight washer system* when
the ignition is switched
off¢ page 332.
· 1 Windshield wipers
II Windshield wipers: malfunction! Please con­
tact Service
There is a malfunction with the windshield wip­
ers.
Drive to an authorized Audi dealer or authorized
Audi Service Facility immediately to have the malfunction corrected.

a co .... N ,....
N .... 0 0
3 co
(D Note
Driving with an insufficient oil level is likely to
cause severe damage to the engine.
@ Tips
-The oil pressure warning display. is not
an indicator of the oil level. Do not rely on
it. Instead, check the oil level in your en­
gine at regular intervals, preferably each
time you refuel, and always before going
on a long trip.
-If you have the impression your engine con­
sumes excessive amounts of oil, we recom­
mend that you consult an authorized Audi
dealer to have the cause of your concern
properly diagnosed. Keep in mind that the
accurate measurement of oil consumption
requires great care and may take some
time. An authorized Audi dealer has instruc­
tions about how to measure oil consump­
tion accurately.

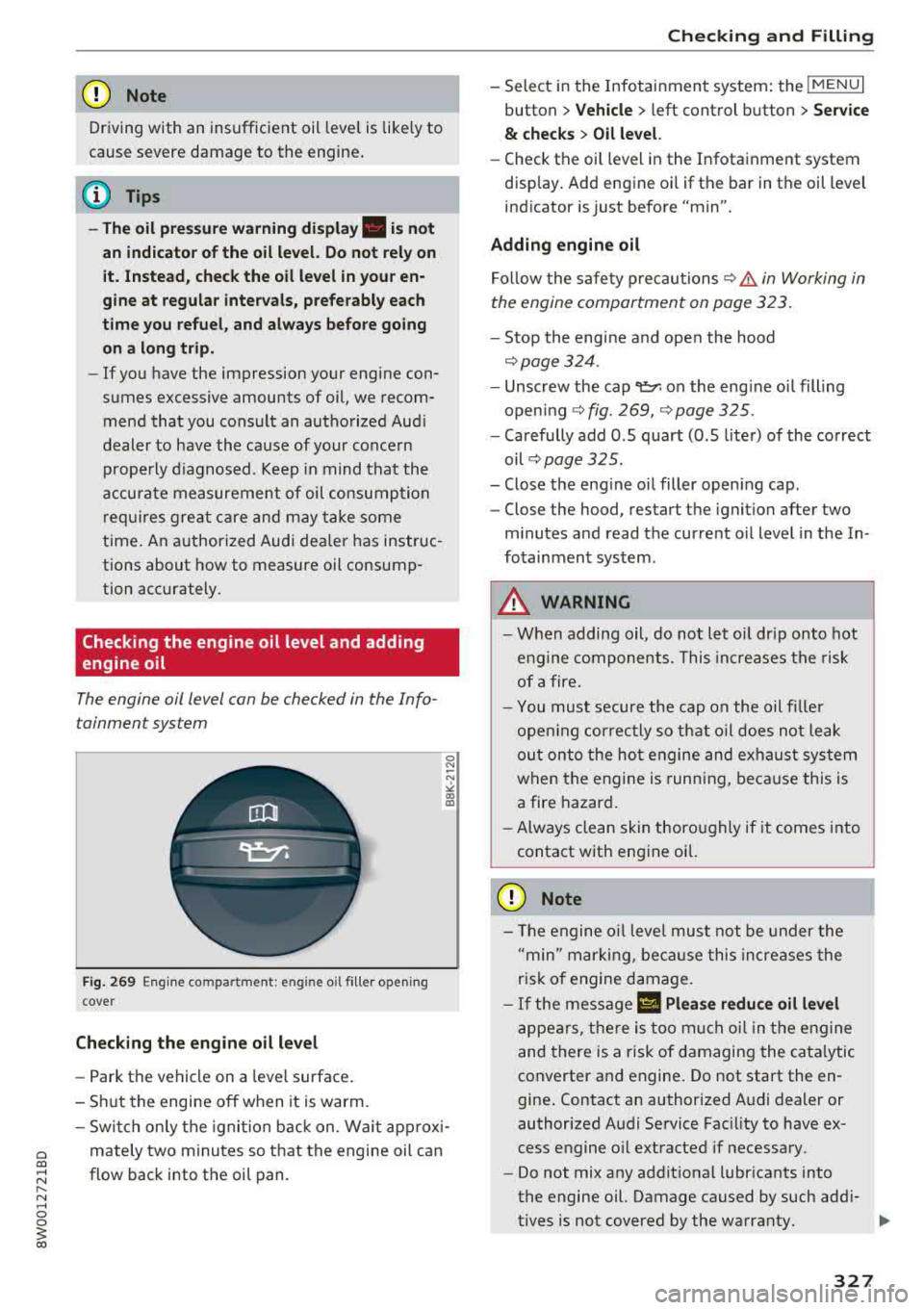

Checking the engine oil level and adding
engine oil
The engine oil level can be checked in the Info ­
tainment system
Fig. 269 Engine compa rtment: eng ine oil filler opening
cove r
Checking the engine oil level
- Park the vehicle on a level surface.
- Shut the engine off when it is warm.
0 N
-N
" 00 IX)
-Switch only the ignition back on. Wait approxi-
mately two minutes so that the engine oil can
flow back into the oil pan .
Checking and Filling
- Select in the Infotainment system: the !MENUI
button > Vehicle > left control button > Service
& checks > Oil level.
-Check the oil level in the Infotainment system
display. Add engine oil if the bar in the oil level
indicator is just before "min".
Adding engine oil Follow the safety precautions
~&. in Working in
the engine compartment on page 323.
- Stop the engine and open the hood
~page 324 .
-Unscrew the cap~ on the engine oil filling
opening
~ fig. 269, Qpage 325.
- Carefully add O .S quart (O .S liter) of the correct
oil
~ page 325.
- Close the engine oil filler opening cap.
- Close the hood, restart the ignition after two
minutes and read the current oil level in the In ­
fotainment system.
A WARNING ...__ --When adding oil, do not let oil drip onto hot
engine components. This increases the risk
of afire.
-You must secure the cap on the oil filler
opening correctly so that oil does not leak
out onto the hot engine and exhaust system
when the engine is running, because this is
a fire hazard.
-Always clean skin thoroughly if it comes into
contact with engine oil.
0 Note
- The engine oil level must not be under the
"min" marking, because this increases the
risk of engine damage.
- If the message II Please reduce oil level
appears, there is too much oil in the engine
and there is a risk of damaging the catalytic
converter and engine. Do not start the en­
gine. Contact an authorized Audi dealer or
authorized Audi Service Facility to have ex­
cess engine oil extracted if necessary.
- Do not mix any additional lubricants into
the engine oil. Damage caused by such addi-
tives is not covered by the warranty.
IJJ>
327

Checking and Filling
.,. Push the release button again and remove the
cap comp lete ly .
.,. Make sure that the fluid level rema ins stable.
Add more coolant if necessary .
.,. Turn the cap to the right to secure it until you
feel resistance a second t ime.
Coolant loss usually indicates there is a leak . Im ­
mediately drive your vehicle to an authorized
Audi dealer or authorized Audi Serv ice Facility
and have the cooling system inspected . If the
coo ling system is not leaking, a loss can come
from the coolant boiling through overheating
and being pushed out of the cool ing system.
_& WARNING
- T he coo ling system is under pressure. Do
not open the coolant expansion tank cap
when the engine is hot. This increases the
risk of burns.
- The coo lant add itive and the coolant can be
dangerous to your healt h. For this reason,
keep the coolant in the origina l container
and away from children. There is a risk of poison ing.
- When working in the engine compartment, remember that the radiator fan can switch
on even if the ign ition is switc hed off, which
increases the risk of in jury.
(D Note
Do not add coolant if the expansion tank is
empty. There may be air in the cooling sys­
tem, wh ic h increases the risk of engine dam­
age.
If th is is the case, do not continue dr iv­
ing . See an a uthorized Aud i dea le r or author­
ized Aud i Service Fa cil ity fo r assistance.
330
Brake fluid
Fig. 271 En gine compa rtment: cap o n brake fluid reservo ir
Observe the safety precautions¢.&, in Working
in the engine compartment on page 32 3 .
Check ing the brake fluid level
.,. Read the brake fluid level on the brake fluid
reservoir ¢ page 325, fig . 268 . The brake flu id
level must be between the MI N and MAX ma rk­
ings ¢.&, .
The brake f lu id level is monito red automatically.
Changing the brake fluid
Have the brake fluid changed regularly by an au­
thorized Audi dea ler or authorized Audi Service
Facility.
_& WARNING -
- If the brake flu id leve l is below the MIN
marking, it ca n impair the brak ing effect
and driving safety, wh ich increase the r isk of
an accident. Do not continue dr iv ing . See an
author ized Audi dealer or au thori zed Audi
Serv ice Facility fo r ass ist ance.
- I f the brake fl uid is old, b ubbles may form
in the bra ke system dur ing heavy bra king.
This wo uld im pair b raking per formance and
driving safety, which increases the risk of an
accident.
- To ensure the brake system functions cor­
rectly, only use bra ke fluids tha t comp ly
wit h VW standard 50 1 14 or
FMVSS- 116 DOT 4 .
(D Note
-If the bra ke f lu id leve l is ab ove the MAX
marking, bra ke fluid may le ak o ut over the

0 C0 .-< N ..... N .-< 0
~ a:,
.&_ WARNING
Please note the important safe­
ty precautions regarding tire
pressure
¢ page 344 and load
limits
¢ page 347 .
Tires and vehicle load limits
There are limits to the amount of
load or weight that any vehicle
and any tire can carry. A vehicle
that is overloaded will not handle
well and is more difficult to stop.
Overloading can not only lead to
loss of vehicle control, but can al­
so damage important parts of the
vehicle and can lead to sudden
tire failure, including a blowout and sudden deflation that can
cause the vehicle to crash.
Your safety and that of your pas­ sengers also depends on making
sure that load limits are not ex ­
ceeded. Vehicle load includes ev­
erybody and everything in and on
the vehicle. These load limits are
technically referred to as the vehi­ cle's
Gross Vehicle Weight Rat­
ing
("GVWR").
The "GVWR" includes the weight
of the basic vehicle, all factory in­
stalled accessories , a full tank of
fuel, oil, coolant and other fluids
Wheels
plus maximum load. The maxi­
mum load includes the number of
passengers that the vehicle is in­
tended to carry ("seating capaci­
ty") with an assumed weight of
150 lbs (68 kg) for each passen­
ger at a designated seating posi­
tion and the total weight of any
luggage in the vehicle. If you tow
a trailer, the weight of the trailer
hitch and the tongue weight of
the loaded trailer must be includ­ ed as part of the vehicle load .
The
Gross Axle Weight Rating
( " GAWR ") is the maximum load
that can be applied at each of the
vehicle's two axles.
The fact that there is an upper
limit to your vehicle 's Gross Vehi­
cle Weight Rating means that the
total weight of whatever is being
carried in the vehicle (including
the weight of a trailer hitch and
the tongue weight of the loaded
trailer) is limited. The more pas­
sengers in the vehicle or passen­
gers who are heavier than the
standard weights assumed mean
that less weight can be carried as luggage.
The Gross Vehicle Weight Rating and the Gross Axle Weight Rating
.,.
347

a co .... N ,....
N .... 0 0
3 co
Fuse panel @ (brown)
No . Equipment
2
Mass airflow sensor, camshaft adjust-
ment, charge air cooler pump
3 Exhaust doors, fuel injectors, radiator inlet
4 Vacuum pump, hot water pump, particu-
late sensor, biodiesel sensor
5 Brake light sensor
6 Engine va lves, camshaft adjustment
7
Heated oxygen sensor, mass airflow sen-
sor
8
Water pump, high pressure pump, high
pressure regulator va lve
9 Hot water pump
10
Oil pressure sensor, oil temperature sen-
sor
11 Clutch pedal position sensor
12 Engine valves
13 Radiator fan
14 Fuel injectors
15 Ignition coils
16 Fuel pump
Fuse panel @ (red)
No . Equipment
1 Anti-theft alarm system
2 Eng ine control module
3 Lumbar support
Automatic transmission selector mecha -
4
nism
5 Horn
6 Electromechanical park ing brake
7 Gateway control module
8 Interior headliner lights
10 Airbag control module
11 Electronic Stabilization Control (ESC)
12 Diagnostic connector, light/rain sensor
13 Climate control system
14 Right front door control module
15 A/C compressor
Fuses and bulbs
Fuse panel © (black)
No . Equipment
1 Front seat heating
2 Windshield wipers
3 Left head light electronics
4
Panorama glass roof I sliding/t ilting sun-
roof
5 L eft front door control module
6 Sockets
7 Right rear door control module
8 All wheel drive
9 Right headlight electronics
10
Windshield washer system/headlight
washer system
11 Left rear door control module
Fuse panel @ (black)
No. Equipment
Seat ventilation, rearv iew mirror, climate
1 control system, rear climate control sys-
tern controls, windshield defogger
2 Gateway, climate control system
3 Sound actuator/exhaust sound tuning
4 Clutch pedal posit ion sensor
5 Engine start
7 Rear USB charg ing port
8 Homelink
9 Adaptive cruise contro l
11 Video camera
12 Matrix LED headlight/right LED headlight
13 Matrix LED headlight/left LED headlight
14 Rear window wipe r
Fuse panel © (red)
No . Equipment
1 Ignition coils
5 En gine mount
6 Automat ic transmission
7 Instrument panel
8 Climate control system (blower)
10 Dynamic steering
11 Engine start
371
