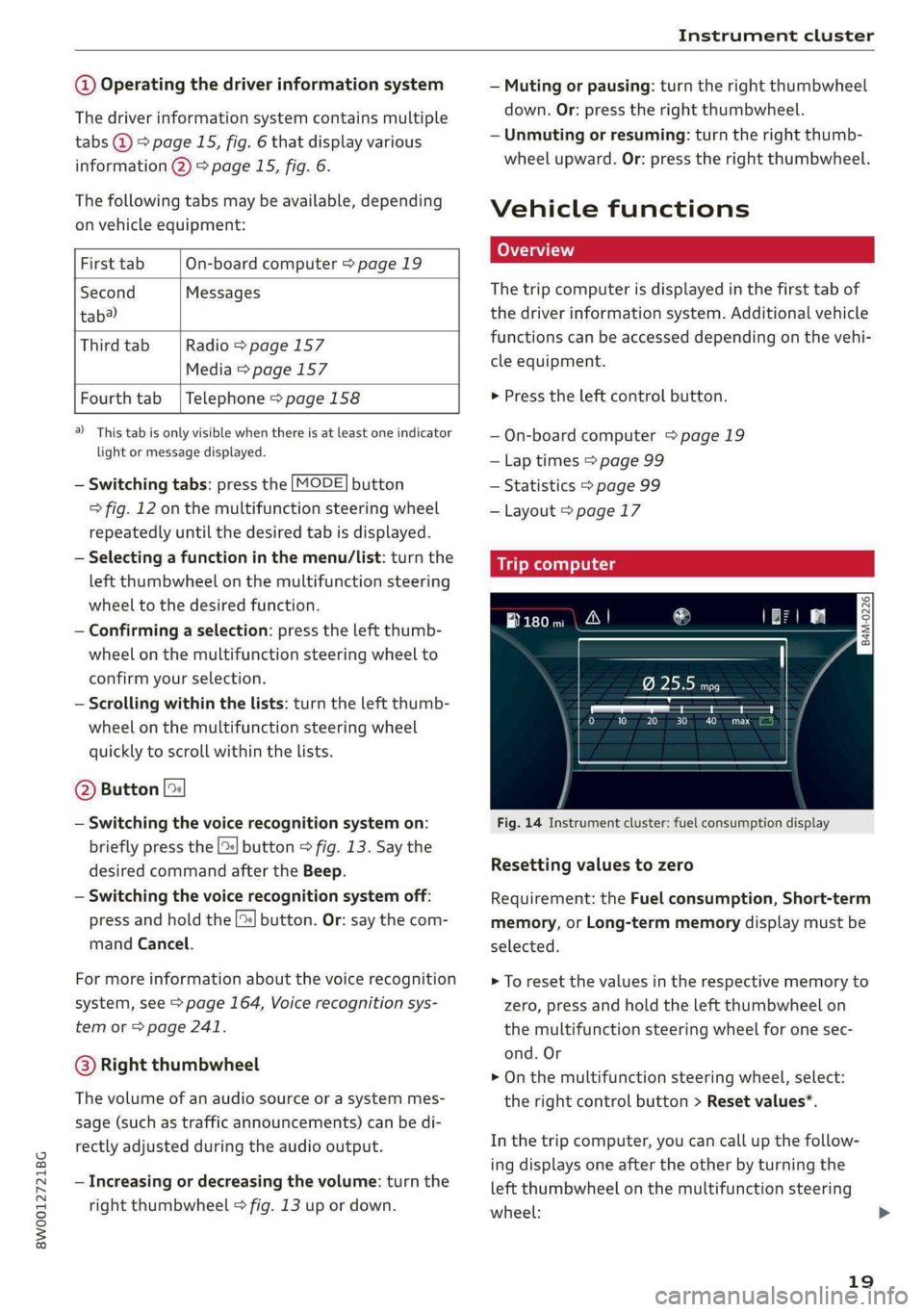

Page 21 of 392
8W0012721BG
Instrumentcluster
@Operatingthedriverinformationsystem
Thedriverinformationsystemcontainsmultiple
tabs@>page15,fig.6thatdisplayvarious
information@)>page15,fig.6.
Thefollowingtabsmaybeavailable,depending
onvehicleequipment:
FirsttabOn-boardcomputer>page19
SecondMessages
tab?)
ThirdtabRadio>page157
Media>page157
Fourthtab|Telephone>page158
a)Thistabisonlyvisiblewhenthereisat leastoneindicator
lightormessagedisplayed.
—Switchingtabs:pressthe[MODE]button
>fig.12onthemultifunctionsteeringwheel
repeatedlyuntilthedesiredtabisdisplayed.
—Selectingafunctioninthemenu/list:turnthe
leftthumbwheelonthemultifunctionsteering
wheeltothedesiredfunction.
—Confirmingaselection:presstheleftthumb-
wheelonthemultifunctionsteeringwheelto
confirmyourselection.
—Scrollingwithinthelists:turntheleftthumb-
wheelonthemultifunctionsteeringwheel
quicklytoscrollwithinthelists.
@Button[»
—Switchingthevoicerecognitionsystemon:
brieflypressthe[2]button>fig.13.Saythe
desiredcommandaftertheBeep.
—Switchingthevoicerecognitionsystemoff:
pressandholdthe|]button.Or:saythecom-
mandCancel.
Formoreinformationaboutthevoicerecognition
system,see>page164,Voicerecognitionsys-
temor=page241.
@®Rightthumbwheel
The
volumeofanaudiosourceorasystemmes-
sage(suchastrafficannouncements)canbedi-
rectlyadjustedduringtheaudiooutput.
—Increasingordecreasingthevolume:turnthe
rightthumbwheel>fig.13upordown.
—Mutingorpausing:turntherightthumbwheel
down.Or:presstherightthumbwheel.
—Unmutingorresuming:turntherightthumb-
wheelupward.Or:presstherightthumbwheel.
Vehiclefunctions
LOTati
Thetripcomputerisdisplayedinthefirsttabof
thedriverinformationsystem.Additionalvehicle
functionscan beaccesseddependingonthevehi-
cleequipment.
>Presstheleftcontrolbutton.
—On-boardcomputer>page 19
—Laptimes>page99
—Statistics>page99
—Layout>page17
Mit)meeyuayLele
Fig.14Instrumentcluster:fuelconsumptiondisplay
Resettingvaluesto zero
Requirement:theFuelconsumption,Short-term
memory,orLong-termmemorydisplaymustbe
selected.
>Toresetthevaluesintherespectivememoryto
zero,pressandholdtheleftthumbwheelon
themultifunctionsteeringwheelforonesec-
ond.Or
>Onthemultifunctionsteeringwheel,select:
therightcontrolbutton>Resetvalues*.
Inthetripcomputer,youcancallupthefollow-
ingdisplaysoneaftertheotherbyturningthe
leftthumbwheelonthemultifunctionsteering
wheel:
19

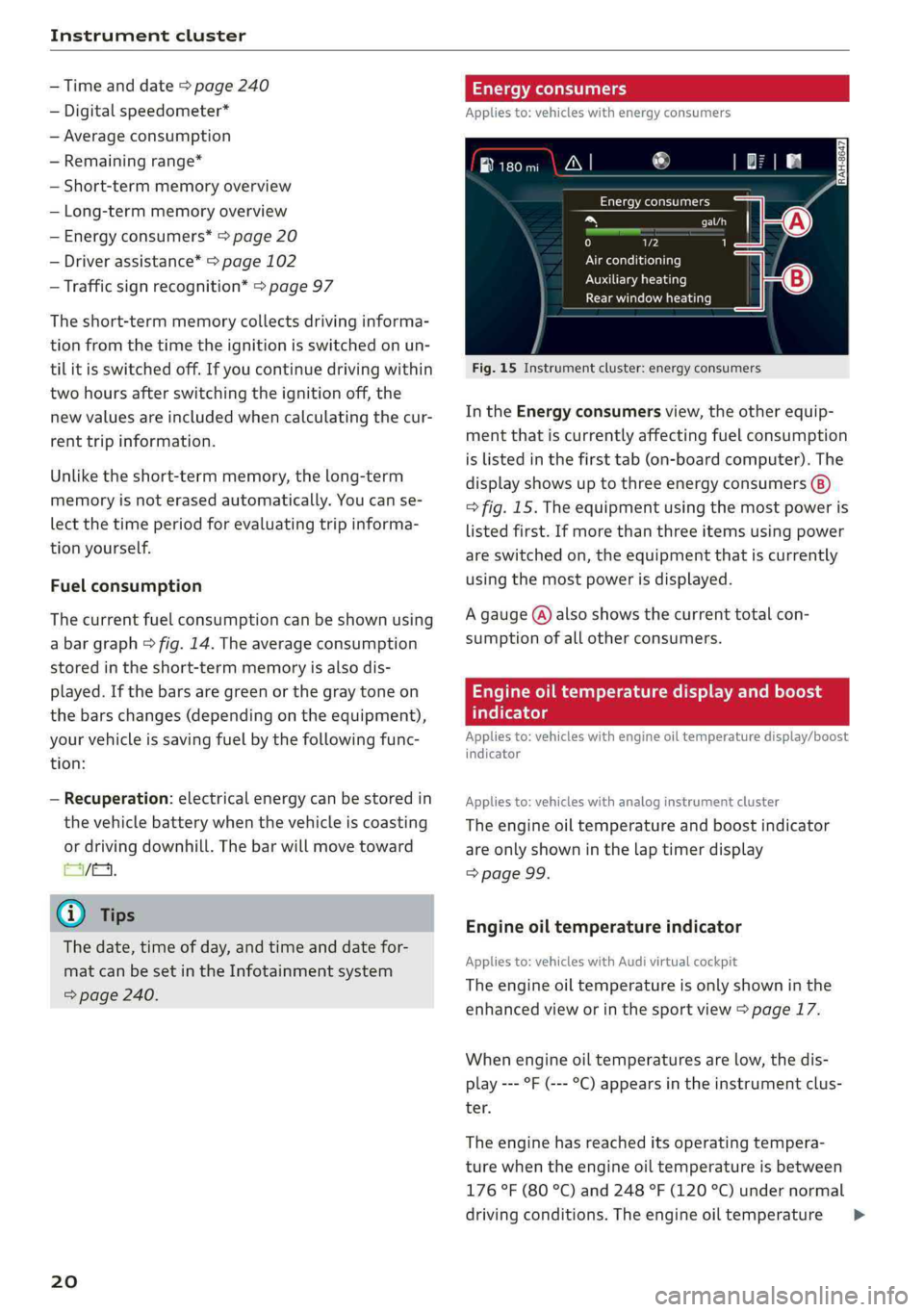

Page 22 of 392
Instrumentcluster
—Timeanddate>page240
—Digitalspeedometer*
—Averageconsumption
—Remainingrange*
—Short-termmemoryoverview
—Long-termmemoryoverview
—Energyconsumers*=page20
—Driverassistance*>page102
—Trafficsignrecognition*>page97
Theshort-termmemorycollectsdrivinginforma-
tionfromthetimetheignitionisswitchedonun-
tilitisswitchedoff.Ifyoucontinuedrivingwithin
twohoursafterswitchingtheignitionoff,the
newvaluesareincludedwhencalculatingthecur-
renttripinformation.
Unliketheshort-termmemory,thelong-term
memoryisnoterasedautomatically.Youcanse-
lectthetimeperiodforevaluatingtripinforma-
tionyourself.
Fuelconsumption
Thecurrentfuelconsumptioncan beshownusing
abargraph&fig.14.Theaverageconsumption
storedintheshort-termmemoryisalsodis-
played.Ifthebarsaregreenorthegraytone on
thebarschanges(dependingontheequipment),
yourvehicleissavingfuelbythefollowingfunc-
tion:
—Recuperation:electricalenergycanbestoredin
thevehiclebatterywhenthevehicleiscoasting
ordrivingdownhill.Thebarwillmovetoward
EVE.
G)Tips
Thedate,timeofday,andtimeanddatefor-
matcanbesetintheInfotainmentsystem
=>page240.
20
Energyconsumers
Appliesto:vehicleswithenergyconsumers
aN}®ao
Energyconsumers
taeri
0)2
Airconditioning
Auxiliaryheating
Rearwindowheating
Fig.15Instrumentcluster:energyconsumers
IntheEnergyconsumersview,theotherequip-
mentthatiscurrentlyaffectingfuelconsumption
islistedinthefirsttab(on-boardcomputer).The
displayshowsuptothreeenergyconsumers
>fig.15.Theequipmentusingthemostpoweris
listedfirst.Ifmorethanthreeitemsusingpower
areswitchedon,theequipmentthatiscurrently
usingthemostpowerisdisplayed.
Agauge(@)alsoshowsthecurrenttotalcon-
sumptionofallotherconsumers.
Engineoiltemperaturedisplayandboost
atelte-hels
Appliesto:vehicleswithengineoiltemperaturedisplay/boost
indicator
Appliesto:vehicleswithanaloginstrumentcluster
Theengineoiltemperatureandboostindicator
areonlyshowninthelaptimerdisplay
=>page99.
Engineoiltemperatureindicator
Appliesto:vehicleswith Audivirtualcockpit
Theengineoiltemperatureisonlyshowninthe
enhancedvieworinthesportview>page17.
Whenengineoiltemperaturesarelow,thedis-
play---°F(---°C)appearsintheinstrumentclus-
ter.
Theenginehasreacheditsoperatingtempera-
turewhentheengineoiltemperatureisbetween
176°F(80°C)and248°F(120°C)undernormal
drivingconditions.Theengineoiltemperature>
Page 23 of 392
8W0012721BG
Instrumentcluster
maybehigherifthereisheavyengineloadand
hightemperaturesoutside.Thisisnotacausefor
concernaslongasthe|=>page312or=
=>page312indicatorlightsdonotturnon.
Boostindicator
Appliesto:vehicleswithAudivirtualcockpit
Theboostindicatorisonlydisplayedinthesport
view>page17.
Thecurrentengineload(meaningthecurrent
boostpressure)isindicatedbyabar.
Messages
BRAKE/@)/‘C:/®Brakesystem
Ifthisindicatorlightturnson,thereisamalfunc-
tioninthebrakesystem.
HiT)Brakes:stopvehicleandcheckbrake
fluid level
Stopthevehicleandcheckthebrakefluidlevel.
SeeanauthorizedAudidealerorauthorizedAudi
ServiceFacilityforassistance.
GGit@Brakes:malfunction!Stopvehicle
safely
Iftheindicatorlightturnsonandthismessage
appears,thereisamalfunctioninthebrake brake
system.
1fBES/GJandBialsoturnon,thereisamal-
functionintheABS,ESC,andbrakingdistribu-
tion.
Donotcontinuedriving.SeeanauthorizedAudi
dealerorauthorizedAudiServiceFacilityforas-
sistance>A\.
EG/@Parkingbrake:malfunction!Safely
stopvehicle.Seeowner'smanual
—Iftheindicatorlightandthemessageappear
whenthevehicleisstationary orafterswitch-
ingtheignitionon,checkifyoucanreleasethe
parkingbrake.Ifyoucannotreleasetheparking
brake,seeanauthorizedAudidealerorauthor-
izedAudiServiceFacility.Ifyoucanreleasethe
parkingbrakeandthemessagestillappears,
seeanauthorizedAudidealerorauthorizedAu-
diServiceFacilityimmediatelytohavethe mal-
functioncorrected.
—Iftheindicatorlightandmessageappearwhile
driving,thehillstartassistoremergencybrak-
ingfunctionmaybemalfunctioning.Itmaynot
bepossibletosettheparkingbrakeorrelease
itonceithasbeenset.Donotparkyourvehicle
onhills.SeeanauthorizedAudidealerorau-
thorizedAudiServiceFacilityforassistance.
fieifeBrakepads:wearlimitreached.You
cancontinuedriving.PleasecontactService
Thebrakepadsareworn.Drivetoanauthorized
AudidealerorauthorizedAudiServiceFacilityas
soonas possible tohavethemalfunctioncorrect-
ed.
©Brakesoverheating.PleaseshifttoD
@Brakesoverheating.Pleaseselectagearand
followgearrecommendation
Therewasaheavyloadonthebrakes.Engagea
suitablegear(manualtransmission)or placethe
selectorleverinthe"D/S"position(automatic
transmission)touse theenginebrakingeffect
andreduce theloadonthebrakes.
Brakebooster:limitedfunctionality.Youcan
continuedriving.PleasecontactService
Thereisamalfunctioninthebrakebooster.The
brakeboosterisavailable,butitseffectivenessis
reduced.Brakingbehaviormaybedifferentfrom
howitnormallyfunctionsandthebrakepedal
mayvibrate.DrivetoanauthorizedAudidealeror
authorizedAudiServiceFacilityimmediatelyto
havethemalfunctioncorrected.
Z\WARNING
—Readandfollowthewarningsin
=page309,Workingintheenginecom-
partmentbeforeopeningthehood and
checkingthebrakefluidlevel.
—Ifthebrakesystemindicatorlightdoesnot
turnofforitturnsonwhiledriving,the
brakefluid levelinthereservoiristoolow,
andthisincreasestheriskofanaccident.
Stopthevehicleanddonotcontinuedriv-
ing.SeeanauthorizedAudidealeror
21
Page 24 of 392
Instrumentcluster
authorizedAudiServiceFacilityforassis-
tance.
—Ifthebrakesystemindicatorlightturnson
togetherwiththeABSandESCindicator
lights,theABS/ESCregulatingfunctionmay
bemalfunctioning.Functionsthatstabilize
thevehiclearenolongeravailable.This
couldcausethevehicletoswerve,whichin-
creasestheriskthatthevehiclewillslide.
Donotcontinuedriving.Seeanauthorized
AudidealerorauthorizedAudiServiceFacili-
tyforassistance.
NOK
Tr
(®Electromechanicalparking
IftheZi7,oaindicatorlightturnson,the
parkingbrakewasset.
Ifthe[MM/[indicatorlightflashes,thebrak-
ingforcehasnotbuiltupenoughorithasde-
creased.
Securethevehiclealsobyshifting into
1stgear(manualtransmission)orselectingthe
"P"selectorleverposition(automatictransmis-
sion).Makesuretheindicatorlightisoffbefore
youstartdriving.
wwParkingbrake:malfunction!Pleasecontact
Service
Thereisamalfunctionintheparkingbrake.Drive
toanauthorizedAudidealerorauthorizedAudi
ServiceFacilityimmediatelytohavethemalfunc-
tioncorrected.Donotparkthevehicleonhills,
becauseitcouldroll.
a/{Q)Parkingbrake:warning!Vehicleparked
toosteep
Thereisnotenoughbrakingforce toholdtheve-
hicleinplace.Thebrakeshaveoverheated.The
vehiclecouldrollaway,evenonasmallincline.
&iParkingbrake:applied
Ifthismessageappears,pressthebrakepedal
firstandthenreleasetheparkingbrakeifneces-
sary.
a/Parkingbrake:emergencybraking
Theemergencybrakingfunctionwastriggered.
22
G)Tips
Foradditionalinformationontheparking
brake,see>page82.
erCe
||Turnoffengineandcheckcoolantlevel.See
owner'smanual
Thecoolantlevelistoolow.
Stopdrivingandswitchtheengineoff.Checkthe
coolantlevel>page315.
—Ifthecoolantlevelistoolow,addcoolant
=page316. Onlycontinuedrivingoncethein-
dicatorlightturnsoff.
/_E|Coolanttemperature:toohigh.Letengine
runwhilevehicleisstationary
Lettheenginerunatidleforafewminutesto
cooloff,untiltheindicatorlightturnsoff.
—Iftheindicatorlightdoesnotturnoff,donot
continuedrivingthevehicle.Seeanauthorized
AudidealerorauthorizedAudiServiceFacility
forassistance.
ZAWARNING
—Neveropenthehoodifyoucan seeorhear
steamorcoolantescapingfromtheengine
compartment.Thisincreasestheriskof
burns.Whenyounolongerseeorhear
steamorcoolantescaping,youmayopen
theenginecompartmentwithcaution.
— Theenginecompartmentinanyvehiclecan
beadangerousarea.Stoptheengineandal-
lowitto coolbeforeworkingintheengine
compartment.Alwaysfollowtheinforma-
tionfoundin>page309,Workinginthe
enginecompartment.
C)Note
Donotcontinuedrivingifthegindicator
lightturnsonasthisincreasestheriskofen-
ginedamage.

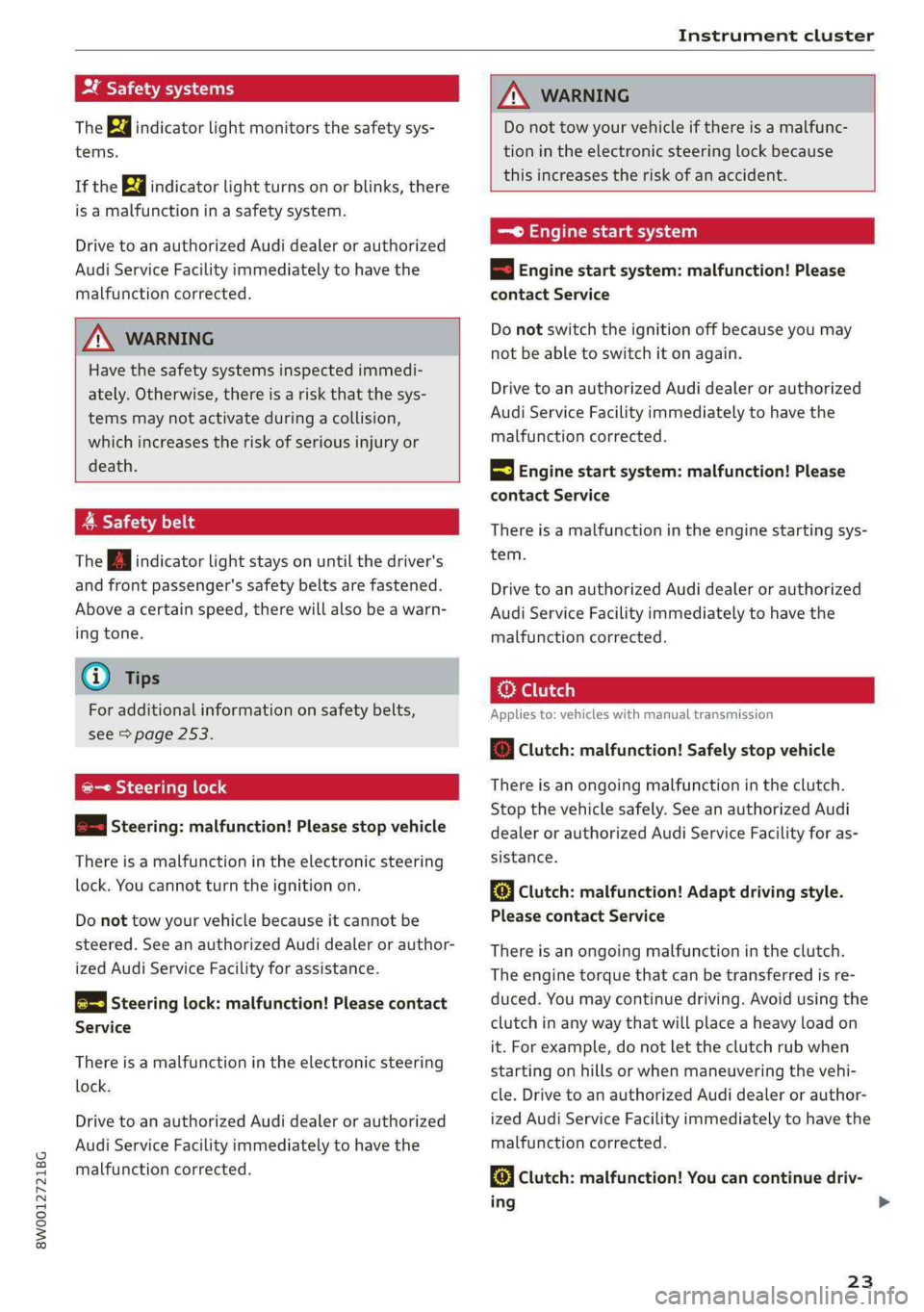

Page 25 of 392
8W0012721BG
Instrumentcluster
BMFaSTT
TheBaindicatorlightmonitorsthesafetysys-
tems.
Ifthekaindicatorlightturnsonorblinks,there
isamalfunctioninasafetysystem.
DrivetoanauthorizedAudidealerorauthorized
AudiServiceFacilityimmediatelytohavethe
malfunctioncorrected.
ZAWARNING
Havethesafetysystemsinspectedimmedi-
ately.Otherwise,thereisariskthatthesys-
temsmaynotactivateduringacollision,
whichincreasestheriskofseriousinjuryor
death.
ASafetybelt
ThezBindicatorlightstaysonuntilthedriver's
andfrontpassenger'ssafetybeltsarefastened.
Aboveacertainspeed,therewillalsobeawarn-
ingtone.
@)Tips
Foradditionalinformationonsafetybelts,
see>page253.
@-Steeringlock
BSSteering:malfunction!Pleasestopvehicle
Thereisamalfunctionintheelectronicsteering
lock.Youcannotturntheignitionon.
Donottowyourvehiclebecauseitcannotbe
steered.SeeanauthorizedAudidealerorauthor-
izedAudiServiceFacilityforassistance.
BSSteeringlock:malfunction!Pleasecontact
Service
Thereisamalfunctionintheelectronicsteering
lock.
DrivetoanauthorizedAudidealerorauthorized
AudiServiceFacilityimmediatelytohavethe
malfunctioncorrected.
ZAWARNING
Donottowyourvehicleifthereisamalfunc-
tionintheelectronicsteeringlockbecause
thisincreasestheriskofanaccident.
-~©Enginestartsystem
jo]Enginestartsystem:malfunction!Please
contactService
Donotswitchtheignitionoffbecauseyoumay
notbeabletoswitchitonagain.
DrivetoanauthorizedAudidealerorauthorized
AudiServiceFacilityimmediatelytohavethe
malfunctioncorrected.
EBEnginestartsystem:malfunction!Please
contactService
Thereisamalfunctionintheenginestartingsys-
tem.
DrivetoanauthorizedAudidealerorauthorized
AudiServiceFacilityimmediatelytohavethe
malfunctioncorrected.
0Clutch
Appliesto:vehicleswithmanualtransmission
&Clutch:malfunction!Safelystopvehicle
Thereisanongoingmalfunctionintheclutch.
Stopthevehiclesafely.SeeanauthorizedAudi
dealerorauthorizedAudiServiceFacilityforas-
sistance.
fa]Clutch:malfunction!Adaptdrivingstyle.
PleasecontactService
Thereisanongoingmalfunctionintheclutch.
Theenginetorquethatcanbetransferredisre-
duced.Youmaycontinuedriving.Avoidusingthe
clutchinanywaythatwillplaceaheavyloadon
it.Forexample,donotlettheclutchrubwhen
startingonhillsorwhenmaneuveringthevehi-
cle.DrivetoanauthorizedAudidealerorauthor-
izedAudiServiceFacilityimmediatelytohavethe
malfunctioncorrected.
&Clutch:malfunction!Youcancontinuedriv-
ing
23
>
Page 26 of 392
Instrumentcluster
Thereisamalfunctionintheclutch.Theengine
torque
thatcan betransferredisreduced.You
maycontinuedriving.Avoidusingtheclutchin
thefutureinanywaythatwillplaceaheavyload
onit.Forexample,donotlettheclutchrubwhen
startingonhillsorwhenmaneuveringthevehi-
cle.Theindicatorlightturnsoffoncetheclutchis
fullyoperableagain.
Ifthe|indicatorlightturnson,thehoodlock
isnotlatchedcorrectly.
Stopimmediatelyandclosethehood
=>page310.
ElectronicStabilizationControl(ESC)
IftheBindicatorlightblinkswhiledriving,the
ESCorASR(Anti-SlipRegulation)isactivelyregu-
lating.
IftheBindicatorlightturnson,thesystemhas
switched
theESCoff.Inthiscase,youcanswitch
theignitionoffandthenontoswitchtheESCon
again.Theindicatorlightturnsoffwhenthesys-
temisfullyfunctional.
IftheBindicatorlightturnson,ESCwas
switchedoffusingthe[2]button>page139.
Stabilizationcontrol(ESC/ABS):malfunction!
Seeowner'smanual
IftheBindicatorlampandtheES/assin-
dicatorlampturnonandthismessageappears,
theABSorelectronicdifferentiallockismalfunc-
tioning.ThisalsocausestheESCtomalfunction.
Thebrakesstillfunctionwiththeirnormalpower,
butABSisnotactive.
DrivetoanauthorizedAudidealerorauthorized
AudiServiceFacilityimmediatelytohavethe
malfunctioncorrected.
@Tips
ForadditionalinformationonESCandABS,
see>page138.
24
BDrivesystem:malfunction!Safelystopvehi-
cle
Thereisamalfunctioninthedrivesystem.The
brakeboosterandthepowersteeringmaystop
working.
Stopthevehicleimmediatelyor assoon
aspossibleand donotcontinuedriving.Havethe
problemcorrectedbyanauthorizedAudidealer
orauthorizedAudiServiceFacility.
BDrivesystem:malfunction!Pleasecontact
Service
Thereisamalfunctioninthedrivesystem.Drive
slowlytoanauthorizedAudidealerorauthorized
AudiServiceFacilitytohavethemalfunctioncor-
rected.
nginespeedlimitation
IftheBiindicatorlightturnson,theenginewill
beautomaticallylimitedtotheRPMdisplayedin
theinstrumentcluster.Thisprotectstheengine
fromoverheating.
Theenginespeedlimitationdeactivatesoncethe
engineisnolongerinthecriticaltemperature
rangeandyouhavereleasedtheacceleratorped-
alonce.
Iftheenginespeedlimitationwasactivatedby
anenginecontrolmalfunction,theBgindicator
lightalsoturnson.Makesuretheenginespeed
doesnotgoabovethespeeddisplayed,forexam-
plewhendownshifting.Drivetoanauthorized
AudidealerorauthorizedAudiServiceFacilityim-
mediatelytohavethemalfunctioncorrected.
fTanksystem
lyPleaserefuel
Iftheindicatorlightturnsonforthefirsttime
andthemessageappears,thereareabout2.1
gallons(8liters)offuelleftinthetank.
lyPleaserefuelimmediately
Iftheindicatorlightturnsonandthismessage
appears,thefueltankisalmostempty.Refuel
thevehicleimmediately.
Page 27 of 392
8W0012721BG
Instrumentcluster
iyTanksystem:malfunction!Pleasecontact
Service
Thereisamalfunctioninthefueltanksystem.
DrivetoanauthorizedAudidealerorauthorized
AudiServiceFacilityimmediatelytohavethe
malfunctioncorrected.
@)Tips
Formoreinformationonfueling,see
=>page306.
®Washerfluidlevel
IfthegEindicatorlightturnson,thewasherflu-
idisalmostout.Fillthewasherfluidforthe
windshieldwashersystemandtheheadlight
washersystem*whentheignitionisswitchedoff
=>page320.
©!Windshieldwipers
Ifthe>indicatorlightturnson,thenthereisa
windshieldwipermalfunction.Drivetoanau-
thorizedAudidealerorauthorizedAudiService
Facilityimmediatelytohavethe malfunctioncor-
rected.
<3Driver'sdoor
|3}Driver'sdoor:malfunction!ShifttoPbefore
leavingvehicle.Seeowner'smanual
Thereisamalfunctioninthedriver'sdoor.Select
the"P"selectorleverposition(automatictrans-
mission)tosecurethevehicle.
DrivetoanauthorizedAudidealerorauthorized
AudiServiceFacilityimmediatelytohavethe
malfunctioncorrected.
Bulbfailureindicator
IftheEaindicatorlightturnson,abulbhas
failed.Themessageindicatesthelocationofthe
bulb.Replace thebulbimmediately.
Vehiclelights:malfunction!Pleasecontact
Service
Thereisamalfunctionintheheadlightsorthe
lightswitch.DrivetoanauthorizedAudidealeror
authorizedAudiServiceFacilityimmediatelyto
havethemalfunctioncorrected.
Z\WARNING
—Lightbulbsareunderpressureandcanex-
plodewhenbulbsarereplaced,whichin-
creasestheriskofinjury.
—WithHIDheadlights(xenonheadlights),the
high-voltagecomponentmustbehandled
correctly.Otherwise,thereisariskoffatal
injury.
2©Dynamicheadlightrangecontrol
ByHeadlightrangecontrol:malfunction!See
owner'smanual
Thereisamalfunctioninthe headlightrange
controlsystem,whichmaycauseglareforother
drivers.
DrivetoanauthorizedAudidealerorauthorized
AudiServiceFacilityimmediatelytohavethe
malfunctioncorrected.
ZOAudiadaptivelight
Appliesto:vehicleswithAudiadaptivelight
ByAudiadaptivelight:malfunction!Seeown-
er'smanual
Adaptivelightisnotworking.Theheadlightsstill
function.
DrivetoanauthorizedAudidealerorauthorized
AudiServiceFacilityimmediatelytohavethe
malfunctioncorrected.
ComaAceals
aSAutomaticheadlights:malfunction!See
owner'smanual
aAutomaticwipers:malfunction!Seeowner's
manual
Thelight/rainsensorismalfunctioning.
Thelowbeamsremainswitchedonatalltimes
forsafetyreasonswhenthelightswitchisinthe
AUTOposition.However,youcancontinueto
turnthelightsonandoffusingthelightswitch.>
25
Page 28 of 392
Instrumentcluster
Youcanstillcontrolallfunctionsthatareinde-
pendentoftherainsensorthroughthewind-
shieldwiperlever.
DrivetoanauthorizedAudidealerorauthorized
AudiServiceFacilityimmediatelytohavethe
malfunctioncorrected.
{Suspensioncontrol
Appliesto:vehicleswithsuspensioncontrol
18|Suspension:malfunction!Youmaycontinue
driving
Thereisamalfunction.SeeanauthorizedAudi
dealerorauthorizedAudiServiceFacilityforas-
sistance.
beeNatMeleelametale)
Appliesto:vehicleswithallwheeldrive/sportdifferential
3All-wheeldrive:malfunction!Youmaycon-
tinuedriving.PleasecontactService
iT-3|Sportdifferential:malfunction!Pleasecon-
tactService
DrivetoanauthorizedAudidealerorauthorized
AudiServiceFacilityimmediatelytohavethe
malfunctioncorrected.
EH]All-wheeldriveoverheating.Pleaseadapt
drivingstyle.Seeowner'smanual
3}Sportdifferential:temperaturetoohigh.
Pleaseadaptdrivingstyle
Thetransmissiontemperaturehasincreasedsig-
nificantlyduetothesportydrivingmanner.Drive
inalesssportymanneruntilthetemperaturere-
turnstothenormalrangeandtheindicatorlight
switchesof.
ZXWARNING
ContactanauthorizedAudidealerorauthor-
izedAudiServiceFacilityiftheallwheeldrive/
sportdifferentialisfaultyormalfunctioning.
Therepairmustbeperformedbytrainedper-
sonnelusingthecorrectoilinordertoensure
safety.
26
ereasercy
IftheaorByindicatorlightblinks,aturnsig-
nalisturnedon.Ifbothindicatorlightsareblink-
ing,theemergencyflashersare on.
Ifanindicatorlightblinkstwiceasfastasusual,
aturnsignalbulbhasfailed.Carefullydrivetoan
authorizedAudidealerorauthorizedAudiService
Facilityimmediatelytohavethe malfunctioncor-
rected.
Page 29 of 392
8W0012721BG

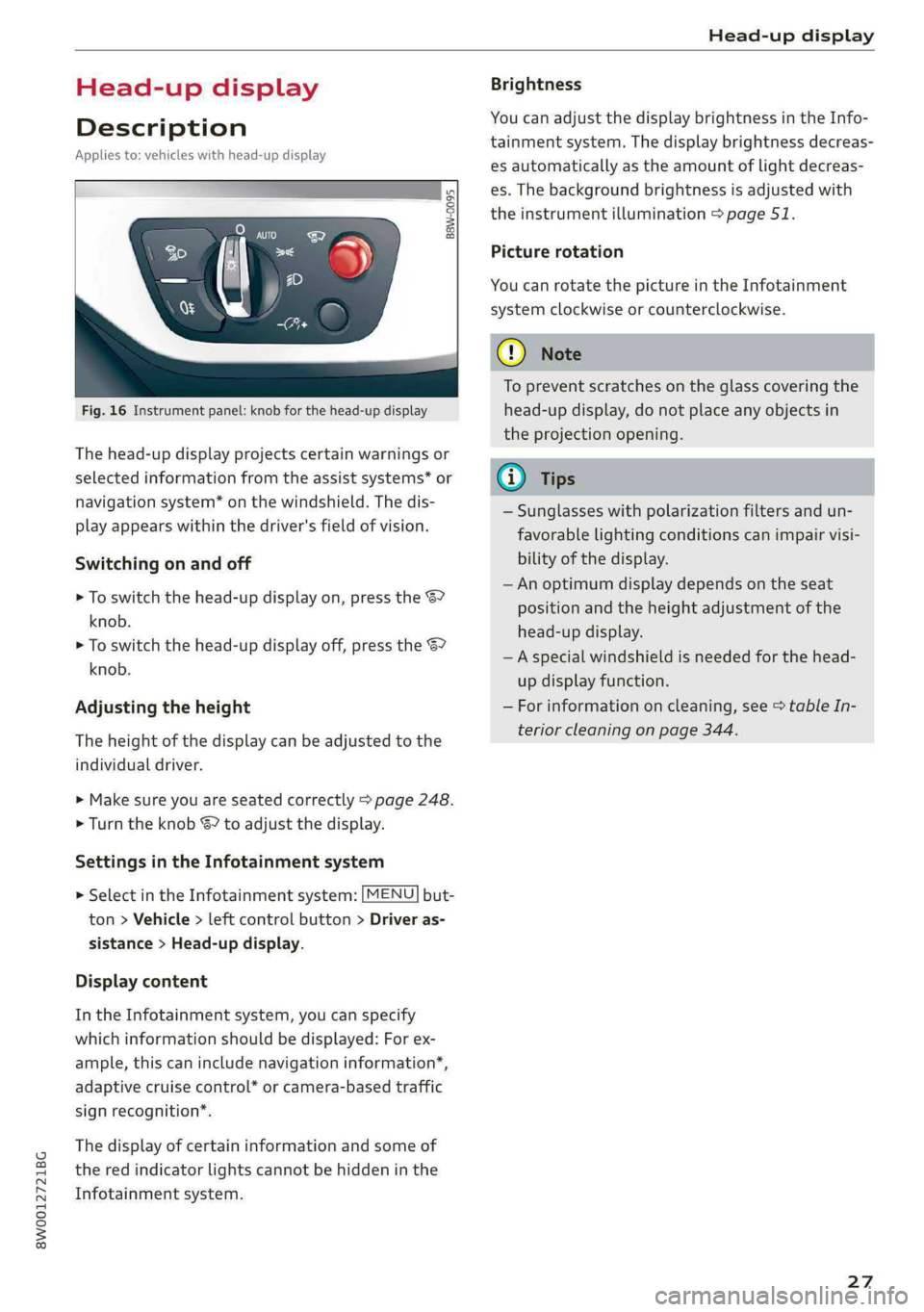

Head-updisplay
Head-updisplay
Description
Appliesto:vehicleswithhead-updisplay
0 as
ge32%oS
Fig.16Instrumentpanel:knobforthehead-updisplay
Thehead-updisplayprojectscertainwarningsor
selectedinformationfromtheassistsystems*or
navigationsystem*onthewindshield.Thedis-
playappearswithinthedriver'sfieldofvision.
Switchingonandoff
>Toswitchthehead-updisplayon,pressthe67
knob.
>Toswitchthehead-updisplayoff,presstheS7
knob.
Adjustingtheheight
Theheightofthedisplaycan beadjustedtothe
individualdriver.
>Makesureyouareseatedcorrectly>page248.
>Turn theknobS?toadjustthedisplay.
SettingsintheInfotainmentsystem
>SelectintheInfotainmentsystem:[MENU]but-
ton>Vehicle> leftcontrolbutton>Driveras-
sistance>Head-updisplay.
Displaycontent
IntheInfotainmentsystem,youcanspecify
whichinformationshould bedisplayed:Forex-
ample,thiscanincludenavigationinformation”,
adaptivecruisecontrol*orcamera-basedtraffic
signrecognition*.
Thedisplay ofcertaininformationandsomeof
thered indicatorlightscannotbehiddeninthe
Infotainmentsystem.
Brightness
YoucanadjustthedisplaybrightnessintheInfo-
tainmentsystem.Thedisplaybrightnessdecreas-
esautomaticallyastheamountoflightdecreas-
es.Thebackgroundbrightnessisadjusted with
theinstrumentillumination>page51.
Picturerotation
YoucanrotatethepictureintheInfotainment
systemclockwiseorcounterclockwise.
CG)Note
Topreventscratchesontheglasscoveringthe
head-updisplay,donotplaceanyobjectsin
theprojectionopening.
@)Tips
—Sunglasseswithpolarizationfiltersandun-
favorable
lightingconditionscanimpairvisi-
bilityofthedisplay.
— Anoptimumdisplaydependsontheseat
positionandthe heightadjustmentofthe
head-updisplay.
—Aspecialwindshieldisneededforthe head-
updisplayfunction.
—Forinformationoncleaning,see>tableIn-
teriorcleaningonpage344.
27
Page 30 of 392
Openingandclosing
Openingandclosing
Centrallocking
Youcanlockandunlockthevehiclecentrally.You
havethefollowingoptions:
—Vehiclekey>page31
—Sensorsinthedoorhandles*>page31
—Lockcylinderonthedriver'sdoor>page33
—
Interiorcentral lockingswitch>page32
Vehiclekey
Theterm“vehiclekey”referstotheremotecon-
trolkeyorconveniencekey*.Theconvenience
key*isaremotecontrolkeywithspecialfunc-
tions>page31and>page78.
Turnsignals
Theturnsignalsflashtwicewhenyouunlockthe
vehicleandflashoncewhenyoulockthevehicle.
Iftheydonotflash,thenoneofthedoors,the
luggagecompartmentlidorthehoodisnot
closedcompletely.
Automaticlocking(AutoLock)
The AutoLockfunctionlocksalldoorsandthe
luggagecompartmentlidoncethespeedhasex-
ceededapproximately9mph(15km/h).
Thevehiclecan beunlockediftheopeningfunc-
tioninthecentrallockingsystemswitchisused
oroneofthedoorhandlesispulled.
Intheeventofacrashwithairbagdeployment,
thedoorswillalsoautomaticallyunlocktoallow
accesstothevehicle.
Selectivedoorunlocking
Thedoorsandluggagecompartmentlidwilllock
whentheyclose.YoucansetintheInfotainment
systemwhetheronlythedriver'sdoorortheen-
tirevehicleshould beunlockedwhenunlocking
>page33.
Unintentionallylockingyourselfout
Onlylockyourvehiclewhenallofthedoorsand
theluggagecompartmentlidareclosedandthe
238
vehiclekeyisnotinthevehicle.Thisreducesthe
riskoflockingyourselfoutaccidentally.
Thefollowingfeatureshelptoreducetheriskof
lockingyourvehiclekeyinthevehicle:
—Ifthedriver's doorisopen,thevehiclecannot
belockedbypressingthe@buttononthevehi-
clekeyorbytouchingthelockingsensor*ona
door.
—Appliesto:sedan:Iftheconveniencekey*that
wasusedlastisdetectedinsidetheluggage
compartment,theluggagecompartmentlid
willautomaticallyunlockandopenagainafter
closingit.
—Ifthelastconveniencekey*thatwasusedisde-
tectedinsidethevehicle,thevehiclecannotbe
lockedfromtheoutsideforabrieftime.
ZAWARNING
—Ifyouleavethevehicle,switchtheignition
offandtakethevehiclekeywithyou. This
appliesparticularlywhenchildrenremainin
thevehicle.Otherwise,childrencouldstart
theengineoroperateelectricalequipment
(such aspowerwindows),whichincreases
theriskofanaccident.
—Noone,especiallychildren,shouldstayin
thevehiclewhenitislockedfromtheout-
side,becausethewindowscannolongerbe
openedfromtheinside>page34.Locked
doorsmakeitmoredifficultforemergency
workerstoenterthevehicle,whichputs
livesatrisk.
@)Note
Appliesto:vehicleswithconveniencekey
—Appliesto:sedan:Iftheconveniencekey
thatwaslastusedisdetectedinsidethe
passengercompartment,thenwillnotbe
possible tolockthevehiclefromtheout-
side.Theturnsignalswillflashseveral
timestoindicatethis.Ifyoudonotopen
thevehiclewithinashorttimetoremove
thevehiclekey,thenthevehiclewilllockau-
tomatically. Thispreventsthevehiclefrom
beingleftunlockedforlongperiodsoftime.
Thekeywillthenbelockedinsidethevehi-
cle.
