__________________________________________________ A_ i_ r _b _a...; g::- s_ y=--- s_t _e _m ___ lllll
& WARNING (continued)
-Always sit in an upright position and never lean against the
area where the supplemental side airbag is located.
- Never let a child or anyone else rest their head against the
side trim panel in the area where the supplemental side airbag
inflates.
- Always make sure that safety belts are worn correctly,
- Do not let anyone sitting in the front seat put their hand or
any other parts of their body out of the window .
• Always make sure that the side airbag can inflate without inter ­
ference .
- Never install seat covers or replacement upholstery over the
front seat backs that have not been specifically approved by
Audi.
- Never use additional seat cushions that cover the areas
where the side airbags deploy.
- Damage to the original seat covers or to the seam in the area
of the side airbag module must always be repaired immedi­
ately by an authorized Audi dealer .
• Objects between you and the airbag can increase the risk of
injury in an accident by interfering with the way the airbag unfolds
or by being pushed into you as the airbag inflates .
- Never place or attach accessories or other objects (such as
cup holders, telephone brackets, or even large, bulky objects)
on the doors, over or near the area marked "AIRBAG" on the
seat backrests .
- Such objects and accessories can become dangerous projec­
tiles and cause injury when the supplemental side airbag
deploys.
- Never carry any objects or pets in the deployment space
between them and the airbags or allow children or other
passengers to travel in this position .
Controls and equip­ ment Safety first
Vehicle operation
& WARNING (continued)
• Always prevent the side airbags from being damaged by heavy
objects knocking against or hitting the sides of the seatbacks.
• The airbag system can only be triggered once. If the airbag has
been triggered, the system must be replaced by an authorized
Audi dealership.
• Damage (cracks, deep scratches etc.I to the original seat covers
or to the seam in the area of the side airbag module must always
be repaired immediately by an authorized Audi dealer .
• If children are seated improperly, their risk of injury increases
in the case of an accident~
page 190, "Child Safety".
• Never attempt to modify any components of the airbag system
in any way .
• In a side collision, side airbags will not function properly if
sensors cannot correctly measure increasing air pressure inside
the doors when air escapes through larger, unclosed openings in
the door panel.
- Never drive with interior door trim panels removed.
-Never drive when parts have been removed from the inside
door panel and the openings they leave have not been properly
closed.
- Never drive when loudspeakers in the doors have been
removed unless the speaker holes have been properly closed.
- Always make certain that openings are covered or filled if
additional speakers or other equipment is installed in the
inside door panels .
- Always have work on the doors done by an authorized Audi
dealer or qualified workshop . •
Vehicle care Do-it-yourself service Technical data

___ C_h_ i_ld _ S_ a_ f_ e_ t_ y ______________________________________________ _

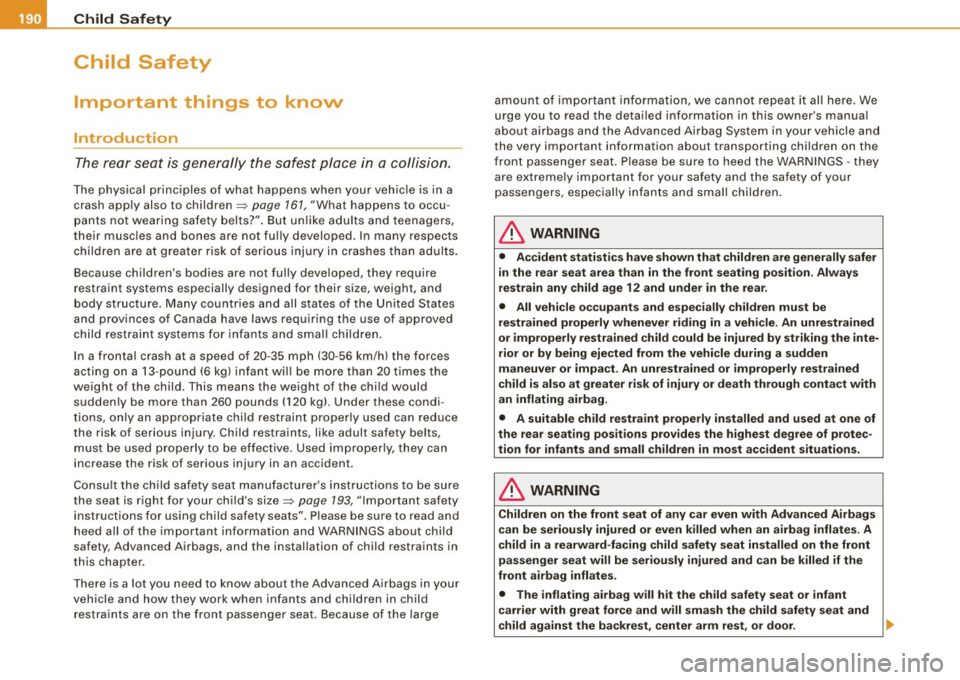

Child Safety
Important things to know
Introduction
The rear seat is generally the safest place in a collision.
The physical principles of what happens when your ve hicle is in a
crash app ly also to children~
page 161, "What happens to occu­
p ants no t wearing sa fe ty belts?" . But un lik e adu lts and teenagers,
their musc les and bones are not fu lly developed. In many respects
children a re a t greate r risk of ser ious injury in crashe s than adults .
Because chi ldren 's bodies a re not fu lly deve loped, they require
restraint systems especially designed for their size, weight, and
body structu re. Many countr ies and al l states of the Un ited States
and provinces of Canada have laws requiring the use of approved
ch ild restrai nt sys te m s for infa nts and small chil dren.
I n a frontal crash at a speed of 20 -35 mph (30 -56 km/h) the forces
acti ng on a 13 -p o un d (6 kg) infant wil l be m ore tha n 20 times the
weight of the child . This means the weight of the child would
suddenly be more than 260 pounds (120 kg). Under these condi ­
tions, on ly an appropriate child restraint properly used can reduce
the risk of serious injury. Child restraints, like adult safety belts,
m ust be used p rope rly t o b e effect ive. Used im properly, they ca n
increase the risk of serious injury in an accident .
Co nsu lt t he c hild safety seat manufac ture r's in struc tions to be su re
the seat is right for your ch ild's size~
page 793, "Important safety
instructions for using child safety seats" . Please be sure to read and
heed all of the important information and WARN INGS about child
safety, Advanced Airbags, and the installation of child restraints in
t his chapte r.
T here is a lot you need to know about the Advanced Airbags in your
ve hicle and how they work wh en infan ts and chi ld re n in child
restraints are on the front passenger seat. Because of the large amoun
t of important information, we cannot repeat it a ll here. We
urge you to read the detai led information in this owner's manua l
about airbags and the Advanced Airba g Sys tem in your veh ic le an d
the very important information about transporting chi ldren on the
fron t passe nge r seat . P lease be su re to hee d t he WAR NINGS -they
are extreme ly important for your safety and the safety of your
p assengers, especial ly in fa nt s and s mall children .
& WARNING
• Accident stati stic s have shown that children are generally safer
i n the rear seat area than in the front seat ing position. A lways
restrain any child age 12 and under in the rear.
• All vehicle o ccup ants and espe cially children must be
restrained properly whenever riding in a vehicle . An unrestrained
or improperly restrained child could be injured by striking the inte­
rior or by being ejected from the vehicle during a sudden
maneuve r or impa ct. An unrestrained or improperly restrained
child is also at greater risk of injury or death through contact with
an inflating airbag .
• A suitable child restraint properly installed and used at one of
the rear seat ing positions provide s the highest degree of protec­
tion for infants and small children in most accident situations.
& WARNING
Children on the front seat of any car even with Advanced Airbags
can be seriously injured or even killed when an airbag inflates . A
child in a rearward -fa cing child safety seat in stalled on the front
passenger seat will be seriously injured and can be killed if the
front airbag inflates .
• The inflating ai rbag will hit the child safety seat or infant
carrier with great force and will sm ash the child safety seat and
child against the backrest , center arm rest , or door .
IJll,

--------------------------------------------~C~ h~ il~d ~S~ a~f e~ t~ YL _III
& WA RNIN G (conti nu ed )
• Alway s install rear-facing child safety se ats on the rear seat.
• If you mu st in stall a rearw ard f acing chi ld safety seat on the
front pa ssenger seat in exc eptional cir cum stance s and the
PA SSENGER AIR BAG OFF light do es not come on and stay on,
im medi ate ly install the re ar-fa cing child safety s eat in a rear
s e ating po sit ion and h ave the airb ag sys tem inspe cted im medi ­
ately by your Audi de aler .
& WARNING
If, in exceptional circum stance s, you must in stall a forward -facing
c hild re st ra int on the fr ont p ass eng er' s s eat :
• Alway s make sure the forward -facing seat ha s been de signed
and cert ified by it s manufa cturer f or use on a front se at with a
p ass enger front and side airbag .
• Always follow the m anufacturer's instruct ions provided with
the child safety seat or carrier.
• Alway s m ove the pa ss e nger sea t into its rearm ost p osit ion in
the seat' s fo re and aft adju stment r ange , as far away from the
a irb ag as possib le before installing the child r estr aint . The b ack­
rest mu st be adju sted to an upr ight po sition.
• Alw ays ma ke sure th at the PAS SENGER AIR BAG OFF light
c ome s on and stay s on all the time whenever the ignition i s
s witched on . •
Advanced front airbag system and children
Your vehicle is equipped with an "Advanced Airbag System" in
compliance with United States Federal Motor Vehicle Sa fety Stan ­
dard (FMVSS) 208 as applicab le at the time your vehicle was manu ­
factured .
Controls and equip­
ment Safety first Vehicle operation
The Advanced Airbag system in your vehicle has been certified to
meet the " low -risk" requirements for 3 and 6 yea r- old child ren on
the passenger side and small adu lts on the driver side. The low risk
deployment c rite ria are intended to reduce the risk of injury th rough
interaction with the airbag that can occur, for example, by being too
close to the steering whee l and instrument panel when the airbag
in flates . In add ition, the system has been cert ified to comply with
the "suppression" requirements of the Safety Standard, to turn off
the front airbag for infants up to 12 months who are restrained on
the front passenger seat in child restraints that are listed in the
Standard.
Even though your vehic le is equipped with an Advanced Airbag
system, all ch ildren, especially those 12 years and younger, should
a lways ride in the back seat proper ly restrained for the ir age and
s ize . The a irbag on the passenger side makes the front seat a poten­
tially dangerous p lace for a chi ld to r ide. The front seat is not the
safest place for a chi ld in a forward -facing child safety seat. It can be
a very dangerous place for an infant or a larger chi ld in a rearward ­
facing seat. •
Advanced Airbags and the weight-sensing
mat in the front seat
The Advanced Airbag System in your vehicle detects the p resence
of an infant or chi ld in a chi ld restraint on the front passenger seat
using the weight -sensing mat in the seat cushion and the sensor
below the safety belt latch on the front passenger seat that
measures the tension on the safety belt .
The weight -sensing mat measures t otal weight of the ch ild and the
child safety seat and a chi ld blanket on the front passenger seat. The
weight on the front passenge r seat is related to the design of the
child restraint and its "footprint", the size and shape of the bottom
of the child restraint as it sits on the seat. The weight of a child
restraint and its "footprint" vary for different kinds of child .,
Vehicle care Do-it-yourself service Technical data

-Child Safety ____ .:....__ __________________________ _
restraints and for the different models of the same kind of child
restraint offered by child restraint manufacturers.
The weight ranges for the individual types, makes and models of child restraints that the NHTSA has specified in the Safety Standard
together with the weight ranges of typical infants and typical 1 year­
old child have been stored in the control unit of the Advanced
Airbag System. When a child restraint is being used on the front passenger seat with a typical 1 year-old child, the Advanced Airbag
System compares the weight measured by the weight sensing mat
with the information stored in the electronic control unit.
The electronic control unit also registers the tension on the front
passenger safety belt. The tension on the safety belt for the front
passenger seat will be different for an adult who is properly using
the safety belt as compared to the tension on the belt when it is used to attach a child restraint to the seat. The sensor below the
latch for the safety belt for the front seat passenger measures the
tension on the belt . The input from this sensor is then used with the
weight to "decide", whether there is a child restraint with a typical 1
year-old child on the front passenger seat and whether or not the airbag must be turned off.•
Child restraints and Advanced Airbags
Regardless of the child restraint that you use, make sure that it has
been certified to meet United States Federal Motor Vehicle Safety
Standards and has been certified by its manufacturer for use with
an airbag. Always be sure that the child restraint is properly
installed at one of the rear seating positions. If in exceptional
circumstances you must use it on the front passenger seat, carefully read all of the information on child safety and Advanced Airbags
and heed all of the applicable WARNINGS. Make certain that the
child restraint is correctly recognized by the weight -sensing mat
inside the front passenger seat, that the front passenger airbag is
turned off and that the airbag status is always correctly signaled by
the
PASSENGER AIR BAG OFF light. Many types and models of child restraints have been available over
the years, new models are introduced regularly incorporating new
and improved designs and older models are taken out of produc­
tion. Child restraints are not standardized. Child restraints of the
same type typically have different weights and sizes and different
'footprints,' the size and shape of the bottom of the child restraint
that sits on the seat, when they are installed on a vehicle seat. These
differences make it virtually impossible to certify compliance with
the requirements for advanced airbags with each and every child
restraint that has ever been sold in the past or will be sold over the
course of the useful life of your vehicle.
For this reason, the United States National Highway Traffic Safety
Administration has published a list of specific type, makes and
models of child restraints that must be used to certify compliance
of the Advanced Airbag System in your vehicle with the suppression
requirements of Federal Motor Vehicle Safety Standard 208. These
child restraints are:
A. Car beds, manufactured on or after September 1,
2004:
• Cosco Dream Ride 02-719
B. Rear facing child restraint systems, manufactured
on or after September 1, 2004:
(When the restraint system comes equipped with a removable base,
compliance has to be certified with or without the basel.
• Britax Handle with Care 191
• Century Assura 4553
• Century Smart Fit 4543
• Cosco Arriva 02727
• Evenflo Discovery Adjust Right 212
• Evenflo First Choice 204
• Graco Infant 8457

_______________________________________________ C_h _i_ld _ S_ a_ f_ e_ t...:; y ______ lllll
C . Forward-facing convertible child restraint systems,
manufactured on or after September 1, 2004:
• Britax Roundabout 161
• Britax Expressway
• Century Encore 4612
• Century STE 1000 4416
• Cosco Olympian 02803
• Cosco Touriva 02519
• Evenflo Horizon V 425
• Evenflo Medallion 254
• Safety First Comfort Ride 22-400
& WARNING
To reduce the risk of serious injury, make sure that the PASSENGER
AIR BAG OFF light comes on and stays on whenever a child restraint is installed on the front passenger seat and the ignition
is switched on.
• Take the child restraint off the front passenger seat and install
it properly at one of the rear seat positions if the PASSENGER AIR
BAG OFF light does not stay on.
• Have the airbag system inspected by your authorized Audi
dealer immediately .
[ i] Tips
The child seats listed in categories A to C have been tested by Audi
only for the Advanced Airbag function. •
Controls and equip­
ment Safety first Vehicle operation
Important safety instructions for using child
safety seats
Correct use of child safety seats substantially reduces the
risk of injury in an accident!
As the driver, you are responsible for the safety of every
­
body in the vehicle, especially children:
- Always use the right child safety seat for each child and
always use it properly~
page 195.
-Always carefully follow the child safety seat manufac­
turer's instructions on how to route the safety belt prop­
erly through the child safety seat.
- When using the vehicle safety belt to install a child safety
seat , you must first activate the convertible locking
retractor on the safety belt to prevent the child safety
seat from moving~
page 200.
-Push the child safety seat down with your full weight to
get the safety belt really tight so that the seat cannot
move forward or sideways more than one inch (2.5 cm).
- If a strap or tether is being used to tie the child safety
seat to the front passenger seat, make sure that it is not
so tight that it causes the weight-sensing mat to
measure more weight than is actually on the seat.
Always remember: Even though your vehicle is equipped with an
Advanced Airbag system, all children, especially those 12 years and
younger, should always ride in the back seat properly restrained for
their age and size. •
Vehicle care Do-it-yourself service Technical data

___ C_h _i_ ld _ S_a _f _e _t _y ____________________________________________ _

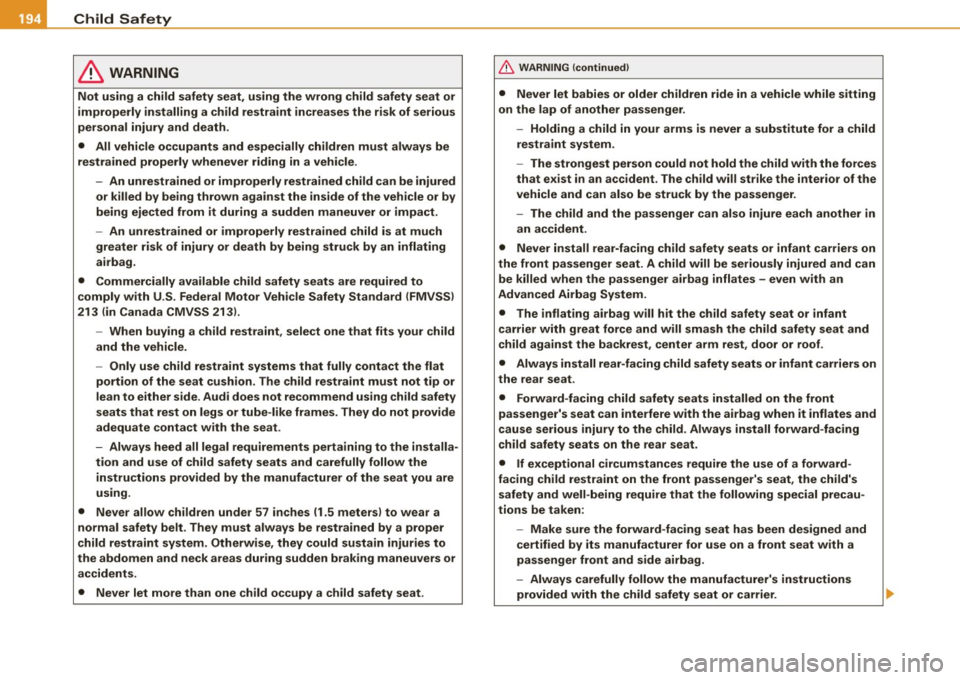

& WARNING
Not using a child safety seat, using the wrong child safety seat or
improperly installing a child restraint increases the risk of serious
personal injury and death.
• All vehicle occupants and especially children must always be
restrained properly whenever riding in a vehicle .
- An unrestrained or improperly restrained child can be injured or killed by being thrown against the inside of the vehicle or by
being ejected from it during a sudden maneuver or impact.
- An unrestrained or improperly restrained child is at much
greater risk of injury or death by being struck by an inflating
airbag.
• Commercially available child safety seats are required to
comply with U .S. Federal Motor Vehicle Safety Standard (FMVSSI
213 (in Canada CMVSS 2131.
-When buying a child restraint , select one that fits your child
and the vehicle.
- Only use child restraint systems that fully contact the flat
portion of the seat cushion . The child restraint must not tip or
lean to either side . Audi does not recommend using child safety
seats that rest on legs or tube-like frames. They do not provide
adequate contact with the seat .
- Always heed all legal requirements pertaining to the installa ­
tion and use of child safety seats and carefully follow the
instructions provided by the manufacturer of the seat you are
using .
• Never allow children under 57 inches (1 .5 meters) to wear a
normal safety belt. They must always be restrained by a proper
child restraint system. Otherwise, they could sustain injuries to
the abdomen and neck areas during sudden braking maneuvers or
accidents.
• Never let more than one child occupy a child safety seat .
& WARNING (continued)
• Never let babies or older children ride in a vehicle while sitting
on the lap of another passenger.
- Holding a child in your arms is never a substitute for a child
restraint system .
- The strongest person could not hold the child with the forces
that exist in an accident. The child will strike the interior of the
vehicle and can also be struck by the passenger.
- The child and the passenger can also injure each another in
an accident.
• Never install rear-facing child safety seats or infant carriers on
the front passenger seat. A child will be seriously injured and can be killed when the passenger airbag inflates - even with an
Advanced Airbag System.
• The inflating airbag will hit the child safety seat or infant
carrier with great force and will smash the child safety seat and
child against the backrest, center arm rest, door or roof .
• Always install rear -facing child safety seats or infant carriers on
the rear seat .
• Forward-facing child safety seats installed on the front
passenger's seat can interfere with the airbag when it inflates and
cause serious injury to the child . Always install forward -facing
child safety seats on the rear seat.
• If exceptional circumstances require the use of a forward ­
facing child restraint on the front passenger's seat, the child's
safety and well -being require that the following special precau ­
tions be taken :
- Make sure the forward -facing seat has been designed and
certified by its manufacturer for use on a front seat with a
passenger front and side airbag.
- Always carefully follow the manufacturer 's instructions
provided with the child safety seat or carrier .

& WARNING (continued)
-Always move the front passenger seat into the rearmost
position of the passenger seat's fore and aft adjustment range,
and as far away from the airbag as possible before installing
the child restraint.
- Always make sure that nothing prevents the front
passenger's seat from being moved to the rearmost position in
its fore and aft adjustment range.
- Always make sure that the backrest is in the upright posi­
tion.
• Always buckle the child safety seat firmly in place even if a
child is not sitting in it. A loose child safety seat can fly around
during a sudden stop or in a collision.
• Always read and heed all WARNINGS whenever using a child
restrained in a vehicle is being used=>
page 159, "Safety belts",
=>
page 168, "Airbag system" and=> page 190, "Child Safety".
& WARNING
To reduce the risk of serious injury, make sure that the PASSENGER
AIR BAG OFF light comes on and stays on whenever a child
restraint is installed on the front passenger seat and the ignition
is switched on.
• Take the child restraint off the front passenger seat and install
it properly at one of the rear seat positions if the PASSENGER AIR
BAG OFF light does not stay on.
• Have the airbag system inspected by your authorized Audi
dealer immediately. •
Safety first
Child Safety

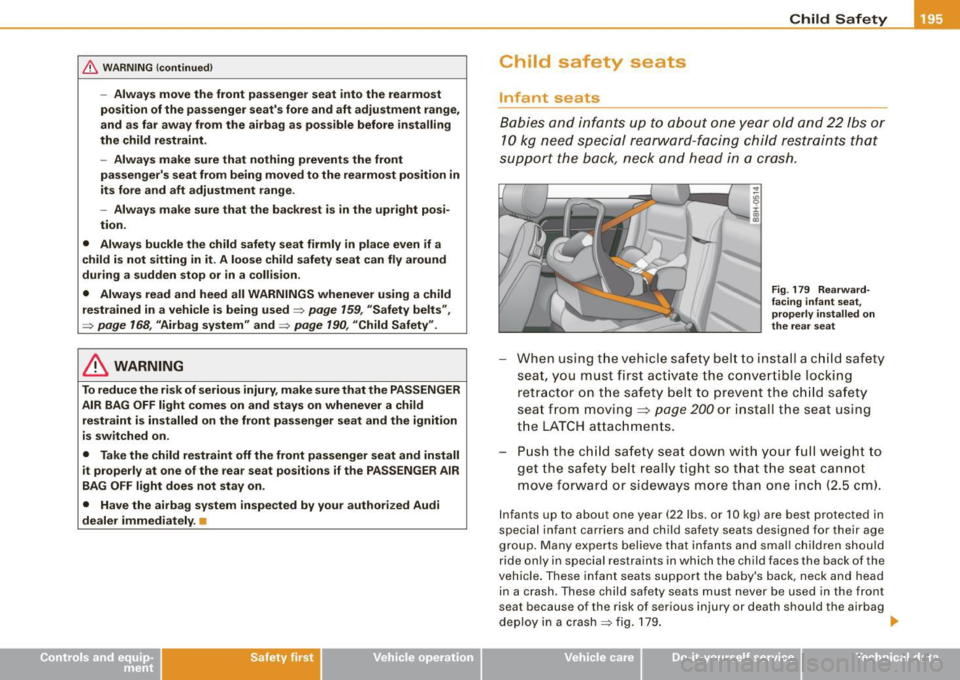

Child safety seats
Infant seats
Babies and infants up to about one year old and 22 lbs or
10 kg need special rearward-facing child restraints that
support the back, neck and head in a crash.
Fig. 179 Rearward­
facing infant seat,
properly installed on
the rear seat
-When using the vehicle safety belt to install a child safety
seat, you must first activate the convertible locking
retractor on the safety belt to prevent the child safety
seat from moving
=> page 200 or install the seat using
the LATCH attachments.
- Push the child safety seat down with your full weight to
get the safety belt really tight so that the seat cannot
move forward or sideways more than one inch (2.5 cm).
Infants up to about one year (22 lbs. or 10 kg) are best protected in
special infant carriers and child safety sea ts designed for their age
group. Many experts believe that infants and small children should
ride only in special restraints in which the child faces the back of the
vehicle. These infant seats support the baby's back, neck and head
in a crash. These child safety seats must never be used in the front
seat because of the risk of serious injury or death should the airbag
deploy in a crash => fig. 179. .,,.
~ehicle care irechnical data

___ C_h_ i_ ld _ S_ a_ f_ e_ t--= y'------------------------------------------------

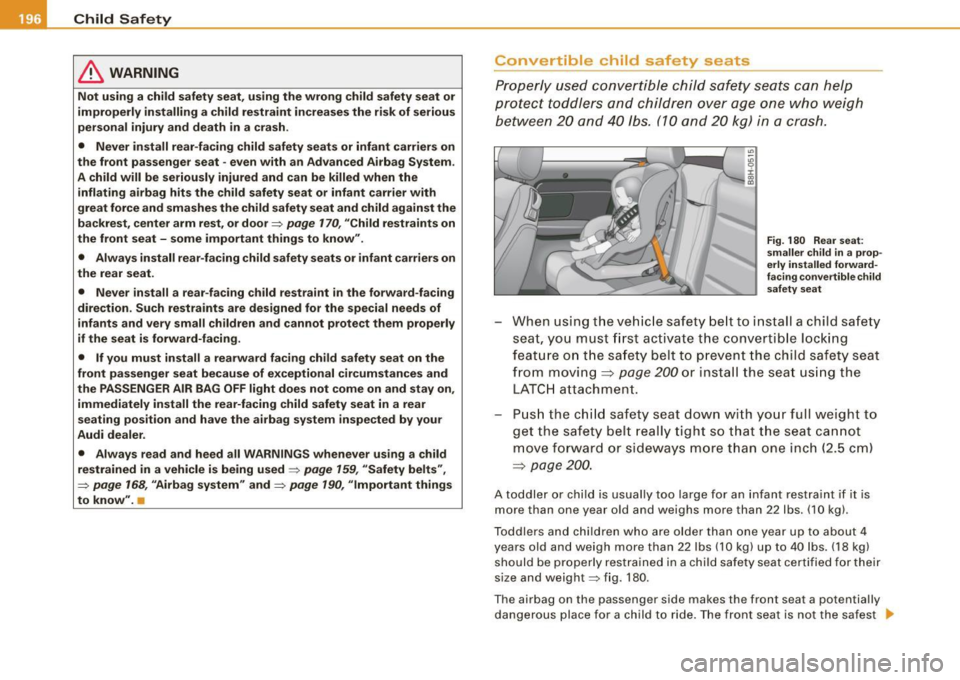

& WARNING
Not using a child safety seat, using the wrong child safety seat or
improperly installing a child restraint increases the risk of serious
personal injury and death in a crash.
• Never install rear-facing child safety seats or infant carriers on
the front passenger seat -even with an Advanced Airbag System.
A child will be seriously injured and can be killed when the
inflating airbag hits the child safety seat or infant carrier with
great force and smashes the child safety seat and child against the
backrest, center arm rest, or door=>
page 170, "Child restraints on
the front seat -some important things to know".
• Always install rear-facing child safety seats or infant carriers on
the rear seat.
• Never install a rear-facing child restraint
in the forward-facing
direction. Such restraints are designed for the special needs of
infants and very small children and cannot protect them properly
if the seat is forward-facing.
• If you must install a rearward facing
child safety seat on the
front passenger seat because of exceptional circumstances and
the PASSENGER AIR BAG OFF light does not come on and stay on,
immediately install the rear-facing child safety seat in a rear
seating position and have the airbag system inspected by your
Audi dealer.
• Always read and heed all WARNINGS whenever using a child
restrained in a vehicle is being used=>
page 159, "Safety belts",
=> page 168, "Airbag system" and=> page 190, "Important things
to know". •
Convertible child safety seats
Properly used convertible child safety seats can help
protect toddlers and children over age one who weigh
between 20 and 40 lbs. (10 and 20 kg) in a crash.
Lil ;;; 0 ± ., IO
Fig. 180 Rear seat:
smaller child in a prop­
erly insta lled forward­
facing convertible chi Id
safety seat
When using the vehicle safety belt to install a child safety
seat, you must first activate the convertible locking
feature on the safety belt to prevent the child safety seat
from moving =>
page 200 or install the seat using the
LATCH attachment.
Push the child safety seat down with your full weight to
get the safety belt really tight so that the seat cannot
move forward or sideways more than one inch (2.5 cm)
=> page 200.
A toddler or child is usually too large for an infant restraint if it is
more than one year old and weighs more than 22 lbs. (10 kg).
Toddlers and children who are older than one year up to about 4
years old and weigh more than 22 lbs (10 kg) up to 40 lbs. (18 kg)
should be properly restrained in a child safety seat certified for their
size and weight=> fig. 180.
Th e airbag on the passenger side makes the front seat a potentially
dangerous place for a child to ride. The front seat is not the safest ..,_

___________________________________________ _:C :..: h..:: i:.:..:: ld :::......: S:: a::..: f:..::e :.::t Ly __ ffl!III
place for a chi ld in a forward -facin g chil d safet y seat . It is a very
dan gerous place for an infant o r a larger chi ld in a rearward -fac ing
s ea t.
& WARNING
Not using a child safety seat, using the wrong child safety seat or
improperly installing a child restraint increases the risk of serious
personal injury and death in a collision or other emergency situa­
tion.
• Children on the front seat of any car, even with Advanced
Airbags, can be seriously injured or even killed when an airbag inflates . A child in a rearward -facing child safety seat installed on
the front passenger seat will be seriously injured and can be killed if the front airbag inflates - even with an Advanced Airbag System .
• The inflating airbag will hit the child safety seat or infant
carrier with great force and will smash the child safety seat and
child against the backrest, center arm rest, or door .
• Always install rear-facing child safety seats on the rear seat .
• If you must install a rearward facing child safety seat on the
front passenger seat because of exceptional circumstances and
the PASSENGER AIR BAG OFF light does not come on and stay on ,
immediately install the rear-facing child safety seat in a rear
seating position and have the airbag system inspected by your
Audi dealer .
• Always read and heed all WARNINGS whenever using a child
restrained in a vehicle is being used=>
page 159, "Safety belts ",
=>
page 168 , "Airbag system" and=> page 190, "Important things
to know ".
& WARNING
If exceptional circumstances require the use of a forward-facing
child restraint on the front passenger's seat , the child's safety and
well-being require that the following special precautions be taken :
Controls and equip­ ment Safety first
Vehicle operation
& WARNING (continued)
• Make sure the forward-facing seat has been designed and certi­
fied by its manufacturer for use on a front seat with a passenger
front and s ide airbag .
• Always follow the manufacturer's instructions provided with
the child safety seat or carrier.
• Always move the front passenger seat into the rearmost posi ­
tion of the passenger seat's fore and aft adjustment range, and as
far away from the airbag as possible before installing the child
restraint.
• Always make sure that nothing prevents the front passenger's
seat from being moved to the rearmost position in its fore and aft
adjustment range.
• Always make sure the backrest is in an upright position.
• Make sure that the PASSENGER AIR BAG OFF light comes on
and stays on all the time whenever the ignition is switched on.
• If the light does not stay on , perform the checks =>
page 179,
"Monitoring the Advanced Airbag System" .
• Take the child restraint off the front passenger seat and install
it properly at one of the rear seat positions if the PASSENGER AIR
BAG OFF light does not stay on whenever the ignition is switched
on .•
Vehicle care Do-it-yourself service Technical data

__ ___;:C;.:.h.:.: i.:.:ld ::.....: S~ a::. f~ e~ t~ y:__ _____________________________________________ _

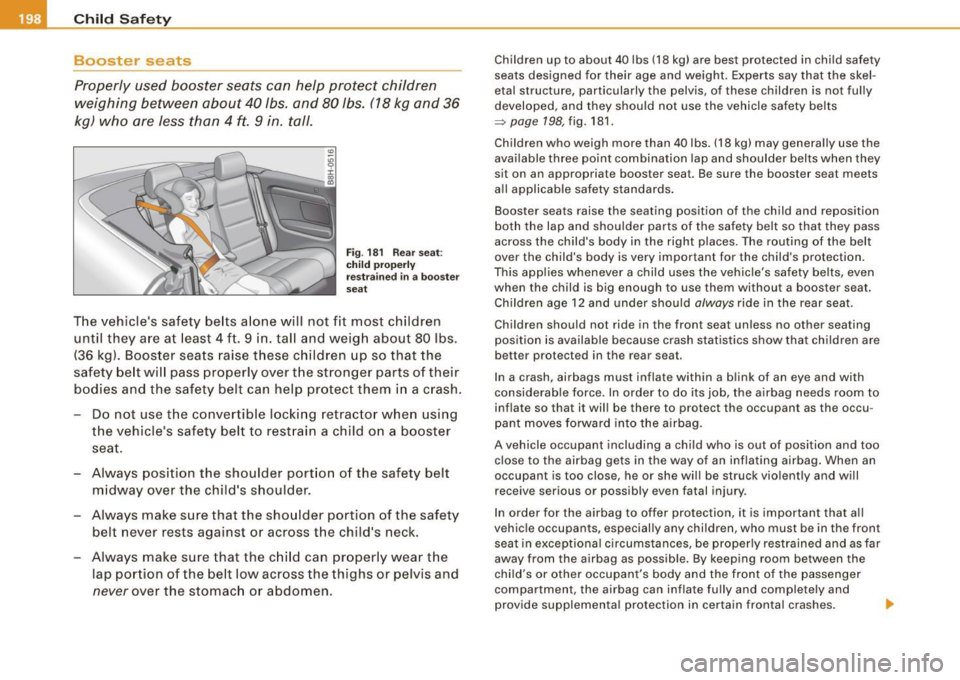

Booster seats
Properly used booster seats can help protect children
weighing between about 40 lbs . and 80 lbs. (18 kg and 36
kg) who are less than
4 ft. 9 in. tall.
Fig . 181 Rear seat:
child properly
restrained
in a booster
seat
The vehicle's safety belts alone will not fit most children
until they are at least 4 ft. 9 in. tall and weigh about 80 lbs.
(36 kg). Booster seats raise these children up so that the
safety belt will pass properly over the stronger parts of their
bodies and the safety belt can help protect them in a crash.
- Do not use the convertible locking retractor when using
the vehicle's safety belt to restrain a child on a booster
seat.
- Always position the shoulder portion of the safety belt
midway over the child's shoulder.
- Always make sure that the shoulder portion of the safety belt never rests against or across the child's neck.
- Always make sure that the child can properly wear the lap portion of the belt low across the thighs or pelvis and
never over the stomach or abdomen .
Children up to about 40 lbs (18 kg) are best protected in child safety
seats designed for their age and weight. Experts say that the skel ­
etal structure, particularly the pelvis, of these children is not fully
developed, and they should not use the vehicle safety belts
=> page 1981 fig . 181.
Children who weigh more than 40 lbs. (18 kg) may generally use the
available three point combination lap and shoulder belts when they
sit on an appropriate booster seat . Be sure the booster seat meets
all applicable safety standards .
Booster seats raise the seating position of the child and reposition
both the lap and shoulder parts of the safety belt so that they pass
across the child's body in the right places. The routing of the belt
over the child's body is very important for the child's protection.
This applies whenever a child uses the vehicle's safety belts, even
when the child is big enough to use them without a booster seat. Children age 12 and under should
always ride in the rear seat.
Children should not ride in the front seat unless no other seating
position is available because crash statistics show that children are
better protected in the rear seat.
In a crash, airbags must inflate within a blink of an eye and with
considerable force . In order to do its job, the airbag needs room to
inflate so that it will be there to protect the occupant as the occu ­
pant moves forward into the airbag.
A vehicle occupant including a child who is out of position and too close to the airbag gets in the way of an inflating airbag. When an
occupant is too close, he or she will be struck violently and will
receive serious or possibly even fatal injury .
In order for the airbag to offer protection, it is important that all
vehicle occupants, especially any children, who must be in the front
seat in exceptional circumstances, be properly restrained and as far
away from the airbag as possible. By keeping room between the
child's or other occupant's body and the front of the passenger
compartment, the airbag can inflate fully and completely and
provide supplemental protection in certain frontal crashes . ._
