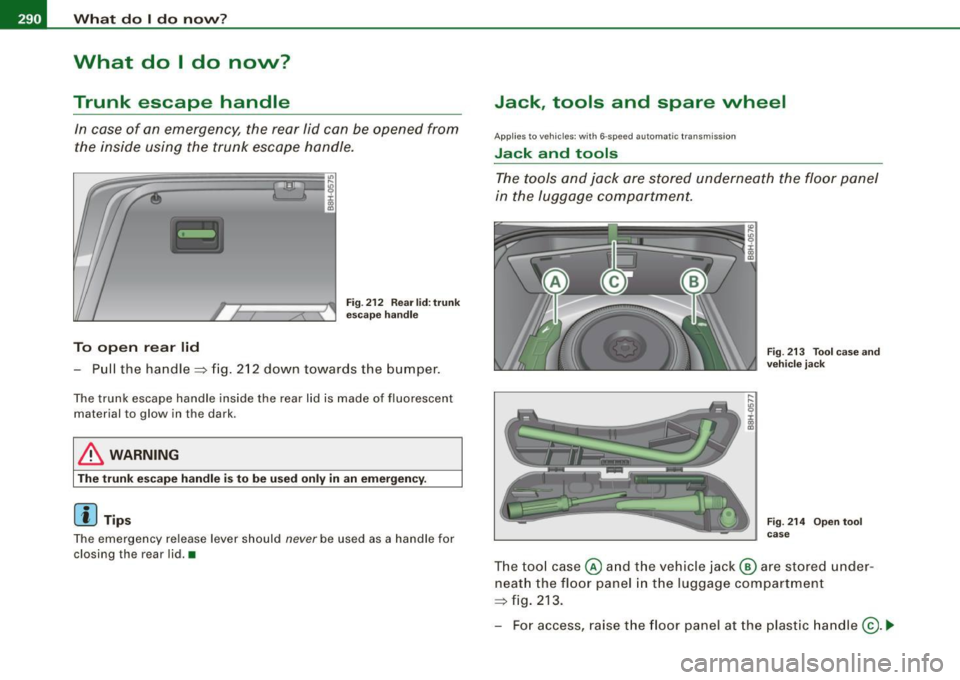

What do I do now?
Trunk escape handle
In case of an emergency, the rear lid can be opened from
the inside using the trunk escape handle.
To open rear lid
Fig. 212 Rear lid: trunk
escape handle
-Pull the handle~ fig. 212 down towards the bumper.
The trunk escape handle inside the rear lid is made of fluorescent
material to glow in the dark.
& WARNING
The trunk escape handle is to be used only in an emergency.
[ i ] Tips
The emergency release lever should never be used as a handle for
closing the rear lid. •
Jack, tools and spare wheel
Applies to vehicles: with 6 -speed automatic transmission
Jack and tools
The tools and jack are stored underneath the floor panel
in the luggage compartment.
Fig. 213 Tool case and
vehicle jack
Fig. 214 Open tool
case
The tool case @ and the vehicle jack @ are stored under­
neath the floor panel in the luggage compartment
~ fig. 213.
- For access, raise the floor panel at the plastic handle
@. ~

_______________________________________________ W_ h_ a _ t_d_ o_ l _d _o_ n_ o_ w_ ? _ __,_

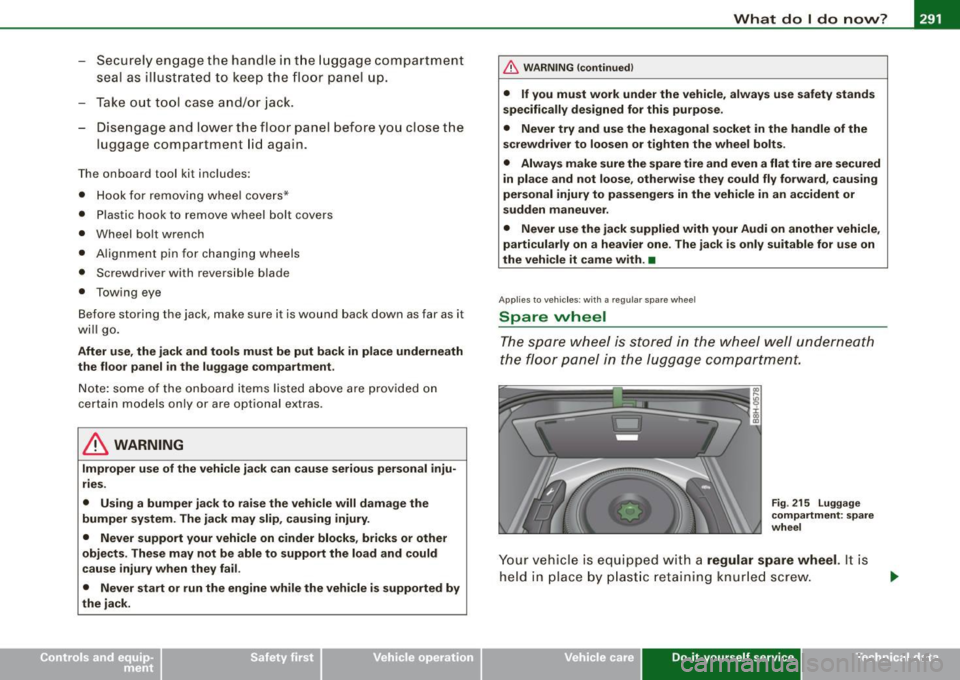

- Se curely en gage the han dle in th e lu ggage com partm ent
se al as illust rate d to k eep th e flo or panel up.
- Take o ut tool case and/or jack .
- Dise ngage and lower the floo r panel befo re yo u close the
luggage compa rtment lid again .
The onboard tool kit inc ludes:
• Hook for re moving whee l cove rs*
• Plastic hook to remove wheel bolt covers
• Wheel bolt wrench
• Alignment pin for changing wheels
• Screwdriver with reversible b lade
• Tow ing eye
Before storing the jack, make sure it is wound back down as far as it
wi ll g o.
After use , the jack and tools must be put back in place underneath
the floor panel in the luggage compartment .
Note : some o f the o n board i te m s liste d abo ve are provi ded on
certain models on ly or are optional extras .
& WARNING
Improper use of the vehicle ja ck can cause serious personal inju­
ries .
• Using a bumpe r jack to raise the vehicle will damage the
bumper system . The jack may slip , causing injury .
• Never support your vehicle on cinder blocks , bricks or other
objects . These may not be able to support the load and could
c ause injury when they fail.
• Never start o r run the engine while the vehicle is supported by
the jack.
& WARNING (continued )
• If you must work under the vehicle, always use safety stands
specifically designed for this purpose .
• Never try and use the hexagonal socket in the handle of the
screwdriver to loosen or tighten the wheel bolts.
• Always make sure the spare tire and even a flat tire are secured
in pla ce and not loose , otherwise they could fly forward , causing
personal injury to passengers in the vehicle in an accident or
s udden maneuver .
• Never use the jack supplied with your Audi on another vehicle,
particularly on a heavier one. The jack i s only suitable for use on
the vehicle it came with. •
App lie s to ve hic les : w ith a reg ular sp are whee l
Spare wheel
Th e s pare whe el i s stor ed in th e wh eel w ell unde rneath
the fl oor pan el in th e lugg age c omp artme nt.
Fig . 21 5 luggage
compartment: spa re
w heel
Yo ur v ehi cle is equi pped wi th a regular spare wheel. It i s
h eld in pla ce by pla stic re tainin g knur le d sc re w .
~ehicle care Do-it-yourse lf service irechnical data

11111.___W_ h_ a_ t_d_ o_ l _d _o_ n_ o_ w_ ? ______________________________________________ _
Taking out the spare wheel
- Raise the floor panel at the plastic handle.
- Securely engage the handle in the luggage compartment
seal as illustrated to keep the floor panel up.
- Unscrew the knurled retainer bolt in the wheel center
==> page 291, fig. 215. Turn it counter-clockwise.
- Take out the spare wheel.
- Disengage and lower the floor panel before you close the
luggage compartment lid again.
Storing the replaced wheel
-Place the replaced wheel inside the spare wheel well in
the luggage compartment.
- Tighten the knurled retaining screw clockwise to secure
the wheel in place.
- Disengage and lower the floor panel before you close the
luggage compartment lid again.
& WARNING
Loose items in the passenger compartment can cause serious
personal injury during hard braking or in an accident .
• Never store the spare wheel or jack and tools in the passenger
compartment.
• Always store all jacking equipment, tools, and the spare wheel
in the luggage compartment.
• Tighten the knurled retaining screw for the spare wheel
securely.
[ i] Tips
Check the inflation pressure of the spare tire periodically to keep the
tire ready for use. •
Applies to vehic les: w ith a space -saving spare wheel
Space-saving spare wheel
The compact spare wheel is only intended to be used for
a short time.
Using the space-saving spare wheel
The space -saving spare wheel is only intended for emergencies
until you can reach a repair shop. Replace it as quickly as possible
with a normal wheel.
There are some restrictions on the use of the space -saving spare
wheel
=> ,&. . The space-saving spare wheel has been developed
especially for your type of vehicle. It must not be exchanged for the
space-saving spare wheel from another type of vehicle.
Normal summer or winter tires must not be fitted on the space ­
saving spare wheel rim.
Snow chains
For technical reasons, the use of snow chains on the space-saving
spare wheel
not permitted .
If you do have to drive with snow chains and have a tire failure on a
front wheel, install the space-saving spare wheel in place of a rear
wheel. Install the snow chains on the rear wheel and use it to
replace the defective front wheel.
& WARNING
• After installing the space-saving spare wheel, the tire pressure
must be checked as soon as possible. The tire pressure must be
adapted to the load condition of the vehicle according to the tire .,_

_____________________________________________ W_ h _a_t _ d_ o_ l _d _o _ n_o_ w_ ?_ . _ ..... 19111
•

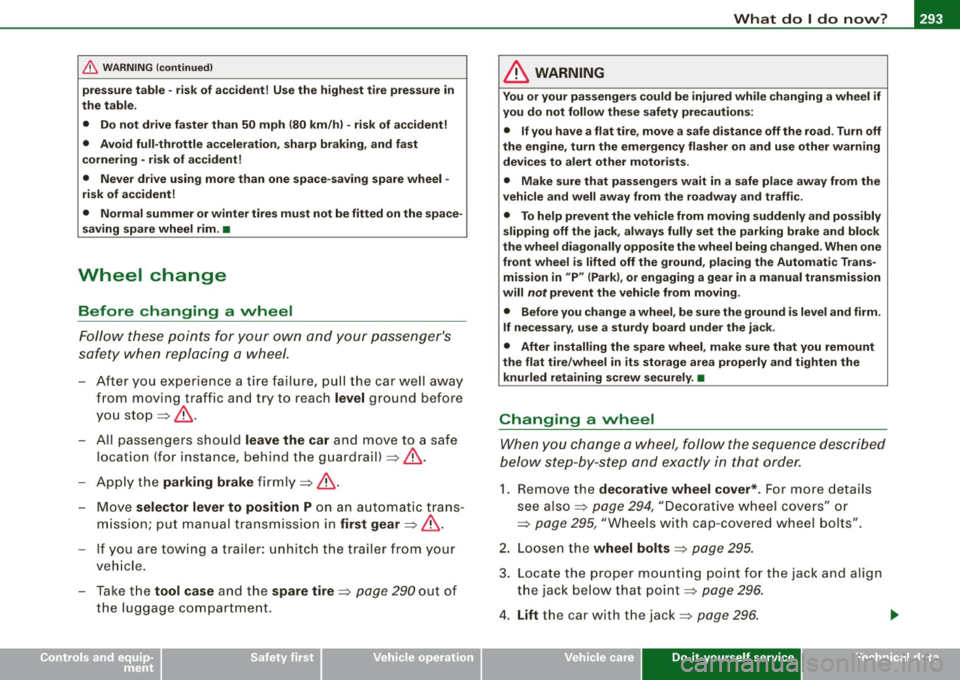

& WARNING (continued)
pressure table - risk of accident! Use the highest tire pressure in
the table.
• Do not drive faster than 50 mph (80 km/h) - risk of accident!
• Avoid full-throttle acceleration, sharp braking, and fast
cornering - risk of accident!
• Never drive using more than one space-saving spare wheel -
risk of accident!
• Normal summer or winter tires must not be fitted on the space­
saving spare wheel rim. •
Wheel change
Before changing a wheel
Follow these points for your own and your passenger's
safety when replacing a wheel.
-After you experience a tire failure, pull the car well away
from moving traffic and try to reach level ground before
you stop => & .
- All passengers should leave the car and move to a safe
location (for instance, behind the guardrail)=>& .
- Apply the parking brake firmly=>&.
- Move selector lever to position Pon an automatic trans-
mission; put manual transmission in first gear =>& .
- If you are towing a trailer: unhitch the trailer from your
vehicle.
- Take the tool case and the spare tire=>
page 290 out of
the luggage compartment.
& WARNING
You or your passengers could be injured while changing a wheel if
you do not follow these safety precautions:
• If you have a flat tire, move a safe distance off the road. Turn off
the engine, turn the emergency flasher on and use other warning devices to alert other motorists .
• Make sure that passengers wait in a safe place away from the
vehicle and well away from the roadway and traffic.
• To help prevent the vehicle from moving suddenly and possibly
slipping off the jack, always fully set the parking brake and block
the wheel diagonally opposite the wheel being changed. When one
front wheel is lifted off the ground, placing the Automatic Trans­
mission in "P" (Park), or engaging a gear in a manual transmission
will
not prevent the vehicle from moving .
• Before you change a wheel, be sure the ground is level and firm.
If necessary, use a sturdy board under the jack.
• After installing the spare wheel, make sure that you remount
the flat tire/wheel in its storage area properly and tighten the
knurled retaining screw securely. •
Changing a wheel
When you change a wheel, follow the sequence described
below step-by -step and exactly in that order.
1. Remove the decorative wheel cover*. For more details
see also =>
page 294, "Decorative wheel covers" or
=>
page 295, "Wheels with cap-covered wheel bolts".
2. Loosen the wheel bolts=>
page 295.
3. Locate the proper mounting point for the jack and align
the jack below that point=>
page 296.
4. Lift the car with the jack=> page 296. _,..
Do-it-yourself service

_1.--_W:...:....: h..:.. a=-.: t..:..d= o....:... I .=d .:..;o:......;. n..:.. o.::...;. vv..:....:.. ? ______________________________________________ _

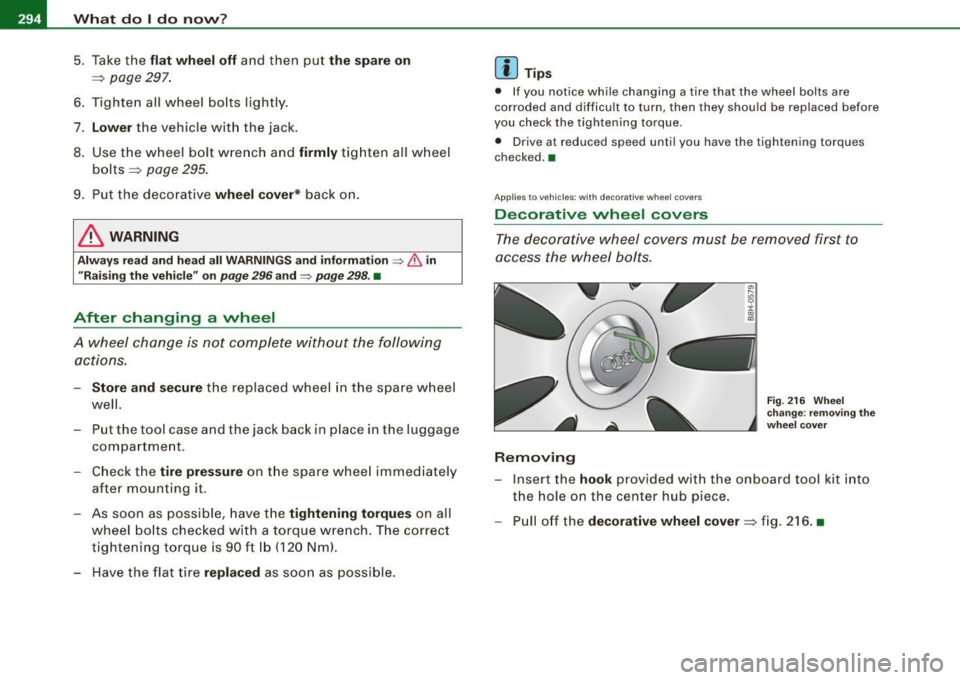

5. Take the flat wheel off and then put the spare on
=> page 297.
6. Tighten all wheel bolts lightly.
7.
Lower the vehicle with the jack.
8. Use the wheel bolt wrench and
firmly tighten all wheel
bolts
=> page 295.
9. Put the decorative wheel cover* back on.
& WARNING
Always read and head all WARNINGS and information ~ & in
"Raising the vehicle" on
page 296 and ~ page 298. •
After changing a wheel
A wheel change is not complete without the following
actions.
- Store and secure the replaced wheel in the spare wheel
well.
- Put the tool case and the jack back in place in the luggage
compartment .
- Check the
tire pressure on the spare wheel immediately
after mounting it.
- As soon as possible , have the
tightening torques on all
wheel bolts checked with a torque wrench. The correct
tightening torque is 90 ft lb (120 Nm).
- Have the flat tire
replaced as soon as possible.
[ i ] Tips
• If you notice while changing a tire that the wheel bolts are
corroded and difficult to turn, then they should be replaced before
you check the tightening torque.
• Drive at reduced speed until you have the tightening torques
checked .•
A pp lies to vehicle s: wi th dec orat ive w heel cove rs
Decorative wheel covers
The decorative wheel covers must be removed first to
access the wheel bolts.
Removing
"' ....
"' 0 ±. .,
"'
Fig. 216 Wheel
change : removing the
wheel cover
- Insert the hook provided with the onboard tool kit into
the hole on the center hub piece.
- Pull off the
decorative wheel cover=> fig. 216. •

_______________________________________________ W_ h_ a _ t_d_ o_ l _d _o_ n_ o_ w_ ? _ __.1111

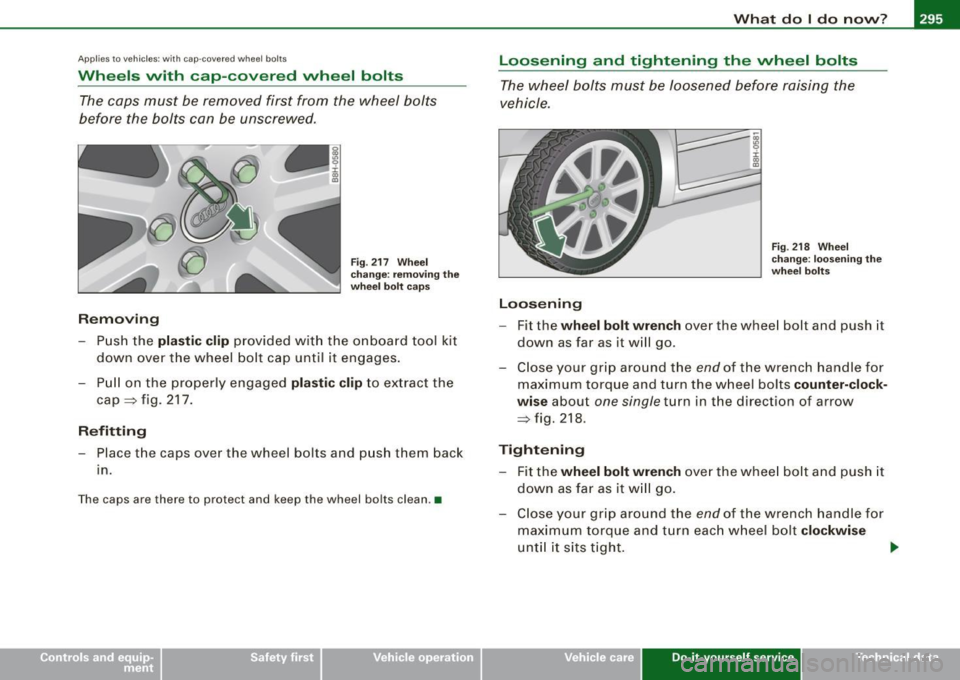

Ap plies to vehic les: with cap-covered wheel bolts
Wheels with cap-covered wheel bolts
The caps must be removed first from the wheel bolts
before the bolts can be unscrewed.
Removing
Fig . 217 Wheel
change : removing the
wheel bolt caps
- Push the plastic clip provided with the onboard tool kit
down over the wheel bolt cap until it engages.
- Pull on the properly engaged plastic clip to extract the
cap:::> fig. 217.
Refitting
- Place the caps over the wheel bolts and push them back
1n.
The caps are there to protect and keep the wheel bolts clean.•
Loosening and tightening the wheel bolts
The wheel bolts must be loosened before raising the
vehicle.
Loosening
Fig . 218 Wheel
change : loosening the
wheel bolts
-Fit the wheel bolt wrench over the wheel bolt and push it
down as far as it will go.
- Close your grip around the end of the wrench handle for
maximum torque and turn the wheel bolts counter-clock­
wise about one single turn in the direction of arrow
:::> fig. 218 .
Tightening Fit the wheel bolt wrench over the wheel bolt and push it
down as far as it will go.
- Close your grip around the end of the wrench handle for
maximum torque and turn each wheel bolt clockwise
until it sits tight. .,
~ehicle care Do-it-yourse lf service irechnical data

11111...__W_ h_ a_ t_d_ o_ l _d _o_ n_ o_ vv_ ? ______________________________________________ _

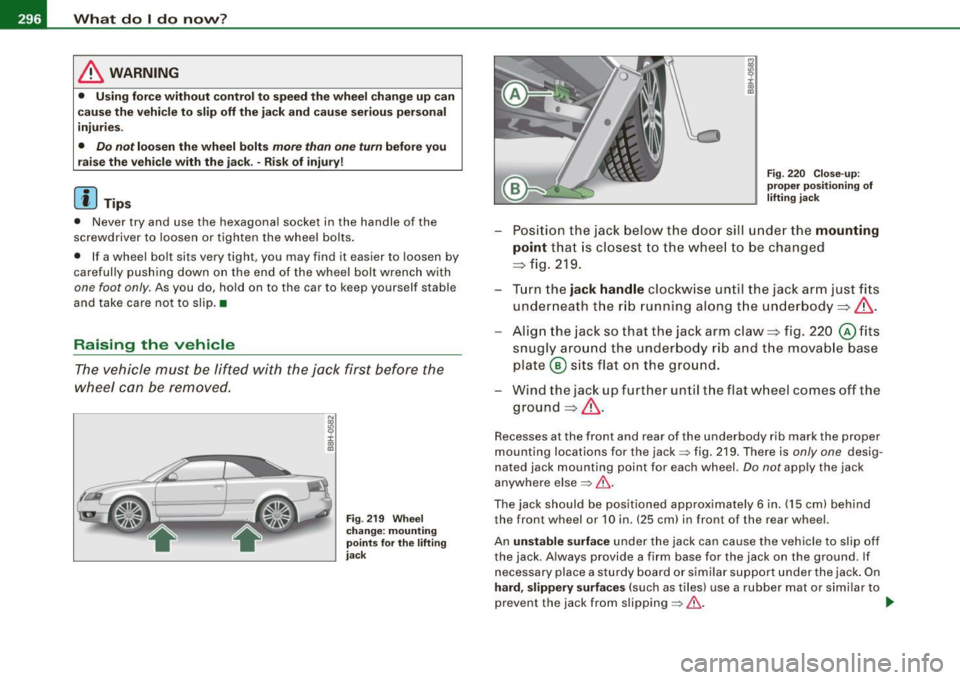

& WARNING
• Using force without control to speed the wheel change up can
cause the vehicle to slip off the jack and cause serious personal
injuries.
• Do not loosen the wheel bolts more than one turn before you
raise the vehicle with the jack. -Risk of injury!
[ i ] Tips
• Never try and use the hexagonal socket in the handle of the
screwdriver to loosen or tighten the wheel bolts.
• If a wheel bolt sits very tight, you may find it easier to loosen by
carefully pushing down on the end of the wheel bolt wrench with
one foot only . As you do, hold on to the car to keep yourself stable
and take care not to slip.•
Raising the vehicle
The vehicle must be lifted with the jock first before the
wheel con be removed.
N
"' ~ I
"' al
Fig . 219 Wheel
change : mounting
points for the lifting
jack Fig
. 220 Close-up:
proper positioning of
lifting jack
- Position the jack below the door sill under the mounting
point
that is closest to the wheel to be changed
~ fig. 219.
- Turn the
jack handle clockwise until the jack arm just fits
underneath the rib running along the underbody
~ &,.
- Align the jack so that the jack arm claw~ fig. 220 @fits
snugly around the underbody rib and the movable base
plate ® sits flat on the ground.
- Wind the jack up further until the flat wheel comes off the
ground~ &-
Recesses at the front and rear of the underbody rib mark the proper
mounting locations for the jack => fig. 219. There is only one desig­
nated jack mounting point for each wheel. Do not apply the jack
anywhere else=>& .
The jack should be positioned approximately 6 in. (15 cm) behind
the front wheel or 10 in. (25 cm) in front of the rear wheel.
An
unstable surface under the jack can cause the vehicle to slip off
the jack . Always provide a firm base for the jack on the ground. If
necessary place a sturdy board or similar support under the jack. On
hard, slippery surfaces (such as tiles) use a rubber mat or similar to
prevent the jack from slipping=>& . .,,

_____________________________________________ W_ h_ a_t _d_ o _ l _d_o _ n_o_ w_ ? _ __,_

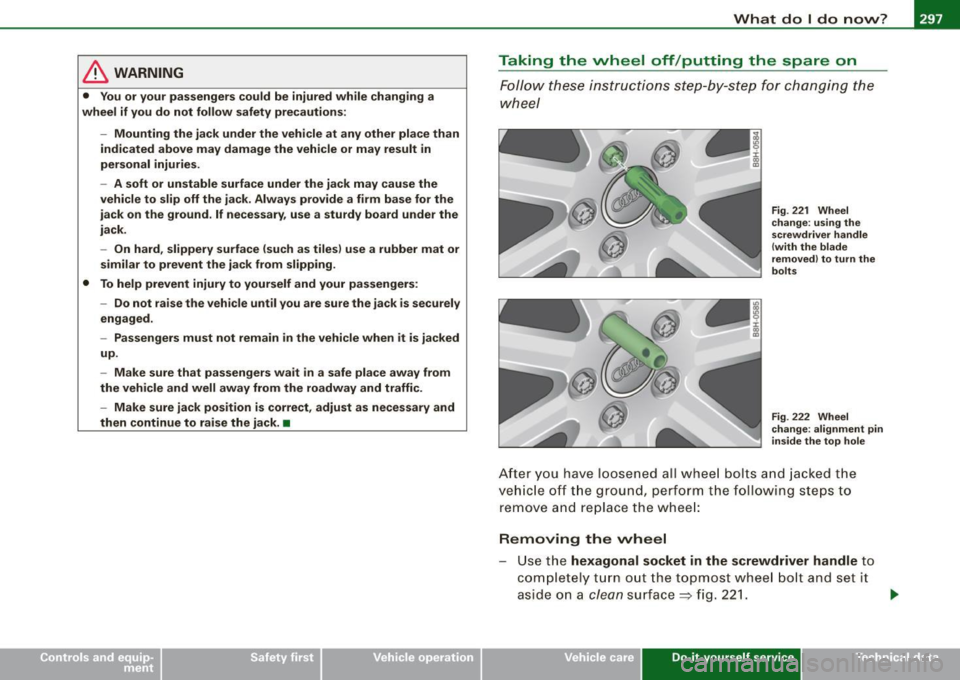

& WARNING
• You or your passengers could be injured while changing a
wheel if you do not follow safety precautions:
-Mounting the jack under the vehicle at any other place than
indicated above may damage the vehicle or may result in
personal injuries.
- A soft or unstable surface under the jack may cause the
vehicle to slip off the jack . Always provide a firm base for the
jack on the ground.
If necessary , use a sturdy board under the
jack .
- On hard, slippery surface (such as tiles ) use a rubber mat or
similar to prevent the jack from slipping .
• To help prevent injury to yourself and your passengers :
- Do not raise the vehicle until you are sure the jack is securely
engaged.
- Passengers must not remain in the vehicle when it is jacked
up.
- Make sure that passengers wait in a safe place away from
the vehicle and well away from the roadway and traffic .
- Make sure jack position is correct , adjust as necessary and
then continue to raise the jack. •
Taking the wheel off /putting the spare on
Follow thes e instru ctions s tep-by -step for chang ing the
wheel
Fig . 2.21 Wheel
change : using the
screwdriver handle
( with the blade
removed) to turn the
bo lts
Fig .
222 Wheel
change : alignment pin
inside the top hole
Af te r yo u h ave l oo sened a ll wheel b olts and jacked the
vehicle off the gr ound, perform the fo llow ing steps to
remove and repla ce t he wheel:
Removing the wheel
Use th e hexagonal socket in the screwdriver handle t o
comple te ly turn ou t the t opmos t whe el b olt an d set i t
as ide on a
cl ean surfac e~ fig. 221. ..,
~ehicle care Do-it-yourse lf service irechnical data

1111.___W_ h_ a_ t_d_ o_ l _d _o_ n_ o_ w_ ? ______________________________________________ _
-Screw the threaded end o f the alignment pin from the
tool kit hand -tight into t he now vacant bo lt hole
=>
page 297, fig . 222.
- Then completely unscrew the other wheel bolts as
described above .
- Take off the wheel leaving the alignment p in in the bolt
hole.
Puttin g on th e sp are
- Lift the spare wheel up and carefu lly s lide it over the
alignment pin to gu ide it in place .
- Use t he hexagonal socket in the screwd river handle to
screw in and tighten all w heel bolts
slightly.
- Unscrew the alignment pin and insert and tighten the
remaining w heel bolt slightly like the rest.
- Turn the handle on the jack counter-clockwise to lower
the vehicle until the jack is fully released.
- Use the wheel bo lt wrench to tighten all wheel bo lts
firmly=>
page 295. Tighten crosswise, from one bolt to
the (approx imately) oppos ite one, to keep the wheel
centered.
[ i ] Tip s
Never try and use the hexagona l socket in the handle of the screw­
driver to loosen or tighten the wheel bolts.
• Pull the reversible b lade from the screwdriver before you use the
hexagonal socket in the handle to turn the wheel bo lts.
• When mounting tires with
uni dire cti on al tread desig n make sure
the tread pattern is pointed the right way~
page 298.
• The whee l bolts should be clean and easy to turn. Check for dirt
and corrosion on the ma ting surfaces of both the wheel and the
hub. Remove all dirt from these surfaces before remounting the
wheel. •
Tires with unidirectional tread design
Tires with unidirectional tread design must be mounted
with their tread pattern pointed the right direction.
U sin g a spa re tire wit h a tre ad p atte rn int ended for u se
i n a sp ec ific dir ection
When using a spare tire with a tread pattern intended for use in a
specific direction, please note the following:
• The direction of rotation is marked by an arrow on the side of the
tire.
• If the spare tire has to be installed in the incorrect direction in the
event of a flat tire, use the spare tire on ly temporarily since the tire
will not be able to achieve its optimum performance characteristics
with regard to aquaplaning, noise and wear.
• We recommend that particular attention be paid to this fact
dur ing wet weather and that you adjust your speed to match road
conditions.
• Replace the flat tire with a new one and have it instal led on your
vehic le as soon as possible to restore the handling advantages of a
proper ly pointed direction-dependent tire. •
Notes on wheel change
Please read the information~ page 279, "New tires and replacing
tires and whee ls", if you are going to use a spare tire which is
different from the tires on your veh ic le.
After you change a tire: .,_
