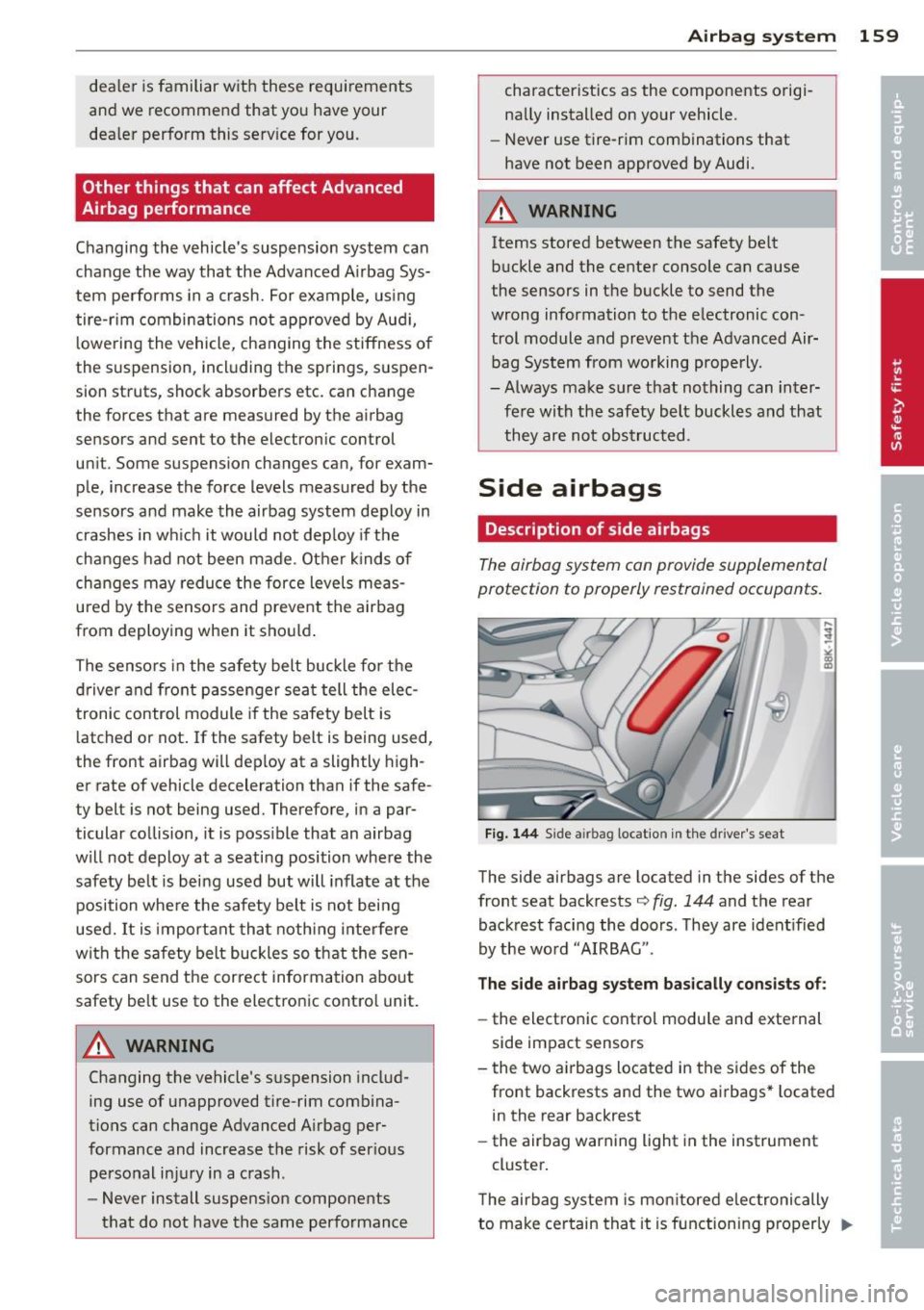

AUDI S4 SEDAN 2013 Owners Manual

dealer is familiar with these requi rements
and we recommend that you have your
dea ler perform this serv ice for you.
Other things that can affect Advanced
Airbag performance
Changing the vehicle's suspension system can
change the way that the Advanced A irbag Sys­
tem performs in a crash. For example, us ing
tire-r im combinations not app roved by Aud i,
l owering the vehicle, changing the stiffness o f
the suspension, incl uding the sp rings, s uspen­
sion struts, shock absorbers etc. can change
the forces that are measured by the airbag sensors and sent to the electronic control
un it. Some suspension changes can, for exam­
ple, increase the force levels measured by the
sensors and make the airbag system deploy in
crashes in wh ic h it would not dep loy if the
changes had not been made. Other k inds of
changes may reduce the force levels meas ­
u red by the sensors and prevent the a irbag
from deploying when it shou ld .
The senso rs in the safety belt buckle fo r the
d river and front passenger sea t tell the elec ­
tronic control module if the safety belt is
l atched or not . If the safety belt is being used,
the front airbag will dep loy at a slightly high­
er rate of vehicle deceleration than if the safe­
ty belt is not being used. Therefore, in a par­
ticular co llision, it is poss ible that an airbag
will not deploy at a seating position where the
safety belt is being use d but will inflate at the
position whe re the safety belt is not being
used. It is important tha t nothing i nterfe re
w it h the safety belt buckles so t hat the sen ­
sors can send t he correct information abo ut
safety belt use to the electronic contro l unit.
.&_ WARNING
Changing the vehicle 's s uspension includ­
ing use of unapproved tire-rim c ombina­
tions can change Advanced Airbag pe r­
formance and increase the risk of ser ious
personal i njury in a crash.
- Never install suspens ion components
that do not have the same performance
A irba g sy stem 159
characteristics as the components o rigi­
na lly installed on your vehicle.
- Never use tire-rim com binations that
have not been approved by Audi.
.&_ WARNING
= -
Items stored between the safety be lt
b uckle and the center console can cause
the sens ors in t he buckle to send the
wrong information to the e lectronic con­
trol module and prevent the Advanced Air­ bag Syst em from wo rking properly.
- Always make s ure that nothing can in ter-
fe re with the safety b elt buckles and that
they are no t obstructed.
Side airbags
Description of side airbags
The airbag system can provide supplemental
protection to properly restrained occupants.
Fi g. 144 Side airbag location in t he drive r's seat
The side airbags are located in the sides of the
front seat backrests¢
fig. 144 and the rea r
backrest faci ng the doors. They are ident ified
by the word "AIRBAG".
The side airbag system basically consists of :
-the electronic control modu le and external
side impact sensors
- the two a irbags located in the sides of the
front backrests and the two a irbags* located
in the rear backrest
- the airbag warn ing light in the instrument
cl uster .
T he airbag system is mo nitored e lec tronically
t o make ce rtain tha t it is f unction ing p ro perly
Ill-

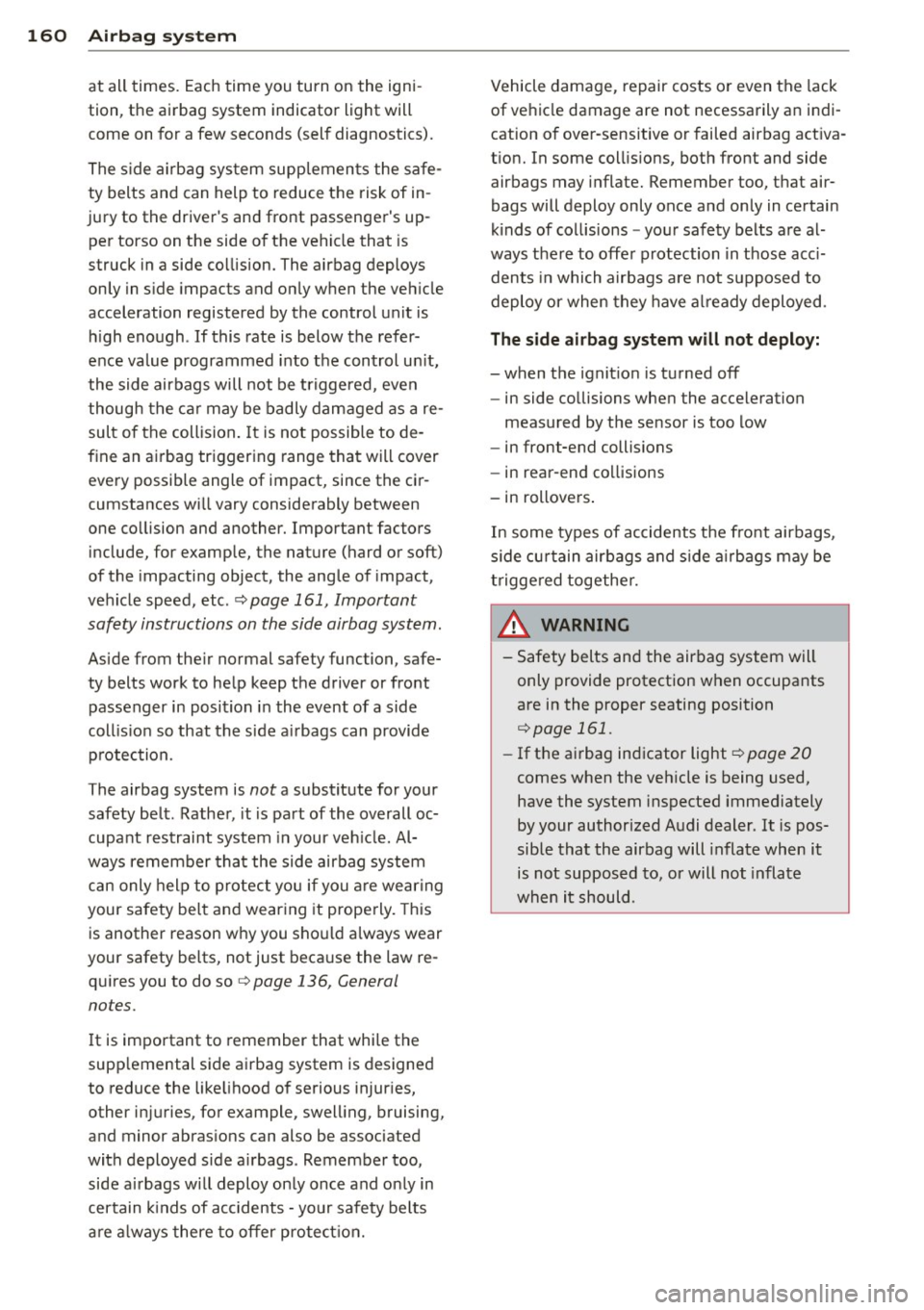

160 Airbag sys te m
at all times . Each time you turn on the igni­
tion, the airbag system indicato r light will
c o me on for a few seconds (self diagnostics).
T he s ide airbag sys tem supp lemen ts the safe­
ty belts and can help to reduce the risk of in ­
jury to the driver's and front passenger's up­ per torso on the side of the vehicle that is
struck in a side col lision. The airbag deploys
only in s ide impacts and only when the veh icle
acceleration registered by the control un it is
h igh enough .
If this rate is below the refer­
ence va lue programmed i nto the control u nit,
the side airbags will not be t riggered, even
though the car may be badly damaged as a re ­
sult of the collision . It is not possible to de­
fine an a irbag tr iggering range that will cover
every possible angle of impact, since the cir­
cumstances wi ll vary considerably between
one co llision and another. Important factors
include, for examp le, the nature (hard or soft)
of the impacting object, the ang le of impact,
ve hicle speed, etc. ¢
page 161, Important
safety instructions on the side airbag system.
Aside from the ir normal safety function, safe­
ty belts work to he lp keep the driver or front
passenger in posit ion in the event of a side
coll is io n so that the side a irbags can provide
p rotection.
The airbag system is
not a substitute for your
safety bel t. Rathe r, it is pa rt of the overall oc­
cupa nt restraint system in your ve hicle. Al­
ways remember tha t the side airbag system
can only help to protect yo u if you are wear ing
your safety be lt and wear ing it prope rly. This
is another reason w hy you sho uld always wear
your safety be lts, not just beca use the law re­
q ui res you to do so¢
page 136, General
notes.
It is important to remember that whi le the
supp lemental side airbag system is designed
to reduce the like lihood of serious injur ies,
other inj uries, for example, swell ing, bruising,
and minor abras ions can also be associated
with deployed s ide a irbags . Remember too,
side a irbags w ill deploy on ly once and on ly in
certain kinds of accidents -your safety belts
a re a lways there to offer pro tec tion. Vehicle damage,
repair costs o r even the lack
of ve hicle damage are not necessarily a n in di­
cation o f ove r-sensitive or failed airbag act iva ­
t ion. In some coll is ions, both front and side
airbags may inflate. Remember too, that air­
bags will deploy only once a nd only in ce rtain
k inds of col lisions -you r sa fety belts are al­
ways there to offe r protection in those acc i­
den ts in which a irbags a re not supposed to
deploy or when they have a lready deployed .
The side airbag system will not deploy:
- when the ignit io n is t urned off
- in side co llisions when the acceleration
measured by the sensor is too low
- in front-end collisions
- in rear-end co llisions
- in rollove rs .
In some types of accidents t he fro nt airbags,
s ide cu rtain air bags and s ide a irb ags may be
t rigge red togethe r.
A WARNING ~
- Safety belts an d the air bag system will
only provide protection when occupants
are in the proper seating position
¢page 161.
-If the ai rbag ind icator light ¢ page 20
comes when the veh icle is being used,
have the system inspected immediately
by your authorized A udi dealer. It is pos­
sible that the airbag will inflate when it
is not suppos ed to, or will not infla te
when it should.

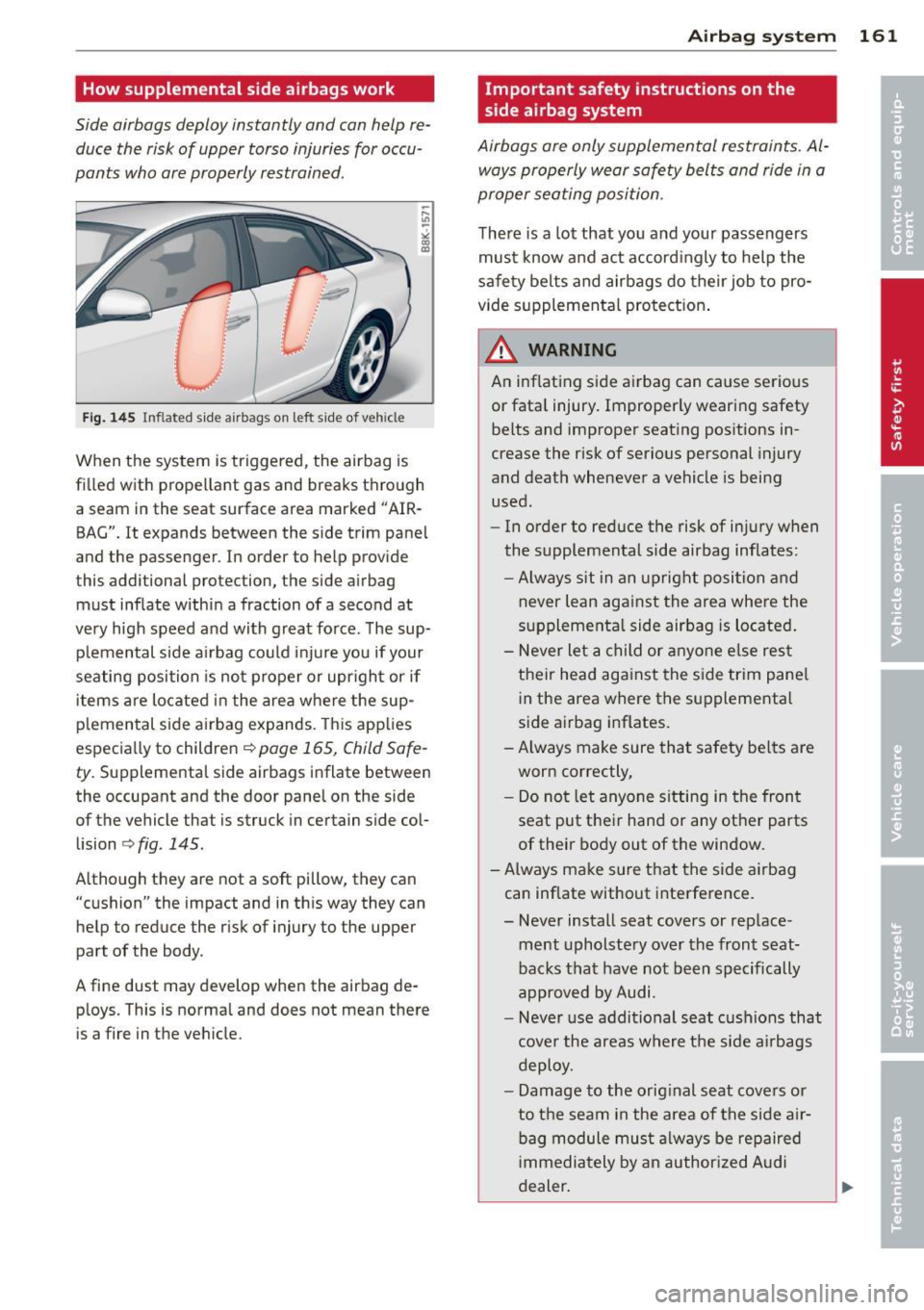

How supplemental side airbags work
Side airbags deploy instantly and can help re­duce the risk of upper torso injuries for occu­
pants who are properly restrained.
Fig. 145 Inflated s ide airbags on left side of veh icle
When the system is triggered, the airbag is
filled with propellant gas and breaks through
a seam in the seat surface area marked "AIR­
BAG". It expands between the side trim panel
and the passenger . In order to help provide
this additional protection, the side airbag
must inflate within a fraction of a second at
very high speed and with great force. The sup­ plemental side airbag could injure you if your
seating position is not proper or upright or if
items are located in the area where the sup­
plemental side airbag expands. This applies
espec ially to children
c::> page 165, Child Safe­
ty.
Supplemental side airbags inflate between
the occupant and the door panel on the side
of the vehicle that is struck in certain side col­
lision
c> fig . 145.
Although they are not a soft pillow, they can
"cushion" the impact and in this way they can
help to reduce the risk of injury to the upper
part of the body .
A fine dust may develop when the airbag de­
ploys. This is normal and does not mean there
is a fire in the ve hicle.
Airbag system 161
Important safety instructions on the
side airbag system
Airbags are only supplemental restraints. Al­
ways properly wear safety belts and ride in a
proper seating position.
There is a lot that you and your passengers
must know and act accordingly to help the
safety belts and airbags do their job to pro­
vide supplemental protection.
A WARNING
An inflating side airbag can cause serious
or fatal injury. Improperly wearing safety
belts and improper seating positions in­
crease the risk of serious personal injury
and death whenever a vehicle is being
used.
- In order to reduce the risk of injury when
the supplemental side airbag inflates:
- Always sit in an upright position and
never lean against the area where the
supplemental side airbag is located.
- Never let a child or anyone else rest
their head against the side trim panel
in the area where the supplemental
side airbag inflates.
- Always make sure that safety belts are
worn correctly,
- Do not let anyone sitting in the front
seat put their hand or any other parts
of their body out of the window.
-Always make sure that the side airbag can inflate without interference.
- Never install seat covers or replace­
ment upholstery over the front seat­
backs that have not been specifically
approved by Audi.
- Never use additional seat cushions that
cover the areas where the side airbags deploy.
- Damage to the original seat covers or
to the seam in the area of the side air­
bag module must always be repaired
immediately by an authorized Audi
dealer.

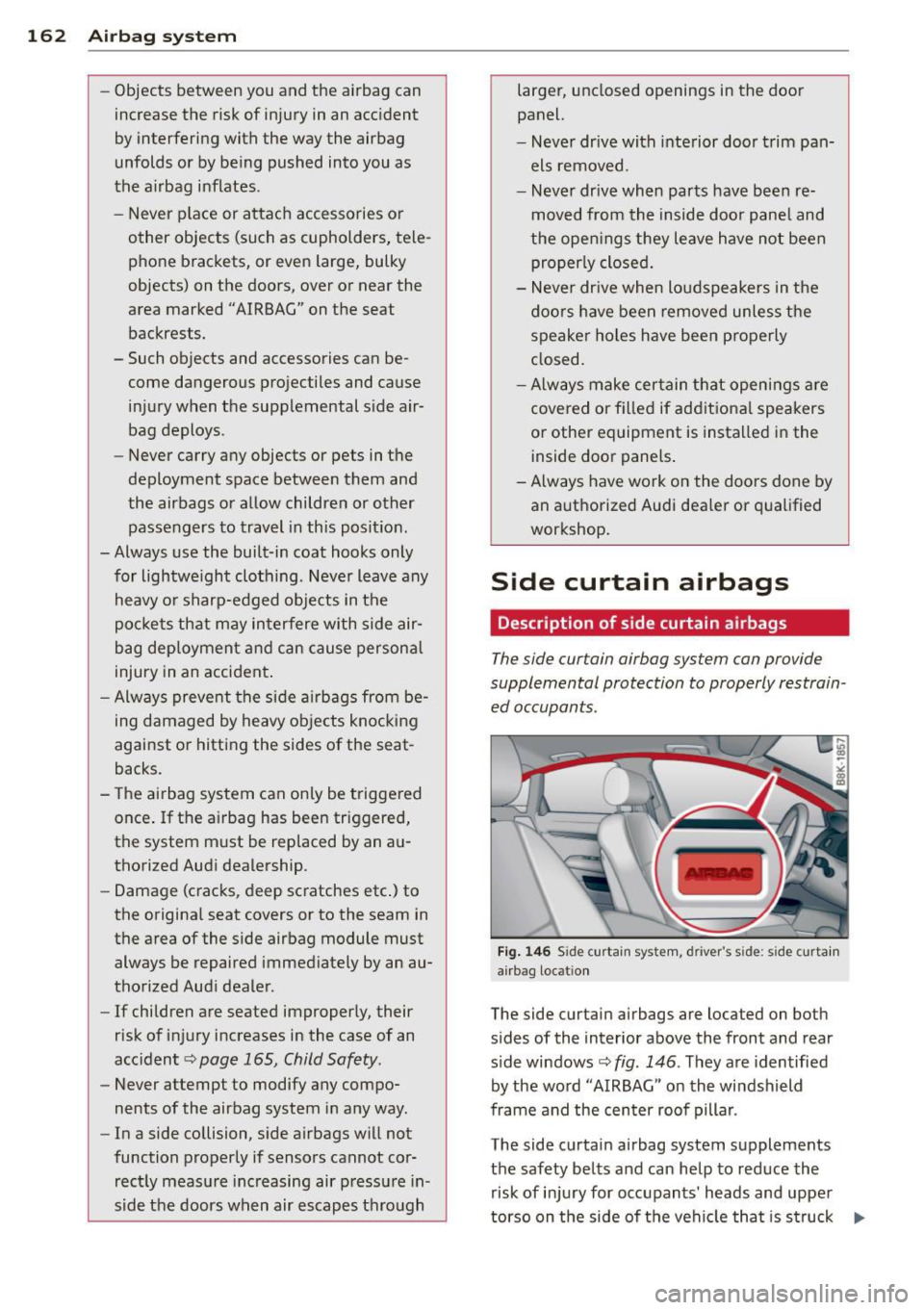

162 Airbag system
-Objects between you and the airbag can
increase the risk of injury in an accident
by interfering with the way the airbag
unfolds or by being pushed into you as
the airbag inflates .
- Never place or attach accessories or other objects (such as cupholders, tele­
phone brackets, or even large, bulky
objects) on the doors, over or near the
area marked "AIRBAG" on the seat
backrests.
- Such objects and accessories can be­
come dangerous projectiles and cause
injury when the supplemental side air­
bag deploys.
- Never carry any objects or pets in the
deployment space between them and
the airbags or allow children or other
passengers to travel in this position .
- Always use the built-in coat hooks only
for lightweight clothing . Never leave any
heavy or sharp-edged objects in the
pockets that may interfere with side air­
bag dep loyment and can cause personal
injury in an accident.
- Always prevent the side airbags from be­
ing damaged by heavy objects knocking
against or hitting the sides of the seat ­
backs.
- The airbag system can only be triggered
once. If the airbag has been triggered,
the system must be replaced by an au­
thorized Audi dealership.
- Damage (cracks, deep scratches etc.) to
the original seat covers or to the seam in
the area of the side airbag module must always be repaired immedia tely by an au­
thorized Audi dealer .
- If children are seated improperly, their
risk of injury increases in the case of an
accident
q page 165, Child Safety .
- Never attempt to modify any compo­
nents of the airbag system in any way .
- In a side collision, side airbags will not
function properly if sensors cannot cor­
rectly measure increasing air pressure in­
side the doors when air escapes through larger, unclosed openings in the door
panel.
- Never drive with interior door trim pan­
els removed.
- Never drive when parts have been re­
moved from the inside door panel and
the openings they leave have not been properly closed.
- Never drive when loudspeakers in the
doors have been removed unless the
speaker holes have been properly
closed.
- Always make certain that openings are
covered or filled if additional speakers
or other equipment is installed in the
inside door panels.
- Always have work on the doors done by
an authorized Audi dealer or qualified
workshop.
Side curtain airbags
Description of side curtain airbags
The side cur tain airbag system can provide
supplemental protection to properly restrain ­
ed occupants.
Fig. 146 S ide curta in sy stem , driver's s ide: sid e cur tain
airb ag loc ation
The side cur tain airbags are located on both
sides of the interior above the front and rear
side windows
q fig . 146 . They are identified
by the word "AIRBAG " on the windshield
frame and the center roof pillar .
T he side curtain airbag system supplements
the safety belts and can help to reduce the
risk of injury for occupants' heads and upper
torso on the side of the vehicle that is struck ..,.

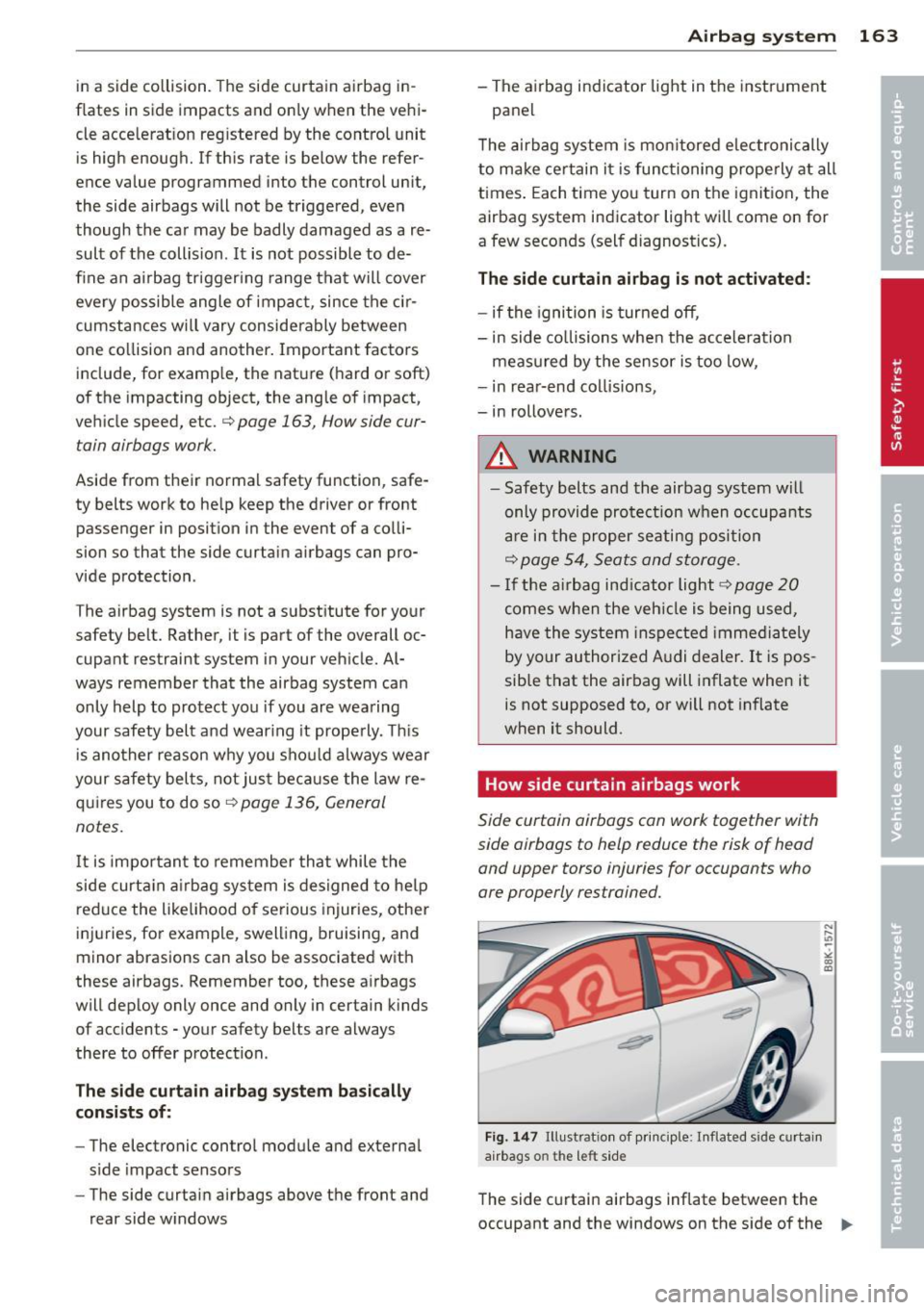

in a side collision. The side curtain a irbag in ­
f lates in side impacts and on ly when the vehi­
cle acce lerat ion reg istered by the contro l unit
is high enough. If this rate is be low the refer­
ence value programmed into the control un it,
the side airbags will not be triggered, even
though the car may be badly damaged as a re­ sult of the collision . It is not possible to de­
f ine an a irbag tr igger ing range that will cover
every possible angle of impac t, since the ci r­
cumstances wi ll vary conside rably between
one co llision and another . Important factors
include, for examp le, the nat ure ( hard o r soft)
of the impacting object, the ang le of impact,
veh icle speed, etc.
c:> page 163, How side cur­
tain airbags work.
Aside from thei r normal safety function, safe­
ty belts work to he lp keep the driver or front
passenger in position in the event of a co lli­
sion so that the side curtain airbags can pro­
vide protection.
The airbag system is not a s ubst itute for your
safety belt. Rather, it is part of the overall oc­
cupant restraint system in your veh icle. Al­
ways remember that the airbag system can
only help to protect yo u if you are wea ring
your safety belt and wear ing it prope rly. This
i s ano ther reason w hy you sho uld a lways wear
your safety bel ts, not jus t be ca u se the law re­
qu ires you to do soc:>
page 136, General
notes.
It
is impor tant to remember tha t while the
side curt ain airbag sys tem is designed to he lp
red uce the likelihood o f serious injuries, othe r
i nj uries, for example, swell ing, bruising, and
minor abrasions can a lso be associated wit h
these airbags. Remember too, these a irbags
will deploy only once and only in certain kinds
of accidents - your safety belts are always
there to offer protection .
The side curtain airbag system basically
consists of:
- The electronic control modu le and externa l
s ide impact sensors
- The side curtai n airbags above the front and
rear side w indows
A irba g system 163
- The a irbag indicator light in the instrument
panel
T he airbag syste m is mon itored e lec troni cally
to make ce rtain i t is func tioning prope rly at all
times . Each time you turn on the ignit ion, the
airbag system indicator light will come on for
a few seconds (sel f diagnostics).
The side curtain airbag is not activated :
-if the ignition is tur ned off,
- in side co llisions whe n the accele ration
meas ured by the sensor is too low,
- in rea r-end collisions,
- in rollovers.
A WARNING
- Safety belts and the airbag system will
only provide protection w hen occupants
a re in the proper seating position
c:> page 54, Seats and s torage.
- I f the air bag ind icator lig ht c:> page 20
comes w hen the veh icle is being used,
have the system ins pect ed imme diately
by your authorized A udi dealer.
It is pos ­
sible that the air bag will inflate when it
is not supposed to, or will not inflate
when it should .
How side curtain airbags work
Side curtain airbags c an work together with
side airbags to help reduce the risk of head
and upper torso injuries for occupants who
are properly restrained.
Fi g. 147 Illustrat io n o f pri nc iple: I nflated s ide curtai n
a irbags on the left sid e
The side c urtai n airbags inflate betwee n the
occupant and the windows on the s ide of the ..,.

164 Airbag system

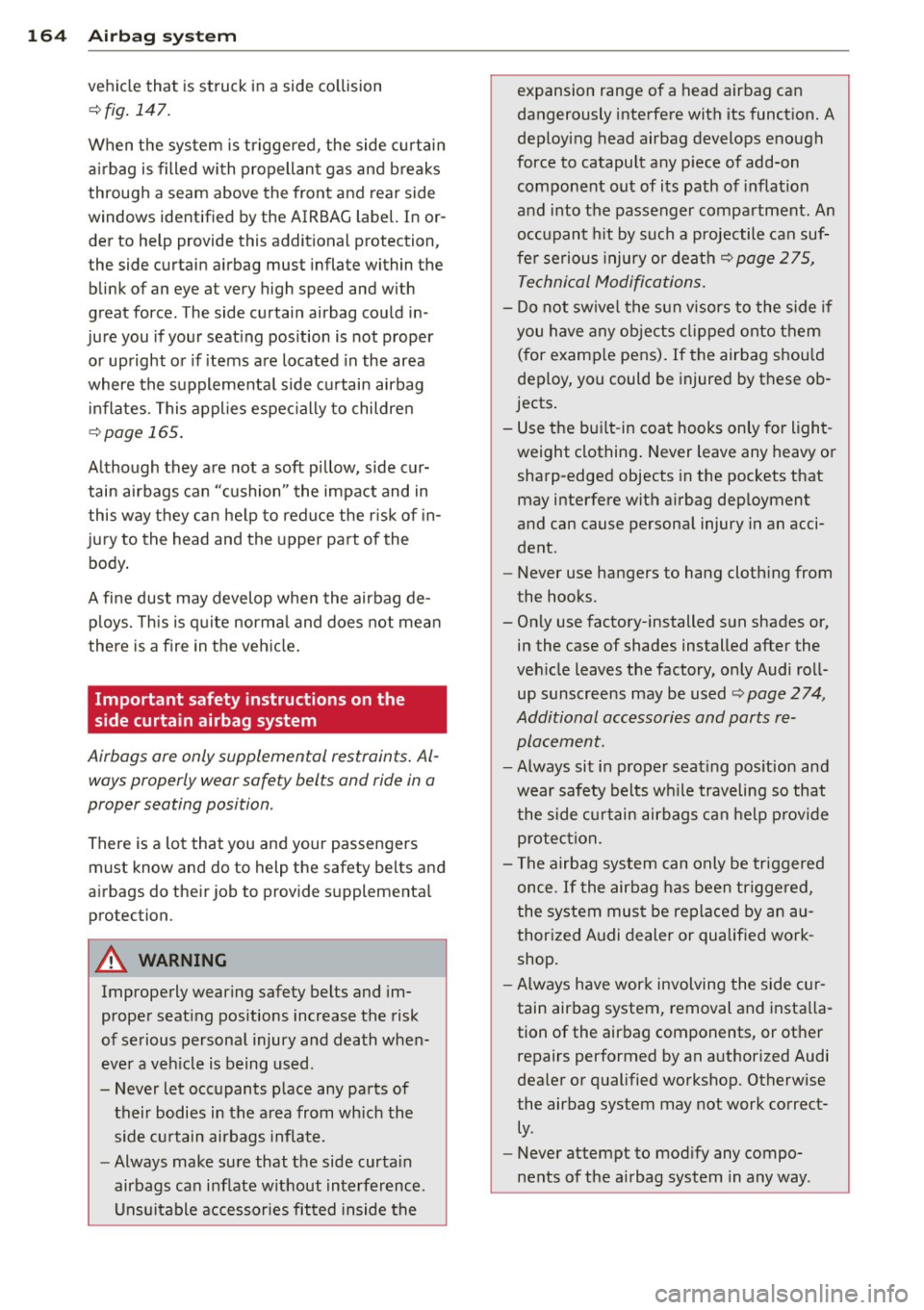

vehicle that is struck in a side collision
~fig. 147.
When the system is triggered , the side curtain
airbag is filled with propellant gas and breaks
through a seam above the front and rear side
windows identified by the AIRBAG label. In or­
der to help provide this additional protection,
the side curtain airbag must inflate within the
blink of an eye at very high speed and with
great force. The side curtain airbag could in­
jure you if your seating position is not proper
or upright or if items are located in the area
where the supplemental side curtain airbag
inflates . This applies especially to children
~ page 165.
Although they are not a soft pillow, side cur­
tain airbags can "cushion" the impact and in
this way they can help to reduce the risk of in­
jury to the head and the upper part of the
body.
A fine dust may develop when the airbag de­ ploys. This is quite normal and does not mean
there is a fire in the vehicle.
Important safety instructions on the
side curtain airbag system
Airbags are only supplemental restraints. Al­
ways properly wear safety belts and ride in a
proper seating position.
There is a lot that you and your passengers
must know and do to help the safety belts and
a irbag s do their job to provide suppl ementa l
protection.
A WARNING
Improperly wearing safety belts and im­
proper seating positions increase the risk
of serious personal injury and death when­
ever a vehicle is being used .
- Never let occupants place any parts of
their bodies in the area from which the side curtain airbags inflate.
-A lways make sure that the side curtain
airbags can inflate without interference .
Unsuitable accessories fitted inside the expansion range of a head airbag can
dangerously interfere with its function. A
deploying head
airbag develops enough
force to catapult any piece of add-on
component out of its path of inflation
and into the passenger compartment. An
occupant hit by such a projectile can suf­
fer serious injury or death~
page 275,
Technical Modifications.
- Do not swivel the sun visors to the side if
you have any objects clipped onto them
(for example pens). If the airbag should
deploy, you could be injured by these ob­
jects.
- Use the built-in coat hooks only for light­
weight clothing. Never leave any heavy or sharp-edged objects in the pockets that
may interfere with airbag deployment
and can cause personal injury in an acci­
dent.
- Never use hangers to hang clothing from
the hooks.
- Only use factory-installed sun shades or,
in the case of shades installed after the
vehicle leaves the factory, only Audi roll­ up sunscreens may be used~
page 2 74,
Additional accessories and parts re­
placement.
-Always sit in proper seating position and
wear safety belts while traveling so that the side curtain airbags can help provide
protection.
- The airbag system can only be triggered
once .
If the airbag has been triggered,
the system must be replaced by an au­
thorized Audi dealer or qualified work­
shop.
- Always have work involving the side cur­
tain airbag system, removal and installa­
tion of the airbag components, or other repairs performed by an authorized Audi
dealer or qualified workshop . Otherwise
the airbag system may not work correct­
ly .
- Never attempt to modify any compo­
nents of the airbag system in any way .

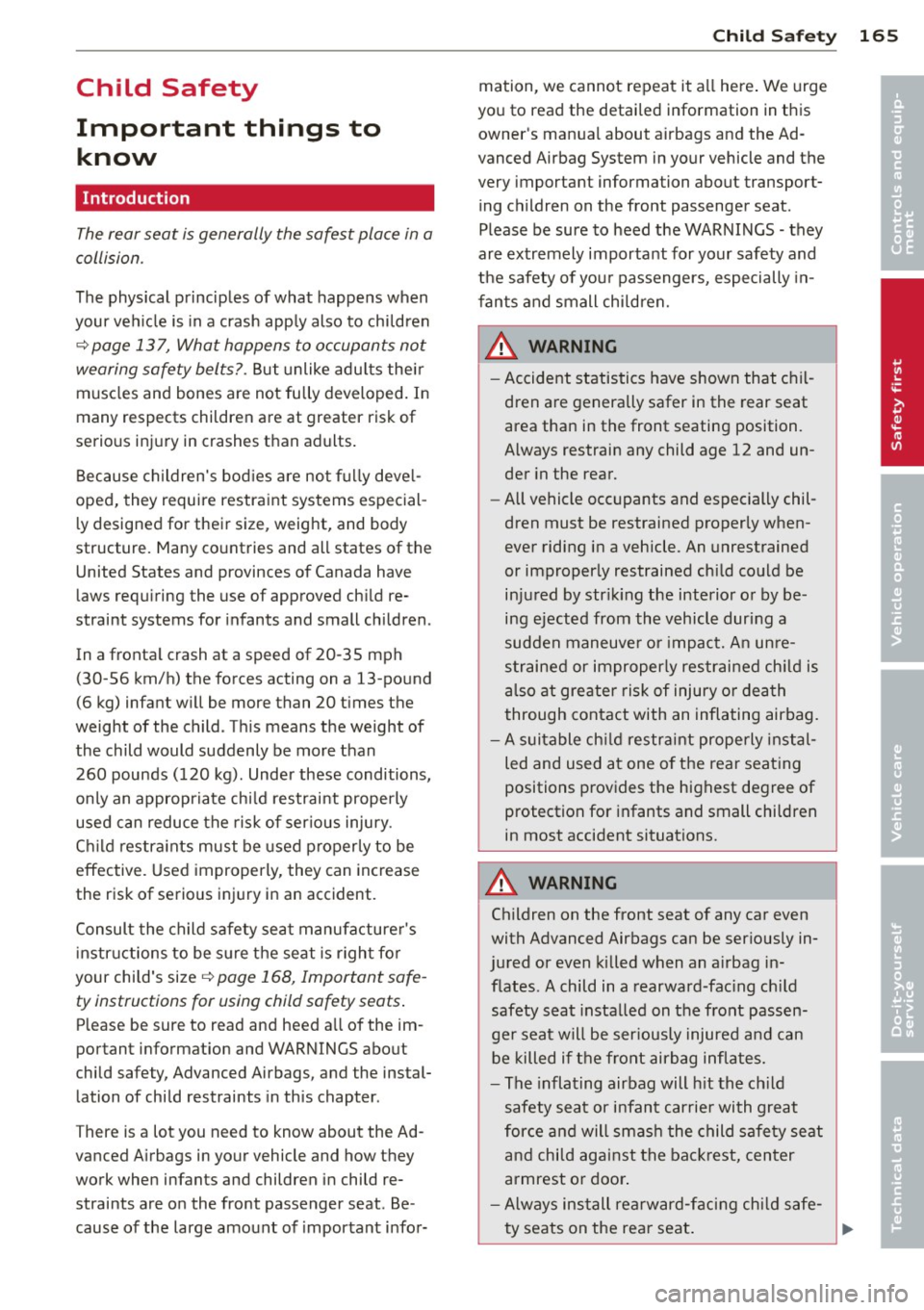

Child Safety
Important things to know
Introduction
The rear seat is generally the safest place in a
collision .
The physical principles of what happens when
your veh icle is in a crash app ly also to chi ldren
q page 13 7, What happens to occupants not
wearing safety belts? .
But unlike adults their
muscles and bones are not fully developed. In
many respects children are at greater risk of
serious injury in crashes than adults.
Because children's bodies are not fully devel­
oped, they require restraint systems especial ­
l y designed for their size, weight, and body
structure. Many countries and all states of th e
United States and provinces of Canada have
laws requiring the use of approved child re­
straint systems for infants and small children .
In a frontal crash at a speed of 20 -35 mph
(30-56 km/h) the forces acting on a 13-pound
(6 kg) infant will be more than 20 times the
weight of the child . Th is means the weight of
the child would suddenly be more than 260 pounds (120 kg). Under these conditions,
only an appropriate chi ld restraint properly
used can reduce the risk of ser ious injury.
Ch ild restraints must be used properly to be
effective. Used improperly, they can increase
the risk of serious injury in an accident.
Consult the child safety seat manufacturer's
instructions to be sure the seat is right for
your chi ld's size
q page 168, Important safe­
ty instructions for using child safety seats .
Please be sure to read and heed all of the im­
portant information and WARNINGS about
child safety, Advanced Airbags, and the instal­
lation of child restraints in this chapter.
T here is a lot you need to know about the Ad ­
vanced Airbags in your vehicle and how they
work when infants and children in child re­
straints are on the front passenger seat . Be ­
cause of the large amount of important infor-
Child Sa fet y 165
mation, we cannot repeat it all here . We urge
you to read the detailed information in this
owner 's manual about airbags and the Ad ­
vanced Airbag System in your vehicle and the
very important information about transport­ ing children on the front passenger seat.
Please be sure to heed the WARNINGS -they
are extremely important for your safety and
the safety of your passengers, especially in­
fants and small children.
A WARNING
-Accident statistics have shown that chil­
dren are generally safer in the rear seat
area than in the front seating position.
Always restrain any child age 12 and un­
der in the rear.
- All vehicle occupants and especially chil­
dren must be restrained properly when­
ever riding in a vehicle. An unrestrained
or improperly restrained child could be injured by str iking the interior or by be­
ing ejected from the vehicle during a
sudden maneuver or impact. A n un re­
strained or improperly restrained child is
a lso at greater risk of injury or death
through contact with an inflating airbag.
- A suitable child restraint properly instal­
led and used at one o f the rear seating
positions provides the highest degree of
protection for infants and small children
in most accident situations.
A WARNING
Children on the front seat of any car even
with Advanced Airbags can be seriously in­
jured or even killed when an a irbag in­
flates. A child in a rearward-facing child
safety seat installed on the front passen­
ger seat w ill be ser iously injured and can
be killed if the front airbag inflates.
- The inflating airbag will hit the ch ild
safety seat or infant carrier with great
force and will smash the child safety seat
and child against the backrest, center
armrest or door .
- Always install rearward-facing chi ld safe-
ty seats on the rear seat .
~
•
•

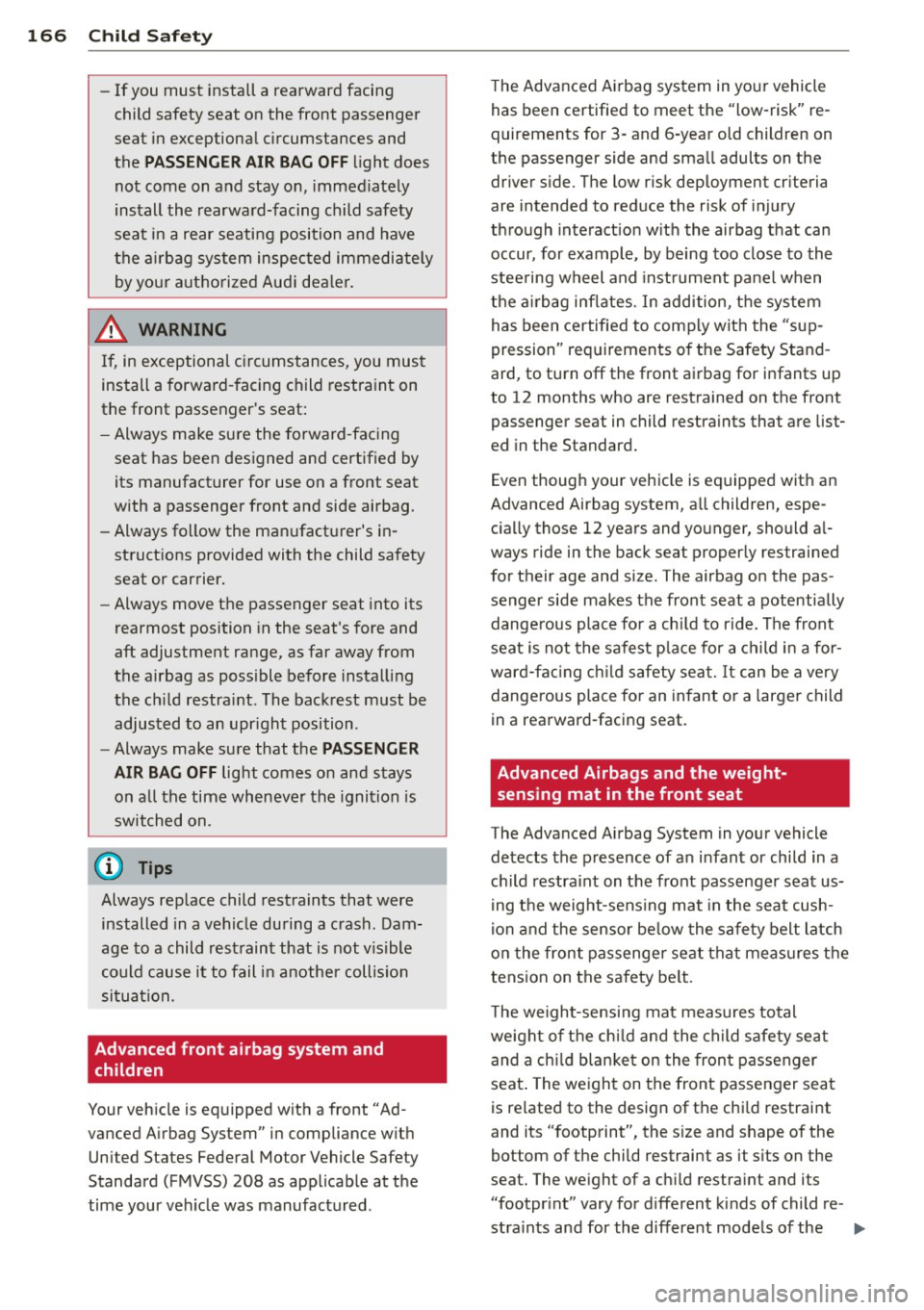

166 Child Safety
-If you must install a rearward facing
child safety seat on the front passenger
seat in exceptional circumstances and
the
PASSENGER AIR BAG OFF light does
not come on and stay on, immediately
install the rearward-facing child safety
seat in a rear seating position and have
the airbag system inspected immediately
by your authorized Audi dealer.
.&, WARNING
If, in exceptional circumstances, you must
install a forward-facing child restraint on
the front passenger's seat:
- Always make sure the forward-facing
seat has been designed and certified by
its manufacturer for use on a front seat
with a passenger front and side airbag.
- Always follow the manufacturer's in­
structions provided with the child safety
seat or carrier.
- Always move the passenger seat into its
rearmost position in the seat's fore and
aft adjustment range, as far away from
the airbag as possible before installing
the child restraint. The backrest must be adjusted to an upright position .
- Always make sure that the
PASSENGER
AIR BAG OFF
light comes on and stays
on all the time whenever the ignition is
switched on.
(D Tips
Always replace child restraints that were
installed in a vehicle during a crash. Dam­
age to a child restraint that is not visible
could cause it to fail in another collision
situation.
Advanced front airbag system and children
Your vehicle is equipped with a front "Ad­
vanced Airbag System" in compliance with
United States Federal Motor Vehicle Safety
Standard (FMVSS) 208 as applicable at the
time your vehicle was manufactured . The
Advanced Airbag system in your vehicle
has been certified to meet the "low-risk" re­
quirements for 3- and 6-year old children on
the passenger side and small adults on the driver side. The low risk deployment criteria
are intended to reduce the risk of injury
through interaction with the airbag that can
occur, for example, by being too close to the
steering wheel and instrument panel when
the airbag inflates . In addition, the system
has been certified to comply with the "sup­
pression" requirements of the Safety Stand­
ard, to turn off the front airbag for infants up
to 12 months who are restrained on the front
passenger seat in child restraints that are list­
ed in the Standard.
Even though your vehicle is equipped with an
Advanced Airbag system, all children, espe­
cially those 12 years and younger, should al­
ways ride in the back seat properly restrained
for their age and size. The airbag on the pas ­
senger side makes the front seat a potentially
dangerous place for a child to ride . The front
seat is not the safest place for a child in a for­
ward-facing child safety seat.
It can be a very
dangerous place for an infant or a larger child
in a rearward-facing seat.
Advanced Airbags and the weight­
sensing mat in the front seat
The Advanced Airbag System in your vehicle detects the presence of an infant or child in a
child restraint on the front passenger seat us­
ing the weight-sensing mat in the seat cush­
ion and the sensor below the safety belt latch
on the front passenger seat that measures the
tension on the safety belt.
The weight-sensing mat measures total
weight of the child and the child safety seat
and a child blanket on the front passenger
seat. The weight on the front passenger seat
is related to the design of the child restraint
and its "footprint", the size and shape of the
bottom of the child restraint as it sits on the
seat. The weight of a child restraint and its "footprint" vary for different kinds of child re -
straints and for the different models of the .,.

same kind of child restrain t offered by child
restraint manufacturers.
T he weight ranges for the ind iv idual types,
makes and models o f ch ild restra ints tha t the
NHTSA has specified in the Safety Standard
together with the weight ranges of typical in­
fants and typical 1 year-o ld child have been
stored in the control unit of the Advanced A ir­
bag System. When a child restraint is being
used on the front passenger seat with a typi­
cal 1 year-old ch ild, the Advanced Airbag Sys­
tem compares the we ight measured by the
weight sens ing mat with the info rmat ion s to r­
ed i n the electron ic cont rol unit.
The electron ic control unit a lso registers the
tension on the front passenger safety be lt.
The te nsio n on the safety be lt fo r the front
p assenger seat will be d iffe ren t fo r an ad ult
who is properly using the safety belt as com­
pared to the tension on the be lt when it is
used to attach a child restraint to the seat.
The sensor below the latch for the safety be lt
for the front seat passenger measures the
tension on the be lt. The input from this sen­
sor is then used with the we ight to "decide",
whether there is a ch ild restrai nt with a typ ical
1 year-o ld child on the front passenge r seat
and whether or no t the airbag must be turned
off.
Child restraints and Advanced Airbags
Regard less o f the child res traint that you use,
make sure that it has been ce rtified to meet
United States Federal Motor Vehicle Safety
Standards and has been certified by its manu-
facturer for use with an airbag. Always be sure
that the child restraint is properly insta lled at
one of the rea r seat ing pos itions .
If in excep-
tional c ircumstances you must use it on the
fr ont passenge r seat, caref ully read all of the
i n formation on c hild safety and Adv ance d Air-
b ags an d heed a ll of the app licable WAR N-
I NGS . Ma ke certai n that the child restraint is
correctly recognized by the weig ht-sensing
mat inside the front passenger seat, that the
fro nt passenger airbag is turned off and that

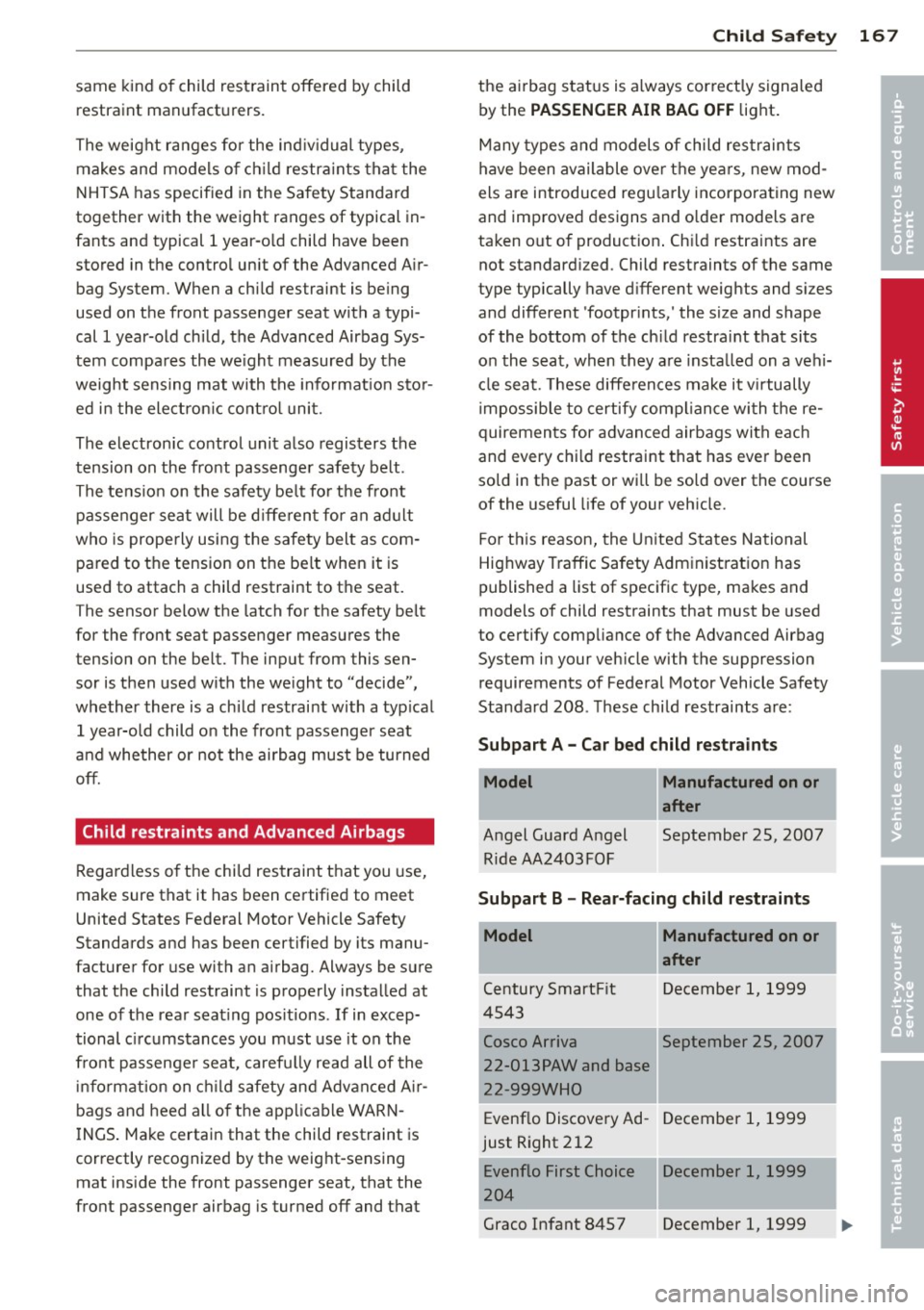

Child Sa fet y 167
the a irbag s tat us is always cor rect ly signaled
by the
PASSENGER AIR BAG OFF light .
Many types and models of child res traints
have been available over t he years, new mod ­
els are introduced regu larly incorporating new
and improved designs and o lde r models are
ta ken o ut of product ion . Ch ild restraints are
not standard ized. Child restraints of the same
type typically have d ifferent weights and sizes
and different 'footpr ints,' the size and shape
of the bottom of the ch ild restra int that sits
on the seat, when they a re insta lled on a vehi­
cl e sea t. T hese d iffe rences make i t vir tually
i mpossible to certify compl iance wi th t he re­
quiremen ts for advanced airbags with each
and every ch ild restraint that has eve r been
sold in the past or wi ll be sold over the course
of the useful life of your veh icle.
For t his reason, the United S tates Na tional
Hig hway T raffic Safety Administration has
published a list of specific type, makes and
models of child restraints that must be used
to certify comp liance of the Advanced Airbag
System in your veh icle with the suppression
requirements of Federal Motor Vehicle Safety
Standard 208. These child res traints are:
Subpart A - Car bed child restraints
Model
Angel Guard A ngel
Ride AA2403FOF
Manufactured on or
after
September 25, 2007
Subpart B -Rear-facing child restraints
Model Manufactured on or
after
Ce ntury SmartF it December 1, 1 999
4 54 3
Cosco Arriva September 25, 2007
22-013PAW and base
22-999W HO
Evenflo Discove ry Ad -December 1, 1999
just Right 212
Evenflo First Choice December
1, 1999
20 4
Graco Infant 8457 December 1, 1999
I
•
•

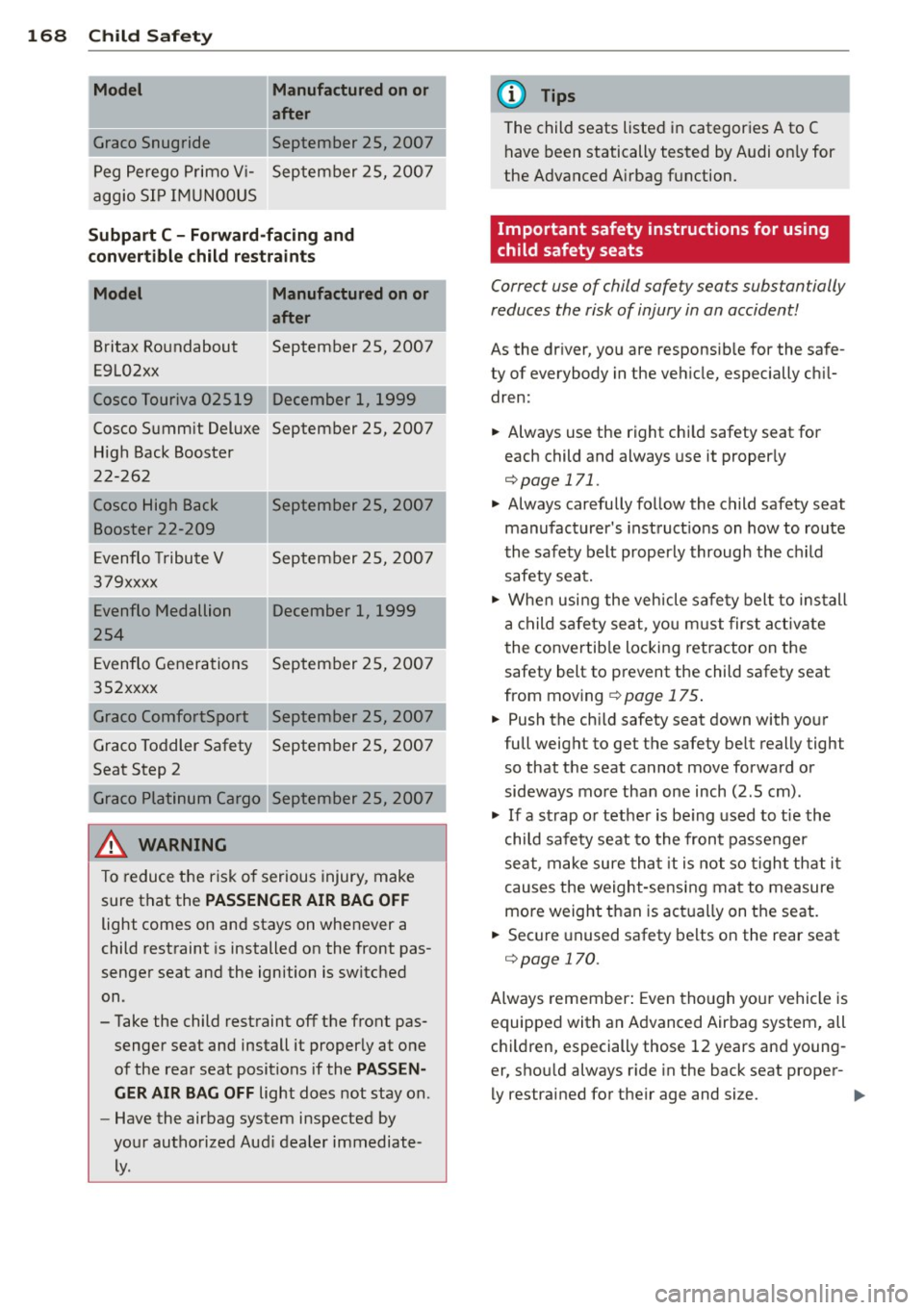

168 Child Saf ety
-Model Manufactured on or
a fter
Graco Snugride September 25, 2007
Peg Perego Primo V i- September 25, 200 7
aggio SIP IMUN00US
Subpart C -Forward -facing and
con vertibl e child r estra in ts
Model Manufactured on or
after
Britax Roundabout September 25, 2007
E9L02xx
Cosco Touriva 02519 December 1, 1999
Cosco Summit Deluxe September 25, 2007
High Back Booster
22-262
Cosco High Back September 25, 2007
Booster 22-209
Evenflo Tribute V September 25, 2007
379xxxx
Evenflo Medallion December 1, 1999
254
Evenflo Generations September 25, 200 7
352xxxx
Graco ComfortSport September 25, 2007
Graco Toddler Safety September 25, 2007
Seat Step 2
Graco Platinum Cargo September 25, 2007
_&. WARNING
T o reduce the risk of serious injury, make
sure that the
PASSENGER AIR BAG OFF
light comes on and stays on whenever a
child restraint is installed on the front pas­
senger seat and the ignition is switched
on.
- Take the child restraint off the front pas­ senger seat and install it properly at one
of the rear seat positions if the
PASSEN­
G ER AIR BAG OFF
light does not stay on.
- Have the airbag system inspected by
your authorized Aud i dealer immediate­
ly.
(!) Tips
The child seats listed in categories A to C have been statically tested by Audi on ly for
the Advanced A irbag function.
Important safety instructions for using
child safety seats
Correct use of child safety seats substantially
reduces the risk of injury in an accident!
As the driver, you are responsib le for the safe­
ty of everybody in the veh icle, especially ch il­
dren:
... Always use the right chi ld safety seat for
each child and always use it properly
c::;,page 171 .
... Always carefully fo llow the child safety seat
manufacturer's instruct ions on how to route
the safety belt properly through the c hild
safety seat.
... When using the veh icle safety belt to install
a child safety seat, you m ust first ac tivate
the convertib le locking retractor on the
safety belt to p revent the child safety seat
from moving
¢ page 175.
... Push the ch ild safety seat down with your
full weight to get the safety be lt really tight
so that the seat cannot move forwa rd or
sideways mo re than one inch (2.5 cm) .
... If a strap o r tether is be ing used to tie the
child safety seat to the front passenger
seat, make sure tha t it i s n ot so tight th at i t
causes the weight -sensing mat to measure
more weight than is act ually on the seat.
... Secure unused safety be lts on the rear seat
c::;, page 170.
Always remember : Even tho ugh yo ur vehicle is
equipped with an Advanced Airbag system, all
c h ildren, especially those 12 years and young­
er, shou ld always r ide in the back seat proper-
ly restrained for their age and size. .,.
