technical data AUDI S6 2010 Owners Manual

______________________________________________ G_e_ n_e _ r_ a_ l_ in_ f_o _r_ m_ a_ t_ i _o_ n __ _
The safety compliance sticker
is your assurance that yo ur new vehicle complies with all applicable
Fede ral Motor Veh icle Safe ty Standards which were i n effect at the
time the vehicle was manufact ured . Yo u can fi nd this sticker on the
left doo r jamb.
It shows the mont h and year of prod uct io n and the
vehicle identification number of your veh icle (perforation) as well as
the Gross Vehicle Weight Rating (GV WR) and the Gross Axle Weight
Rating (GAWR).
The high voltage warning label
is located o n the loc k carrier.
The spark ignition system complies with the
Canadian standard ICES-002. •
Weights
Gross Vehicle Weight Rating
The Gross Vehicle Weight Rating (GVWR), and the Gross Axle Weight
Rating (GAWR) for front and rear are listed on a sticker on the left
door jamb.
T he Gross Vehicle Weight Rating includes the weight of the basic
vehicle pl us f ull f uel tank, oil and coo la nt, plus max im um load, whi ch
includes passenger we ight (150 lbs/68 kg per des ignated seating
position) and luggage weight.
Gross Axle Weight Rating
Th e Gross Axle Weight Ra ting is the maximum lo ad that can be
applied at each axle of the vehicle~&.
Vehicle capacity weight
The vehicle capacity weight (max. load) is listed on the dr iver's side B ­
pillar.
Safety first
Roof weight
Th e maxim um permiss ib le roof weight is 220 lb (100 kg ). T he roof
we ight is made up of the weight of the roof rac k system and t he
we ight of the object being transported~
page 88, "Loading the roof
rack".
& WARNING
• The actual Gross A xle Weight Rating at the front and rear a xles
s hould not exceed the permis sible weights , and their combination
must not exceed the Gros s Vehicl e Weight Rat ing .
• Exceeding permi ssible weight ratings can result in vehicle
damage, accidents and personal injury.
0 Note
• T he vehicle capac ity we ight figures apply when the load is distrib­
uted evenly i n the vehicle (passengers and lug gage). When trans ­
porting a heavy load i n the luggage compartment, ca rry the load as
near to the rear axle as possible so that the ve hicle's handling is not
impa ired.
• Do not exceed the max imum permissible axle loads o r the
maximum gross veh icle weight. Always remember that the vehicle's
handling will be affecte d by the extra load. Therefore, adjust your
speed according ly .
• Always observe loca l reg ulat ions. •
Dimensions
The specifications refe r to the basic mode l. Differences may occur
depe nd ing on the mode l type a nd options ordered, for exam ple, t ire
sizes. .,_,
Do-it,yourself service Technical data

_______________________________________________________ D_ a_ t_a __ _
Data
Applies to vehicles: with 3 .0 lit er 6-c ylin der engine
300 hp, 3.0 liter, 6-cylinder engine
Engine data
Maximum outpu t SA E net
Maximum torque SAE net
No. of cy linders
Displacement
St roke
Bore
Compression ratio
Fu el
Dimensions (approx. )
Length
W idth
He igh t (u nloaded)
Turning circle diameter (curb to curb)
Capacities (approx .)
Fu el tank
- Tota l capacity
- Rese rve (of to tal cap aci ty)
Windshield and headlight* washer fluid container
Engine oil
with filter c hange
Safety first
hp@rpm
lb-ft@ rpm
C ID (cm
3
)
in (mm)
in (mm) 30
0@ 5100-6800
310@ 2500-5100
6 cylinder 183 (2995)
3.50 (89.0)
3 .33 (84 .5)
10.5 : 1
Premium unleaded (91 AKI) Recomm end ed for maximum engin e perfo rmanc e. Fur­
ther details =>
page 271, "Gasoline"
i n (mm)
i n (mm)
i n (mm)
ft (m) 193.5 (4916)
79 .2 (2012)
57. 4 (1459)
39.0 (11.9)
gal (liters)
gal ( liters)
quarts (liters)
quarts ( liters) 21.1 (80.0)
1. 8-2.4 (7-9)
5 .1(4.8)
6.9 (6.5)
•
Do-it,yourself service Technical data

____________________________________________________ D_ a_t_ a __ _
App lies to ve hicles : with 4.2 li ter 8 -cy linder engine
3 50 hp, a-cylinder engine
Engine data
Max imum output SAE net
Maximum torque SAE net
No . of cy linders
Displacement
Stroke Bore
Comp ression ra tio
Fuel
Dimensions (approx. )
Length
W idth
He ight (un loaded)
Tu rning circle diameter (curb to curb)
Capacities (app ro x. )
Fuel tank
-Tota l capacity
- Reserve (of total capacity)
Windshield and headlight* washer fluid container
Engine oil
with filter change
Safety first
hp@rpm
lb-ft@ rpm
CID (cm
3
)
in (mm)
in (mm) 350@ 6800
325 @3500
8 cylinder
254 (4163)
3
.65 (92.8)
3 .33 (84 .5)
12.5: 1
Premium unl eaded (91 AKI) Recommended for maximum engine performance . Fur ­
ther details => page
271, "Gasoline"
in (mm)
i n (mm)
i n (mm)
ft (m) 1
93.5 ( 4916)
79 .2 (2012)
57 .4 (1459)
39.0 (11.9)
gal ( liters)
gal (liters)
quarts (liters)
quarts ( lite rs) 21.1 (80.0)
1.8 -2 .4 ( 7-9)
5 .1 (4 .8)
9.0 (8.5)
•
Do-it,yourself service Technical data

______________________________________________ C _o_ n _ s_u_ m_ e_r_ I_n _f_ o_ r_m _ a_t_ i_ o _ n __ _
reliab ility. For deta iled vehicle maintenance cons ult your Warra nty &
Main tenan ce bookle t.
Under difficult operating conditions, for example at extremely low
outside temperatures, in very dusty regions, when towing a trailer
very frequently, etc., some service wo rk shou ld be performed
between the intervals specified. This app lies particu larly to:
• oil changes, and
• cleaning or rep lacing the air fi lter.
<£> For the sake of the environment
By regular ly maintaining your vehicle, you help make sure that emis­
sion standards are mainta ined, t hus mi nimizing adve rse e ffects o n
the environment. •
Important considerations for you and your
vehicle
T he increasing use of electronics, sophisticated fuel injection and
em ission cont rol systems, and t he generally increasing techni cal
complex ity of today's automobiles, have stead ily reduced the scope
of mai ntenan ce and repairs w hich can be ca rried out by ve hicle
owners.
Also , safety and environm ental concerns p lace very strict
limits on the nature of repairs and adjustments to engine and trans­
mission parts wh ich an owner can perform.
Maintenance, adj ustments and repairs usua lly req uire specia l tools,
test ing devices and other eq uipment available to specially t rained
workshop personnel in order to assure proper performance, re li­
ability and safety of the vehicle and its many systems.
Improper maintenance, adjustments and repairs can impair the oper­
ation and reliabili ty of your ve hicle and even void you r vehicle
warranty. Therefore, p roof of servicing in accordance with the main­
t enance schedu le may be a condit ion fo r uphold ing a possible
warranty cla im made w it h in the warranty period .
Safety first
Above all, operational safety can be adversely affected, creating
unnecessary r is ks for you and you r passe ngers.
If in doubt about a ny servic ing, have it done by your authorized Audi
dealer or any other properly eq uipped and qualified works hop. We
st rongly urge you to give you r a utho rized Aud i dealer the opportunity
to perform a ll scheduled maintenance and necessary repairs. Your
dealer has t he facilities, o rigina l part s and trained spe ciali sts to keep
your vehicle running properly.
Performing limit ed maint enance yourself
The following pages describe a lim ited number of procedures which
can be perfo rmed on your vehicle w it h ordi na ry tools, should t he need
ar ise and trained personnel be unava ilab le. Before performing any of
t hese p rocedures, always tho roughly read all of the applicable text
and carefu lly follow the instructions given. Always rigorous ly observe
t he
WARNINGS p rov ided .
Before you ch eck anyth ing in the eng ine compartment, alwa ys read
and heed all WARNINGS~
& and~ & in "Working in the engine
compartmen t" on
page 277.
& WARNING
• Seriou s pe rs onal injury may occ ur as a result of improperly
perform ed maintenan ce, adju stments or repair s.
• Always be extremely careful when work ing on the vehicle.
Alway s foll ow commonly acc epted safety practic es and general
c ommon sense . N ever ri sk per son al injury .
• Do not attempt any of the maint enance, che cks or repair s
de scrib ed on the following p ages if you are not fully familiar with
the se or ot her procedure s with re spect to the vehicle , or are uncer­
tain how to proceed .
• Do not do any work without the prop er tool s and equipment .
Ha ve the ne cessary work done by your authorized Audi dealer or
an other properly equipped and qu alified workshop. _,.
Do-it,yourself service Technical data

_____________________________________________ C_o_ n_s _u_ m __ e_r _ I_ n_ f_o _r_ m_ a_ t_ i _o_ n __ __

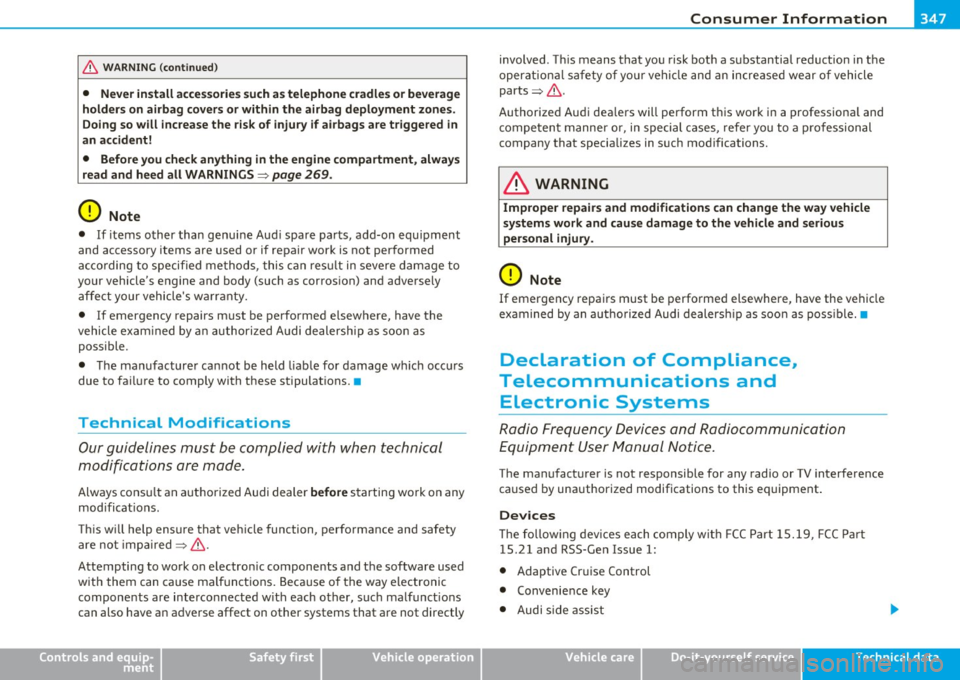

& WARNING (co ntinued )
• Never install acces sorie s such a s telephone cradle s or beve rage
holder s on airbag covers or within the airbag deployment zones .
Doing so will inc rease the risk of injury if airbags are triggered in
an accident!
• Before you che ck anything in the engine compartment , always
read and heed all WARNINGS~
page 269.
0 Note
• If items o ther than genui ne Aud i spare pa rts, add-on equ ipment
and accessory items are used or if repair work is not performed
acco rding to specified me thods , this can res ult in seve re damage to
yo ur vehicle's engine and body (such as corros ion) and adversely
affe ct your vehicle's w arran ty.
• If emergency repairs must be performe d elsewhere, have the
vehicle exam ined by an authori zed A udi de alersh ip as soon a s
possible.
• Th e manufacturer ca nnot be held liab le for damage w hich occ urs
due to fai lure to comply with these stipulat ions. •
Technical Modifications
Our guid elines must be complied with when technical
modificati ons are made .
Always cons ult an a uth orized Audi dealer before starting wo rk o n any
mod ificat ions.
Th is w ill help ensure that veh icle function, perfo rmance and safety
a re no t imp aired ~& .
Attempting to work on e lectron ic compone nts and the software used
wit h them can cause malf unctio ns. Beca use o f the way electronic
compone nts are interco nnected w ith each o ther, suc h ma lfunct ions
can also have an a dverse affect on other systems that are not directly
Safety first
involved . Th is means that you risk bot h a substantial reduction in the
operation al safety o f yo ur veh icle and an incre ase d wear o f vehicle
parts~ &.
Authorized Audi dea lers will perform this work in a professiona l and
co mpe ten t manner o r, in special cases, refe r yo u to a p rofessional
company that specializes in s uch mod ifications.
& WARNING
Improper repairs and modifications can change the way vehicle
sy stems work and cause damage to the veh icl e and serious
personal injury .
0 Note
If emergency repai rs must be perfo rmed elsewhere, have the vehicle
ex amined by an auth o riz ed Audi dealers hip as soo n as poss ible. •
Declaration of Compliance,
Telecommunications and Electronic Systems
Ra dio Frequency Dev ices a nd Radioco mmunicati on
Eq uip m en t U ser Manual N otic e .
The man ufact urer is not responsible for any radio or TV interfere nce
caused by unauthorized modifications to this equipment .
Devices
The fo llow ing dev ices e ach c omply w it h F CC P art 15.19, FCC Part
1 5 .21 a nd RSS-Ge n Issue 1:
• Adaptive Cr uise Control
• Convenie nce key
• Audi s ide a ss ist
Do-it,yourself service Technical data

_____________________________________________ C_o_ n_s _u_ m __ e_r _ I_ n_ f_o _r_ m_ a_ t_ i _o_ n __ _
Controls and equip­
ment Safety first Vehicle operation
Vehicle care Do-it-yourself service Technical data

Alphabetical index -________________ f!:VII
Anti-Slip Regulation System (ASR)
How the system works ....... .. .. . 242
Anti-theft systems Anti-theft alarm system ....... ... .. 49
Electronic immobilizer ............. 40
Ashtray Front .............. ...... .. .. .. .. 91
Rea r ........ .... .. .. ... ......... 91
ASR How the Anti-Slip Regulation System works . ...... .. ... .. .. ......... 242
Asterisk What does it mean when something is
marked with an asterisk? ........... S
Audi Service Repair Manuals and Literature
344
AUTO mode AC climate controls ...... .... .. .. .. 99
Auto Safety Hotline .... .. .. .. ....... 183
Auto-Check Control .. ........ .... ... .. 24
Automatic belt retractor ............. 189
Automatic car wash
See Washing ....... .. .... .. .. .. . 259
Automatic Shift Lock (ASL) ..... .. 148, 155
Automatic transmission 6-speed automatic transmission ... . 146
Automatic Shift Lock (ASL) .... 148, 155 Driving ............ .. .. .. .. .... . 146
Dynamic shift program ... .. .. .. .. . 149
Emergency release for selector lever . 152
Emergency release for selector lever
(mu ltitron ic®) .............. .... 159
Fail-safe mode .............. 151, 158
Controls and equip­
ment Safety first
Ignition key safety lock
.... ... .. .. . 109
Kick -down . ........ .. .. .. ....... 149
Manual shift program .. ... ... ..... 150
multitronic ® ....... ...... .. .. ... 152
Selector lever .... .. .. .. .. .. . 147, 154
Shift buttons . ........... ... 151, 158
Steering wheel with tiptron ic® . 151, 158
Average speed .. ... .... .. .. .. .... .... 34
Avoid damaging the vehicle ........... 250
B
Battery ... ..... .................... 288
Battery location ins.ide the luggage
compartment . ........ ......... 289
Charging ................ .... .. .. 290
Important warnings when wo rk ing on the
battery . .. .. ..... ....... ... .. .. 289
Jump starting ..... ...... ..... .. .. 331
Low ..... .. ... ..... .. ....... .... 247
Replacing the battery .. .. ......... 292
State of charge .... ... ........... 247
Voltage ................. .. .. .. .. . 31
Winter operation ...... .. .. .. ..... 288
Working on the battery .... ... .. .. . 289
Before driving .. ... ... ... .. .. .. .. .. . 175
Blended gasoline ................... 271
Body cavity seal ing . ...... .. ......... 264
Booster seats . .. .. ........ ......... 225
Brake assistant ...... ............... 245
Brake booster . ........ ... ... .. .. ... 244 Brake fluid
Changing the brake fluid ....... .... 287
Checking the brake fluid level ....... 287
Reservoir . .... .. .. .... ...... ... . 287
What is the correct brake fluid level? . 287
What should I do if the brake fluid warning
light comes on? . ................ 287
Brake light Defective ... .. ................... 21
Brake system . .. .. ... ... ... ..... .. .. 287
Anti-lock brake system ............. 17
Brake fluid ........ ............. . 287
Brake fluid spec ificat ions for refil l and
replacement . .... ....... ... ... . 287
Brake pads .. .. .. .. ...... .. .. .. .. 250
Electromechanical parking brake ... . 113
General informat ion ..... ...... .. . 243
How does moisture or road salt affect the
brakes? ... .................. .. 243
Malfunction ...................... 26
Warning/indicator lights ... .. .. .. .. 18
Worn brake pads symbol ........... 31
Break -in period ... .. .. .............. 249
Brake pads . ... ................ .. 250
Tires ... .... .................... 249
Bulbs ............ .... .. .. .. .. .. ... 329
Bumper cover Caution when parking near a parking barri-er or curb . ................... .. 114
C
California Proposition 65 Warning ..... 278
Battery specific .... .............. 290
Vehicle operation Vehicle care Do-it-yourself service Technical data

Alphabetical index -________________ fWI
Energy management ...... .. .. ..... 96
Fan .................... ... ... .. 100
Heated seats, front .............. . 103
Key coded setting ........ ...... ... 96
Recirculation mode (automatic) .. ... 104
Recommended sett ings ............ 96
Residual heat ..................... 99
Setting the temperature ............ 99
Switching air cooling on/off .... ... .. 99
Synchronization . ... .............. lOS
Turning on and off ....... ...... .. .. 99
Using climate control economically .. 102
Clock ................ .... .. .... .... . 9
Closing Power sunroof ... .. ... ... .. .. . .... S4
Coat hooks ........... ..... .... ... ... 9S
Cold ti re inflation pressure ..... .. ..... 297
Compass mirror ........ ...... .. .... .. 73
Compliance . ... ................ .... 347
Consumer Information . . . . . . . . . . 183, 344
Contacting NH TSA .... .............. 183
Continuously Variable Transmission (CVT)
See multit ronic ® ................. 152
Convenience key .................... . 47
Dr iver messages ....... ... .. .. ... . 112
Locking vehicle ...... ....... .. .... . 49
START button ............. .. ... .. 110
Starting engine .. ............. .. . 110
S TOP button ............ .. .. .... . 111
Switching eng ine off .............. 111
Switching on ignition ......... .. ... 110
Unlocking vehicle ................ .. 48
Convertible child safety seats ..... .... 223
Controls and equip­
ment Safety first
Convert
ible lock ing retractor
Activating ............... .. ...... 229
Deactivating ..................... 230
Us ing to secure a chi ld safety seat .. 227,
229
Coolant system ..................... 284
Cooling System Expans ion tank ..... .. .. ... .... .. 284
Cruise control Changing speed ..... ... .......... 117
Presetting your speed ... .......... 117
Switching off . .. ................. 117
Switching on .................. .. 116
Warning/indicator lights ........ .. . 16
See also Adaptive Cruise Control .... 119
Cruising range ... ................ .... 34
(upholder .... ............. .. .. . 89,90
D
Damp ing
See Adaptive A ir Suspens ion ...... .. 166
Data . .... ....................... .. 341
Data record er .. . .... .. ... .......... 240
Date display ......................... . 9
Daytime running lights . . . . . . . . . . . . 58, 59
Declaration of compl ia nee
Adaptive Cruise Contro l ... ......... 347
Audi side assist .. .. . .. ...... .. ... 347
Cell phone package . .............. 347
Convenience key .... .. .. .. .. ..... 347
E lectronic immobilizer ............ 347 Homelink
® universal remote control . 347
Remote control key .. ....... ... ... 34 7
def What does this mean when it appears in
the trip odometer disp lay? .. .. ..... 10
Defective light bulb warn ing ......... .. 21
Defrosting/defogging the windows .. .. . 100
Defrosting/defogging w indows ........ 101
Determining correct load limit ....... .. 302
Digital clock . ........ ................ 9
Digital compass ..................... 73
Digital speedometer .................. 21
Dimensions ............ ... .. .. ..... 339
Dipstick Reading the dipstick properly ....... 281
Distance control system
See Adaptive Cruise Control ... .. .. . 119
Doors Power ch ild safety lock .. ....... .... 47
Driver information system ............. 19
Digital speedometer ............... 21
Driver information messages ........ 24
Open door or rear lid warning . ....... 21
Outs ide temperature display ........ 20
Sound system disp lay .............. 20
Driver seat
See Seating position .............. 176
Driver's seat ... .... .. .... ........... 76
Driver's seat memory ................. 79
Activating remote control key ....... 80
Recalling a seat pos it ion . ... ..... ... 79
Storing a seat position .. ....... .... 79
Vehicle operation Vehicle care Do-it-yourself service Technical data

Alphabetical index -________________ fNi'II
Unleaded fuel .... .... ... .. .. . .. . 271
What should I do with an old battery? ...
292
EPC
See E lectronic power control ........ 14
ESP
See Electronic stabilizat ion program (ESP)
14
Event Data Recorder (EDR) ............ 240
Exhaust tail pipes
Cleaning ................ .... .... 264
Expansion tank ..................... 284
Ex terior lighting in the mirror housing ... 61
Eyeglass es compa rtment .............. 9S
F
Fan
Radiator ............... .. .. .. .. . 286
Fastening Booster seats .................... 225
Convertible child safety seats .. ..... 223
Infant seats .............. .... .. . 222
Fastening eyelets .................... 84
Flat tire Changing . .. ........... ...... .. . 318
Floor mats ......................... 180
Fog lights ................. ........ . 60
Folding master key with remote control .. 3 7
Foot pedals .. .. ... ........ .. .. .. .. . 180
For the sake of the environment
Gasoline fumes and the environment 273
Letting your engine warm up ...... . 109
Controls and equip­
ment Safety first
Reducing engine noise
by early upshifting
8
Refueling . .. ..... .. .. .. ......... 273
Saving fuel by early upshifting ........ 8
Using the rear window defogger ..... 101
Front airbags Descript ion . ...... .. .. .. .. ....... 199
How they work ................. .. 204
Front ashtray ........................ 91
Front fog lights .. ................. .. . 60
Front seats ... .. ..... ...... ...... .. . 75
Adjusting .. .. .. ........ ......... 177
Chi ld restraints in the front seat . ... 197
Fro nta l collisions and the laws of physics 186
Fuel Additives .... .. .... .. .. ......... 271
Blended gasoline ................. 271
Consumption ............ .... .. .. . 34
Filler neck ....................... 272
Fuel gauge ...... ............. .... 10
Gasoline ..................... ... 271
Gasoline additives ................ 272
Low fuel leve l . . . . . . . . . . . . . . . . . 10, 30
Octane rating . .. ................. 271
Recommendation . ......... .... .. 271
Refuelling ....... .... .. .. ....... 273
Reserve .................. ... .. .. . 10
T ank capacity .................... 341
Unlocking the fuel filler flap by hand . 275
Fuse arrangement ................. .. 325
G
Garage door opener (Homelink ®) .. .. .. 169 Gas d
ischarge lamps .. ... .... ... .... . 329
Gauges Engine coolant temperature .......... 8
Fuel gauge ... ... .. ............... 10
Speedometer ..................... 10
Tachometer . .... .. ... ............. 9
Trip odometer ............ ...... .. 10
General illustration Instrum ents and contro ls ............ 7
Glossary of tire and loading terminology 294
Glove compartment . .. .... .... .. ..... 94
cd changer .. .... .. .... ........... 94
emergency unlocking .............. 94
Valet key function ................. 40
Gross Vehicle Weight Rating (GVWR) ... 339
H
Head restraints ..................... 179
Adjusting ............... ... ... .. 179
Front seats ........ ............... 81
Rear seats .. .. .. .. ............... 81
Headlight washer reservoir ... ........ 292
Headlights ......................... . 58
Adaptive Light .............. ...... 61
Defective . .. .. .. .. ... ............ 21
Front fog lights ................... 60
Headl ight range control defective .. .. 31
Switching off ............ ... .. .. .. 58
Switching on ............ ...... ... 58
Washer system ... ................ 67
Xenon headlights ... ... ... ......... 58
Heated outside mirrors ............... 71
Vehicle operation Vehicle care Do-it-yourself service Technical data

___________________________________________ A_ l._p _h _ a_ b_ e_t _ic _ a_ l _ in_ d_e _x __ ffllll
L ight
Exter ior light ing in the mirror housing . 61
leaving home ............... .. .. .. 61
See also Amb ience lighting .......... 64
Light sensor defective ............. .. .. 30
L igh ting
See Ambience lighting . .. ...... ..... 64
L ighting in t he m irror hous ing .......... 61
Lights ... .. .. .. ..... ....... ... . ... .. 58
Com ing home ..................... 59
Daytime ru nning lights ............. 59
Emergency flashers ............ .. .. 61
Exter ior lights .................... 59
Front fog lights .. .. ........ ....... 60
Headlights ............ ... ....... . 58
H igh beam . . . . . . . . . . . . . . . . . . . 58, 62
H igh beam warning/indicator ligh t ... 16
Leaving home ..................... 59
Re ar fog lig hts . .. ...... ...... ..... 6 0
Side mar ke r li ghts .. .. . ... ... .. ... . 58
Turn signals ...... .... ... ... .. .. .. 62
Xenon headlights .... ..... .. .. ... .. 58
Load ing the luggage compartment .. .. . 181
Loading the roof rack ................. 88
Loc kab le backrest ... .. .. .. .. .. ... .... 83
Locking Power locking switch .. ............. 44
Rear lid/t runk lid . ... .. ... ... ... ... 46
Remote cont rol key ................ 42
Us ing the key ..................... 43
Lower universal anchorage bars (Canada) .. .
2 30
Lower universal anchorages (Canada) .. . 230
Controls and equip­
ment Safety first
Luggage
Stowing . ....................... 181
L u ggage compartment . ..... ... .... .. . 83
Cargo net . ... .. .... .. .. .. .... ... . 85
DVD p layer for navigation system .. .. 86
Expanding .. . .. ........ ...... .... 83
Fastening eyelets .................. 84
Side Compartment ..... . ... .. .. .. . 86
Sk i sack .. .................... .... 86
See also Load ing the luggage
compartment ... ...... ......... 181
L u mbar suppo rt . ..... ...... .. .. .. .. . 78
M
Maintenance .. ...... .. .. .. .. .. ..... 344
Malfunction Indicator lamp (MIL) . . . 15, 23
Master key . ....... ..... .. . ... .. .. ... 38
Battery rep lacement .... ... ..... .. . 39
Check light ... .. .... .. .. .... ... .. . 39
Mi leage
Average ................ .. .... .. . 34
Inst ant an eous .................... 34
Mirrors Act ivat ing the d ig ital compass ...... . 73
Adjusting the ant i-g la re . . . . . . . . 69, 70
Automatic dimmi ng fo r the outside
m irrors ................ .. .... ... 72
Automatica lly dimming inside mirror . 70
Ins ide day-night mirror . .. .. ........ 69
Interior mirror . . . . . . . . . . . . . . . . 69, 70
Outside mirrors ................ ... 71
Recalling pos it ion of outs ide mirro rs . . 79
Stor ing posit io n of ,outside mir rors ... 79 Monitor
ing the Advanced A irbag System 206
multi tron ic® ..... .. .. .. .. ... .. ... .. 152
Automatic Shift Lock (ASL) ...... .. . 155
Driving the multitronic® .... ... ... . 153
Dynam ic shift program .. .......... 156
Fail-safe mode ................... 158
Kick-down .. .... .. .............. 156
Manua l shift program ... .. ...... .. 157
Selector lever .............. ...... 154
Steering wheel with t iptronic ® ...... 158
t ipt ron ic ........................ 157
N
Natural leather ..... .. .... ......... . 266
New t ires and wheels .. .............. 305
NHTSA Con tac ting .. .. .. .. ...... ... . ... . 183
N umber of seats ... ........... ... ... 185
0
Occupant seating posi tions ........... 176
Octane rating . ... .. .. .. .... .. .. ... . 27 1
O dometer .................. .... .. .. 10
Oil
See Eng ine oi l ........... ... ..... 279
On-Board Diagnostic System (OBD)
Data Lin k Connector (DLC) ...... .... 23
Electronic speed limiter .......... .. 23
Malfunction Indicator Lamp (MIL) .... 23
O pen door or rear lid warn ing . ... .. .. .. 21
Vehicle operation Vehicle care Do-it-yourself service Technical data
