• The proximity sensors are deactivated after a few days to save
power . You then have to pull on the door handle once to unlock the
vehicle and a second time to open the vehicle.
• To prevent the battery from being discharged and to preserve your
vehicle's ability to start for as long as possible, the energy manage­
ment system gradually switches off unnecessary convenience func­
tions . It is possible that you will not be able to unlock your vehicle
using these convenience functions. •
Appli es to ve hicle s: wit h Co nven ience key
Locking the vehicle
The vehicle can be locked without operating the mastery
key.
(
i
Fig . 37 Convenience
key: Locking the
vehicle
- Move the selector lever to the P position.
- Press the locking button in the door handle to lock the
vehicle ~& .
The vehicle can be locked at any door . The authorized master key only
has to be within a range of about 1.5 meters from the particular door.
Th e se lecto r lever must be in the P position , otherwise the vehicle
cannot be locked .
Controls and equip ­
ment Safety first
Opening and closing
& WARNING
•
When you lock your vehicle from outside, nobody -especially
children -should remain inside the vehicle. Remember, when you
lock the vehicle from the outside the windows cannot be opened
from the inside.
• When you leave the vehicle, always remove the ignition key
and take it with you. This will prevent passengers (children, for
example ) from accidentally being locked in the vehicle should
they accidentally press the power locking switch in the front
doors .
• Do not leave children inside the vehicle unsupervised. In an
emergency it would be impossible to open the doors from the
outside without the key.
[ i ] Tips
It is not possible to re-open the door for a brief period directly after
closing it. This allows you to ensure that the doors are properly
locked. •
Anti-theft alarm system
Description
The anti-theft alarm triggers an alarm if anyone
attempts to break into the vehicle.
The anti-theft alarm system triggers an audible alarm and turns on
the emergency flasher if an unauthorized interf erence with the
vehicle is sensed by the system.
How is the anti-theft alarm system switched on?
The anti-theft alarm system is switched on when you lock the veh icle.
Th e system is activated approximate ly 30 seconds after the vehicle is .,,_
Vehicle care Technical data

Opening and closing
locked. The indicator light on top of the door trim start flash ing
r a pidly fo r 30 se con ds and t hen blink s low ly.
How is the anti-theft alarm system switched off?
T he anti -theft a larm system is swi tched off only whe n yo u unlock your
vehicle. If you do not open a door w ith in 60 seconds after you have
unloc ked w ith the remote contro l, t he veh icle will lock itself again
automatically .
When will the anti -theft alarm system be
triggered?
W hen the vehicle is locke d, the alarm system moni tors and protec ts
the following parts of the veh icle :
• engine compa rtment
• luggage compartment
• door s
• vehicle incline
• ignition
When the system is activated, the alarm will be triggered if one of the doors, the engine hood or the rea r lid are opened, or if the ign ition is
turned on or if the veh icle incline has been changed. The anti-theft
a larm sys tem w ill also go off when the ba ttery is d isconnected.
You can also trigger the alarm by pressing the PANIC button on your remote control. This will a lert other peop le in case of emergency.
Press the
PANIC bu tton aga in to tu rn off the ala rm.
How is the anti-theft alarm switched off when
tr igge red?
The alarm system is switched off when you un lock the vehicle or when
the ignition is switched on . The a larm will also switch itself off when
it comes to the end of its cycle .
Emergency flasher and ho rn
Th e emerge ncy flasher will blink briefly and the hor n sounds when
the doors, e ngine hood a nd rear lid a re properly closed. If the emergency flashers do not blink, or the horn does
not sou nd,
c heck t he doo rs, engine hood and re a r lid t o make sure t hey a re prop ­
erly closed . If you close a door , the hood o r the rear lid with t he anti­
theft alarm switched on, t he emergency flashe rs will b link and the
horn will sound only after you have closed the door o r lid .
[I] Tips
For the an ti-theft a la rm system to function properly, m ake s ure all
vehicle doors and windows are closed before leav ing the veh icle .•

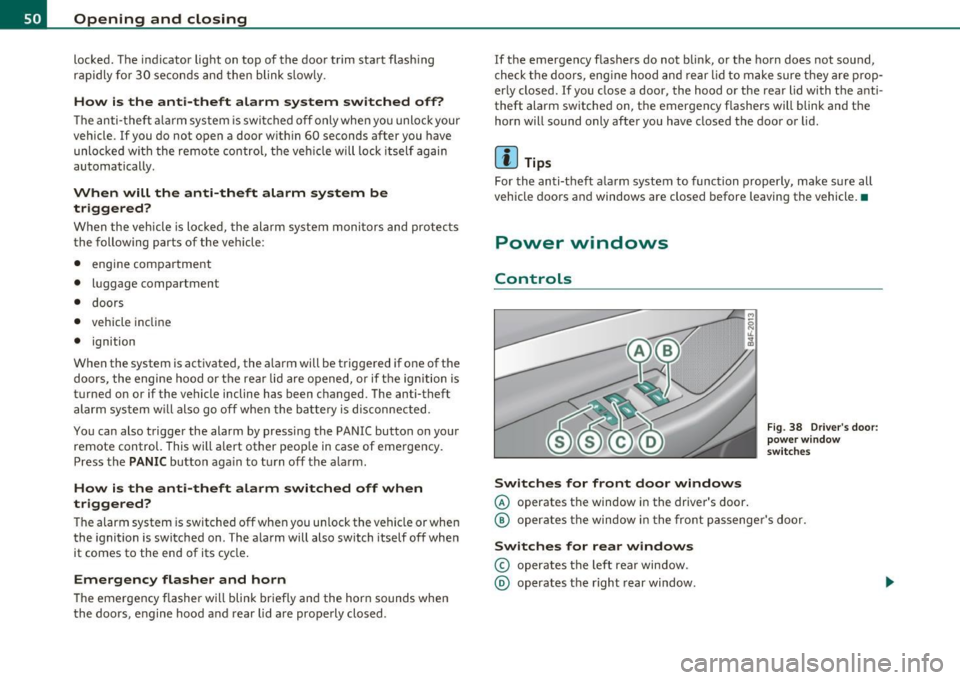

Power windows
Controls
Switches for front door window s
© operates the window in the driver's door.
Fig. 38 Driver 's doo r:
p ow er wind ow
s wit ches
© operates the window in the front passenger 's door.
Switches for rear windows
© operates t he left rea r window .
@ operates the right rear window.

Safety switch
® Safety swi tch for rea r window operat ion .
& WARNING
• Do not leav e children unattended in the vehicle, especially with
access to vehicle keys. Unsupervised use of the keys can result in
starting of the engine and u se of veh icle systems su ch a s power
windows, etc. which could result in se rious injury .
• Remember -you can still open or close the power window s for
about ten minutes a fter the ignition is switched off. Only when
either of the front doors are opened are the power windows
switched off.
• Be careful when closing the window s. Check to see that no one
is in the way, o r serious injury could result !
• Alway s remove the ignition key whenever you leave your
vehicle.
• If you lo ck your v ehicle from the outside, no one, e specially
children, should remain in the vehicle.
• Do not stick anything on the windows or the windshield that
may interfere with the dr iver's field of vi sion.
[ i ] Tips
In ad dition to the switches in the d river's doo r there is a separate
switch in each door for the powe r window in that door~
page 52,
fig.39. •
Switches in the driver 's door
T he driver can operate all wind ows.
If the res pective sw itch is pushe d or pulled t he window will
o pen or c los e. Th e powe r window swi tches have a
two-posi­
tion function:
Controls and equip ­
ment Safety first
Opening and closing
Opening the windows
- Push the switch to the first stop and h old i t th ere until the
window has lowered to the desired posi tion .
- Push the switch br iefly to t he
second stop : the window
will automatica lly open a ll the way .
Closing the windows
- Pull the swi tch up to the first stop a n d ho ld it t her e u ntil
the window h as r is e n to t he desir ed posit ion.
- P ull the swi tch qu ickly to th e
second position: the window
w ill automatica lly cl os e a ll th e way ~
& in "Co ntro ls" on
page SO.
Activating/deactivating rear windows
- Press the le ft Cf) sw itch ~ page 50, fi g. 38 to deactivate
o nly the wi ndow reg ulator in the left door. The in dicator
light in the switch illumi nates .
- Press t he r ight
Cf) switc h~ page 50, fig . 38 to deactivate
only the w indow regulator in the right door. The ind icator
lig ht in t he switch illumi nates .
- Press the
[fl switch agai n to reactivate the wi ndow regu-
lator. T he ind icator lig ht in the switch goes out .
This function can a lso deact ivate d. Press both(!) switches ® in
s u ccession.
• If
only the left(!) switch was pressed, only the window regu lator
s w itch in the
left rear door is de acti vated. In a ddi tion , the door i s
locked.
• If
only the right(!) switch wa s pressed, only the window regu lator
switch in the
right rear door is deact ivated. In addition, the door is
locked.
~
Vehicle care Technical data

Open ing and closing
This feature has been provided for the safety of small ch ildren riding
in the rear of the vehicle.
[ i ] T ips
• The windows can still be opened and closed for about ten minutes
after the ignition has been turned off . The power windows are not
shut off unt il one of the front doors is opened .
• In order to activate the child safety lock on the left and the right
side, you have to press the two safety switches in succession. Make
certain that the check light comes on the corresponding safety sw itch
when the child safety lock is activated .•

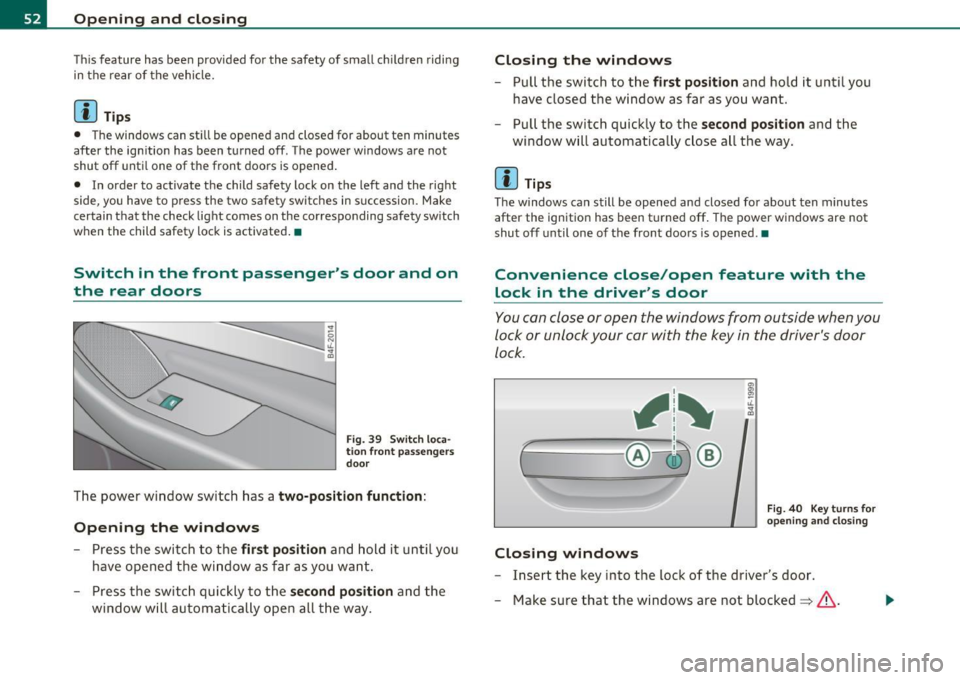

Switch in the front passenger 's door and on
the rear doors
"' 5 N "' a,
F ig. 39 Switch loca·
t ion front pass enge rs
doo r
The power window switch has a two-po sitio n funct ion :
Op ening the windows
- Press the switch to the fi rs t position and hold it unti l you
have opened the window as far as you want .
- Press the switch quickly to the
second pos iti on and the
window will automatically open all the way.
Closing the windows
- Pull the switch to the fi rst positi on and hold it until you
have closed the window as far as you want.
- Pull the switch quickly to the
second po sitio n and the
window will automatically close all the way.
(I] Ti ps
The windows can still be opened and closed for about ten minutes
after the ignition has been turned off. The power windows are not
shut off until one of the front doors is opened .•
Convenience close/open feature with the
lock in the driver 's door
You can close or open the windows from outside when you
lock or unlock your car with the key in the driver's door
lock.
, ,~
f~ -==--- 00--$] @
Closing windows
Fig . 4 0 Key turns fo r
openi ng a nd closi ng
- Insert the key into the lock of the driver's door.
Make sure that the windows are not blocked
==> & .

-Turn and hold the k ey in the lock posit ion®~ page 52,
fig. 40 until t he windows and th e power roof * are
comple tely closed .
Opening windows
-Inse rt the key into the lock o f th e driver's door.
Turn and hold the key in t he open posit ion @.
The a utomat ic close/open fu nction will cease if the key is returned to
i t s or iginal pos it io n.
& WARNING
• Be careful when closing the windows . Check to see that no one
is in the way, or serious injury could re sult!
• Always read and heed WARNING=>
& in "General des cription "
on
page 41 . •
Reactivating the system after battery
disconnection
If the vehicle battery is disco nnected and t hen reconnected ,
the automatic closing and opening function will not work
u nti l it is reactivated. To reactivate th is featu re, perform the
fo llowing steps:
Reactivating close /open feature
- Pull and hol d th e power w indow sw itc h until t he window is
comp letely closed .
- Release the switch.
- Pull the swi tch again for one second. The automat ic
closi ng/opening is now reactivated. •
Contro ls a nd e quip ­
m en t Vehicle
OP-eration
Opening and closing
Sliding/tilting power sunroof
Applies to veh icles: with slid ing/t ilting powe r sunroof
How the power sunroof works
Fig . 41 Section of th e
h eadliner : su nroo f
s wit ch pos itio ns
The roof will slide open or ti lt up at the rear as required. When the
ignition is on, yo u can slide the roof open or close it to the des ired
position by turning the rotary control sw itch located overhead next to
the inte rior light. The roof is tilted open o r closed by p ressing or
pulling the control switch at posit ion ®=>fig. 41.
You can s till close or open the sunroof for up to ten minutes after you
have switched off the ignition with the key remaining in the ignition
lock. If either door is opened, powe red operation of the sun roo f will
be deact ivated.
Solar protection with sliding glass sun roof*
The sliding glass sun roof is equipped with an ad justable sunshade to
reduce the effects of strong sunlight. The so lar protection can be
moved at the recessed hand le to open and close it. To p revent the
vehicle interior f rom heat ing up, you should close the solar protection
when you park yo ur vehicle in the s un .
When the roof is
slid open , the sunshade is opened automat ica lly.
Whe n the roof is closed, the sunshade can be closed man ua lly. .,
Vehicle care Do-it-yourselt service iTechnical data

Opening and closing
When the roof is tilted open, the closed sunshade is also raised at the
rear edge . But it can still be slid open or closed.
0 Note
You should always closed the sliding/tilting sunroof when you leave
your vehicle . Sudden rain can drench the interior equipment and
damag e the electronic convenienc e features in your v ehicle .
[ i ] Tips
If you park your vehicle in the sun , we recommend that you close the
sunshade*. •
Applies to vehicles : with slid ing/t il t ing po wer sunroof
Sliding/tilting the power sunroof open
Sliding the power sunroof open to the comfort position
keeps wind noise to a minimum .
Sliding the roof open to the comfort position
- Turn the rotary switch to position (D ~ page 53, fig. 41
(detent can be felt) . The roof is slid open only to a comfort
position with low wind noise .
Sliding the roof open all the way
-Turn the rotary switch to position@. Airflow over the fully
opened sunroof may cause increased wind noise .
Tilting the roof open
-Turn the rotary switch to position @.
- In position @, briefly
press the control to tilt the roof up
completely. -
To tilt the roof open to any intermediate position
press
and hold the switch until the roof reaches the desired
position.
In positio n@ , the switch jumps back to pos it ion © again as soon as
the swit ch is released.
When the glass roof opens, the s un visor, which is designed to ward
off strong sunlight, opens a long w ith it . The v isor can be closed
manually when the sunroof is closed.
[I) Tips
• Be aware that the sunroof may actually be open when the sun visor
is closed. Chec k and make sure that the sunroof is shut when park ing
the car or if it suddenly st art s raining.
• If the sunroof is not fully closed but you have pressed and held the
switch for the tilt pos ition, the sunroof will not tilt. •
App lies to veh icles: w ith sli ding/ tilting power sunroof
Closing the power sunroof
Sliding the roof shut
-Turn the rotary switch to position @~ page 53,
fig. 41 ~& -
Tilting the roof shut
- Briefly pull the rotary switch to close the roof .
- To tilt the roof down to any intermediate position
pull and
hold
the switch until the roof reaches the desired position.
& WARNING
Improper use of the power sunroof can cause serious personal
injury.

& WARNING (continued)
• Be careful when closing the power sunroof. Not paying atten­
tion could cause you or others to be trapped and injured as the roof
closes.
• Always take the key with you when you leave the vehicle to
prevent injuries caused by the roof closing.
• Never leave children or persons requiring assistance alone in
the vehicle, especially when they could access the vehicle keys.
Unsupervised use of the keys can result in the engine being started
or use of vehicle systems such as the power windows, etc. which
could result in serious injury. The doors could be locked with the
remote key, delaying help in an emergency.
• The power sunroof will continue to operate until the ignition
key has been removed and one of the front doors has been
opened. •
Applies to veh icl es: w ith s lid in g/ti lt ing powe r sunroof
Convenience closing feature
The power sunroof can be closed from outside with the
key in the driver 's door lock.
- Insert the key into the d river 's door lock .
- Turn and hold th e ke y in the lock position®=:>
page 43,
fig. 29 until the sunroof is completely closed=:>&, in
"Closing the power sunroof " on
page 54.
& WARNING
Be careful when closing the power sunroof. Not paying attention
could cause you or others to be trapped and injured as the roof
closes. •
Controls and equip ­
ment Safety first Opening and closing
App
lies to vehicles : w ith sliding/tilting power sunroof
Power emergency closing
The sunroof can still be closed electrically if for some
reason the overload protection function becomes acti­
vated.
The power sunroof is equipped with an overload protection
feature. If, under normal conditions, the power sunroof will
not close, you can close it using this feature .
- Turn the rotary switch to position@=:>
page 53, fig. 41.
- Now pull the switch
and hold it in this position until the
power sunroof closes completely .
& WARNING
Improper use of the power sunroof can cause serious personal
injury.
• Be careful when closing the power sunroof. Not paying atten­
tion could cause you or others to be trapped and injured as the roof
closes.
• Always take the key with you when you leave the vehicle to
prevent injuries caused by the roof closing.
• Never leave children or persons requiring assistance alone in
the vehicle, especially when they could access the vehicle keys.
Unsupervised use of the keys can result in the engine being started
or use of vehicle systems such as the power windows, etc. which
could result in serious injury. The doors could be locked with the
remote key, delaying help in an emergency.
• The power sunroof will continue to operate until the ignition
key has been removed and one of the front doors has been
opened. •
Vehicle care Technical data

Open ing and closing
App lies to veh icles : w ith sliding/tilting power sunroof

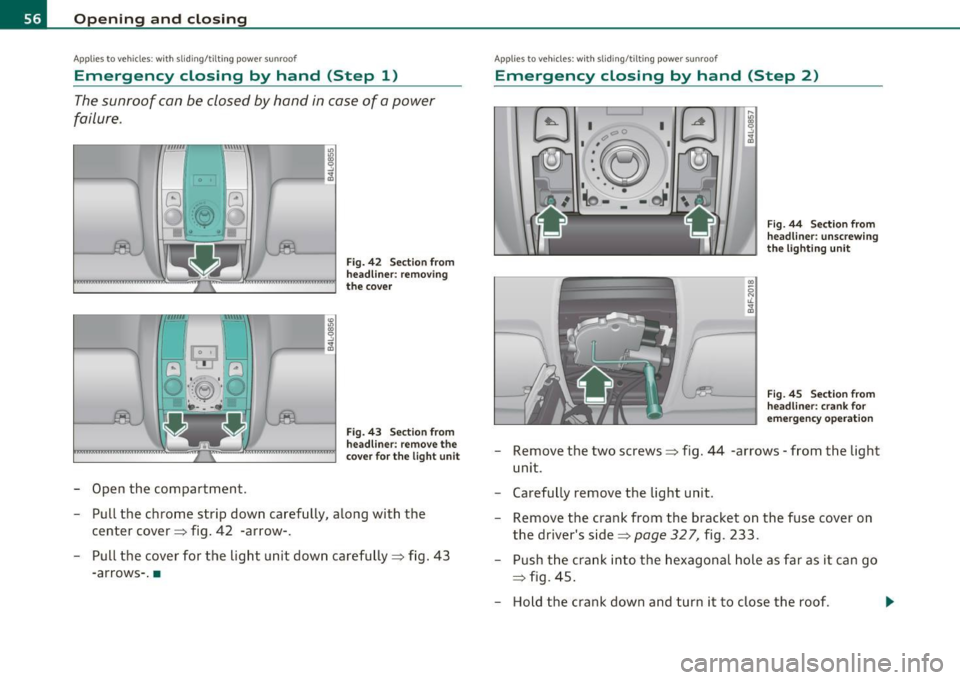

Emergency closing by hand (Step 1)
The sunroof can be closed by hand in case of a power
failure .
0
-Open the compartment.
Fig. 42 Sect ion from
head lin er: removing
the cover
Fig. 43 Section from
headli ner: remove the
cove r fo r th e light u nit
- Pull the chrome strip down carefully, along with the
center cover ::::, fig . 42 -arrow-.
- Pull the cover for the light unit down carefully::::, fig .
43
-arrows- .•
App lies to veh icles: w ith slid ing/t ilting power sunroof
Emergency closing by hand (Step 2)
I I C' C
•:~ I
I',.~ I
.• \o -·: -t)J ,_,,
J
F ig . 44 Sect ion from
head line r: unscrew ing
t h e lig hti ng u nit
Fi g. 45 Sect ion from
head line r: crank for
e m ergency ope ration
Remove the two screws::::, fig. 44 -arrows -from the light
unit .
Carefully remove the light unit .
Remove the crank from the b racket on the fuse cover on
the driver's side::::,
page 327, fig. 233.
Push the crank into the hexagonal hole as far as it can go
=> fig. 45 .
- Hold the crank down and turn it to close the roof . ...

- Re-install the complete light unit.
- Have the problem corrected.
[I) Tips
To turn the crank for eme rgency closing more easi ly, you should use
the screwdriver handle as an aid. First remove the screw driver from
the handle, then push the handle onto the crank.•
Controls and equip ­
ment Safety first
Opening and closing
Vehicle care
Technical data

Clear vision
Clear vision
Lights
Switching the headlights on and off ·"ti-·
In the "AUTO" position, a light sensor automatically
switches the head- and taillights on and off in response to light condi tions.
Fi g. 46 In strument
p an el: li gh t swit ch
The ligh t switc h must not be overtur ned past t he stops in
either d irection.
Switching on automatic headlight control
- Turn the lig ht sw itch to AUTO => fig. 46 .
Switching on the side marker lights
-Turn the lig ht swi tch to ~oo~.
Switching on the headlights and high beam
- Tur n the lig ht sw itch to ~D.
- Push the high beam leve r forward tow ards the in strument
panel=>
page 62 .
Switching off the lights
- Tu rn th e lig ht swi tch to 0.
T he headlights on ly work when the ignitio n is switc hed on. Whi le
starting the engine or w hen switching off t he ignition, the headlig hts
w ill go off and o nly the s ide marke r lights will be o n.
After starting the eng ine, the headlights are automatically adjusted*
to the load and angle o f th e vehicle (for example, during acce lerat ion,
brak ing) . This prevents oncom ing traff ic from experiencing unneces ­
sary headlight glare from your head lig hts.
If the system is not operat ing p roperly, a warning symbol in the Auto­
Check Control is displayed=>
page 31.
With the side marker lights o r headlights switc hed on, the symbol
next to the light switch illum inates
':o oc .
Daytime running lights
• USA models: On vehicles w ith xenon lights the dayt ime runn ing
lights will come on automat ica lly when the ignition is turned o n and
the light switch=> fig. 46 is i n the
O position or the AUTO position
(only i n day light conditions) . The
D aytime running light s function
can be turned on and off in the MMI menu
Exterior lighting
=> page 59. On vehicles wit h halogen lights there is no daytime
r u nning lights fu nctio n=>
& -
• Canada models: The daytime ru nning lights wi ll come o n auto­
matically w hen the ignit io n is t urned on and t he light switch=> fig. 46
is in the
O p osition or the AUTO position (on ly in day light co nditions)
=> & -
Automatic headlight control
In the switch pos ition AUTO the automatic headlight control is
t u rned on. The low beams are t urned on automatically t hrough a light
sensor as soon as ambient br ight ness (e .g . when dr iving into a
t u nnel) falls below a val ue p reset at the factory . When ambient .,.
