Ins trum ent s an d warnin g/indic ator light s 29
Head-up Display
Applies to vehicles: with Head-up Display
Fig. 14 Examp le: indicators in the Head-up Display
Fig . 15 Instrument pane l: knob for the Head-up D is­
play
The Head-up Display projects certa in warnings
or selected information from the assistance
systems* or nav igat ion* on the w indshield.
The display appears with in the driver's field of
vision.
Switching on /off
"' Press the knob~ to switch the Head-up
Display on/off
c::> fig. 15.
Adju sting th e hei ght
The height of the display can be adjusted to
the indiv idual driver.
"' Make sure you are seated correctly
c::>page 131.
"' Turn the knob~ to adjust the display .
Setting s in th e MMI
"' Se lect: ICARI funct ion button > (C ar)* sys ­
tems
control button > Driv e r Assist > He ad ­
u p Di spla y
> Head -up D ispl ay co nte nt or
Di spl ay bri ghtne ss.
Display cont ent
In the MM I, you can spec ify wh ich inform ation
shou ld be disp layed:
- Cruise control system*
- Navigation information*
- Audi adaptive cruise control*
- Aud i active lane assist*
- Night vision assistant* (pedestrian warning)
The speed disp lay and some of the red indica ­
tor lights cannot be hidden in the MMI.
Displa y brightn ess
You can adjust the display br ightness i n the
MMI. The disp lay br ightness decreases auto­
matically as the amount of light decreases.
T he basic level of br igh tness is adjusted w ith
the instrument illumination
c::> page 46.
(D Note
To prevent scratches on the glass cover ing
the Head-up Display, do not p lace any ob­
jects in the p rojection opening .
(D Tips
-Sunglasses with po larization filters and
unfavorab le lighting conditions can af­
fect the display.
- Veh icles with seat memory*: your Head­
up Display set tings are stored automati­
cally and assigned to the remote contro l
key that you are using.
- A special windshie ld is needed for the
Head -up D isp lay function.
- For information on cleaning, refer to
c::> page 220.
On-Board Diagnostic
system (OBD)
Malfunction Indicator lamp (MIL)
The Ma lfunction Indicator Lamp (MIL) ¢'4 in
the instrument cluster is part of the On-Board Diagnost ic (OBD II) system.
The warning/indicator light illuminates when
the ignition is switched on and goes out after ..,.

30 Instruments and warning/indicator lights
the engine starts and the idle has stabilized.
This indicates that the MIL is working proper­
ly.
If the light does not go out after the engine
i s started, or illuminates whi le you are driv­
ing, a ma lfunction may exist in the engine sys­
tem .
If the light illuminates, the catalytic con­
verter could be damaged.
Continue driving
with reduced power (avoid­
ing susta ined high speeds and/or rapid accel­
erat ions) and have the condition corrected.
Contact your authori zed Audi dealer .
If the light illuminates, the electronic speed
limiter may also be ma lfunctioning. For more
information
Q page 30, Electronic speed
limiter.
An improperly closed fuel filler cap may also
cause the MIL light to illuminate
Qpage227.
On-Board Diagnostics
Fig . 16 Locat io n of Data Link Co nnector (D LC)
On-Board Diagnostics monitors the compo­
nents o f your emission control system. Each
monitored component in your engine system
has been assigned a code. In case of a mal­
function, the component will be identified
and the fault stored as a code in the control module memory.
The MIL light may a lso illuminate if there is a
leak in the on-board fue l vapor recovery sys­
tem. If the light illuminates after a refuelling,
stop the veh icle and make sure the fuel filler
cap is properly closed
Q page 22 7. In order to make an accurate diagnosis, the
stored data can on
ly be displayed using spe­
c ial diagnostic equipment (generic scan tool
for OBD).
In order to connect the special diagnostic
equipment, push the plug into the Data Link
Connector (D LC). The DLC is located to the
right of the hood release~
fig. 16.
Your authorized Audi dea ler or a qualified
service station can interpret the code and per­
form the necessary repair.
A WARNING
-Do not use the diagnostic connector for
personal use. Incorrect usage can cause
malfunctions, which can increase the risk
of a collision!
Electronic speed limiter
-
Your vehicle may be factory equipped w ith
t ir es that are rated for a maximum speed of
130 mph (210 km/h). This is less than the
maximum speed of your vehicle. To reduce the
risk of sudden tire fai lure and loss of control if
the vehicle is operated at excessive speeds,
your vehicle also has an e lectronic speed limit­
er . The electronic speed limiter prevents your
vehicle from going faster than the tire speed
rating . For more information
Q page 257.
If the engine control unit receives faulty vehi­
cle road speed signals, the Malfunction Indi­
cator Lamp (MIL)
¢fj will illuminate . If this
occurs, contact the nearest authorized Audi
dealer for assistance.
S models
Your vehicle's top speed is electronica lly limit­
ed to 155 mph (250 km/h).
If the engine control unit receives faulty vehi­
cle roadspeed signals, the Malfunction Indica­
tor Lamp (MIU¢.§ will illuminate . If this oc­
curs, contact the nearest authorized Audi
dealer for assistance.

Instrument s and warnin g/indic ator ligh ts 31
A WARNING ,~
Always observe the posted speed limits
and adjust your speed to suit prevailing
road, traff ic and weather conditions. Never
drive your vehicle faster than the maxi­
mum speed rating of the tires insta lled.

32 Opening and clo sing
Opening and closing
Keys
Key set
Fig . 17 Key set
@ Remot e control k ey w ith m echan ical
ke y
You can centrally lock and unlock your vehicle
and start the engine with the master key with
remote control. A mechanical key is integrat­
ed in the remote control key
r:::;, page 33 .
@ Eme rgenc y ke y
The emergency key is not intended for con­
stant use.
It should only be used in an emer­
gency. Keep it in a safe place and do not carry it on your key ring .
Key replac em ent
If you lose a key, contact your authorized Audi
dealer immediately to have the
lost key disa­
bled. Be sure to bring all your keys with you.
P er sonal c omfo rt se ttin gs
If two peop le use one vehicle, it is recom­
mended that each person always uses "their
own" master key . When the ignition is switch­
ed off or when the vehicle is locked, personal
convenience settings for the follow ing sys­
tems are stored and assigned to the remote master key .
- Automatic climate control
- Central locking system
- Amb ience light ing*
- Seat memory*
- Parking system*
- Adaptive cruise control* - Audi active
lane assist *
- Aud i side assist*
- Aud i drive select
- Night vision assistant*
- Heated steering wheel*
The stored settings are automatically recalled
when you unlock the vehicle, when you open
the doors or when you switch the ignition on.
A WARNING
-- Do not leave your vehicle unattended . Al-
ways take your ignit ion key with you and
lock your vehicle . Entry by unauthorized
persons could endanger yo u or resu lt in
theft or damage the vehicle.
- Do not leave ch ildren unattended in the
veh icle, especially with access to vehicle
keys. Unguarded access to the keys pro­
vides children the opportunity to start the engine and/or activate vehicle sys­
tems such as the power windows, etc .
Unsupervised operation of any vehicle
system by children can result in serious
injury.
(1) Tips
- The operation of the remote control key
can be temporar ily disrupted by interfer­
ence from transm itters in the vic inity of
the vehicle working in the same frequen­
cy range (e.g. a cell phone, radio equip­
ment).
- For security reasons, rep lacement keys
are only ava ilable from Audi dealers.
- For Declaration of Compliance to United
States FCC and Industry Canada regula­
tions
r:::;, page 292.

Removing the mechanical key
Fig. 18 Remote control maste r key : re mov ing the me­
c han ical key
• Press the release button @ r=> fig. 18.
• Pull the mechanica l key @ out of the mas ­
ter key.
Using the mechan ica l key, you can:
- lock and unlock the storage compartment
on the passenger's side
c::> page 60 .
-lock and unlock the vehicle manually
c::>page 37 .
-lock the front and rear passenger doors me­
chanically
c:> page 38.
Master key battery replacement
Fig . 19 Remote master key : Re mov ing the ba ttery
holde r
Check light in the master key
The check light @ in the master key provides
information about different cond itions .
• The check light comes on briefly once when
a button is pressed, and during an "inquiry"
by the conven ience key system .
• If the check light does not come on, the
battery is dead and has to be replaced. In
addition, when the battery is dead the
E!!
symbol appears in the instrument cluster
Opening and closing 33
display as well as the message: Please
change key battery .
Master key battery replacement
• Pull the mechanical key out of the master
key
c::> page 33.
• Press the release button @ on the battery
holder and at the same time pull the battery
holder out of the master key in the direction
of the arrow.
• Install the new battery CR 2032 with the
"+ " sign facing down.
• Push the battery holder carefully into the
maste r key .
• Install the mechanical key.
@ For the sake of the environment
Dispose of dead batteries properly so as
not to pollute the environment .
(D Tips
The replacement battery must be the
same specification as the original.
, Electronic immobilizer
The immobilizer helps to prevent unauthor­
ized use of your vehicle .
A computer chip inside your key automatically
deactivates the electronic immobilizer when
the key is inside the vehicle. When you remove
the key from the vehicle, the electronic immo­
bilizer is automatically activated once again .
A WARNING
-
Always take the key with you when you
leave the vehicle. The key can disarm the
e lectronic engine immobilizer and permit
an unauthorized person to start the engine
and enable operation of the vehicle sys­
tems such as power window or power sun­
roof leading to serious personal injury.
(D Tips
- Th e vehicle cannot be started if an una u­
thorized key is used. The vehicle may not
start if another radio device such as a key
Ill>

34 Openin g and clo sing
for another vehicle or a transponder is
located on the key ring.
- For Declaration of Compliance to United States FCC and Industry Canada regula­
tions
~ page 292.
Power locking system
General description
The power locking system locks or unlocks all
doors and the rear lid simultaneously.
You can lock and unlock the vehicle centrally.
You have the following choices:
- Remote master key~
page 35,
-Door handles with convenience key*
~ page 36,
-Lock cy linder at the dr iver's door
¢ page 37, or
- Power lock ing switch inside
¢ page 37.
Select ive unlocking
When you lock the vehicle, the power locking
system w ill lock the doors and the rear lid .
When unlocking, you can set in the MMI
whether only the driver 's door o r the entire
vehicle should be unlocked ¢
page 35.
Automatic locking
The automat ic locking feature locks all the ve­
h icle doors and the rear l id when you drive
faster tha n 9 mph (15 km/h).
The car is unlocked again, when the opening
function in the power locking system sw itch
or at one of the door levers is actuated . The
Auto Lock function can be turned on and off in
the MMI
¢ page 35.
Anti-theft alarm warning sy stem
If the anti -theft alarm warning system de­
tects a break- in into the vehicle, acoust ic and
visua l warning signals are triggered.
The anti-theft warning system is activated au­
tomatically when you lock the vehicle . It is de ­
activated when unlocking using the remote key, with the mechanical key, and when you
sw itch the ignition on. T
he alarm also turns off when the a larm cycle
has expired .
Turn signals
When you unlock the veh icle, the turn s ignals
flash twice. When you lock the vehicle the
turn s ignals flash once. If they do not flash,
one of the doors, the rear lid or the hood is
not locked.
Unint entionally locking your self out
In the follow ing cases there safeguards to
prevent yo u lock ing yo ur remo te master key i n
the vehicle :
- The vehicle does not lock w ith the central
loc king switch ¢
page 3 7 if the drive r's
door is open.
- On veh icles with co nvenience key*, if the
most recently used master key is in the lug­
gage compartment, the rear lid is a utomat i­
cally un locked again after it is closed.
Do not lock your veh icle w ith the
remot e ma s­
t e r ke y or co nv eni enc e ke y*
until all doors
and the rear lid are closed . In this way you
avoid lock ing you rsel f out accidentally .
Power side door clo ser *
The veh icle doors are equipped with a power
s ide door closer. When closing a door, you on­
ly h ave to let it fall light ly into the latch. The
door will then automatically close by itself
¢ & .
A WARNING
-When you lock yo ur vehicle from o utside,
nobody -especially children -shou ld re­
main inside the vehicle. Remember,
when you lock the vehicle from the out­ side the windows cannot be opened from
the inside.
- When you leave the veh icle, always take
the ignition key w ith you . Th is w ill pre­
vent passenge rs (children, for example)
from accidenta lly being locked in the ve­
h icle should they accidentally press the
power locking sw itch in the doors.
~

-Do not leave children inside the vehicle
unsupervised. In an emergency it would
be impossible to open the doors from
the outside without the key.
- Applies to vehicles with power side door
closer*:
- When closing a door, make sure noth­
ing can interfere w ith the door. This
could cause serious personal injury.
- You can stop the door from clos ing at
any time by pulling on the inside or
outside door handle.
(D Tips
- In the event of a crash with airbag de­
ployment all locked doors will be auto­
ma tically unlocked to give access to the
vehicle occupants from the outside.
- If the power locking system should mal­
function, you can lock the driver's door
using the mechanical key¢
page 38.
-If the power locking system should fail,
you can still open the fuel tank flap in an
emergency
¢pa ge 228.
-You are we ll advised not to keep valua­
bles inside an unattended vehicle, visib le
or not . Even a properly locked vehicle
cannot provide the security of a safe.
- If the LED in the upper edge of the driv­
er's door pane l comes on for abo ut 30
seconds after the vehicle is locked, there i s a malfunction in the power locking or
the anti-theft warning system. Have the malfunction corrected by an author ized
Audi dealership or qua lified repair facili­
ty.
Setting power locking
The driver can determine the functions for
power locking in the MMI.
.,. Select: ICARI funct ion button> (Car)* sys­
tems
control button > Vehicle settings >
(Central locking)* .
Lock when driving -
If you selec t On , the vehi­
cle locks automatically when driving. All of
the doors and rear lid lock .
Opening and closing 35
Central locking
Unlock doors -
You can decide if All doors or
on ly the
Driver shou ld unlock. The rear lid al­
so unlocks when
All is selected . If you select
Driver in a vehicle with a convenience key*,
only the door whose hand le you pull will un­
lock.
If you se lect
Driver , all the doors and rear lid
will unlock if you press the
CD button on the re­
mote control master key twice .
Lock exterior trunk handle -If you select On ,
the rear lid handle is lock ed. In this case the
rear lid can be opened with the b utton
c:s on
the master key or with the
c:s button in the
driver's door. In vehicles with a convenience
key*, you can still open the rear lid using the
handle if an authorized master key is near the
proxim ity sensor .
Fold mirrors * -If you select On , the exterior
rearview mirrors fold in automat ically when
you press the
cfJ button on the remote control
master key or touch the sensor* in the handle.
Tone when locking -When you select On , a
confirmation tone sounds when you lock the
vehicle .
Locking and unlocking the vehicle with
the remote control

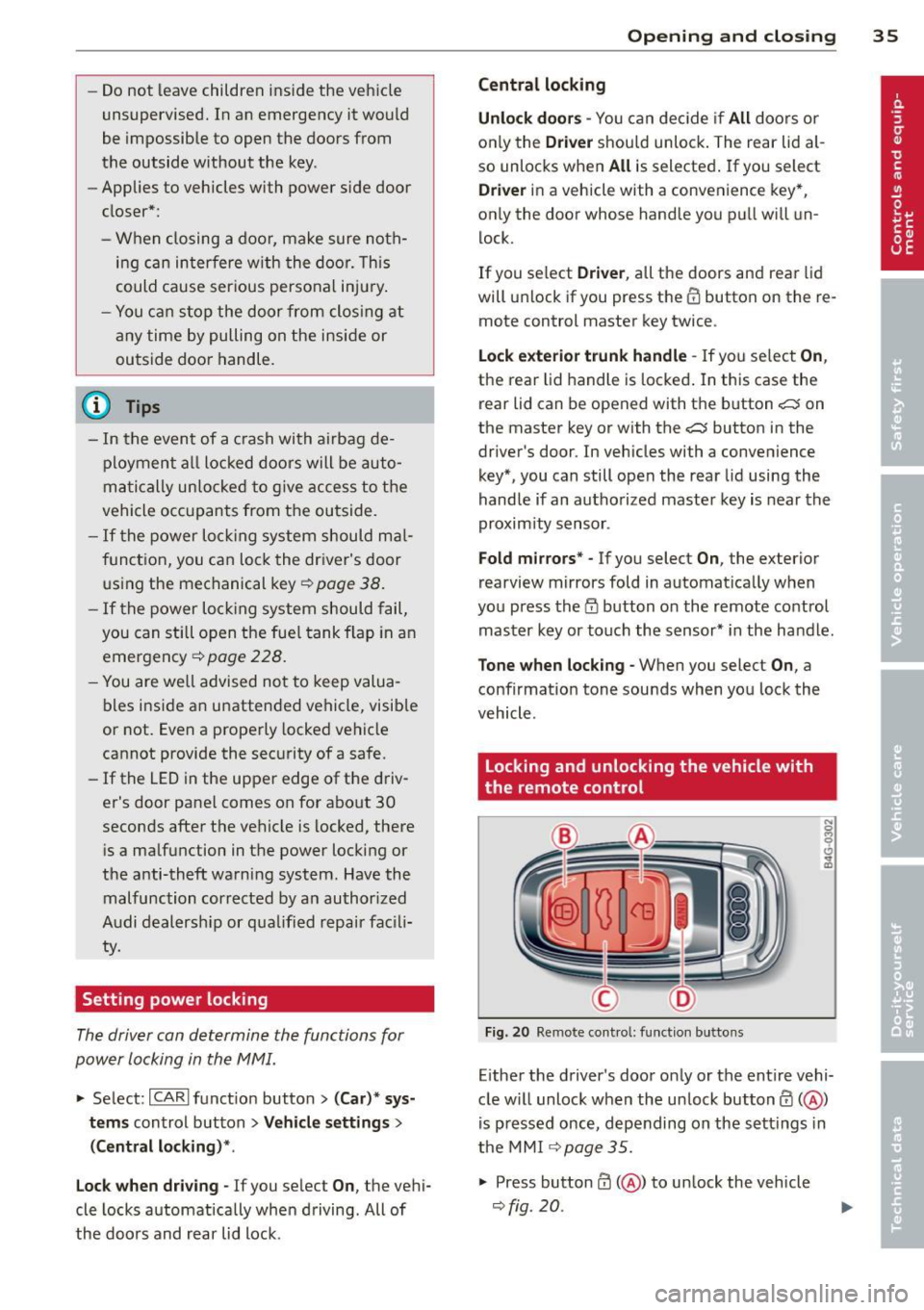

Fig. 20 Remote cont rol: fun ction butto ns
Eithe r the driver's door only or the entire vehi­
cle w ill unlock when the unlock button
0 (@ )
is pressed once, depending on the sett ings in
the MMI
¢ page 35 .
.,. Press button 0 (@ ) to unlock the vehicle
¢fig. 20.

36 Openin g and clo sing
• Press b utton ('f] (@ ) to lock the vehicle q A
in General description on page 3 4.
• Press button c:s (@ ) briefly to un lock the
rear lid.
• Push the red
!PANIC I button( @) to activate
the panic function . The horn sounds and the
turn s ignals flash. Push the red
I PANIC I but­
ton aga in to deact ivate the panic function.
If the vehicle is unlocked and no door, the rear lid or the hood is opened w ith in 60 seconds,
the vehicle locks itself again automatically .
This feature prevents the ve hicle from be ing
accidenta lly left unlocked ove r a long period
of time.
It depends on the sett ings in the MMI wheth­
e r the enti re veh icle is un locked or on ly cer­
tain doors
q page 35.
.&_ WARNING
Read and follow a ll WARNINGS¢ &. in
General description on page 34.
{!) Tips
- In order to make sure the locking func­
tion is working, you shou ld always keep
you r eye on the vehicle to make sure i t is
properly locked.
-
- Do not use the remo te control if you are
i nside the car, otherwise you may unin­
tentiona lly lock the vehicle, and then you
would set off the anti-theft ala rm when
you try to start the engine or open a
door. In case this happens anyhow, push
the un lock button @.
- The vehicle can on ly be locked when the
se lector lever is in the P posit ion.
- Use the panic funct ion only i f you are in
an emergency situation.
Locking and unlocking with convenience
key
Appl ies to vehicles : wi th convenience key
The doors and the rear lid can b e unlocked
and locked without operating the master key.

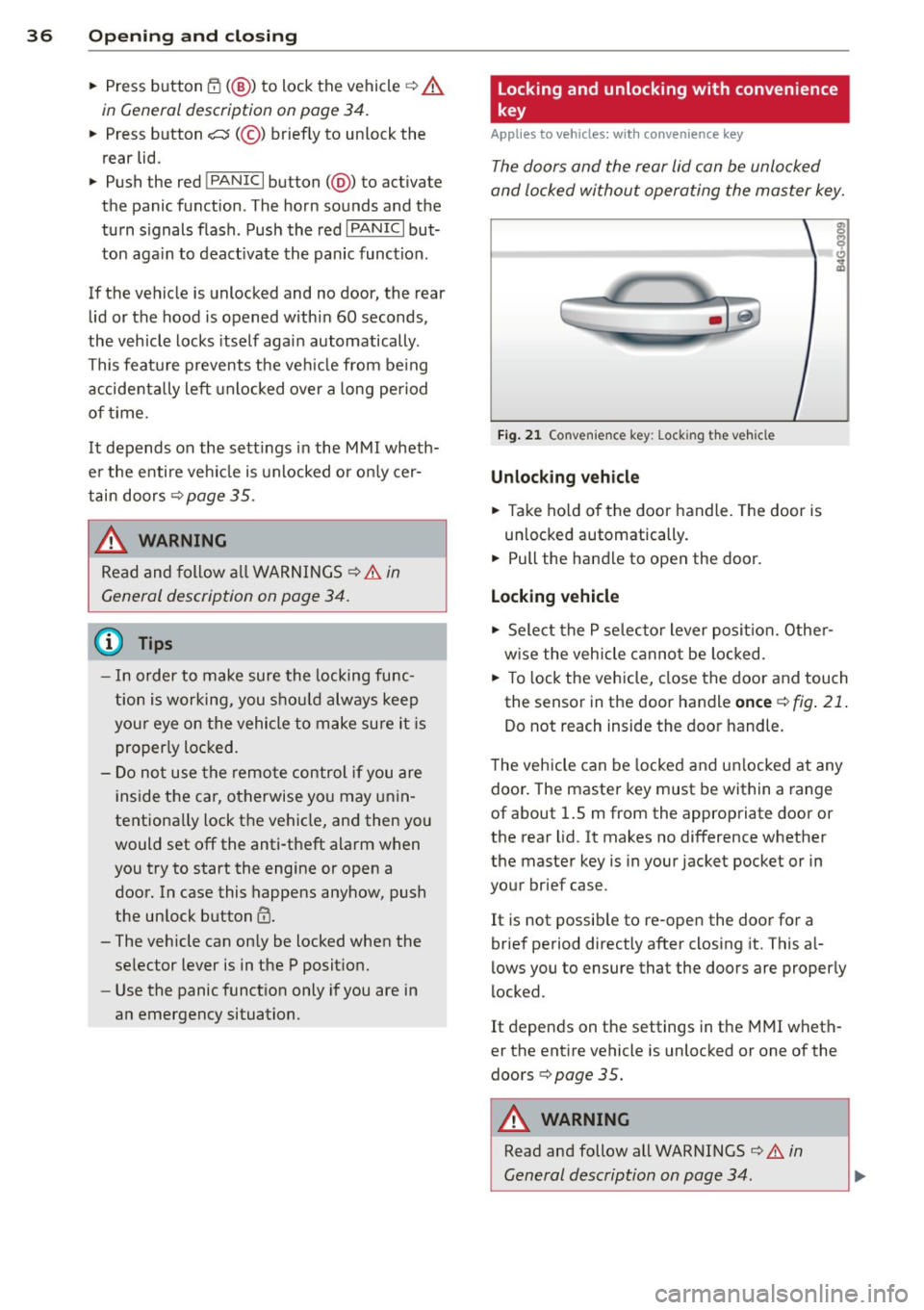

Fi g. 2 1 Convenience key: Lock ing the vehicle
Unlocking vehicle
• Take ho ld of the door handle. The door is
un locked automatically.
• Pull the hand le to open the door.
Locking vehicle
• Sele ct the P se lecto r lever po sit ion. Othe r­
w ise the vehicle cannot be loc ked.
• To lock the ve hicle, close the door and touch
the sensor in the door handle
once c:!;> fig . 21.
Do not reach inside the door handle.
T he vehicle can be locked and un locked at any
door . The master key must be within a range
of about 1.5 m from the appropriate door or
the rear lid. It makes no difference whether
the master key is in your jacket pocket or in
your brief case.
It is not possib le to re-open the door for a
brief period directly after closing it. This a l­
l ows you to ensure that the doors are properly
l ocked.
It depends on the settings in the MMI wheth ­
er the ent ire vehicle is unlocked or one of the
doors
c:!;> page 35 .
.&_ WARNING ~ -
Read and follow all WARNINGS q .&. in
General description on page 34 .

@ Tips
If your vehicle has been standing for an ex­
tended period, please note the follow ing:
- The proximity sensors are deactivated af-
ter a few days to save power. You then
have to pull on the door handle once to
unlock the vehicle and a second time to
open the veh icle.
- To prevent the battery from being dis­
charged and to preserve your veh icle's
ability to start for as long as possible,
the energy management system gradu­
ally switches off unnecessary conven­ i ence funct ions. It is possible that you
will not be able to unlock your vehicle us­
i ng these conven ien ce f unctions.
- Fo r De clarat ion of Compliance to United
Sta tes FCC and Indus try Canada regula­
tions
¢page 292.
Operating locks with the key
In the event of a failure of the power locking
system, the driver's door can be locked and unlocked at the lock cylinder.
Fig. 2 2 Key turns for opening and clos ing .
"' Remove the mechanical key¢ page 33 .
"' Turn the mechanical key to position @
q fig. 22 to unlock the driver's door .
"' Turn the key to position ® to lock the dr iv­
er's door¢ &,.
,& WARNING
Read and follow a ll WARNINGS ¢ & in
General description on page 34.
Op enin g an d clos ing
Locking and unlocking the vehicle from
inside
Fig . 23 Drive r's door: power locking switch
Fi g. 2 4 Rear power locking switch
"' Press the button l@J to lock the vehicle¢&, .
"' Press the button
@:I to unlock the veh icle .
If you lock the vehicle using the power locking
switch, p lease note the following:
- You cannot open the doors or the rear lid
from the
outside ( increased security, for ex­
ample when you are stopped at a red light).
- The d iodes in the power locking switches il-
luminate when all the doors are closed and
locked.
- Front doors: you can unlock and open the
doors from the inside by pulling on the door
handle.
- Rear doors: pull the door handle
once to re­
lease the lock. Pull the handle
again to open
the door.
- If you have a crash and the airbag is activat­
ed the doors automatically unlock .
,
A WARNING
-The power lock ing switch works with the
ig nit ion off and automat ica lly locks the
enti re veh icle when it is actuated.
3 7

38 Openin g and clo sing
- On a vehicle locked from the outside the
power locking system switch is inopera­
tive.
- locked doors make it more difficult for
emergency workers to get into the vehi­
cle, which puts lives at risk. Do not leave
anyone beh ind in the vehicle, especially
children.
(D Tips
Your vehicle is locked automatically at a
speed of 9 mph (15 km/h)
c> page 34. You
can unlock the vehicle again us ing the
open ing function in the power lock ing sys­
t e m sw itch .
Emergency locking
Each door must be locked separately if the
power locking system fails.

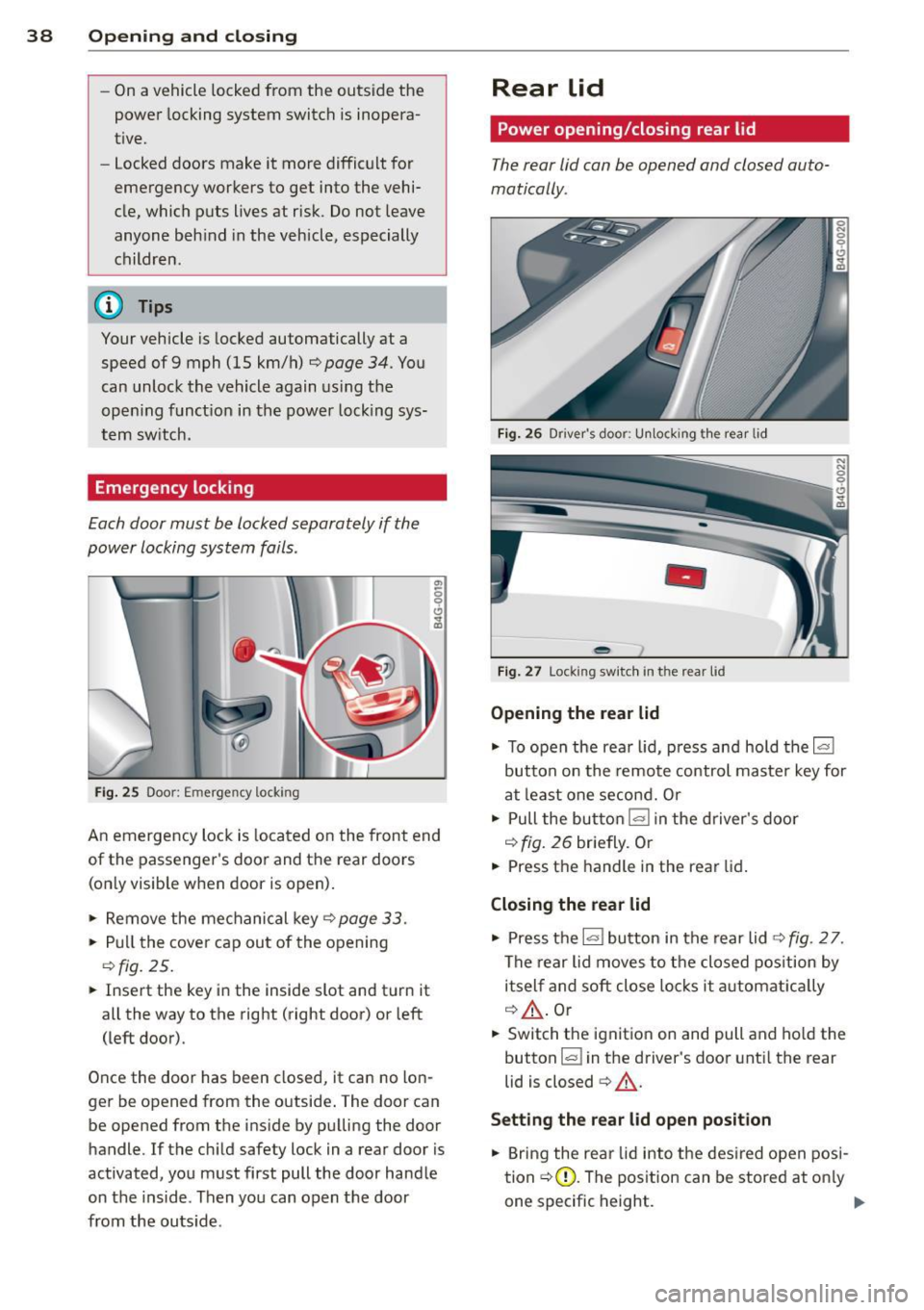

Fi g. 2 5 Door: E merge ncy lock ing
"' 0 0 0 .., (D
An emergency loc k is located on the front end
of the passenger's doo r and the rear doors
(on ly visible when door is open) .
• Remove the me chanical key i=>page 33.
• Pull t he cove r cap out of the opening
i=> fig. 25.
.,. Insert the key in the inside slot and turn it
all the way to the right (right door) or left
(left door).
Once the door has been closed, it can no lon­
ger be opened from the outside . The door can
be opened from the ins ide by pu lling the doo r
handle. If the ch ild safety lock in a rear door i s
activated, you must first pull the door hand le
on the inside . Then you can open the door
from the outs ide .
Rear lid
Power opening/closing rear lid
The rear lid can be opened and closed auto­
matically .
Fig. 26 Dr ive r's doo r: Unlock ing th e rea r lid
-
Fi g. 27 Lock ing sw itc h in t he rear lid
Opening the rear lid
• To open the rea r lid, p ress and hold the lal
button on the remote control mas ter key for
at least o ne se cond. Or
• Pull the but to n
l=I in the driver's door
i=> fig. 26 br ie fly . Or
• Press t he handle in the rea r lid.
Closing the rear lid
"" Press t he l=I button in the rear lid ~ fig. 2 7.
The rear lid m oves to t he closed p osition by
itself and soft close locks i t automat ic a lly
¢ A .or
.,. Switch t he ignit ion on and pull and ho ld the
button
l a l in the driver's door unt il the rear
lid is closed
¢ A .
Setting the rear lid open position
• Br ing the rea r lid into t he des ired open posi­
tion
¢ Q). The pos ition can be stored at o nly
one specific height . .,.
