Instruments and warning /indicator lights
Instruments and warning/indicator lights
Instruments
Instrument cluster and controls
The instrument cluster is your central source of informa­
tion.
F ig . 2 Overview of the instrume nt cluster
CD Coolant temperature gauge ..................... .
0 Tachometer with time and date display .. ......... .
G) Warning/indicator lights .. ... .... ... ... ...... .. .
© Driver information system ..... ... .... ...... .... .
© Speedome ter with odometer ..... .... ..... ... .. .
© Fuel gauge . ..... ..... ... ... ..... ..... .... ... . .
G) Reset button for trip odometer ........... ... .... .
12
13 , 13
16
24
14
14
14
© I CH ECK] button ............. ..... .... ... ...... .
® Ins trument cluster illumination . ......... ........ .
[ i ] Tips
15
15
The illumination for the instrument cluster lights up whenever you
switch on the ignition with the vehicle headlights off. As the
daylight fades, the instrument cluster illumination likewise dims
automatically and will go out complete ly when the outside light is
very low . Th is feature is meant to remind you to switch on the head­
lights when outside light conditions become poor. •
Engine coolant temperature gauge
The engine coolant gauge~ fig. 2 CD only works when the ignition
is on. To prevent damage to your engine, please note the following
important points:
Engine cold
As long as the needle remains at the left end of the gauge, the
engine still has not reached its operating temperature. Avoid high
engine speeds, heavy engine loads and heavy throttle applications.
Normal temperature
When the engine has reached its operating temperature, the needle
will move into the midd le of the gauge and remain there. If the
engine is working hard at high outside temperatures, the needle
may go furthe r to the right. This is no need to worry as long as the
J_ warning light in the instrument cluster does not illuminate.
Warning light in the instrument cluster -L
When the-•-warning light starts to flash, this can mean one of two
things: either the coo lant temperature is too high , or the coolant
level is too low~ page 31 . .,_

If the indicator goes all the way to the right side inside the coolant
temperature gauge, then the engine coolant temperature is too
high.
Pull off the road to safe location, turn off the engine and let it
cool down.
If the warning light comes on again after you have driven
a short distance, contact a qualified workshop.
& WARNING
• Always observe the warning in :::::, page 301, "Engine compart­
ment", before opening the hood and checking the engine coolant
level.
• Never open the engine hood if you see or hear steam, or if you
see engine coolant dripping from the engine compartment. You
could burn yourself. Let the engine cool off first so that you cannot
hear or see any steam or engine coolant.
0 Note
• Mounting additional lights or accessories in front of the air inlets
reduces the cooling effect of the radiator. At high outside tempera ­
tures or high engine load, the engine could overheat.
• The front spoiler has been designed to properly distribute the
cooling air when the vehicle is moving . If the spoiler is damaged,
this could reduce the cooling effect and the engine could then over­
heat. Ask your authorized Audi dealer for assistance. •
Tachometer (engine rev counter)
The tachometer indicates the engine RPM (revolutions per
minutes).
The tachometer 0:::::, page 12, fig . 2 is the left of the two large clock­
type displays.
The engine turns at a speed
1,000 times the single digit in the
display, e.g. if the needle is pointing at the "2" the engine is turning
at 2,000 RPM.
Controls and equip ­
ment
Instruments and warning/indicator lights
If engine RPM drops below 1,500, you should downshift to the next
lower gear. The red area at the end of the scale indicates maximum
permissible engine RPM after the break-in period. Before reaching
this area, move the selector lever to position "D (Drive)" or ease your
foot off the accelerator pedal.
0 Note
The tachometer needle should not move into the red range . If it
does, then only for a very short period of time. You could damage
your engine by driving at high RPM.
<£> For the sake of the environment
Upshifting early saves fuel and reduces engine noise .•
Digital clock with date display
Date and time of day can be set in MM/.
Fig . 3 Instrument
cluster with digital
clock
The date, time of day, and time and date format can be set in MMI.
You can find out more in the MMI manual. ..,.
I • •

Instruments and warning /indicator lights
[ i J Tips
• The digital clock and the odometer are turned on for about 30
seconds when the driver's door is opened.
• When the ignition is turned off, the odometer reading and the
digital clock with date display can be switched on for about
30 seconds by pressing the
I CHECK) button => page 15, fig. 5. •
Speedometer with odometer
The speedometer shows you the vehicle speed, and the
odometer shows you how many miles (kilometers) you
have driven.
Fig . 4 Instrument
c luster Odometer and
reset button
The odometer and trip odometer are located inside the speedom­
eter.
• USA models -Miles
• Canada models -Kilometers
You can switch the display from miles to kilometers and vice versa
via the MMI.
Lower odometer
The lower odometer shows the total number of miles (kilometers)
driven. Upper
odometer (trip odometer )
The upper odometer shows the total number of mil·es (kilometers)
driven since you last reset the odometer to zero. You can use this
odometer when you wan t to keep track of how many miles (kilome ­
ters) you have driven for a single trip or errand. The last d igit indi­
cates 1/10 of a mile (100 meters) .
You can reset the trip odometer to zero by pressing the Reset button
(0.0).
Malfunction message
If there is a malfunction somewhere in the instrument cluster, dEF
wi ll appear in the trip odometer and will stay on. Contact your
authori zed Audi dealer to have the prob lem corrected .
Immobilizer
When you switch on the ignition, the data chip inside the key is
"read" by the immobilizer system.
If an unauthorized key is inserted into the ignition lock, the word
SAFE will come on and stay on. You will not be able to start the
vehicle=>
page 49.
[ i J Tips
• The digita l clock and the odometer are turned on for about 30
seconds when the driver's door is opened.
• When the ignition is turned off, the odometer reading and the
digital clock with date display can be switched on for about
30 seconds by pressing the
I CHECK) button=> page 15, fig. 5. •
Fuel gauge
The fuel gauge only works when the ignition is on.
The fuel tank holds about 23 .8 gallons (90 liters). When the needle
reaches the reserve mark, the=>
page 35 symbol appears in the
instrument cluster display as well as the message
Please refuel. .,_

There is still approximately 2.4 gallons (9 liters) of fuel left. This
message is meant to remind you to
refuel.
(D Note
Never run the tank completely dry. An irregular supp ly of fuel can
cause engine misfiring and fuel could enter the exhaust system . The
cata lytic converter could then overheat and be damaged. •
[ CHECK] button
You can perform different functions with this button .
Fig. 5 CHECK button in
the instrument cluster
Th e [ CHECK] button performs the following functions:
Switching on the clock and odometer
With the ignition turned off, the odometer reading and the digital
clock with date display can be sw itched on for about 30 seconds by
pressing the
I C HE CK I button ~ fig. 5 .
Starting the Auto-Check sequence
The Auto -Check system ~ page 28 constantly monitors certain indi­
vidual functions and components of the vehicle when the ignition is
turned on and when the vehicle is moving.
With the ignition turned on, you can start the "Auto -Check
sequence" by pressing the !CHECK] button. You can perform an
Contro ls and eq uip­
ment
Instruments and warning /indicator lights
Auto-Check sequence when the vehicle is stationary and the ignition
is turned on or when the vehicle is moving not faster than 3 mph
(5 km/h).
Calling up the driver information
A yellow or red symbol appears in the instrument cluster disp lay,
usually with a driver message. The driver message display disap­
pears after about 5 seconds . The driver message can be displayed
again by briefly pressing the !CHECK ] button .
Setting the speed warning
By pressing the [ CHECKJ but ton briefly , you can set threshold 1 of
the speed warning while you are driving~
page 37. By maintaining
pressure on the [ CHECK] button, you delete the warning
threshold. •
Instrument cluster illumination
The basic brightness of the illumination for the instru­
ments, the center console and the display can be
adjusted.
Fig . 6 Instr ument
c luster illumination
Press the"+" button to increase the brightness during
the hours of darkness.
~
Vehicle care I I irechnical data

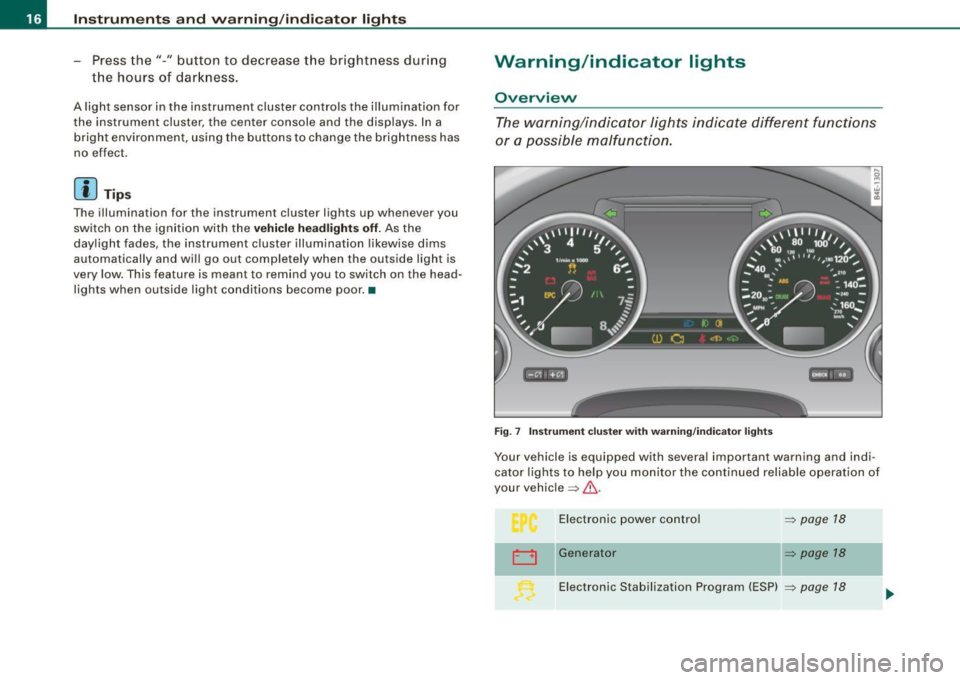

Instruments and warning /indicator lights
- Press the"-" button to decrease the brightness during
the hours of darkness.
A light sensor in the instrument cluster controls the illumination for
the instrument cluster, the center console and the displays . In a
bright environment, using the buttons to change the brightness has
no effect .
[ i ] Tips
The illumination for the instrument cluster lights up whenever you
switch on the ignition with the
vehicle headlights off. As the
daylight fades, the instrument cluster illumination likewise dims
automatically and will go out completely when the outside light is
very low. This feature is meant to remind you to switch on the head­
lights when outside light conditions become poor. •
Warning/indicator lights
Overview
The warning/indicator lights indicate different functions
or a possible malfunction.
iNiii i·i i· i hii
Fig. 7 Instrument cluster with warning/indicator lights
Your vehicle is equipped with several important warning and indi ­
cator lights to help you monitor the continued reliab le operation of
your vehic le => & .
0
Electronic power control
Generator
=> page 18
=> page 18
Electronic Stabilization Program (ESP) => page 18

tl~ Airbag system
--
/: Lane assist (system is ready)
Lane assist (system is not ready)
¢
D
-
Left turn signal
High beam
Fog lights
Rear fog lights
Tire pressure monitoring system*
Malfunction Indicator Lamp (MIU
Safety belt
Adaptive Air Suspension
~ Adaptive Air Suspension
--
CRUISE
Right turn signal
USA models :
Cruise control activated
Canada models:
Cruise control activated
USA models:
Anti-lock brake system (ABS) defec­
tive
Controls and equip ­
ment
=> page 19
=> page 19
=> page 19
=> page 19
=> page 19
=> page 19
=> page 19
=> page 20
=> page20
=> page20
=> page20
=> page 21
=> page 19
=> page 21
=> page 21
=> page 21
-
-
-
-
Instruments and warning/indicator lights
PARX
BRAKE
(® )
-
Canada models:
Anti-lock brake system (ABS) defec­
tive
USA models :
Electromechanical parking brake
Canada models: Electromechanical parking brake
BRAKE USA models:
Brake malfunction
--((D) Canada models:
Brake malfunction
=> page 21
=> page22
=> page 22
-
=> page 22
=> page22
Vehicles with the Adaptive Cruise Control* have the follow ing addi ­
tional check lamps:
II II c;:;:::::::, Open road
c;:;:::::::, 11 11 c;:;:::::::, D r i vi n g i n t raff i c
c;:;:::::::, 11 11 c;:;:::::::, R e q u e st f o r d r i v e r to
assume control
& WARNING
=> page 146
=> page 146
=> page 146
• Failure to heed warning lights and other important vehicle
information may result in serious personal injury or vehicle
damage.
• Whenever stalled or stopped for repair, move the vehicle a safe
distance off the road, stop the engine, and turn on the emergency
flasher
=> page 73 .
• The engine compartment of any motor vehicle is a potentially
hazardous area. Before you check anything in the engine compart-
ment, stop the engine and let it cool down. Always exercise _..
I • •

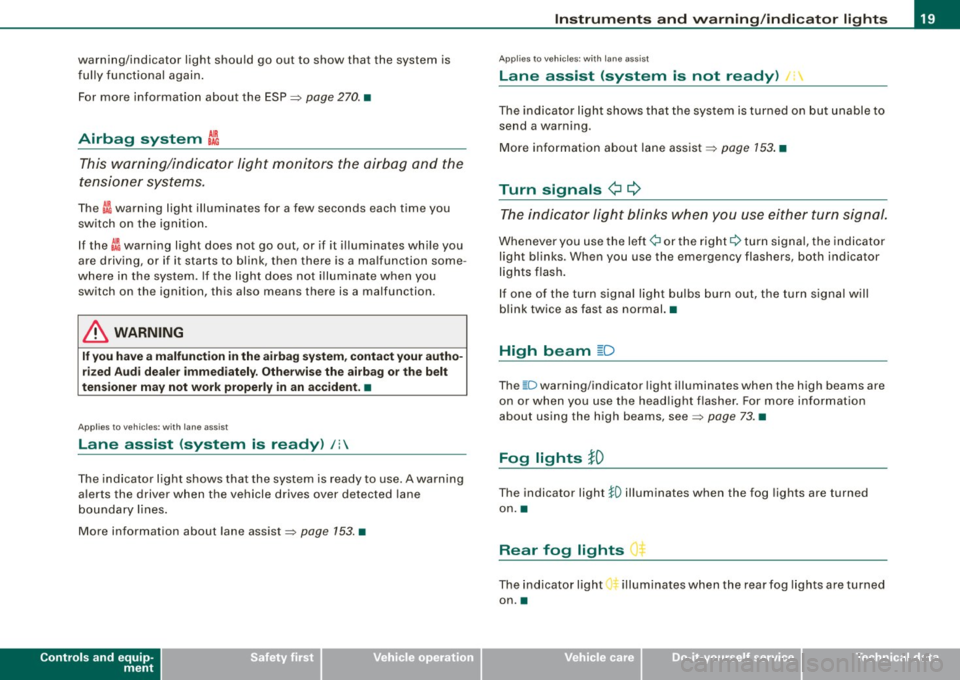

warning/indicator light should go out to show that the system is
fully functional again. For more information about the ESP~
page 270. •
Airbag system ~
This warning/indicator light monitors the airbag and the
tensioner systems.
The ffi warning light illuminates for a few seconds each time you
switch on the ignition.
If the ~ warning light does not go out, or if it i lluminates whi le you
are driving, or if it starts to blink, then there is a malfunction some ­
where in the system. If the light does not illuminate when you
switch on the ignition, this also means there is a malfunction.
& WARNING
If you have a malfunction in the airbag system, contact your autho­
rized Audi dealer immediately. Otherwise the airbag or the belt
tensioner may not work properly in an accident. •
Applies t o vehicles: with lane ass ist
Lane assist (system is ready) /:
The indicator light shows that the system is ready to use . A warning
alerts the driver when the vehicle drives over detected lane
boundary lines.
More information about lane assist~
page 153. •
Controls and equip ­
ment
Instruments and warning /indi cator lights
Applies to vehic les: with lane ass ist
Lane assist (system is not ready) •,
The indicator light shows that the system is turned on but unable to
send a warning .
More information about lane assist ~
page 153. •
Turn signals ¢ ¢
The indicator light blinks when you use either turn signal.
Whenever you use the left ¢i or the right Q turn signal, the indicator
light blinks . When you use the emergency flashers, both indicator
lights f lash.
If one of the turn signal light bulbs burn out, the turn signal will
blink twice as fast as normal. •
High beam ~D
Th e ~D warning/indicator light illuminates when the high beams are
on or when you use the headlight flasher. For more information
about using the high beams, see~
page 73. •
Fog lights }D
Th e indicator light io illuminates when the fog lights are turned
on. •
Rear fog lights ") .
The indicator light illuminates when the rear fog light s are turned
on .•
I • •

Instruments and warning/indicator lights
Ap plies to vehi cles : wi th n re pressu re monitor in g system
Significant loss of air pressure l
The warning/indicator light appears in the event of a
significant loss of air pressure.
The 'warning/ indicator light illum inates when you switch on the
ign ition and must go out after the engine has started .
If the
I symbo l appears, pressure is too low in at least one tire.
For more information
~ page 43. •
Malfunction Indicator Lamp (MIL) ....;
The Malfunction Indicator Lamp (MIU is part of the On-Board Diag ­
nostic (OBD II) system. The symbol lights up when the ignition is
turned on and will turn off after the engine has started and has sett led at a constant id le speed. This indicates that the MIL is
work ing proper ly .
The warning light illuminates when there is a malfunction in the
engine electronic system. Contact your authorized Audi dealer and
have the malfunction corrected .
An improperly closed fuel filler cap may also cause the MIL light to
illuminate
~ page 305.
For more information ~ page 27. •
Safety belts 4i-
This warning/indicator light reminds you to put on your
safety belt.
The 4,_ warning/indicator light illuminates when the ignition is
switched on to remind the driver and any front passenger to put on
the safety belt. Additionally, an acoustic warning (gong) will also
sound. For more
Information~
page 211, "Safety belt warning light t". •
Adaptive Air Suspension
The warning/indicator light illuminates, when the jacking mode
has been activated ~ page 191. This warning/indicator light has the
following functions:
• It illuminates for a few seconds after the ignition is turned on as
function check and then goes out .
• If the warning/indicator light illuminates steadily, there is a
system fault in the Adaptive Air Suspension . A system fault can
r esult in lim ited ride comfort and
low ground clearance . The fault
should be corrected as soon as possib le by an authorized Audi
dea ler .
• If the warning/indicator light flashes, you should not drive the
vehic le . The flashing warning/indicator light points to an extreme
High level. A very pronounced lifting of the vehicle (extreme High
level) can resu lt, for examp le, when a heavy load is removed from
the vehic le . As soon as the level has returned to normal, the
warning/indicator light stops flashing , and you can drive away .
• If the warning/indicator light flashes in conjunction with the~
warning/indicator light, you should not drive off immediately in
order to prevent damage to the underbody . The two warning/indi­
cator lights flashing together points to an extreme Low level. A very
pronounced lowering of the vehicle (extreme Low level) can result,
for example , from a heavy load. As soon as the level has returned to
normal, the warning/indicator lights stop flashing, and you can
drive away .
0 Note
If the warning/indicator light flashes in conjunction with the~
warning/indicator light, you should not drive the vehicle because
l ow -lying vehicle parts can bottom out as you drive over uneven
ground and be damaged as a result.•

Adaptive Air Suspension c.:::>
The c.:, symbol illuminates for a few seconds after you have
switched on the ignition to indicate
r e du ced ground cle aranc e when
the dynamic mode is activated and when the ignition is switched on
with a vehicle which was parked in dynamic mode=>
page 189,
"Chassis Controls" . On vehicles which are equipped with the s por t
s u sp en sio n
Adaptive Air Suspension -Sport*, the check light does
not come on in this instance since ground clearance is general ly
reduced.
This warning/indicator light has the following functions: • It illuminates for a few seconds after the ignition is turned on as
function check and then goes out.
• If the warning/indicator light flashes in conjunction with the
~
warning/indicator light, you should not drive the vehicle immedi­
ate ly in order to prevent damage to the underbody. The two
warning/indicator lights flashing together points to an extreme Low level. A very
pronounced lowering of the vehicle (extreme Low level)
can result, for example, from a heavy load. As soon as the level has
returned to normal, the warning/ind icator lights stop flashing , and
you can drive away .
0 Note
If the warning/indicator light flashes in conjunction with the .•.
warning/indicator light, you should not drive the vehicle because low -lying vehicle parts can bottom out as you drive over uneven
ground and be damaged as a result. •
Cruise control
CRUISE (USA models) /c,f' (Canada models)
The warning/indicator light illuminates when the cruise control is
activated. •
Controls and equip ­
ment
In st rum ent s a nd w arnin g/indi cato r ligh ts

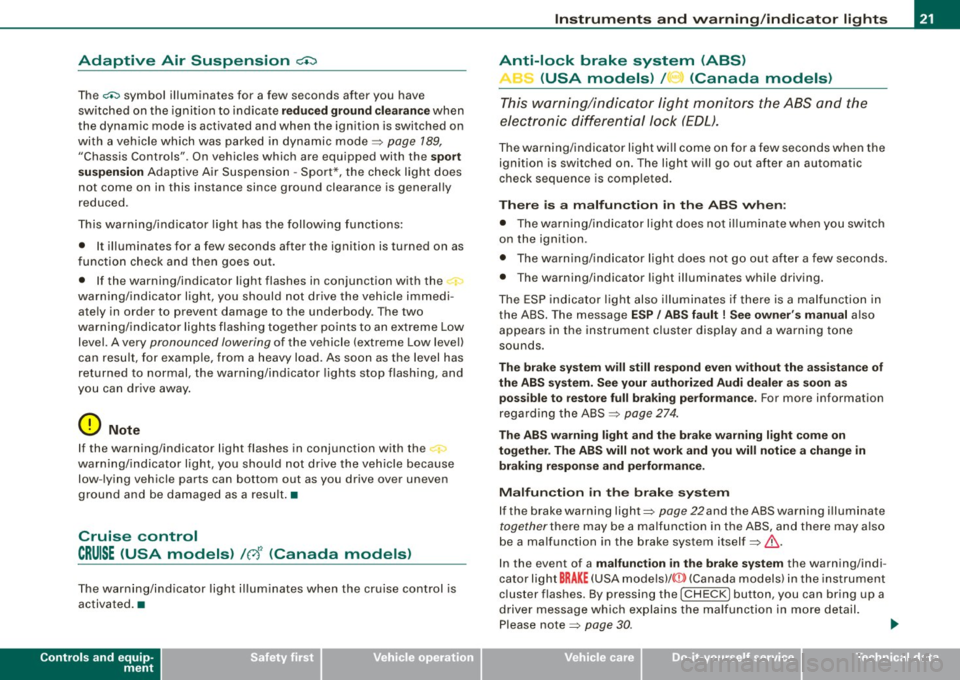

Anti-lock brake system (ABS)
... (USA models) /
~ (Canada models)
This warning/indicator light monit ors the ABS and the
electronic differential lock (EDL).
The warning/indicator light wi ll come on for a few seconds when the
ignition is switched on. The light will go out after an automatic
check sequence is comp leted .
There is a malf un cti on in the AB S when :
• The warning/indicator light does not i lluminate when you switch
on the ignition .
• The warn ing/indicator light does not go out after a few seconds.
• The warning/indicator light illuminates while driving.
The ESP indicator light also i lluminates if there is a ma lfunction in
the ABS. The message
E S P / A BS fau lt ! Se e ow ner's manu al also
appears in the inst rument cluster display and a warning tone
sounds.
The br ake system will still re spond even withou t the assis tan ce o f
t he ABS system. See y our autho rize d Audi dealer a s soon as
pos sibl e t o r estor e full br aking perfo rm an ce.
For more information
regarding the ABS=>
page 274 .
The ABS warning lig ht and th e br ak e w ar ning lig ht come on
t og eth er. The AB S will no t work an d you w ill notic e a ch ange in
b ra king re sp ons e an d p erf or mance .
Mal fun ction in the brak e syst em
If the brake warning light=> page 22and the ABS warning illuminate
together there may be a malfunct ion in the ABS, and there may also
be a malfunction in the brake system itself=>&.
In the event of a
malfun ctio n in th e br ak e s yste m the warning/indi ­
cator light
BRAKE (USA mode ls)/ ((i)) (Canada models) in the instrument
c luster flashes. By pressing the
I CHECK] button, you can bring up a
driver message which explains the ma lfunc tion in more detail.
Please note =>
page 30. _,.
I • •
