16 Instruments and warning/indicator lights
• Continue driving only after the engine cool­
ant warning/indicator light goes out.
• Contact your authorized Audi dea ler for as-
sistance if necessary .
I f the engine coolant level is correct, then the
radiator fan may be the cause of the malfunc­
tion .
• Coolant temperature too high! Please let
engine run with vehicle stationary
If the indicator light turns on and the mes­
sage appears in trailer mode*, let the engine
run at id le for a few minutes to cool down.
A WARNING
-If your veh icle should break down for
mechanical or other reasons, park at a
safe distance from moving traffic, turn
off the engine and turn on the hazard
warning lights
c> page 44, Emergency
flasher .
-
-Never open the hood if you see or hear
steam or coolant escap ing from the en­
gine compartment - you risk being scald­
ed . Wait until you can no longer see or
hear steam or coo lant escaping.
- The engine compartment of any vehicle
is a dangerous area. Before you perform
any work in the engine compartment,
turn of the engine and allow it to cool.
Follow the warning stickers
<=>page 216,
Engine comportment .
(D Note
Do not continu e driving if the . symbol
illuminates. There is a malfunction in the
engine cooling system -you could damage
your engine.
,f,. Safety belts
This warning/indicator light reminds you to
put on your safety belt.
The . warn ing/ indicato r light illum inates
when the ignition is sw itched on to remind
the driver and any front passenger to put on the safety be
lt. Additionally, an acoustic warn­
ing (gong) wi ll also sound.
For more Information
q page 137, ,f,. Safety
belt warning light .
0 Battery
This warning/indicator Light detects a mal­
function in the generator or in the vehicle's
electrical system.
T he . warn ing/indicator light i llum inates
whe n you switch on the ignition and must go
out after the engine has started .
• Alternator fault: Battery is not being
charged
If the indicator light turns on and the mes­
sage appears, there is a malfunct ion in the
generator or veh icle electrical system.
Drive to your authorized Audi dealer or quali­
fied workshop immed iately. Because the veh i­
cle battery is discharg ing, turn off all unnec­
essary electrical equipment such as the rad io .
Seek professiona l assistance if the battery
charge level is too low.
(•i low battery charge: battery will be
charged while driving
If the indicator light turns on and the mes­
sage appears, there may be limited starting
ability .
If this message turns off after a little while,
the battery charged enough while driving.
If the message does not turn off, have your
authorized Aud i dea ler or qualified workshop
correct the malfunction.
~ Engine oil pressure malfunction
The red engine oil pressure warning symbol
requires immediate service or repair. Driving with a low-oil-pressure indication is likely to
inflict severe damage to the engine .
• Switch off engine and check oil level
If the indicator light turns on the message ap-
pears, the oil pressure is too low.
IJI>

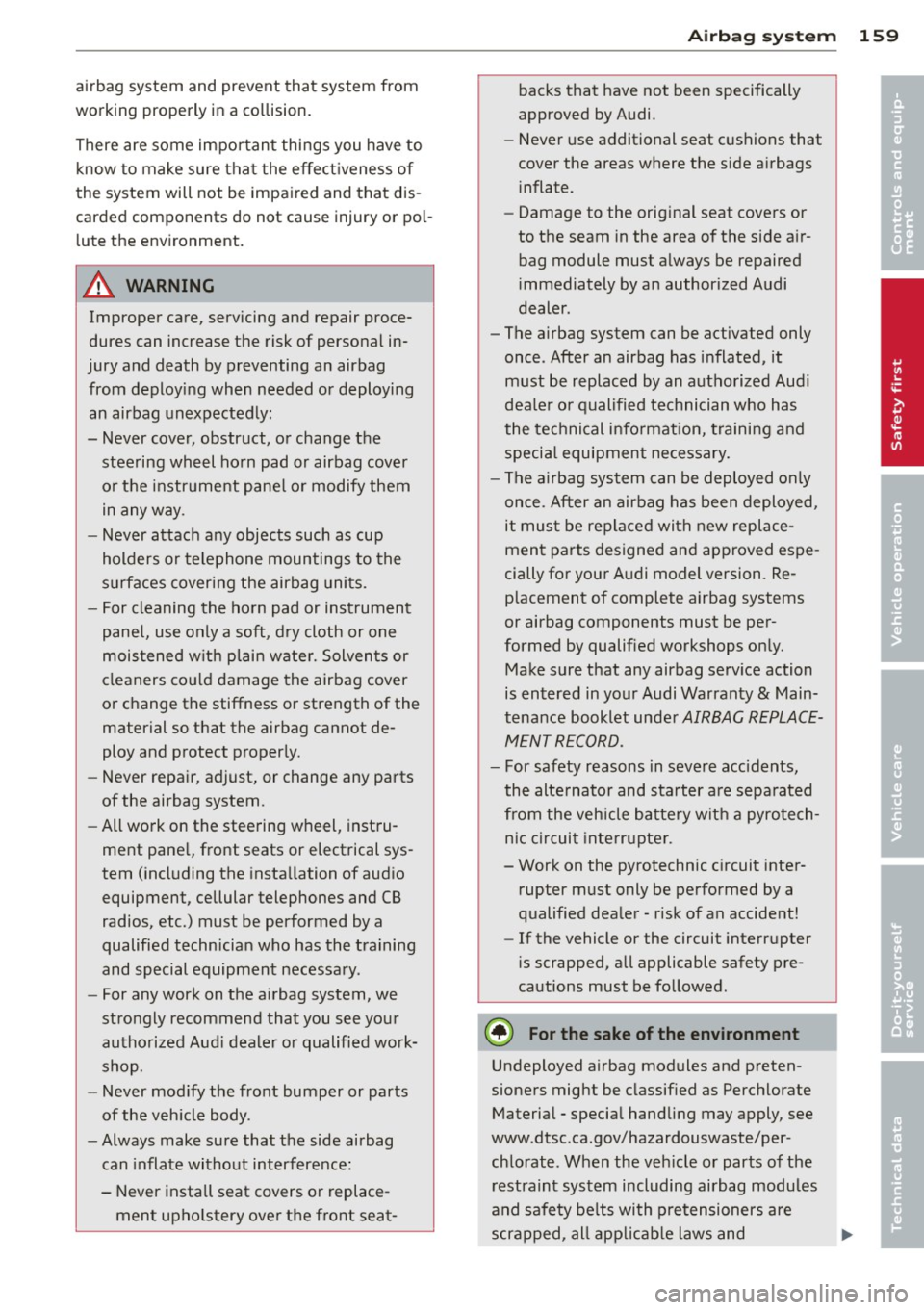

airbag system and prevent that system from
working properly in a collision.
There are some important things you have to
know to make sure that the effectiveness of
the system will not be impaired and that dis­
carded components do not cause injury or pol­
lute the environment.
A WARNING
Improper care, servicing and repair proce­
dures can increase the risk of personal in­
jury and death by preventing an airbag
from deploying when needed or deploying an airbag unexpectedly:
- Never cover, obstruct, or change the steering wheel horn pad or airbag cover or the instrument panel or modify them
many way .
- Never attach any objects such as cup
holders or telephone mountings to the
surfaces covering the airbag units.
- For cleaning the horn pad or instrument
panel, use only a soft , dry cloth or one
moistened with plain water. Solvents or
cleaners could damage the airbag cover
or change the stiffness or strength of the
material so that the airbag cannot de­
ploy and protect properly.
- Never repair, adjust, or change any parts
of the airbag system.
- All work on the steering wheel, instru­
ment panel, front seats or electrical sys­
tem (including the installation of audio
equipment, cellular telephones and CB
radios, etc .) must be performed by a
qualified technician who has the training
and special equipment necessary .
- For any work on the airbag system, we
strongly recommend that you see your authorized Audi dealer or qualified work­
shop.
- Never modify the front bumper or parts
of the vehicle body .
- Always make sure that the side airbag
can inflate without interference:
- Never install seat covers or replace­
ment upholstery over the front seat-
Airbag system 159
backs that have not been specifically
approved by Audi.
- Never use additional seat cushions that
cover the areas where the side airbags
inflate.
- Damage to the original seat covers or
to the seam in the area of the side air­
bag module must always be repaired
immediately by an authorized Audi
dealer.
- The airbag system can be activated only
once . After an airbag has inflated, it
must be replaced by an authorized Audi
dealer or qualified technician who has
the technical information, training and
special equipment necessary.
- The airbag system can be deployed only
once . After an airbag has been deployed,
it must be replaced with new replace­
ment parts designed and approved espe­
cially for your Audi model version . Re­
placement of complete airbag systems
or airbag components must be per­
formed by qualified workshops only.
Make sure that any airbag service action
is entered in your Audi Warranty
& Main­
tenance booklet under
AIRBAG REPLACE­
MENT RECORD.
- For safety reasons in severe accidents,
the alternator and starter are separated
from the vehicle battery with a pyrotech­ nic circuit interrupter.
- Work on the pyrotechnic circuit inter­ rupter must only be performed by a
qualified dealer - risk of an accident!
- If the vehicle or the circuit interrupter
is scrapped, all applicable safety pre­
cautions must be followed.
@ For the sake of the environment
Undeployed airbag modules and preten­
sioners might be classified as Perchlorate Material - special handling may apply, see
www .dtsc .ca.gov/hazardouswaste/per-
ch lo rate . When the vehicle or parts of the
restraint system including airbag modules
and safety belts with pretensioners are
scrapped, all applicable laws and ..,.
•
•
