-When removing heavy components like
these, anchor vehicle to hoist o r add cor ­
respond ing weig hts to mai nta in the cen ­
ter of g ravity. Otherwise, the vehicle
m ight tilt o r slip off the hois t, causi ng
ser ious persona l injury .
Q) Note
-Be awa re of the fo llow ing points befo re
li fting t he vehicle:
- The vehicle should never be lifted or
jacked up from underneath the engine
oil pan, the transmission housing , the
front or rear axle or the body side members. This could lead to serious
damage.
- To avoid damage to the underbody or
chassis frame, a rubber pad must be
i nserted between the floor jack and
the lift points .
- Before driv ing over a workshop hoist,
check that the veh icle weight does not
exceed the permissibl e lifting capacity
of the hoist.
- Before driving over a workshop hoist,
ensure that there is sufficient clear­ ance between the hoist and low parts
of the vehicle.
Emergency situations 289
•
•

2 90 General information
General information Explanation of
technical data
Some of the technical data listed in this man ­
ual requires further explanation .
The technical data for your vehicle is listed in
the charts starting on
r:::> page 292. This sec ·
tion provides general information, notes and restrictions which apply to this data .
Vehicle identification
The key data is given on the vehicle identifica·
tion number (VIN) plate and the vehicle data
sticker.
Fig. 238 Veh icle Ide ntific atio n Number (VlN) p late: lo­
cation on driver 's sid e das h panel
Fig. 239 The vehicle identi fication label -inside the
luggage co mpa rtmen t
The Vehicle Identification Number (VIN)
is located on the driver's side so that it is visi­
b le from the outside through the windshield
r:::> fig . 238. You can also display the Vehicle
Identification Number of your vehicle in the
MMI. Select: Function button
ICAR ! > Car sys­
tems
> VIN number . The
vehicle identification label
is located in the luggage compartment in the
spare wheel wel l.
The label¢
fig. 239 shows the following vehi­
cle data :
(D Production control No .
@ Vehicle identification No.
® Type code number
@ Type designation/engine output in Kilo·
watts
® Engine and transmission code letter
@ Paint No./Interior
(f) Optional equipment No.'s
Vehicle data 2 to 7 are also found in your War·
ranty
& Maintenance booklet.
The safety compliance sticker
is you r assurance that your new vehicle com­
plies with all applicable Federal Motor Vehicle
Safety Standards which were in effect at the
time the vehicle was manufactured . You can
find this sticker on the left door jamb.
It
shows the month and year of production and
the ve hicle ident ification number of your vehi ·
cle (perforation) as well as the Gross Vehicle
Weight Rating (GVWR) and the Gross Axle
Weight Rating (GAWR) .
The high voltage warning label
is located on the lock carr ier .
The spark ignition system complies with
the Canadian standard ICES-002.
Weights
Gross Vehicle Weight Rating
The Gross Vehicle Weight Rating (GVWR), and
the Gross Axle Weight Rating (GAWR) for
front and rear are Listed on a sticker on the
left door jamb.
The Gross Vehicle Weight Rating includes the
weight of the basic vehicle plus full fuel tank,
oi l and coolant, plus maximum load, wh ich in·
eludes passenger weight (lSO lbs/68 kg per
Ill>

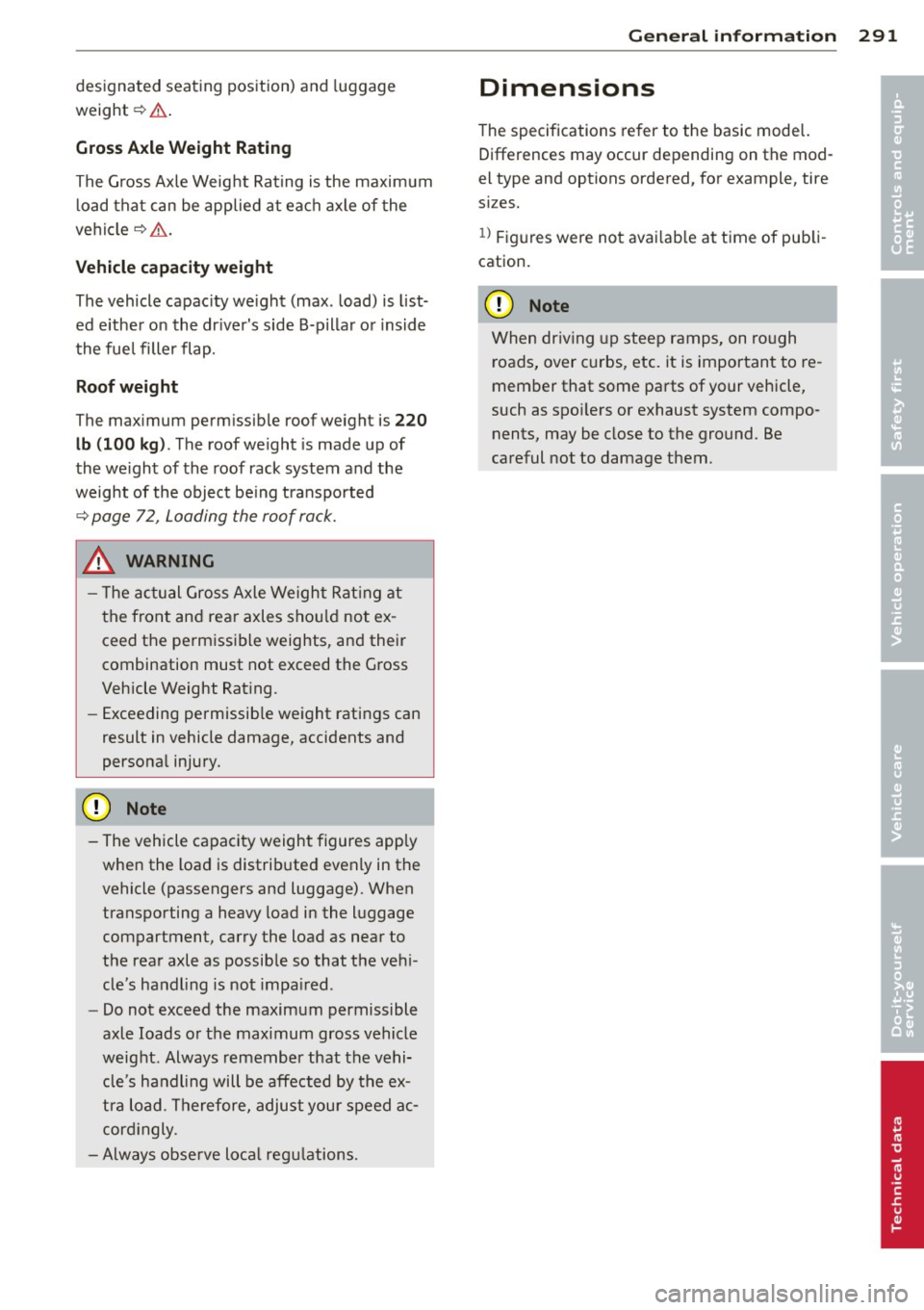

designated seating position) and luggage
weight~&. .
Gros s Axle W eight Rating
The G ross Axle Weight Rating is the maximum
l oad that can be applied at each axle of the
vehicle
q .&. .
Vehicle capacit y weight
The vehicle capac ity we ight (max. load) is list­
ed either on the dr iver's side B-pillar or inside
the fuel filler flap.
Roof weight
The maximum perm issible roof weight is 220
lb (100 kg ).
The roof weight is made up of
the we ight of the roof rack system and the
weight of the object be ing transported
q page 72, Loading the roof rack .
.&, WARNING
- T he ac tual Gross Axle Weight Rat ing at
the front and rear axles shou ld not ex­
ceed the permiss ible weights, and their
combination must not exceed the Gross
Vehicle Weight Rat ing .
- Exceeding permissib le weight ratings can
result in vehicle damage, accidents and
personal injury.
(D Note
- The vehicle capacity weight figures apply
when the load is distributed evenly in the
vehicle (passengers and luggage). When
transporting a heavy load in the luggage
compartment, carry the load as near to
the rear axle as possib le so that the veh i­
cle's handling is not impa ired.
- Do not exceed the maximum permissible
axle loads or the maximum gross vehicle
weight. Always remember that the vehi­
cle's handling will be affected by the ex­
tra load. Therefore, adjust you r speed ac ­
cord ingly.
- Always observe loca l regu lations.
-
G ene ral in formation 29 1
Dimensions
The specifications refer to the basic model.
Differences may occur depending on the mod­
el type and options ordered, for example, tire
sizes.
l) Fig ures were not avai lab le at time of pub li­
cation.
@ Note
When dr iv ing up steep ramps, on rough
r oads, over curbs, etc. it is important to re­
member that some parts of your vehicle,
such as spoi lers or exhaust system compo­
nents, may be close to the ground. Be
careful not to damage them.
•
•

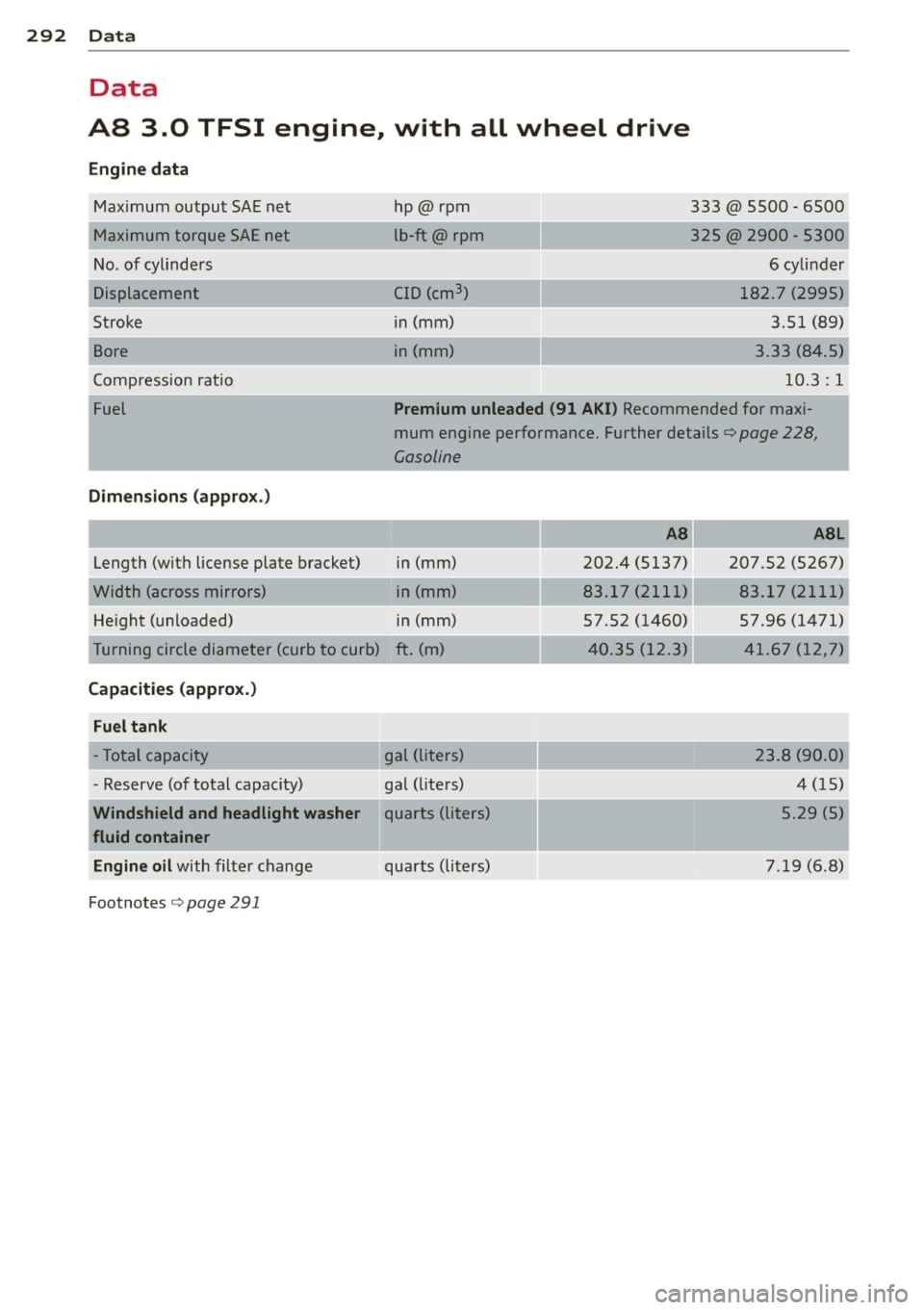

292 Data
Data
AS 3.0
TFSI engine, with all wheel drive
Engine data
Maximum outpu t SA E net
Maximum torque SAE net
N o. of cylinders
Displacement
Stroke
Bore
C ompression ratio hp@rpm
l
b-ft@ rpm
CID (cm
3 )
in (mm)
i n (mm)
333 @ 5500 - 6500
325
@ 2900 - 5300
6 cyli nder
182.7 (2995)
3.51 (89)
3.33 (8 4.5)
10.3: 1
Fuel Premium unleaded (91 AKI)
Recommended for maxi­
mum engine performance. Further details
c:::> page 228,
Gasoline
Dimens ions (approx .)
Length (with license plate bracket) in (mm)
W idth (across mirrors) ____ in (mm)
He ight (unloaded) in (mm)
Turning circle diameter (curb to curb) ft . (m )
Capacities (approx.)
Fuel tank
- Total capacity gal (liters)
- Res erve (of total capacity) gal (lite rs)
Windshield and headlight washer quarts (liters)
fluid container
Engine oil with filter c hang e quarts (lit ers)
Footnotes
c:::> page 291
AS ASL
202.4 (5137) 207.52 (5267) _,, __
83 .1 7 (2 11 1) 83.17 (211 1)
57.52 (1460) 57 .96 (1471)
4 0.3 5 (12 .3) 41.67 (1 2,7 )
23.8 (90 .0)
4 (15)
5 .29 (5)
7.1 9 (6.8)

AS 4.0 TFSI engine., with all wheel drive
Engine data
Maximum output SAE net
Maximum torque SAE net
No . of cylinders
Displacement
Stroke
Bore
Compression ratio hp@rpm
lb-ft@ rpm
CID (cm
3 )
in (mm)
in (mm)
Data
420@5000
444@1500
8 cylinder
243.57 (3993) 3.51 (89)
3 .33 (84.5)
10.1 : 1
Fuel Premium unleaded (91 AKI) Recommended for maxi­
mum engine performance. Further details¢
page 228,
Gasoline
Dimensions (approx .)
Length (with license plate bracket)
Width (across mirrors)
He ight (unloaded) in (mm)
in (mm)
in (mm)
T urning circle diameter (curb to curb) ft . (m)
Capacities (approx.)
Fuel tank
- Total capacity gal (liters)
- Reserve (of total capacity) gal (l iters)
__ _.. __
Windshield and headlight washer quarts (liters)
fluid container
Engine oil with filter change
Footnotes
¢ page 291
quarts (liters)
AS
202.4 (5137)
83.17 (2111)
57 .52 (1460)
-....... -
4 0.35 (12.3)
ASL
207 .52 (5267)
83.17 (211 1)
57 .96 (1471)
41.67 (12,7)
23 .8 (90 .0)
4 (15)
5 .29 (5)
8 .77 (8.3)
293
•
•

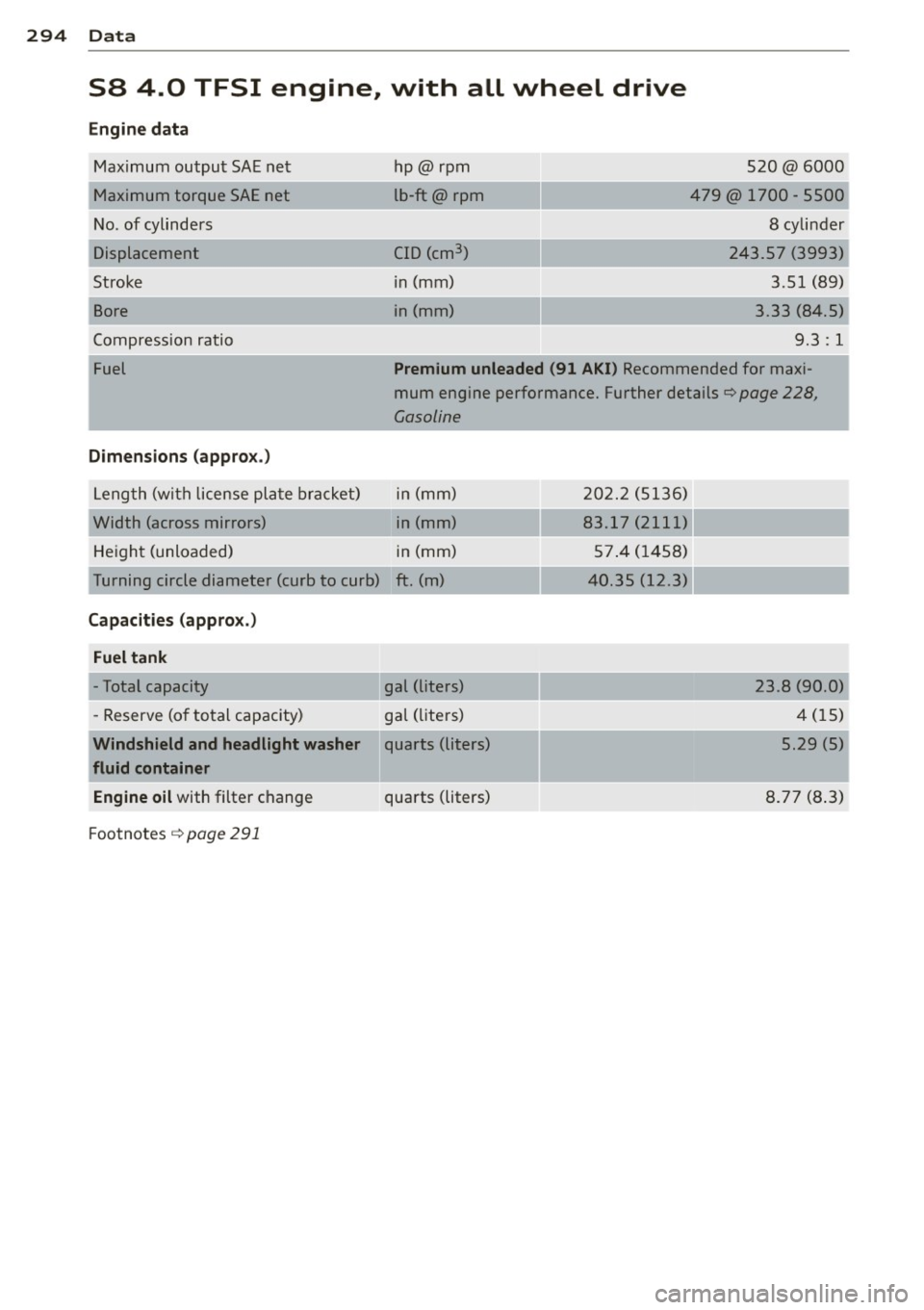

294 Data
S8 4.0 TFSI engine, with all wheel drive
Engine data
Maximum output SAE net
Maximum torque SAE net
N o. of cylinders
Displacement
Strok e
Bore
C ompression ratio hp@rpm
l
b-ft@ rpm
CID (cm
3 )
in (mm)
i n (mm)
520@6000
479@ 1700 - 5500
8 cylinder
243 .57 (3993)
3.51 (8 9)
3.33 (84 .5)
9.3 : 1
Fuel Premium unleaded (91 AKI) Recommended for maxi­
mum engine performance. Further details
Q page 228,
Gasoline
Dimensions (approx .)
Leng th (wit h license pl ate brac ket) in (mm)
Width (across mirrors) in (mm)
He igh t (unloaded) in (mm)
T urning circle diamet er (curb to curb) ft. (m)
Capacities (appro x.)
Fuel tank
- Total capacity gal (liters)
- Reserve (o f to tal capacity) gal ( lite rs)
Windshield and headlight washer quarts (liters)
fluid container
Engine oil with filter change quarts (liters)
F oo tnotes
Q page 291
2 02 .2 (51 36)
83.17 (2111) 57.4 (1458)
4 0.35 (12.3)
23.8 (90.0)
4 (15)
5.29 (5)
8. 77 (8 .3)

AS 6.3 FSI engine, with all wheel drive
Engine data Maximum output SAE ne t
M aximum torque SAE net
No . of cylinders
Displacement
Stroke
Bore
Compression ratio hp@r
pm
lb-ft@ rpm
CID (cm
3 )
in (mm)
in (mm)
Data
500@6200
4 63@4750
12 cylin der
384.39 (6299)
3.39 (86.0)
3 .56 (90 .4)
1 1. 8:1
Fuel Premium unleaded (91 AKI) Recommended for maxi­
mu m engine performance. Further details¢
page 228,
Gasoline
Dimension s (approx .)
Length (with license plate bracket)
W idth (across mirro rs)
He ight (unloaded) in (mm)
in (mm)
in (mm)
T urning circle diameter (curb to curb) ft . (m )
Capacities (approx.)
Fuel tank
-Total capacity gal (liters)
- Reserve (of to tal capacity) gal (l ite rs)
Windshield and headlight washer quarts (liters)
fluid container
Engine oil with filter chang e
Footnotes
¢ page 291
quarts (li ters)
ASL
207 .52 (5267)
83.1 7 (211 1)
57 .96 (1471)
4 1.67 (1 2,7)
23 .8 (90 .0)
4 (15 )
5 .29 (5)
12 .16 (1 1.5)
295
•
•

296 Consumer Information
Consumer Information
Warranty coverages
You r Audi is covered by the following war­
ranties:
- New Vehicle Limited Warranty
- Limited Warranty Against Corrosion Perfo-
ration
- Emissions Control System Warranty
- Emissions Performance Warranty
- California Emissions Control Warranty (USA
vehicles only)
- California Emissions Performance Warranty
(USA vehicles only)
Detailed information regarding your warran­
ties can be found in your
Warranty & Mainte­
nance booklet .
Operating your vehicle
outside the U.S.A. or
Canada
Government regu lations in the United States
and Canada require that automobiles meet
specific emission regulations and safety
standards. Therefore, veh icles built for the
U.S.A . and Canada differ from vehicles sold in
other countries .
If you p lan to take your vehicle outside the
continental limits of the United States or Can­
ada, there is the possibility that:
- unleaded fuels for vehicles with cata lytic
converter may not be available;
- fuel may have a considerably lowe r octane
rating. Improper fuel may cause engine
damage ;
- service may be inadequate due to lack of
proper service facilities, tools or testing
equipment ;
- replacement pa rts may not be readily availa­
ble.
- Navigation systems for vehicles built for the
U.S.A. and Canada will not necessar ily work
in Europe, and may not work in other coun­
tries outside North America .
(D Note
Audi cannot be responsible for mechanical
damage that could result from inadequate
fuel, service or parts availability.
Audi Service Repair Manuals and Literature
Audi Official Factory Service Manuals and Lit­
erature are published as soon as possible after
model introduction. Service manuals and lit­
erature are available to order from the Audi
T echnical Literature Ordering Center at:
www.audi.techliterature.com
Maintenance
General
Your vehicle has been designed to help keep
maintenance requirements to a minimum.
However, a certain amount of regular mainte­
nance is still necessary to assure your vehicle's
s afety, economy and rel iability. For detailed
vehicle maintenance consult your Warranty &
Maintenance booklet.
Under difficult operating conditions, for ex­
ample at extremely low outside temperatures,
i n very dusty regions , when towing a trailer
very frequently, etc., some service work
should be performed between the intervals
specified. This applies particularly to:
- oil changes, and
- cleaning or replacing the air filter .
(® For the sake of the environment
By regularly maintaining your vehicle, you
help make sure that emission standards
are maintained, thus minimizing adverse
effects on the environment.
Important considerations for you and
your vehicle
The increasing use of electronics, sophisticat­
ed fuel injection and emission contro l sys-
tems, and the genera lly increasing technical
liJJ,

complexity of today's automobi les, have
steadi ly reduced the scope of maintenance
and repairs which can be carried out by vehicle
owners.
Also, safe ty and e nvir onm en tal con­
cerns place very strict limits on the na ture of
repairs and adjustments to engine and trans ­
miss io n pa rts which an owner can perform .
Maintenance, adjustments and repairs usua lly
require special tools, testing devices and oth­
er equipment avai lab le to specially trained
workshop personnel in order to assure prope r
performance, reliab ility and safety of the vehi­
cle and its many systems .
Improper ma intenance, adjustments and re ­
pa irs can impair the operation and reliability
of your vehicle and even void your vehicle war­ ranty. The refo re, p roof of servici ng in accord­
ance w ith the maintenance sched ule may be a
condition for upholding a poss ible war ranty
claim made within the warranty period.
Above all, operational safety can be adversely
affected, crea ting unnecessary risks for you
and your passengers.
If in doubt about any servicing, have it done
by your authorized Audi dealer or any other
properly equipped and q ualified workshop .
We strong ly urge you to give you r a uthorized
Audi dealer the opportunity to perform all
schedu led maintenance and necessary repairs .
Your dea ler has the facilities, or iginal parts
and trained spec ialists to keep your vehicle
running properly.
Performing limit ed m aintenance you rself
The following pages describe a limited num­
ber of procedures which can be performed on
your vehicle with ordinary too ls, should the
need arise and trained personnel be unavaila­
b le. Before performing any of these proce­
dures, always thoroughly read all of the app li­
cable text and carefully follow the instruc­
tions given . Always rigorously obse rve the
WARNINGS provided .
Before you check anything in th e engine
compartment, a lway s re ad and heed all
Con sumer In formation 297
WARNINGS ¢ & and ¢ & in Working in the
engine comportment on page 232 .
A WARNING
-Ser ious personal injury may occur as a re­
sult of improperly performed mainte­ nance, adjustments or repa irs.
-Always be extremely careful when work­
ing on the vehicle. Always follow com­
mon ly accepted safety practices and gen­
eral common sense . Never r isk personal
lnJU ry .
- Do not attempt any of the ma intenance ,
checks or repairs descr ibed on the fol­
lowing pages if you are not fully fam iliar
wit h these or othe r pro cedures with re­
spect to t he veh icle, or are uncerta in how
to p roceed .
- Do not do any work without the proper
too ls and equipment. Have the necessary
work done by your authorized A udi deal ­
er or another proper ly equipped and
qualified workshop .
- The engine compartment o f any motor
veh icle is a potentially hazardous area.
Never reach into the area around or
touch the radiator fan. It is temperature
contro lled and can switch on suddenly -
even when the engine is
off . The radiator
fan switches on automat ically when the
coo lant reaches a certai n temperature
and will cont inue to run until the coo lan t
temper ature drops.
- Always sw itch
off the ignition before any­
one gets under the vehicle.
- Always support your veh icle with safety
stands if it is necessary to work under­
neath the vehicle . The j ack s upplied with
the vehicle is not adequate for this pur­
pose and cou ld collapse causing serio us
personal i njury .
- I f you must work unde rneath the vehicle
with the wheels on the ground, a lways
make sure the vehicle is on leve l ground,
that the wheels are a lways securely
blocked and that the engine cannot be
started.
•
•

298 Consum er Inf ormation
-Always make sure the transmission se­
lector lever (automatic transmiss ion) is
in "P" (Park position) and the park brake
is applied .
@) For the sake of the environment
-Changing the engine settings wi ll ad­
versely affect em iss ion levels. This is det­
rimental to the environment and increas­
es fuel consumption .
- Always observe env ironmental regula­
tions when dispos ing of old engine oil,
used brake fluid, dirty engine coolant,
spent batteries or worn out tires.
- Undeployed airbag modules and preten­
s ioners might be classified as Perchlo ­
rate Material -spec ial handling may ap­
ply, see www.dtsc.ca .gov/hazardous­
waste/perch lorate . When the veh icle or
parts of the restraint system including
airbag modules safety belts with p reten ­
sioners are scrapped, all applicable laws
and regulations must be observed. Your
authori zed Aud i dea ler is familiar with
these requirements and we recommend
that you have your dealer perform this
serv ice for you .
Additional accessories,
modifications and
parts replacement
Additional accessories and parts
replacement
Always consult an authorized Audi dealer be­
fore purchasing accessories.
Your veh icle incorporates the latest safety de­
sig n featu res ensu ring a high standard of ac­
tive and passive safety .
This safety could be compromised by non-ap­ proved changes to the veh icle. For this reason ,
if pa rts have to be replaced , please observe
the following points when install ing addition­
a l accessories: Approved Audi accessories and genuine Audi
parts are available from authorized A udi deal­
ers.
T hese dea le rs a lso have the necessary facili­
ties, tools and trained specialists to install the parts and acc essories proper ly .
A WARNING
-Using the wrong spare parts or using non-
approved accessories can cause damage to
the veh icle and ser ious persona l injury.
- Use on ly accessories express ly approved
by Audi and gen uine Audi spare parts
- These parts and accessories have been
specia lly designed to be used on yo ur ve­
h icle .
- Never install accessor ies such as tele­
phone crad les or beverage ho lders on a ir­
bag covers or within the airbag deploy­
ment zones . Do ing so will increase the
risk of injury if a irbags are triggered in an
accident!
- Before you check anything in the engine
compa rtment, always read and heed a ll
WARNI NGS
9 page 226 .
(D Note
-If items other than genu ine Audi spare
parts, add-on equipment and accessory
items are used or if repair work is not
performed accord ing to specified meth­
ods, this c an resu lt in seve re damage to
your vehicle's eng ine and body (such as
corrosion) and adversely affect yo ur vehi ­
cle's warranty .
- T he i nnovat ive a luminium concept of
your Audi AB means that all servicing, re­
pairs or other work on the vehicle body
must be carr ied out exclusive ly by an
Audi workshop .
- If emergency repairs must be performed
elsewhere, have the veh icle examined by
an authorized Audi dealer as soon as
possible .
- The manufacturer cannot be held liable
for damage wh ic h occurs due to failure
to comply with these stipu lations .
