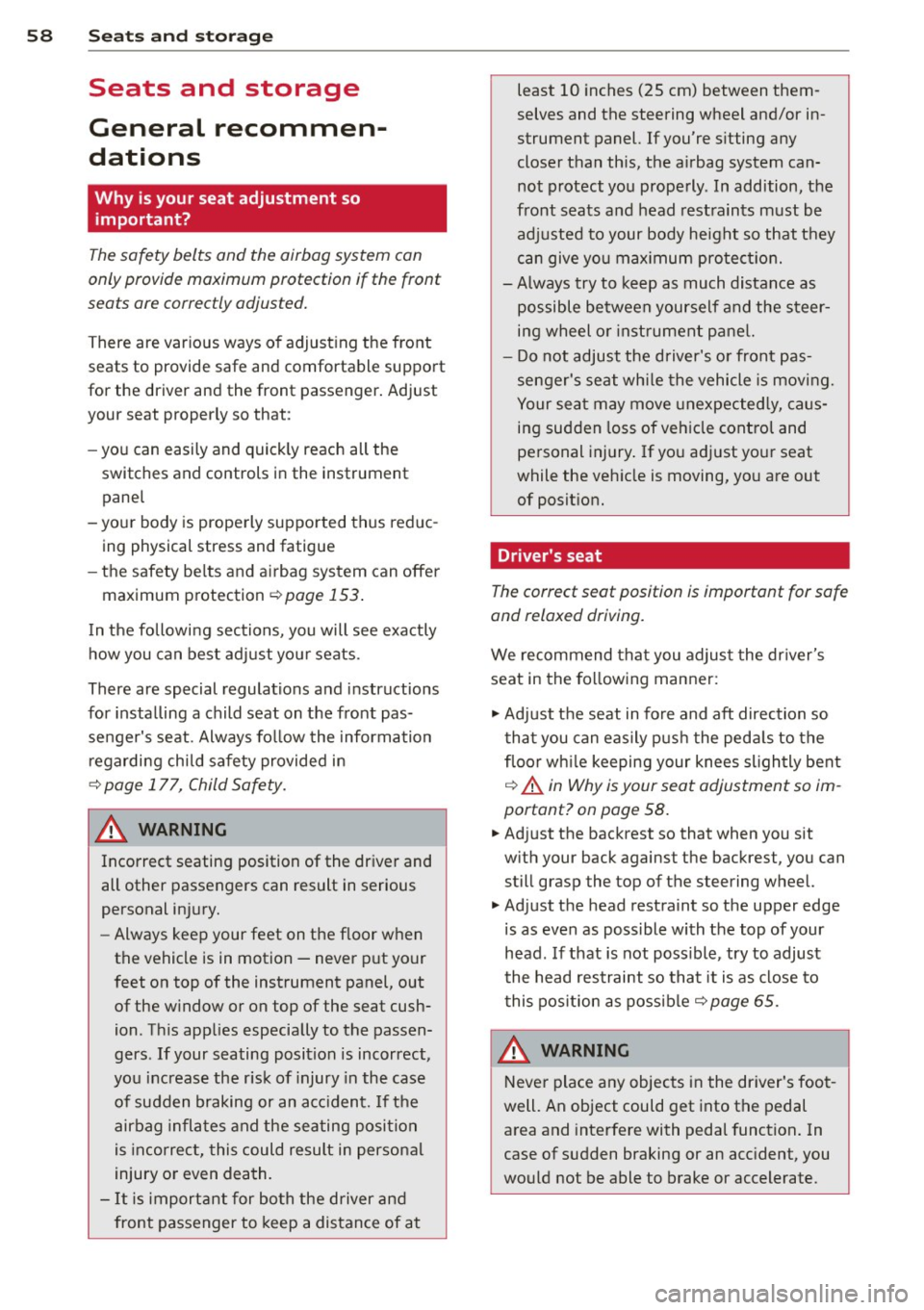

58 Seat s a nd s tor ag e
Seats and storage
General recommen­
dations
Why is your seat adjustment so
important?
The safety belts and the airbag system can
only provide maximum protection if the front
seats are correctly adjusted.
There are various ways of adjust ing the front
seats to provide safe and comfortable support
for the driver and the front passenger . Adjust
you r seat prope rly so that :
- you can easily and quick ly reach all the
switches and controls in the instrument
panel
-your body is prope rly supported thus reduc­
ing physical stress and fatigue
- the safety be lts and a irbag system can offer
maximum protection
¢ page 153 .
In the following sec tions, you will see exactly
how you can best adjust you r seats .
There are special regulations and instructions
for insta lling a child seat on the front pas­
senger's seat. Always fo llow the information
regarding ch ild safety provided in
q page 177, Child Safety.
A WARNING
Incorrect seating position of the driver and
all other passengers can result in serious
personal in jury.
- Always keep your feet on the floor when
the vehicle is in motion -never p ut your
f eet on top of the instrument panel, out
of the w indow or on top of the seat cush­
ion . Th is app lies especially to the passen­
gers .
If your seating position is incorrect,
yo u increase the r isk of injury in the case
of sudden braking or an acc ident.
If the
a irbag infla tes and the seating positio n
is incorrect, this could result in personal
injury o r even death.
- It is import ant for bo th the driver and
front passenger to keep a distance of at least 10 inches (25 cm) between them­
selves and the steering wheel and/or in­
strument panel. If you're s itting any
closer than th is, the a irbag system can­
not protect you properly . In addition, the
front seats and head restraints must be
adjusted to your body height so that they
can give you max imum protect ion.
- Always try to keep as much distance as
possible between yourself and the steer­
ing wheel o r inst rument pane l.
- Do not adjust the driver's o r front pas­
senger's seat whi le the vehicle is moving.
Your sea t may move unexpected ly, caus­
ing sudden loss of vehicle cont rol and
personal injury . If you adjust yo ur seat
while the veh icle is moving, yo u are out
of posit ion.
Driver's seat '
The correct seat position is important for safe
and relaxed driving.
We recommend tha t you adjus t the dr iver's
seat in the fo llowing manner :
.,. Adjust t he seat in fore and aft direction so
t ha t you can eas ily push the peda ls to the
floor w hile keeping your knees sl igh tly bent
q A in Why is your seat adjustment so im ­
portant? on page 58.
.. Adjust the backrest so that when you sit
w ith your back against t he backrest, you can
still grasp the top of the steering wheel.
.. Adjust the head restraint so the upper edge
is as even as poss ible with the top of your
head . If that is not poss ible , try to adjust
t he head restraint so that it is as close to
t his pos it ion as possib le
q page 65.
A WARNING
Neve r place any objects in the dr iver's foot ­
well. An object could get into the pedal
a rea and interfere with pedal function . In
case of sudden braking or an acc ident, you
would not be able to brake or accelerate .

Head restraints
Adjusting the head restraints
Head restraints that are adjusted according
to body size, along with the safety belt, offer
effective protection.
Fig. 61 Comfort head restraints: adjusting the side
bolsters
Fig. 62 Outer rear seat: ad justing th e head restraint
Adjust the head restraint so the upper edge is
as even as possible with the top of your head.
If that is not possible, try to adjust the head
restra int so that it is as close to this position
as possible
r=:>page 65.
Adjusting front head restraints
• To adjust the height of the front head re­
straints, press/push the button ©
opage 59, fig . 54 up/down o _& .
• Vehicles with reclining rear seat: Grasp the
s ides of the passenger's head restraint with
both hands and slide it upward/downward.
Adjusting rear head restraints (adjustable
head restraints)
The center rear head restraint is not adjusta­
b le.
Seats and storage 65
• Grasp the sides of the head restraint with
both hands and slide it upward until you feel
it click into place r=:>
A.
• To lower the head restraints, press button -
small arrow -
o fig. 62 and slide the head re­
straint all the way down .
Adjusting the side bolsters*
• To adjust the side bolsters *, press them into
the desired position
c:> fig. 61.
Refer to¢ page 139, Proper adjustment of
head restraints
for guidelines on how to ad­
just the height of the front head restraints to
suit the occupant's body size.
&_ WARNING
-
- All seats are equipped with head re-
straints. Dr iving without head restraints
or with head restraints that are not prop­
erly adjusted increases the risk of serious
or fatal neck injury dramatically.
- Read and heed all WARNINGS
o page 139, Proper adjustment of head
restraints.
- Vehicles with a pass through in the cen­
ter conso le have seating for four. The
long center console between the two
rear seats is
not a seating position.
Therefore, a safety belt is not provided.
(D Tips
- T o prevent the head restraints from run­
ning into the headliner, they retract au­
tomatically when moving the seat for­
ward or upward.
- Correctly adjusted head restraints and
safety belts are an extremely effective
combination of safety features.

On the road
Steering
Adjusting steering wheel position
The steering wheel position can be adjusted
for height and reach .
Fig. 84 Switch for steer ing w heel adjustment
First, adjust the driver's seat correctly.
• To adjust the height, press the switch up/
down . The steering column will continue
moving as long as you are pressing the
switch.
• To move the steering wheel forward or back,
press the switch forward/back . The steering
column will continue moving as long as you
are pressing the switch.
There must be at least 10 inches (25 cm) be­ tween your chest and the center of the steer­
ing wheel. If you cannot sit more than 10 in­
ches (25 cm) from the steering wheel, see if
adaptive equipment is available to help you
reach the pedals and increase the distance
from the steering wheel.
For detailed information on how to adjust the
driver's sea t, see
Q page 59 .
In vehicles with the memory function*, the
steering column settings are stored together
with the seat position .
A WARNING
Improper use of steering wheel adjust­
ment and improper seating position can
cause serious personal injury.
-
On the road 83
-Adjust the steering wheel column only
when the vehicle is not moving to pre­
vent loss of vehicle control.
- Adjust the driver 's seat or steering wheel
so that there is a minimum of 10 inches (25 cm) between your chest and the
steering wheel
~ page 136, fig . 153 . If
you cannot maintain th is m inimum dis­
tance, the airbag system cannot protect
you properly.
- If physical limitations prevent you from
sitt ing 10 inches (25 cm) or more from
the steering wheel, check with your au­
thorized Audi dealer to see if adaptive
equipment is available .
- If the steering wheel is al igned with yo ur
face, the supplementa l driver's airbag
cannot provide as much protection in an
accident. Always make sure that the
steering whee l is aligned with your
chest.
- Always hold the steering whee l with your
hands at the 9 o'clock and 3 o'clock posi­
tions to reduce the risk of personal injury
if the driver's airbag deploys.
- Never hold the steering wheel at the 12
o'clock position or with your hands inside
the steering wheel rim or on the steering
wheel hub. Holding the steering wheel
the wrong way can cause serious injuries
to the hands, arms and head if the driv­
er's airbag deploys.
Easy entry feature
The easy entry feature makes it easier to en­
ter and exit the vehicle by automatically ad­
justing the steering wheel.
• Select in the MMI: ICARI function button >
Car systems control button > Vehicle set­
tings > Seats > Driver' s seat > Easy entry>
On.
When the easy entry feature is turned on , the
stee ring wheel moves up to the park position
when you swit ch off the ignition. After you en -
ter the vehicle, the steering wheel moves to ..,..

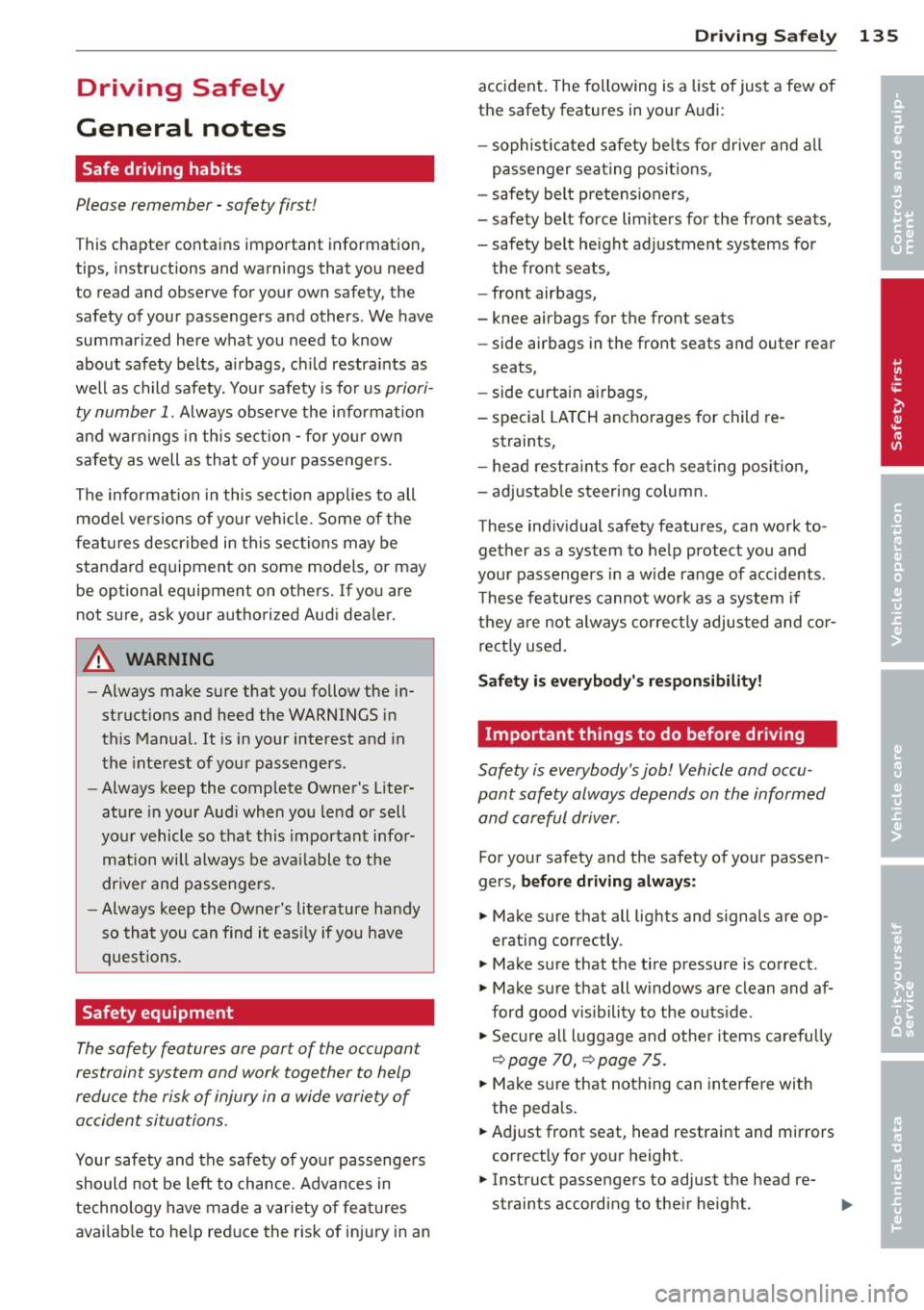

Driving Safely
General notes
Safe driving habits
Please remember -safety first!
This chapter contains important information,
tips, instructions and warnings that you need
to read and observe for your own safety, the
safety of your passengers and others . We have
summarized here what you need to know
about safety belts, airbags, ch ild restra ints as
well as child safety. You r safety is for us
priori­
ty number 1.
Always observe t he information
a nd warn ings in th is se ct ion - for yo ur own
safety as well as that of your passengers .
The information in this se ction applies to all
model ve rsion s of your veh icle . Some of the
feat ures descr ibed in th is sec tions may be
standa rd equipment on some models, or may
be optional equipment on others . If you are
not sure, ask yo ur authorized Aud i dea ler.
A WARNING
- Always make sure that you follow the in­
st ruct ions and heed the WARNINGS i n
this Manual. It is in your interest and in
the inte rest of you r passengers.
- Always keep the complete Owne r's Liter­
at ure in your Audi when you lend or sell
yo ur vehicle so that this important info r­
mation will always be ava ilable to the
dr iver and passenge rs.
- Always keep the Owner's literature handy
so that you can find i t eas ily if you have
ques tion s.
Safety equipment
The safety features are part of the occupant
restraint syst em and work togeth er to help
redu ce the risk of injury in a wide variety of
accident situations .
Your safety and the safety of your passenge rs
should not be left to chance. Advances in
t echnology have made a var iety o f fea tures
avai lable to he lp red uce the risk of i njury in an
Dr iving Safel y 135
accident . The following is a list of just a few of
the safety features in yo ur Audi :
- sophis tic ated s afety be lts fo r driver and a ll
passenger sea ting posit ions,
- s afety bel t prete nsio ners ,
- safety belt force lim ite rs fo r the front sea ts,
- safety belt he ight adjustment systems for
the front seats ,
- front airbags,
- knee airbags for the front seats - side airbags in the front seats and outer rea r
seats,
- side c urtain airbags ,
- specia l LATCH anchorages for child re-
straints,
- he ad restr aints for each sea ting pos it ion,
- adj ustab le steeri ng colum n.
These ind iv idual safety features, can work to­
ge ther as a system to he lp protect you and
you r passenge rs in a wide rang e of accide nts .
T hese features canno t wo rk as a system if
they are not always cor re ct ly adjus ted and co r­
re ct ly used.
Safety is everybody's responsibil ity!
Important things to do before driving
Safety is everybody 's job! Vehicle and occu ­
pant safety always depends on the informed and careful driver .
For yo ur safety and the safety of your passen ­
gers,
before d riving always:
.. Make s ure that all lig hts and signa ls are op­
erating correctly .
.,. Make sure that the tire pressure is correct .
.. Make s ure that all w indows are clean and a f­
ford good vis ibility to the outs ide .
.,. Se cure all luggage a nd o ther items caref ully
I::!) page 70, I::!) page 75 .
.. Ma ke s ure that no thing can inte rfere wi th
the peda ls .
.. Adj ust front seat, head restraint and mirrors
correctly for your height.
.. Instruct passengers to adjust the head re-
straints according to the ir height . .,.. •
•

The shoulder belt should lie as close to the
center of the collar bone as possib le an d
should fit well on the body¢
A in Saf ety belt
position on page 149.
Power safety belt h eight adjustment*
You can ad just the height of the safety belts
using the mu lti function b utton on the driver
or fro nt passenge r seat ¢
page 60.
&_ WARNING
-Always read and heed all WARNINGS and
other important informat ion¢
page 148.
You can also a djust the height of the front
seats to change the position of the safety
be lts.
Improperly worn safety belts
Incorrectly positioned safety belts can cause
severe injuries.
Wear ing sa fe ty be lts imprope rly can cause se ­
rio us in jury or death. Safety be lts can only
wo rk when they are correct ly positioned on
the body. Improper seating positions reduce
the effect iveness of safety belts and w ill eve n
increase the r isk of injury and death by mov­
in g the safety belt to cr itical a reas of the
body. Imprope r seat ing pos itions also in­
crease the risk of serio us in jury and death
when an air bag deploys and strikes an occu ­
p a nt who is not in the cor re ct seating posi­
tion. A driver is responsib le for the sa fe ty of
all vehicle occupants and especially for chi l­
dren . Therefore:
""N ever permit anyone to ass ume an inco rrec t
s itting position in the veh icle w hile traveling
¢.&, .
&_ WARNING
Imprope rly worn safety belts increase the
r isk of se rious personal injury and death
whenever a veh icle is being used .
Safety belts 151
- Always ma ke s ure that all ve hicle occu­
pants are co rrectly restrained and stay in
a co rrect seating position whenever the
veh icle is being used .
- Always read and heed all WARNI NGS and
o ther impo rtant inf ormation
¢page 148.
Safety belt preten­
sioners
How safety belt pretensioners work
In front, side and rear-end collisions above a
particular severity and in a rollover, safety belts are tensioned automatically.
Reversible safety belt tensioners
T he s afety belts o n the fro nt seats ar e eq uip­
ped with powe r reversi ble tensioners. The fo l­
l ow ing functions a re ava ila bl e when the driv­
er 's/fro nt passenge r's safety belts are fas­
tened :
- Au tomatic tens ioners : at the star t of a drive,
the safety be lts automat ica lly adjust to the
passenger afte r a certain time period or ve­
hicle speed. To switch the automatic ten ­
sioners off, select the following in t he M MI:
!CARI fu nction button > Car systems > Vehi­
cle settings > Seats > Driver's seat or Pas­
senger's seat > Automatic belt tensioner
>
Off .
-In ce rtain dr iv ing s ituations , the safety b elts
may tight en with a reve rs ible tens ion ing
fu nction
¢ page 197.
-The safety be lts m ay a lso tighten with th is
reve rsible te nsion ing functio n in m inor co ll i­
s ion s.
Pyrotechnic safety belt pretensioners
The safety belts are equipped with safety be lt
pre tensioners . The system is act ivated by se n­
so rs in front, s id e and r ear-end co llisions of
great seve rity and in a rollover. T his tig hte ns
t he be lt and t akes up belt slack ¢.&.
in Service
and disposal of s afe ty belt pretensioner on
page 152.
Tak in g up the s lack helps to reduce .,. •
•

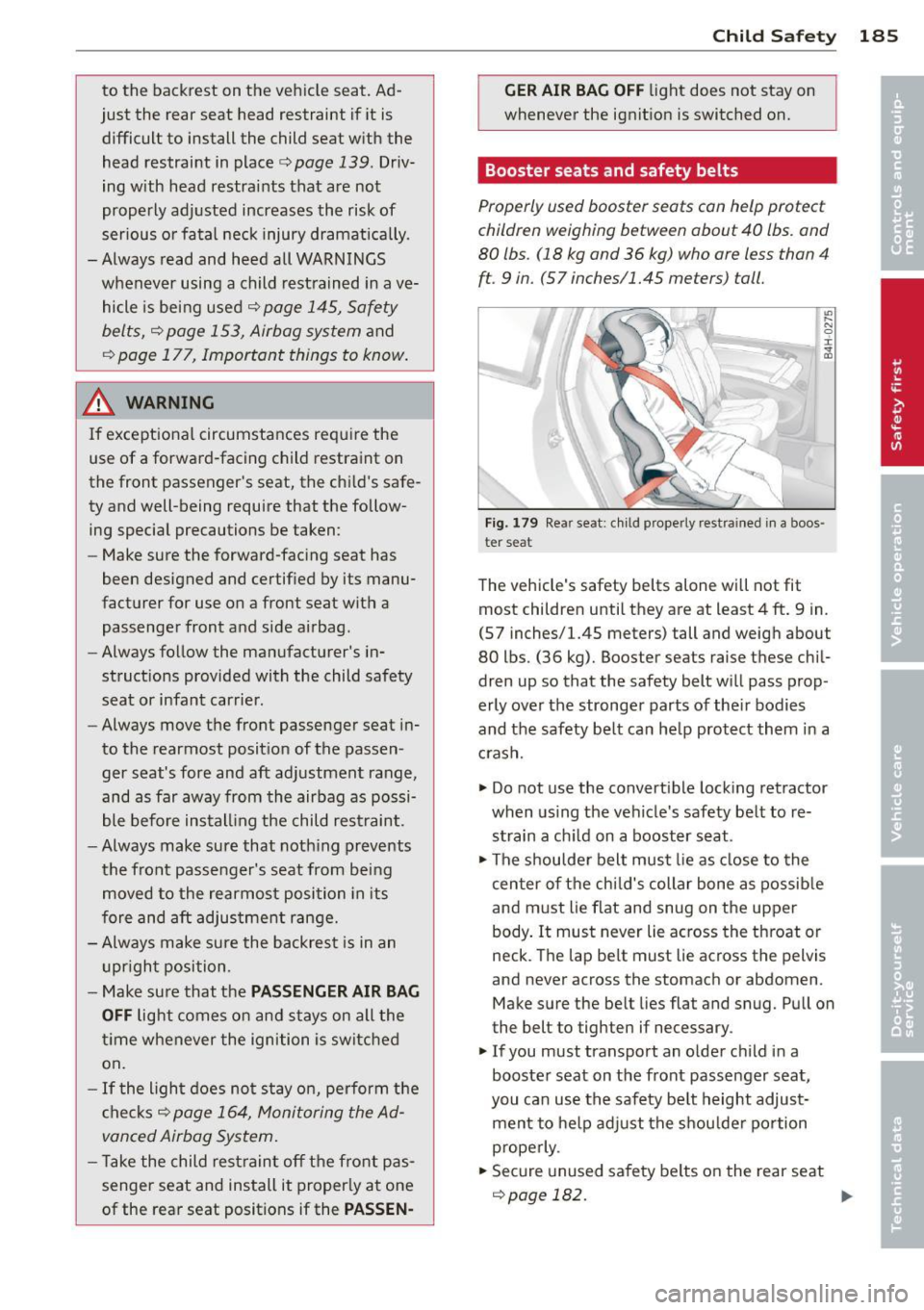

to the backrest on the vehicle seat. Ad­
just the rear seat head restraint if it is
difficult to install the child seat with the
head restraint in place
c::> page 139. Driv­
ing with head restraints that are not
properly adjusted increases the risk of
serious or fatal neck injury dramatically.
- Always read and heed all WARNINGS
whenever using a child restrained in ave­
hicle is being used
c::> page 145, Safety
belts,
c::> page 153, Airbag system and
c::> page 177, Important things to know.
_& WARNING
If exceptional circumstances require the
use of a forward-facing child restraint on
the front passenger's seat, the child's safe­
ty and well-being require that the follow­
ing special precautions be taken:
- Make sure the forward-facing seat has
been designed and certified by its manu­
facturer for use on a front seat with a
passenger front and side airbag.
- Always follow the manufacturer's in­
struct ions provided with the child safety
seat or infant carrier.
- Always move the front passenger seat in­
to the rearmost position of the passen­
ger seat's fore and aft adjustment range,
and as far away from the airbag as possi­ ble before installing the child restraint.
-A lways make sure that nothing prevents
the front passenger's seat from being
moved to the rearmost position in its
fore and aft adjustment range.
- Always make sure the backrest is in an
upright position.
- Make sure that the
PASSENGER AIR BAG
OFF
light comes on and stays on all the
time whenever the ignition is switched
on.
- If the light does not stay on, perform the
checks
c::> page 164, Monitoring the Ad­
vanced Airbag System.
- Take the child restraint off the front pas­
senger seat and install it properly at one
of the rear seat positions if the
PASS EN-
Child Safety 185
GER AIR BAG OFF light does not stay on
whenever the ignition is switched on.
Booster seats and safety belts
Properly used booster seats con help protect
children weighing between about 40 lbs. and
80 lbs. (18 kg and 36 kg) who ore less than 4
ft. 9 in. (57 inches/1.45 meters) toll.
l!! N 0 ± i,l;
Fig. 179 Rear seat: c hild properly restrained in a boos ­
ter seat
The vehicle's safety belts alone will not fit
most children until they are at least 4
ft. 9 in.
(57 inches/1.45 meters) tall and weigh about
80 lbs. (36 kg). Booster seats raise these chil­
dren up so that the safety belt will pass prop ­
erly over the stronger parts of their bodies
and the safety belt can help protect them in a
crash.
.. Do not use the convertible locking retractor
when using the vehicle's safety belt to re­ strain a child on a booster seat.
.. The shoulder belt must lie as close to the
center of the child's collar bone as possible
and must lie flat and snug on the upper
body.
It must never lie across the throat or
neck. The lap belt must lie across the pelvis
and never across the stomach or abdomen.
Make sure the belt lies flat and snug . Pull on
the belt to tighten if necessary .
.. If you must transport an older child in a
booster seat on the front passenger seat,
you can use the safety belt height adjust­ ment to help adjust the shoulder portion
properly.
.. Secure unused safety belts on the rear seat
c::>poge 182. ...

194 Child Safety

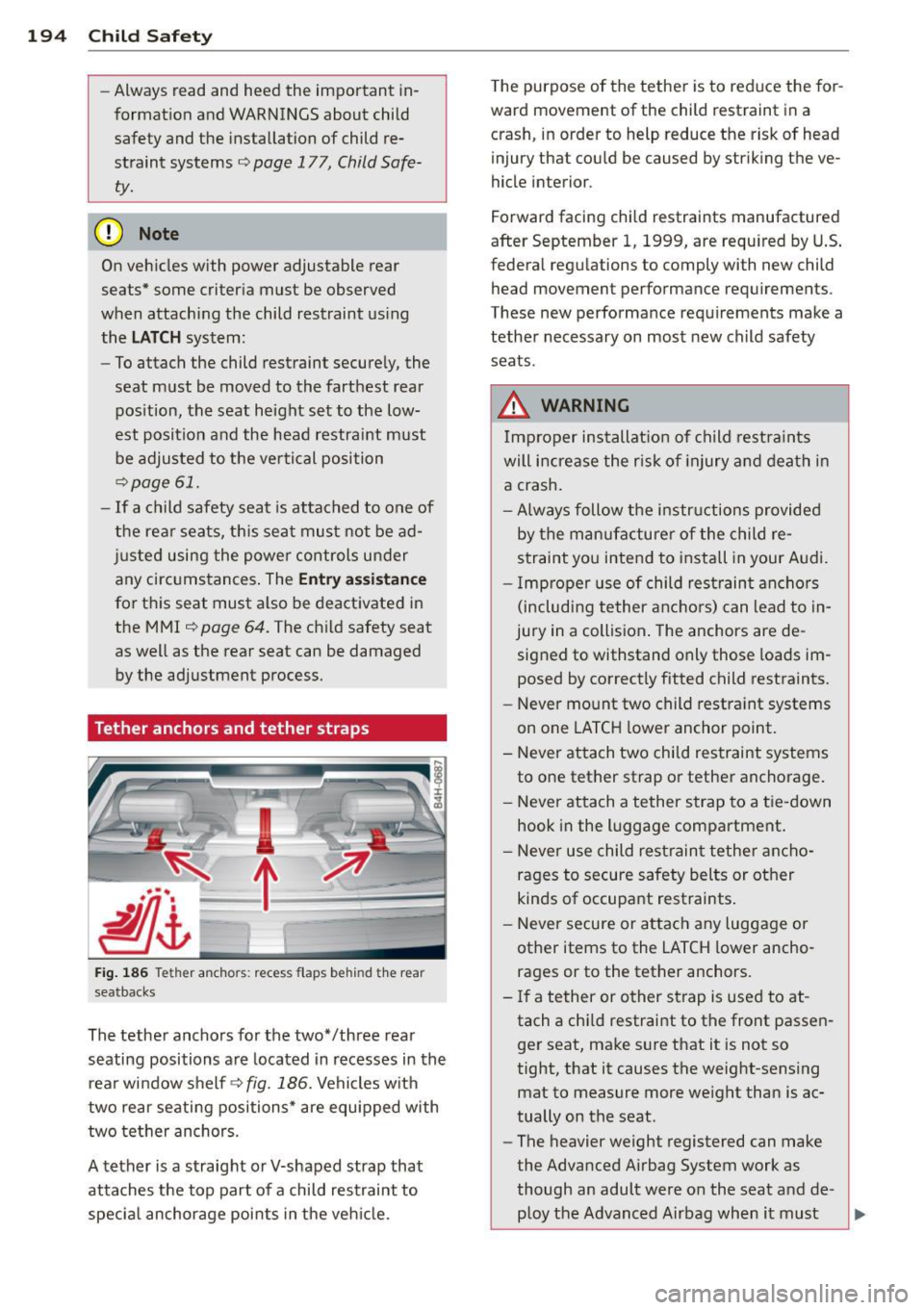

-Always read and heed the important in­
formation and WARNINGS about child
safety and the installation of child re­
straint systems ~
page 177, Child Safe­
ty.
d) Note
On vehicles with power adjustable rear
seats* some criteria must be observed
when attaching the child restraint using
the
LATCH system:
- To attach the child restraint securely, the
seat must be moved to the farthest rear
position, the seat height set to the low­
est position and the head restraint must be adjusted to the vertical position
~ page 61.
-If a child safety seat is attached to one of
the rear seats, this seat must not be ad­
justed using the power controls under
any circumstances . The
Entry assistance
for this seat must a lso be deactivated in
the MMI
r¢ page 64. The child safety seat
as well as the rear seat can be damaged by the adjustment process.
Tether anchors and tether straps
Fig. 186 Tet her ancho rs: r ece ss fla ps b ehin d th e re ar
sea tback s
The tether anchors for the two* /three rear
seating positions are located in recesses in the
rear window shelf~
fig. 186. Vehicles with
two rear seating positions* are equipped with two tether anchors .
A tether is a straight or V-shaped strap that attaches the top part of a child restraint to
special anchorage points in the vehicle. The
purpose of the tether is to reduce the for­
ward movement of the child restraint in a crash, in order to help reduce the risk of head
injury that could be caused by st riking the ve­
hicle in ter ior.
Forwa rd facing child restra ints manufactured
after September 1 , 1999, are required by U.S .
federal regulations to comply with new child
head movement performance requirements.
These new performance requirements make a
tether necessary on most new child safety
seats .
_&. WARNING
Improper installation of child restraints
will increase the risk of injury and death in
a crash.
- Always follow the instructions provided
by the manufacturer of the child re­
straint you intend to install in your Audi.
- Improper use of child restraint anchors
(including tether anchors) can lead to in­
jury in a collision. The anchors are de ­
signed to withstand only those loads im­
posed by correctly fitted child restraints.
- Never mount two child restraint systems
on one LATCH lower anchor point.
- Never attach two child restraint systems to one tether strap or tether anchorage.
- Never attach a tether strap to a tie-down
hook in the luggage compartment.
- Never use child restraint tether ancho­
rages to secure safety belts or other
kinds of occupant restraints.
- Never secure or attach any luggage or
other items to the LATCH lower ancho ­
rages or to the tether anchors.
- If a tether or other strap is used to at­
tach a child restraint to the front passen­
ger seat, make sure that it is not so
tight, that it causes the weight-sensing mat to measure more weight than is ac­
tually on the seat .
- The heavier weight registered can make
the Advanced Airbag System work as though an adult were on the seat and de -
-
ploy the Advanced Airbag when it must ~
