In addition to t his Owner's Ma nual, your A udi
comes w ith t he
- MMI Oper ating In st ru cti ons
- Warranty
& Ma intenance boo klet.
If you are m iss ing one of these publicat ions,
or if you believ e that the information is not
comp lete, contact you r auth orized Audi dea le r
for assistanc e.
MMI Operating Instructions
contain detailed desc ription of the Aud i M ulti
Media Interface (MMI) including th e nav iga­
tion system, the so und system and the ha nd­
h e ld pho ne.
The Warranty & Maintenance booklet
explains how yo u can keep your A udi in top
driving condition by hav ing it serviced regular­
l y and conta ins detai led info rmat ion about
the wa rra nties covering your Aud i. Always
h ave the boo klet with yo u when yo u take your
ve hicl e to a n author ized Audi dealer for serv ­
i ce. Y our Audi Servi ce A dvis or will re cord each
sche duled service and can an swe r any ques­
tions you may have rega rding how to ma in tain
your ve hicle.
In Canada,
the veh icle lite rat ure is also avai lab le in
Fr ench . T o ob tain a cop y, contact your dea le r
or wri te to:
Au Canada, on peut se p rocure r un exemp la ire
e n fr an<;ais de ce do cument aupres du conces ­
sio nnair e ou de:
Aud i Canada
C lient Assistance
Assis tance a la Clientele
7 77 Bayly S tree t, Wes t,
A jax, On tario LlS 7G 7
If you sell your Audi
all lite ratu re should be left in the ve hicle to
make th e Warranty terms as we ll as a ll oper­
ating, safety and m aintenan ce inform ation
a vaila ble to the nex t owne r.
Vehicle literature 5
If you change your address or if you
bought this Audi used
be s ure to send in a "Notice of Add ress
Change"/ " Notice of Used Car Purchase" post
card. Thi s card can be fo und in the Warranty
&
Maintenance booklet or obtained from your
autho rized Aud i dea ler.
It is in your own interest that we are able to
contact you should the need arise .
•
•

18 Instruments and warning/indicator lights
If the indicator light turns on and the mes­
sage appears, do
not switch the ignition off
because you may not be able to switch it on
again.
Drive to your authorized Audi dealer immedi­
ately to have the malfunction corrected.
Ill Engine start system fault. Please contact
dealer
If the indicator light turns on and the mes­
sage appears, there is a malfunction in the en­
gine start system.
Drive to your authorized Audi dealer immedi­
ately to have the malfunction corrected.
0 Air suspension
• Air suspension: system fault. Can contin­
ue slowly with max. 35 mph.
There is a malfunction that can result in re­
stricted driving stability.
Carefully drive at a maximum speed of 35
mph (60 km/h) to your authorized Audi dealer
or qualified workshop to have the malfunction
corrected .
• Air suspension: service mode. Vehicle can
only be moved with restrictions
Carefully drive to your authorized Audi dealer
or qualified workshop immediately to have
the service mode deactivated.
II Air suspension fault
There is a system malfunction that can result
in restricted driving stability or reduced
ground clearance.
Drive to your authorized Audi dealer immedi­
ately to have the malfunction corrected.
II Air suspension: vehicle too low. Ground
clearance reduced
The ground clearance is very low due to a sys­
tem malfunction . Wait until the air suspen ­
sion system has restored normal ground clear­
ance. Otherwise, conditions such as an uneven
road surface can lead to vehicle damage.
AIR/ e;, 5 f BAG -, a ety systems
The II (USA models),fll(Canada models) in­
dicator light monitors the safety systems e.g.
airbags, pretensioners and illuminates for a
few seconds each time you switch the ignition
on.
If the
II (USA models)/E,I (Canada models)
indicator light does not go out, or if it illumi­
nates while you are driving, or if it starts to
blink, then there is a malfunction somewhere
in the system.
If the light does not illuminate
when you switch the ignition on, this also means there is a malfunction.
A WARNING
=
If you have a malfunction in the safety sys-
tems, contact your authorized Audi dealer
immediately. Otherwise the safety sys­
tems may not work properly in an acci­
dent.
~ Brake booster
II Brake servo: limited functionality. You
can continue driving. Contact workshop
There is a brake booster malfunction. The
brake booster is still available, but its function
is limited. Because of this, the vehicle may
brake differently and the brake pedal may vi­
brate.
Drive to an authorized Audi dealer or author­
ized repair facility immediately to have the
malfunction corrected.
Y$/ C, Electronic Stabilization Control
(ESC)
If the Dl indicator light blinks while driving,
the ESC or ASR (Anti-Slip Regulation) is active­
ly regulating.
If the
Dl indicator light turns on, the system
has switched the ESC off. In this case, you can
switch the ignition off and then on to switch
the ESC on again . The indicator light turns off
when the system is functioning fully . .,,.

_& WARNING
-Automatic headlights are only intended
to assist the driver . They do not relieve
the driver of his responsibility to check
the headlights and to turn them on man­
ually according to the current light and
visibility conditions. For example, fog
cannot be detected by the light sensors.
So always switch on the headlights
io
under these weather conditions and
when driving in the dark.
- Crashes can happen when you cannot see
the road ahead and when you cannot be
seen by other motorists. Always turn on
the headlights so that you can see ahead
and so that others can see your car from
the back.
- Please observe legal regulations when
using the lighting systems described.
(D Note
The rear fog lights should only be turned
on in accordance with traffic regulation, as
the lights are bright for following traffic.
(D Tips
- The light sensor* for automatic dynamic
headlight range control* is located in the
rear view mirror mount. You should
therefore not apply any stickers to the
windshield in this area in order to pre­
vent malfunctions or failures.
- In the event of a light sensor malfunc­
tion, the driver is notified in the instru­
ment cluster display ~
page 22.
- You will hear a warning tone if you open
the driver door when the exterior lights
are switched on.
- In cool or damp weather, the inside of
the headlights, turn signals and tail
lights can fog over due to the tempera­
ture difference between the inside and
outside. They will clear shortly after
switching them on. This does not affect
the service life of the lighting. Clear vision 4
7
Emergency flasher
The emergency flasher makes other motorists
aware that you or your vehicle are in an emer­
gency situation .
Fig. 41 Center consol e: eme rge ncy flash er sw itc h
.,. Press the switch&..~ fig. 41 to turn the
emergency flashers on or off.
When the emergency flasher is on, all four
turn signals blink at the same time. The turn
signal indicator lights
B DI in the instru­
ment cluster, as well as the light in the emer­
gency flasher switch &.. blink likewise. The
emergency flasher also works when the igni­
tion is turned off.
The emergency flashers will turn on automati­
cally if you are in an accident where the airbag
has deployed.
@ Tips
You should turn on the emergency flashers
when:
- you a re the last vehicle standing in a traf­
fic jam so that any other vehicles coming
can see you, or when
- your vehicle has broken down or you are
in an emergency situation, or when
- your vehicle is being towed by a tow
truck or if you are towing another vehicle
behind you.
Adjusting the exterior lighting
The settings ore adjusted in the MMI.
.,. Select: !CAR ! function button> Car systems
control button > Vehicle settings > Exterior
lighting. ..,.

7 2 Seats and storage
-For safety reasons, do not transport
more than two pairs of skis in the ski
sack.
- You must secure the ski sack with the
strap after loading.
- Make sure all objects that you are trans­
porting in the pass-through are secured.
Otherwise they could slide around during
sudden braking maneuvers and cause in­
jury.
Q) Tips
- Never stow the ski sack away when it is
still wet or damp (for example, snow
melting from skis). Allow it to dry com­
pletely before stowing it away .
- Position skis in the ski sack with the
pointed ends facing the front and ski
poles with the pointed ends facing the
rear.
Roof rack
Description and mounting locations
Additional cargo can be carried with a roof
luggage rack.
Fig. 77 Roof rack attac hment points
,. Always read and follow the instructions pro­
vided by the roof rack manufacturer when
installing the roof rack system .
If luggage or cargo is to be carried on the
roof, you must observe the following:
- To enhance the vehicle's streamlined design,
rain gutters have been molded into the roof.
It is not possible to use normal roof racks.
Only install a roof rack specifically designed for your model AB. Contact the nearest Audi
dealer for information on approved modular
roof racks for your vehicle.
- Only use roof racks approved for your vehi­
cle. These approved roof racks are the basis
for a complete roof rack system. Additional
attachments or carrier systems are needed
to transport luggage and sports equipment.
We recommend using roof racks from the
Audi original accessories program .
- When installing the roof rack, make sure it
is only mounted on the designated locations
on the roof~
fig. 77 .
- We recommend that you keep the installa­
tion instructions for your roof rack system
together with your Owner's literature in the
vehicle .
When should the roof rack be removed?
-Before going through an automatic car wash
(it is best to ask the car wash operator for
advice)
- When not in use, to reduce fuel consump­
tion, wind noise and to guard against theft .
8,. WARNING
-Use of an unapproved roof rack or incor­
rect mounting of an approved roof rack
can cause the roof rack or the items at­
tached to it to fall off the roof onto the
road.
- Objects falling from the roof of a vehicle
can cause a crash and personal injury.
- Only mount the roof rack on the desig­
nated locations on the roof¢
fig. 77.
- The roof rack system must be installed
exactly according to the instructions pro­
vided.
- When driving with a roof rack system,
changes to the center of gravity and wind
resistance can change the vehicle han­
dling and lead to a collision. Always
adapt your driving and your speed to the
current conditions.
-

76 Seats and storage
become a hazard for vehicle occupants in
the event of sudden braking or a crash.
- Always remove objects from the instru­
ment panel. Any items not stored could
slide around inside the vehicle while driv­
ing or when accelerating or when apply­
ing the brakes or when driving around a
corner.
- When you are driving make sure that
anything you may have placed in the cen­
ter console or other storage locations cannot fall out into the footwells. In case
of sudden braking you would not be able
to brake or accelerate.
- Any articles of clothing that you have
hung up must not interfere with the driv­
er's view. The coat hooks are designed
only for lightweight clothing. Never hang
any clothing with hard, pointed or heavy
objects in the pockets on the coat hooks.
During sudden braking or in an accident -
especially if the airbag is deployed -
these objects could injure any passen­ gers inside the vehicle .
- To reduce the risk of personal injury in an
accident or sudden stop, always keep the
glove compartment closed while driving .
- Read and follow all WARNINGS
¢ page 170, Important safety instruc­
tions on the side airbag system.
- Hang clothes in such a way that they do
not impair the driver's vision.
- The coat hooks must only be used for lightweight clothing . Do not leave any
heavy or sharp edged objects in the pock­
ets which may interfere with the side cur­
tain airbag deployment and can cause
personal injury in a crash.
- Do not use coat hangers for hanging
clothing on the coat hooks as this can in­
terfere with proper deployment of the
side curtain airbags in an accident.
- Do not hang heavy objects on the coat
hooks, as they could cause personal in­
jury in a sudden stop.
(D Note
Objects located on the rear shelf that rub
against the rear window could damage the
heating wires for the rear window defog­
ger.
@ Tips
- A vent slot is located between the shelf
and the rear window. Do not block the
vent with any items you may place on the
rear window shelf.
- Do not place bulky items on the rear win­
dow shelf as they could restrict or block
the driver's vision in the rear view mirror.
Cooler
Introduction
Applies to vehicles: wi th coo ler
Please clean the cooler before using it for the
first time ¢
table on page 216.
You can only switch on the cooler if
- the temperature in the luggage compart­
ment is below 131 °F (55 °C). The cooler
switches off automatically if the tempera­
ture in the luggage compartment exceeds
131 °F (55 °C). Once the temperature falls
below 131 °F (55 °C) again, the cooler
switches on again automatically.
- the battery is adequately charged. The cool­
er switches off automatically if the vehicle
battery voltage falls below a minimum lev­
el. This prevents the battery from discharg­ ing. The cooler switches back on again auto­
matically when the battery voltage increases
again (e .g. after starting the engine).
The cooler cools to 42.8 °F
(+ 6 °C) and the
freezer cools to 21.2 °F (-6 °C) in optimum
cooling conditions. The cooling performance
is affected by the temperature in the luggage
compartment . The temperature inside the
cooler will be higher if the luggage compart-
ment is hot. .,.

78 Warm and cold
Warm and cold Climate controls
Description
The climate control system warms, cools and
adds humidity to the air in the vehicle interior.
It is the most effect ive when the windows and
sunroof* are closed . If the temperature inside
the parked vehicle becomes very warm, open­ ing the window briefly will speed up the cool­
ing process.
I n all heating mode functions except
defrost,
the blower on ly switches to a higher speed
once the engine coolant has reached a certain
temperature.
Condensation from the cooling system can
drip and form a puddle of water under the ve­
hicle. This is normal and does not mean there
is a leak.
Pollutant filter
The pol lutant filter removes pollutants such
as dust and pollen from the air.
The air pollutants filter must be changed at
the intervals spec ified in you r Warranty
&
Maintenance booklet, so that the air condi­
tioner can properly work.
I f you drive your vehicle in an a rea with high
a ir po llution, the fi lter may need to be
changed more frequent ly than specified in
your Aud i Warranty
& Maintenance booklet. If
in doubt, ask your authorized Audi Service Ad­
visor for advice .
Key coded settings
The climate control settings are a utomat ically
stored and assigned to the remote control key
that is in use.
A WARNING
Reduced visibility is dangerous and can
cause accidents. -
- For safe driving it is very important that
all windows be free of ice, snow and con­
densation.
- Comp letely familiarize yourself with the
proper use and funct ion of the heat ing
and ventilation system and especially how to defog and defrost the windows.
- Never use the windshield wiper/washer
system in freez ing weather unt il you
have warmed the windshield first, using
the heating and ventilation system. The
washer solution may freeze on the wind­ sh ie ld and reduce visib ility.
(D Note
- If you suspect that the air conditioner has been damaged, switch the system
off to avoid further damage and have it
inspected by a qualified dealership.
- Repairs to the Audi air conditioner re­
quire special technical know ledge and
special tools. Contact an authorized Aud i
dea ler fo r assistance.
@ For the sake of the environment
By reducing the amount of fuel you use,
you also reduce the amount of pollutants
emitted into the air.
(D Tips
- Keep the air intake s lots (in fro nt of the
w indshield) free from ice, snow and de ­
bris in order to maintain the proper func­
tion of the climate control system.
- T he energy management system may
switch the seat heating* or rear window
defroster off temporari Ly . These systems
are available again as soon as the energy
balance has been restored.
- Air escapes through vents under the rear
window. When placing items of clothing
on the luggage compartment cover, en­
sure that the openings are not covered.

The@j indicator light appears in the informa ­
tion line in the instrument cluster display
<:!)fig. 92 .
Engine automatically restarts
The stop phase is interrupted in the following
situations, for examp le. The engi ne restarts
without any action by the driver.
- Th e interior temperature varies from the
temperatu re selected in the A/C system.
- The windshield is being defrosted
r::!) page 81 .
-The brake pedal is pressed several times in a
row.
- The battery charge level becomes too low.
- High power consumption .
Switching the ignition off automatically
To prevent the battery from draining, the igni­
tion will switch off
automatically when all of
the following conditions have been met:
- The vehicle has al ready been driven.
- The eng ine has been turned off by the Start-
Stop-System*.
- The driver's door is opened.
- The driver's seat belt is removed .
- The brake pedal is not pressed down.
- The vehicle is stationary .
In this case, the activated low beam will be re­
placed by the side marker lights. The side
marker lights will switch off after approxi­
mately 30 minutes or when you lock the vehi­
cle .
If the Start-Stop System has
not turned off
the engine or if you have switched the Start­
Stop system off manually, the ignition w ill
not
be automatically switched off and the engine
will cont inue to run
r::!) .&. .
A WARNING
Never allow the engine to run in confined
spaces - danger of asphyxiation.
(D Tips
If you shift into the D, N or S positions af­
ter shift ing into reverse, the veh icle must
On the road 89
be driven faster than 6 mph (10 km/h) in
order for the engine to switch off again.
Switching the Start-Stop-System on/off
manually
App lies to vehicles: wit h Start -Stop -System
If you do not wish to use the system, you can
switch it off manually.
Fig. 93 Center console: Start -Stop -System button
.,. To switch the Sta rt-Stop-System off/on
manually, p ress the
ICA.> ••I button. The L ED in
the button turns on when the system is
sw itched off.
(D Tips
If you switch the system off during a stop
phase, the engine will start again auto­
ma tically .
Messages in the instrument cluster
display
Applies to vehicles: wit h Start-Stop-Syste m
Start-Stop system deactivated: Please re­
start engine manually
This message appears when specific condi­
tions are not met during a stop phase and the
Start-Stop-System will
not be able to restart
the engine. If the Dor R selector lever posi­
tions were engaged, P will be selected auto­
matically . The engine must be started with
the
I START ENGINE ST OP ! button.
Start-Stop system: System fault! Function
unavailable
There is a malfunction in the Start-Stop-Sys­
tem. Drive the vehicle to an authorized repair .,.

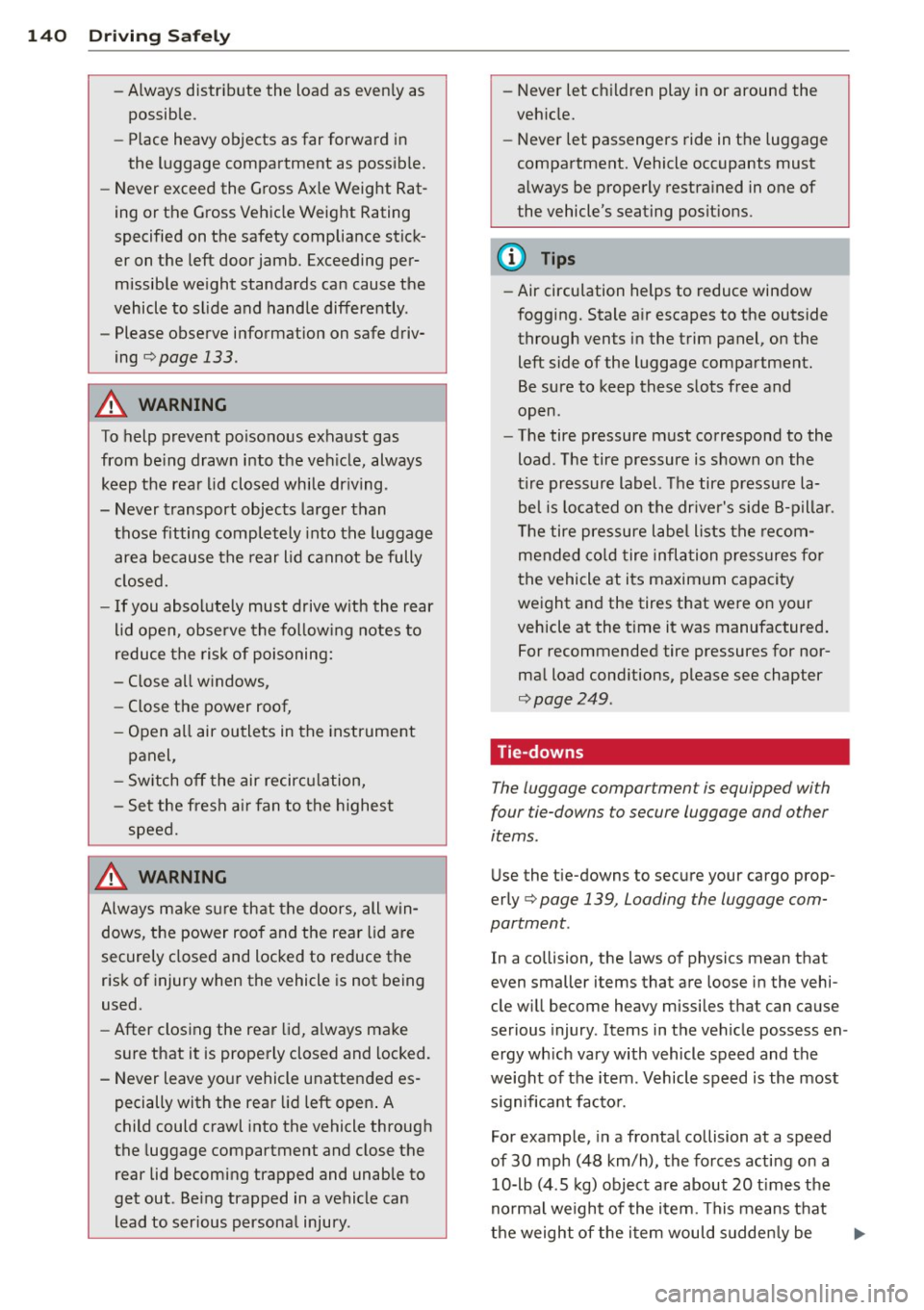

140 Driving Safely
-Always distribute the load as evenly as
possible.
- Place heavy objects as far forward in
the luggage compartment as possible.
- Never exceed the Gross Axle Weight Rat­
ing or the Gross Vehicle Weight Rating
specified on the safety compliance stick­
er on the left door jamb. Exceeding per­
missible weight standards can cause the
vehicle to slide and handle differently.
- Please observe information on safe driv­
ing
q page 133.
A WARNING
-
To help prevent poisonous exhaust gas
from being drawn into the vehicle, always keep the rear lid closed while driving.
- Never transport objects larger than those fitting completely into the luggage
area because the rear lid cannot be fully
closed.
- If you absolutely must drive with the rear
lid open , observe the following notes to
reduce the risk of poisoning:
- Close all windows,
- Close the power roof,
- Open all air outlets in the instrument
panel,
- Switch off the air recirculation,
- Set the fresh air fan to the highest
speed.
A WARNING
Always make sure that the doors, all win­
dows, the power roof and the rear lid are
securely closed and locked to reduce the
risk of injury when the vehicle is not being
used.
- After closing the rear lid, always make
sure that it is properly closed and locked.
- Never leave your vehicle unattended es­ pecially with the rear lid left open. A
child could crawl into the vehicle through
the luggage compartment and close the
rear lid becoming trapped and unable to
get out . Being trapped in a vehicle can
Lead to serious personal injury .
-
-Never let children play in or around the
vehicle.
- Never let passengers ride in the luggage
compartment. Vehicle occupants must
always be properly restrained in one of
the vehicle's seating positions .
(D Tips
-Air circulation helps to reduce window
fogging. Stale air escapes to the outside
through vents in the trim panel, on the
Left side of the Luggage compartment.
Be sure to keep these slots free and
open .
- The tire pressure must correspond to the
load . The tire pressure is shown on the
tire pressure label. The tire pressure la­
bel is located on the driver's side B-pillar.
The tire pressure Label lists the recom­
mended cold tire inflation pressures for
the vehicle at its maximum capacity
weight and the tires that were on your
vehicle at the time it was manufactured.
For recommended tire pressures for nor­
mal Load conditions, please see chapter
¢ page 249.
Tie-downs
The luggage compartmen t is equipped wi th
four tie-downs to secure luggage and o ther
items.
Use the tie-downs to secure your cargo p rop­
erly ¢
page 139 , Loading the luggage com­
partment.
In a collision, the laws of physics mean that
even smaller items that are loose in the vehi­
cle will become heavy missiles that can cause
serious injury. Items in the vehicle possess en ­
ergy which vary with vehicle speed and the
weight of the item. Vehicle speed is the most significant factor.
For example, in a frontal collision at a speed
of 30 mph (48 km/h), the forces acting on a 10-lb (4 .5 kg) object are about 20 times the
normal weight of the item. This means that
the weight of the item would suddenly be

-An improperly installed child restraint
can interfere with the airbag as it de ­
ploys and seriously injure or even kill the
child -even with an Advanced Airbag
System .
- Always carefully follow the manufactur­
er's instructions provided with the child
seat or carrier .
- Never place additional items on the seat
that can increase the total weight regis­
tered by the weight-sensing mat and can cause injury in a crash.
Front airbags
Description of front airbags
The airbag system can provide supplemental
protection to properly restrained front seat occupants.
Fig. 165 Loca tion of driver a irbag: in stee ring wheel
Fig. 166 Location of front passenger's a irbag: in the in­
s trument pan el
Your vehicle is equipped with an "Advanced
Airbag System " in compliance with United
States Federal Motor Vehicle Safety Standard
(FMVSS) 208 as applicable at the time your
vehicle was manufactured. he safety belts for
the seats have "pretensioners" that he lp to
take slack out of the belt system. The preten-
Airbag system 155
sioners are also activated by the electronic
control unit for the airbag system.
The front safety belts also have load limiters
to help reduce the forces applied to the body in a crash.
The airbag for the driver is in the steering
wheel hub
i=;, fig . 165 and the airbag for the
front passenger is in the instrument panel
i=;,fig . 166 . The general location of the airbags
is marked "AIRBAG".
There is a lot you need to know about the air­
bags in your vehicle. We urge you to read the
detailed information about airbags, safety
belts and ch ild safety in th is and the other
chapters that make up the owner's literature.
Please be sure to heed the WARNINGS -they
are extremely important for your safe ty and
the safety of your passengers, especially in ­
fants and small children.
_& WARNING
Never rely on airbags alone for protection .
- Even when they deploy, airbags provide only supplementa l protection.
- Airbag work most effectively when used
with properly worn safety belts .
- Therefore, always wear your safety belts
and make sure that everybody in your ve­
hicle is properly restrained.
_& WARNING
A person on the front passenger seat , es­
pecially infants and small children, will re­
ceive serious injuries and can even be kil-
led by being too close to the airbag when
it inflates .
- Altho ugh the Advanced Airbag System in
your vehicle is designed to turn off the
front passenger airbag if an infant or a
small child is on the front passenger
seat, nobody can absolutely guarantee
that deployment under these special conditions is impossible in all conceiva­
ble situations that may happen during
-
the useful life of your vehicle . 11>-

,....,
N ,....,
N
0 J:
'SI: ,...., \!) 1.1'1 ,...., 1.1'1 ,....,
-Occ upants who are unbelted, out of posi­
t ion or too close to the airbag can be
seriously injured by an airbag as it un­
folds with great force in the blink of an
eye
¢ page 153.
A WARNING
A child in a rearward-facing child seat i n­
stalled on the front passenger seat will be
ser iously injured and can be killed if the
front airbag inflates - even with an Ad­
vanced Airbag System .
- The inflati ng a irbag w ill hit the child sea t
or infant carrier w ith great force and w ill
smash the ch ild seat and child against
the backrest, center armrest, door or roof.
- Always install rear -facing child sea ts on
the rear seat .
- If you mus t install a rearward facin g
child seat on the front passenger seat
because of exceptiona l circumstances
and the
PASSENGER AIR BAG OFF light
does not come on and stay on, immedi ·
ately install the rear-facing chi ld seat in a
rear seating position and have the a irbag
system inspected by your Aud i deale r.
A WARNING
Objects be tween you and the a irbag will
increase the risk of i njury in a crash by i n­
terfering wi th the way the air bag unfolds
or by being pushe d in to yo u as the airbag
inflates.
- Never hold th ing s in your hand s or on
yo ur lap when the vehicle is in use.
- Never tran sport i tems on or in the are a
o f the front passenge r seat. Objects
cou ld move into the area of the front air ­
bags during braking or other s udden ma­
neuvers and become dangerous projec­
t il es that can cause serious persona l in­
jury if the airbags inflate.
- Never place or attach accessories or oth­
er objects (such as cup ho lders, tele­
phone brackets, large, heavy or bu lky ob­
jects) o n the doors, over or near the area
-
-
A irbag system 16 1
marked "AIRBAG" on the steering wheel,
instrument panel, seat bac krests or be­
tween those areas and yo urself . These
objects could cause in ju ry in a crash, es­
pecia lly when the airbags inflate .
- Never recline the front passenger 's seat
to transport objects. Items can a lso
move into the area of the s ide a irbag or
the front a irbag du ring braking or in a
sudden maneuve r. Obje cts near the air­
b ags can become projec tiles and c ause
in jur y, partic ula rly when the sea t is re ­
clined .
& WARNING
-=
The fine dust created when airbags deploy
can cause breathing prob lems fo r people
with a history of asthma or ot her breath­
ing cond itions.
- To reduce the risk of breath ing problems,
those with asthma or other respiratory
conditions shou ld get fresh air r ight
away by getting out of the veh icle or
ope ning windows or doors .
- If you are in a collision in which airbags
deploy , was h your hands a nd face with
mild soap and water before eating .
- Be careful not to get the dust into your
eyes, or into any c uts or sc ratches .
- If the residue should get into your eyes,
f lush them w ith wate r.
Monitoring the
Advanced Airbag
System
tli (USA models)/!f (Canada models)
Airbag monitoring indicator light
Two separate indicators monitor the function
of the Advan ced Airbag System: the airbag
moni toring indicator light and the
PASSEN­
GER AIR BAG OFF
light.
T he Adva nced A irbag System ( in cl uding the
electron ic co ntro l u nit, se nsor circu its and sys­
t em wir ing) is mo nitore d con tinuously to
make su re that it is funct ion ing properly
•
•
