2015 Audi A8
2015 Audi S8
Foreword
Thank you for choosing an Audi - we value your trust in us.
Your new Audi will allow you to experience the best in groundbreaking technolo­
gy and premium quality equipment a vehicle has to offer. We recommend that
you read your Owner's Manual thoroughly so that you quickly become acquaint­ ed with your Audi and make use of all of its features.
In addition to explaining how the different features work, we provide many use­
ful tips and information concerning your safety, how to care for your vehicle and how to maintain your vehicle's value. We also give you useful tips and informa­
tion on how to drive your vehicle more efficiently and in an environmentally
friendly mann er.
In the Owner's Manual packet, you will also find an Owner's Manual for your In­
fotainment system and the vehicle maintenance schedule .
We hope you enjoy driving your Audi and we wish you safe and pleasant motor ­
ing.
AUDIAG

,....,
N ,....,
N
0 J:
'SI: ,...., \!) 1.1'1 ,...., 1.1'1 ,....,
In addition to t his Owner's Ma nual, your A udi
comes w ith t he
- MMI Oper ating In st ru cti ons
- Warranty
& Ma intenance boo klet.
If you are m iss ing one of these publicat ions,
or if you believ e that the information is not
comp lete, contact you r auth orized Audi dea le r
for assistanc e.
MMI Operating Instructions
contain detailed desc ription of the Aud i M ulti
Media Interface (MMI) including th e nav iga­
tion system, the so und system and the ha nd­
h e ld pho ne.
The Warranty & Maintenance booklet
explains how yo u can keep your A udi in top
driving condition by hav ing it serviced regular­
l y and conta ins detai led info rmat ion about
the wa rra nties covering your Aud i. Always
h ave the boo klet with yo u when yo u take your
ve hicl e to a n author ized Audi dealer for serv ­
i ce. Y our Audi Servi ce A dvis or will re cord each
sche duled service and can an swe r any ques­
tions you may have rega rding how to ma in tain
your ve hicle.
In Canada,
the veh icle lite rat ure is also avai lab le in
Fr ench . T o ob tain a cop y, contact your dea le r
or wri te to:
Au Canada, on peut se p rocure r un exemp la ire
e n fr an<;ais de ce do cument aupres du conces ­
sio nnair e ou de:
Aud i Canada
C lient Assistance
Assis tance a la Clientele
7 77 Bayly S tree t, Wes t,
A jax, On tario LlS 7G 7
If you sell your Audi
all lite ratu re should be left in the ve hicle to
make th e Warranty terms as we ll as a ll oper­
ating, safety and m aintenan ce inform ation
a vaila ble to the nex t owne r.
Vehicle literature 5
If you change your address or if you
bought this Audi used
be s ure to send in a "Notice of Add ress
Change"/ " Notice of Used Car Purchase" post
card. Thi s card can be fo und in the Warranty
&
Maintenance booklet or obtained from your
autho rized Aud i dea ler.
It is in your own interest that we are able to
contact you should the need arise .
•
•

78 Warm and cold
Warm and cold Climate controls
Description
The climate control system warms, cools and
adds humidity to the air in the vehicle interior.
It is the most effect ive when the windows and
sunroof* are closed . If the temperature inside
the parked vehicle becomes very warm, open­ ing the window briefly will speed up the cool­
ing process.
I n all heating mode functions except
defrost,
the blower on ly switches to a higher speed
once the engine coolant has reached a certain
temperature.
Condensation from the cooling system can
drip and form a puddle of water under the ve­
hicle. This is normal and does not mean there
is a leak.
Pollutant filter
The pol lutant filter removes pollutants such
as dust and pollen from the air.
The air pollutants filter must be changed at
the intervals spec ified in you r Warranty
&
Maintenance booklet, so that the air condi­
tioner can properly work.
I f you drive your vehicle in an a rea with high
a ir po llution, the fi lter may need to be
changed more frequent ly than specified in
your Aud i Warranty
& Maintenance booklet. If
in doubt, ask your authorized Audi Service Ad­
visor for advice .
Key coded settings
The climate control settings are a utomat ically
stored and assigned to the remote control key
that is in use.
A WARNING
Reduced visibility is dangerous and can
cause accidents. -
- For safe driving it is very important that
all windows be free of ice, snow and con­
densation.
- Comp letely familiarize yourself with the
proper use and funct ion of the heat ing
and ventilation system and especially how to defog and defrost the windows.
- Never use the windshield wiper/washer
system in freez ing weather unt il you
have warmed the windshield first, using
the heating and ventilation system. The
washer solution may freeze on the wind­ sh ie ld and reduce visib ility.
(D Note
- If you suspect that the air conditioner has been damaged, switch the system
off to avoid further damage and have it
inspected by a qualified dealership.
- Repairs to the Audi air conditioner re­
quire special technical know ledge and
special tools. Contact an authorized Aud i
dea ler fo r assistance.
@ For the sake of the environment
By reducing the amount of fuel you use,
you also reduce the amount of pollutants
emitted into the air.
(D Tips
- Keep the air intake s lots (in fro nt of the
w indshield) free from ice, snow and de ­
bris in order to maintain the proper func­
tion of the climate control system.
- T he energy management system may
switch the seat heating* or rear window
defroster off temporari Ly . These systems
are available again as soon as the energy
balance has been restored.
- Air escapes through vents under the rear
window. When placing items of clothing
on the luggage compartment cover, en­
sure that the openings are not covered.

rl N
rl N
0 J:
"". rl I.O
"' rl
"' ......
@ Tips
-ABS and AS R on ly wor k co rrectly when
a ll fo ur wheels are eq uipped w ith identi­
ca l tires . Different tire s izes can lead to a
r educt io n in eng ine power.
- You may hear noises when the sys tems
desc ribed are working.
Switching on and off
Intelligent technology 199
- If
the ind ica tor li ght &J or m] (US A
mode ls)/ ri] (Ca nada models) ap pears,
t h ere may be a malfunction
c::> page 19,
¢ page 18.
ESC turns on automatically when you start the engine.
Fig . 188 Center co nsole with ESC O FF bu tton
ESC levels
Sport mode on
The following si tua tions are exceptions whe re
it may be usefu l to switch o n sport mo de to
allow the w heels to spi n:
- Rockin g the vehicle to free it when i t is st uck
- Dr iv ing in deep s now o r on loose g ro un d
- Dr iving with snow chains
Sport mode off
Behavior
T he E SC and AS R sta bilization f unct io ns The fu ll sta biliz ati on f uncti on o f the ES C
are limited ¢,& .
Operation Press the [ru button .
Indicator • tur ns on.
lights
Driver mes· Stabilization control (ESC): Sport
sages Warning! Reduced stability
A WARNING
Yo u should o nly sw itch sport mo de on i f
your dr iv ing abili ties and road cond itions
permit.
- The stabilization function is limited
when sport mode is sw itched on. The
dr iv ing whee ls co uld spin and the vehicle
cou ld swe rve , especially on slick or slip ­
pery road surfaces .
(D Tips
Sport mode cannot be switched o n when
adapt ive cr uise c ontrol* is sw itched on.
-
and AS R is availab le again .
Press the
[ru button again .
II turns off .
Stabilization control (ESC): On
Braking
General information
What affects braking efficiency?
Operating conditions and driving habits
The bra ke s on today's au to m obiles a re s till
sub ject t o wear, depe nding la rgely o n ope rat ­
i ng con dit ions and d riving habits ¢
A. On
vehicles that are either driven most ly in stop­
and-go city traff ic or are driven hard , the
brake pads should be checked by your author­
ized Audi dealer more often than specif ied in
t h e
Warranty & Maintenance booklet . Failure .,._

206 Driving and en vir onm ent
Catalytic converter
Appl ies to vehicles: with gasoline e ngin e
It is very important that your emission con­
trol system (catalytic converter) is function­
ing properly to ensure that your vehicle is run­
ning in an environmentally sound manner .
.. Always use lead-free gasoline i=> page 220,
Fuel supply .
.. Never run the tank down all the way to emp-
ty .
.. Never put too much motor oil in your engine
¢ page 234, Adding engine oil .. Never try to push- or tow-start your veh icle.
The catalytic converter is an eff ic ient "clean­
up" device built into the exhaust system of
the vehicle. The catalyti c converter burns
many of the pollutants in the exhaust gas be­
fore they are released into the atmosphere.
The exclus ive use of unleaded fuel is cr itically
important for the l ife of the cata lytic convert­
e r and proper functioning of the engine.
A WARNING
T he temperature of the exhaust system is
high, both when driving and after stopping
the engine .
- Never touch the exhaust tail pipes once
they have become hot. This could result
in burns.
- Do not park or operate the vehicle in
areas where the hot exhaust system may
come in contact with dry grass, brush,
fuel spill or other material which can
cause a fire.
- Do not apply additional undercoating or
rustproofing on or near the exhaust
man ifold, exhaust p ipes, catalytic con­
verter or heat shields . During driving, the
substance used for undercoating cou ld
overheat and cause a fire.
@) Note
- Be aware that just one tank f illing with
leaded fuel will al ready seriously de­
grade the perfo rmance of the cata lytic
conve rter. -
Do not exceed the correct engine oil level
i=>page 234.
-Do not drive until the fue l tank becomes
completely empty . The engine co uld m is­
fire . Unburned fuel could also get into
the exhaust system and this cou ld cause
the catalytic converter to overheat.
- Do not switch off the ignition while the
vehicle is mov ing .
- Do not continue to ope rate your vehicle
under these conditions, as otherwise fuel
can reach the catalyt ic converter. Th is
cou ld result in overheating of the con­
verter, requir ing its replacement .
- To assure efficient operation of the Emis­
sion Control System:
- Have you r vehicle maintained p roperly
and in accordance w ith the service rec­
ommendations in your Warranty & Maintenance book let.
- Lack of prope r maintenance as we ll as
improper use of the vehicle wi ll impair
the function of the em ission contro l
system and could lead to damage.
@) For the sa ke of the en vironment
Even when the Emission Control System is
ope rat ing properly, the exhaust gas can
have a sulfur-like exhaust gas smell under
some operat ing states. This depends on
the sulfur content of the fuel being used .
Usi ng a different brand of fuel may help,
or f illing the tank with lead-free super
grade gasoline.
Diesel particulate filter
Applies to vehicles: with diese l eng ine
The diesel part icu late filter filters nearly all of
the soot pa rticles out of the exhaust . T he fil­
te r cleans itself automat ica lly unde r no rma l
dr iv ing cond itions . If the filte r cannot clean it­
self (for example, because you are on ly driving
short distances), the filter becomes clogged
with soot and the
Cl symbol for the diese l
particulate filter i lluminates
i=> page 21. ..,.

208 Driving and en vir onm ent
The consumption estimates as published
by ENVIRONMENTAL PROTECTION AGENCY
(EPA) and Transport Canada may not corre­
spond to your actual consumption on the
road, which will vary depending upon vehi ­
cle load and speed, road and weather con­
ditions, tr ip length, etc .
Drive smoothly and keep a lookout
ahead
Vehicles use the most fuel when they are ac­
celerating.
• Avoid unnecessary accelerating and braking.
Vehicles use the most fuel when they are ac­
celerating . If you anticipate what is going to
happen next, you will need to brake less and,
thus , accelerate less. Let the vehicle coast
whenever poss ible -for example when you see
that the next traffic l ight is red.
Avoid full throttle
Driving at moderate speeds saves fuel and
improves your mileage.
• Try and keep well below your car's max imum
speed .
Accelerating gently reduces fuel consump­
tion, engine wear, and does not disturb the
environment .
Fuel consumption, exhaust emissions and en­
g ine noise increase d isproportionately at high
speeds. If you dr ive at approximately three
quarters of top speed, fue l consumption will
be reduced by one half. Neve r dr ive faste r
than the posted speed limit and wea ther con­
d itions permit.
Reducing unnecessary idling
Even when your car is just idling it burns up
fuel.
• Shut the engine off when you are not dr iv ing
the vehicle. •
Do not warm up the vehicle by letting the
engine run at id le .
T he id ling phase is automatically red uced for
vehicles with the Start -Stop -System*. It is ef ­
ficient to switch off the engine in vehicles
without the Start -Stop-System when stopped
at rai lroad crossings and long red lights . Turn­
ing the engine off for just 30-40 seconds
saves more fuel than is burned by starting the engine aga in .
It takes a long time for the engine to warm up
fully when it is running at idle. However, wear
and noxious emissions are espec ially high
when the eng ine is warm ing up . So you should
drive away as soon as you start the engine and
avo id running at high rpms while the engine is
still warming up.
W Note
Do not leave engine idling unattended af­
ter start ing . If wa rning lights should come
on to indicate improper operation, they
wo uld go unheeded. Ex tended idling also
produces heat, wh ich could result in ove r­
heating or other damage to the ve hicle or
other property .
Regular maintenance
A badly tuned engine unnecessarily wastes a
lot of fuel.
• Have your veh icle serviced at reg ular in ter -
vals .
By having your ve hicle regu la rly se rviced by an
Audi dealer he lps to ensu re that it runs p rop ­
erly and economically . The condition of your
vehicle not only affects its safety and ability to
ho ld its va lue, it also affects
fuel con sump­
tion .
Ch eck your oil e ach time you
fill y our tank.
The amount of o il used is re lated to engine
load and speed.
It is normal for the oil consumption of a new
engine to reach its lowest value after a certa in
mileage has bee n driven . ..,.

212 Trailertowing
drive at the maximum permissible speed. Re­
duce your speed even more if load, weather or
wind condit ions are unfavorable -part icu larly
when going downhill.
Reduce vehicle speed
immedi atel y if the trail ­
er shows the slightest sign of swaying .
Do not
tr y to stop th e sway ing by acceler ating .
Observe speed limi ts. In some areas, speeds
for vehicles towing trailers are lower than for
regular vehicles .
A lways apply brakes early. When driv ing
downhill, shift into a lower gear to use the en­
gine braking effect to slow the vehicle . Use of
the brakes a lone can cause them to overheat
and fail.
Coolant t emperature
The coolant temperature gauge¢ page 10
must be observed carefully. The coolant tem­
perat ure can increase if you drive on long in ­
clines in a low gear at high engine speeds. Re­
duce your speed immediate ly if the L EDs in
the top part of the display turn on.
F or more in formation about indicator lights,
referto .¢page
15 .
A WARNING
Anyone not properly restrained in a mov­
ing veh icle is at a much greater risk in an
accident . Never let anyone ride in your car
who is not properly wear ing the restra ints
provided by Aud i.
Trailer towing tips
Important to know
Your vehicle hand les different ly when towing
-
a trailer because of the addit ional weight and
d ifferent weight distribution . Safety, perform­
ance and economy w ill greatly depend on how
carefully you load your trailer and operate
your ng.
Before you actually tow your trailer, practice
turning, stopp ing and back ing up in an area
away from traffic . Keep practicing until you have become completely familiar with the way
your vehicle-trailer combination behaves and responds .
Backing up is diffi cult and requ ires practice .
Backing up with a trailer gene rally req uires
steering action opposite to that when backing
up your vehicle without a tra iler.
Maintain a greater d ista nce between you r ve­
hicle and the one in front of you . You wi ll need
more room to stop. To compensate for the
trailer, you w ill need a larger than normal
turning rad ius.
When passing, remember that you cannot ac ­
ce lerate as fast as you norma lly would be­
ca use of the added load. Make sure yo u have
enough room to pass. After passing, allow
plenty of room for your trailer be fore chang­
ing lanes again .
Avoid jerky starts, sharp turns or rapid lane changes.
(D Tips
- Do not tow a trailer during the break-in
period of your vehicle .
- If you tow a trailer, your Audi may re ­
quire more frequent maintenance due to
the extra load¢
page 290.
Parking on a slope
Do not park on a slope with a trailer. If it can­
not b e avoided, do so only after doing th e fol­
lowing:
When par king:
.,. App ly the foot brake.
.,. Have someone p lace chocks under both the
vehicle and the tra iler wheels .
.,. With chocks in place, slowly release the
brakes unt il the wheel chocks absorb the
load .
.,. Turn the whee ls towards the curb .
.,. Apply the parking brake .
.,. Select the P se lector lever posit ion.
When re starting after parking:
.,. App ly the foot brake.

232 Check ing and filling
when you need it, we strongly recommend
that you always carry with you an extra quart (liter) of o il that expressly conforms to the
VW 502 00 (vehicles with gasoline engine) or
VW 507 00 (veh icles with diesel engine) spec­
ification, in case you have to top off the oil
while o n the road .
Applies to veh icles w ith g asol ine eng ine on­
l y:
Only if the level of the oil is at or below the
minimum mark on the oil dipstick - and no oil
that expressly conforms to Aud i oil standard
VW 502 00 specif ications is avai lab le - may
you top off with a high quality eng ine oil, pref­
e rably synthetic -based, that meets ACEA A3
or AP I SM specifications, but even then, only
in viscosity grades SAE SW-40, SAE SW-30, or
SAE OW-40. However, during the entire time between oi l change interva ls, never top off
with more than a total of 0.5 qt/liter eng ine
oil that does not conform to Audi oil specifica­
tion VW 502 00 .
Applies to veh icles with diesel engine onl y:
Only if the level of the oil is at or below the
minimum mark on the oil dipstick - and no oil
that expressly conforms to Aud i oil standard
VW 507 00 specifications is available - may
you top off with a high quality eng ine oil, that
meets AC EA C3 or A PI CF specifications, but
even then, only in v iscosity grades SAE
SW-40, SAE SW-30, or SAE OW-40 . However,
during the entire time between oil change in­
tervals, never top off with more than a tota l
of 0.5 qt/ liter engine oil that does not con­
form to Audi oil specif ication VW 507 00.
F or more information about engine oil that
has been approved for yo ur vehicle, please
contact either your authorized Audi dea ler or
Aud i Customer Relations at 1 (800) 822-2834
or visit our web site at www.audiusa.com or
www.audicanada.ca . Here you will a lso find a
current list of oils (manufacturers, b rand
names etc.) that conform to Audi o il standard
VW 502 00 (vehicles wi th gasoline engine) or
VW 507 00 (veh icles w ith diese l engine) .
Changing th e engine oil
The eng ine oi l and oil fi lter m ust be changed
according to the mileage (kilometers) and
t ime intervals specified in your veh icle's War ­
ranty
& Maintenance booklet. Do not exceed
these interva ls - harmful deposits from old
engine oil ca n reduce engine performance and
can lead to expensive e ngine repa irs.
Changi ng the oil at the recommended inter­
vals is so very important because the lubricat­
ing propert ies of oil decrease gradually during
normal veh icle use . If you are not sure when
you have your oil changed, ask your author­ ized Audi Serv ice Adv isor.
Under some circumstances the engine oil
should even be changed more frequent ly .
Change oil more often if you drive most ly
sho rt distances, operate the ve hicl e in dusty
areas o r most ly unde r stop-and-go traff ic con­
ditions, or when you use your vehi cle where
temperatures stay be low freezing point for
long pe riods .
Detergent addi tives in the oil will make fresh
o il look dark after the engine has been run­
ning for a short time. This is normal and is not
a reason to change the oil more often t han
recommended.
Damage or malfunction s du e to l ack of
maintenance
It is essentia l th at you c hange yo ur oil at the
recommended intervals using on ly eng ine oil
t h at complies with Audi oil standa rd
VW 502 00 (veh icles with gasoline engine) or
VW 507 00 (vehicles wit h diese l engine). Your
Limited New Veh icle Warranty does not cover
damage or malfunctions due to fail ure to fo l­
low recommended maintenance and use re­
quirements as set forth in the Audi Owner's
Manual and Warranty
& Mai ntenance booklet.
Your dealer w ill have to deny wa rranty cover­
age unless you present to the dealer proof in
t h e form o f Service or Repair Orders that all
scheduled maintenance was performed in a
timely manner.

.... N .... N
0 J:
'SI: .... \!) 1.1'1
.... 1.1'1 ,....,
-The oil filler cap must be properly se­
cured to prevent oil from being sprayed
on the hot engine and exhaust system
when the engine is running - fire hazard!
-If your skin has come in contact with the
engine oil, you must subsequently
cleanse it thoroughly .
@ Note
-Check the oil level. If the message
Please reduce oil level appears, contact
your authorized Audi dealer or other qualified workshop to have excess oil ex ­
tracted if necessary .
-Audi does not recommend the use of oil
additives. They may damage the engine
and adversely affect your New Vehicle
Warranty.
@ For the sake of the environment
-Under no circumstances can the oil come
in contact with the sewage network or
the soil.
- Observe and follow legal regulations
when disposing of empty oil containers.
Changing the engine oil
We recommend that have your oil changed by
an authorized Audi dealer or a qualified serv­
ice station .
Before you check anything in the engine com ­
partment,
always read and heed all WARN­
INGS
~ .&. in Working in the engine compart­
ment on page 228.
T he engine oil must be changed according to
the intervals specified in your Warranty
&
Maintenance booklet . This is very important
because the lubricating properties of oil di­
minish gradually during normal vehicle use.
Under some circumstances the engine oil
should be changed more frequently . Change
oil more often if you drive mostly short dis­
tances , operate the vehicle in dusty areas or
under predominantly stop-and-go traffic con­
ditions , or have your vehicle where tempera-
Checking and filling 235
tu res remain below freezing for extended pe­
riods.
Detergent additives in the oil will make fresh
oil look dark after the engine has been run­ ning for a short time. This is normal and is not
a reason to change the oil more often than
recommended.
Because of the problem of proper disposal,
along with the special tools and necessary ex­
pertise requir ed, we strongly recommend that
you have your oil changed by an authorized
Audi dealer or a qualified service station.
If you choose to change your oil yourself,
please note the following important informa­
tion:
_& WARNING
To reduce the risk of personal injury if you
must change the engine oil in your vehicle
yourself:
- Wear eye protection.
- To reduce the risk of burns from hot en-
gine oil, let the engine cool down to the
touch.
- When removing the oil drain plug with
your fingers, stay as far away as possible.
Always keep your forearm parallel to the
ground to help prevent hot oil from run­
ning down your arm.
- Drain the oil into a container designed
for this purpose, one large enough to hold at least the total amount of oil in
your engine .
- Engine oil is poisonous. Keep it well out
of the reach of children.
- Continuous contact with used engine oil
is harmful to your skin. Always protect
your skin by washing oil
off thoroughly
with soap and water.
(D Note
Never mix oil additives with your engine
oil. These additives can damage your en­
gine and adversely affect your Audi Limit­
ed New Vehicle Warranty .
•
•

.... N .... N
0 J:
""'. .... I.O
"' ....
"' ....

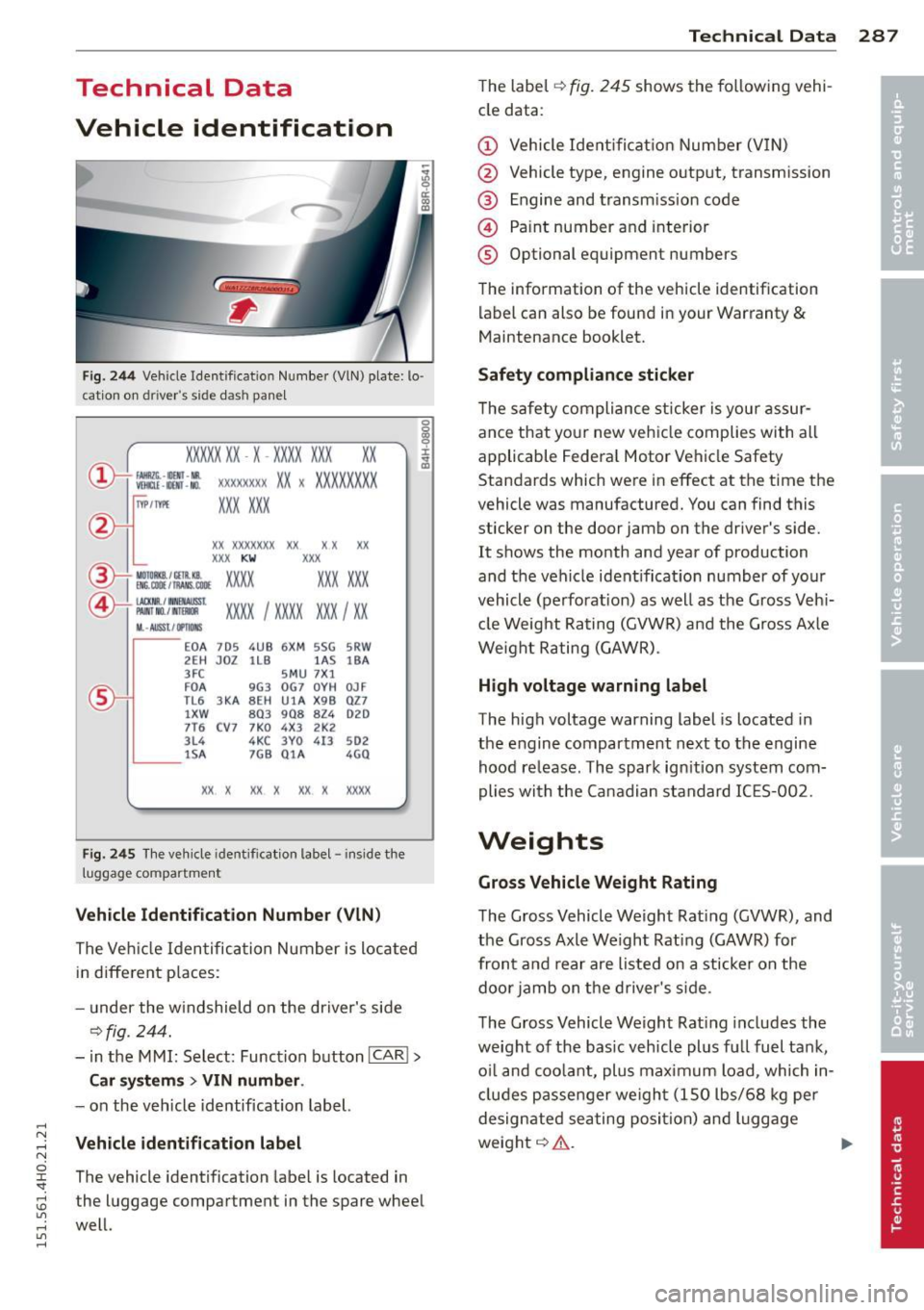

Technical Data
Vehicle identification
F ig. 2 44 Veh ide Identificat ion Numbe r (VlN) plate: lo ·
c ation on dri ver 's s ide das h pane l
XXXXX XX · X -XXXX XXX
~ fAllftlli. -llllll · NR. ~ W!ru -llllll -NO.
xx
XXXX XXXX XX X XXXXXXXX
XXX XXX
IYP /TYPE
XX XXXXXXX XX X X XX
XXX KW XXX
®i ~W.::·f :l~~ XXXX XXX XXX
©+ ::rw= xxxx I xxxx XXX I xx
M. · AUSSt I IJ'IIDIIS
~--
EOA 7D 5 4UB 6XM SSG SRW
2E H JDZ 1LB lA S 1BA
3FC SMU 7X l
FD A 9G3 OG7 OYH OJF
TL6 3 KA 8EH UlA X98 027
lXW 803 908 824 D2D
7T6 CV7 7KO 4X3 2K2
3L4 4KC 3YO 413 502
1S A 7GB 01A 4GO
XX. X XX X XX X XXXX
Fig. 245
T h e vehicle identification label - inside the
luggage co mpartment
Veh icle Id entifica tion Numb er (VlN )
The Veh icle Iden tifica tion Number is located
in different p laces :
- under the w indshield on the driver's side
~fig. 244.
- i n the MMI: Select: Function button ICAR ! >
Car syste m s> VIN numb er.
- on the vehicle identification label.
V ehicle ident ific ation lab el
The vehicle identification label is located in
the luggage compartment in the spare wheel
well.
Te chni cal Data 28 7
The label ~ fig. 245 shows the fo llowing vehi ­
cle data :
(D Vehicle Ident ifi cat ion Number (V IN)
@ Vehicle type , engine output, transmission
@ Engine and transm ission code
@ Paint number and interior
® Optional equipment numbers
The information of the vehicle identification
label can also be found in your Warranty
&
Maintenance booklet.
Saf ety compliance sticker
T he safety compliance sticker is your assur ­
ance that your new veh icle complies with all
applicable Federa l Motor Vehicle Safety
Standards which were in effect at the time the
vehicle was manufactured. You can find this
sticker on the door jamb on the driver's side.
It shows the month and year of production
and the vehicle ident ificat ion number of your
vehicle (perforat ion) as well as the Gross Veh i­
cle Weight Rating (GVWR) and the Gross Axle
Weight Rating (GAWR) .
High volt age warning lab el
The high voltage warning label is located in
the engine compartment next to the engine
hood re lease. The spark ign ition system com­
plies with the Canadian standard IC ES-002.
Weights
Gro ss Vehicle Weight Rating
The Gross Vehicle Weight Rat ing (GVWR), and
the Gross Axle Weight Rating (GAWR) for
front and rear are listed on a sticker on the
doo r jamb on the driver's s ide.
The Gross Vehicle Weight Rat ing includes the
weight of the bas ic vehicle plus fu ll fuel tank,
o il and coo lant, plus maximum load , which in­
cludes passe nger we igh t (1 50 lbs/68 kg pe r
designated sea ting position) and luggage
weight ~.& -
II>
